Standardize a Cutting Room’s Blade Pattern

Support classification: the seven registered blades are selection candidates, not a seven-item shopping list. The material specification, station, guard or restraint system, inspection tools, edge-maintenance equipment, PPE, sharps container, and purchasing records are required process support, not Hyde product recommendations.

Evidence boundary: Hyde documents pattern names, steels, and the dimensions or gauge claims carried in the linked product guides. This guide supplies a qualification and control method; it does not manufacture operating limits.

Job: qualify the smallest defensible set of blade patterns for a plant cutting room, assign each approved blade to a defined operation, and turn the decision into controlled MRO reorders without undocumented substitutions.

Result: every station has an approved blade model, pattern, steel class, host handle, extension setting or setting method, inspection rule, and reorder identity; operators can explain why it is there; receiving can reject the wrong item; and any change returns through qualification instead of drifting onto the floor.

Time: there is no universal duration. A paper review may reject an unsuitable candidate immediately; a production qualification must run long enough to expose the actual cut-quality, heat, wear, handling, and change-frequency behavior of the operation. Do not compress the trial to a purchasing deadline or stretch it to an arbitrary hour count.

Difficulty: high-consequence process control. Choosing a sharp pattern is easy. Proving that it cuts the actual material, in the actual handle, at the actual station, without unacceptable injury exposure, product damage, heat rounding, excess force, or undocumented substitution is the work.

Everything else required: an identified production material and lot; approved drawings or cut-quality criteria; the current blade and its last package or reorder record; a physically verified compatible handle; guarded or restrained workholding appropriate to the station; same-lot trial stock; receiving and inspection tools; approved honing equipment; a rigid puncture-resistant blade-disposal container; the employer’s training and PPE program; maintenance and purchasing owners; and a controlled place for the master card, revision history, and retained trial evidence.

Freeze the problem before choosing a blade

Standardization starts with the operation, not the catalog. Walk each station and make one record for each genuinely different cut. Do not merge stations merely because both operators say “trim,” and do not split identical work because two departments have always ordered separately.

For each operation, record:

What enters the cut: material maker, construction, thickness or build-up as the material specification defines it, reinforcement, coating or adhesive, conditioning state, lot, and any hard inclusions. Do not infer composition by appearance.

What the cut must do: edge-start slit, straight trim, radiused or concave contour, or inside-field plunge followed by a draw. These are different point-geometry problems.

What acceptable work looks like: line tolerance, edge finish, intact reinforcement, absence of drag marks, contamination limits, and the downstream process the edge must survive.

How the work is held: support, guide, restraint, hand locations, cut direction, release path, scrap path, and clearance beneath a piercing cut.

What fails today: blade deflection, stock puckering, point breakage, side loading, heat-rounded edge, ordinary dulling, rust, handle movement, poor contour tracking, excess changes, wrong-model receipts, or operator workarounds.

What is already controlled: the exact model or pattern on the last accepted box, approved handle, training document, inspection interval, and purchasing description. Preserve the old package and a known-good blade during the study.

The incumbent is evidence, not automatically the answer. A legacy card reading BG349 is a strong reason to keep 57170 under control, because the designation is part of the plant’s specification. It is not proof that 57170 performs differently from the dimensionally identical 57090.

Put safety into the qualification record

OSHA requires employers to assess workplace hazards, select PPE for the hazards found, communicate the selection, and train affected employees; its hand-protection rule makes task, conditions, duration, and identified cut or puncture hazards part of glove selection (OSHA 29 CFR 1910.132; OSHA 29 CFR 1910.138). “Cut resistant” is not a universal rating or permission to put a hand in the line.

If the blade station is integrated with powered equipment, keep hands out of the point of operation and preserve the machine’s guarding; OSHA’s general machine-guarding rule requires protection from point-of-operation and other machine hazards (OSHA 29 CFR 1910.212). A blade change or jam clearance that exposes a worker to unexpected energization belongs under the site’s energy-control determination and procedure, not an informal “machine off” habit (OSHA 29 CFR 1910.147). These rules do not select a blade model; they set boundaries the trial may not trade away for throughput.

Reduce the seven candidates by job axis

Make the first cut on paper. Pattern, gauge, and steel answer different questions; do not use one axis to solve another.

Point geometry: where does the cut start, and does the line turn?

Straight, edge-start station work: begin with a bevel-point candidate. The working corner enters from an accessible edge and the straight run draws the cut.

Radiused, swept, or concave lines: evaluate the curve-point 57320. Its geometry is the selection reason; it is not a general upgrade over a bevel point.

Inside-field starts: evaluate the lance-point 57600 only where the process deliberately pierces away from an edge and has controlled clearance beneath. A lance point is an entry tool, not a substitute for a bevel point on ordinary edge starts.

If the operation does not need a point, stop. Do not force one of these blades into a process that exists to protect an underlying layer from puncture.

Gauge: should the blade follow or hold its line?

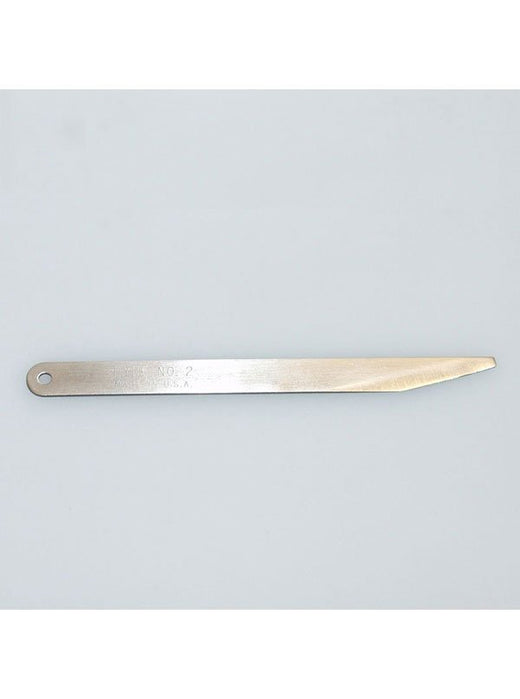

Within the documented #2 carbon bevel-point pair, 57060 is .035-inch/20-gauge and 57090 is .049-inch/18-gauge. The lighter 57060 is the candidate for light, conformable stock where some following action is useful. The stiffer 57090 is the candidate where dense stock pushes a light blade off line. That is a trial hypothesis, not a capacity statement. The actual material must prove it.

Do not turn “18 gauge” into “heavy duty for anything,” and do not turn “20 gauge” into a maximum material thickness. Extension from the handle also changes the working feel, so compare candidates at a documented, controlled stand-out rather than letting each operator choose a favorite exposure.

Steel: is heat or tough cutting actually killing the carbon edge?

Carbon is the baseline. HSS earns a trial when the process evidence indicates high heat or tough cutting is shortening useful edge life; Hyde’s load-bearing family claim for 57200 and 57230 is “Best steel for high heat and tough cutting applications.” HSS does not make the point sharper, the blade wider, or the station faster by itself. It does not cure wrong geometry, poor restraint, a damaged handle, excessive exposure, side loading, or a bad honing method.

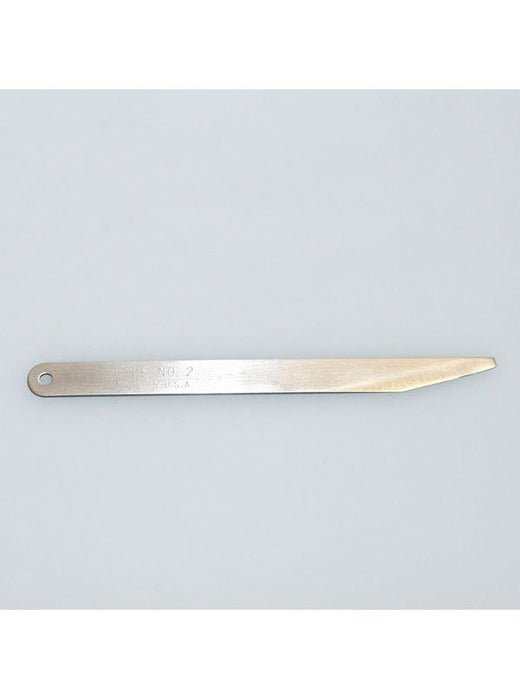

Use 57200 when the operation needs the documented 18-gauge #2 bevel-point geometry and the carbon 57090 trial shows a heat/tough-cutting failure worth solving. Do not preemptively standardize HSS across the room because one station runs hot.

The fact extraction reports 4-3/4 inches × 3/8 inch × .049 inch, while the printed catalog reports 4-3/4 inches × 5/16 inch × .035 inch. Those describe materially different width and stiffness classes.

Designation: never invent equivalence

57090 and 57170 are nondiscriminated on the present evidence. Both are listed at 4-3/4 inches × 3/8 inch × .049 inch. The documented difference is the designation: #2 versus BG349. No accepted source establishes a grind, profile, tolerance, or performance distinction.

keep 57090 as the #2 candidate where the operation or existing card calls for #2;

keep 57170 as the BG349 candidate where the plant specification calls for BG349;

do not claim one cuts better, lasts longer, or fits differently;

do not approve substitution in either direction merely from the shared dimensions;

route any proposed equivalence through Hyde confirmation and the plant’s change process.

This is not indecision. It is control of a pattern number whose undocumented detail may be the reason a customer has reordered it for years.

Qualify the blade, handle, and process as one system

The catalog states that the line’s flat-sided hardwood handles accept 5/16-inch and 3/8-inch mill blades. It does not state how the wood handles retain the blade.

Before a cutting trial, inspect the actual handle and actual blade together under the site’s approved method. The blade must seat, remain captured through the intended load and direction, preserve the required exposure, and show no looseness, splitting, damaged seat, corrosion, or improvised modification. If retention cannot be identified and verified, the setup does not advance to a hand trial. Do not copy the adjacent metal-handle set-screw description onto a wood handle.

Run qualification in controlled stages:

For 57230 and 57320, record actual measured dimensions without pretending the measurement adjudicates Hyde’s conflicting source records.

Same-stock bench sample. Use the real production material in its normal conditioned state. Make the actual edge start, contour, or plunge over the approved support. Reject any candidate that requires off-path force, excessive exposure, prying, or a hand in the release line.

Quality sample. Cut enough representative shapes to expose straight tracking, turns, starts, exits, reinforcement behavior, and downstream edge acceptance. Inspect against the defined criteria, not “looks good.”

Controlled station run. Place the candidate in the intended station with the approved operator and safeguards. Increase only through the site’s authorized production steps. This guide supplies no speed or quantity.

Wear and heat review. At each defined stop, record cut quality, operator force or control observations, blade temperature condition if the plant measures it, edge rounding, nicks, chipping, point damage, corrosion, handle movement, re-honing work, and reasons for removal.

Post-run accounting. Recover the blade, fragments, scrap, and rejected stock. Inspect the host handle before return to service. Quarantine any blade or handle involved in unexplained movement, breakage, or out-of-control cutting.

Compare candidates on a common process window. A blade is not “better” because its trial used a different material lot, shorter extension, sharper starting edge, slower line, more experienced operator, or looser quality criterion. Record those variables or rerun.

For 57320, the curve-point #1 role and 20-gauge/.035-inch claim are supported, but width conflicts: store/fact material says 3/8 inch while the printed catalog says 5/16 inch.

For 57600, Hyde supports lance-point #2, 18-gauge high-carbon chrome-vanadium steel, and 4-3/4 inches × 3/8 inch × .049 inch. The alloy is documented; a claim that it survives a particular shock count, flex cycle, material, or production rate is not. Qualify it on the inside-start operation itself, with sacrificial clearance and a controlled transition from pierce to draw.

Make the standard a controlled operation card

Do not issue a room-wide “preferred blade” unless every room operation is truly the same. The useful standard is usually a small matrix: one approved pattern per defined cut, with a named alternate only where separately qualified.

For each approved assignment, the master card should contain:

operation and station identifier;

approved Hyde model and exact printed pattern designation;

point geometry and documented steel class;

accepted dimensions or an explicit unresolved-conflict flag;

approved host handle identity and the site’s verified retention/setup method;

blade-extension setting or controlled method for setting it;

material specification and conditioning state covered by the trial;

cut-quality criteria and inspection method;

approved honing and removal criteria;

required safeguards, PPE determination, and training reference;

reorder description copied exactly from the approved identity;

A defensible first-pass disposition looks like this:

| Model | Standardization role | Control status |

| 57060 | Straight, edge-start bevel-point candidate for light, conformable stock | Qualify on actual stock; no thickness or rate capacity inferred |

| 57090 | Straight, edge-start 18-gauge #2 carbon candidate where stock pushes back | Carbon baseline; no substitution with BG349 by dimensions alone |

| 57170 | BG349-controlled station candidate | Use where the approved spec names BG349; no invented distinction from 57090 |

| 57200 | 18-gauge #2 HSS candidate | Upgrade only for proved high-heat/tough-cutting need |

| 57230 | HSS 6522M pattern | Verification hold for conflicting width/gauge; legacy-spec use requires physical/control confirmation |

| 57320 | Curve-point #1 candidate for contour work | Width conflict stays visible; qualify geometry and actual host, not an invented width |

| 57600 | Lance-point #2 candidate for controlled inside starts | CrV is documented; no invented shock, flex, or production capability |

Build the MRO loop around identity, not resemblance

Once approved, purchasing orders the exact model and pattern string. Receiving matches the purchase record to the package, counts and inspects under the plant’s procedure, and quarantines wrong codes, damaged points, mixed loose blades, unreadable packages, or unexplained dimensional differences. A box that “looks close” is not accepted into controlled stock.

Store each approved model in a separate labeled location. Keep conflicts physically separated: 57090 and 57170 must not share an unlabeled bin, and 57200 and 57230 must not be treated as one HSS pile. Protect points and edges from contact, moisture, and uncontrolled loose handling. Issue against a station or operation so consumption can be traced.

Set minimum and reorder quantities from observed use, supplier lead time, required safety stock, and the plant’s service target. This guide provides no box quantity, demand rate, or reorder point. Count in the unit purchasing actually controls and reconcile opened packages, issued blades, returned blades, blades in honing, quarantined items, and disposed blades.

The return loop matters as much as the issue loop. Mark why each blade left service: ordinary dulling, heat rounding, point damage, chip, bend, corrosion, handle movement, process change, or unidentified failure. That record is what justifies an HSS trial, a gauge review, additional training, or a stop. Without failure coding, “we go through a lot of blades” is not a specification.

Change control: what sends the blade back through qualification

Freeze the approved card, then define its triggers. Requalification is required when any load-bearing part of the system changes, including:

model or pattern substitution, even between 57090 and 57170;

steel-class change from carbon to HSS or back;

supplier notice, package-label change, unexplained dimensional change, or mixed identity;

resolution of the 57230 or 57320 source conflict;

new material, reinforcement, coating, adhesive, thickness class, conditioning state, or downstream quality requirement;

different cut geometry, station, guide, restraint, handle, retention method, extension method, or honing process;

throughput change that alters heat, force, edge life, or operator control;

recurring cut defect, point breakage, blade movement, injury, near miss, or operator workaround;

Emergency use does not erase the record—if the site authorizes a temporary deviation, identify the exact station, material, model, duration, controls, and return condition.

Audit the system at the floor, not only in the purchasing database. The blade in the handle, package in the drawer, model on the card, and operator’s explanation must agree. A clean spreadsheet with a mixed bin is a failed standard.

What goes wrong—and the fix

“The two 18-gauge carbon blades are the same size, so we consolidated them.” Undo the substitution. 57090 is #2 and 57170 is BG349; no accepted source proves physical equivalence.

“We made HSS the room standard because it lasts longer.” The conclusion outruns the evidence. HSS is Hyde’s high-heat/tough-cutting choice. Return ordinary stations to their qualified baseline unless their own wear evidence supports HSS.

“The 6522M description in our system has one size, but the box or catalog has another.” Quarantine 57230 from new size-dependent assignments. Preserve both source readings, measure the physical receipt for receiving control, and obtain Hyde adjudication; do not silently overwrite the conflict.

“The curve blade fits the handle, so its disputed width no longer matters.” Fit does not resolve product identity. The handle accepts both candidate widths. Keep the 57320 width conflict on the card until Hyde resolves it.

“Operators keep extending the blade farther to get through the stock.” Exposure is being used as invented capacity. Stop, inspect the edge and host, review gauge and geometry, and requalify the process rather than adding uncontrolled reach.

“Blade life varies wildly by shift.” Normalize material lot, starting edge, extension, station condition, honing, operator method, and removal criteria. Failure-code the returns before changing steel.

“A replacement handle looks like the old one, but nobody can explain how it retains the blade.” Do not trial it. Verify the actual host and approved setup first.

“Receiving put all bevel points in one bin.” Stop issue, sort by exact model and pattern, inspect for mixed or damaged blades, and restore separate labeled locations. Shape class is not reorder identity.

“The alternate worked for one emergency cut.” One successful cut is evidence input, not a standard. Run the defined quality, station, wear, and safety qualification before adding it to the card.

History footnote: why the number is the product

Industrial pattern numbers predate modern feature copy. They let a cutting room ask for the same shape again without redrawing it: #1 and #2 size ladders, trade codes such as BG349 and 6522M, and named shapes such as bevel, curve, and lance. That continuity is why an unresolved code difference deserves restraint rather than creative merchandising.

HSS added a separate steel axis around 1900, when Taylor and White’s heat-treatment work at Bethlehem Steel established tool steel that retained hardness at cutting temperatures. The point pattern still told the shop *how the blade met the work*; the steel choice began to answer *what happened when the edge ran hot*. The line document carries the fuller history and citations. This guide keeps the operational lesson: pattern, gauge, and steel are separate controlled decisions.

The wood-handle retention mechanism remains unpublished and must be verified on the actual approved host. Material, station, workholding, inspection, maintenance, PPE, disposal, training, and controlled-record systems remain required workflow support, not silently added Hyde product recommendations.

Local product-link denominator: 11 models = 7 registered blade leads + 4 necessary handle dependencies. No other Hyde product is linked or implied as part of this guide’s controlled set.
