Fit, Set, and Flip a Hook Blade in a Mill-Blade Handle

The printed Hyde catalog proves blade and handle width classes, not an exact pattern-to-handle compatibility table. The four 576xx wood handles add two unresolved points: their blade-retention mechanism is not stated, and no source confirms that a hooked end passes their slots.

This guide teaches an industrial changeover only after compatibility, retention, exposure, energy control, and PPE have been resolved by the employer's task-specific procedure. It does not replace the handle instructions, machine manual, energy-control procedure, hazard assessment, or competent supervision. No price, stock, package quantity, torque, maximum material thickness, or production claim is stated.

The result

A correctly completed changeover leaves one verified hook blade seated square in one compatible handle, retained by the handle's documented mechanism, with only the working hook/throat exposed as far as the approved cut requires; the unused hook of a verified double-end blade is contained by the handle. The assembled tool passes pre-use inspection and the site's retention and scrap-cut checks. The removed blade or spent end is accounted for and either stored, reconditioned under an approved method, or placed in the site's rigid sharps container.

A changeover is not complete because the blade width seems close, because the blade enters the slot, because the screws can be tightened, or because the assembly survives one pull. Those observations cannot prove pattern fit, retention under load, adequate engagement, or approved exposure. When the exact combination is absent from the plant's validated standard, Hyde confirmation or a documented competent-person qualification is the next step—not a shim, a forced slot, or a trial cut in production.

Resolve the exact blade before touching a fastener

Read the model and pattern from the blade packaging, station card, or controlled parts record.

| 67240 | Hook Mill Blade BG448A | 6-3/8" × 5/8" × .065" | Steel unmarked.

An end-for-end flip is permitted only after host compatibility, remaining-hook condition, seating, and exposure are reverified. |

| 67450 | Double End Hook Blade Extension Blade 4502M | 4" × 3/8" × .035" | Double-end and High-Speed Steel are printed facts. Same mounting and flip controls as 67390; HSS changes wear life, not the safe procedure. |

The 67390 and 67450 differ on two documented axes only: pattern code and the 67450's printed HSS designation. Their length, width, and thickness are identical. Do not claim one has a deeper throat, tighter radius, different hook opening, different bevel, or different material capacity; no held source supplies those distinctions. Match an incumbent plant pattern exactly. On a new station, qualify the pattern against the actual material and controlled process before release.

Failure-mode selection is not fitment. A rounded 67390 hook on abrasive stock may justify an HSS trial with 67450. A .035" blade that bends or stalls may point toward the heavier 67240 system. Neither observation proves the replacement fits the current handle: moving from 3/8" to 5/8" changes the handle class, and changing pattern still requires the station's compatibility control.

Resolve the handle—and stop where the evidence stops

Do not insert, force, shim, grind, or “test” the pair.

| 63055 | MAXXGRIP PRO®; for 9/16" and 5/8" blades; slotted set-screw length adjustment | WIDTH-MATCH / METAL RETENTION DOCUMENTED | REFUSE | REFUSE |

| 63085 | MAXXGRIP PRO®; for 5/8" and 3/4" blades; slotted set-screw length adjustment | WIDTH-MATCH / METAL RETENTION DOCUMENTED | REFUSE | REFUSE |

| 63170 | Wood/aluminum BG15; holds 3/8" blade; slotted set screws for positive blade-length adjustment | REFUSE | WIDTH-MATCH / METAL RETENTION DOCUMENTED | WIDTH-MATCH / METAL RETENTION DOCUMENTED |

| 63175 | MAXXGRIP PRO®; for 3/8" blade; slotted set-screw length adjustment | REFUSE | WIDTH-MATCH / METAL RETENTION DOCUMENTED | WIDTH-MATCH / METAL RETENTION DOCUMENTED |

This table admits exactly two 5/8" model-pair candidates—67240 with 63055 or 63085—and twelve 3/8" width-match candidates—67390 or 67450 with each of six 3/8" handles. The other ten crossings in the 8 × 3 table are refused by width. The twelve 3/8" candidates split again into four metal-handle candidates with documented set-screw classes and eight wood-handle candidates whose retention and hook passage remain unverified. The count matters because “all six take 3/8"” must never collapse the stronger wood-handle uncertainty.

What counts as compatibility proof

Use the strongest available route:

The exact blade pattern and handle model appear together in a current Hyde instruction, drawing, fit chart, or written Hyde IBS confirmation; or

the employer's controlled station standard names the exact pair and records who qualified it, the qualification basis, approved seating/exposure, retention method, inspection criteria, and material/process boundary; or

a competent person qualifies the pair under the employer's change-control process before production, using the manufacturer and machine requirements.

Width match is a screen, not proof. A blade that slides into a slot can still have inadequate buried engagement, an obstructed hook, wrong retaining geometry, insufficient fastener contact, or an exposed spare end. A station's history with 6520 does not automatically qualify 4502M merely because both are 4" × 3/8" × .035"; pattern continuity is itself part of the evidence.

Hard refusals

No 67240 in any 576xx, 63170, or 63175 handle: 5/8" does not belong in a 3/8" class.

No shims, foil, tape, improvised liners, peening, or doubled blades to make a narrow blade fill a wide slot.

No filing, grinding, spreading, heating, or drilling a handle to admit a blade.

No grinding a blade narrower or altering its tang to make it seat.

No use of the 57620/57630/57660/57680 from this guide alone.

No distinction between 57660 and 57680 beyond their opaque pattern codes.

No end-for-end flip of 67240 based only on its appearance.

No bare-hand use of any blade. A blade is a component; the validated handle and retention system make it a tool.

Decide whether this is a bench change or hazardous machine servicing

The safest routine is to remove the complete handle from the production point and change the blade at a dedicated, well-lit bench with a rigid sharps container and the approved holding/change fixture. If the handle is fixed to a machine, enters a guarded area, is changed inside a machine frame, or the worker could be exposed to unexpected startup, motion, pressure, gravity, spring force, heat, electrical energy, or stored material tension, the change is servicing under the machine's energy-control procedure.

Machine-servicing entry condition

Only an employee authorized and trained under the employer's procedure performs the isolation:

Identify the machine, scope, energy sources, magnitude, hazards, isolation points, stored-energy controls, and affected employees from the machine-specific procedure.

Notify affected employees and shut the equipment down normally.

Operate the actual energy-isolating devices. A stop button, selector, interlock, light curtain, emergency stop, or software command is not by itself an energy-isolating device.

Apply the authorized employee's lockout/tagout devices under the site procedure.

Dissipate, restrain, block, bleed, discharge, or otherwise control stored and residual energy—including gravity, springs, pneumatic/hydraulic pressure, rotating elements, and tensioned stock.

Verify effective isolation by the procedure's affirmative method before reaching into the machine. Merely seeing a disconnect in “off,” a status light, or a lock is not the verification step.

Return controls to neutral/off after the verification attempt and maintain personal control of the isolation for the entire change.

This is a boundary, not a generic lockout recipe. OSHA 29 CFR 1910.147 requires the employer's energy-control program and machine-specific application; its Appendix A is a typical minimum procedure, not permission to improvise one. If the machine-specific procedure, authorized status, isolation point, stored-energy control, or verification method is missing, stop. A hook blade is not urgent enough to invent hazardous-energy control.

The production-use boundary

Even after changeover, a hand tool does not authorize a hand in a danger zone. Machine guarding remains in place in normal production. OSHA's general machine-guarding rule treats special hand tools as supplements to required guarding, not substitutes. If the intended use requires bypassing a guard, reaching into an in-running nip, holding stock near rotating parts, or relying on the handle's length to stay “far enough away,” reject the operation and redesign the cut point or procedure.

Stage the change bench, tools, and PPE

Bench and controls

Clean, dry, stable, and brightly lit work surface, outside traffic and away from an exposed product stream.

Controlled station card naming the approved blade pattern, handle model, exposure/seating rule, fastener method, inspection criteria, and material/process boundary.

Correct screwdriver or manufacturer-specified tool that fully fits the fastener slot; no coin, knife tip, worn driver, or pliers.

Approved blade-holding or change fixture where the site provides one.

Rigid, closable, puncture-resistant sharps container within reach before the old blade is exposed.

Container or tray for reusable blades that protects both hooks and identifies which end is spent.

Scrap of the actual approved material, or controlled test stock, for the post-change test.

Cleaning method compatible with blade, handle, grip, process chemistry, and product contamination controls.

PPE: hazard-assessed, not guessed

OSHA 29 CFR 1910.138 requires hand protection selected for the task, conditions, duration, and identified hazards. For this change, the employer's assessment decides glove material, cut performance, coverage, dexterity, and whether chemical or thermal protection is also needed. This page does not invent an ANSI/ISEA cut level. A glove is cut-resistant, never cut-proof; keep every hand out of the hook's travel path.

Use eye protection with side protection when the assessment identifies a flying-object risk from a chipped blade, released fragment, fastener, or test cut, consistent with 29 CFR 1910.133. Add face, chemical, thermal, footwear, hearing, or body protection only from the actual task and site assessment. PPE does not cure an incompatible handle, uncontrolled energy, a damaged blade, or a hand placed in the pull path.

Glove/entanglement boundary: the blade change occurs at the isolated change bench or under effective lockout, not beside moving shafts or rolls. Do not convert a cut-protection recommendation into permission to wear a glove near an entanglement hazard.

Inspect before disassembly

Do not loosen the handle until the replacement identity and approved pairing are confirmed and the sharps container is open and reachable.

Handle inspection

Clean only by the approved method, then inspect:

model identity legible and consistent with the station card;

slot and seating faces clean, dry, and free of packed fiber, adhesive, corrosion, burrs, cracks, spreading, or deformation;

aluminum/die-cast body free of cracks, impact damage, or distortion;

MAXXGRIP soft surface secure and free of splits, swelling, chemical attack, oil, or tackiness that compromises grip;

hardwood grip or body free of splits, looseness, swelling, severe checking, burns, embedded contamination, or oil saturation;

every documented retaining fastener present, correct, undamaged, and able to turn without binding;

fastener heads not stripped and threads not crossed, pulled, or visibly damaged;

blade does not creep, rock, or rotate in the as-found assembly.

Quarantine a handle with a cracked casting, split/loose wood, deformed slot, missing fastener, damaged thread, stripped head, chemical damage, or unexplained blade movement. Do not “get one more shift” by over-tightening.

Blade inspection

Keep the edge controlled and inspect without running a finger along it:

model/pattern and width match the approved record;

body is straight, flat, and free of twist, bend, buckling, corrosion pits, heat color, cracks, or unauthorized grinding;

on 67390/67450, inspect both hooks—the spare end must be sound before it is buried, and the spent end must not be able to injure the hand when it becomes the buried end;

no hard inclusion, adhesive mass, or contamination prevents full seating or interferes with retention;

no missing fragment. If a chip or break is found, stop and account for the fragment under the site's foreign-material and equipment-inspection procedure.

Do not re-use a bent or cracked blade. Do not straighten, weld, braze, torch, or grind a damaged hook back into service under this guide.

Remove the old blade without creating a second edge hazard

Position the handle so the exposed hook points away from the torso, off hand, and anyone else. Keep the projected release path clear.

Secure the handle in the approved change fixture, or control it by the site method. Never clamp across a soft grip, crush a wood handle, or put a bare hook in an unprotected vise unless the manufacturer/site procedure specifies that fixture.

Support the blade with the approved edge-safe holder. Do not pinch the throat between fingers.

With the correct driver, relax the documented retaining fastener(s) only enough to release the blade. Do not remove loose hardware over an open machine or product.

Withdraw the blade along the slot axis. Do not twist, lever, or rock a hooked end through a tight opening.

Move the blade immediately to the protected inspection tray or rigid sharps container. Never set it loose on the bench, in a pocket, or under a rag.

Inspect the now-visible slot and fasteners again. Packed debris or a damaged contact face discovered here invalidates the change until corrected.

Fit and set the approved blade

Metal set-screw handles: 63055, 63085, 63170, 63175

Reconfirm the exact admitted pair from the compatibility matrix and station standard:

67240 → 63055 or 63085, subject to exact-pair qualification;

67390 or 67450 → 63170 or 63175, subject to exact-pair qualification.

Orient the blade exactly as the validated cut and handle procedure specify. The hook opens into the intended pull, the back protects what must survive, and the projected follow-through passes clear of the body and off hand.

For 67390/67450, select the approved working hook. Keep the other hook fully contained by the handle after seating. If the spare end cannot be contained without compromising required engagement, the pair or exposure is invalid.

Insert the blade straight into the clean slot to the approved seating depth. Do not use a fastener to draw a crooked blade into place.

Set the minimum approved exposure: clear the working throat for the cut and no more.

Engage the documented slotted fastener(s) evenly with the correct driver. Where the physical validated handle has two screws, tighten both; never leave one as a pivot. Use the manufacturer's/site torque if one exists. This guide invents no torque and does not authorize “as tight as possible.”

Confirm the blade remains square and did not creep outward or rotate while tightening.

Perform the site's non-cutting retention check with the approved holder/fixture—not by pulling the hook toward a hand. Any movement, click, rock, or change of exposure is a failed assembly.

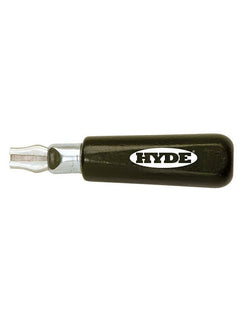

Flat-sided wood handles: 57620, 57630, 57660, 57680

This guide does not provide a mounting sequence for them. Before either hook pattern is used, obtain and record:

Hyde/site confirmation that the exact pattern is accepted by the exact handle;

the actual retention mechanism and correct operating method;

proof the hooked end passes the slot without forcing or edge contact;

approved seating depth, spare-hook containment, and exposure;

inspection and retention-test criteria.

If any item is absent, select a qualified 3/8" metal-handle route or stop for manufacturer confirmation. The correct response to missing fit data is not to copy the 63170 procedure because both handles contain wood.

Flip only the blades proven to be double-end

An end-for-end flip is a wear-management changeover, not a way to rescue a chipped, bent, contaminated, or incompatibly mounted blade.

67390 and 67450

Stop the process and return to the full energy-control/change-bench entry condition. A “thirty-second flip” still exposes two hooks and still requires isolation where hazardous energy exists.

Record which pattern and working end came out.

Remove the blade by Section 6 and inspect the body and both hooks by Section 5.

Read the used end:

rounded/polished edge → abrasive wear; review flip interval and hooks consumed per shift. A 67390 station may justify a separately controlled 67450 HSS trial;

rolled edge/burr → excessive force, wrong angle, inadequate support, or material loading; correct the process;

chip/crack/missing fragment → quarantine, account for fragments, inspect stock/machine, and investigate side load, levering, inclusions, or contact. Do not flip and bury the evidence;

If the second hook is sound and the body remains serviceable, rotate the blade end for end. Do not flip it face-to-face or reverse bevel orientation unless the validated pattern instruction expressly requires it.

Reinstall under Section 7. The formerly used hook becomes the buried end only if it can be contained safely and does not interfere with seating.

Repeat the retention and scrap-cut checks. A previous successful setting supplies no credit to the new one.

Update the station/blade-life record. Both ends consumed means replace the blade; do not extend a spent hook beyond the approved limit to recover “one more cut.”

Therefore this guide refuses to prescribe an end-for-end fresh-hook flip for 67240. Inspect and replace or service only under a Hyde/site-approved instruction.

Prove the setting before production

The proof sequence belongs in the station standard. At minimum it distinguishes assembly proof from production proof:

Visual read: correct model/pattern, correct handle, blade square, required seating, minimum approved exposure, spare hook contained, every retaining fastener engaged.

Retention read: the approved non-cutting check shows no creep, rock, rotation, or sound of movement.

Area read: loose hardware, old blades, fragments, tools, rags, and packaging are removed and accounted for.

Guard/fixture read: all guards, barriers, work supports, and material fixtures are restored before release.

Personnel read: everyone is clear; affected employees are handled under the site procedure.

Energy restoration: only the authorized employee removes lockout/tagout under the employer procedure. Controls are neutral, then equipment is restored in the required sequence.

Controlled scrap cut: use the validated test point, material, grip, pull direction, and low-load startup condition. The hook captures and severs without blade movement, handle movement, unexpected release, substrate contact, or abnormal force.

Post-test read: re-isolate if access is required, then inspect exposure and fasteners. No blade creep is acceptable.

Production release: record blade/handle pair, end installed, inspection result, person/date, and any deviation under the station's traceability rule.

Do not reach toward the blade on energized equipment to “see if the screws stayed tight.” If the post-test inspection requires access to a danger zone, reapply and verify the energy-control procedure.

The cut after the change: hook discipline

The hook cuts on the pull. Material enters the open throat and is drawn against the interior bevel while the back rides the surface that should not meet the edge. That geometry produces four operating rules:

Plan the full follow-through before entry. When the material parts, the handle continues in the pull direction. That path must pass beside—not into—the torso, thigh, off hand, another worker, hose, cable, guard, or machine part.

Anchor the work and control stored material tension. Strapping, cord, wrap, and sheet can release suddenly. A hook contains the material at the edge; it does not remove tension from the system.

If the material will not enter without stabbing, prying, flexing, or extra stickout, stop.

Pull; do not lever. The hook is an edge, not a pry bar, pick, clearing stick, or probe. Side load bends .035" blades and can chip harder steel.

The 67450's HSS marking buys wear life in abrasive service. It does not authorize harder pulls, longer exposure, deeper stock, or contact with steel banding. The 67240's heavier body changes mass and stiffness, not the energy-control boundary.

What goes wrong—and the required response

The blade will not enter the slot freely. Wrong width, obstructed slot, damaged handle, hook-passage problem, or unqualified pattern. Stop; clean and inspect, then verify the exact pair. Never hammer, twist, grind, or use the screw to pull it home.

The blade enters but rocks before tightening. Width match is not fit proof, the slot may be worn, or the pair may be wrong. Quarantine pending qualification; no shim.

A screw turns without clamping. Stripped thread, wrong fastener, bottoming, packed debris, or inadequate blade engagement. Remove the assembly from service; extra torque is not repair.

A screw head is damaged. Wrong/worn driver or over-torque. Replace/repair under the approved parts procedure. Pliers on a slotted head make the next emergency worse.

The blade rotates while tightening. Uneven fastener load, contamination, wrong seating, or unsupported blade. Release, control the edge, clean/inspect, and reset; do not counter-twist a live hook by hand.

The spare hook remains exposed at the handle. Seating/exposure or pair is invalid. Do not tape or cap an incorrectly contained end.

The throat cannot clear the handle without excessive stickout. The pair, handle geometry, or material requirement is unresolved.

The hook drags instead of severing. Dull/rounded edge, stock too thick for the unverified throat, adhesive loading, wrong pattern, poor tension control, or angle error. Stop and diagnose; do not add force.

The blade creeps after the scrap cut. Failed retention, damaged/contaminated clamp, wrong pair, or excessive load. Re-isolate, quarantine the assembly, and investigate. Re-tightening alone is not root-cause control.

The .035" 67390/67450 bends. Excessive exposure, prying/side load, dense stock, or wrong setup.

The 67390 rounds rapidly. Abrasive wear may support a controlled 67450 trial after the pair is separately qualified. Compare hooks consumed on the same stock; do not promise a life multiple.

The 67450 chips. Stop and account for fragments. HSS is a wear solution, not a chipping solution; inspect for levering, impact, inclusions, or contact with machine metal.

A blade cracks or a fragment is missing. Stop the process, isolate the equipment, contain the area, find/account for the fragment under site procedure, and inspect the machine/product. Never bury the damaged end inside the handle.

The wood handle's lock method is unclear. That is the known evidence gap, not an operator puzzle.

The blade change is irrelevant until every energy source and reaccumulation path is explained.

A guard must stay off for the tool to work. The production method is invalid. Redesign the station/cut point; a hand tool cannot replace required guarding.

The operator needs a longer blade to reach around a guard. Refuse. Reach is not permission, and handle/blade length cannot convert a live danger zone into a safe one.

The same blade/handle combination repeatedly loosens. Remove it from service and investigate fastener, slot, engagement, load, vibration, and compatibility. A periodic “snug it up” ritual normalizes a failed retention system.

Inspection and changeover record

A plant buying pattern-numbered blades already has the beginnings of a controlled system.

machine/station and approved operation;

handle model and unique station/tool ID;

blade model and pattern (BG448A / 6520 / 4502M);

working end before/after for 67390/67450;

observed wear mode: sharp/serviceable, rounded, rolled, chipped, cracked, bent, contaminated;

fragment accountability if damage occurred;

exposure/seating setting by the site's controlled method—not an improvised ruler value from this guide;

fastener/retention inspection result;

scrap-cut and post-test result;

installer/inspector, date, and shift;

The record separates three problems that otherwise get conflated: wear (possibly an HSS decision), deflection (possibly a gauge/exposure decision), and damage/loosening (a technique, retention, inclusion, or compatibility failure). That distinction prevents purchasing from treating every failure as “buy the harder blade.”

History footnote—the old mill logic inside the changeover

American mechanized textile production began along New England's rivers; the National Park Service identifies Samuel Slater's 1793 Pawtucket mill as the country's first successful water-powered cotton-spinning mill, and the Library of Congress places it at the opening of American mechanized textile manufacture (NPS — Slater Mill · Library of Congress — First American Cotton Mill). Continuous spinning, weaving, inspection, rubber, and converting work created repeated hand cuts at fixed stations—and a purchasing system organized around replaceable pattern blades.

The handle-and-blade split is industrial economy made physical: keep the durable handle at the station, consume the edge, feed or flip the blade, and reorder by pattern instead of discarding a complete riveted knife.

The 67450 carries the line's one datable material technology: high-speed steel, developed around the turn of the twentieth century to retain hardness and cutting ability under demanding service. In this hand hook its honest value is abrasion resistance and longer edge life, not machine-tool cutting speed. The geometry is older: a hook captures flexible material in an inward cutting throat. The modern procedure adds what the old mill floor often lacked—guarding, task-specific PPE, and hazardous-energy control before a hand approaches a machine.

Tools this guide links back to

No blade, handle, holder, fixture, screwdriver, glove model, or adjacent cutting tool is silently added as a Hyde product recommendation. Every backlink must retain the same compatibility grades and refusals; the graph runs both directions.

Product and method sources

Hyde Tools — Hook Mill Blades family: 67240 / 67390 / 67450 variant identities.

Hyde Tools — MAXXGRIP PRO® handles: handle variant identities and width classes.

Hyde Tools — BG15 handle: 63170 exact-model 3/8" capacity and slotted-set-screw description.

Hyde IBS — Mill Knives Explained: hook geometry/class use and HSS/edge-retention context.

Safety sources

OSHA 29 CFR 1910.147 — Control of Hazardous Energy and Appendix A: servicing scope, shutdown/isolation, lockout/tagout, stored-energy control, verification, and restoration boundary.

OSHA 29 CFR 1910.212 — General Machine Guarding: guard obligations and the rule that special hand tools supplement rather than replace guarding.

OSHA 29 CFR 1910.138 — Hand Protection: hazard- and task-based hand-protection selection.

OSHA 29 CFR 1910.133 — Eye and Face Protection: eye/face protection for flying-particle and flying-object hazards.

Pattern-to-handle compatibility: the catalog proves width classes, not exact hook-pattern/handle pairings. Every admitted pair remains width-match until Hyde or the employer's controlled qualification proves the exact combination.

576xx retention: the 57620/57630/57660/57680 blade-retention mechanism is unpublished; this guide intentionally gives no locking procedure.

576xx hook passage: no source confirms that 67390 or 67450's hooked end passes any 576xx slot or establishes safe seating/exposure in those handles.

57660 vs 57680: both are 4-3/4" flat-sided hardwood handles for 5/16"/3/8" blades; only opaque pattern codes differ. No functional difference is invented.

67240 end count: “single hook” is inferred from its name omitting “Double End”; no source states end count. No fresh-end flip is prescribed.

67240 steel: no held source marks its steel; no metallurgy claim is added.

67450 alloy: High-Speed Steel is printed; exact alloy grade is not. Hyde IBS's M2 discussion is class context, not a 4502M alloy claim.

“Only the working throat exposed” is a safety/set principle, not a numeric specification.

Tighten every fastener on the validated hardware, including both where two are present. No second fastener or torque value is invented.

PPE: no glove material, cut level, eye-protection model, chemical resistance, or entanglement rule is specified by Hyde for this exact task. The employer's documented hazard assessment selects PPE.

Energy control: the sequence is OSHA-grounded but does not identify any machine's sources, magnitude, isolation points, blocking, verification method, or restoration process. The machine-specific procedure controls.

History: no inventor or first-use date is claimed for the hook blade, mill-blade handle, or flip routine; Hyde founding stays “early-to-mid 1870s” because company sources conflict.
