Hyde Tools 63085 MAXXGRIP® Mill Blade Handles for 5/8” & 3/4” Blades | the Hyde Store
Industrial Mill Blades — Handle Or Holder
№63085

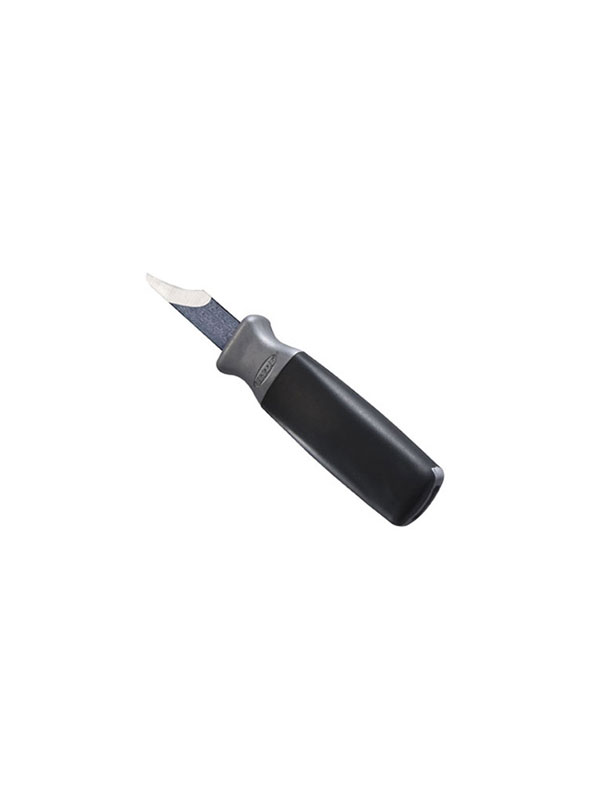

Hyde Tools 63085 MAXXGRIP PRO® Mill Blade Handle for 5/8" and 3/4" Blades

MODEL 63085 · SKU H-63085 · UPC 079423630859
CHECK THIS AGAINST MY JOB
$19.94 PER UNIT · SINGLE UNIT UNIT PRICE

Selected subtotal: $19.94. Standard US shipping is $9.99 below $15, $7.99 from $15 to below $49, and free at $49 after discounts. Freight items excluded; other rates are shown at checkout.

IN STOCK
✓ SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
✓ STANDARD US SHIPPING — $9.99 BELOW $15 · $7.99 FROM $15 · FREE AT $49 AFTER DISCOUNTS
✓ LOCAL PICKUP — FALL RIVER
✓ NET-30 & PO — APPROVED ACCOUNTS
MAXXGRIP PRO® Mill Blade Handle for 5/8" and 3/4" Blades

Official Hyde specifications

Lightweight die cast alloy body construction. Ergonomically engineered soft-grip handle for less user fatigue. Slotted set screw length adjustment
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

✕CHOOSE A DIFFERENT TOOL WHEN
  • Not cutting — no edge, no cut; it is the durable half.
  • Not 9/16" blades: the narrow 080 pattern and the 9/16" BG77M stub (62930) need the 63055, whose slot is cut for them — the 63085 does not take 9/16".
  • Not 3/8" blades: those extension/hook-blade neighbors run in the 3/8" handles (63175/63170).
  • Not the ".690"-wide 3551M blades" (62875/62900): that width sits between 5/8" and 3/4", no handle claim in this line covers it, and this guide does not assert the 63085 accepts it (line-doc register item 6).
  • And not the pick for a solvent-soaked or high-heat bench where a crew wants an all-metal-and-wood handle — that is the 63080's ground, not the die-cast-and-soft-grip 63085's.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №63085
Job guide How to Fit and Set a Mill Blade in a HandleOPEN JOB GUIDE Job guide Fit, Set, and Flip a Hook Blade in a Mill-Blade HandleOPEN JOB GUIDE

For these jobs—use this instead

THE JOB, THE REASON, AND THE BETTER TOOL
3/8-inch blades Those extension/hook-blade neighbors run in the 3/8" handles (63175/63170). BETTER TOOL MAXXGRIP® Mill Blade Handles for 3/8" 63175 .690-inch 3551M blades That width sits between 5/8" and 3/4", no handle claim in this line covers it, and this guide does not assert the 63085 accepts it (line-doc register item 6). BETTER TOOL Mill Blade (3551M) Bevel Grind High 62875 9/16-inch blades The narrow 080 pattern and the 9/16" BG77M stub (62930) need the 63055, whose slot is cut for them — the 63085 does not take 9/16". BETTER TOOL MAXXGRIP® Mill Blade Handles for 9/16" 63055 Solvent-soaked and high-heat benches And not the pick for a solvent-soaked or high-heat bench where a crew wants an all-metal-and-wood handle — that is the 63080's ground, not the die-cast-and-soft-grip 63085's. BETTER TOOL Hardwood Mill Blade Handle (2108), 4-1/2 63080

How the pros run it

01

Clamp first, cut second

The handle's safety is entirely in the set screws; seat the blade square, tighten both, and re-check after a run begins. Work the exposure. Use the adjustment as a live control — minimal blade out for stiff high-force cuts, more only for reach — rather than setting it once and forgetting it. Re-extend, don't retire. As a Standard blade shortens with honing, feed it out farther from the handle to use up the steel. Respect the slot width. The capacity is 5/8" and 3/4"; a narrower 9/16" blade is the 63055's job and a 3/8" blade the 3/8" handles' — don't shim a mismatch. Keep the soft grip clean so it keeps reducing fatigue.

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
Does it include a blade?
No — the handle only. Buy the matching 5/8" or 3/4" blade separately.
Which blades fit?
5/8" blades (081 / 62090; the 087 family; the 4546 stub) and the line's many 3/4" backbone blades (088, 2607, BG20, BG71A, BG57, the BG bevels, 5532M).
Will a 9/16" blade fit?
No — that is the 63055's capacity. This handle is keyed to 5/8" and 3/4".
63085 or 63080 for my 3/4" blades?
Both hold the same blade. Take the 63085 (soft grip) for all-day cutting and fatigue; the 63080 (hardwood/aluminum) for traditional feel and solvent/heat benches. Neither cuts better.
63085 or 63055?
They overlap at 5/8". Choose by the other width — 3/4" → 63085, 9/16" → 63055.
"MAXXGRIP" or "MAXXGRIP PRO"?
The official mark is MAXXGRIP PRO®; some store titles read "MAXXGRIP®." We use the PRO mark .

Compare Hyde models

Crew & facility ordering

Model & SKUModel 63085 · SKU H-63085 · UPC 079423630859
Product-specific quantity pricingSee this product’s published tiers above. Eligible discounts apply automatically at checkout.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Specs & documentation

Full specification details
catalog product name
MAXXGRIP PRO® Mill Blade Handle for 5/8" and 3/4" Blades
official family claim
Lightweight die cast alloy body construction. Ergonomically engineered soft-grip handle for less user fatigue. Slotted set screw length adjustment.
official product name
MAXXGRIP PRO® Mill Blade Handles
official variant identity
63085 — 5/8" 3/4"
Hyde official catalog evidence ↗Hyde Tools manufacturer source ↗
$19.94PER UNIT · H-63085
