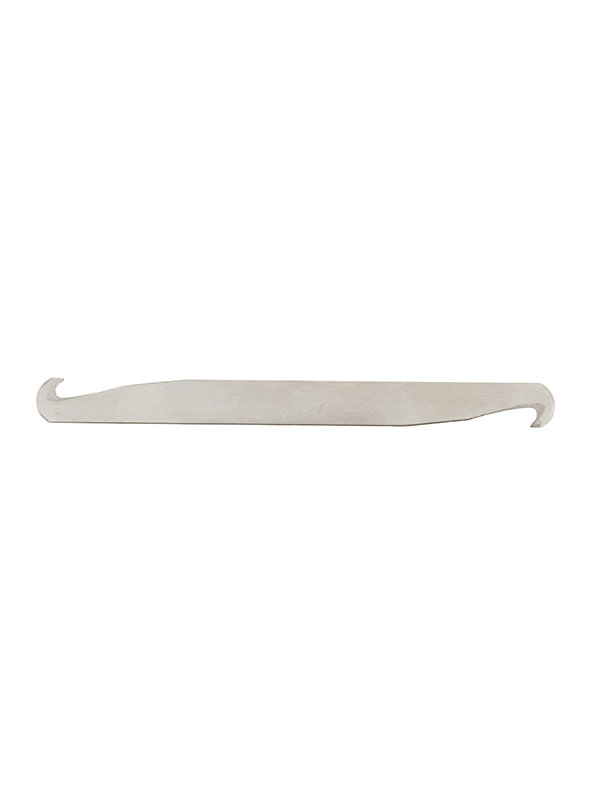

Double End Hook Blade Extension Blade 6520
Official Hyde specifications
Dimensions
4" x 3/8" x .035"
High-Speed Steel
PRODUCT FIT · IS THIS THE RIGHT TOOL?Straight answers. If it's the wrong tool for your job, we'll say so.
The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.
Not the abrasive-diet blade. Filled backings, rubberized stock, and synthetic pile on continuous duty form the 4502M's purchase order; running the standard blade there just moves the cost from the purchasing card to the changeover clock.
Not the heavy hook. Stock that folds a .035" blade into the throat or twists it off line belongs to the BG448A and the 5/8" handles.
Not a piercing blade. Hooks start over an edge or at an opening; the middle of an unbroken sheet is open-point territory, in some other line's knife.
No swallow-limit claims. Throat depth is unpublished for every pattern in this line; this corpus states no maximum material thickness .
Hooked cuts finish toward the operator; control comes from a planned follow-through path and an anchored workpiece, not from simply drawing slower. Ride the back. Keep the spine against the surface under or behind the work; if a hook lifts out of contact, correct the angle instead of adding force. Expose only the throat. Short stickout keeps side-load off the set screws and chatter out of the cut. Flip at dull, not destroyed. The flip works best when the first hook stops cutting cleanly; running a wrecked hook to save a thirty-second change sacrifices the cut quality the blade is made to deliver. Honing is optional, and most stations skip it. The bevel is inside the curve, so use a slipstone drawn along the sweep to refresh a hook between flips. In practice, mounted hooks are consumables: flip once, then replace. Care for the high-carbon steel. Wipe the blade dry after wet goods or adhesive-backed stock; carbon steel can rust wherever it sits damp.
Asked before buying
BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
What steel is this blade?
The published listing identifies the 6520 as the standard high-carbon blade. Hyde calls out High-Speed Steel on blades when that material applies; for this item, match standard high-carbon packaging unless Hyde confirms otherwise. If your job spec requires a confirmed steel type, match the last box and ask Hyde.
What do two hooks actually buy me?
A thirty-second return to a sharp edge — loosen, flip, clamp — and replacement arithmetic of two hooks per blade. The spare stores inside the handle while it waits, which is tidier and safer than any exposed second edge.
Which handles fit it?
Six, by the catalog's width match: 63170, 63175, and the 57620/57630/57660/57680 wood handles. Whether a hooked end passes every wood handle's blade slot is unaddressed by any source — the metal 63170/63175 are the unambiguous pair.
When should I move to the 4502M?
When hooks come back rounded mid-shift on filled, rubberized, or synthetic stock. Rounding is abrasion, and abrasion is a steel problem. Chipping is not — see the next answer.
My hooks are chipping — will the HSS blade fix that?
No. Chips mean levering, twisting, or hard inclusions in the stock, and a harder steel chips at least as readily. Fix the technique or the material handling first.
Is the hook shaped differently from the 4502M's?
No source says so. The recorded differences are the steel line and the pattern code; treat any third difference as invented.
Can it start a cut in the middle of a sheet?
No. A hook needs an edge or an opening to drop its throat over. Mid-field starts belong to open-point knives.
