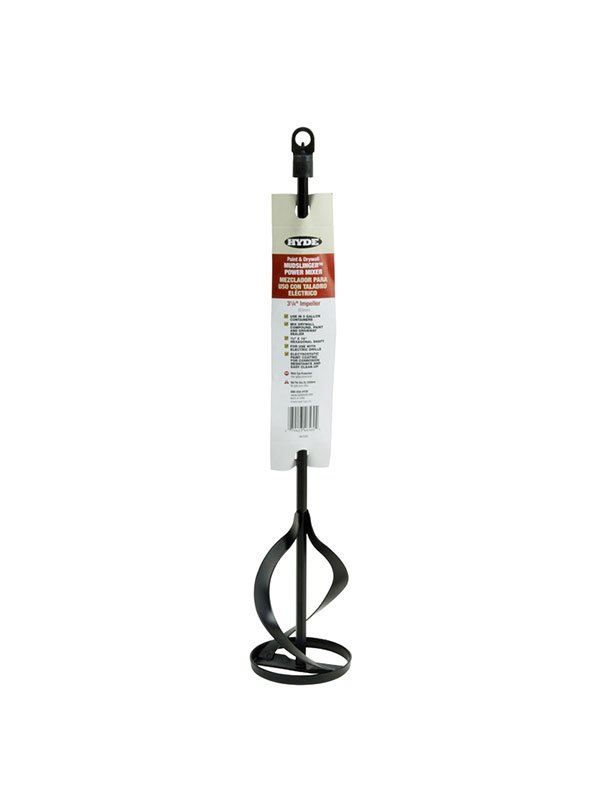

Hyde Tools 46560 16" Mudslinger® Mixer (3 - 1/4" Diameter) | the Hyde Store
Coating And Compound Mixers — Primary Tool
№46560

Hyde Tools 46560 5-Gallon Mudslinger Power Mixer

BEST FOR · Versatile Mixing: Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids.
MODEL 46560 · SKU H-46560 · UPC 079423465604
CHECK THIS AGAINST MY JOB
$7.88 PER UNIT · SINGLE UNIT UNIT PRICE

IN STOCK
✓ SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
✓ FREE SHIPPING — ORDERS OVER $30
✓ LOCAL PICKUP — FALL RIVER
✓ NET-30 & PO — APPROVED ACCOUNTS
Versatile Mixing: Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids.
Diameter
3-1/4"
Hyde specifies
Hex shaft
3/8" x 16"
Hyde specifies
Durable Construction
Features a 3/8" powder-coated steel shaft and welded steel impeller blades
Hyde specifies
Versatile Mixing
Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids
Hyde specifies
Efficient Performance
Designed for efficient mixing without overloading your drill, suitable for both professional and home use
Hyde specifies
THE COUNTER · PRODUCT FIT Straight answers. If it's the wrong tool for your job, we'll say so.

Choose this when: Versatile Mixing: Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

✓CHOOSE THIS WHEN
  • Versatile Mixing: Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids.
  • Durable Construction: Features a 3/8" powder-coated steel shaft and welded steel impeller blades.
  • Efficient Performance: Designed for efficient mixing without overloading your drill, suitable for both professional and home use.
✕DO NOT FORCE THE FIT
  • Sealed pails — a 3-1/4" head has no path through a pour spout; through-the-lid work belongs to the 46540 and the StirWhip.
  • Cement, mortar, and bagged concrete patch — the heavy tier's family row (09059/09105/09114) owns cementitious work, with drill classes to match.
  • Drums — 16" of shaft ends at the pail; the 28" 09059 exists for depth.
  • Quart and gallon bench cans — the paint tier's short shafts steer that scale; this head in a gallon can is wall-climbing overkill.
  • And thin paint at speed — the mirror error of its virtue: more blade than loose material needs, vortexing at trigger positions its mud work tolerates.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №46560
Counter-checked How to Choose the Right Drill for a Hyde MixerOPEN JOB GUIDE Counter-checked How to Clean a Mixer After Use — The Material-Controlled Decision GuideOPEN JOB GUIDE Counter-checked How to Mix a Two-Part Epoxy CoatingOPEN JOB GUIDE Counter-checked How to Mix Driveway Sealer — A Label-Controlled Workflow from Pail to PavementOPEN JOB GUIDE
VIEW 4 MORE DOCUMENTED JOBS
Counter-checked How to Mix Grout — A Product-Controlled Batch WorkflowOPEN JOB GUIDE Counter-checked How to Mix Setting-Type (“Hot Mud”) Joint Compound from PowderOPEN JOB GUIDE Counter-checked How to Mix Texture Material for Spray or KnockdownOPEN JOB GUIDE Counter-checked How to Thin Joint Compound for Taping, Fill, and Finish CoatsOPEN JOB GUIDE

How the pros run it

01

Slow is the skill

every failure this head produces — foam in paint, pits under skim, slung mud on the walls — is a speed artifact. Bottom-first, perimeter-deliberate: the settled layer and the factory-stiff mass live at the floor and the wall-ring; the head visits both or the pail lies to you. Submerged transitions: trigger on at the floor; dead stop before the head clears the surface — the Mudslinger name describes what happens otherwise. Load-reading: surging drill = still breaking; level drill = circulating; lugging drill = brace and slow down. Batch to the window: hot mud and grout are mixed in set-window quantities, not pail quantities. Wash on the clock: mud same-hour, chemistry-set materials immediately, epoxy instantly.

Asked at the counter

BUYER QUESTIONS ANSWERED BEFORE THE CART, NOT AFTER THE RETURN
Will it really mix a full five of joint compound on a regular drill?
Yes — that is its design point: 3-1/4" of blade rolls the pail, 3/8" of hex chucks in the standard drill, and low rpm keeps the pairing honest (2a, 2h).
46560 or 46565?
Answer with your drill. No 1/2" low-rpm drill → 46560, full stop; the 46565's shank won't even chuck. With that drill and daily heavy mud → the 46565 earns its class (§5).
Hot mud too?
Yes — water first, powder in, batch sized to the set window, washed immediately (2c, 2i).
Texture for a hopper gun?
Yes — mixed to an even slurry with no dry pockets, verified before it reaches the hopper (2d).
Epoxy?
Rated by the family row (2g) — blended within pot life, no whipped air, washed instantly. The 434xx paint tier is barred from epoxy entirely.
Why did my skim coat pit two days after I mixed?
Whipped air — mud remembers. Bubbles beaten in at the mixer ride into the finish coats. Slow, submerged, moving; rest a whipped batch (2a, 2b).
Can it pass a pour spout?
No — no 3-1/4" head can. Sealed-pail mixing is the 46540's and StirWhip's specialty.
The drill twisted in my hands — defect?
Torque reaction: stiff mud loading the head makes the drill body try to spin. Brace, choke up, run slower — and if it is constant, the mud may want the 46565-class rig (2h).

Compare Hyde models

Crew & facility ordering

Model & SKUModel 46560 · SKU H-46560 · UPC 079423465604
Quantity pricingPublished tiers apply automatically at checkout. Private account prices are never invented.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specs & documentation

Full spec sheet
catalog product name
5-Gallon Mudslinger Power Mixer — OFFICIAL EXACT MODEL
specifications
diameter: 3-1/4" — OFFICIAL EXACT MODEL
specifications
hex shaft: 3/8" x 16" — OFFICIAL EXACT MODEL
official family claim
Mix compounds, paints, epoxies, and more. — OFFICIAL FAMILY CLAIM APPLICABLE TO EXACT LISTED MODEL
official product name
16" MUDSLINGER® Power Mixer, 3-1/4" Diameter (46560) — OFFICIAL EXACT VARIANT
official variant identity
46560 — OFFICIAL EXACT VARIANT
official description
The Hyde MUDSLINGER® Mixer (46560), designed to attach to your 3/8" chuck or larger electric drill. This tool is perfect for mixing drywall compound, driveway sealer and paint. Key Features: Dimensions: 16" x 3/8" Shaft with 3-1/4" Impeller Versatile Mixing: Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids. Durable Construction: Features a 3/8" powder-coated steel shaft and welded steel impeller blades. Efficient Performance: Designed for efficient mixing without overloading your drill, suitable for both professional and home use. Benefits: Hyde Quality: Built to last even under tough working conditions. Easy Cleanup: Non-stick blades wash off quickly, reducing your cleanup time. Enhanced Compatibility: Attaches to 3/8" chuck or larger electric drill. — OFFICIAL EXACT MODEL
official feature
Versatile Mixing: Mixes a variety of materials including drywall compound, driveway sealer, paint, and other liquids. — OFFICIAL EXACT MODEL
official feature
Durable Construction: Features a 3/8" powder-coated steel shaft and welded steel impeller blades. — OFFICIAL EXACT MODEL
official feature
Efficient Performance: Designed for efficient mixing without overloading your drill, suitable for both professional and home use. — OFFICIAL EXACT MODEL
