Plan a Grit Sequence for Drywall and Paint Prep

The central truth: there is no honest universal sequence such as “always sand 120 → 150 → 180.” A clean skim may start and stop at 150. A proud patch may need a local 100 or 120 correction before it rejoins the field sequence. A sound painted wall may need only a light 180 adhesion scuff. A cured primer or finish coat may call for a 240 de-nib pass—or no sanding at all—depending on its maker's instructions. The sequence is selected from the work in front of you and proved on a test patch.

The rule that survives every variation: the next abrasive must remove the deepest scratch left by the previous abrasive. Feeling “smooth” through dust is not proof. A raking light, a cleaned test patch, and—when coatings are involved—a compatible primer or finish proof are proof.

The five-question diagnosis

Do not choose a grit until all five answers are explicit.

What job are you doing?

Removing a high defect: dried compound ridge, proud patch, old paint buildup, hard run, or another projection that stands above the intended plane.

Refining raw compound: taped joints, a patch, or a full skim that is dry, sound, and already close to shape.

Preparing a cured coating: breaking gloss for repaint, reducing a small high defect in old paint, or de-nibbing a primer or finish coat.

Preparing a different substrate: Hyde officially names wood, metal, fiberglass, painted surfaces, and drywall for the 09871/09873/09875 aluminum-oxide family. That is a material-range claim, not permission to give all five materials the same sequence.

If the problem is a hollow, pinhole, wave, loose film, blister, delamination, moisture failure, contamination, or exposed fuzzy drywall paper, sanding is not the repair. Fill, re-skim, remove the failed coating, correct the moisture or contamination, or stabilize the paper first. Abrasion subtracts; it never fills a low or restores adhesion.

What defect must the first abrasive remove?

Classify it under raking light and by hand:

| Observation | Correct first move |

| Brittle nib or isolated knife burr | Scrape it nearly flat with a clean broad knife; do not sand a field to remove a point |

| Heavy local ridge, proud repair, or paint buildup | Test 100 or 120 only on the high material |

| Ordinary lap mark, tool haze, or known 120 scratch | Test 150 |

| Plane already flat; finish/light may reveal a 150 scratch | Test 180 |

| Sound cured film with dust nibs, raised fibers, or a maker-required intercoat scuff | Test 240 after confirming the film is sandable |

| Hollow, pinholes, wave, open crater | Add material; do not lower the surrounding plane |

| Gummy, rolling, smearing surface | Stop: the compound or coating is damp, soft, contaminated, or not yet sandable |

What is the substrate and what is on it?

Raw joint compound is soft and porous. It powders when ready. Coarse grit can change its shape quickly, and fine grit can polish the high points while leaving a deeper coarse scratch untouched. Protect feathered edges and drywall face paper.

Cured primer or paint is a film. It may load an abrasive, soften from friction, ball up, or cut through first at edges. Its label or technical data sheet controls sandability, recoat timing, compatible preparation, and the need for intercoat abrasion. “Dry to touch” does not mean “ready to sand.”

Wood has grain and variable hardness. Sand with the grain where the scratch will remain visible; end grain and soft earlywood cut differently from face grain. Clear finishes reveal scratches more aggressively than opaque wall paint. Follow the finish maker's preparation range and use the 09871/09873/09875 material claim only as a starting product qualification, not as a finished wood schedule.

Metal is not one substrate. Bare steel, aluminum, galvanized metal, factory coating, rust, and old unknown paint require different preparation. Widespread corrosion, mill scale, lead-bearing paint, and conversion or galvanized coatings are not solved by borrowing a drywall ladder. Obtain the coating-system specification and contain the identified dust.

Fiberglass may mean gelcoat, a cured laminate, filler, or a painted composite. The 09871 family is officially described for fiberglass, but resin state, gelcoat thickness, repair filler, and the next coating determine the start and stop. If the surface gums, smears, exposes fibers, or changes color, stop and diagnose rather than moving coarser.

What finish and light will judge the surface?

Flat paint in ordinary diffuse light hides more scratch and plane variation than satin, semi-gloss, gloss, dark color, or a wall washed by windows. Inspect under the harshest light the finished room will actually see. Move a bright light low across the test patch from more than one direction; a scratch aligned with the first light can disappear when the light turns.

The finish raises the required endpoint; it does not automatically justify a more elaborate sequence. If 150 produces a clean, primer-ready test patch under the real light, an extra 180 pass is work without a defect. If 150 flashes under the planned sheen, 180 has a job.

What shape, support, reach, and dust system does the work require?

Grit is only one half of a scratch. The support under it decides whether the abrasive cuts a plane, follows a curve, bridges a hollow, or digs an edge.

Its accepted claims include a pivoting round shape, hook-and-loop acceptance, and no-flip geometry; they include no vacuum port or extraction claim.

The 09180 is the verified from-zero system: 28–56-inch two-piece pole, six-foot hose, universal wet/dry-vac adapter, and one net sheet at 120, 150, 180, and 240. A wet/dry vacuum is not automatically a fine-dust or HEPA system; filtration and the hazard plan remain separate decisions.

It has no vacuum claim and is not the tool for declaring a broad wall flat.

Crisp planes and edges: use a flat supported hand tool and keep a conforming foam head off arrises that must remain sharp.

What each Hyde grit is for

The numbers below are positions in Hyde's offered ladder. Higher numbers are finer within the line.

100 — local correction, not a field start

Its role is a genuinely bad local start—built-up paint on a curve, a heavy patch ridge near shaped work, or another high defect that must be reduced without putting a rigid field head across the whole area.

Use 100 only until the defect joins the intended contour. Then clean and inspect, move to 120, and continue until the 100 scratch is gone. Do not call it aluminum oxide, wet-rated, power-sander compatible, or a particular backing.

120 — first knockdown

Use 120 when there is real high material to remove: lap ridges, tool marks, proud patch edges, or an old-coating defect that survived the scrape/clean/adhesion diagnosis. Do not run it over already-good work “just to be safe”; it creates a coarse scratch that must be removed.

Exact 120 choices:

Hyde officially names wood, metal, fiberglass, painted surfaces, and drywall. Conventional production stock; no through-face extraction or wash/reuse claim.

Official net-family claims support open weave, reduced loading, washable/reusable use, and variable structure without uniform scratch lines. It can run on the 09977, but that does not make the 09977 dust-free.

Its packet has zero accepted Hyde performance claims.

150 — the working pass

Use 150 to erase a proven 120 scratch, or start here when a clean taped joint, skim, patch, or mildly rough painted surface has no defect that needs 120. On many ordinary drywall jobs, 150 is the only grit that touches the field.

Exact 150 choices:

Stop at 150 only after a cleaned test patch is flat and its scratch does not read under the planned primer/paint and real light. If sheen or critical light reveals it, 150 becomes the bridge to 180.

180 — pre-prime refinement and finish-safe repaint scuff

Use 180 when the plane is already correct and the remaining task is to refine 150 scratch for sheen or hard light. It is also a useful fine adhesion-scuff position on sound cured paint when the next coating's instructions call for abrasion.

Exact 180 choices:

Do not ask 180 to repair a surviving 120 scratch.

240 — cured-film de-nib and conditional polish

Use 240 on a fully sandable cured primer or finish film when the coating maker calls for de-nibbing or intercoat abrasion, and as a conditional critical-light polish after the coarser scratch has already been removed. Do not make 240 the universal last pass on raw compound. Fine abrasive can brighten the tops of a coarse scratch while leaving its bottom intact, and it can burnish soft compound instead of leveling it. On raw compound, the evidence from the finished guides places 180 at the normal pre-prime refinement position; any 240 use before or after primer must be proved against the actual finish system rather than borrowed from a slogan.

Scratch-erasure logic: how to move from one grit to the next

There is no magical “one grit may be skipped, two may not” law that substitutes for inspection. Nominal grading system, abrasive family, wear, backing/support, pressure, substrate hardness, and contamination all change scratch depth. Use this proof instead:

Mark the test area. Choose a representative high, edge transition, and ordinary field. Pencil the boundary outside the working patch; do not put ink under paint.

Start with the least aggressive candidate. Make a few controlled passes at tool weight. If it powders and removes the defect without prolonged pressure, keep it. If it only polishes a high defect, step one position coarser locally. If it cuts through, the start was too coarse, too heavily supported, or too heavily pressed.

Clean completely. Vacuum with suitable capture and make the approved final wipe. Dust fills scratches and hollows; inspection through dust is fiction.

Read the scratch from two directions. A coarse scratch remains directional after the dust is gone. Turn the raking light and the viewing angle.

Run the proposed next grit across the entire coarse footprint. Do not merely sand its center. The next grit is done when its finer, more uniform texture has replaced the previous scratch everywhere.

If the coarse scratch remains, do not jump finer. Continue with the current bridge only while it cuts cleanly and the substrate remains sound. If progress stalls, diagnose loading, inadequate support, or an over-deep first cut.

Make a coating proof when the finish is the judge. Apply the compatible primer or test finish exactly as the system permits. Let it reach its inspection condition. Raking light on the coated patch—not a dusty fingertip—decides whether the endpoint is adequate.

Legitimate short sequences therefore include:

clean raw skim: 150 → inspect → prime proof;

rough local compound correction: 120 locally → 150 across the full scratch footprint → inspect, with 180 only if finish/light requires it;

severe shaped detail: 100 locally → 120 → 150, then 180 only if the proof calls for it;

sound cured repaint film: 180 scuff → clean → adhesion/finish proof;

sandable coated film with nibs: 240 lightly → clean → recoat per maker.

None is a universal recipe. Each is a diagnosis followed by a closed proof loop.

Complete field procedure

Establish the hazard boundary

Before abrasion, identify old paint, legacy texture/compound, substrate, and coating. Pre-1978 painted surfaces can trigger EPA Renovation, Repair and Painting requirements; uncontrolled sanding is not the test method. Suspect asbestos-containing texture, patching compound, joint compound, or plaster cannot be cleared by appearance. Set respiratory, eye, skin, containment, vacuum, and cleanup controls for the identified dust—not for the word “sandpaper.”

Let the material become sandable

Raw compound should be uniformly dry and should powder rather than smear. A coating must meet its maker's sand/recoat condition. Do not invent an overnight rule, minutes-per-wall figure, or universal cure time. Temperature, humidity, film thickness, compound type, and coating chemistry control the clock.

Scrape and repair before selecting grit

Shear isolated nibs. Fill lows and pinholes. Re-skim waves and broad troughs. Remove loose coating to a sound boundary and correct its cause. Seal or stabilize exposed drywall paper through the specified repair system. A cleaner starting surface shortens the abrasive sequence more effectively than buying an extra grit.

Map under raking light

Circle highs lightly outside their edges; mark lows differently. Read from at least two light directions. Include a representative edge or corner in the map because that is where cut-through happens first.

Choose support and dust posture

Select the head by shape and plane before selecting pack size. Use a flat support to establish flatness, a conforming support to preserve curves, and a pole only where reach justifies the loss of feel. If source extraction is required, choose the rectangular vacuum system; a net disc on the 09977 is anti-loading, not extraction.

Run the test patch

Start fine. Use short, overlapping passes with the support flat, the abrasive clean, and no stationary dwell. Let the grit and support cut; extra pressure generates heat, deepens scratches, dishes compound, and accelerates coating load. At feathered compound edges, trim profiles, and coating arrises, bleed pressure before the tool arrives.

Inspect, then scale

Clean the patch, rake it from two directions, and decide:

defect gone, plane intact, scratch acceptable → scale that start;

defect remains high but surface is still sound → step coarser only on the high;

coarse scratch remains after the proposed bridge → do not move finer;

support has dished, faceted, or rounded the work → change support and repair the geometry;

surface smears, pills, or glazes → stop and diagnose material condition or loading;

substrate or prior color appears → stop; the sequence has cut through.

Sand connected areas, not isolated craters

Work in overlapping lanes long enough to preserve the plane. Orbiting every pencil mark creates saucers. Keep a rectangular pole head shallow through reversals so it does not flip; keep hose drag from steering a vacuum pad; keep the soft 5-inch head in its detail lane.

Close every transition

After any 100/120 correction, enlarge the next-grit footprint slightly so the complete coarse scratch is crossed. Clean between grits when contamination could carry a coarse particle forward. Replace a disposable conventional disc when loaded; service a net abrasive only within the documented washable/reusable family claim and the exact maintenance guide.

Stop, clean, coat, and read back

Stop when the target defect is gone, the plane remains correct, and the verified endpoint scratch meets the finish/light proof. Remove dust without redistributing it. Prime as an inspection coat, not camouflage. If primer reveals a scratch, low, burn-through, or wave, correct the cause, restore the surface, re-sand only the repair, clean, and restore the primer. The loop is closed only when the post-correction coating readback is clean.

Buyer matrix — choose body, grit, and pack separately

| Need | Exact Hyde choice | What the record supports | What must not be inferred |

| Conventional 9-inch mixed-material/production start | 09871 / 09873 / 09875 at 120 / 150 / 180, each 25-pack | Aluminum oxide; 9-inch family; wood, metal, fiberglass, painted surfaces, drywall; coarse-vs-finer family roles | Through-face extraction, washing, a 240 member, universal sander fit |

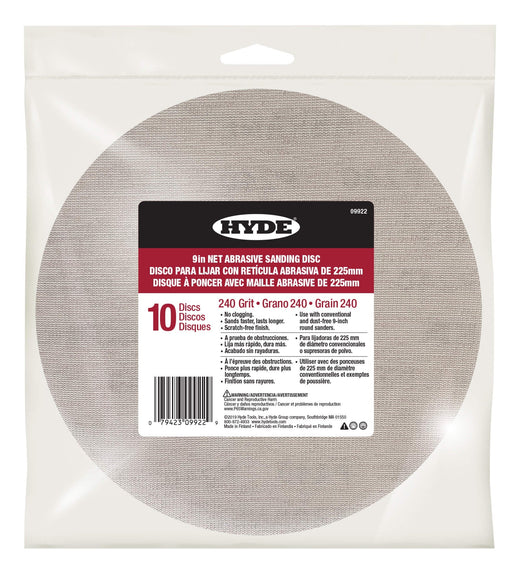

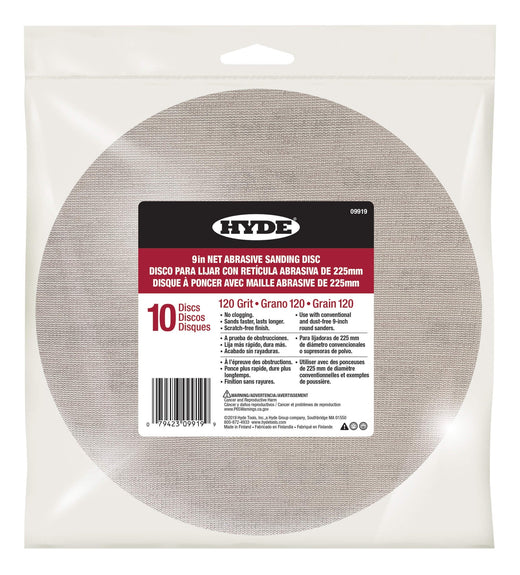

| Sourced 9-inch net rotation | 09919 / 09920 / 09921 / 09922 at 120 / 150 / 180 / 240, each 10-pack | Open-weave net family, reduced loading, washable/reusable use, no uniform scratch pattern; exact variants | A vacuum port on 09977; disc-side hook-and-loop wording; one synthesized 3×/5× life figure |

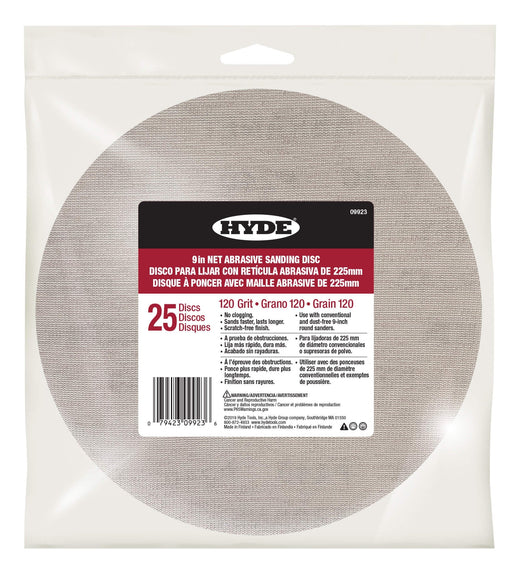

| Candidate 9-inch net crew packs | 09923 at 120 / 09928 at 240, each 25-pack | Hyde Store identity and GTIN | Current lifecycle, availability, exact backing, washability, fit, or inherited family performance |

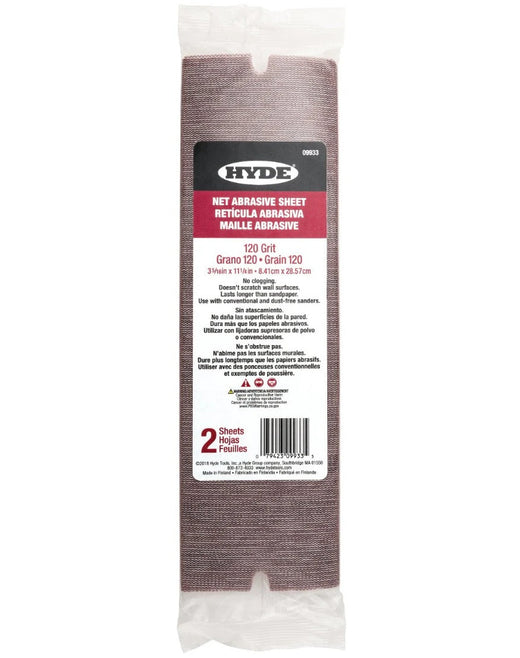

| Flat net-sheet repair quantity | 09933, 120, 2-pack | Exact identity and small pack | The richer 09944 family record inherited without a flag |

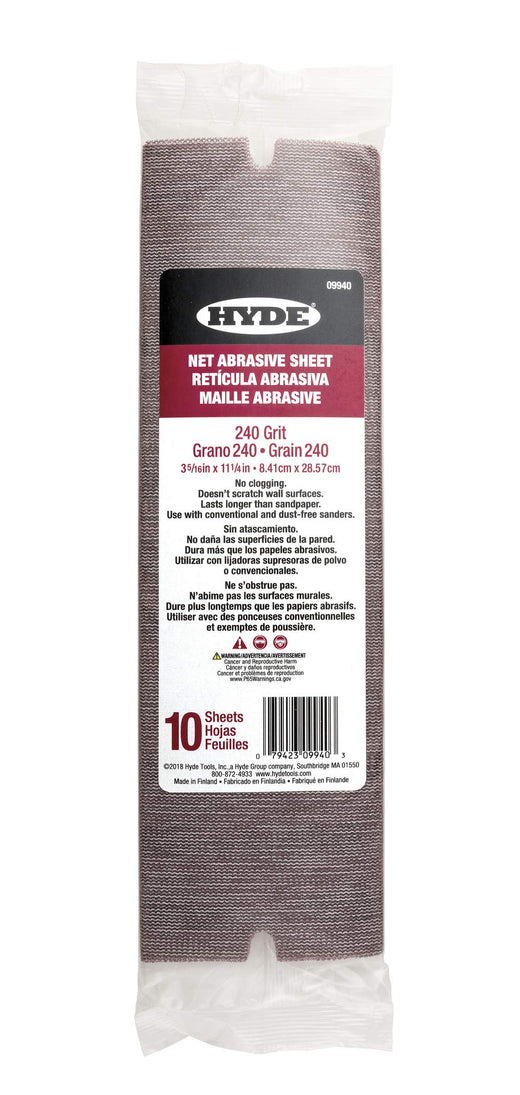

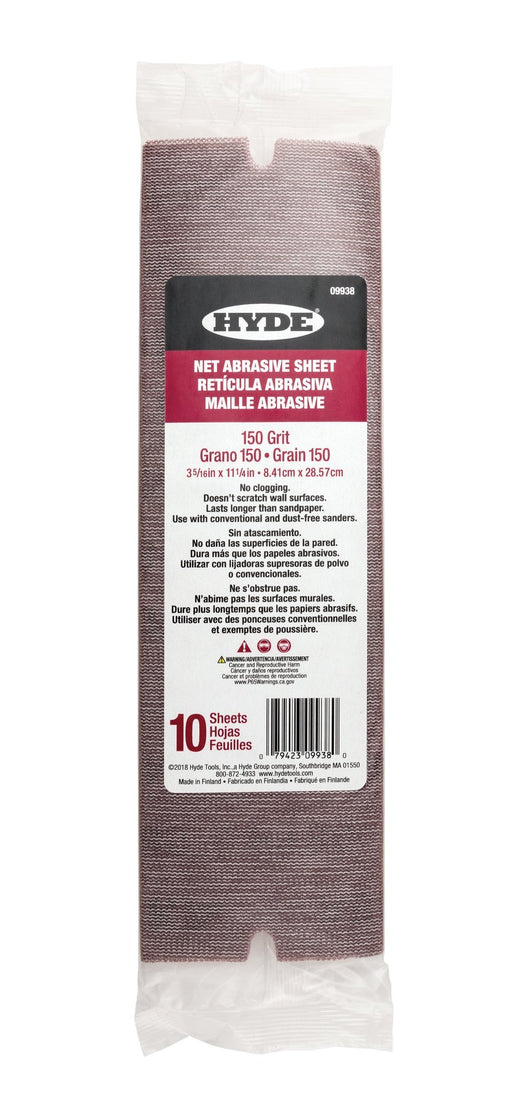

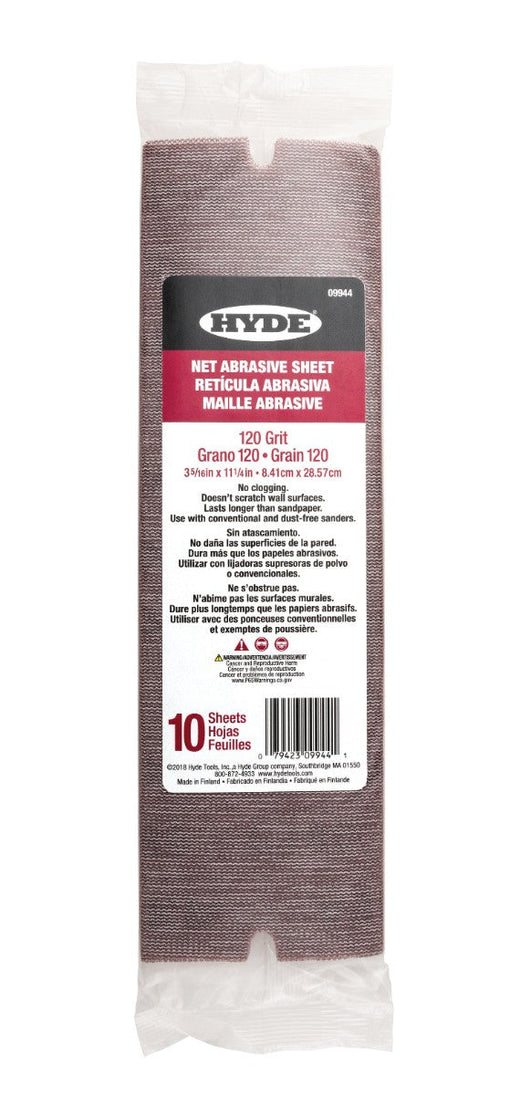

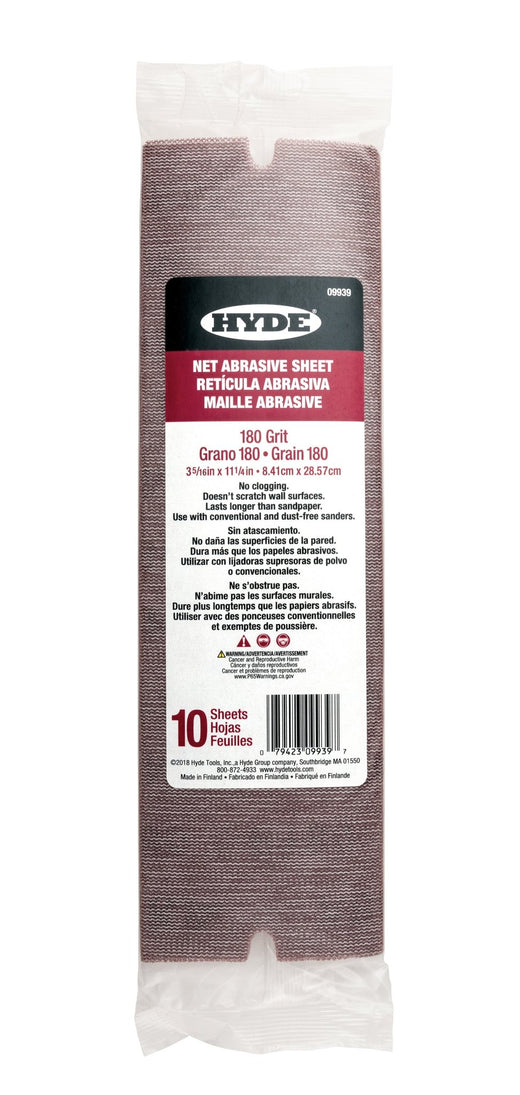

| Flat net-sheet working stock | 09944 / 09938 / 09939 / 09940 at 120 / 150 / 180 / 240, each 10-pack | 3-5/16-inch × 11-1/4-inch net-sheet family and grit variants; dust-free hand/pole use claims | Guaranteed fit in every conventional 3-1/4-inch × 9-3/8-inch clamp; expanded compliance promises |

| Conforming 5-inch detail ladder | 45382 / 45383 / 45384 / 45385 at 100 / 120 / 150 / 180, each 5-pack | Exact family identity, size/grit variants, mating 45380's 5-inch hook-and-loop holder claim | Abrasive mineral, wet use, extraction, power-tool fit, disc-side attachment claim |

Pack count changes purchasing scale, not scratch performance. A 10-pack does not cut differently from a 25-pack at the same verified family/grit. The honest exception is evidentiary: 09923 and 09928 are not as well sourced as their 10-pack neighbors, so the larger pack is not permission to copy every claim.

What goes wrong—and what it means

The finer grit makes the surface shiny but the lines remain. It is polishing the tops of deeper scratches. Return to the bridge grit that reaches their bottoms, erase them, then move finer.

The abrasive stops cutting and leaves glossy tracks. It is loaded, the surface is soft, or pressure is generating heat. Replace conventional abrasive; maintain net only within its documented use; verify dryness and sandability.

Compound turns to worms or smears. It is damp, contaminated, or not ready. No grit fixes cure.

Paint rolls into strings or pills. The film is not sandable or is heat-sensitive. Stop and consult its technical instructions.

A patch develops a shallow dish. The tool circled a high spot or a soft support followed the crown. Refill/re-skim the dish and use connected plane-preserving strokes.

The wall has long waves under the light. Sanding cannot fill troughs. Re-skim wide.

Drywall paper fuzzes. The coarse grit or pressure crossed the feather. Stop; stabilize/seal and re-skim as required.

Crisp trim edges go round. A conforming support crossed an arris. Repair the finish and change to a controlled flat hand support.

Curved work gains flats. A rigid head faceted the radius.

A net disc throws dust from the radial head. Expected: the 09977 has no verified extraction path. Net there manages loading; the vacuum sheet systems manage source capture.

Scratches appear only after primer. The bare inspection was incomplete or dust hid them.

The new coating peels from a visibly scratched surface. Scratch is not adhesion. Grease, silicone, wax, chalk, dust, moisture, weak prior film, or chemistry can still own the bond boundary.

Safety: the dust system is selected with the grit

Use engineering controls first, isolate occupants and adjacent work, and prevent dust migration.

Select respiratory protection for the identified hazard. In workplaces, OSHA's respiratory-protection requirements include program, medical evaluation, fit testing, and training where respirators are required; a casual mask purchase is not a workplace program (OSHA 29 CFR 1910.134).

Protect eyes and skin from drywall, wood, metal, coating, and fiberglass dust as their hazard information requires.

For pre-1978 paint, follow the EPA RRP boundary and lead-safe work practices; ordinary dry sanding, an unverified radial-vacuum assumption, or a generic shop vacuum is not a lead-control plan (EPA RRP work practices).

Read the joint compound, substrate, old coating, and next coating safety data. Metal coatings may add toxic pigments; wood species and treated lumber add different dust hazards; fiberglass and resin systems add fiber and chemistry hazards. “180 grit” names none of them.

Hyde's net-sheet phrase “Meets OSHA and California silicate requirements” is quoted only where its exact product record supports it.

Why grit numbers are useful—and why they are not a universal recipe

A coated abrasive is abrasive grain bonded to a flexible backing or carrier. FEPA distinguishes coated-abrasive P-grit designations from bonded-abrasive F-grits and defines particle-size distributions rather than one magic particle diameter (FEPA standards; FEPA coated abrasives). That is the useful historical move behind modern sequencing: abrasives became graded cutting tools, not handfuls of whatever sharp mineral was available.

Industrial coated abrasives expanded in the nineteenth century; the Hyde line document records the secondary-source trail to Isaac Fischer Jr.'s 1834 U.S. coated-abrasive patents with an explicit primary-record verification flag. Manufactured grain then changed the work. Norton describes aluminum oxide as a strong, blocky abrasive that fractures under load to present new cutting edges (Norton — science of abrasive grains). Open net changed the dust path: Mirka dates Abranet's introduction to 2001 and describes the dust-free net concept as a full-surface extraction medium (Mirka — Abranet).

Hyde did not invent graded sandpaper, aluminum oxide, or net abrasive. Its useful contribution in this row is a coherent set of bodies—conventional radial discs, net radial discs, net sheets, and 5-inch detail discs—across a 100/120/150/180/240 ladder. The craft is still older than the product set: start only coarse enough to remove the defect, erase the evidence of every cut, and let the finish and light tell you when to stop.

Backlinks and neighboring guides

Trade technique is authored at job grain.

Grit positions are used within Hyde's ladder; cross-brand scratch equivalence is not promised.

Hyde's 9-inch net life claims differ by source: catalog “3 times longer than sandpaper”; site “up to 5 times longer than traditional sandpaper and sanding screens.” This guide does not blend them. Net sheets carry their own 3× comparison.

09923 and 09928 have no accepted exact Hyde performance claims beyond Hyde Store identity/GTIN evidence. Lifecycle, current availability, family inheritance, backing, fit, washing, and life remain unresolved.

Disc-side hook-and-loop backing is not stated on the 9-inch disc SKUs; the 09977 tool-side acceptance claim and family naming support the route. The 09977 has no vacuum claim.

The 45382–45385 abrasive mineral is unstated. Disc-side hook-and-loop evidence is indirect through the official URL and the 45380 tool claim. Wet use, extraction, power-tool fit, and backing construction are not invented.

Hyde's net sheets are stated as 3-5/16 inches × 11-1/4 inches; conventional clamp tools state 3-1/4-inch × 9-3/8-inch-class dimensions. Hyde says the sheets serve conventional and dust-free sanders, but exact conventional fit remains a physical bench check.

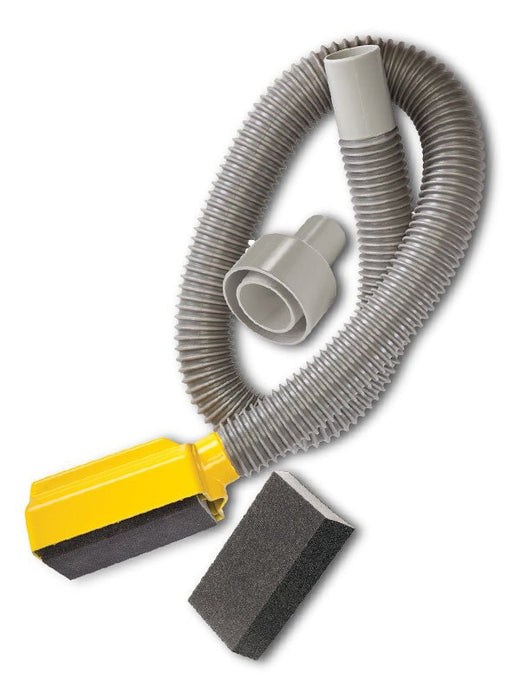

09160's sponge contents conflict between Hyde sources; 09165/09170 box “reversible sanding screen” and family “net sheet” language are kept separate; 09170's included-pole copy conflict is resolved by catalog, variant, and video as without pole.

Coating sandability, grit endpoint, primer/finish compatibility, cure/recoat timing, wood/metal/fiberglass schedules, vacuum filtration, respiratory protection, and hazardous-material controls are system- and site-specific. No universal numbers are invented.

The Isaac Fischer 1834 patent detail in the line history still awaits primary patent-record confirmation; this guide does not make it a load-bearing origin claim.
