How to Paint a Window Sash Without Taping the Glass

This guide merges trim-shields-and-edging-tools:paint-a-window-sash-without-taping-the-glass with spray-shields:shield-glass-while-painting-a-sash. The register’s four-model union is a discovery set, not four interchangeable endorsements. This page re-derives the honest working set by sash condition, line geometry, coating, and access. No glass-lap dimension, cure interval, recoat time, product compatibility, or availability is invented.

Job: prepare and repaint the accessible faces of a sound, paintable window sash; carry the coating to the correct glass line without masking every pane; preserve the window’s glazing seal, weatherstripping, drainage, hardware, and movement; then correct only the unintended glass-side excess after the coating has cured enough for the selected cleanup method.

Time: one uninterrupted painting session per sash, plus whatever preparation, primer, recoat, handling, and cure windows the actual coating and glazing system require. A divided-light sash takes longer than a single-light sash because every muntin is its own wet-edge problem.

Difficulty: line control and sequencing, not speed. The no-tape method replaces a long masking step with repeated small decisions: where the paint must stop, whether the shield edge actually seats, which member stays wet, and when the sash may move without bonding itself shut.

The hard boundary: this is a painting guide for a sound, stable sash. It is not a lead-abatement guide, glazing-repair guide, glass-replacement guide, rot repair, counterbalance repair, or a license to scrape an unidentified glass face with steel. Cracked or detached putty, rattling glass, rotten wood, loose joints, failed hardware, and unknown glazing can stop the paint job before a brush is loaded.

The exact Hyde working set — re-derived from the four-model union

| Tool | Honest lead here | Why it earns the job | Concrete false-neighbor statement |

The practical buy is usually one hand-scale tool, not all four. For a divided-light wood sash painted by brush, start with the 45000 if the wood and putty line wander, or the 45805 if the muntins are true and the corner reach matters. The 24" PROShield® pair is valid when the pane or bench setup admits that length, and especially when a spray fan rather than a trim brush is doing the application; forcing a two-foot blade into a light that cannot admit it is over-tooling.

Applicators and downstream cleanup

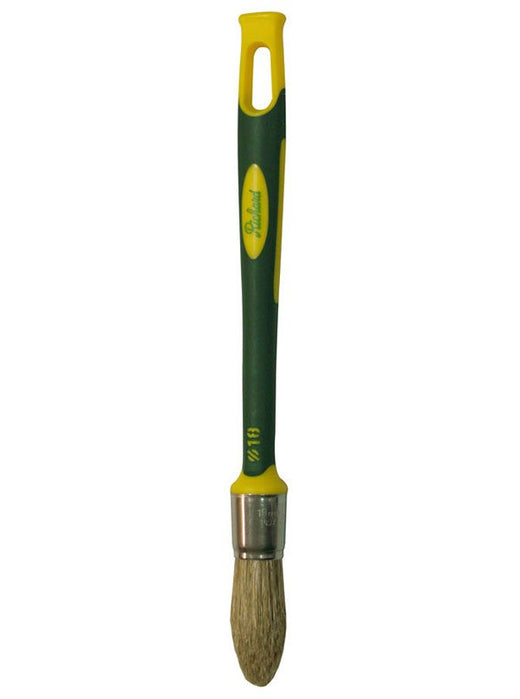

The brush width must follow the member, not a slogan. A 3/4" brush is the reviewed general sash width, but a muntin narrower than its working face needs the smaller sibling; a broad rail may take a wider brush or flat. The coating chemistry is the first fork. The 13418 and 13518 are waterborne choices. If the coating is oil, alkyd, varnish, or another system, choose a coating-compatible applicator from its maker’s instructions rather than borrowing a waterborne recommendation because the geometry looks right.

Before you start — diagnose the window, not just the color

Identify the sash and glazing system

This guide’s primary subject is a paintable wood sash, either fixed or operable, with sound glazing. Look closely before assuming every line beside glass is the same joint.

Traditional putty-glazed wood sash: the pane sits in a rabbet and the exposed glazing compound forms a beveled exterior fillet. On the weather side, the finish system normally continues over the cured putty and slightly onto the glass to close the putty-to-glass junction. The National Park Service describes that slight lap as part of the weathertight seal.

Wood sash with glazing beads or removable stops: the glass may be retained by wood beads, tape, gaskets, or a sealed insulating-glass unit. Do not invent a putty-style glass lap. Keep paint off gaskets, sealant edges, drainage paths, and removable bead joints unless the window maker’s maintenance instructions explicitly include them.

Metal sash: this is a different corrosion, primer, fastener, and glazing-compound system. NPS Preservation Brief 13 requires coating compatibility with the anti-corrosive primer and also describes a slight glass overlap for traditional metal-window glazing, but that does not turn a wood-sash recipe into a steel-window recipe. Route major corrosion, bent sections, and failed clips to metal-window repair.

Factory-finished vinyl, aluminum-clad, fiberglass, composite, or plastic sash: do not assume it should be field-painted. Identify the material and obtain the maker’s approved coating and preparation procedure.

Applied film, exposed coating, plastic glazing, or unknown clear material: protect it from paint, but do not promise later razor cleanup. The exact glass/film maker controls the cleanup method.

On a double-hung window, identify which sash moves, which track each occupies, how the balances work, and which faces touch in service. On a single-hung or fixed unit, do not force a sash merely because a double-hung sequence appears later in this guide.

Apply the pre-1978 lead boundary before any disturbance

Windows concentrate the lead problem. They carry old paint on narrow profiles, and operable sash repeatedly rub painted edges against stops, jambs, and parting beads. If the building predates 1978, or its age and coating history are unknown, do not begin an ordinary dry-scrape or power-sand workflow.

Paid renovation work in covered pre-1978 housing and child-occupied facilities falls under the EPA Renovation, Repair and Painting program unless the applicable exemption or lead-free determination is established. Start with the current EPA RRP requirements for contractors.

DIY work still creates the same dust and chips. Follow EPA lead-safe renovation guidance for DIYers: isolate the work, protect the ground or floor, keep occupants and pets out, use dust-minimizing methods, collect chips, HEPA-clean, and prevent contaminated clothing and tools from carrying dust through the home.

A paint shield prevents a wet brush mark on glass; it does nothing to contain lead dust. Tool choice comes after the lead-safe plan, never instead of it.

“No tape” is a speed method inside a properly controlled job, not a shortcut around the hazard.

Grade the glazing, wood, and coating into four lanes

Use a bright light and inspect every pane perimeter, corner, rail, stile, and meeting rail.

Lane A — paint-ready after ordinary preparation

Glass secure; no rattle under gentle hand pressure.

Putty or glazing bead continuous, bonded, and firm.

Wood firm under a gentle probe at lower corners and end grain.

Joints tight enough to hold their geometry.

Existing coating mostly bonded; any failure is local and within the established lead-safe or ordinary prep plan.

Sash moves through its intended travel and the lock aligns before paint adds film thickness.

Lane B — preparation before paint

Dirt, chalk, hand oil, wax, old cleaner, or gloss prevents adhesion.

Isolated loose paint can be removed within the safe prep plan.

Bare wood, minor stable checks, and repaired fastener holes can be prepared and primed within the coating system.

Hardware can be removed or protected without changing the window’s adjustment.

Lane C — glazing or sash repair first

Putty is missing, cracked through, separating from glass or wood, soft and displaced, or so hard and fractured that water can enter.

The pane rattles, a glazing point or bead is missing, the glass is cracked, or an insulating unit has failed.

Lower sash corners are soft, joints open, rails sag, muntins split, or the sash is out of square.

Cords, chains, balances, pivots, locks, hinges, or weatherstripping fail to operate.

Paint cannot turn detached putty back into a seal.

Lane D — specialist or maker procedure

Lead scope beyond the established plan.

Unknown or exposed specialty glass face.

Rotten or structurally loose sash.

Major corrosion or bent metal sections.

Historic finishes, rare glass, significant joinery, or hardware where loss would be irreversible.

Upper-story exterior work without safe access or a removable-sash/bench plan.

Decide whether the sash stays in place or goes to the bench

A removable sash on a padded bench is the best painting position: the work is at chest height, glass lies in a controlled plane, all members are reachable, and wet faces need not be chased from a ladder. The National Park Service’s wood-window repair brief shows the sash removed to a convenient work area and the opening temporarily protected during repair.

Paint in place only when every surface can be reached without leaning through the opening, standing on the sill, or working above a safe shoulder range. A modern tilt-in sash follows its maker’s tilt and support procedure; it is not allowed to hang by one pivot while wet. A glazed sash can be heavy and awkward. Support it with two hands and a stable padded surface, and use a second person when its size or weight makes control uncertain.

For an exterior face above safe ground reach, the choices are a properly selected and set ladder, scaffold/platform, or sash removal. Reaching around an open upper-story sash from indoors is not an access system.

Map and protect everything that must still move

Photograph the assembled window and label removed hardware by sash and position. Remove locks, lifts, catches, and surface-mounted hardware where that can be done without losing adjustment; otherwise mask the hardware itself. Do not paint:

sash cords, chains, balance tapes, springs, pivot shoes, or pulleys;

weatherstripping, pile, bulbs, gaskets, or compression seals;

tracks, runners, parting-bead contact faces, jamb liners, or concealed sliding edges not intended to receive finish;

weep holes, sill drainage paths, glazing-unit vents, or pressure-equalization openings;

lock tongues, keepers, hinge knuckles, or screw threads;

removable glazing-bead joints or sealant interfaces unless the window maker says they are paintable;

the sash-to-jamb gap. NPS weatherization guidance is explicit: caulk may belong between a frame and the wall, but not between an operable sash and jamb; weatherstripping excludes air while preserving movement.

Old paint buildup can already have stolen the operating clearance. Test the window before adding another coat. If it binds now, correct the buildup, adjustment, or failed hardware within the safe repair plan; wet paint is not a lubricant and a finish coat is not a carpentry repair.

Build one compatible coating system

Read the labels and technical data for cleaner, filler, glazing compound, primer, and finish as a system.

Confirm the finish is intended for the sash material and exposure.

Confirm the primer accepts the existing sound coating, bare substrate, and finish.

Confirm any filler, sealant, or glazing compound is paint-ready under its own instructions.

Confirm the applicator is compatible with the coating.

Record temperature, humidity, surface-temperature, ventilation, recoat, handling, and cure requirements from the selected products. No rule of thumb on this page overrides them.

Do not paint green glazing compound because a calendar says it “should” be ready. Pressing, wrinkling, oil bleed, or a surface that cannot accept primer under the compound maker’s directions is a stop.

Preparation — clean, degloss, feather, and prime without destroying the window

Clean before abrasion

Vacuum loose dust from ledges and corners under the applicable lead-safe controls. Wash the paintable faces with a mild cleaner compatible with the existing finish and selected coating. Use the weakest method that removes hand oil, smoke film, wax, cooking residue, and exterior grime. Keep water out of balance pockets, insulating-glass perimeters, laminated edges, open joints, and wood cavities.

Rinse if the cleaner requires it and allow the assembly to meet the coating system’s dryness requirement. Abrading greasy paint drives contamination into the scratches; cleaning comes first.

Clean the glass only enough to see and seat the shield line. A gritty pane contaminates the shield edge and can scratch under later cleanup. Do not turn this preparation wash into aggressive glass restoration; the exact glass face is diagnosed again before any steel-blade cleanup.

Remove only failed coating; preserve sound profile and sound putty

Under the established lead-safe or ordinary prep plan, lift loose and flaking paint until the edge stops at bonded film. Work small profiles with the tool nearly parallel to the wood and direct force away from glass. Do not lever a scraper against the pane, do not use a paint shield as a scraper, and do not chase every old brush mark by grinding away historic molding.

At the glazing line, distinguish loose paint from failed putty. Sound putty may carry old paint and remain bonded; feather its coating without cutting the fillet apart. Putty that cracks, lifts, or releases with the paint has crossed into the glazing-repair lane. Route it to the two sister guides rather than smearing filler or caulk over it.

If heat is part of an approved non-lead or lead-safe method, protect the glass from thermal shock and obey the heat restrictions in the repair procedure. Open flame does not belong at a painted sash.

Dull gloss and feather the transition

Scuff sound glossy paint enough for the selected primer or finish to bond. Feather the step where failed coating ended so a fingertip does not catch a hard lip. On muntins and molded profiles, use a hand abrasive that follows the shape; do not flatten the profile to make sanding easier.

Vacuum with HEPA equipment where the lead plan requires it, then make the final damp cleanup the coating system allows. The completion test is tactile and visual:

no loose edge moves under a fingernail;

no sanding dust remains in corners;

no glossy island survives where the system requires deglossing;

glazing remains continuous and uncut;

operable clearances remain open;

bare wood is firm, clean, and ready for primer.

Repair minor defects and prime the right surfaces

Fill stable nail holes and small non-moving defects with a paintable filler compatible with the system; do not bridge moving sash joints with rigid filler and do not use caulk in glazing rabbets. Open joints, rot, and loose tenons are sash repair.

Prime bare wood, exposed end grain, repaired areas, and any existing coating that the finish maker requires primed. Brush primer into corners without flooding weatherstrip grooves, balance paths, or glass. On a traditional putty-glazed sash, prime cured glazing only when the glazing-compound instructions call for it. On metal, use the compatible anti-corrosive primer and keep the wood-sash assumptions out of the job.

Let primer reach its stated recoat condition. Sand between coats only if the system directs it and only under the applicable dust controls. Remove the dust again before finish.

Stage the glass line

Decide which of these two lines you are making:

A trim-to-glass stop line on a bead-, gasket-, or otherwise maker-defined system: paint ends where the window instructions say it ends. There is no invented glass overlap.

A weather-sealing lap over sound, cured traditional glazing putty: the finish continues over the putty and slightly onto the glass, as NPS Preservation Brief 9 describes. The lap must be continuous but is not assigned a universal measurement here.

That decision changes shield placement. If a traditional putty line needs a glass lap, placing the shield hard at the putty-to-glass junction would block the very seal the coating must make. Seat the shield at the outer boundary of the intended lap, or use the 45042/trim brush to draw the lap freehand, then remove only the excess beyond that boundary after cure. On a gasket system, do the opposite: keep paint off the gasket and do not manufacture a putty lap where none belongs.

Painting without glass tape — the place, paint, lift, wipe system

Load for control, not maximum capacity

Stir and box the coating as its maker directs. Decant a manageable working quantity rather than carrying the full can around an open window. Condition the brush only if its maker and coating permit it.

Load the working tip, not the ferrule. Tap excess against the inside of the container rather than wiping the brush dry across the rim. A sash line fails at both extremes:

overloaded: paint floods under the shield, pools at muntin intersections, and runs down the pane;

starved: the brush skips, the painter scrubs backward, and the line dries before the next member joins it.

For the 45042, load lightly and verify the pad releases the selected coating on scrap first.

Seat the shield on clean glass and prove the first line

Choose one inconspicuous lower run as the test.

Wipe the glass and the shield’s working edge clean.

Seat the edge on the glass at the planned stop or lap boundary.

Look along the edge for daylight. If the stiff edge bridges a hollow, switch to the 45000 or 28010; pressing harder does not make a rigid guide conform.

Hold the shield still. A shield that walks becomes a paint applicator.

Paint a short run toward the edge with the brush or pad, keeping the final stroke parallel to the member.

Lift the shield straight away from the glass. Never drag a wet edge along the pane.

Inspect both sides of the line, then wipe the shield before it seats again.

The cycle is place, paint, lift, wipe, place. The wipe is not housekeeping. Paint collects on any non-absorbent shield and migrates to the working edge; if it is not removed, the next placement prints a perfectly straight smear onto the glass. Glass requires a wipe at every placement.

Move with overlap, but do not invent a measurement

Every new placement must cover the endpoint of the previous one so a witness gap cannot appear. The needed overlap is controlled by the brush stroke, the pane geometry, the shield length, and the intersection ahead; it is not a universal inch value.

At a muntin intersection, extend the shield past the crossing before painting into it. Then turn the tool, wipe, and make the crossing member. The shield must protect the far side of the intersection while the brush is still carrying paint; stopping exactly at the crossing leaves the corner unguarded.

Use the shortest tool that spans the active run without colliding with the next rail or frame:

the 45000 for short, irregular hand work;

the 45805 for short, straight work and corner reach;

the 28010 for a long, imperfect line that admits a two-foot blade;

the 28020 for a long, true line that admits a two-foot rigid edge.

Spray branch — a line shield is not overspray containment

Spraying is justified only when the coating, spray equipment, ventilation, personal protection, and site controls all permit it. A 24" × 9" PROShield® can guard the active glass edge; it cannot protect the rest of the pane, the room, the exterior, nearby vehicles, adjacent property, occupants, or a sash cavity from drifting paint. Mask and contain everything outside the intended fan, including the exposed opening if the sash is on a bench. Keep people and pets out of the controlled area and follow the coating and equipment makers’ respiratory, ignition, pressure, grounding, and ventilation instructions.

Neither is valid when the pane cannot admit the tool, the blade bridges a hollow, the operator cannot hold it without entering the spray path, or the shield blocks a safe gun angle.

Bench the sash when practical, support it flat, and dry-fit the clean shield before loading the gun.

Establish the same trim-stop or intentional putty-lap boundary used for brush work. On traditional glazing, the shield sits at the *outer* edge of the slight lap, not at the putty-to-glass joint.

Set and test the spray pattern, pressure, coating reduction, distance, and pass speed on a representative practice surface under the equipment and coating instructions. This guide supplies no universal settings.

Seat the shield past both ends of the active pass. Keep its face out of the wet coating path as much as the line permits, and never aim the fan into a poorly seated edge.

Make the controlled pass without turning the shield-holding hand into a spray target. Stop the pass according to the gun maker’s trigger procedure.

Lift the shield straight away without dragging its wet edge across the pane. Move out of the spray zone, wipe both faces and the working edge completely, inspect the line, then reseat.

Correct wet unintended glass paint only by the coating- and glazing-approved method. Do not postpone every defect on the assumption that a razor will be safe after cure.

Spray in coherent sections so the coating’s wet edge remains manageable, but do not chase a settling film with repeated passes. At muntin intersections and corners, the same overlap rule applies: protect beyond the crossing, complete the active member, wipe the tool, rotate, and re-establish the next line. If the shield is too large or spray fog cannot be contained, step down to the 45000/45805 and brush, or mask the glass conventionally.

Paint a divided-light sash from the small geometry outward

Finish one coherent face without hopping randomly around the grid.

Muntins and glazing bars first. Start at the top and work down so any sag lands on an unpainted member. Carry each run to its planned glass line, maintain the required putty lap where applicable, and finish the stroke in the member’s long direction.

Horizontal rails next. Work the top rail, intermediate rail or meeting rail face as the window design allows, then the lower rail. Cover the small end laps left by the muntin work while they can still merge wet.

Vertical stiles after the rails. Draw each stile in a continuous top-to-bottom layoff. Their long strokes become the visual frame around the shorter grid.

Accessible frame or casing last, if it shares the same coating sequence. Keep sash and fixed-frame work separate where a wet edge would bridge the operating gap.

Do not coat every visible edge merely because the brush can reach it. Preserve the runners, concealed sliding edges, weatherstrip contact faces, balance hardware, and drainage paths mapped in step 5.

The wet-edge rule is member-scale: distribute paint, then make the final layoff in the member’s long direction and leave it alone. Rebrushing a partially setting waterborne film creates drag marks; flooding a slow coating creates curtains at the lower rail. Work only as much grid as the selected coating lets you join wet.

Work a single-light sash as four connected members

Without muntins, the visual order is simpler:

bottom rail or lower rail;

hinge or pulley stile;

meeting-rail face or glazing-bead details that belong to the same finish system.

Maintain one continuous glass line around the pane. At each corner, shield past the turn, wipe, rotate, and restart into the wet corner. A corner built from four dry stop-starts looks patched even when every straight run is clean.

On a casement, keep paint out of hinges, friction stays, multipoint locks, seals, and drainage routes. Support an open casement against wind while painting; a wet sash is not allowed to swing on its hardware.

Use the intentional glass overlap correctly

On traditional exterior putty glazing, paint on the glass can be correct. The point is not to “hide” the putty with a decorative stripe; it is to carry a continuous finish film across the putty-to-glass junction so water cannot enter behind the bevel.

Cover the cured, prepared putty.

Continue the finish slightly onto the glass in a continuous line.

Do not assign the lap a universal dimension. Follow the compound/coating instructions and the established sight line.

Do not reproduce the lap on bead-, gasket-, tape-, film-, or insulated-unit systems unless their maker calls for it.

During cleanup, preserve the intended lap. The goal is not “zero paint on glass”; the goal is zero unintended paint beyond the correct system line.

Keep the moving sash from becoming one painted object

Before setting the brush down, inspect every operating boundary:

no bridge between sash and stop;

no paint on cords, chains, balances, pivots, or weatherstripping;

no puddle in a track or against a gasket;

no finish across a weep or drainage slot;

no wet lock face or keeper;

no meeting-rail film that will be crushed by the mating sash.

If paint crossed a prohibited contact surface, remove it while the coating maker’s wet-cleanup method still applies, without smearing it onto the finished face. Do not close the window to “see if it fits” while wet faces can touch.

The double-hung in-place sequence — preserve access and movement

Separate the two sash before painting

This sequence applies only to a traditional double-hung window whose upper and lower sash both move safely.

Unlock the window and remove or protect surface hardware.

Raise the inner/lower sash and lower the outer/upper sash so the meeting rails pass and the two sash occupy separated positions.

Confirm cords, chains, balances, and weatherstripping remain clear and supported.

Protect the sill and interior below. If the exterior face cannot be reached from a safe work position, stop and remove the sash or provide proper exterior access.

The purpose is not a magic sash position; it is to expose one set of members while keeping newly painted faces from touching their stops or each other.

Paint the accessible upper-sash work first

With the upper sash lowered into safe reach and the lower sash raised clear:

paint its muntins or single-light glass line;

paint the accessible rails and stiles in the inside-out sequence;

paint the visible meeting-rail face and profile only where the window’s coating plan includes them;

keep paint off the concealed runner edges, sash cords/chains, parting-bead contact, weatherstrip, and mating lock surfaces.

Finish each member in its long direction and inspect the glass line before changing position.

Reposition only at the coating’s approved handling stage

The coating label, actual conditions, and film thickness decide when a sash may be handled. “Dry to touch” is not automatically safe to slide against a stop, and this guide supplies no generic wait.

When the film is ready for the movement the maker permits:

support the upper sash and move it without dragging the fresh face against the frame;

reverse the sash positions to expose the unpainted portions and the lower sash;

inspect the track and contact faces immediately for transferred paint;

paint the newly accessible upper-sash areas, then the lower sash, using the same grid-to-rails-to-stiles order;

leave the sash in a position that keeps fresh finish off mating surfaces while still maintaining safe security and weather protection.

Move each sash through its necessary travel again at the next maker-approved handling point so an unnoticed bridge cannot cure into a bond. Do not repeatedly exercise a film that is too soft; the purpose is separation, not abrasion.

Adapt rather than force other window types

Single-hung: the upper sash is fixed. Paint only what is safely accessible and follow the maker’s access procedure.

Tilt-in: tilt one sash at a time and support it exactly as the maker directs. Do not slide a tilted sash and do not let its weight hang from one pivot.

Spring balance or jamb liner: keep paint off the liner and balance interfaces; another coat on a vinyl liner is damage, not maintenance.

Casement or awning: open only to a stable supported position; keep hinges, arms, locks, seals, and drainage clear.

Removable historic sash: label parts and openings, bench the sash, and use the opening protection and reinstall sequence appropriate to the building.

Second coat, cure, glass correction, and return to service

Inspect before recoating

Recoat only when the primer or first coat meets its stated condition under the actual temperature, humidity, exposure, and film build. Before adding another layer, inspect for:

shield prints on glass;

under-creep at a wavy line;

skips at intersections;

runs below rails and putty bevels;

brush ridges or starved edges;

paint bridges at sash contacts;

exposed bare wood or primer;

Correct a preparation failure before burying it. A second coat improves coverage; it does not repair loose paint, failed putty, contaminated substrate, or a sealed-shut track.

Repeat the same member order and shield discipline for every coat. Masking is not required, but wiping the edge is required every time.

Let the coating cure before steel touches glass

Wet or green paint smears and transfers; it does not shave cleanly. The glass-correction step begins only when the coating has cured enough under its own schedule to release as a firm chip, flake, or ribbon. There is no universal waiting period.

known bare, uncoated annealed glass may enter the guide’s bounded wet-scrape lane;

tempered or heat-strengthened, laminated, insulating, and other amber-lane assemblies require the exact supplier procedure before metal;

exposed coatings, applied films, plastic glazing, defroster grids, front-surface mirrors, and unknown clear layers are no-steel results.

Most important: do not scrape away the intentional traditional putty lap. Remove only paint beyond the correct line. Work toward an open safe lane, never drive a blade into the frame, and stop if the edge ticks, feels gritty, leaves a repeating mark, or reveals haze or coating change.

Clean the tools by coating chemistry

Wipe shields during the job before paint cures on the working edge. At cleanup:

use the coating maker’s water or solvent procedure;

keep solvent away from glazing seals, plastics, weatherstripping, and unknown finishes;

clean the 13418/13518 heel before the filament dries and reshape the tapered tip;

retract, cap, or otherwise safe every scraper and place spent blades in a rigid closable container;

store shields flat or hung so nothing dings the working edge.

Oil-, alkyd-, or solvent-wet rags can self-heat. Follow the coating and local fire-safety instructions; never leave oily rags crumpled in a pile or sealed casually in ordinary trash.

Reinstall hardware and test the complete window

Wait until the coating has reached the maker-approved state for hardware contact, locking pressure, weatherstrip compression, and ordinary use.

Reinstall each labeled lock, lift, catch, stop, or hinge in its original position.

Clear screw heads and moving joints before tightening.

Move the sash slowly through full intended travel; stop at the first bind rather than forcing fresh finish through it.

Confirm upper and lower meeting rails align and the lock closes without using the fastener as a clamp.

Confirm cords, chains, balances, pivots, and stays run freely.

Confirm weatherstripping is clean, seated, and unpainted.

Confirm every weep and drainage route is open.

Inspect the glass from both sides in raking light, preserving the intentional glazing lap.

Check the exterior putty or bead line after the first weather exposure allowed by the coating system; water must shed, not collect behind a missed joint.

The job is complete when the sash is coated, the intended glass line is continuous, the pane and glazing system are sound, and the window operates without tearing, sticking, or crushing fresh paint.

What goes wrong — symptom, cause, and repair

“The shield left a perfectly straight paint stripe on the next pane.” Wet-edge print. Paint accumulated at the working edge and transferred on the next seat. Stop, clean the glass by the coating-appropriate wet method if still safely workable, wipe the shield completely, and resume with a wipe after every placement.

“Paint crept under the shield in little scallops.” The edge bridged hollows or debris. Clean both surfaces and change geometry: stiff 45805/28020 to conforming 45000/28010. More hand pressure on a rigid edge only tires the hand; it does not close a hollow.

“The line is straight but wrong at every muntin crossing.” The shield stopped at the intersection instead of protecting past it. Extend beyond the crossing, paint into the protected corner, then wipe and rotate for the next member.

“The brush line is rough and ridged.” The brush starved, the coating began setting before layoff, or the applicator is wrong for the chemistry. Reload before the edge dries, shorten the working section, and use a compatible brush. Do not keep rebrushing a film that has started to set.

“The paint wrinkled over the glazing putty.” The compound was not paint-ready, the primer/topcoat was incompatible, or a heavy film trapped movement or solvent. Follow the compound and coating makers’ repair direction; do not bury the wrinkle under another coat.

“The fresh finish peeled off with the shield.” The shield was dragged or lifted through a film already bridging onto it, or the underlying surface was not bonded. Lift straight and sooner; diagnose adhesion before repainting.

“The putty-to-glass line looks clean, but it leaks.” A zero-lap cosmetic cut may have removed the weather seal on a traditional putty-glazed exterior sash, or the putty itself is failed. Re-establish the compatible finish lap on sound cured putty; failed putty routes to the reglazing guides.

“The sash is painted shut.” Wet faces touched, paint bridged an operating gap, or another coat consumed an already tight clearance. Separate carefully without tearing sound film, clear prohibited contact surfaces, repair damage, and use the staged movement sequence on the next coat. Do not solve the problem by planing blindly through a lead-painted edge.

“The sash moves but sticks at one point.” Look for a localized paint bead, coated weatherstrip, proud hardware, or an existing alignment problem. Correct the cause; never coat the runner to “make it uniform.”

“The lock no longer meets.” Film thickness, shifted hardware, or a sash not fully seated changed alignment. Do not drag the sash closed with the lock. Restore seating and hardware position after the finish is ready for contact.

“A razor scratched or hazed the pane.” The glass face was not qualified, grit was trapped, the blade was pulled backward, or the method continued after warning. Hard stop. Document the damage and follow the glass supplier’s procedure. A fresh blade is not a scratch-free guarantee.

“Cleanup removed the neat glass line too.” The correction pass erased the intentional putty lap. Recoat the compatible sound joint after proper preparation; next time mark the lap boundary in raking light and remove only the excess beyond it.

“The window was clean before prep and now lead chips are on the sill.” Containment or cleanup failed. Stop painting, secure the area, and return to the lead-safe cleanup and verification procedure before occupants re-enter.

“The shield is too large to fit the light.” It is the wrong tool, even if the register lists it. Step down from the 24" PROShield® to the 45000 or 45805; if even those cannot seat, freehand with the compatible tapered brush or use the 45042 where its access geometry and tested coating compatibility genuinely help.

Access and safety — the boundaries that remain after the tape disappears

Lead: pre-1978 or unknown paint disturbance requires the lead-safe plan described above. No-tape line control changes none of it.

Glass: wear eye protection around cracked panes and cut-resistant gloves for blade handling. Do not press on the center of a pane, lever tools against glass, or work toward a chipped edge. A cracked pane leaves this guide.

Ladders and platforms: use a ladder only on stable level footing, face it while climbing, maintain the required contact, and never lean sideways through a window to reach an exterior face. Follow current OSHA ladder requirements for covered work and the equipment maker’s instructions.

Sash handling: glazed sash can be heavy. Support tilt-in units, control counterbalanced sash, keep fingers out of meeting-rail pinch points, and do not leave an opening unsecured while parts cure offsite.

Ventilation and PPE: follow the cleaner, primer, coating, and solvent safety data. Window work concentrates vapors in the opening where the painter’s face is positioned.

Fire: no open flame at paint, putty, wood sash, or solvent. Manage oil- and solvent-wet rags under the product and local fire rules.

Occupants and weather: keep children and pets out of the controlled zone. Do not leave an operable opening, wet sill, or removed sash exposed to rain, dew, wind, or an unsecured fall opening.

Buyer tests — the guide must make the tool choice possible

Reject the 45805/28020 as the first shield because their rigid edge bridges the wander. Reject the 24" flex 28010 if the individual lights cannot admit it.

Its claimed blade-past-handle reach gets into the corner, and its short length turns among the bars. Reject the 45000 where the curved edge is less exact on a genuinely straight line. Reject both 24" PROShield® members if they foul the frame.

Mask the surrounding area anyway; a shield protects a line, not the room from spray fog.

Freshly reglazed traditional exterior sash: do not place any shield at the putty-to-glass junction and cut the paint to zero. First wait for the compound’s own paint-ready condition, use the compatible primer/topcoat system, and carry a slight continuous lap onto glass. Shield at the *outer boundary* of the lap or freehand it, then preserve it during cleanup.

Factory-finished vinyl sash with insulating glass and a black gasket: none of the four Hyde shield choices authorizes field painting or a glass lap. Get the window maker’s procedure. If the material is not approved for repaint, the buyer test ends without a tool sale.

For coated, filmed, plastic, unknown, or maker-restricted glazing, choose no steel tool.

History — the paint line is part of the window, not decoration

The historic wood window is not one product but a repairable material system: joined wood carries the opening, glass admits light and weather, putty cushions and seals the pane, points hold it, and paint protects the wood and closes the exterior glazing line. The National Park Service’s Wood Windows, History’s Eyewitness describes wood, glass, and putty as a cooperative system and notes the mortise-and-tenon construction that lets damaged members be repaired rather than making the whole window disposable.

NPS Preservation Brief 9 — The Repair of Historic Wooden Windows documents the double-hung repair sequence: remove sash to a convenient work area where appropriate, retain and reset historic glass, bed the pane, set glazing points, bevel the final putty, and paint the exterior finish slightly onto the glass to complete the weathertight seal. That last move is why a perfect zero-paint glass line can be technically wrong on a putty-glazed exterior sash. The paint is not trespassing onto the pane; it is finishing the joint.

The points buried under that painted bevel are an older trade pattern. The American Precision Museum’s glazier’s-points history records triangular points pushed with a putty knife and later point-setting tools that sped the same fastening operation. The sources reviewed for this guide do not establish an inventor or invention date for the sash painter’s hand-held shield, so none is claimed. Hyde’s 45000, 45805, 28010, and 28020 are the exact present-day manufactured answers evaluated here for the geometry of guarding glass.

The important continuity is practical. A divided-light sash is slow because each pane multiplies the line; the shield deletes the masking, not the craft. The painter still has to read the glazing, preserve the slight weather lap where the system needs it, keep the moving edges free, and return the sash to service. That is why this method belongs in the same graph as reglazing and glass correction rather than in a collection of “painting hacks.”

External technical and history sources

EPA — Renovation, Repair and Painting Program for contractors: current federal lead-safe boundary for covered compensated work.

EPA — Lead-Safe Renovations for DIYers: containment, dust minimization, cleanup, and occupant protection for home work.

NPS Preservation Brief 9 — The Repair of Historic Wooden Windows: historic wood-window evaluation and repair; sash removal; reglazing sequence; slight exterior paint lap onto glass.

NPS — Wood Windows, History’s Eyewitness: repairable wood/glass/putty system and traditional joined construction.

NPS Preservation Brief 13 — The Repair and Thermal Upgrading of Historic Steel Windows: separate metal-window primer, corrosion, glazing, hardware, and finish boundary.

NPS — Weatherization: Eliminate Air Infiltration: caulk frame-to-wall where appropriate, not operable sash-to-jamb; use weatherstripping without defeating movement.

American Precision Museum — Glazier’s Points: historical point patterns and point-setting practice.

OSHA 1926.1053 — Ladders: covered-work access requirements.

No universal glass-lap dimension: traditional putty-glazed exterior work gets the slight continuous lap required by the glazing/coating system; bead-, gasket-, film-, and sealed-unit systems do not inherit it. No number is authored here.

No universal timing: cleaner dwell, substrate dryness, glazing paint-ready condition, primer/topcoat recoat, sash-handling, cure, glass-scrape readiness, and return-to-service are product and condition facts. No generic interval is authored.

45000: Hyde states 10", aluminum, and “curved spring aluminum with offset handle.” Edge-preload and conformity explanations are authored trade reasoning; blade height, finish, and temper beyond “spring” remain unstated.

45805: Hyde states 11-1/2", stainless blade extending beyond a high-impact styrene handle, and the Smoothing/Trim Tool name. Flatness and the full triple-duty retailer sentence remain inferred/retailer-sourced; no blade height, thickness, or bevel is claimed.

28010/28020: exact dimensions, flex/stiff identity, aluminum family identity, PivotNeck, and 18" Acme-threaded hardwood-handle family claim are accepted. Flex/stiff mechanism, handle-in-box, and per-SKU pole fitment remain unstated or inferred and are not needed for the hand method.

13418: exact official model description supports the Elegance waterborne trim role. No dimension beyond the stated 3/4" is used. It is not generalized to oil/alkyd work.

13518: listing-name grain only; no accepted product claims in its packet. Exact polymer, ferrule, bristle length, and capacity remain unclaimed.

45042: official record supports a flexible metal tool, paint pad, sash/radiator/tight-area finish use, and bendable handle. Pad material, dimensions, replacement, and coating compatibility are unresolved.

Coated, filmed, plastic, unknown, laminated-edge, insulating-unit, and heat-treated faces retain its stop/amber/red boundaries; a fresh blade is never presented as a no-scratch guarantee.

Window-system scope: metal, factory-finished, clad, vinyl, fiberglass, composite, sealed-unit, and specialty-glass windows require their own maker or preservation procedure. Their presence in the diagnosis section is a routing boundary, not a compatibility claim.

History: no sash-shield inventor or invention date is claimed. NPS and American Precision Museum sources carry the repair-system and glazier-point history. Hyde founding-year language is deliberately omitted here because it is not needed to explain this job.

Every product link is exact SKU grain, and every job handoff names the exact local guide.
