Hyde Tools 62660 Mill Blade BG20 Flat Grind, 6 - 1/2" x 3/4" | the Hyde Store
Industrial Mill Blades — Consumable Or Replacement Component
№62660

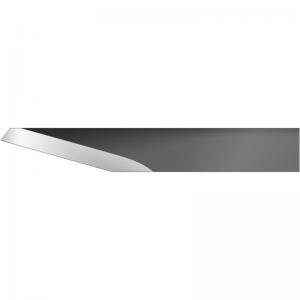

Hyde Tools 62660 Flat Grind Mill Blade BG20

MODEL 62660 · SKU H-62660 · UPC 079423626609
CHECK THIS AGAINST MY JOB
$12.81 PER UNIT · SINGLE UNIT UNIT PRICE

AVAILABLE TO ORDER · CONFIRM LEAD TIME
✓ SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
✓ FREE SHIPPING — ORDERS OVER $30
✓ LOCAL PICKUP — FALL RIVER
✓ NET-30 & PO — APPROVED ACCOUNTS
Flat Grind Mill Blade BG20

Official Hyde specifications

Dimensions
6-1/2" x 3/4" x .072"
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

✕CHOOSE A DIFFERENT TOOL WHEN
  • Not the abrasive-synthetics blade — polyester cord, glass-filled fiber, and rubberized stock abrade a carbon edge faster than honing can keep up, and that duty belongs to the high-speed-steel patterns.
  • Not the dense-and-grabby blade: material that would roll a thin flat edge, or glancing cuts into hard stock, want the bevel grind's backed edge (62600/62750 class), not this flat one.
  • Not a reaching blade — the 9" 086 (62180) owns that.
  • And not a knife you buy finished: the BG20 is a bare blade for a handle, not a riveted one-owner tool.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №62660
Job guide How to Control Between-Change Service for a Standard Mill BladeOPEN JOB GUIDE Job guide How to Open Fiber-Bale Wrappers Without Taking on the Restraint-Release JobOPEN JOB GUIDE

For these jobs—use this instead

THE JOB, THE REASON, AND THE BETTER TOOL
Dense and grabby stock Material that would roll a thin flat edge, or glancing cuts into hard stock, want the bevel grind's backed edge (62600/62750 class), not this flat one. BETTER TOOL Mill Blade (BG182M) Bevel Grind High 62600 Reaching cuts The 9" 086 (62180) owns that. BETTER TOOL Mill Blade (086) Flat Grind 62180

How the pros run it

01

Exposure is your stiffness control

Clamp the blade short for controlled, stiff cuts and extend it only for reach; re-extend as honing shortens it. The flat grind wants a flat stone. Draw the single-plane edge on a bench stone, keep it square, strop the burr off the back — the grind is flat, so flat-stone honing keeps it true instead of un-designing it. Dry it after wet work. High-carbon steel rusts where stainless does not; a wipe-down after oily or damp cutting is part of the blade's upkeep. Mind the clamp. Set screws checked tight, exposure no longer than the cut — the mill blade's safety lives entirely in its clamp.

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
What is the difference between BG20, BG71A, and 088?
On every listed measurement — length, width, thickness, grind, steel — none. They differ by pattern number, which is a plant spec, not a shape you can measure. Reorder the pattern your station already runs.
If I'm starting fresh, which should I pick?
For a new station, 088 (62420) is the safe default because it also exists in high-speed steel (62450); standardizing there keeps an abrasion upgrade inside one pattern. BG20 is equally good for the cutting itself.
Is it stainless?
No — Standard high-carbon steel. It hones easily and holds a keen edge, but it must be kept dry against rust.
When would I not want this blade?
When the stock is abrasive enough to burn carbon edges fast (go high-speed steel), when the material is dense and grabby (go bevel grind), or when you need reach (go 9" 086).
Does it come with a handle?
No. It is a bare blade that clamps into a 3/4"-capable handle (63085 or 63080) by a slotted set screw.

Compare Hyde models

Crew & facility ordering

Model & SKUModel 62660 · SKU H-62660 · UPC 079423626609
Product-specific quantity pricingSee this product’s published tiers above. Eligible discounts apply automatically at checkout.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Specs & documentation

Full specification details
catalog product name
Flat Grind Mill Blade BG20
specifications
dimensions: 6-1/2" x 3/4" x .072"
official product name
Mill Blades - Flat Grind Mill Blades
official variant identity
62660 — Standard / BG20
Hyde official catalog evidence ↗Hyde Tools manufacturer source ↗
$12.81PER UNIT · H-62660
