Hyde 66030 Straight V - Trim Curved Tip Knife H212, 3 - 1/2" x 3/4” | the Hyde Store
V-Trim And Vent Knives — Primary Tool
№66030

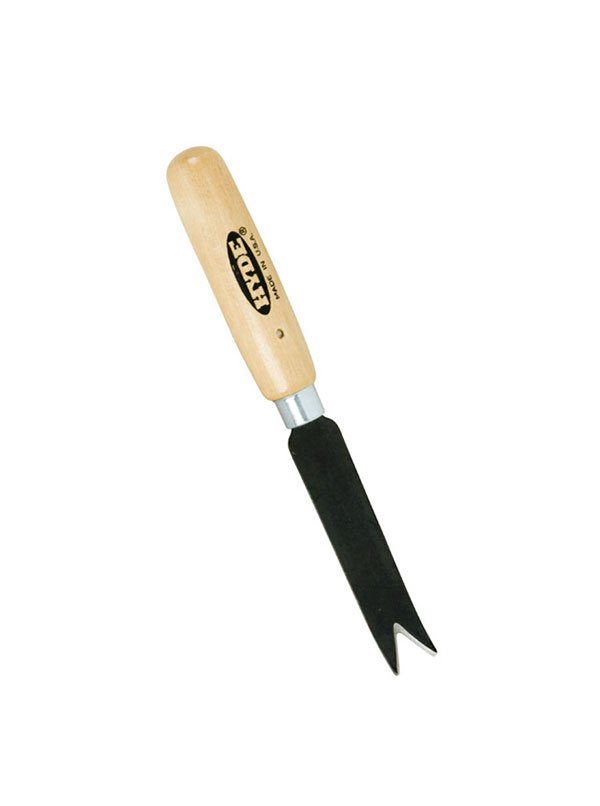

Hyde Tools 66030 Straight V-Trim Curved Tip Knife H212

MODEL 66030 · SKU H-66030 · UPC 079423660306
CHECK THIS AGAINST MY JOB
$15.86 PER UNIT · SINGLE UNIT UNIT PRICE

Selected subtotal: $15.86. Standard US shipping is $9.99 below $15, $7.99 from $15 to below $49, and free at $49 after discounts. Freight items excluded; other rates are shown at checkout.

AVAILABLE TO ORDER · CONFIRM LEAD TIME
✓ SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
✓ STANDARD US SHIPPING — $9.99 BELOW $15 · $7.99 FROM $15 · FREE AT $49 AFTER DISCOUNTS
✓ LOCAL PICKUP — FALL RIVER
✓ NET-30 & PO — APPROVED ACCOUNTS
Straight V-Trim Curved Tip Knife H212

Official Hyde specifications

Blade dimensions
3-1/2" x 3/4" x .065"
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

✕CHOOSE A DIFFERENT TOOL WHEN
  • Long flat runs where reach and flank width govern — the full-inch, 4"-long straight (66060) puts more blade on a broad flat face; the 66030's compact size is a detail advantage, not a coverage one.
  • Heavy long-pull deflashing on large parts — the offset (66090) keeps the hand clear through a long stroke the straight handle cannot.
  • Throughput vent-trimming of production tread rows — that is the five-groove pin trimmer's swath job (65060).
  • Precision detail where the curved tip is beside the point — on dead-flat bench work a square-tipped straight (66330) is the simpler equal; the curve only earns its keep on contour.
  • And it is not a repair knife — it finishes healthy parts; the injured-casing work belongs to the K770 skiver (61350) and the H2T taper point (61260), other lines.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №66030
Job guide Choose Straight vs Offset for Curved WorkOPEN JOB GUIDE Job guide Sweep-Trim a Contoured Part SurfaceOPEN JOB GUIDE Job guide Trim Vent Spews on a Cured TireOPEN JOB GUIDE

For these jobs—use this instead

THE JOB, THE REASON, AND THE BETTER TOOL
Long flat runs where reach and flank width govern The full-inch, 4"-long straight (66060) puts more blade on a broad flat face; the 66030's compact size is a detail advantage, not a coverage one. BETTER TOOL Straight V-Trim Knife H213, 4" x 1" 66060 Heavy long-pull deflashing on large parts The offset (66090) keeps the hand clear through a long stroke the straight handle cannot. BETTER TOOL Offset V-Trim Knife H222, 3-1/2" x 3/4" 66090 Throughput vent-trimming of production tread rows That is the five-groove pin trimmer's swath job (65060). BETTER TOOL Offset Pin Vent Trimmer Knife H1357, 5" 65060 Dead-flat bench precision On dead-flat bench work a square-tipped straight (66330) is the simpler equal; the curve only earns its keep on contour. BETTER TOOL Straight V-Trim Knife 3787A, 3-15/16" x 66330
VIEW 1 MORE JOB REDIRECT
Injured-casing repair And it is not a repair knife — it finishes healthy parts; the injured-casing work belongs to the K770 skiver (61350) and the H2T taper point (61260), other lines. BETTER TOOL Flexible Skiver Knife K770, 4" x 13/16" 61350

How the pros run it

01

Lead with the tip into a sweep

On contoured work the tip enters first and follows the surface down as it curves; letting the tip guide the arc is what keeps the notch presented through the whole stroke. Keep the flanks flat — never lift the trailing edge. As with every V-trim, raising the back of the blade to force the cut drives the notch walls into the surface and gouges it; the geometry only protects the surface when the flanks ride flat. Pull the notch along the protrusion, not into it — a running cut that feeds each spew or the flash ridge into the V, not a chop. Match the compact blade to the work: at 3-1/2" this is a detail-scale straight, best on spot dressing and contoured passes rather than long flat runs, where a wider straight carries a steadier flush cut. Sharpen the notch on its walls: a slim slip stone or fine tapered file drawn to follow the V, burr stropped off the outside face; a flat bench stone used alone only rounds the flanks and un-designs the knife (notch-honing is authored trade knowledge — no Hyde maintenance text). The blade is high-carbon; dry it after wet work or it blooms rust.

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
What makes this different from the other straight V-trims?
The curved tip — it is the only member of the line that has one. It keeps the notch presented to the work as the blade sweeps across a crowned or contoured surface, where a square tip lifts off at the tangent (intent authored from the name and geometry).
When do I want the curve?
On contour: tire crowns, molded radii, barreled surfaces. On dead-flat work the curve is beside the point, and a plain straight (66330) does the same job.
Is it a different size from the others?
It is the compact straight at 3-1/2" × 3/4"; the plain straights are 3-15/16" (66330) and 4" (66060). Smaller footprint, detail scale.
Can it deflash molded parts?
Yes — especially on contoured faces, where following the surface matters. The catalog-named deflashing knife is the offset 66090; the 66030 brings the curved-face version.
How is it different from the 66090?
Same blade size, opposite trick: this one curves the tip for contour; the 66090 offsets the blade for clearance on long convex pulls.
How do I sharpen the notch?
On its inside walls with a slip stone or tapered file following the V, burr off the outside face; never a flat bench stone alone . Dry the carbon blade after wet work.

Compare Hyde models

Crew & facility ordering

Model & SKUModel 66030 · SKU H-66030 · UPC 079423660306
Product-specific quantity pricingSee this product’s published tiers above. Eligible discounts apply automatically at checkout.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Specs & documentation

Full specification details
catalog product name
Straight V-Trim Curved Tip Knife H212
specifications
blade dimensions: 3-1/2" x 3/4" x .065"
official product name
V-Trim Knives - Standard
official variant identity
66030 — H212
Hyde official catalog evidence ↗Hyde Tools manufacturer source ↗
$15.86PER UNIT · H-66030
