V-Trim And Vent Knives — Primary Tool
№65060

Hyde Tools 65060 Offset Pin Vent Trimmer Knife H1357

MODEL 65060 · SKU H-65060 · UPC 079423650604
CHECK THIS AGAINST MY JOB
$55.80 PER UNIT · SINGLE UNIT UNIT PRICE

IN STOCK
SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
FREE SHIPPING — ORDERS OVER $30
LOCAL PICKUP — FALL RIVER
NET-30 & PO — APPROVED ACCOUNTS

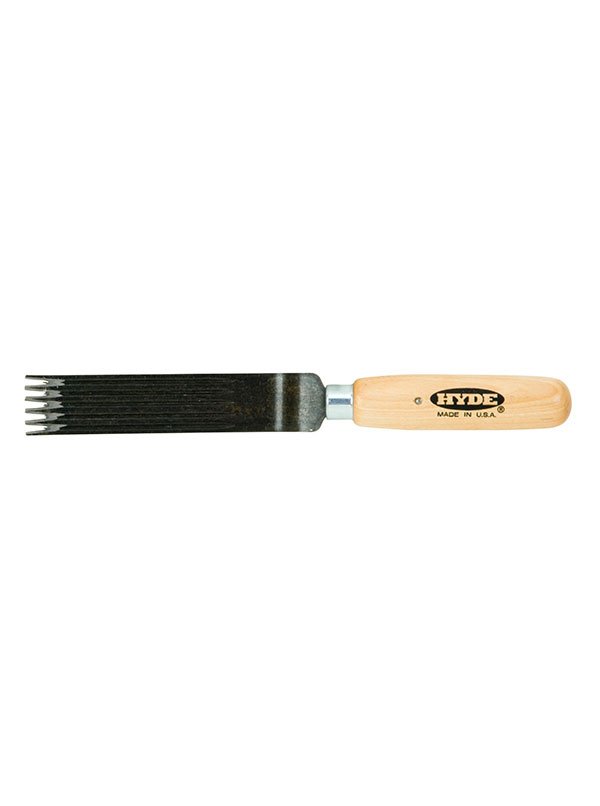

Offset Pin Vent Trimmer Knife H1357

Official Hyde specifications

Blade dimensions
5" x 1" x .065"
Offset blade has 5 sharp grooves
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

CHOOSE A DIFFERENT TOOL WHEN
  • Precision and detail.
  • The strays, the lettering, the flash lines, and the single spews in tight spots are single-notch jobs — 66330 and 66060 for straight work, 66090 for crowned single-notch pulls.
  • It is not a repair knife.
  • A gang vent trimmer finishes healthy tires; it does nothing for an injured one.
  • Shaving damaged rubber off a casing surface is the K770 flexible skiver's job (61350, industrial-knives line), and reaming a ragged casing cut clean from the inside is the H2T taper point's (61260, pattern-blades line).

Jobs this tool does

EXACT JOB METHODS FOR HYDE №65060

How the pros run it

01

Keep every groove seated

The cut is correct only when all five channels are riding the rubber together; if the head is rocked onto two or three grooves, those cut deep and the rest skip. Even pressure across the width of the head is the whole skill. Let the notches cut — do not lift the trailing edge. The single most common way to gouge a tire with any V-trim tool is to raise the back of the blade to "help" the cut; that drives the groove walls into the tread face, which is the exact failure the capture geometry exists to prevent. Keep the flanks flat and let the converging walls shear the spew on their own. Pull along the documented set, not across it — the grooves are aimed to collect protrusions coming at them in line, and a cross-stroke wastes the gang. Steady moderate speed clears more cleanly than a fast snatch, which skips channels.
02

Sharpening a notched head

This is where a V-trim tool diverges from a plain knife: a flat bench stone cannot reach into a groove, and used alone it only rounds the flanks. Each of the five channels is honed on its inside walls with a slim slip stone or a fine tapered file drawn to follow the V, and the burr is stropped off the outside face; keep the two walls of every groove even, or that groove tears instead of shears (notch-honing method is authored trade knowledge — Hyde publishes no maintenance text for this pattern). The blade is hardened high-carbon steel, so wipe it dry after working over anything wet; carbon blooms rust where stainless would shrug.

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
What are the five grooves for?
Throughput. Each groove is a capture channel, so one pull down a tread row shears a swath of vent spews at once instead of one at a time (gang function authored from the catalog's "5 sharp grooves" plus its art). It is the volume tool of the line.
Is this a precision trimmer?
No — it is the opposite. A gang head clears bands of tread fast; single strays, flash lines, and lettering go to the single-notch knives (66330, 66060, 66090) after.
Why is the blade offset?
Knuckle clearance and pull alignment on curved work. On a crowned tread a straight handle drives the hand into the rubber; the offset keeps all five grooves seated through the stroke.
Can I finish retreads with it?
Yes — that is a signature use. Retread shops can't buy ventless molds the way new-tire plants can, so their fresh treads come off with vents to trim, and the gang head is built for that repetitive post-cure pass.
How do I sharpen a five-groove head?
On the inside walls of each groove with a slim slip stone or tapered file, following the V; never a flat bench stone alone, which only rounds the flanks . Keep both walls of every channel even.
What does "pin" mean here?
It is the trade's term for a tine-type trimmer head; Hyde doesn't define it , and we don't invent a definition.

Compare Hyde models

Crew & facility ordering

Model & SKUModel 65060 · SKU H-65060 · UPC 079423650604
Unit pricingThe displayed unit price applies at all quantities. Ask Hyde Pro about account-specific purchasing needs.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Specs & documentation

Full specification details
catalog product name
Offset Pin Vent Trimmer Knife H1357
specifications
blade dimensions: 5" x 1" x .065"
official family claim
Offset blade has 5 sharp grooves.
official product name
V-Trim Knives - Offset
official variant identity
65060 — H1357
