Coating And Compound Mixers — Primary Tool
№43420

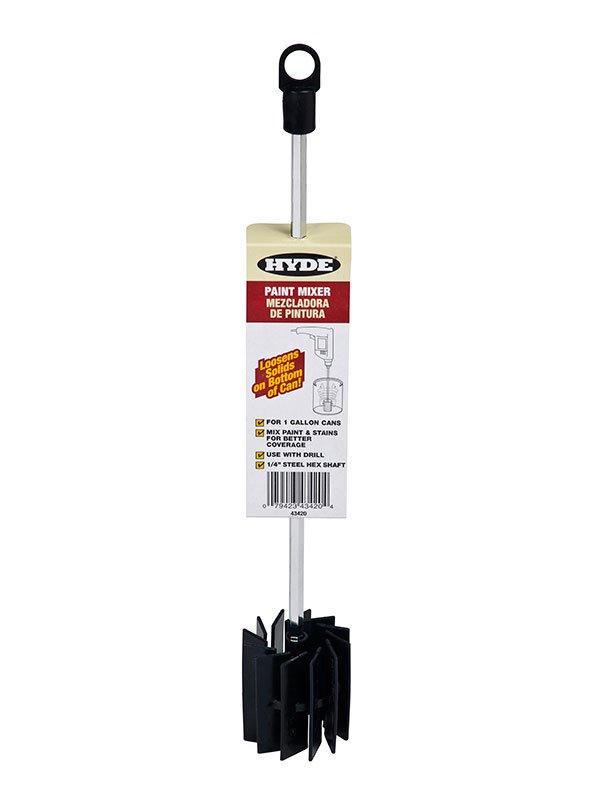

Hyde Tools 43420 1-Qt./Gal. Paint Mixer

MODEL 43420 · SKU H-43420 · UPC 079423434204
CHECK THIS AGAINST MY JOB
$7.90 PER UNIT · SINGLE UNIT UNIT PRICE

Selected subtotal: $7.90. Standard US shipping is $9.99 below $15, $7.99 from $15 to below $49, and free at $49 after discounts. Freight items excluded; other rates are shown at checkout.

IN STOCK
✓ SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
✓ STANDARD US SHIPPING — $9.99 BELOW $15 · $7.99 FROM $15 · FREE AT $49 AFTER DISCOUNTS
✓ LOCAL PICKUP — FALL RIVER
✓ NET-30 & PO — APPROVED ACCOUNTS
1-Qt./Gal. Paint Mixer

Official Hyde specifications

Dimensions
11" x 1/4" hex shaft, 2-5/8" impellers
Construction
Polypropylene impellers and plated steel drive shaft
Not for use with epoxies
For use with electric drills
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

✕CHOOSE A DIFFERENT TOOL WHEN
  • Epoxies — not a judgment call; the catalog row bars the whole paint tier ("Not for use with epoxies"), and a two-part resin kicking on a polypropylene rotor is permanent.
  • Joint compound, texture, grout, mortar: the impellers and the shank are sized for liquids; stiff material wants the welded-steel Mudslingers (46555/46560 class) and their torque.
  • A five-gallon pail: the 11" shaft cannot work a pail floor with the drill above the rim — that is the 43430's one-line job description.
  • And routine stir-maintenance of a fresh can: a paddle does that for free; this tool earns its chuck time when the settle is past what sticks fix.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №43420
Job guide How to Choose the Right Drill for a Hyde MixerOPEN JOB GUIDE Job guide How to Clean a Mixer After Use — The Material-Controlled Decision GuideOPEN JOB GUIDE Job guide How to Remix a Settled Gallon or Quart of PaintOPEN JOB GUIDE

For these jobs—use this instead

THE JOB, THE REASON, AND THE BETTER TOOL

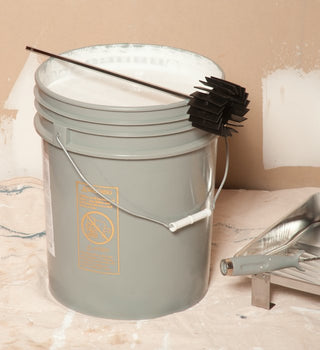

Joint compound, texture, grout, mortar The impellers and the shank are sized for liquids; stiff material wants the welded-steel Mudslingers (46555/46560 class) and their torque. BETTER TOOL 16" Mudslinger® Mixer (2-1/4" Diameter) 46555 A five-gallon pail The 11" shaft cannot work a pail floor with the drill above the rim — that is the 43430's one-line job description. BETTER TOOL 5 Gallon Paint Mixer, 17-1/2” x 5/16” 43430

How the pros run it

01

Trigger

the low end of the range, feathered; speed never fixes anything in a paint can and causes most of what goes wrong. Entry and exit: head on the can floor before the trigger; trigger fully released before the head leaves the liquid. Motion: the head works the floor first — perimeter, then center — then slow vertical laps; a stationary mixer leaves dead corners even in a gallon. Depth discipline: keep the impellers well under the surface; the top inch is where air gets in. Shank seating: bottom the hex in the chuck and snug all three jaws; a quarter-inch shank spinning in a loose chuck rounds its corners. After: rinse wet, wipe the plated shaft dry, hang it up.

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
Will it fit my drill?
Yes — the 1/4" hex shank fits any three-jaw chuck and 1/4" quick-change collets. It is the least demanding tool in the line to drive; a 12V cordless is plenty.
Can I mix a 5-gallon bucket with it?
No. The 11" shaft cannot reach a pail floor with the drill above the rim. The 43430 (17-1/2") is the pail member of this tier.
Can I mix epoxy or two-part coatings?
No — the catalog family row says "Not for use with epoxies," and it is a hard bar, not advice. Epoxy-rated mixing lives in the welded-steel Mudslinger tier.
Joint compound? Thinset? Grout?
No. This is a liquids tool — paint and stain. Stiff materials want the steel tier's heads and torque.
How fast should the drill run?
Low. Feather the trigger at the bottom of the range, keep the head submerged and moving. Speed whips in air that ends up as pinholes in the dried film.
Quarts too, or just gallons?
Both are in its name. The working rule: routine quart stirring is stick-and-spatula work; the 43420 comes out when a quart has stood long enough to pack a pigment layer a hand tool rides over.
How do I know the can is actually mixed?
Steady drill load, a floor that sweeps clean with no slick patches, and material folding at the surface in one uniform color with no amber streaks. Surface swirl alone proves nothing.

Compare Hyde models

Crew & facility ordering

Model & SKUModel 43420 · SKU H-43420 · UPC 079423434204
Product-specific quantity pricingSee this product’s published tiers above. Eligible discounts apply automatically at checkout.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Specs & documentation

Full specification details
catalog product name
1-Qt./Gal. Paint Mixer
specifications
construction: Polypropylene impellers and plated steel drive shaft
specifications
dimensions: 11" x 1/4" hex shaft, 2-5/8" impellers
official family claim
For use with electric drills. Not for use with epoxies.
official family claim
For use with electric drills
official family claim
Not for use with epoxies
official variant identity
43420
corroborated construction material
Retailer/distributor listing independently repeats: polypropylene.
