How to Scrape in Spark-Controlled Environments

This guide does not certify any tool, atmosphere, material, or work method. Hyde calls the listed blades “non-spark” brass; the more accurate safety term is reduced-sparking. The facility's hazard analysis, permit system, hazardous-area classification, material compatibility review, and issued-tool list decide whether any particular tool may enter or be used.

Job: remove paint, putty, gasket residue, labels, cured product, or other deposits where the controlling site procedure prohibits ordinary steel scrapers and authorizes a particular brass scraper.

Time: the scrape itself may be a few minutes for a label or small deposit, an hour or more for a flange or equipment face, and a shift for a broad coating field. Those are planning estimates, not product specifications. The authorization, isolation, cleaning, atmospheric testing, and tool inspection can take longer than the scraping; none may be shortened to make the hand work fit a schedule.

Difficulty: the hand motion is straightforward. The difficult part is compliance: knowing when the approved brass tool is only one control in a larger system, preserving the tool's clean status, and stopping when the deposit, atmosphere, or surface falls outside the permit.

The verified Hyde brass set from this catalog:

Narrow chisel scrapers: 02215 Black & Silver® 1-5/16" stiff brass chisel and 12040 1-5/16" long-handle brass chisel.

Two-inch general knife-form scrapers: 02320 Black & Silver® 2" stiff brass and 06321 Pro Project™ 2" stiff brass with overmold grip.

Broad chisel scrapers: 02420 Black & Silver® 3" stiff brass chisel and 12055 3" long-handle brass chisel.

Pocket multi-tools: 02975 Black & Silver® brass 5-in-1 with nylon handle and 06971 Pro Project™ brass 5-in-1 with overmold grip. The 06971's die-cast Hammer Head® is a separate component and is not covered by the blade's “non-spark” claim; do not strike it in a controlled area unless the facility has approved the complete tool for that act.

Everything else: the approved permit/JSA/RA package; the area's issued-tool list; calibrated atmospheric monitor and a competent person where the procedure calls for them; isolation/LOTO and confined-space controls where applicable; approved ventilation; facility-specified bonding/grounding or static-control equipment; barriers, lighting, fire protection, communications, and rescue provisions required by the permit; eye, hand, respiratory, antistatic, chemical, and hearing protection selected by the hazard assessment; approved collection containers and wipes; and only the facility-approved softening or cleaning agent for the deposit and substrate. None of those controls is supplied or replaced by the scraper.

First principle: “brass” is not a clearance

“Non-sparking” is a commercial category, not a promise that a tool can never produce a spark. The Canadian Centre for Occupational Health and Safety says these tools may still generate low-energy “cold sparks,” recommends the more accurate term reduced-sparking, and warns that any tool can become an ignition source under some friction, impact, chemical, or contamination conditions.

That changes the buying and use rule:

Do not select by alloy name alone. Use only an exact model the facility has evaluated and placed on its issued-tool list. A generic brass scraper, a Hyde blade called “non-spark,” and an approved tool for a named area are three different claims.

Do not infer a certification. These Hyde sources provide no alloy designation, tested spark-energy value, intrinsic-safety listing, ATEX marking, NEC class/division approval, zone rating, temperature class, or chemical-compatibility schedule for this set. This guide supplies none.

Do not infer whole-tool approval from blade copy. Handles, rivets, tangs, Hammer Heads, hang-hole hardware, dirt, and anything added in the field remain part of the real object entering the area.

Do not infer electrical safety. Brass is conductive. “Reduced-sparking” does not mean insulated, non-conductive, intrinsically safe, or suitable near exposed energized parts.

Do not infer static control. The blade material does not replace bonding, grounding, conductive hoses, antistatic clothing, or any other engineered static-control measure. Apply those only as the facility procedure specifies; do not improvise a ground lead on a hand tool.

OSHA's hazardous-location rule requires each area to be classified individually and equipment to be suitable for the specific gas, vapor, dust, or fiber present (29 CFR 1926.407). HSE's ATEX guidance likewise puts workplace classification and equipment selection on the dutyholder and requires protection from ignition sources in zoned areas (HSE — ATEX and explosive atmospheres). Those are system duties. A brass blade does not move them onto the person holding it.

This page cannot decide which edition or clause a particular facility has adopted and never substitutes a retail tool description for that determination.

The authorization gate — all answers must be “yes”

Do not open the tool crib until the person controlling the work can answer every line:

Area: Is the actual work location classified or otherwise controlled, and is the current classification/zone/division known?

Material: Are the gas, vapor, liquid, dust, coating, residue, and substrate identified? Has the SDS/process history been reviewed?

Work class: Has the facility decided whether this scrape is cold work, hot work, or another permitted class? The label “hand scraping” does not decide.

Atmosphere: Has the required pre-test been completed, and is periodic or continuous monitoring in place when the procedure requires it? Who owns the alarm and stop-work decision?

Isolation: Are product, pressure, heat, motion, electricity, and connected equipment isolated under the site's LOTO and line-breaking rules?

Ventilation and containment: Are vapors/dust controlled without creating another ignition or exposure hazard?

Static: Are bonding, grounding, conductive transfer paths, and antistatic PPE addressed where the hazard analysis calls for them?

Tool: Is the exact SKU or exact complete-tool configuration on the issued-tool list for this task and location?

Compatibility: Has the substrate owner or equipment procedure approved brass contact, the chosen cleaner/softener, and the finish standard? “Brass is softer” is not a universal compatibility finding.

Waste and exposure: Are the removed coating/residue and cleaning materials characterized, collected, and disposed under the site's rules?

Emergency: Are fire protection, communications, access/egress, confined-space rescue, and stop-work signals in place where applicable?

OSHA's oil-and-gas hot-work guidance calls for a hazard analysis/JSA, permits, isolation, gas testing, ventilation, monitoring, ignition-source control, bonding/grounding, and trained workers; it specifically warns not to assume an “empty” vessel is vapor-free (OSHA — Oil and gas hot work). These controls remain relevant whenever the facility's analysis says scraping can introduce ignition energy. If one gate is “no,” “unknown,” or “not on this permit,” the correct technique is stop.

Choosing inside the verified brass set

Width chooses pressure concentration versus coverage. Grind chooses general attack versus a flat-riding shave. Handle form chooses hand-scale control versus longer-handle drive. None changes the authorization gate.

| Need | Correct brass starting point | False neighbor — why not |

| Tight, general scraping around fittings and edges | 06081, 1-1/4" stiff, overmold grip; or 02080 only after its grind is physically resolved | A 3" edge bridges the target and divides the same push across too much blade. The 02080's store title says chisel while the official catalog name does not; do not use it to fill a “square-edge” issue slot on paper alone. |

| Tight, flat-riding shave on an approved face or channel | 02215, 1-5/16" chisel; 12040, 1-5/16" long-handle chisel when the approved work wants more handle | 02080/06081 are general stiff blades, not verified substitutes for the chisel bevel. A narrow chisel is not the broad-field tool. |

| Do-most hand-scale general scraping | 02320 or 06321, both 2" stiff brass; nylon/full-tang line build versus overmold comfort build | Narrow blades repeat passes; broad chisels spread pressure and change the cut. 02320/06321 are removal tools, not flexible putty applicators. |

| Broad, flat chisel work | 02420, 3" stiff brass chisel; 12055, 3" long-handle brass chisel | The 1-5/16" chisels concentrate force but crawl across area. The 2" general blades do not supply the same flat-riding chisel geometry. |

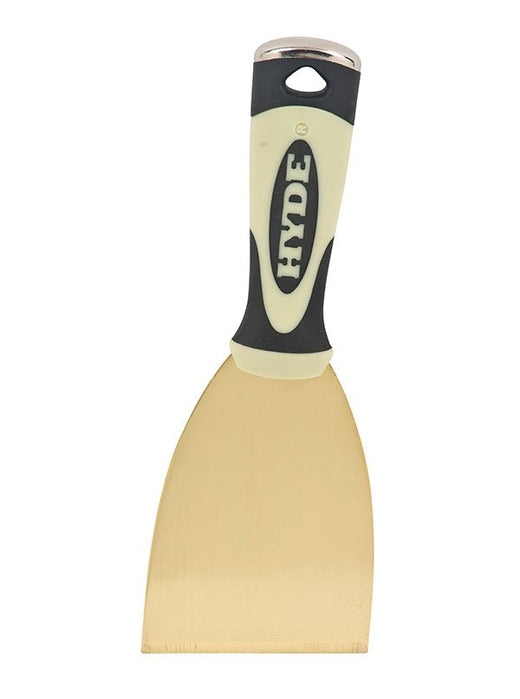

| Broad knife-form push scraping | 06421, the wider 06081 sibling, only under an exact-model issue record | Its 3"-versus-2" source conflict makes width-by-name unsafe. Confirm the physical issued tool; do not silently substitute it for 02420/12055, whose chisel grind is part of the job. |

| One pocket tool for scraping plus ordinary paint-prep functions | 02975 (nylon handle) or 06971 (overmold) when the whole tool is issued | A multi-tool's points, notches, and extra hardware create snag, contamination, and component questions a plain blade avoids. The 06971 Hammer Head is not authorized for striking merely because its blade is brass. |

The critical false-neighbor calls outside brass

Brass vs carbon steel: carbon steel normally gives the keener, longer-lived scraping edge. It is the correct performance choice where the site permits it and the substrate accepts it. It is the wrong compliance choice where the issued-tool list excludes ferrous spark-producing tools.

Brass vs stainless steel: stainless is still steel. Its corrosion resistance is useful in wet scraping, but it does not inherit the brass products' reduced-sparking claim. Never substitute stainless because it “looks non-rusting.”

Brass vs plastic/nonmetal: an approved wood or polymer scraper may remove the metal-friction-spark path and may be the better first choice for light deposits or a vulnerable surface. It may also lack the stiffness to shear the deposit, be incompatible with the chemical or temperature, or create/retain static in the actual process. “Plastic” is not universal approval; the facility chooses the exact material and tool.

Brass vs a generic copper-alloy tool: alloy names are not interchangeable. Use the exact issued model, not a visual match from another kit.

Putty-knife form vs dedicated scraper: 02080/02215/02320/02420/06081/06321/06421 are compact, hand-pressure tools. The 12040/12055 long-handle chisels deliver more drive and clearance. Neither should be struck or used as a pry bar.

General edge vs chisel edge: a general stiff edge attacks a localized deposit from different approach directions. A chisel's verified bevel is for low-angle, flat-riding shaving. Do not manufacture a new bevel in the field to turn one into the other.

Buyer test

Ask these in order:

“Is the target tight or broad?” Tight sends the buyer to 1-1/4" / 1-5/16"; the do-most middle is 2"; genuinely broad flat work sends them to the verified 3" chisels or the physically confirmed wider 06421.

“Do you need a flat-riding chisel or a general edge?” Gasket-film/residue shaving on an approved flat face points to 02215/12040 narrow or 02420/12055 broad. General localized removal points to 06081/02080 narrow or 02320/06321 at 2".

“Compact control, long-handle drive, or pocket functions?” Knife form for close hand control; 12040/12055 for approved long-handle chisel work; 02975/06971 only when the extra functions are wanted and the complete tool is issued.

A refinery mechanic cleaning a small approved face with a flat-riding requirement → 02215 or 12040, depending on handle/control. A broad approved coating field → 02420 or 12055. A two-inch general maintenance issue kit → 02320 (nylon) or 06321 (overmold). A paint-mixing-area can-opening procedure that names the 02975 → 02975; not the 06971, whose verified five-function list does not include the can opener. Those decisions remain provisional until the site authorizes the exact tool.

Before use: contamination and condition inspection

Reduced-sparking performance is a clean-tool condition, not a permanent aura around brass.

Match the issue record. Read the model/asset identity on the tool or its controlled storage location. Confirm the complete object matches the permit/JSA and has not acquired an unapproved attachment, fastener, wire, lanyard clip, or repair.

Inspect under good light. Check both blade faces, edge, corners, tang/neck, handle, rivets/hardware, and hang hole. Look for embedded steel chips or wire, rust particles transferred from prior work, grinding debris, hard mineral grit, paint hiding contamination, burrs, mushrooming, cracks, deep nicks, a rolled edge, permanent bend, loose handle, or exposed internal material.

Use a clean-tool segregation rule. A brass tool used on ordinary steel, stored loose with steel tools, dressed on a shared wheel, wire-brushed with carbon steel, or found with unknown debris is not presumed clean. Quarantine it for the facility's inspection/cleaning disposition.

Do not “prove brass” with a magnet. A magnet check cannot establish alloy, contamination-free condition, certification, or area suitability. No material-verification method is invented here.

Do not field-grind. CCOHS recommends tools be kept clean and maintained without introducing ferrous contamination. Use only the manufacturer's/facility's approved dressing method and dedicated clean equipment. If that method is not documented, exchange the tool; do not improvise.

Reject damage before work. A rolled or mushroomed edge makes the worker push harder, slip, and load corners; a bent blade changes the attack angle; a crack or loose handle can release a fragment. Mark it out of service and follow the site's quarantine route. Do not hammer it straight, weld it, braze it, or reshape it in the area.

The controlled scraping procedure

Freeze the finish standard

Name what “done” means before touching the deposit: loose coating removed; gasket residue removed without altering the approved sealing face; label adhesive reduced to a cleanable film; cured product cleared to the maintenance procedure's endpoint. Do not turn a hand scrape into polishing, flange resurfacing, pressure-boundary repair, electrical cleaning, or structural metal removal. Those jobs need their own procedure and tools.

Identify the deposit and surface

Confirm both, not just the visible top layer. Unknown process residue, an untested old coating, black mastic, lead-bearing paint, asbestos-containing material, pyrophoric scale, reactive deposits, or a protected liner is a stop-and-characterize condition. Brass changes neither toxicology nor chemical reactivity.

Material compatibility is specific:

Do not assume every brass edge is softer than every aluminum, bronze, stone, coating, plastic, plated surface, gasket seat, or liner.

Do not assume brass transfer, staining, galvanic residue, or scratching is acceptable.

Obtain the equipment/coating manufacturer's approved method. If allowed, prove the combination on a noncritical test area under the same controls.

On machined or sealing faces, use only the maintenance procedure's approved edge direction, pressure, and finish check. A scraper is not a substitute for dimensional inspection.

Make the atmosphere and equipment safe under the permit

Isolate and depressurize equipment; clean/purge/inert/ventilate only under the engineered procedure; test the atmosphere at the locations and intervals the permit names; establish LOTO, line-breaking, confined-space, fire-watch, exclusion-zone, and rescue controls as applicable. Keep monitoring active for the full period required, including cleanup.

OSHA treats bonding and grounding as controls for static ignition in flammable processes and defines them as equalizing conductive objects and dissipating charge (OSHA Technical Manual — Section IV, Chapter 5). Follow the facility design exactly. Do not infer that touching a brass scraper to equipment bonds the worker, the deposit, the container, or the process.

Soften or isolate the deposit only with an approved method

Mechanical force is the last variable to increase. If the procedure allows a compatible water-based cleaner, solvent, heat-free chemical softener, soak, or process wash, give it its specified dwell. Confirm that the agent does not introduce flammable vapor, static-control conflict, toxic exposure, substrate attack, gasket damage, or waste incompatibility. No open flame, unapproved heat gun, grinder, powered wire wheel, or steel brush enters by implication.

Stage clean

Place only issued items inside the controlled boundary. Keep the brass tool on an approved clean surface or in its controlled holder, not on a steel deck among loose fasteners. Use approved collection vessels and wipes. Account for every tool and component on entry and exit where the facility requires tool control.

Set the edge

Use a low attack angle and begin with moderate pressure. For a verified chisel, put the flat-riding face against the work in the orientation established by the tool's approved procedure; do not assume handedness or bevel orientation from a photograph. For a general stiff edge, load the working span evenly. Keep both hands and the stroke path clear of edges, pinch points, energized parts, and released product.

Make short proving strokes

Start on the least critical approved area. The correct stroke shears the deposit at its bond line without chatter, substrate marking, edge rollover, or brass transfer beyond the allowed finish. Stop after several strokes and inspect both the surface and the blade. If compatibility or finish fails, more pressure is not the correction.

Work at the width the surface can carry

Narrow general blade: short overlapping strokes around fittings, edges, and localized deposits.

Narrow chisel: controlled flat-riding strokes on a tight approved face or channel; never lever against a lip or sealing edge.

Two-inch general blade: the do-most pass for localized equipment cleanup; take narrower bites on curved or uneven work so one corner does not carry the load.

Broad chisel/wider push blade: use only on a genuinely broad, flat surface. Keep the full edge engaged. If the center floats and corners mark, step down in width.

Multi-tool: use the scraping edge only for the authorized scrape. Do not introduce its point, notch, opener, or Hammer Head into the procedure merely because they are on the same handle.

Let a dull or deformed edge stop the job

Brass-family reduced-sparking metals are generally softer and wear faster than ordinary steel tools, as CCOHS notes. The warning signs are increasing required force, burnishing instead of shearing, chatter, a rolled bright line at the edge, corner loading, or visible transfer. Stop, leave the controlled area as required, and exchange or dress the tool through the approved process. Never “finish the last foot” by prying, hammering, or bearing down on a damaged edge.

Clean, inspect, and read back

Collect residue without dry sweeping, compressed air, or an unapproved vacuum. Wipe the surface using the procedure's approved material, perform the specified visual/straightedge/cleanliness/finish check, and have the equipment owner accept it where required. Inspect the blade again for embedded contamination, missing material, edge damage, or permanent bend. Record the tool identity and disposition under the site's system; return clean-to-clean storage or quarantine it. Continue atmospheric monitoring through the point the permit defines as complete.

Immediate stop-work triggers

Stop, withdraw as the procedure requires, and notify the person controlling the work if:

the atmospheric monitor alarms, loses calibration/status, or is no longer in the required location;

vapor, dust, odor, temperature, pressure, residue, or coating differs from the hazard analysis;

isolation, ventilation, bonding/grounding, fire watch, barrier, lighting, communication, or rescue control is lost;

an unissued tool or unapproved whole-tool component is discovered in the area;

the blade contacts unknown metal/grit, becomes contaminated, rolls, mushrooms, bends, cracks, loosens, or demands increasing force;

the substrate scratches, smears, stains, transfers metal, changes dimension, or exposes a different layer;

the task reaches exposed energized equipment or the electrical boundary changes;

the worker would need to strike, pry, power-grind, heat, or chemically soften beyond the permit;

the deposit behaves like a reactive, pyrophoric, toxic, lead/asbestos-bearing, or otherwise uncharacterized material;

the requested finish turns into resurfacing, pressure-boundary repair, or another job not named on the procedure.

No production deadline overrides one of these.

What goes wrong — and the correct recovery

“The brass is rubbing, not cutting.” Edge worn, deposit too hard, width too broad, or softening step insufficient. Stop and inspect. Exchange/dress by the approved process, step down in width, or change the permitted removal method. Do not add body weight until the blade folds.

“The corners are marking the face.” Blade is wider than the flat, surface is crowned, angle is wrong, or edge is damaged. Reduce bite/width and re-prove on a noncritical approved area. On a sealing face, stop for owner inspection.

“I found rust or steel grit in the deposit.” That is both an ignition and contamination change. Stop; do not drag it through the soft brass. Reassess the deposit and quarantine the blade if particles embedded.

“The area passed the gas test, so the brass tool is enough.” No. Testing is a time-and-place observation inside a control system. Monitoring, ventilation, isolation, static control, and the permit continue for as long as required.

“The tool says non-spark, so it is intrinsically safe.” No. “Intrinsically safe” is an approval term used for equipment and associated wiring in hazardous locations; no such listing is established for these hand scrapers. Reduced-sparking is the only supported safety concept here.

“Stainless should be fine because it does not rust.” Rust resistance and spark behavior are different axes. Stainless remains a steel false neighbor unless the facility explicitly issues it.

“Plastic is always safer.” Not automatically.

“The 06971 has a brass blade, so I can use its Hammer Head.” Not from the blade claim. Treat percussion as prohibited unless the exact complete tool and act are issued.

“I'll clean it on the shop wire wheel.” A shared steel wheel can embed ferrous material and destroys clean-tool assurance. Quarantine it for the approved dedicated maintenance route.

“A narrow blade is too slow, so I'll pry.” Slow is a selection signal, not permission to misuse the tool. Choose an approved wider member or a different authorized process. None of these brass blades is a pry bar or struck chisel.

Limitations that stay on the page

No universal non-sparking claim: Hyde applies “non-spark” to these products; independent safety guidance says reduced-sparking tools can still produce sparks. This guide never converts the marketing term into an absolute.

No intrinsic-safety, ATEX, NEC, NFPA, OSHA, zone, division, group, temperature, or fire-rating claim: none is established for the individual Hyde tools here.

No universal substrate compatibility: the equipment/material owner approves brass contact and finish.

No whole-tool substitution: blade material does not approve a handle, rivet, Hammer Head, lanyard, repair, or attachment.

No electrical protection: conductive blade; keep outside electrical approach boundaries unless the electrical procedure explicitly controls the work.

No toxic-material control: brass does not make lead paint, asbestos adhesive, reactive scale, process chemical, or contaminated waste safe.

No permit substitution: gas testing, ventilation, isolation, confined-space control, bonding/grounding, area classification, and issued-tool rules remain load-bearing.

History — from the ordinary steel scraper to the controlled-area variant

The scraper form is older than its safety-metal branch. John Houghton Clarke's 1901 U.S. scraper patent describes a scraper formed from sheet metal, “preferably steel” — a useful period receipt for the ordinary material assumption the brass tools later had to break ([U.S. Patent 688,160]( The basic edge-and-handle pattern was not invented for hazardous locations; it was an ordinary steel removal tool.

Industrial processes then made the tool's material part of the hazard analysis. Federal shipyard rules now require non-sparking tools during spray painting with highly volatile paints and pair that requirement with explosion-proof equipment, ventilation, grounding, bonding, clothing, and other ignition controls (29 CFR 1915.35). That pairing is the historical lesson: the reduced-sparking hand tool entered a system, never as a talisman.

Hyde's modern brass products are that material substitution made visible across three familiar forms: the putty-knife scraper, the long-handle chisel, and the painter's multi-tool. Hyde describes the Pro Project™ brass scraper as intended for non-sparking applications and its brass heavy-duty chisel as a “non-spark blade for scraping delicate surfaces or working in volatile environments” (Hyde — Pro Project™ Brass Stiff Scrapers, Hyde — Brass Heavy Duty Chisel Scraper). The form stayed; the permitted environment changed.

The sourced history is stronger without an invented birthday: ordinary steel scraper documented by 1901; safety regulation later treats tool material as one ignition control; Hyde now carries a verified brass family for the controlled-area use.

Safety and regulatory context

OSHA — 29 CFR 1926.407, Hazardous (classified) locations — individual area classification; equipment suitability to the specific hazard; intrinsic-safety term.

OSHA — Oil and Gas Hot Work eTool — hazard analysis/JSA, permits, isolation, gas testing/monitoring, ventilation, ignition control, bonding/grounding, training.

OSHA Technical Manual — Section IV, Chapter 5 — bonding/grounding definitions and ignition-control context.

OSHA — 29 CFR 1915.35, Painting — non-sparking tools as one control among ventilation, grounding, bonding, electrical, clothing, and access controls in volatile shipboard painting.

HSE — ATEX and explosive atmospheres — explosive-atmosphere definition, zoning, ignition-source control, and dutyholder equipment selection.

Product and history sources

Hyde — Brass Heavy Duty Chisel Scraper — 12055 family claim and chisel form.

Hyde — Black & Silver® Brass Multi-Tool 02975 — brass blade, volatile-environment/delicate-surface positioning, official functions.

Hyde — Pro Project™ Brass Multi-Tool 06971 — brass blade, overmold, and separately described Hammer Head.

[U.S. Patent 688,160 (1901)]( — period steel-scraper anchor; not an origin claim for the scraper class.

02080 grind: store title says “Chisel”; official catalog name omits it. Do not present 02080 as definitively square- or chisel-ground until checked against the physical product/current Hyde spec.

06421 width: exact-model catalog row and product-page variant say 3"; shared family text says 2". Keep “wider 06081 sibling” until physical/current-spec resolution.

06971 whole-tool boundary: Hyde's reduced-sparking claim attaches to the brass blade; the Hammer Head is separately described as die-cast. No percussion approval is established.

Complete-tool construction: do not infer hidden tang/fastener/attachment materials or whole-tool reduced-sparking approval from blade copy.

Alloy/certification: no exact brass alloy, hardness, spark test, intrinsic-safety listing, ATEX/NEC zone/division/group rating, or material-compatibility schedule is established for any member.

First-history claim: no primary source found for the first brass/reduced-sparking scraper or a named inventor; retain the gap.

Product-source conflicts propagate: resolve against current physical product/spec before customer-facing dimensions or grind claims; no unpublished values have been added here.
