Run a Press-Side Deflashing Station

Job: Establish and operate a hand-deflashing station beside a molding press for a repeat part, using a mounted V-cut blade to capture proud flash without cutting the approved part surface

Time: Two to four hours for first-part qualification and station setup; seconds to minutes per part thereafter, depending on trim length and inspection requirement

Difficulty: Advanced — the hand motion is simple, but part condition, hot-work boundaries, blade seating, projection, sharpening, and acceptance limits must remain controlled across a shift

Everything else: approved part drawing and cosmetic/functional standard; press and material work instructions; guarded cooling/transfer fixture; representative first-off parts; stable bench and non-damaging nest; task lighting; magnification or gauges where specified; exact handle/blade instructions; controlled sharpening/honing system; hand/eye and heat protection selected from the risk assessment; cut-resistant scrap container; change log, defect samples, and quarantine route

A press-side station is a production system, not a knife left on a table. Its output depends on five conditions staying fixed:

part state → fixture → blade seating → blade projection → accepted stroke.

The 66360 supplies a V-shaped capture edge at each end of a 5 × 3/8 × .049-inch blade. The V is presented to flash standing proud of the molded surface. It is not permission to scrape blindly across a finished face, reach into a press, or invent a universal trim for rubber and plastic.

Freeze what the station owns

Write one station card for one part family, mold/cavity condition, material, trim feature, and acceptance standard.

where the part arrives;

required cooling or stabilization;

which flash is removed here;

which features are protected;

permitted direction and support;

approved appearance and remaining-flash limit;

who may change or hone the blade;

what triggers hold and escalation.

Do not let “deflash the part” absorb gate trimming, drilling, sprue cutting, hot tear-off, dimensional rework, or concealed defect repair. Those are separate operations unless the controlled process says otherwise.

Respect the press boundary

The cutting station must be outside the press hazard zone. Never reach between platens, past a guard, into automated transfer, or through an interlock to save a cycle.

Apply the machine’s energy-control and access procedure whenever clearing, servicing, or entering hazardous space.

A part released from the machine can still be hot, distorted, under tension, chemically active, or carrying sharp inserts. Establish the material-specific cooling and handling limit from the process documents. A glove that protects from heat may reduce fine knife control; PPE selection and fixture design must be solved together.

Read the exact 66360 facts

Accepted evidence identifies the 66360 Double End V-Cut Trim Knife Blade BG391 and its dimensions as 5 × 3/8 × .049 inches.

The record does not establish:

notch width, depth, or included angle;

exact-model steel or hardness;

bevel or sharpening angle;

minimum safe projection;

a named handle pairing;

force, feed, or material capacity.

“Double end” establishes two working forms, but the changeover and seating of the physical blade must be proved.

Qualify the handle as an assembly

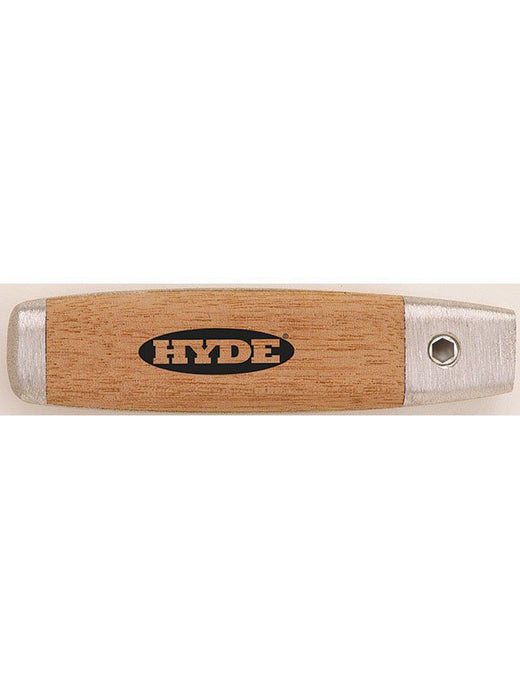

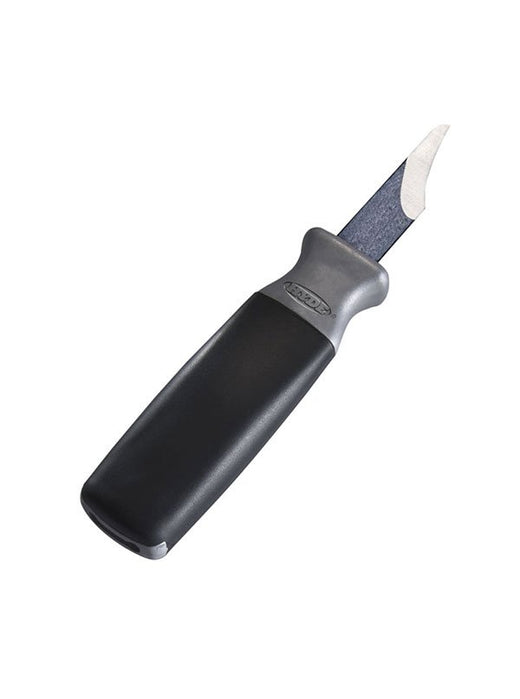

The 63170 is accepted as a wood/aluminum BG15 handle for 3/8-inch blades, with slotted set screws for positive blade-length adjustment. The 63175 is accepted as a MAXXGRIP PRO handle for 3/8-inch blades, with a die-cast-alloy body, soft-grip handle, and slotted set-screw length adjustment.

Those are the strongest documented candidates.

The four wood members are cataloged extension-blade handles:

Their local accepted fact records contain no exact claims.

Before production, verify physically:

the handle accepts the blade without spreading, improvised shims, or forced insertion;

the retained section is not bearing on a sharpened V end in a damaging way;

all screws/retainers engage correctly;

the blade cannot twist, creep, or pull free under a representative stroke;

the unused end is fully contained and cannot injure the hand;

projection can be reproduced from the station card;

the complete assembly has no cracked wood, stripped thread, burr, or loose grip.

Width match alone is not fitment.

Build a fixture, not a hand-strength contest

The part nest should support the feature in its inspection orientation and prevent rocking without bruising, distorting, or hiding the trim line.

a positive orientation feature;

clearance for removed flash;

a stop that keeps the hand outside the cut path;

replaceable non-marring contact points;

lighting across, not directly into, the trim surface;

a safe place to set the knife between parts.

If the operator must squeeze a flexible part into shape while pulling the knife toward the holding hand, redesign the support. If the part changes dimension as it cools, establish the controlled trim state rather than forcing it into a cold gauge while hot.

Make a defect board

Keep approved and rejected examples for:

fully removed flash;

permissible witness, if any;

proud residual flash;

gouged parent surface;

smeared hot material;

exposed reinforcement or insert;

trim that reveals a molding defect.

The knife cannot repair short shot, burn, void, poor knit, delamination, or mold mismatch. Deflashing can expose those conditions; it must not cosmetically disguise them.

Use photographs only as supporting references.

Establish the first-piece stroke

On a representative released part:

Seat it in the nest.

Confirm the correct cavity/orientation.

Mark the permitted trim path.

Present the V to the proud flash, not the parent face.

Keep both supporting flanks aligned with the approved surface.

Pull through a short accessible section with light, steady control.

Inspect under task light.

Adjust fixture, approach, or projection—not wrist force—before continuing.

The V should capture a protrusion. If the flash is too broad, buried in a recess, folded flat, bonded as a heavy web, or backed by a fragile edge, stop and qualify another method.

Do not lever one V flank into the part to make the cut faster. That converts a capture tool into a point.

Set projection by proof

Projection affects stiffness, access, and leverage. Too little may deny clearance; too much increases flex, twist, and exposed-edge hazard.

No universal dimension is accepted. Establish the shortest projection that clears the part and fixture while keeping the retained blade secure. Record the local setting through a gauge, stop block, or other repeatable station control.

tighten through the handle’s procedure;

witness-mark the retained relationship if the process permits;

pull-test away from people;

make a sacrificial cut;

Never adjust projection while holding the cutting end, and never rely on a witness mark as a substitute for actual tightness.

Control both ends

Treat the BG391’s second end as a new setup, not an automatic flip.

When the working end no longer meets the established witness:

stop and tag the condition;

clean the assembly enough to prevent debris entering retention;

remove it through the handle procedure;

place the sharp/dull edge in controlled containment;

inspect both V forms and the retained center;

reverse only if the second end is undamaged;

restore qualified projection;

tighten and test;

run a first-piece approval.

The line document’s faster-changeover explanation comes from a neighboring double-end catalog claim, not an accepted 66360 performance statement.

Separate honing from production

The job queue anticipates extension as honing consumes the edge, but no exact honing method, angle, abrasive, interval, or consumption rate is accepted.

Authorize a controlled edge-maintenance method from physical geometry and plant practice. Keep it away from the molding press and production parts. Clean the blade before abrasion; inspect for cracks, bent flanks, rounded notch root, uneven V sides, and overheated discoloration.

Do not freehand a grinder into an internal V unless the process is qualified. Removing one side faster changes capture location. Extending a shortened blade does not restore geometry.

After maintenance, prove the edge on representative scrap and requalify the station’s first part.

Run the production loop

For each released part:

verify identity and safe temperature/state;

seat it fully;

inspect for a trim-preventing molding defect;

keep the non-cutting hand behind the fixture boundary;

make the approved stroke;

contain removed flash;

inspect the critical surface;

route pass, rework, or hold;

return the knife to its protected rest.

Do not accumulate parts and trim them in unstable stacks. Do not leave cut flash where it can transfer into the mold, contaminate material, create a slip, or become mixed with good product.

Rotate work or redesign the station when posture, repetition, or grip force produces loss of control. A dull edge often first appears as shoulder force, shortened strokes, or a rising defect rate.

Use an honest inspection cadence

Inspect the first part after:

material/lot change;

mold or cavity change;

blade extension, flip, honing, or replacement;

Between first pieces, use the process-defined interval and continuously react to feel and appearance.

Trend defects by cavity and time. A sudden flash increase may belong to mold closure, wear, venting, process pressure, temperature, or material—not the knife. Escalate the process signal instead of asking the operator to cut harder.

Keep rework visible in the production record. A part that needs a second pass is not equivalent to a first-pass part when evaluating edge condition or mold drift. Record the reason rather than silently returning it to the incoming tray. When the permitted route cannot remove the excess without touching a functional surface, hold the part and the process. Do not redefine the cosmetic zone at the bench.

Manage hot parts and inserts

Do not infer a safe touch temperature from “rubber” or “plastic.” Follow the actual material/process limit.

Metal inserts, cords, fabric, gates, and hard inclusions can stop or redirect the V unexpectedly. Identify them on the drawing and defect samples. Never drag the edge toward an unseen insert.

When heat protection is needed, select a glove compatible with both exposure and blade control and validate the fixture. OSHA’s hand-protection rule requires selection based on the task, conditions, duration, and identified hazards.

Change the station, not the operator’s anatomy

Set bench height and part orientation so the cutting wrist stays near neutral and the pull finishes before the elbow hits the body. Place pass/hold bins without a reach across the blade.

Reverse or duplicate fixtures for left/right parts rather than demanding an awkward cross-body pull. If both hands are required to stabilize the part, the nest is incomplete.

Keep the cutting path away from coworkers and aisles. Shield the station from unexpected bumps without enclosing it so tightly that the blade catches the guard.

Close the shift

count and contain blades;

protect the mounted edge;

clean flash from nest and bench;

record projection/handle/blade end in service;

log honing, flips, changes, and rejects;

isolate damaged tools;

identify held product;

note press/mold trends.

Never leave a blade loose, projected in an open drawer, or hidden under scrap.

What goes wrong (and the fix)

The blade creeps in the handle. Stop, quarantine the assembly, inspect retention, and requalify; never keep tightening a stripped or cracked handle.

The V gouges the parent surface. Restore flank contact, projection, support, and approach on scrap; reject a damaged edge.

Flash smears instead of shearing. Confirm controlled part state and edge condition; do not invent a cooling time.

The operator must hold the part in the cut path. Redesign the nest.

A flipped blade cuts differently. Treat it as a first-piece event and inspect geometry/seating.

More flash appears each hour. Escalate mold/process drift rather than increasing force.

A wood handle is chosen because “3/8 inch” appears in family copy. Physically verify BG391 seating and record the open fitment.

The knife is used inside the press. Stop and restore guarding/energy-control boundaries.

The V is ground wider to clear heavy flash. Reject the undocumented modification and qualify the correct method.

A molding defect is shaved out of sight. Hold the part; trimming is not structural repair.
