How to Remove a Gasket from Machined Faces Without Ruining the Joint

Job: open a bolted joint under the equipment maker’s service procedure, remove the old gasket or formed-in-place sealant, and hand back two clean mating faces without gouges, rounded edges, embedded wire, lost coating, altered surface finish, or debris in the machine.

Time: the scraping may take ten minutes; safe isolation, chemical dwell, inspection, and cleanup usually take longer.

Difficulty: low-force, high-consequence maintenance. The craft is stopping the tool before it changes the metal.

This guide does not replace the service procedure. Before touching a fastener, obtain the equipment manufacturer’s current procedure for isolation, draining or purging, disassembly, face inspection, allowable flatness and finish, replacement gasket, sealant policy, fastener reuse, lubrication, tightening sequence, and final load. Where that procedure and this guide differ, the manufacturer’s procedure controls.

The honest Hyde tool set — re-derived from the three-line union

Buy it for the purpose-made silhouette, then use it only where the service procedure permits a metal scraper.

The thicker stock holds its line better than the standard .009" blade under a gasket-removal push. Use it only in a holder that positively captures the blade, after confirming gauge fit and whole-tool suitability. It is never an invitation to drive a bare blade with fingertips.

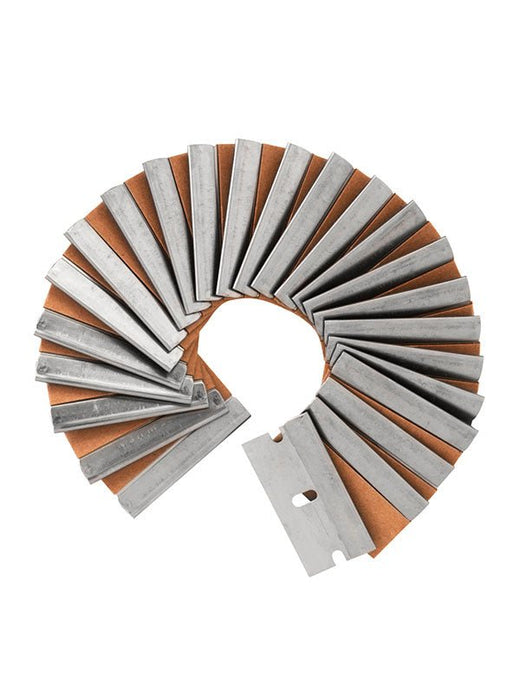

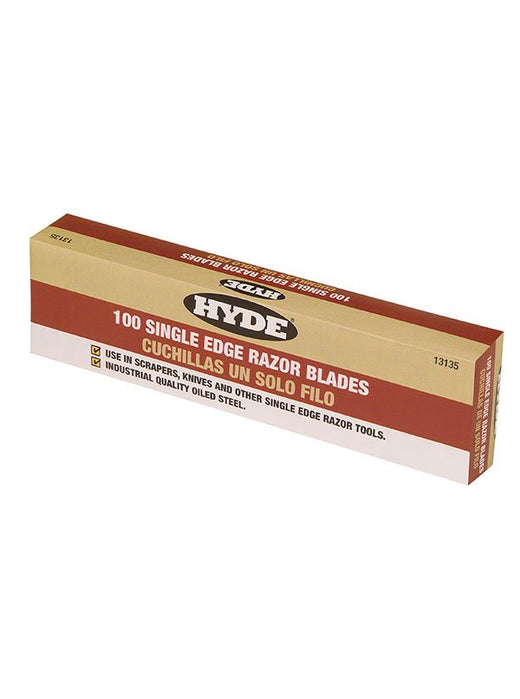

Same standard blade, different container. They are not the bulk-gasket lead; they are conditional finish-pass stock for the last thin film on a hard face that the maker allows to be razored, again in a suitable holder.

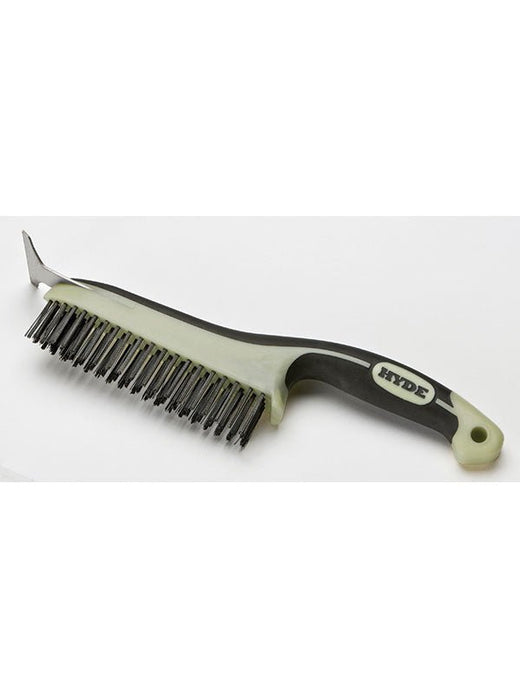

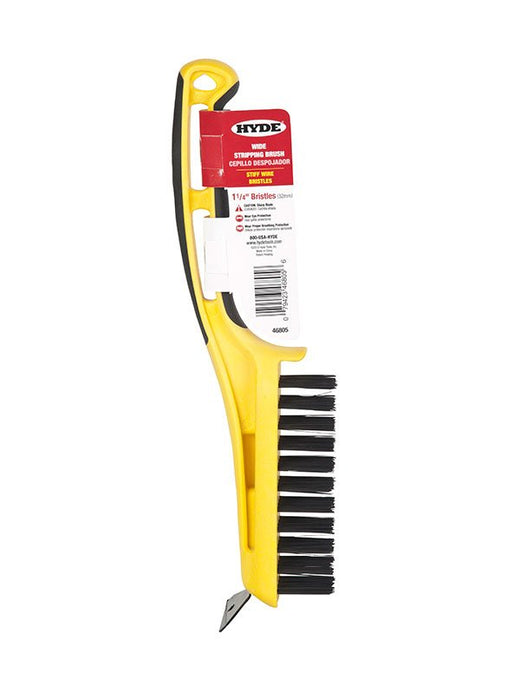

Both carry carbon wire and a carbon scraper. They may assist on robust cast-iron or carbon-steel faces only when the service procedure permits wire brushing and the specified finish will survive it. They are barred from stainless, aluminum, magnesium, coated, plated, plastic, glass-lined, and precision-finish faces.

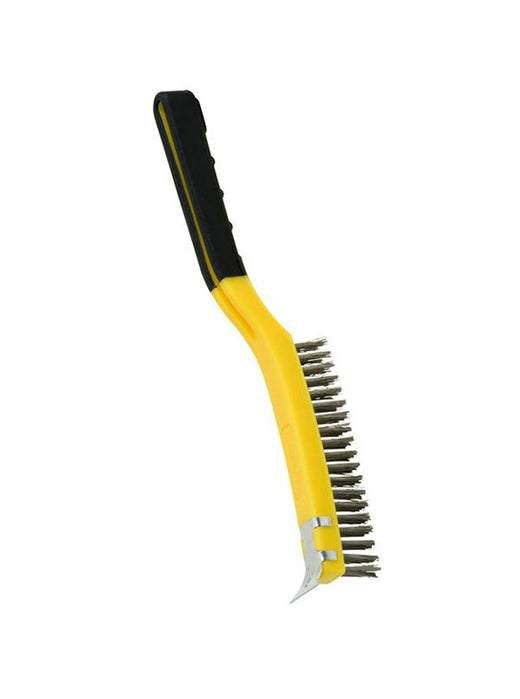

Stainless wire can still scratch, round, or change a sealing finish. Use the bristles only if the maker permits that exact abrasion class; do not infer that the scraper nose is safe for stainless or aluminum.

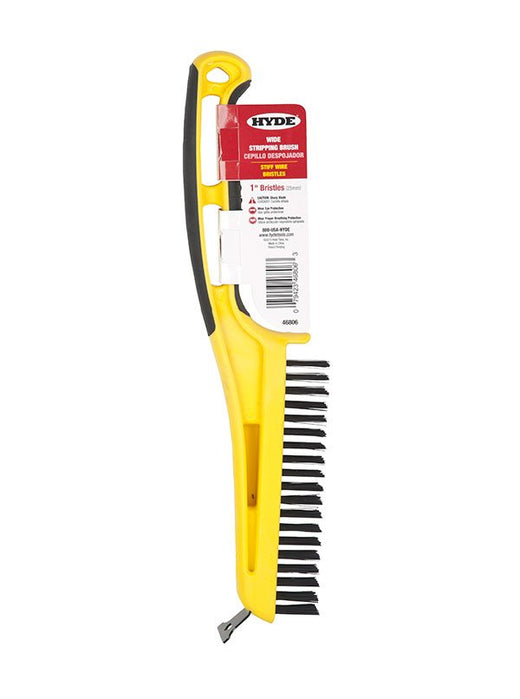

Its 1/2" block and long reach are for slots, louvers, gaps, and channels. It entered the register through a broad brush-queue union; this guide rejects that lead for the open sealing face.

Before the joint opens: isolate the equipment, not just the switch

Gasket removal begins as an energy-control job. A flange can hold pressure, hot liquid, corrosive chemical, steam, fuel, hydraulic energy, vacuum, spring load, gravity load, or a trapped pocket after the motor is off. OSHA 29 CFR 1910.147 requires an energy-control procedure for covered servicing: identify the energy, shut down, isolate, lock or tag, dissipate stored energy, and verify isolation before work. If energy can reaccumulate, verification continues through the job.

Read the maker’s disassembly procedure and the site’s line-breaking or maintenance permit. Identify the process fluid, pressure, temperature, electrical and mechanical energy, support requirements, and PPE from the equipment record and current safety data. Do not improvise a generic flange-opening sequence from this page.

Shut down and isolate every energy source. Apply the authorized lockout/tagout procedure. Close and secure the specified isolating devices; drain, vent, depressurize, cool, flush, purge, block, restrain, or support exactly as the procedure requires.

Verify the safe state. Zero on a gauge is evidence, not the whole proof. Only the authorized person declares the joint ready to open.

Control the opening. Wear the fluid- and temperature-specific PPE. Position people out of the release path. Support covers, piping, heads, and housings so their weight cannot spring the joint or scrape one face across the other. If the maker calls for a loosening sequence, use it.

Stop on an unexplained condition. Product at the first loosened fastener, pressure at a drain that should be dead, a hot spot, a sprung flange, unknown residue, or damaged fasteners sends the job back to the isolation or service procedure. A scraper does not solve an unsafe opening.

Garlock’s gasket-installation training makes the same handoff explicit: follow lockout/tagout and site procedures before working on a flange connection, then inspect the faces and hardware after disassembly.

Read the joint before choosing the edge

Photograph the opened joint before cleaning. Record which side retained the gasket, where the seal failed, whether the old gasket was centered, the bolt-hole condition, corrosion tracks, extrusion, blowout, and any radial leak path. Bag and label the old gasket if failure analysis matters. Do not destroy the evidence before the maintenance lead sees it.

Then identify five things:

Face material: cast iron; carbon steel; stainless; aluminum or magnesium; plastic or composite; glass-lined; plated, anodized, or otherwise coated.

Face geometry: flat face, raised face, tongue-and-groove, O-ring groove, narrow lands around ports, engine deck, or intentionally serrated/phonographic finish.

Gasket system: paper or compressed fiber, cork/rubber, elastomer, PTFE, graphite, spiral-wound or other metallic gasket, multi-layer steel with a surface coating, RTV silicone, anaerobic formed-in-place gasket, or an unknown legacy material.

Surface requirement: the finish and flatness specified by the equipment maker and replacement-gasket supplier. There is no universal “smooth enough.” Flexitallic’s metallic-gasket guidance, for example, gives spiral-wound gaskets a 3.2–6.3 µm Ra recommendation, while engine-gasket guidance varies by block material and gasket design. Those numbers prove that the target belongs to the system, not to the scraper.

Contamination rule: what may contact the face. Carbon wire leaves free iron; wire fragments can remain in passages; an abrasive can remove metal and round a port; an unapproved solvent can attack paint, plastic, elastomer, sealant, anodizing, or a gasket-facing coating.

If any one of those five is unknown, use nonmetallic tools and the least aggressive approved chemistry while the uncertainty is resolved. “It looks like aluminum” is not a material specification.

Soften the residue — chemistry is maker- and SDS-controlled

The safest force is the force chemistry removed from the job. But there is no universal gasket solvent:

an RTV remover may not dissolve an anaerobic flange sealant;

a product that softens fiber or old cement may attack paint, plastic, elastomer, or a coated face;

penetrant or oil can contaminate a joint that must be assembled dry;

water may be prohibited by the equipment or process;

heat may soften residue but also damage a coating, ignite product, release hazardous vapor, or distort the part.

Use only a remover or cleaner accepted by the equipment maker, the gasket/sealant maker, and the face material. Read the current technical data sheet and SDS before use: substrate compatibility, ventilation, PPE, ignition control, dwell, cleanup, and waste route all come from those documents. Protect openings before applying liquid, and keep chemistry off adjacent seals, bearings, wiring, paint, and polymer parts unless compatibility is explicit.

An official example shows why the product sheet matters: the Permatex 80645 Gasket Remover TDS directs users to ventilate, protect painted/nonmetal surfaces, allow the product to dwell, and remove the softened gasket with a plastic scraper and rags; it also says the product is not recommended for silicone residue. That is an example for that named formulation, not a generic recipe. Follow the current sheet for the remover actually in hand.

No open-flame softening. No torch. No generic “heat gun until it releases.” Heat is used only when the equipment and chemical procedure explicitly permits it.

The removal — bulk first, film second, no metal moved

Exclude debris before making debris. Close oil galleries, coolant passages, bearing cavities, bores, ports, and threaded holes with the maker-approved combination of clean plugs, tape, lint-free cloth, or shaped covers. Make the barriers visible and count them. A shop vacuum removes chips from the direction they were made; compressed air can drive them deeper and is not the default cleanup tool.

Lift what will come intact. Peel the old gasket back on itself at a low angle. Work from an already released edge. Do not stab through the field to create a starting point, and do not pry between the mating faces.

Start nonmetallic on soft, coated, or uncertain faces. A plastic scraper or plastic razor is the default on aluminum, magnesium, plastic, glass-lined, coated, anodized, plated, and MLS-sensitive engine faces. A worn plastic edge that stops cutting is replaced, not compensated for with a steeper angle.

Use the 08020 only on a face that permits a metal gasket scraper. Inspect its edge under good light first. The blade shears residue. It never chisels metal, pries up a stuck patch, or rides on one corner.

Take layers, not heroic passes. Reapply the approved remover and wait its specified dwell when the gasket smears, stretches, or makes the tool chatter. Force is not a substitute for chemistry. Work from thick body to thin film so the final passes carry the least load.

The .009" 13125/13135 blades are the conditional finish-pass choice where slight flex helps follow a hard face. In either gauge: holder flat, edge low, corners unloaded, one direction, short stroke. Never flex a bare blade between fingertips; never use a blade that can migrate in its holder.

Brush only when the surface specification allows brushing. Brushing is not a universal final step.

On robust cast iron or carbon steel, 46805 or 46834 may break residue from texture after the scraper has removed the body—but only if the procedure allows carbon wire and the existing finish is meant to remain.

On compatible stainless, the dedicated 46810’s stainless fill may assist if the procedure allows .35mm wire. Mark and segregate it; once it touches carbon steel it loses clean-stainless status.

On aluminum, magnesium, coated faces, precision engine decks, glass-lined parts, and plastics, these metal brushes stay off unless the equipment maker names them. “Stainless” describes the fill, not gentleness.

The 46806 is not promoted into face duty because it fits a gap. A tool entering a groove is not proof that it can preserve that groove.

Keep intentional geometry intentional. Do not flatten serrations, polish a phonographic lay, widen an O-ring groove, round a port, break the edge of a raised face, or “blend out” a radial scratch. Abrasive discs, Roloc-type surface-conditioning discs, body grinders, sandpaper, and aggressive powered brushes can remove metal quickly and shed abrasive into the machine. Fel-Pro’s surface-preparation tool guidance specifically warns against those tools on sealing surfaces.

Vacuum and wipe toward the waste side. Remove debris barriers one at a time while vacuuming around them; count every barrier out. Clean threaded holes and blind cavities by the maker’s method. Use the approved final cleaner on lint-free wipes until a clean wipe remains clean. Do not leave solvent pools, wire fragments, gasket fibers, or lint.

The tactile endpoint is not “shiny.” It is the specified face, with the old gasket and unauthorized sealant gone, no raised residue, no moved parent material, and no foreign material left behind.

Inspect the face before the replacement gasket appears

Cleaning and inspection are separate steps. Put the scraper down.

Raking-light inspection: shine a bright light nearly parallel to the face. Look for radial scratches crossing the sealing land, corner digs, burrs around bolt holes, corrosion pits, erosion, fretting, coating loss, rolled edges, embedded wire, and residue that changes sheen.

Fingernail or nonmetallic pick check: lightly traverse the sealing land. A catch may be proud residue, a burr, or a gouge; identify it under magnification rather than grinding until it disappears.

Flatness check to the manufacturer’s method: use the specified straightedge orientation and feeler-gauge pattern, or the specified metrology. Engine decks, pump covers, pipe flanges, and plastic housings have different limits.

Surface-finish check: where roughness is specified, compare with a calibrated comparator or measure with a profilometer. Do not infer Ra from shininess.

Disposition: residue returns to cleaning; a removable burr goes to the maker-approved repair method; a gouge, lost coating, warped face, deep corrosion, wrong finish, or out-of-limit flatness goes to machining, replacement, engineering disposition, or an authorized repair. A thicker gasket or extra sealant is not an automatic repair.

Installation handoff — where this guide stops

Hand the installer:

the equipment and joint identity;

old-gasket condition and failure evidence;

confirmed face material and coating;

cleaner/remover used and its final-clean requirement;

inspection results, including flatness and finish method;

any defect disposition;

confirmation that every debris barrier and tool is accounted for;

the new gasket’s exact part/material/orientation;

the maker’s fastener, lubricant, sealant, sequence, and final-load procedure.

Do not reuse a gasket unless the manufacturer explicitly allows it. Do not add jointing compound, RTV, grease, anti-seize, or adhesive to a gasket face unless the equipment and gasket instructions call for it. Flexitallic’s metallic-gasket instructions, for example, call for a new gasket and prohibit jointing compounds, grease, or lubricants on the joint face; that rule belongs to that system, while other systems specify sealant.

This guide ends at a clean, inspected, accepted face. Gasket centering, bolt condition, lubrication, controlled tightening, pressure test, leak check, and return to service belong to the equipment maker’s installation and commissioning procedure.

Buyer tests — which lead survives the real job?

| The job in front of you | Honest tool call |

| Aluminum cylinder head prepared for an MLS gasket | None of the steel union members is the default. Use the maker-approved remover and plastic scraper/plastic razor. Preserve the specified finish; do not wire-brush or abrasive-disc the deck. |

| Cast-iron pump flange with bonded fiber gasket | 08020 for the low-angle bulk shear if the service procedure allows metal; 13127 in a confirmed holder for hard residue; .009" 13125/13135 only for the final film. Brush only if the specified finish allows it. |

| Stainless process flange with light adhesive film | Approved chemistry and nonmetallic scraper first. No 46805, 46806, or 46834. |

| Carbon-steel or cast-iron face with crust in a rough, maker-approved texture | 08020 first. 46805 is the more face-directed scrape-and-brush contingency; 46834 is the aggressive open-field option only where its 6" × 1" .40mm carbon face cannot erase required finish. |

| Coated, anodized, plated, plastic, composite, or glass-lined face | No metal tool from this union without explicit manufacturer authorization. Plastic tool, approved chemistry, inspection of the coating. |

| Narrow channel beside the joint | 46806 may clean a permitted carbon-steel channel, but that does not qualify it for the machined sealing land. Geometry adjacency is not application equivalence. |

| You have 13127 blades but no confirmed holder | You do not yet have a gasket-scraping tool. Buy or verify the complete holder assembly; do not improvise bare-blade heavy pushes. |

What goes wrong — and the recovery

“The new joint leaks along one line.” Suspect a radial scratch, retained ridge, lost coating, gasket misalignment, or assembly-load problem. Isolate and reopen under the service procedure. Do not randomly add torque or smear sealant around the outside.

“The face is shiny, but the gasket will not hold.” Shiny may mean the intentional roughness was polished away. Measure the finish and flatness; restore by the authorized machining process, not more hand polishing.

“The aluminum has grey smears or rounded port edges.” The tool removed parent metal. Clean, inspect, and obtain an engineering or machining disposition; a thicker gasket does not restore geometry.

“Rust freckles appeared on stainless after maintenance.” A carbon brush, scraper, bench, or airborne grinding dust likely embedded free iron. Quarantine the brush, identify the contamination path, and follow the stainless repair/passivation procedure. Do not spread it with the same tool.

“The razor chatters, walks, or exposes a corner.” Wrong gauge for the load, poor holder capture, steep angle, dry residue, or a face too soft for steel. Stop; fix the assembly or step back to chemistry and plastic. Do not grip harder.

“The residue smears instead of lifting.” The remover is wrong for the chemistry, has not dwelled, or the part is outside its permitted temperature. Return to the product TDS and equipment procedure.

“A brush is leaving wire behind.” The brush is damaged, overloaded, or wrong for the finish.

“The old gasket is fibrous, friable, or from unknown legacy service.” Stop dry work. Do not brush, grind, blow, or vacuum with an ordinary shop vacuum.

The history footnote — the joint got modern before its cleanup did

For much of the twentieth century that fiber was asbestos. The replacement materials changed—aramid and other non-asbestos fibers, graphite, PTFE, elastomers, multi-layer steel, and formed-in-place chemistries—but the removal problem stayed mechanically recognizable: separate the sacrificial seal from the expensive face without changing the face. The health boundary did not vanish with modern stock. EPA’s 2024 chrysotile rule addressed ongoing sheet-gasket and other-gasket uses, while legacy gaskets remain installed in old equipment (EPA — final chrysotile asbestos rule announcement). That is why “wet, contained, and procedure-controlled” belongs in a serious removal guide rather than as a museum note.

The hand scraper survived every material change because its physics are still right: soften the bond, hold a flat edge low, shear the sacrificial layer, and leave the machined surface exactly as the designer made it. The modern improvement is not more aggression. It is knowing the alloy, the coating, the specified finish, the chemistry, and when the edge must stay in the drawer.
