How to Polish a Level 5 Finish Under Critical Light

The queue’s “180-then-240 endgame” is preserved with its missing material boundary restored: 180 refines the fully dry skim coat before primer; 240 is an optional, feather-light correction on cured primer or paint film, only when the coating maker permits sanding and inspection finds a film defect. Neither grit establishes Level 5 by itself.

Job: bring a correctly built Level 5 gypsum-board surface through its final abrasive and coating-proof loop so the specified finished wall reads continuously under the room’s severe side light.

Time: no honest minutes-per-wall or universal drying interval exists. Compound type and thickness, temperature, humidity, airflow, primer, topcoat, and repair count set the schedule. Dryness and the current compound/coating instructions—not a clock printed here—open each pass.

Difficulty: high judgment, low force. At this stage the wall is easy to make worse. The operator must distinguish a plane error from a scratch, and a compound defect from a coating-film defect, before touching either grit.

Pass condition: the Level 5 surface has passed the project’s specified inspection under lighting representative of the finished space; no named ridge, hollow, scratch, pinhole, fuzz, joint photograph, nib, or contaminated repair remains; every correction has been cleaned and restored into the specified primer/finish system.

What “Level 5” means — and what “polish” does not mean

A Level 5 gypsum-board finish is a construction and decoration specification, not a synonym for “sand with the finest paper.” It begins with a completed Level 4 treatment at joints, fasteners, and accessories. A thin skim coat of joint compound, or a material manufactured for that purpose, then covers the entire gypsum-board surface; that continuous coat is made smooth and free of tool marks and ridges; sanding dust is removed; and the specified drywall primer is applied before final decoration. The skim is meant to minimize visible differences in texture and porosity between board paper and joint-compound areas. It does not make crooked framing, crowned board, or an out-of-plane joint disappear.

The Gypsum Association recommends Level 5 where non-flat paints are specified, where severe lighting exists, and where smooth wallcovering or other demanding decoration will expose the substrate. Its definition of critical or severe lighting is strong side light from windows or surface-mounted fixtures. Long window walls, skylights, atriums, corridors viewed lengthwise, wall washers, and sconces close to the plane are familiar versions of the same physics: light striking at a shallow angle stretches a tiny ridge into a long shadow.

Three operations are routinely collapsed into “polishing.” Keep them separate:

Flattening establishes the plane. Scraping nibs, recoating hollows, widening narrow joints, and using 120/150 where real highs or coarser scratches remain happen before this guide’s finishing pass. Sanding subtracts; it cannot fill a low.

Final-sanding refines bare compound. On a dry, already-flat skim, 180 removes the remaining 150-grit scratch when the planned sheen and critical light can reveal it.

Polishing is a coating-film correction. After the specified primer has dried to the condition its maker requires for inspection and sanding, 240 may remove primer nibs, raised fibers, a faint roller edge, or the last permissible film scratch. It is not part of the formal definition of Level 5, not automatically required on every Level 5 wall, and not a way to repair geometry.

This distinction resolves the dangerous slogan “180 then 240.” The two grits may occur in one finishing loop, but they touch different material states with cleaning and primer between them. Do not run 240 directly over raw skim merely because it is the next number. It can burnish the surface and polish the shoulders of a deeper scratch while its valley survives.

The exact Hyde abrasive and tool map

| Stage | Exact abrasive | Honest role and boundary |

Hyde verifies the grit, format, pack, open-net family, reduced loading, and lack of a uniform sanding pattern.

Hyde verifies the size, grit, pack, perforated/open-net family, and dust-free-sander language.

The package confirms 9 inches / 225 mm and model 09922.

Identity rests on the Hyde Store listing/model/GTIN; lifecycle and family-claim inheritance are unresolved. Verify the current product and fit before buying around it.

The net passes fine coating swarf through a verified vacuum head and reaches margins a 9-inch circle leaves. It is not a raw-compound leveling sheet. |

The 10-pack versus 25-pack distinction is count, not finish quality.

The relevant Hyde tool seats

It runs the 09921/09922 disc formats over open field and cannot enter internal angles. It is not vacuum-connected.

The wet/dry vacuum is not included. It is the cleanest one-box route to both abrasive stages, subject to the coating boundary between them.

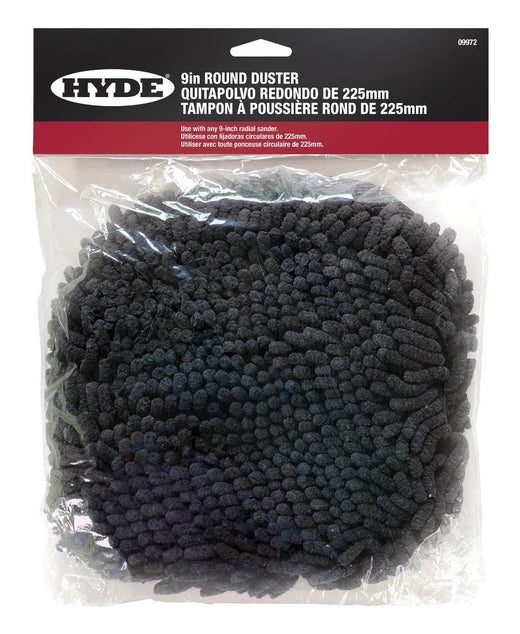

It is a cleanup accessory, not a HEPA control, abrasive, or substitute for the coating maker’s surface-cleaning instructions.

There is no one-head Level 5 kit in the verified Hyde set. The 9-inch circle covers open field quickly but leaves every crease and provides no extraction; the rectangular vacuum head controls dust and reaches closer to geometry; hand work supplies the final touch verdict. Choose the field and perimeter seats before starting so the large head never improvises at a corner.

Before sanding: prove the Level 5 surface is ready

Bind the job to the actual specification and finish system

Read the project specification, approved sample or mockup, compound data, primer instructions, finish-paint instructions, and inspection agreement.

the required gypsum-board finish level;

the final color and sheen;

the normal and critical lighting that will exist at acceptance;

whether a particular primer-surfacer or conventional skim-plus-primer route is specified;

which sanding and cleaning steps the primer and finish makers permit;

who owns correction after primer;

what surface and lighting standard controls acceptance.

Level 5 is not permission to substitute an improvised abrasive recipe for a listed system. Some manufacturer-approved primer-surfacers can perform the skim/prime function in a specified system; this guide does not convert that product-specific route into a universal shortcut. If the project requires a mockup, the mockup establishes the finish under the agreed light before the whole room is committed.

Map the room’s critical light, then build a diagnostic light map

Critical light is the final condition. Raking light is the diagnostic instrument. They overlap, but they are not interchangeable.

Identify every permanent severe-light direction: window and skylight edges, glass curtain wall, wall washer, sconce, open door from a bright room, corridor sightline, and reflective floor or countertop that kicks light upward.

Inspect first from the direction that will exist in service. Put a movable light close to the surface and aim it along that same path.

Reverse the movable light to classify geometry. A ridge’s shadow changes sides; a hollow retains a basin; a directional scratch brightens from one direction and darkens from the other.

Move the light vertically as well as horizontally where fixtures graze from above or below.

Mark with pencil only: short line on the high side, open outline around a low, arrow along a scratch, stop box around exposed paper or questionable adhesion. Ink can bleed through coatings.

Use deliberately harsh raking light to find and classify defects while work is still open, but do not invent a final acceptance condition unrelated to the contract. The Drywall Finishing Council calls for inspection lighting representative of normal finished conditions. The project’s stated inspection agreement controls the handoff.

Prove the skim is fully dry and sound

Do not choose readiness by elapsed time.

The surface should have returned to a uniform dry appearance with no dark islands.

Compare deep fills, corners, butt joints, and heavy laps to the thin field. The field can be dry while a local repair remains damp.

Make a light abrasion test in a fully covered representative area. Ready compound releases clean loose powder. Damp material smears, pills, gums, or rolls.

Probe bubbles, cracks, soft powdering, hollow-sounding islands, and lifted edges. A sound skim stays bonded under light scraping; a failed skim grows the failure.

If the test smears, stop. If the skim is loose, remove to a sound edge and correct the cause. Primer does not glue a detached coat back to the wall.

Classify every visible condition before choosing grit

| What the light, hand, and straightedge find | Correct route | Why |

| Dry crumb, isolated nib, or sharp knife burr above a true plane | Scrape nearly flat | A point projection should be sheared, not surrounded by a sanding dish |

| Broad high with enough sound compound above the substrate | Supported correction at the least aggressive effective grit, then reconnect through 150 and 180 | A polishing grit cannot reach a real high efficiently |

| Hollow, pinhole field, dragged groove, open crater | Re-skim | Sanding cannot add material |

| Repeating wave, narrow butt-joint photograph, crown caused by board/framing geometry | Recoat wide or correct the substrate/expectation | Grinding peaks creates thinner highs and deeper-looking lows |

| Exposed tape, paper fuzz, torn face, or burn-through | Stop, seal/stabilize as the repair system requires, re-skim | More sanding enlarges the damaged substrate |

| Primer nib, raised fiber, or faint permitted coating-film texture on a true plane | 240 only after the coating maker’s sanding condition is met | This is film de-nibbing, not compound leveling |

| Primer reveals a low, broad wave, or joint photograph | Return to compound/system correction | 240 cannot fix shape or porosity geometry |

Resolve the old-surface hazard before making a test stroke

A fresh skim does not prove that everything the abrasive may cross is new.

Lead: paid renovation disturbing paint in pre-1978 housing or covered child-occupied facilities can fall under EPA’s Renovation, Repair and Painting rule. A net disc on the 09977 and an ordinary wet/dry vacuum on a Hyde rectangular head are not automatically RRP systems. Homeowners should still use EPA’s lead-safe containment, dust-minimizing, HEPA-cleaning, and occupant-protection practices.

Asbestos: old texture, surfacing material, and patching compound cannot be cleared by appearance. Do not test-sand suspect material. Stop for an accredited assessment where disturbance is planned.

Known modern compound: ordinary drywall dust remains an eye, nose, throat, and respiratory irritant in quantity. NIOSH measured very high exposures in drywall sanding and found vacuum controls reduced exposures by 80–97 percent. Use source extraction where the verified tool path allows and select respiratory protection through the applicable exposure assessment and program.

Coating dust and ventilation: after primer, follow the primer’s current safety data and sanding/ventilation instructions. “Waterborne” does not eliminate dust, sensitization, or ventilation requirements.

Protect eyes. Keep non-workers out of the zone. Route hose and cord away from the stance and never across stair treads. At height, reposition or use proper staging rather than leaning against a pole or hose.

Choose the 180 and 240 route from proof, not habit

Decide whether the dry skim needs 180

Start with a cleaned representative area that includes open field, a joint transition, and a margin. Inspect the 150-finished surface under the room’s mapped light.

If the plane is true, no 150 scratch reads, and the specified coating system accepts the preparation, stop sanding bare compound. Clean and prime.

If fine directional 150 scratch reads under the relevant light, 180 earns the pass.

If a ridge, hollow, wave, exposed paper, or deeper scratch reads, the wall has not reached the 180 lane. Correct it, reconnect the earlier grit sequence, and test again.

The right Level 5 sequence is the least aggressive sequence that passes the specified proof, not the greatest number of grits available.

Choose disc or sheet at 180

Choose 09921 + 09977 when the work is broad open field, conventional containment is acceptable, radial speed matters, and the unsanded perimeter will receive a separate hand/sheet pass. The net resists loading and avoids a uniform screen pattern, but the current Hyde radial does not extract.

Use 09165 for reachable final judgment; 09170 when an Acme pole is already owned; 09180 when the complete pole/no-flip/four-grit system is needed.

Do not treat the disc and sheet as interchangeable simply because both say 180. A round field head changes direction freely and leaves an internal-angle margin. A rectangular hand/pole head tracks a flat transition, works closer to edges, and—on the verified vacuum family—pulls swarf through the net.

Decide whether primer needs 240

Primer creates the decision; the phrase “Level 5” does not.

After the specified primer reaches its manufacturer-defined inspection and sanding condition:

If the proof coat is continuous, clean, and free of nibs or permissible film texture under the agreed light, do not sand it merely to say 240 was used.

If isolated nibs or raised fibers exist, first scrape or spot-de-nib at defect scale where the coating maker permits.

If the whole film carries a faint, correctable texture and the coating system permits a uniform sand before topcoat, use a 240 reference panel before committing the room.

If primer reveals a low, ridge, deep scratch, joint photograph, adhesion failure, or broad porosity problem, 240 is the wrong operation. Diagnose and restore the substrate/primer system.

Choose 09940 + 09165/09170/09180 for the most controlled, source-extracted 240 work. Choose 09922 + a verified 9-inch host for open film field where conventional dust control is accepted; on Hyde’s 09977, do not call it extracted.

The working method

Prepare separate clean stations for 180 and 240

Fine-finish contamination creates scratches longer than the defect that caused them.

Keep every grit in a labeled clean sleeve or bin.

Clean hands, head face, clamps, hooks, hose, and work surface before loading 180.

Center the disc or tension the sheet flat. A loose edge flutters, stripes, leaks extraction, and can fold a hard crease into the finish.

After the compound pass, clean the entire rig and store the 180 separately before primer.

Load 240 only after primer has reached the permitted condition and the tool, hands, hose, and floor route are free of compound grit.

If one deep line appears in an otherwise fine pass, stop immediately. Do not drag its cause across the room.

Prove extraction before calling the sheet route dust-free

For 09165, 09170, or 09180:

prepare the wet/dry vacuum with the vacuum manufacturer’s approved fine-dust collection and filtration arrangement;

inspect the filter seating, bag, seals, hose, couplers, and adapter;

connect and pull-test every joint;

center and tension the net sheet over the head’s airflow path;

run a vacuum-only baseline;

connect the head and confirm draw through the abrasive;

make a small proof pass on the same material and inspect the head edge, hose, exhaust, and room side for leakage.

“Wet/dry vacuum” does not mean HEPA. A strong motor sound does not prove the exhaust is clean. If draw falls, the plume starts, or dust exits one pad edge, stop and restore the air path. Pressing harder damages the plane and reduces capture.

For 09921/09922 on 09977, use the conventional dust plan honestly: containment, exposure control, and cleanup. The disc is net; the head is not vacuum-connected.

Scrape projections and close all compound repairs first

Hold a clean broad finishing knife almost flat and make a light reconnaissance pass over mapped dry crumbs and sharp burrs. Clean the blade after each pickup. Do not stand it up and shave the skim.

Re-rake the light. A shadow that vanished was a projection. A surviving broad low or pinhole field goes back to compound. Let each repair become genuinely dry and sound, scrape its nibs, and reconnect its abrasive sequence through 150 before it rejoins the 180 field.

This is the first correction loop, and it can repeat. The wall does not advance because most of it is ready.

Establish the 180 reference panel

Make a light 180 pass across the representative cleaned 150 area.

Present the full face flat.

Use the tool’s weight; on a pole, use less than the lever invites.

Cross the dominant direction of the 150 scratch where geometry allows.

Clean the panel and inspect beside untouched 150 under the mapped critical direction and its reverse.

Run a flat palm and wide straightedge over any suspect transition.

The panel must prove that 180 removes the visible 150 scratch without changing the plane, raising paper, or introducing a new line. If the panels look identical, 180 adds no value. If the 180 panel looks worse, find contamination, loading, pressure, dampness, or wrong tool geometry before continuing.

Refine the dry skim at 180

Run the open field in connected lanes:

extraction on before contact where using a vacuum head;

full face flat;

long overlapping strokes, never tight circles around a mark;

broad arcs or lazy figure-eights with the round head; straight, plane-following lanes with the rectangle;

cross the prior scratch rather than following its valley;

bleed pressure to nothing at reversals;

walk the stroke instead of leaning at full reach;

stop after one coverage pass, clean a zone, and inspect.

Spend extra passes only on a named surviving scratch. A high that needs sustained cutting goes back to the appropriate correction grit; a low goes back to compound. The stop rule is strict: once the 150 scratch is gone and the plane reads continuously, 180 has no remaining job.

Finish the perimeter without rounding it

Put the 9-inch circle down before it reaches geometry it cannot read.

Use 09939 on the controllable flat hand/vacuum pad for margins, joint ends, openings, and the final reachable verdict.

Keep the pad on one plane. Never sweep a rectangle across an internal crease.

Sand along an inside corner, one face at a time, with the proper corner/detail method; do not erase the opposite finished face.

Protect crisp outside arrises. A conforming tool may follow a bullnose, but it can also round an edge meant to stay sharp.

At an exposed paper transition, add or repair compound rather than sanding the compound to nothing.

The field and perimeter must finish at the same scratch. An untouched 150 strip around the room is still an unfinished Level 5 surface.

Run the bare-surface inspection and dust removal

rake every zone from the finished critical-light direction;

reverse the light to classify the mark;

bridge suspect geometry;

run a clean palm over joints and repairs;

mark only named defects;

close each defect through the correct repair route;

Vacuum ledges, wall, trim, floor, tool, hose, and travel route with the filtration appropriate to the identified material. Use a barely damp compatible final wipe only if the compound and primer makers permit it; raw compound and paper can be softened by careless water. Never blow the room clean with compressed air.

Run a clean-finger or clean-cloth transfer test at field, feather, corner, and trim top. Visible sanding-color transfer is a failed clean.

Prime as the system requires and use it as the proof coat

Apply the specified primer or primer-surfacer at the maker’s required preparation, application, and coverage conditions. This guide invents no universal product, thickness, drying period, or number of coats.

Primer’s quality-control value is uniformity: it brings board paper and compound under one color and coating film, exposing conditions hidden in the white-on-white raw wall. When the maker says the film is ready for inspection:

rake from each mapped permanent severe-light direction;

reverse the work light to classify any shadow;

inspect joints, fastener rows, accessories, skim transitions, corners, and every repair;

feel nibs and ledges with a clean hand;

look for adhesion failure, powdering, bubbling, or rolling before assuming “needs sanding.”

true plane, clean film, no visible defect: proceed under the finish specification; no ceremonial 240 pass;

isolated coating nib or raised fiber: permitted spot de-nib/240 correction;

uniform correctable film texture: test a 240 panel, then decide;

compound scratch or exposed repair: return through the compound grit sequence, clean, and restore primer;

low, ridge, wave, joint photograph, or pinhole: add/correct material, then restore the entire loop;

primer adhesion or compatibility failure: stop and diagnose moisture, dust, weak substrate, product compatibility, and schedule before applying anything else.

Establish the 240 reference panel on cured coating film

Only after the coating instructions permit:

clean a representative primed area;

load clean 240 on the chosen sheet or disc host;

start verified extraction before contact where using the rectangular vacuum route;

skim the face with feather pressure—less than the 180 pass;

make only enough strokes to shear nibs or reduce the permitted film texture;

clean the panel by the coating maker’s compatible method;

compare it to the untouched primed film under the mapped light and by clean hand.

Pass only if the 240 panel is visibly and tactually better without cut-through, burnish, edge halos, scratches, or loss of primer continuity. If no improvement is visible, do not sand the room. If the film rolls, smears, gums, or clogs immediately, stop; it is not ready or the method is incompatible.

Polish only the film that needs polishing

use featherweight contact and keep the face moving;

work connected lanes so the sheen does not become a patchwork of polished islands;

let extraction and clean net carry the swarf; do not press when cut slows;

inspect frequently because film thickness is finite;

work perimeter with 09940 and hand control rather than forcing a large disc into edges;

stop at the first sign of color change, primer cut-through, rolling film, gloss burnish, or a scratch larger than the defect being removed.

240 is not a full-wall entitlement. A film with three nibs gets three controlled corrections and whatever light uniform pass the coating maker requires—not an automatic room of abrasion.

Clean, restore primer where needed, and run the final proof

Remove the 240 swarf with the coating maker’s compatible method. Keep compound-dust tools and traffic out of the cleaned zone. Any repair or cut-through receives the specified primer restoration; do not hide bare compound under finish paint.

Run the mapped light again only after the restored film reaches its inspection condition. The wall leaves the loop when:

the specified Level 5 build remains continuous;

the plane is true under straightedge and critical light;

no directional scratch, joint photograph, nib, ridge, low, pinhole, fuzz, or repair halo remains;

dust-transfer tests pass;

all local repairs are re-primed as required;

the surface satisfies the project’s agreed inspection under representative finished lighting.

Final paint remains a coating-system operation. Follow its current recoat, sanding, ventilation, application, and lighting instructions; no abrasive guide can guarantee how an unspecified gloss, dark color, applicator, or fixture will render.

The correction loop — one finite denominator

Every inspection finding must enter exactly one lane:

High → remove only if sound material remains above the substrate; reconnect the sequence.

Low/pinhole → add compatible compound; dry; sand; clean; prime.

Coating nib/raised fiber → permitted 240 film correction; clean.

Primer cut-through → restore primer and reinspect.

Adhesion/compatibility failure → diagnose the system before more sanding or coating.

No finding is closed by “looks better.” It closes when the named defect is absent under the same mapped inspection that found it and the repaired coating stack is restored.

What goes wrong — and the repair

“The Level 5 wall is wavy.” The skim or substrate is out of plane. 180/240 cannot fix a broad wave without cutting its peaks through. Re-skim wide or correct the underlying condition, then repeat the proof loop.

“240 made the raw skim shiny but the scratch remains.” Wrong material stage and probably a skipped rung. Clean, identify the scratch depth, return to 150 or 180 as required, then clean and prime. 240 belongs after primer only when permitted.

“The primer revealed every joint.” Diagnose joint photograph, texture/porosity difference, narrow coating, or plane—not simply “needs finer sandpaper.” Correct the Level 5 build or specified primer-surfacer system and re-prove it.

“One deep line ran across the final pass.” Coarse contamination or hard debris. Stop, clean the pad/head/clamps/hands, replace the face, erase the line with a grit capable of reaching its bottom, and reconnect the sequence.

“The pole left shallow dishes.” Repeated local pressure removed soft compound. Re-skim the dishes; use connected lanes, rig weight, and hand verification on the rebuilt surface.

“The 9-inch net disc filled the room with dust.” Expected from the verified 09977: it has no extraction claim. Net reduces loading; it does not supply airflow. Restore containment or move the flat work to 09939/09940 on the rectangular vacuum system.

“The vacuum head leaks from one edge.” Stop. Restore full-face draw before continuing.

“The 240 primer film balls up or smears.” The film is not ready, the coating does not permit the method, or heat/pressure is excessive. Stop and consult the coating instructions; never press through it.

“The primed wall has polished halos.” Spot-sanding was too tight or pressure varied. Follow the coating maker’s correction path; a uniform permitted film pass may be needed, or the zone may need primer restoration. Do not enlarge halos blindly.

“Primer peels from the repair.” Dust, moisture, weak skim, incompatible materials, or premature coating can look alike. Preserve the evidence, inspect the failure interface, and diagnose before recoating.

“The surface passed at night and failed in afternoon sun.” The inspection did not reproduce the critical-light direction. Add the window direction to the map, classify the exposed defect, correct, clean, restore primer, and repeat.

“The buyer expected a pole with 09170.” The supported package is without pole. Supply a compatible Acme pole or choose the 09180 complete kit.

“The 09928 cannot be confirmed as current.” That is the exact packet’s open lifecycle boundary. Buy the sourced 09922 or obtain current manufacturer/seller confirmation; do not turn a bulk-pack assumption into a product claim.

“The wall is old and the skim sanded through to unknown paint or texture.” Stop disturbance. Resolve lead/asbestos/material identity and the required control plan before any repair sanding resumes.

Buyer tests — the honest set

“The dry skim is flat after 150, but a long window shows the 150 scratch. Net anti-loading is real; extraction on that Hyde head is not.

No pole comes with 09170.

It documents pole, No-Flip pad, hose, adapter, and 120/150/180/240 net sheets; it does not include the vacuum.

“Primer is smooth and the proof coat passes under every agreed light.” Buy no 240. Proceed under the finish specification.

Test first; feather pressure; clean by the coating specification.

On 09977 it is a conventional-dust pass. Verify any other host from that host maker.

Its packet contains no accepted product claims; pack economy cannot erase that gate.

“Primer revealed a broad low or joint band.” Buy no 240. Return to compound / Level 5 system correction.

“The final paint is flat, the 150 reference panel passes, and the project specification accepts it.” Buy no 180 or 240 for ceremony. Clean and proceed with the specified primer.

“The abrasive may reach old paint or texture of unknown composition.” Buy no sanding system yet.

History — why “Level 5” became a number

The five levels are not ancient drywall folklore. They were created to replace phrases such as “industry standard” and “ready for paint,” which described no measurable division of work and left drywall finisher, painter, architect, and owner expecting different surfaces. The Level 5 idea is therefore a coordination tool before it is a finish adjective: it names the extra full-surface treatment needed when the decoration and light will expose the difference between paper field and compounded joints.

That matters to this guide because it makes the sequence legible: Level 4 first, continuous treatment second, representative-light inspection throughout. “Five coats” is a folk mnemonic, not the definition.

The abrasive side is newer still. Conventional paper and sanding screen could either clog on fine coating dust or leave a regular pattern; open net abrasive made through-face extraction and a non-uniform scratch practical at finishing grits. Mirka identifies Abranet as the first net sanding product and places its introduction around 2000–2001 (Mirka — Abranet). Hyde’s 180 and 240 net formats are descendants of that change, not the inventors of Level 5 and not a replacement for its skim-and-primer specification.

NIOSH supplied the worker-health argument for the same system. Its drywall-sanding control study found vacuum sanding reduced measured dust exposure by 80–97 percent (NIOSH 99-113). The modern critical-light finish loop consequently joins two inspections: the light sees the surface more honestly because dust leaves at the head, and the worker breathes less of the material removed to make it so.

Exact backlinks and neighboring-job graph

Queued neighboring jobs: plan-a-grit-sequence · scuff-sand-between-coats · wash-and-reuse-net-abrasives · control-sanding-dust-and-protect-your-lungs. Every exact linked PDP should list this application; the product ↔ application graph runs both directions.

Safety and abrasive history: NIOSH Engineering Controls — Drywall Sanding · NIOSH 99-113 · OSHA 29 CFR 1926.1153 · EPA RRP work practices · EPA lead-safe DIY guidance · EPA asbestos overview · EPA asbestos remodeling guidance · Mirka — Abranet.

No verified Hyde vacuum radial: Hyde’s net-disc family says “for use with 9" round dust free sanders,” but the current 09977 has no vacuum port, hose, shroud, or extraction claim, and the verified dust-free family lists no radial member. The 09921/09922-to-09977 pairing is conventional dust posture.

Net-sheet conventional fit: 09939/09940 are officially 3-5/16" × 11-1/4" and described for conventional and dust-free hand sanders. Hyde conventional clamp heads cite 3-1/4" × 9-3/8" sheets/pads. Dust-free 09165/09170/09180 family use is the clean route; bench-verify before promising fit in 09057 or every conventional head.

09928 exact-product gate: the packet has no accepted claims. Identity is the Hyde Store listing/model/GTIN; lifecycle and family-claim inheritance remain unresolved. No current availability, official net performance, washability, life, backing, or compatibility claim is made for that exact SKU.

09165/09170 included abrasive: exact kit copy says reversible sanding screen while dust-free family language says net abrasive sheets. Screen and net are different technologies. Verify the current box; do not merge the terms.

09170 pole contradiction: catalog, official variant, and Hyde video say without pole / pole not included; one page paragraph says a pole is included and is treated as sibling-copy bleed. This guide promises no pole.

09922/09921 life claims: Hyde’s catalog says net lasts three times longer than sandpaper; its site says up to five times longer than traditional sandpaper and sanding screens. Cite per source and never combine. This guide makes no synthesized life claim.

Hyde net-sheet compliance wording: “Meets OSHA and California silicate requirements” is Hyde’s exact site language. The underlying provisions are unresolved; this guide does not expand it into a general compliance promise.

No universal grit or finish guarantee: Level 5 does not mandate these grit numbers, and no source guarantees that 180 or 240 disappears under every primer, gloss, dark color, applicator texture, or lighting condition.

No invented timing, fit, film build, or availability: compound/primer/topcoat readiness, coating thickness, recoat window, product stock, price, and exact system compatibility are not stated unless the cited Hyde source states them. Current manufacturer instructions and live commerce own those facts.
