How to Load a Roller from a Paint Tray

The thirteen links in this guide are exact backlinks, not thirteen interchangeable recommendations.

Result: a freely rotating cover with an even controlled charge, no free streams in normal movement, and an even first test pass without extra pressure.

Time: allow a few minutes for proof before pouring. The actual system determines charge and reload time; no pass count, fill quantity, load rate, or coverage rate is promised.

Difficulty: easy motion after a strict setup. Most failures that look like “bad rolling” begin as the wrong tray-cover pair, an unstable vessel, an overloaded cover, or an instruction gap.

These are system roles, not extra product backlinks.

The proof gate comes before the loading technique

A tray, frame, cover, coating, substrate, and site form one system. Nominal width does not prove clearance, rotation, or coating approval. A title does not prove capacity, fill line, liner, ladder or wheel behavior, chemistry, cleaning, or disposal.

Tray identity and instructions. Match model, maker, package, markings, and object.

Frame-cover fit. Identify both independently; mount and dry-spin by instructions. Reject binding, wobble, migration, damage, or contact.

Tray-cover working fit. Sweep the dry roller through the intended dip, roll-down, and withdrawal path in the stable empty tray. Both ends clear, the cover rotates, the frame misses the tray, and nothing needs hand restraint.

Coating permission. The label/TDS/SDS and substrate system control mixing, open-container use, applicator, preparation, environment, ventilation, protection, cleanup, storage, and waste. Class words do not transfer compatibility.

Site control. Use protected, lit, stable staging outside walking and door paths and away from stairs, cords, edges, heat, ignition, and assessed hazards.

Any missing identity, instruction, fit, coating permission, or site control is a HOLD. Do not pour first and solve it with paint in the tray.

Disposition the exact thirteen-member union

The linked product guides and line document are research surfaces, but they do not outrank that record.

Capacity, footprint, liner, closure/seal/duration, chemistry, cleaning, and the older guide’s pass-count narrative are not adopted. |

Prove cover fit; closure/seal/duration, liner, chemistry, and cleaning stay gated. |

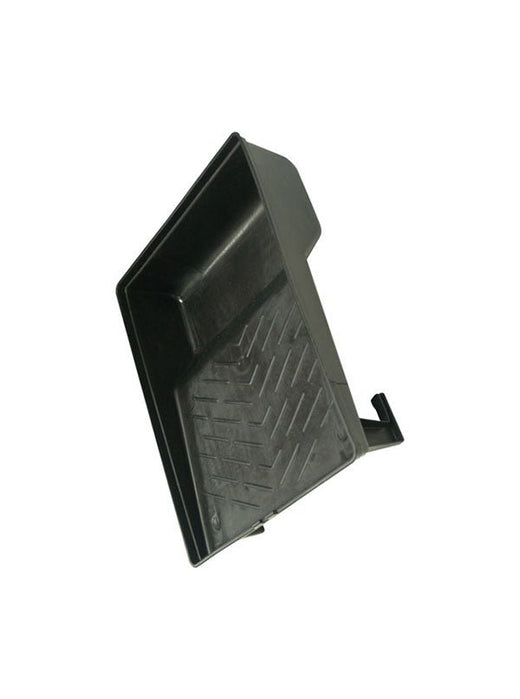

PLASTIC TRAY. | CONDITIONAL 4-INCH CANDIDATE. Prove physical system. No capacity, footprint, depth, liner, cover, grade, chemistry, reuse life, or linked-guide title dimension transfers. |

Obtain exact-model system instructions. |

Exact product, ladder, attachment, load, and procedure must be proved together. |

“Plastic” alone decides no chemistry. |

Liner SKU, material, chemistry, fill line, load rate, cleaner, and two-person workflow are not supplied. |

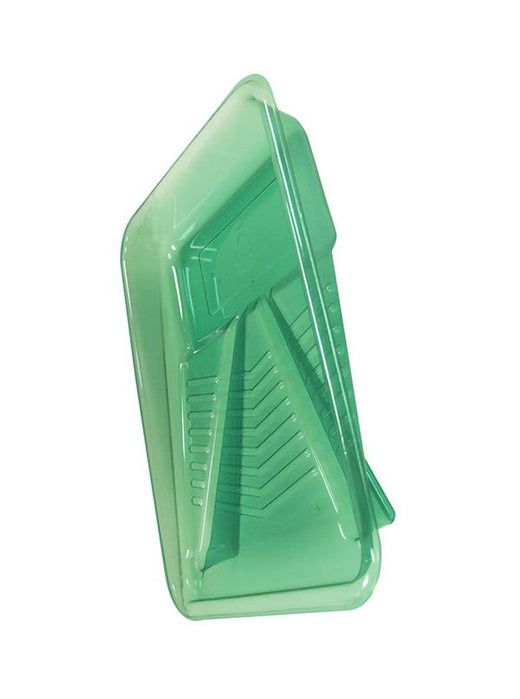

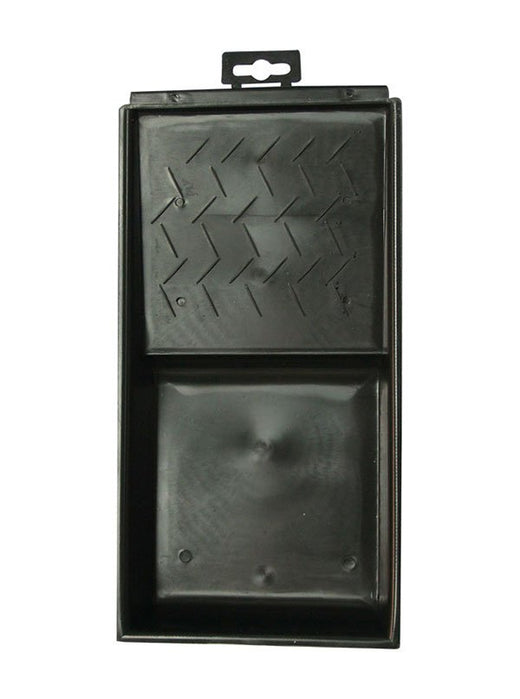

Finite selection result: four members are conditional candidates at the identity grain (47451, 47452, 92051, 92078); one is a conditional candidate with exact 18-inch/4-liter use evidence (92113); eight are HOLD pending exact-system proof (92053, 92054, 92060, 92067, 92069, 92070, 92086, 92087).

Inspect and dry-prove the chosen station

Cleanliness is a finish variable. Reject a tray or insert with cured chips, skin, dust, grit, fibers, unknown residue, cracks, distortion, sharp damage, unstable feet or base, or any condition that could enter the coating or upset the station. “It held paint last time” is not a condition inspection.

If the exact tray instructions call for a disposable liner or other insert, prove its exact model and seating method before use. Press only where instructed and dry-roll the full path. A liner that lifts, bridges, buckles, rocks, or shifts is a fit failure. This guide does not infer any liner pairing from approximate width or volume, and it does not identify the unresolved liner for 92113.

Set the empty station where loading will occur. Do not plan to relocate a charged open tray unless the exact product and site procedure authorize that configuration. For 92054, 92086, and 92087, no ladder or wheel operation is authorized at all by this guide.

Mount the approved cover on its frame. Make one slow empty cycle through the intended loading path. The cover must contact the tray’s working area across its usable width without either shoulder striking a sidewall. It must rotate through the whole cycle. If it skids, binds, falls into a gap, cannot reach the intended coating zone without frame immersion, or requires tilting the tray, the system fails before paint.

Confirm product, color, sheen, batch or lot, substrate, and intended coat. Stir, mix, combine, strain, thin, induce, or rest only as the exact coating instructions require. Do not use the tray or roller as a mixer, do not beat a skin into the batch, and do not pour unidentified leftovers together.

Reserve clean touch-up material before the working roller enters the system. After a cover has touched the work and returned, the tray is a working reservoir exposed to substrate dust, fibers, and debris.

Read cover preparation literally. One current BEHR cover procedure calls for a coating-dependent pre-wet and another BEHR roller guide calls for a lightly dampened cover; that is evidence that the exact cover-and-coating system controls, not permission to dampen every cover. Purdy’s current class guidance similarly says to load the entire cover slowly and avoid both underload and overload. This guide adopts the shared qualitative objective—an evenly charged cover—not either maker’s product-specific preparation, quantity, duration, or pass count.

Charge the tray without inventing a fill line

Use the tray maker’s marked or instructed working level when one exists and is bound to the exact model. If no admissible working level exists, do not convert a nominal capacity into a fill instruction. Capacity is maximum product identity only where accepted; it is not the quantity to pour for this operation.

Stage the smallest amount that allows the approved cover to contact coating through the proved path while preserving stable headroom under normal dip and roll-down. Add gradually. Stop if coating reaches hardware, core openings, an unintended tray surface, an unstable liner edge, or a level at which normal cover displacement threatens overflow.

Do not use “fill the well,” “stop at the ramp,” “one-third full,” a liter figure, or any other universal line across this thirteen-member union. Different trays, inserts, covers, naps, and coatings create different working geometry. The safe control is the exact instruction plus observed headroom through a slow first cycle.

Load the full cover qualitatively

Only after the identity, fit, coating, and fill gates pass:

Introduce coating gradually. Bring the approved cover into the coating zone through the dry-proved path. Keep frame hardware and core openings out unless the cover maker explicitly instructs otherwise.

Rotate; do not slide. Move onto the tray’s proved working area with light, even contact. Let the cover turn through complete revolutions. A cover that skids cannot distribute a reliable charge.

Build the charge around the circumference. Repeat controlled dip-and-roll-down cycles until the cover looks uniformly wet around its full circumference and across its usable width. Do not count passes; read the actual cover.

Meter free excess. Continue light rotation on the working area until free streams and heavy end ropes stop. Do not crush the cover to wring it out. The tray surface meters; pressure is not a substitute for fit.

Lift and pause over the station. Move the roller normally through the withdrawal path. A controlled loaded cover may look wet and feel charged; it should not release free streams or repeated heavy drops merely from being moved.

Touch the test surface first. Place the cover on a representative sample with the application pressure permitted by the coating system. It should begin turning immediately and release an even band. A skid, dry lane, heavy shoulder rope, bubble field, or stream is a setup readback, not an invitation to press harder.

Run a repeatable reload rhythm

Reload before the cover becomes so dry that it hisses, skips, chatters, requires pressure, or leaves separated bands. Return through the same dip, rotation, metering, lift, and test-read sequence. Consistency comes from returning the cover at a similar release state, not from timing a universal interval.

Watch the reservoir. Stop for skin, cured fragments, foreign fibers, color shift, unexpected thickening or thinning, separation beyond the coating’s allowed working behavior, liner movement, tray deformation, or station instability. Remove the roller before authorized reconditioning; do not stir with it.

Add only coating already reconciled with the working batch. Do not quietly top up with an unmixed or unmatched can halfway across a field.

For brief pauses, use only the exact cover, tray, coating, and site instructions. Do not infer a roller rest from tray shape, park a cover submerged, improvise a lid around projecting hardware, or transfer the covered-tray claim into a duration or storage promise.

Read failures at the station

| Readback | Likely system question | Controlled recovery |

| Cover slides instead of turning | Binding frame, incomplete seating, tray interference, excessive pressure, or excess coating | Stop over the tray. Unload if permitted, remove the cover, repeat frame-cover and dry-path proof; never press through a skid. |

| One longitudinal band stays dry | Partial-width contact, incomplete rotation, low working charge, sidewall interference, or damaged cover | Recheck full-width path and rotation. Add coating only within the proved headroom; replace a damaged or mismatched component. |

| Free streams or heavy end ropes | Excess immersion, hardware/core contamination, or insufficient metering | Keep the roller over the station, rotate lightly on the proved working area, and reduce the next dip. Clean contaminated hardware only by its instructions. |

| Cover looks wet but test pass skids | Overload, cover-frame binding, incompatible coating/cover, or surface condition | Stop. Prove mechanical rotation and the coating-system test; pressure is not the repair. |

| Test pass leaves stripes | Uneven circumference or width charge, cover defect, interference, wrong cover, or substrate/coating behavior | Diagnose on the sample. Correct one variable, reload evenly, and retest before returning to the work. |

| Bubbles persist | Cover not uniformly charged, trapped air, roller condition, coating behavior, or excess working | Follow the exact coating and cover diagnosis. Do not adopt a universal extra-pass or thinner remedy. |

| Coating spills on first cycle | Working level lacks displacement headroom, station moved, liner shifted, or path was not proved wet | Stop application, contain under the SDS/site plan, reduce the charge by an authorized route, and repeat the stability and liner checks. |

| Chips or fibers appear | Dirty tray, liner, cover, rim, source coating, or returning job debris | Stop. Segregate the working batch and use the coating maker’s filtration or disposition route; a tray working area is not a filter. |

| Tray, liner, mount, or wheels move | Exact setup is not stable or the unverified feature was used | Stop immediately. Do not hand-hold, wedge, bend, modify, or keep loading. Return to the proof gate. |

End the session without inventing cleanup

Decide the remaining coating’s status before dismantling. Keep pristine reserve separate from roller-exposed working material. Return, store, segregate, or dispose of material only when the coating maker and local rules permit that exact route.

Recover freely draining coating without banging the roller or tray. Remove a cover, liner, lid, wheel component, or ladder-associated component only by its current exact instructions. This guide names no universal water wash, detergent, solvent, scraper, wire brush, rinse location, drying method, or reuse interval. Tool instructions and the coating label/TDS/SDS must agree; if they conflict, quarantine the component and obtain a manufacturer ruling.

Contain liquid, solids, wipes, rags, liners, and wash material under the applicable workplace and local rules. The U.S. That is a routing boundary, not a declaration that every coating or empty tray follows one national disposal method.

Dry and store the tray, frame, and cover only as their makers direct.

Record the system and the readback

Label and photograph the setup. A crew proof record captures:

date, surface, coat, color, sheen, product, and batch/lot;

tray model, instruction source, condition, and insert;

staged quantity only if actually measured, never inferred from tray capacity;

first-charge rotation, charge uniformity, free-drip state, and sample result;

adjustments, reload behavior, contamination, spills, holds, and component changes;

How much should I pour? Follow the exact instruction and preserve displacement headroom. Capacity is not a fill line; no universal fraction applies.

How many roll-downs? Until the cover is evenly charged, free excess is metered, and the sample pass is even. No count crosses systems.

Should I dip the whole cover? Follow the exact cover and coating instructions. Keep frame hardware and core openings clear unless those instructions say otherwise. The objective is even cover saturation, not maximum submersion.

How do I know it is loaded? It rotates freely, is evenly wet, releases no free streams in normal movement, and lays an even sample band without extra pressure.

Why does it leave lines? Check width contact, end load, seating, frame action, interference, charge, and coating behavior on a sample. Do not press harder.

Can I use any tray whose title matches my roller width? No. Nominal width starts selection; dry path, exact instructions, and coating permission close it.

Which tray should I buy? Only one whose exact evidence and physical fit prove the cover/coating system. Five have some admissible basis; eight remain held (§2).

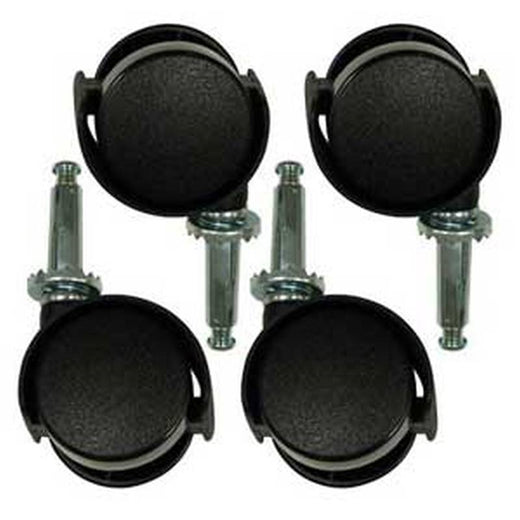

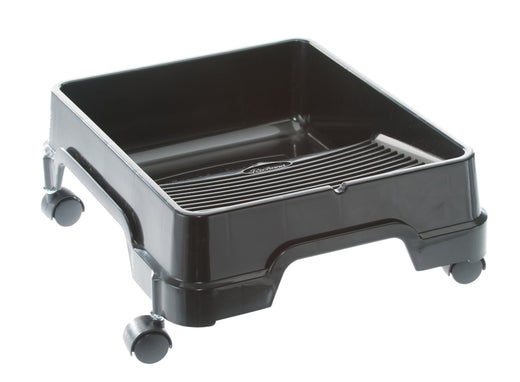

Both records are empty and their relationship is unresolved; no wheel operation is authorized.

Which liner fits? Only one identified for the exact tray by current manufacturer evidence; volume does not prove fit.

Can plastic or metal tell me which coating and cleaner to use? No. Exact product material/finish evidence plus the coating and tool instructions decide compatibility and cleaning.

History: the roller created the tray, but not one universal loading formula
