How to Cut Hot or Abrasive Synthetics at a Production Station

Job boundary: this is a hand-cutting-station guide for an HSS extension blade in a validated handle. “At speed” means repeated production cadence. It does not mean a blade speed, feed rate, temperature rating, powered-knife installation, or permission to make a guarded machine run faster. If the blade is fixed to powered, reciprocating, rotary, or in-running equipment, use that machine’s manufacturer-approved tooling, guarding, energy-control, and process-qualification instructions instead.

Job: convert an already-defined hand-cutting operation from carbon steel to high-speed steel when heat or abrasive wear is measurably shortening edge life, then qualify the HSS setup before production release.

Time: site-determined. A safe change includes material/SDS review, a controlled scrap trial, inspection, and documented release; this guide does not invent a minutes-per-change or pieces-per-hour promise.

Difficulty: advanced industrial work. The cutting stroke is simple; correctly distinguishing heat, abrasion, bad geometry, unsafe material decomposition, and an unqualified process is not.

Everything else: the exact handle or holder already qualified for the blade pattern; a stable cutting support or fixture; controlled samples of the real stock; the current material specification and safety data sheet; the employer’s task procedure and hazard assessment; inspection light and magnification; an approved HSS-capable hone if the site permits field honing; a rigid sharps container; and the guarding, ventilation, eye/hand protection, and other controls selected for the actual process.

Before you start: prove that HSS is solving the right failure

Steel is the change. That lets a plant test whether heat-resistant edge retention fixes a real loss without quietly changing blade stiffness or geometry at the same time. The comparator’s nearest same-dimension sibling, 57170 BG349, carries an unresolved pattern/OEM designation; the held evidence does not support a physical, grind, point-profile, or performance distinction between 57090 and 57170. Match BG349 only where the controlled plant specification names it.

Do not begin with the word *synthetic*. Polyurethane sheet, reinforced hose cover, coated textile, filled rubber, thermoplastic film, gasket stock, and fiber-reinforced laminate can all be called synthetic while behaving completely differently under a knife. The material specification controls. Identify the exact grade, reinforcement, fillers, coating, thickness range, temperature on arrival, and any contamination or adhesive the blade will meet. Read the current SDS and process instructions before trialing a new cadence. OSHA’s Hazard Communication standard, 29 CFR 1910.1200, requires required safety data sheets to be readily accessible during the work shift and requires information and training when a new chemical hazard enters the work area.

Then classify what is actually ending carbon-blade life:

Heat-softened or polished rounding: the edge loses bite gradually, starts pushing or smearing instead of shearing, and needs repeated honing even though it has not chipped. The stock or cutting zone may trend warm. This is the strongest HSS-upgrade case, but appearance alone is not a thermometer. Compare blades on the same material and controlled setup.

Abrasive wear: filled, reinforced, gritty, or hard-coated stock polishes the edge back consistently. HSS may extend the interval because wear resistance and hot hardness often travel together, but this guide promises no life multiple.

A rolled edge or burr: suspect excessive force, poor support, a wrong cutting angle, too much blade extension, or a material that is folding the edge. Harder steel may chip instead of curing the cause.

Chipping, cracking, or a missing fragment: suspect impact, lateral load, contact with a fixture, hard inclusions, a damaged blade, or an incompatible setup. Stop and account for fragments. Do not call this “heat wear.”

Blade bend, chatter, or wandering: suspect gauge, extension, support, side load, or point geometry. HSS does not make an incorrectly supported blade stiffer by declaration.

Melt, smoke, sharp odor, visible fume, bubbling, glazing, or decomposition residue: stop the trial. A blade that stays hard can keep cutting after the material itself has crossed a safe or quality limit. HSS is not permission to thermally damage a polymer or expose workers to decomposition products.

If the present carbon blade is merely dull, incorrectly honed, overextended, loose in its handle, or being forced through unsupported stock, correct that first. Otherwise the HSS trial hides a process problem behind a more wear-resistant edge.

Choose the blade without inventing a specification

Use 57200 when the station can qualify the known #2 pattern

The 57200 is the authorable choice: bevel point, high-speed steel, 4-3/4" × 3/8" × .049", 18 gauge. Its closest carbon comparator is the 57090 at the same listed size and gauge. If the station already runs that #2 pattern and its approved handle accepts the replacement, 57200 supports a controlled steel-only trial.

That does not make it a drop-in by wish. Confirm the exact handle, seating, retention, blade exposure, bevel orientation, cutting direction, and inspection criteria from Hyde, the validated station standard, or a documented competent-person qualification. Length, hand fit, working clearance, and an incumbent controlled pattern code select among them; 57660 and 57680 remain functionally indistinguishable on the held record.

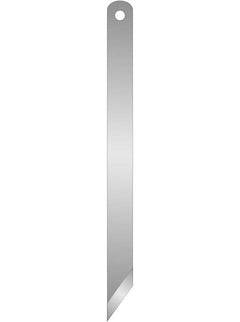

Use 57230 only when the plant’s controlled pattern record says 6522M

The 57230 is an HSS bevel-point extension blade identified as 6522M, but its dimensions conflict. The fact-sheet extraction says 4-3/4" × 3/8" × .049"; the printed 2024 catalog page reads 4-3/4" × 5/16" × .035". Those descriptions imply different width and stiffness classes.

For a pattern-locked plant already specifying 6522M, match the controlled part number and verify the physical blade against the approved drawing, incoming-inspection record, and handle. For a new station, prefer the fully resolved 57200 route when the #2 geometry suits the validated operation, or pause for Hyde confirmation. “Both are HSS” is not fitment evidence.

This guide refuses to manufacture any of them.

Establish the production boundary before the first cut

The person authorizing the trial needs to define, in writing:

exact material grade, construction, thickness range, reinforcement/filler, and condition;

blade model and pattern, handle/holder, seating and retention method, and approved exposure;

stock support, fixture, cut direction, hand positions, and complete follow-through path;

acceptable edge condition and cut-quality limits;

what will be observed or measured for heat, wear, particulate, fume, and blade movement;

the stop conditions below;

who may install, inspect, test, release, hone, and replace the blade;

That last item matters. An operator may report that the edge stays sharp; that observation does not authorize a faster line. Increasing cadence can change material temperature, hand repetition, fixture loading, particulate generation, ventilation demand, upstream/downstream coordination, and exposure at the point of operation. Only the site’s qualified process owner can release a new rate after the whole process—not just the blade—passes its criteria.

If the station is part of powered equipment, guards must protect the operator from the point of operation, nip points, rotating parts, and flying material. OSHA 29 CFR 1910.212 expressly says special hand tools supplement required guarding; they do not replace it. Reject any method that requires reaching around a guard, defeating an interlock, holding stock inside a danger zone, or using handle length as the safety distance.

Changing, clearing, inspecting, or adjusting a blade where unexpected startup or stored energy could injure someone belongs under the employer’s machine-specific energy-control procedure. OSHA 29 CFR 1910.147 covers servicing and maintenance exposed to unexpected energization, startup, or stored energy. A stop button or control selector is not an energy-isolating device. This page cannot identify a machine’s electrical, pneumatic, hydraulic, gravitational, spring, thermal, or material-tension sources; if access crosses that boundary, only an authorized employee following the site procedure proceeds.

Stage and inspect the cutting station

Clear the path. The blade’s full draw and the hand’s follow-through must end in open space, not the torso, thigh, off hand, another worker, a hose, a cable, a guard, or a hard fixture.

Support the stock. Use the validated fixture, backing, tension, guides, and sacrificial surface. The job is to shear the stock, not flex it until it tears or snaps free.

Contain edges before handling. Put the rigid sharps container and protected replacement-blade tray within reach before exposing a blade. Do not place a loose extension blade in a pocket, drawer, rag, or open bin.

Inspect the handle. Reject looseness, a split or swollen wood body, cracked casting, deformed slot, missing/damaged retention parts, oil or contamination that defeats grip, or any history of blade creep.

Inspect the HSS blade without running a finger along it. Reject a bend, twist, crack, chip, corrosion pit near the working section, unauthorized grind, damaged point, unexplained heat color, or missing fragment.

Verify identity. Read 57200 or 57230/6522M from controlled packaging or records. Do not identify two loose bevel-point blades by appearance.

Verify the installed condition. The blade is seated and retained by the documented method, its bevel faces the validated direction, only the approved working length is exposed, and the assembly passes the site’s non-cutting retention check. No shim, tape wrap, peening, improvised wedge, altered slot, or “tight enough by feel” substitutes for that proof.

Hand protection must come from the actual task assessment. OSHA 29 CFR 1910.138 requires selection based on the task, conditions, duration, and identified cut, abrasion, puncture, chemical, thermal, and temperature hazards. This guide does not invent a glove material or cut level, and no glove is cut-proof.

Where cutting generates harmful dust, fume, smoke, vapor, or other airborne contamination, solve the actual exposure. OSHA 29 CFR 1910.134 puts prevention of atmospheric contamination first through feasible engineering controls such as enclosure or local ventilation; when respirators are necessary, they belong in an employer respiratory-protection program using suitable equipment. Do not hand an operator an unselected mask and call the fume question closed.

Run the controlled HSS trial

Preserve a carbon baseline

Record the current carbon blade pattern, starting edge condition, material lot, setup, observed cadence, cuts or elapsed production between service events, cut-quality failure, and wear appearance. Use the station’s ordinary metrics; do not create a false temperature or rate reading from an uncalibrated touch test. The useful comparison is same material, same geometry, same extension, same support, and one deliberate variable: steel.

Make the first cuts below production demand

Use scrap of the actual approved material, held and supported exactly as the station standard requires. Enter from the validated edge or start point. Keep the wrist aligned behind the handle, the off hand outside the projected cut and follow-through, and the bevel in its qualified orientation. Draw with the minimum force that produces a clean shear.

A good cut separates cleanly without pushing the stock ahead of the blade, veering, glazing the edge, smearing the cut face, tearing reinforcement, moving the blade in the handle, or producing an uncontrolled snap at breakthrough. Do not speed up because the first cut feels easy. Inspect the assembly and cut face.

Increase only through approved trial stages

Advance cadence under the written trial plan, not operator improvisation. At each stage, watch the entire system:

Does force remain stable, or is the operator beginning to muscle the blade?

Does the cut remain square and clean across the approved material range?

Does the blade creep, rotate, chatter, bend, or loosen?

Does the stock warm, soften, glaze, smear, discolor, emit odor, smoke, or fume?

Does abrasive dust or fiber accumulate at the cut, on the grip, or in the breathing zone?

Do fixture, support, guarding, ventilation, scrap handling, and downstream flow still work at the proposed cadence?

Does fatigue change grip, reach, or follow-through late in the interval?

Stop at the first failed criterion. HSS earning longer edge life is a positive blade result; it is not a waiver for a material, exposure, ergonomic, or guarding failure.

Inspect by interval, not by surprise

At the interval defined by the trial, stop safely and inspect the point, bevel, edge, exposed blade body, handle, and retention. If access is in a machine danger zone, reapply the site energy-control procedure before reaching in.

edge still sharp/serviceable, uniformly polished/rounded, rolled, chipped, cracked, or contaminated;

blade straight or permanently bent;

any movement in the holder;

evidence of material heating or decomposition;

airborne or settled particulate changes;

Release, revise, or reject

Release the HSS setup only if the authorized process owner accepts the result and records the material envelope, blade pattern, handle, exposure/retention, controls, inspection interval, edge-service method, and production cadence. Revise and repeat if one controlled variable has a plausible correction. Reject the trial if safe or acceptable cutting requires unapproved force, extra blade exposure, guard bypass, improvised retention, uncontrolled temperature, or breathing-zone exposure.

Edge service and blade changes

HSS is more wear-resistant than the carbon default; it normally takes longer to abrade on a stone. Use only the site-approved HSS sharpening method, abrasive, bevel, burr-removal, and inspection criteria.

Never freehand-grind an installed blade, quench a working blade as a production cooling method, or grind away a crack, chip, overheated zone, or altered point. If the plant does not have a qualified HSS sharpening process, replace or send the blade to its approved service.

Before changing a blade, stop the station, control any hazardous energy and stored material tension, and move the assembly to a dedicated change bench where possible. Control the edge, withdraw the blade by the documented retention method, and place it immediately into protected rework storage or the rigid sharps container. A blade change is not complete until the replacement passes identity, seating, retention, and controlled scrap-cut checks.

What goes wrong — and the required response

Do not promise that another HSS pattern will fix it.

The cut face melts, smears, beads, glazes, discolors, smokes, or smells sharply. Stop. The material/process has crossed a quality or exposure boundary. Lowering cadence, changing support/geometry, cooling the incoming stock, or redesigning the process are engineering decisions for the qualified owner; HSS cannot authorize continued thermal decomposition.

Dust or reinforcement fibers increase. Stop and reassess the cut mode, material SDS, enclosure/local exhaust, housekeeping, and exposure evaluation. A sharper edge may shear more cleanly, but this guide makes no universal statement about the hazard of an unnamed filler or fiber.

The blade chips or a fragment is missing. Stop production, control energy, contain the area, account for the fragment under the site’s product/equipment procedure, and inspect for hard inclusions, fixture contact, side loading, excessive exposure, or prior damage. Never keep cutting because the remaining edge looks usable.

The blade bends or chatters. Do not extend it farther or add force. Verify seating, exposure, support, stock condition, and whether the fully specified 18-gauge 57200 is the qualified pattern.

The blade creeps or rotates in the handle. Stop and quarantine the assembly. Clean and inspect the seat and retention system, then verify exact compatibility. Re-tightening between cuts is not a production control.

The point catches reinforcement and pulls the stock. Stop. Correct stock support/tension, entry geometry, and point suitability. Do not brace the material with the off hand inside the follow-through path.

The operator needs two hands on the handle to make the cut. Treat that as a force, support, geometry, or process failure. Two-handed force removes the hand that should manage material safely and magnifies breakthrough travel.

The process is clean at startup but degrades late in the shift. Compare edge condition, material-lot temperature, fixture contamination, operator fatigue, cadence drift, and ventilation loading. A production qualification must cover the real interval, not only the first ten cuts.

Use the approved material/process limits and validated trial. Do not convert “high-speed steel” into a blade-speed rating.

Someone wants 57230 because it “must be thinner.” Refuse the claim until the 5/16" × .035" catalog reading and 3/8" × .049" fact-sheet reading are adjudicated. Pattern continuity may justify 6522M; speculation does not.

The cut requires a hand inside a guarded danger zone. Reject the method. A hand-held extension blade supplements neither absent guarding nor a bypassed interlock.

The history footnote: “high speed” named a steel property, not this station’s rate

High-speed steel emerged from Frederick Winslow Taylor and Maunsel White’s turn-of-the-twentieth-century tool-steel work at Bethlehem Steel. The breakthrough was *red hardness*: retaining cutting hardness at temperatures that defeated ordinary carbon tool steel. Hyde’s present catalog translates that history into the restrained claim used here—“Best steel for high heat and tough cutting applications.” The name describes why the edge can survive a hotter cutting condition; it does not assign a safe hand speed, machine speed, or polymer temperature to either blade.

Tools this guide links back to

The handles are width-family dependencies, not proof of an exact retained assembly: their locking mechanism remains unpublished, and the guide refuses to distinguish 57660 from 57680 beyond incumbent code. Total local product-link set: 7 models = 2 registered leads + 1 comparator + 4 necessary handle dependencies.

The required fixture, guards, ventilation, PPE, sharpening equipment, process instruments, and material controls remain honest workflow requirements rather than silently added Hyde product recommendations. Every product backlink must preserve the same hand-station boundary, absence of speed/temperature ratings, 57230 refusal, 57090-versus-BG349 refusal, wood-handle retention gap, and production-authorization gate so the product ↔ application graph runs both directions.

OSHA 29 CFR 1910.212 — General Machine Guarding: point-of-operation guarding and the rule that special hand tools supplement rather than replace guards.

OSHA 29 CFR 1910.147 — Control of Hazardous Energy: servicing/changeover boundary, authorized energy control, and verification.

OSHA 29 CFR 1910.1200 — Hazard Communication: SDS availability and worker information/training for chemical hazards.

OSHA 29 CFR 1910.134 — Respiratory Protection: engineering controls first; suitable respirators only within the required program when needed.

OSHA 29 CFR 1910.138 — Hand Protection: task-, condition-, duration-, and hazard-based hand-protection selection.
