How to Choose a Handled Knife or an Extension-Blade Station System

Claim boundary: no universal cost, speed, edge life, capacity, changeover time, compatibility, retention method, or superiority is asserted here. The wood handles’ blade-retention mechanism is not documented in the packet or catalog. A station cannot be released until the actual handle, retention method, instructions, and blade seating have been verified.

Job: decide whether one defined cutting operation belongs to a worker-owned, riveted knife or to a station-owned, blade-and-handle system, then prove the chosen maintenance and changeover loop on representative work.

Result: a written station standard naming the operation, material state, finish requirement, operator role, exact tool architecture, edge-intervention trigger, maintenance or blade-change sequence, loose-sharp controls, restart test, stock identity, and re-evaluation conditions.

Time: there is no transferable selection, sharpening, blade-life, or changeover duration. Observe each complete loop on the real material and record the elapsed steps if the workplace needs scheduling evidence.

Difficulty: moderate. Both worked examples are pointed high-carbon-steel cutting products, but their ownership, construction, maintenance, stocking, handoff, and failure paths are different.

These links identify required companion candidates; they do not silently enlarge the registered tool union.

Contextual comparators — not registered tools for this job: 57060 is the lighter 20-gauge #2 extension blade; 57170 is the unresolved BG349 sibling; 57200 is the same listed size and gauge as 57090 in high-speed steel; 61080 is the 2" × .083" handled BG268 stub.

Define the operation before choosing the ownership model

Write the cut as an operation, not as “general knife work”:

At [bench or station], [operator role] makes [entry and stroke] through [material and condition], against [support or fixture], to leave [observable finish], then makes the tool safe by [defined action].

Capture the material thickness or stack, temperature if it changes behavior, reinforcement, contamination, tack, moisture or cure state, and whether the cut begins at an edge or with a point inside the sheet. Record what must remain untouched beneath or beside the cut. Name whether the accepted result is merely separation or a straight edge, a clean corner, a controlled slit, a bond-ready surface, or another inspectable condition.

The 60300 and 57090 are both bevel-point examples, so this guide isolates the ownership model instead of pretending geometry is equal. Their blades differ in length, width, and gauge, and the 57090’s behavior also depends on handle choice and blade extension. A trial can compare the complete systems on the same operation, but it cannot prove that those different blades are performance equivalents.

Stop the decision if the work enters an unguarded machine danger zone, the workpiece is not secured, the hidden side is unknown, the material contains an unidentified hazard, or no controlled route exists for a maintained sharp or a removed blade. Tool architecture does not cure an undefined operation.

Understand the two candidates as different systems

Candidate A: the complete riveted knife

The 60300 arrives as one tool. Its bevel-point high-carbon-steel blade is permanently riveted into a hardwood handle with a nickel-plated ferrule. The operator maintains the edge on the installed blade. There is no routine blade-to-handle compatibility decision and no loose refill at an ordinary sharpening intervention.

That simplicity does not eliminate control work. The station still needs an accepted edge geometry, an authorized sharpening method, inspection of the blade, point, ferrule, rivets and handle, a transport and storage method, a test cut after service, and a discard or quarantine rule. A blade that is loose, cracked, excessively altered, or unable to recover the required cut is not returned merely because it can be made sharp somewhere along its edge.

This architecture fits naturally when the knife is issued to a person or bench that can own its condition: the same operator or qualified maintenance role recognizes the edge, restores it, and returns the complete tool under a known release status. “Personal” describes accountability, not permission to carry an uncontrolled sharp.

Candidate B: the station’s blade-and-handle architecture

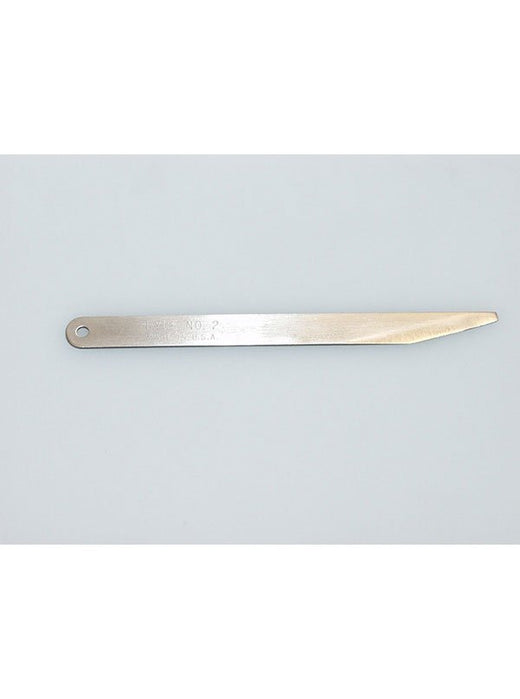

The 57090 is an 18-gauge #2 bevel-point extension blade, not a complete knife and not handheld by itself. A station configuration requires:

the exact 57090 blade identity;

one exact compatible handle;

a verified blade-retention method and current instructions;

a selected blade projection for the cut;

a change station and outgoing-sharp route;

an inspection and scrap-test step before restart;

labeled replacement stock tied to the station standard.

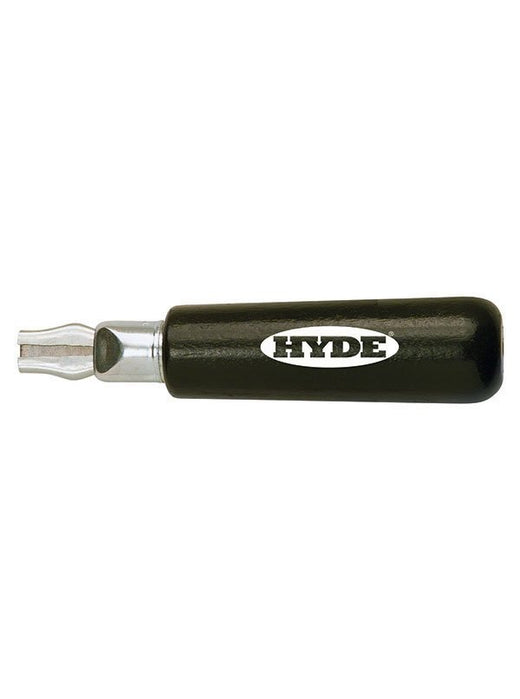

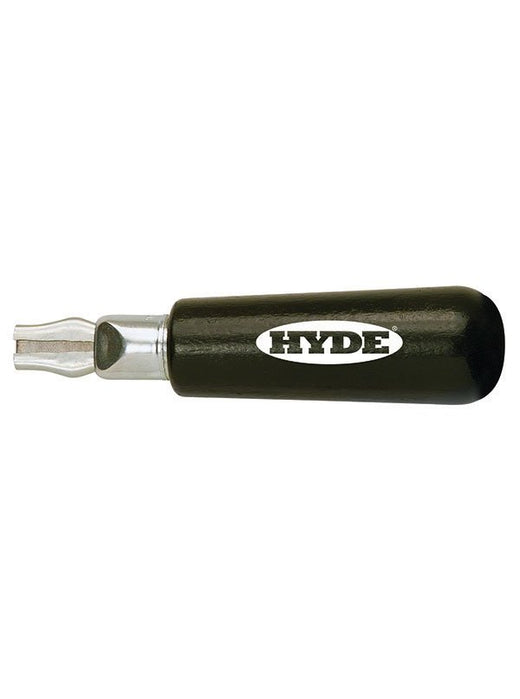

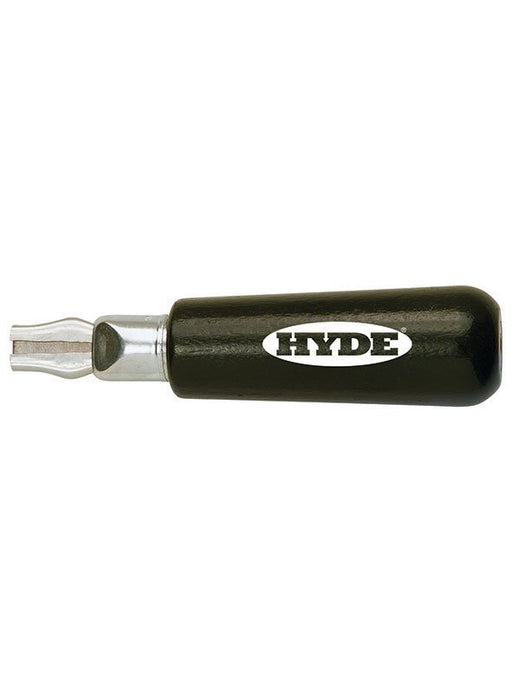

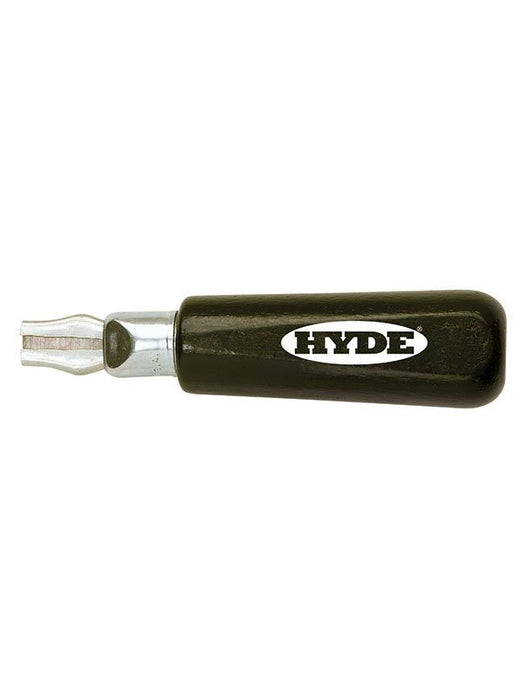

The four 576xx wood handles are cataloged for 5/16" and 3/8" mill blades, which covers the 57090’s 3/8" width. They differ on documented length: 57630 is 4-1/2", 57660 and 57680 are 4-3/4", and 57620 is 5-1/4". Hand size and working clearance can justify a length choice. The record does not explain the 1R, 2SR, 12LR, and 2L codes, and it provides no functional distinction between the same-length 57660 and 57680. Follow an existing plant specification if it names one; otherwise, do not invent a preference.

The catalog does not state how these wood handles retain the blade. Adjacent metal handles use set screws, but that fact cannot be transferred to the wood models. “Insert and tighten the screw” is therefore not an authorized instruction for this guide. Obtain and verify the actual handle and its instructions before a 57090 station trial proceeds beyond fit inspection.

Use ownership and handoff as the first practical fork

Choose an accountability hypothesis, not a winner.

Keep the handled 60300 candidate alive when:

one operator or defined bench owns the tool’s condition;

the operation benefits from a complete knife that leaves and returns as one controlled item;

the workplace has a repeatable sharpening and honing capability;

shifts can identify whether the tool is released, due for service, or quarantined;

the point, edge, ferrule, rivets, and handle can be inspected as one asset.

Keep the 57090 station-system candidate alive when:

the operation is fixed to a station and purchasing must control a recurring blade pattern;

multiple operators can work from one frozen blade-handle configuration;

the station can control exact blade identity, handle identity, projection, seating, and outgoing sharps;

an authorized change role can return the configuration to a known setup after intervention;

the station record can distinguish the durable handle from the replenished blade.

Neither list proves suitability. A personal knife becomes a poor system if sharpening quality varies by operator or released condition is invisible at shift handoff. A station blade becomes a poor system if refill boxes are mixed, handles wander, projection is improvised, or a removed sharp has no immediate container. Ownership must be observable in the workflow.

Run a handoff exercise before cutting. Ask the incoming operator to identify the tool, its release condition, the edge trigger, who may intervene, where the tool goes, and how restart is authorized. If the answers depend on the outgoing operator being present, the control is not yet shift-resilient.

Make geometry and material challenge the ownership hypothesis

The 60300 is a 4" × 1" × .065" handled knife; the 57090 is a 4-3/4" × 3/8" × .049" blade whose working stand-out depends on its mounted setup. The 60300 is thicker and wider; the 57090 is longer as an unmounted blade but only its verified projection is available to the cut. Do not convert those dimensions into an unsupported capacity claim.

Make setup cuts on material from the actual process. Use production-realistic support, posture, gloves, contamination, and temperature.

whether the point enters where intended without threatening a protected layer;

whether the edge tracks the marked line;

whether the blade flexes, chatters, twists, or shifts;

whether the handle permits a controlled grip in the real clearance;

whether the material compresses, tears, frays, delaminates, or drags;

whether residue, heat, or abrasion changes edge behavior;

whether the required finish is met at the beginning and at the intervention trigger.

The 57090’s 18-gauge stiffness is part of its documented identity, but no amount of familiarity makes it the universal station blade. If the material is light and conformable, the 20-gauge 57060 is a separately classified comparator worth evaluating under its own registered job. If carbon edges return rounded in a high-heat or abrasive operation, the HSS 57200 is the clean steel-axis comparator at the same listed size and gauge. Those findings reopen blade selection; they do not automatically send the operation to the handled 60300.

Likewise, a failure of the 60300 on the trial may be a geometry, dimension, maintenance, or operator-fit problem rather than a verdict against every complete riveted knife. Freeze conclusions at the exact tested configuration.

Define the edge-intervention trigger before measuring either loop

“When dull” is not a station standard. Choose observable triggers:

finish: the cut leaves the accepted edge or surface window;

force: the operator must add force or change posture to complete the same cut;

control: the blade wanders, flexes, chatters, shifts, or no longer holds the selected setup;

damage: bent or broken point, crack, chip, missing fragment, loose connection, damaged handle, or corrosion;

contamination: residue cannot be removed by the approved in-process method;

scheduled inspection: a defined product or shift change requires inspection even if the edge still cuts.

Stop at the first trigger during the trial. Do not continue to manufacture a “cuts per blade” number, and do not transfer a count from one material, operator, or finish requirement to another. Record the signal that appeared, the material state, and what the intervention required.

For the 60300, the ordinary intervention is edge maintenance while the blade remains part of the complete knife. For the 57090 system, the intervention may be cleaning or honing, a verified adjustment as the blade is consumed, or replacement when the station’s accepted condition cannot be restored.

Build the handled-knife maintenance loop

Write and trial the 60300 loop as a closed sequence:

trigger → stop cutting → protect and transport the whole knife → clean → inspect blade, point, ferrule, rivets and handle → sharpen and hone by the approved method → remove debris and residue → inspect geometry → test on representative scrap → mark released condition → return to owner or bench.

The sharpening standard must state who may perform it, what equipment and method are approved, what geometry is being preserved, how the burr is removed, and what condition forces quarantine. A sharp edge with a damaged point, altered profile, loose rivet, split handle, or failing ferrule is not a completed maintenance result.

Test maintenance repeatability, not one expert’s best edge. Have every authorized maintenance role service a dull but recoverable knife, then inspect the tool and representative cut without knowing who performed the work. If the result varies outside the cut standard, revise the method, qualification, or ownership model before release.

Account for abrasive debris, cleaning material, and safe transport. The handled architecture avoids a routine loose replacement blade, but it does not make sharpening waste or an exposed knife disappear.

Build the extension-station changeover loop

The 57090 loop has more named interfaces:

trigger → stop cutting → make the mounted tool safe → remove it from the cut → move to the controlled change area → verify blade and handle identities → remove the spent blade by verified instructions → place it directly into the approved sharp container → inspect and clean the handle → install the exact replacement by verified instructions → set the approved projection → verify retention and orientation → test on representative scrap → record blade transaction → release and restart.

Before trial, physically prove:

the 57090 is the specified 3/8" blade and the refill label matches the station record;

the selected 576xx handle is the exact approved model;

the current instructions resolve how that wood handle retains, releases, and adjusts the blade;

the configured blade has no play and does not shift under the authorized test load;

the spent-sharp container is reachable without carrying an exposed loose blade through the work area;

a missing tip or fragment stops both the station and affected work under the site procedure;

the post-change scrap test exercises the real entry, stroke, material, and finish.

Do not force a blade into a handle, shim movement, borrow an unverified mechanism from another handle family, or extend the blade farther to compensate for a poor cut.

The blade and handle need separate records. A handle defect does not consume a good refill by definition, and a worn blade does not mean the handle is defective. Quarantine each failed component under its own identity so purchasing and maintenance can see which part actually failed.

Run the full-system comparison

Use the same written operation, material lot or representative samples, support, finish inspection, and authorized operator set. Each candidate is used according to its own architecture; do not force identical grip, blade projection, or intervention.

For each candidate:

verify product identity, physical condition, instructions, and release status;

document the responsible operator and maintenance or change role;

make witnessed setup cuts and confirm the finish window;

continue only until the defined intervention trigger;

record cut control and failure signal without assigning a universal life;

perform the complete maintenance or changeover loop;

reconcile the knife, handle, incoming blade, outgoing blade, debris, and fragments applicable to that system;

make the post-intervention scrap test;

repeat across the shifts and operators expected to own the process;

review the evidence with operations, maintenance, quality, safety, and purchasing roles appropriate to the site.

Compare the complete loops on observed evidence:

Did the tool meet the cut and finish standard?

Could the operator identify and act on the trigger?

Did the intervention restore the accepted configuration?

Was every component or by-product controlled?

Was released condition visible at handoff?

Did the restart test catch a bad setup?

Could the required skill and stock control operate on every shift?

Do not turn observed time into a general speed claim, purchase structure into a cost claim, or one acceptable trial into universal superiority.

Issue one of five controlled decisions

Complete handled knife selected

Select the 60300 only when its exact geometry and construction meet the cut, the complete-tool ownership is clear, the maintenance method is repeatable, and the inspected knife returns to service under a visible release status. The station standard names model 60300, the edge trigger, authorized maintainer, method, storage, test material, and quarantine limits.

Extension station selected

Select the 57090 system only when the exact blade and exact handle are both named, fit and retention are verified, projection is controlled, refill identity and spent-sharp handling are closed, and the changeover returns the station to an inspectable setup. The standard must read “57090 + [exact 576xx handle],” never “57090 knife.”

Split architecture selected

Separate operations may earn separate systems—for example, a worker-owned bench operation and a fixed repeated station operation. Freeze the boundary by operation, location, material, and responsible role. Do not let “split” become informal substitution between products.

Blade or handle selection reopened

The station ownership model may be sound while the 57090 gauge, steel, point pattern, handle length, or working clearance is wrong. Route that finding to the relevant registered selection job.

Neither system released

Use this disposition when compatibility, retention, instructions, finish, maintenance skill, outgoing-sharp control, restart evidence, or ownership remains unresolved.

Freeze the operating standard and run it every shift

For a handled knife, the station card should include:

60300 identity and unique asset or controlled location;

authorized operation and material scope;

cut/finish standard and intervention triggers;

edge-maintenance method and authorized roles;

blade, point, ferrule, rivet, and handle inspection;

storage/transport state, scrap-test method, release marking, and quarantine route.

For an extension station, the card should include:

57090 blade identity and controlled refill label;

exact 576xx handle model, with instructions available at the station;

verified retention method and approved setup/projection;

authorized material and cut scope;

change role, sharp-container location, fragment response, scrap test, and transaction record;

separate inspection and quarantine criteria for blade and handle.

At shift start, verify identity, release condition, edge or setup, safe storage, instructions, and waste capacity. At shift handoff, record edge status, abnormal force or finish changes, intervention history, missing or quarantined components, and whether the next operator is receiving a released tool. At any material, supplier, finish, handle, blade, sharpening-method, retention, operator, fixture, or policy change, freeze the prior decision at its old scope and reopen the relevant trial.

What goes wrong — and the recovery branch

A 57090 arrives with no handle. Nothing is missing from the blade package; the architecture is incomplete. Select and verify one 576xx handle, its instructions, and its retention method before cutting.

The crew calls the 57090 a knife and stocks only blades. Correct the bill of material and station card to list blade and handle separately. Inspect existing stations for mixed or unidentified handles.

Someone assumes the wood handle uses the metal handle’s set screw. Stop. The wood retention mechanism is undocumented here. Obtain current instructions or Hyde confirmation for the exact model; do not transfer a sibling-family claim.

The 57660 and 57680 are being sold internally as different functions. No supported difference exists beyond their undocumented 12LR and 2L codes; both are 4-3/4" with the same stated fit and class. Preserve an existing pattern-code specification, but remove invented performance language.

The handled knife passes fresh but fails after sharpening. The maintenance geometry, burr removal, inspection, or release test is drifting. Quarantine affected knives, retrain or revise the method, and repeat blind representative-cut checks.

The extension blade cuts well but shifts after changeover. Stop and quarantine the configuration. Recheck exact blade and handle identities, verified retention instructions, seating, projection, and handle condition. Never shim or improvise.

Operators keep cutting past the trigger. Repair the trigger and intervention route.

A blade point or fragment is missing. Stop the station and affected product flow, contain the area, and follow the site’s fragment procedure. Restart only after authorized reconciliation or disposition.

Refill boxes are mixed. Quarantine unidentified stock and mounted blades. Restore labeled 57090 control before restart; a similar profile is not identity or compatibility.

The 4-1/2", 4-3/4", and 5-1/4" options are documented length choices; test the exact candidate without inventing meaning for its code.

The material starts heat-rounding carbon edges. Reopen steel selection rather than declaring the entire extension architecture a failure. The HSS 57200 is a separately classified comparator, not an automatic substitution.

This guide authorizes no universal economic or production claim.

History footnote

The handled knife and extension station preserve two forms of industrial continuity. Hyde describes its origins in knives made for the New England industries around Southbridge, and its current catalog still carries riveted trade knives beside numbered mill blades and handles (Hyde Industrial Blade Solutions history). The pattern code remains useful because a factory can name the same cutting form across reorders. That history explains the architecture; it does not decide which one fits today’s operation.

Exactly one verified handle is required to turn 57090 into a station configuration.

Contextual comparators, separately classified and not linked as graph members: 57060 (20-gauge carbon), 57170 (BG349), 57200 (18-gauge HSS), and 61080 (14-gauge handled stub). No model in this list is an automatic substitute.
