How to Clear Wraps and Lap-Ups from Machine Rolls

Job: remove fiber, yarn, web, film, paper, nonwoven, polymer strapping, or other flexible material wound around a machine roll, shaft, core, or roll end; leave the roll surface, seals, bearings, guarding, and product path intact; return the machine through a controlled operations handoff.

Time: no generic time belongs on this job. Isolation, blocking, and release control take as long as the machine-specific procedure requires. A wrap that cannot be cleared within the approved method becomes a planned disassembly or roll-change job, not a faster knife job.

Difficulty: high consequence, machine-specific. Cutting is the easy part. Proving zero energy, preventing roll movement, reading stored tension, choosing a cut that cannot damage the roll, and accounting for every blade are the work.

The tools from this catalog: Hyde 62090 / 62300, the two on-paper-identical 6" × 5/8" × .072" Standard flat mill blades for close, controlled straight cuts · 62180, the 9" × 3/4" × .072" Standard flat mill blade when an approved service point genuinely requires reach · 67390, the 4" × 3/8" × .035" double-end hook for moderate-duty wraps · 67450, the same listed size in printed High-Speed Steel for abrasive synthetic, rubberized, or filled stock · 67240, the 6-3/8" × 5/8" × .065" heavy hook when the light double-ends deflect or cannot reach · 60630, the handled 6" × 1" × .065" square-point knife for accessible kraft wrap and headers, outside a constrained frame · 60780, the handled 8" × 1" × .083" square-point slabbing knife for heavy, open, fully supported roll-wrap work — not for reaching into a machine.

Everything else: the machine's current energy-control procedure and diagram; personal locks/tags and group-lock hardware as applicable; the manufacturer's approved roll or nip blocking devices; approved web clamps, tail retainers, wedges, roll-face protector, cutting fixture, or sacrificial shim if the procedure names them; adequate access platform and lighting; non-cutting extraction tools such as pliers, tongs, clamps, or hooks that keep hands outside the danger zone; a rigid container for used or broken blades; a tool-and-fragment count sheet; and the PPE specified by the plant's task hazard assessment. A loose scrap of sheet metal is not a roll protector, a wood offcut is not engineered blocking, and another employee's hand is never a fixture.

The boundary before the method

OSHA treats unexpected start-up and the release of stored energy during servicing as a hazardous-energy problem. Its required sequence is preparation, orderly shutdown, isolation of every energy source, application of lockout/tagout devices, relief or restraint of stored energy, and verification of isolation before work begins; potentially hazardous energy that can reaccumulate must remain under verification throughout the job (29 CFR 1910.147(d)). General machine-guarding rules separately name ingoing nip points and rotating parts as hazards that must be guarded, and say a hand tool supplements guarding rather than replaces it (29 CFR 1910.212).

That distinction matters here. A long blade is not a safe-distance device. A hook with its back against the roll is not a guard. An emergency stop does not disconnect electricity, bleed a cylinder, release web tension, pin a raised roll, or prevent a coasting roll from turning. OSHA's roll-cleaning case study reaches the same conclusion for printing rolls: routine production work still requires hazardous-energy protection when the worker bypasses guarding or enters the danger zone (OSHA — Printing Press Roll Cleaning).

The record is not abstract. The rule those incidents write in plain language is the rule for every step below: nothing in this guide is performed on a moving roll.

Before the lock: diagnose what happened without entering the danger zone

Stop production by the normal control and report the event. The operator performs the orderly stop prescribed for the machine and calls the authorized maintenance role. Do not reach in for the loose tail while the machine coasts. Do not use the emergency stop as a convenient service switch. Record the roll or shaft, material, direction of travel, last known web tension, whether a roll lifted or separated, and what guards or interlocks opened. Those observations tell the authorized employee which energies and mechanisms must be controlled.

Name the condition correctly. “Wrap” is not one condition:

A loose surface wrap has visible, separable turns and little compaction. A hook may enter beneath an outer layer without forcing.

A lap-up is a compressed build of fiber, web, or sheet wound into a dense mass. It may bridge two rolls, fill a nip, press against a doctor, or load a bearing shoulder. Its visible outside can look slack while inner layers remain highly tensioned.

A tension bridge spans rolls, a frame, a guide, or a core. Cutting one leg can release the other like a spring. The safe job begins by unloading or capturing that tension, not by choosing a sharper blade.

An adhesive or heat-bonded wrap has fused layers, tack, hot melt, rubber, coating, or process residue. It may need cooling, chemical controls, or planned roll removal before a blade is appropriate.

A foreign-object wrap contains wire, staples, steel banding, hard inclusions, broken doctor material, or an unknown object. A knife is not the diagnostic tool and never cuts steel banding.

Shipping wrap and headers around a finished product roll are packaging, not a machine lap-up. They may use the square-point knives once the roll is chocked, supported, accessible, and outside a hazardous machine position. That familiar job must not be used as precedent for cutting inside a winder, calender, card, or converting line.

Read the release direction before anyone cuts. From outside the guarded area, identify the incoming and outgoing web paths, which end is anchored, where the wrap is pinched, and what will move if one turn parts. Mark the projected snap-back plane and the fall path of released material. If the team cannot explain where each tail and roll component will go after the first cut, the work is not ready for a first cut.

Establish the safe machine state

Use the machine-specific energy-control procedure — not a generic checklist standing in for one. The authorized employee identifies every source that can turn, close, lift, drop, traverse, tension, heat, pressurize, or automatically reposition the affected rolls: main and auxiliary drives; electrical feeds; hydraulic and pneumatic accumulators and cylinders; gravity-loaded or counterweighted rolls; springs, brakes, clutches, flywheels, and roll inertia; steam, thermal, or process pressure; automatic threading, splice, turret, chuck, and roll-lift systems; and tension stored in the web or wound roll. If the current written procedure does not cover the configuration in front of the crew, stop and have it resolved before entry.

Shut down, isolate, lock, and identify. Operate each energy-isolating device required by the procedure and apply the authorized employee's lock/tag. Control-circuit buttons, software stops, interlocks, light curtains, and emergency stops may command a stop; they are not energy-isolating devices. Under group lockout, every exposed authorized employee applies a personal device to the group mechanism, and shift changes preserve that personal protection rather than passing a verbal “it's locked” across crews. OSHA assigns energy isolation to the authorized employees doing the service and requires notification of affected employees before application and after removal of the controls (29 CFR 1910.147(c), (d), and (f)).

Bring the machine to zero energy, including the energy in the material. Wait for rolls to stop; bleed or restrain pressure; discharge accumulators; release or capture commanded web tension; lower gravity-loaded parts to a safe rest position or secure them; and allow hot components to reach the procedure's service condition. “Motor off” is not zero energy if a lifted nip roll can descend, a brake can release, a turret can index, an air cylinder can re-pressurize, a heavy roll can coast, or a taut web can recoil.

Block movement with the device designed for that machine. Engage the manufacturer's pins, blocks, chocks, stops, restraint bars, or other engineered blocking at every roll, arm, carriage, nip, or raised component the procedure requires. Blocking and roll-face protection are different things: blocking prevents machine movement; a cutting fixture or sacrificial shim protects the surface from the knife. Neither substitutes for the other. Never put a body part under a raised roll. Never install improvised blocking, and never trust hydraulic or pneumatic pressure alone to hold an opening.

Verify isolation and the service position. The authorized employee uses the procedure's test to verify de-energization and isolation, then returns controls to neutral/off. OSHA requires this verification before work, not as paperwork afterward (29 CFR 1910.147(d)(6)). A zero-speed display can support the verification; it does not replace isolation or blocking.

Define the approved access and cut zone. Reinstall or retain every guard not specifically removed for the task. Use the designated service door, maintenance platform, or roll-change position; provide stable footing and light. Mark an exclusion zone for people who are not under the lockout. The cut point must be visible, outside a nip, clear of a bearing seal and roll crown, and reachable without leaning across a roll or placing the torso between machine components. If the only possible cut requires a hand, shoulder, or head in a closing path, the correct method is further disassembly or roll removal.

Choose the blade from the failure mode, not from size alone

Use a hook when a safe entry exists under a layer and the roll face must survive. The hook's throat captures a layer and its smooth back can ride the approved protector or roll surface while the interior edge cuts outward. That geometry makes the hook the first choice for loose and moderately compacted fiber, film, web, and polymer strapping — provided the layer can be entered without stabbing or prying:

67390 (6520): 4" × 3/8" × .035", double-ended; the light, moderate-duty station hook. Use it where the thin blade follows the wrap without folding.

67450 (4502M): the same listed 4" × 3/8" × .035" double-end format, with High-Speed Steel printed in Hyde's catalog. Choose it when abrasive synthetic, rubberized, or filled stock rounds a standard hook prematurely. HSS answers wear; it does not make a .035" blade stiffer and does not cure chipping from twisting or hard inclusions.

67240 (BG448A): 6-3/8" × 5/8" × .065", the heavy, longer hook for a wrap that deflects or stalls the light double-ends. No maximum material thickness can be claimed.

Use a straight mill blade when the wrap cannot admit a hook but the procedure provides a protected straight-cut path. A flat blade opens a dense lap with shallow, tangential relief cuts. It also has the greatest potential to score a roll if it is pointed radially into the surface or allowed to exit through the wrap. Use the machine's approved cutting groove, fixture, or sacrificial protector; expose only the edge length the cut needs; keep the blade nearly tangent to the roll; and stop the pass before the edge can contact metal:

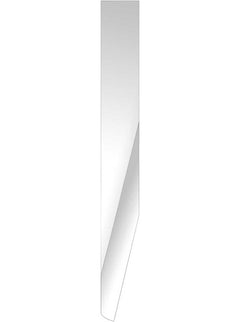

62090 (081) and 62300 (087): both are listed as 6" × 5/8" × .072", flat, Standard blades. Hyde records no physical difference beyond pattern number. Pattern-locked plants reorder their incumbent; a greenfield station may prefer 087 only because Hyde offers that pattern in HSS and bevel siblings. This guide invents no cutting-performance difference.

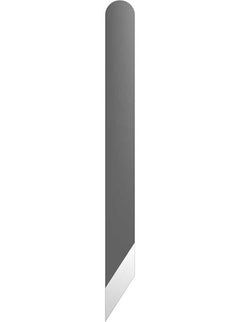

62180 (086): 9" × 3/4" × .072", the only 9" blade in the line. Use it only when the approved service geometry truly requires its reach. Length can keep a hand at the designed service opening; it can also flex, wander, and tempt someone to reach around guarding. Set the least exposure the cut requires, support the stroke at the approved fixture, and choose a 6" blade whenever the work is close enough.

Use the handled square-point knives only in the open, supported roll-wrap case. The 60630 and 60780 are finished knives with full-length fixed edges and hardwood handles — no set-screw handle shortens their exposure. That makes them appropriate for accessible packaging or outer-layer work and poor choices inside a constrained frame:

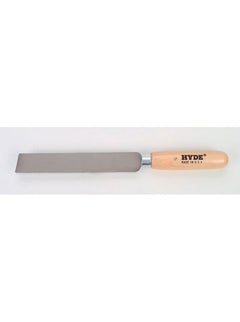

60630: 6" × 1" × .065", for slitting kraft roll wrap and loosening headers on a chocked, accessible finished roll. It is the lighter wrap knife, not the deep-lap knife.

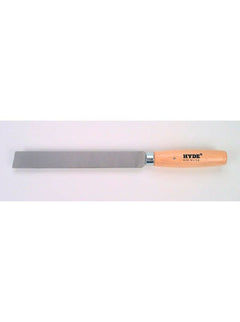

60780: 8" × 1" × .083", for heavy open slabbing and deep outer layers on a fully supported roll where the whole cut and follow-through are visible. It is not a “reach into the machine” knife. Its exposed 8" edge and unguarded hardwood handle are reasons to keep it out of a frame, not reasons to push it farther in.

Match the mill blade to its handle before entering the work zone. The replaceable blade is not a hand tool until its correct handle clamps it. Catalog width matches are: 5/8" blades 62090, 62300, and 67240 → 63055 or 63085; 3/4" blade 62180 → 63085 or 63080; 3/8" hooks 67390/67450 → 63170 or 63175, with 57620/57630/57660/57680 also listed for 5/16" and 3/8" mill blades. Seat the blade, tighten both set screws, tug-test away from the edge, and expose no more than the approved cut requires. A loose blade or a guessed handle fit fails the job before it reaches the roll.

Make the release progressive

Capture what can recoil before severing it. Apply the procedure's web clamps, tail retainers, slings, or other approved restraints on both sides of a tension bridge. Keep people out of the projected release plane. Do not hold a taut tail in the off hand and cut toward it; do not stand where the freed wrap, counterweight, web, or roll arm will travel. If the stored material tension cannot be positively unloaded or captured, stop — this is an engineering or disassembly problem, not a blade-selection problem.

Open a small observation window, not a full-width cut. At an approved cut point, start in a visible outer layer or existing free edge. With a hook, enter only the layer the throat can capture and draw outward with the back on the protector. With a straight blade, make a short, shallow tangential relief cut over the fixture. Then withdraw the blade and wait. That pause is part of the cut.

Release one layer or narrow band at a time. Work from loose outside turns toward the compacted core, retaining each freed tail before taking the next bite. Alternate cut locations only as the machine-specific plan directs so one side of the wrap does not unload into the other. Never bury the blade to the roll face in one stroke, lever a hook to pry layers apart, or saw blindly into a mass. When the layer is thicker than the approved edge exposure, cut it through progressive passes rather than increasing stickout.

Keep the body outside the knife path and the machine path. For a hook, plan the pull so release carries the tool beside the hip, not into the abdomen, thigh, or off hand; a hook cuts in the direction of pull. For a straight blade, draw or push along the fixture with the off hand behind the cutting line and the wrist neutral. Work from the service platform, not atop a roll, frame, guard, or loose material. If the cut requires crossed arms, an overhead blind pull, a knee against the machine, or a reach past the elbow into the frame, reposition or change the maintenance plan.

Peel and extract with the approved non-cutting tools. Once a band is loose, withdraw the knife before pulling material. Use tongs, pliers, clamps, or extraction hooks from outside the nip and fall path; never leave the blade buried while tugging the wrap, and never use the knife as a pry bar. Bag or bin removed material as it comes out so it cannot foul the floor, conceal a blade fragment, or be pulled back into the machine at restart.

Stop at every change in feel. A sudden hard stop can be a fixture, a roll, wire, a staple, a doctor, or a compacted inclusion. A sudden release can be stored tension. Blade twist means the cut is side-loading. Heat, odor, liquid, coating, or an unexpected color can indicate process residue requiring a different hazard control. Withdraw, reassess, and amend the plan; do not solve uncertainty by adding force.

Do not energize the roll to “help” the cut. There is no hand-on-blade, slow-roll version of this method. If a component must be repositioned and the machine-specific procedure permits temporary energization, the authorized team follows the formal test/position sequence: clear tools and material, remove employees from the machine area, remove controls as prescribed, energize only for positioning, then de-energize and reapply the full energy-control measures before anyone re-enters (29 CFR 1910.147(f)(1)). The blade is out of the machine and every person is clear while motion occurs.

Inspection, blade accountability, and restart

Prove the roll is clear without proving it by rotation. Inspect the full accessible circumference and roll ends under light; use mirrors, cameras, or the approved inspection method for hidden areas. Confirm no strand remains bridged into a nip, around a shaft, behind a seal, under a doctor, or through a bearing shoulder. Do not hand-turn or power-jog a roll unless the manufacturer and energy-control procedure explicitly provide that as a separate controlled positioning step.

Inspect the machine before the material hides the evidence. Look for scoring, flats, grooves, coating damage, burrs, adhesive residue, heat discoloration, seal damage, shifted doctors, damaged guards, and loaded bearings. Confirm that cutting fixtures, shims, blocks, and clamps did not create their own damage.

Account for the edge. Every knife and handle comes out. Inspect the complete blade, both hooks on a double-end, set screws, and handle jaws. Count used blades, fragments, and replaced components into the rigid container. A chip or missing corner triggers a search of the wrap, machine, removed material, and floor; the machine does not restart on the hope that the fragment left with the scrap. The 67390/67450 flip is a controlled blade change performed outside the machine: loosen, remove, inspect, turn end for end, seat shallow, tighten both screws, and test on scrap — never flip a blade over an open machine.

Restore the machine as a maintenance-to-operations handoff. The authorized employee verifies that nonessential items and all people are clear, components are operationally intact, guards and interlocks are restored, access doors are closed, tools and fragments are counted, and the work record names what was removed and any damage found. Each authorized employee removes that employee's own lock under the plant procedure; affected employees are notified before restart. Operations — not the knife user alone — owns the first controlled run.

Watch the first product and the failure signal. From outside the guarded zone, observe the roll, web path, tracking, tension, vibration, and product for the machine-specific restart interval. Stop normally if material begins to walk, rewrap, mark, or build at the same location. A recurrence is a process fault — alignment, tension, surface condition, doctor, sensor, roll geometry, or material — and repeated hand clearing is not the corrective action.

What goes wrong — and what it means

The wrap tightens when the first layer parts. Stored tension or a hidden bridge remains. Withdraw, leave the exclusion zone, and return to energy/tension control. Do not “finish quickly” before it gets tighter.

A roll, nip, arm, or carriage moves after verification. The safe state failed: stored energy, inadequate blocking, wrong isolator, or reaccumulation. Everyone exits; the lockout plan is rebuilt. The knife is irrelevant until the movement is explained.

The hook will not enter. The layer is too compacted, the throat is too small, or there is no safe free edge. Do not stab, pry, or invent a maximum-thickness judgment. Use the approved straight-cut fixture, a heavier hook if its documented geometry fits, or escalate to disassembly.

The straight blade scratches or polishes the roll. The stroke was too radial, exposure too deep, fixture absent or displaced, or flex put the edge through the wrap. Stop and inspect the roll; change the cut geometry before continuing. More careful pressure does not cure a missing protector.

The long 62180 wanders. Too much stickout or side load. Shorten exposure, support the stroke at the approved fixture, or go back to the 6" blade. Its 9" length buys reach and costs stiffness; that trade cannot be wished away.

A hook rounds rapidly. Abrasive wear. If the 67390 is otherwise correct, compare hooks consumed per shift against the HSS 67450. If the blade bends or stalls, that is mass, not wear — compare the heavy 67240 instead. “Harder” and “heavier” solve different failures.

A blade chips. Stop. Twisting, levering, a hard inclusion, or contact with the machine caused damage; HSS is not the cure. Recover and account for every fragment before restart.

Freed material whips, snaps, or drags a tool. The tail was not captured or the release plane was misread. Re-establish restraints and body position; never catch a moving tail by hand.

The wrap peels toward a nip instead of away from it. The cut direction or retained end is wrong, or residual material tension remains. Stop before the loosened band feeds deeper. Extraction always proceeds away from the pinch point.

Adhesive smears and re-bonds. The material is not behaving as a dry wrap. Cooling, residue control, a different approved blade, or planned cleaning may be required. Do not flood a machine with solvent based on a knife guide.

The same location wraps again on restart. Clearing removed the symptom. Stop and diagnose the process condition; a repeat knife intervention normalizes a machine fault and increases exposure.

Buyer tests — which edge belongs at the approved cut point?

“Loose cotton or light film wrap, close and visible, existing 5/8" station handles.” → 62090 or 62300 for a protected shallow straight cut; pattern continuity decides because Hyde lists them identically. If a free edge admits a hook and the roll face is the primary concern, the 3/8" 67390 system is the better geometry, but it requires its own handle.

“The same 3/8" hook keeps coming back rounded on rubberized or synthetic stock.” → 67450. Printed HSS answers abrasive wear. It does not authorize more force or a deeper wrap.

That is a stiffness-and-reach change, not an HSS upgrade.

“The approved service opening is outside the danger zone, but a 6" blade cannot reach the cut fixture.” → 62180, minimum necessary exposure. If the long blade is being used to reach around a guard or over a live roll, the answer is no blade.

“Finished paper roll, chocked on an open handling stand, removing kraft body wrap and header.” → 60630.

“Heavy damaged outer paper layers on a fully supported, open roll — no machine frame or nip exposure.” → 60780. That is slabbing. If the object is a driven machine roll or the cut is inside a winder, select from the mounted mill/hook system and the machine procedure instead.

False neighbors — the costly mis-buys and borrowed procedures

Paper-roll slabbing is not machine-roll clearing. Both involve a cylinder and wrapped material; only one involves a machine capable of creating a nip, closing a roll, or restarting. The 60780's long exposed edge is an asset on an open product roll and a liability in a frame.

Shipping wrap is not a lap-up. The 60630 opens accessible kraft and headers. A compressed web mass around a calender, card, or winder contains different energy and demands machine isolation, blocking, and progressive release.

Reach is not permission. The 62180 keeps a hand back only inside a designed, isolated service geometry. It does not make a live or guarded-off area reachable.

Hook and straight blade are complements, not stronger/weaker versions. A hook cuts outward with the back protecting what lies beneath; a straight blade opens material that will not admit the hook, over an approved protector. Swapping one geometry for the other changes the damage path.

HSS and heavy gauge are different axes. 67450 retains an edge in abrasive stock; 67240 resists deflection and reaches farther. HSS does not stop a thin blade folding, and thickness does not make an unmarked steel wear like HSS.

The handle is part of the safety system. A bare 62090, 62180, 62300, 67240, 67390, or 67450 is a component, not a knife. Width match, full seating, two tight set screws, and minimum exposure are prerequisites. Never hold a loose mill blade in a gloved hand.

A blade is not a guard or a clearing stick. OSHA explicitly treats special hand tools as supplements to required guarding, not substitutes for it (29 CFR 1910.212(a)(3)(iii)).

The history footnote — the cut that followed powered rolls

Lap-ups arrived with powered textile production: once fibers and cloth moved continuously through cards, drawing frames, calenders, and winders, material could wind onto the roll that was meant to transport it. Samuel Slater's 1793 Pawtucket mill is the National Park Service's starting point for American water-powered cotton spinning, and the Library of Congress likewise marks it as the country's first successful mechanized cotton-spinning operation (NPS — Slater Mill · Library of Congress — First American Cotton Mill). The work produced its own hand-tool ecology: pattern-numbered blades, set-screw handles, and later hook and HSS variants for the materials running through the rolls.

The hook brought a different old trade geometry into the same “blade you feed” system: a pull cut with the edge inside the throat, commercially associated with flexible sheet goods such as linoleum, patented by Frederick Walton in the early 1860s (Britannica — Frederick Walton).

Modern safety law changed the job's first tool. The first tool is now the energy-control procedure: textile rules define a nip as the contact point between two in-running rolls and require guarding at feed rolls and calenders (29 CFR 1910.262); pulp-and-paper rules require lockout devices on paper-machine drives and guarding or other effective control at calender and rewinder nips (29 CFR 1910.261). The blade still makes the release. It no longer gets to define when the work is safe to begin.

Every one of those eight PDP guides should carry this application link; no other SKU is silently added to the graph.

Safety sources: OSHA 29 CFR 1910.147 — Control of Hazardous Energy · OSHA 29 CFR 1910.212 — General Machine Guarding · OSHA 29 CFR 1910.261 — Pulp, Paper, and Paperboard Mills · OSHA 29 CFR 1910.262 — Textiles · OSHA — Printing Press Roll Cleaning case study. These establish the hazardous-energy, guarding, nip-point, and authorized-maintenance boundary; they do not turn this guide into a machine-specific energy-control procedure.
