How to Fit and Set a Mill Blade in a Handle

This guide therefore does not invent a mounting recipe.

Job: place one identified mill blade into one verified compatible handle, set it by the current manufacturer- or employer-approved instruction, prove retention and configuration, and release the assembly only for its named station, material, cut, and protective system.

Time: the physical exchange may be brief after a pair and procedure have been qualified. A production deadline never shortens that evidence work.

Difficulty: mechanically simple, high-consequence process control. A blade entering a slot is not proof that it is compatible, sufficiently engaged, retained under load, correctly oriented, or safe to use.

It is not admitted for 3/4", 3/8", or unresolved .690" blades. |

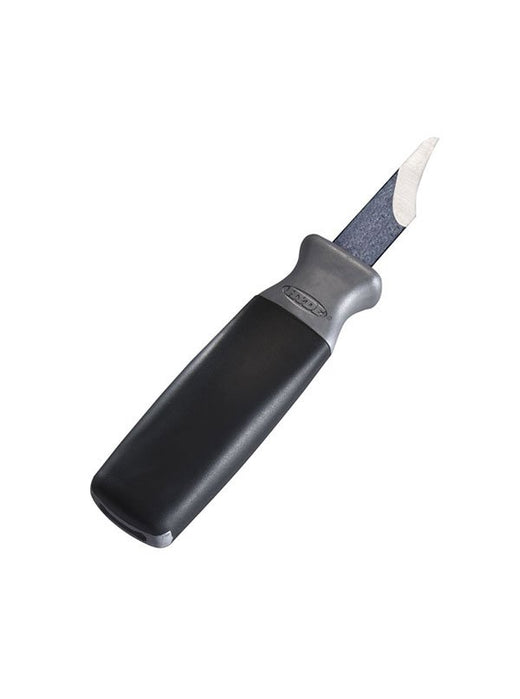

At 5/8", it overlaps 63055; width alone supplies no performance preference. |

No blade in the 25-member mill-blades line is 3/8". Width does not prove that a particular hook, point, or retained-end pattern fits. |

It is not interchangeable with flat-sided 576xx wood handles merely because a nominal width overlaps. |

These products are handles. None supplies a cutting edge, a complete station procedure, a torque specification, or approval for a blade/material operation. The hardwood-versus-soft-grip choice concerns documented construction and ergonomics after compatibility is settled; no accepted source says one handle makes a better cut.

The five Hyde handles supply none of those missing controls.

Before you touch the assembly

Put the change in the correct energy-control lane

Move a fully detached hand tool to the designated change bench whenever possible.

OSHA 29 CFR 1910.147 requires an energy-control program for servicing in which unexpected energization, startup, or stored-energy release could injure an employee. It also places any minor-servicing exception inside defined conditions and effective alternative protection; this page cannot decide that exception for a plant. Only the employer's authorized employee performs shutdown, isolation, lockout/tagout, stored-energy control, verification, and restoration. A stop button, emergency stop, selector, interlock, or software hold is not by itself an energy-isolating device.

OSHA 29 CFR 1910.212 separately requires protection from point-of-operation, nip-point, rotating-part, and similar machine hazards. A longer blade, shorter projection, practiced operator, or special hand tool does not replace required guarding. Stop if changing or using the assembly requires an unapproved guard bypass or a hand in a danger zone.

Put one controlled record beside the physical parts. It must close all of these fields:

Handle identity: exact model, unique tool or station ID where used, and physical configuration. Do not identify an unmarked handle by color, grip material, apparent length, or the number of visible fasteners.

“Mill blade” or “three-quarter blade” is insufficient.

Physical-match criteria: retained-end geometry, accepted slot/contact configuration, required orientation, seating datum, minimum engagement, allowed projection, complete retention components, and reject conditions.

Installation method: edge containment, service tool, fastener sequence and count as physically validated, and torque or another positive criterion where the maker specifies it.

Verification and release: non-cutting retention proof, guard restoration, restart owner, representative first-piece method, post-test inspection, safe-use boundary, and required record.

If a required field is absent, mark the pair HOLD. A neighboring handle's instruction, old shift practice, a visually similar blade, or a successful past cut does not fill the blank.

Apply the width screen—then stop calling it compatibility

Use nominal width only as the first refusal gate:

Neither becomes preferred, interchangeable, or proven for a pattern without the station record. |

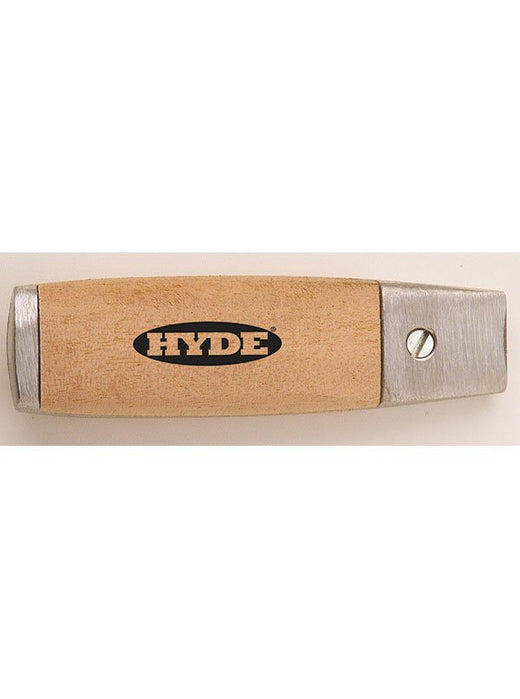

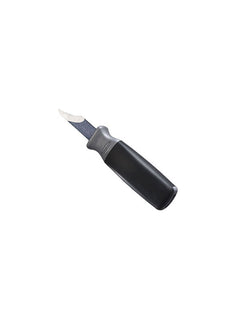

| 3/4" | 63085 or 63080 | Both classes admit the width. Choose construction only after exact-pair qualification. |

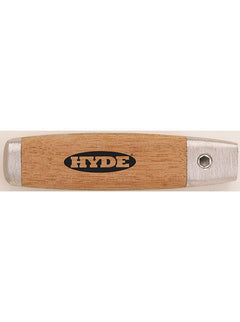

| 3/8" neighboring extension/hook class | 63170 or 63175 | Width screen only.

| .690" 3551M class | None released | No held source states which handle takes it.

Never shim a narrow blade with foil, tape, a second blade, improvised liners, adhesive, or a wedge. Never file, grind, spread, drill, peen, heat, or hammer a handle to admit a blade. Never grind or alter a blade's retained end to make it seat. A forced fit destroys the evidence needed to diagnose the mismatch and may damage the retention load path.

Define three distinct statuses

No fitting is authorized.

Do not report SCREENED as compatible or ADMITTED as ready for production.

Inspect before loosening anything

Freeze the as-found state

Record the installed handle and blade identities, projection by the station's named datum, orientation, retention-component condition, change reason, last service event, and any evidence of movement. Photograph or otherwise preserve unusual witness marks, fretting, packed material, changed projection, loose components, unauthorized adhesive, shims, peening, drilled holes, or substituted fasteners before cleaning.

A blade that moved in service or a retaining component that loosened is a failed retention system until diagnosed. Do not erase the evidence by tightening first.

Inspect the handle

Under the model- and station-specific limits, check:

body, casting, slot, and contact faces show no crack, spreading, burr, distortion, corrosion, impact damage, or unauthorized alteration;

a MAXXGRIP surface is secure and not split, swollen, chemically attacked, oily, or tacky enough to compromise control;

hardwood is not split, loose, crushed, swollen, scorched, severely checked, or contaminated;

every required retaining component is present, correct, undamaged, and consistent with the validated sample;

fastener heads, threads, and seating faces are not stripped, crossed, bottomed, packed, or visibly deformed;

no unexplained blade rocking, rotation, or creep is present.

Quarantine a cracked casting, split or loose grip, deformed slot, damaged thread, stripped head, missing part, unapproved repair, or unexplained movement. This guide does not authorize glue repair, rethreading, replacement fasteners, added torque, solvent soaking, heating, or surface dressing.

Inspect the blade as a separate component

Keep the edge contained. Verify the package/model/pattern and compare the physical retained end with the exact-pair instruction. Inspect the body for bend, bow, twist, buckle, deep score, corrosion, heat color, crack-like line, contamination, or unauthorized grinding. Inspect the working edge/point for chip, crack, roll, missing fragment, or damage outside the station limit.

Do not run a finger along the edge, even through a glove. Account for any missing fragment through the plant's foreign-material or equipment-inspection process. Do not straighten, weld, braze, torch, grind, or conceal a damaged blade. “New” describes issue status, not accepted condition.

OSHA 29 CFR 1910.138 requires hand protection selected for the task, conditions, duration, and identified hazards. The employer decides material, cut performance, coverage, and dexterity while also addressing entanglement risk. This guide invents no glove cut level or universal PPE set.

Controlled fit—only after the pair is ADMITTED

Set up one assembly, one tray, one procedure

Clear unrelated blades, handles, fasteners, rags, and scrap. Put the approved sharps and quarantine containers within reach before exposing an edge. Stage only the admitted handle, admitted blade, validated retention parts, named service tool, controlled gauges, and current instruction revision. Keep the edge and likely release path away from hands, torso, and traffic.

The qualified person now performs the exact approved procedure. This guide deliberately supplies no insertion direction, face orientation, seating depth, projection, fastener sequence, driver size, torque, or proof load.

Read the instruction against the parts in hand. Stop if model, revision, mechanism, fastener count, or physical configuration differs.

Contain and remove the prior blade by the authorized method. Transfer it directly to an identified tray, protected reuse container, or sharps route.

Clean or replace only what the instruction permits. Generic solvent, abrasive, oil, adhesive, wedge, thread compound, or surface treatment is not authorized here.

Orient and seat the admitted blade to the specified datum using the stated method. If it will not reach the datum freely, withdraw it safely and quarantine the pair. Do not use a screw to draw a crooked blade home.

Set only the approved projection while proving the required retained engagement.

Apply the documented retention method with every required component. “Snug,” “as tight as possible,” and copied torque are prohibited substitutes.

Recheck orientation, seating, projection, and component position after securing. Any creep or rotation during retention is a failed installation.

Record the installed state before functional testing.

Prove retention before production

Verification has four separate layers:

Static configuration: exact identities, correct physical match, seating datum, projection, retained engagement, orientation, component completeness, and handle/blade condition all pass the written criteria.

Non-cutting retention proof: perform the plant-validated method in its approved fixture. Do not invent a finger pull, twist, wiggle, tap, strike, bend, or proof load.

Protected first piece: after guard restoration and formal restart, cut only the representative material under the station's approved support, path, speed, body position, and acceptance criteria.

Post-test readback: verify no change in projection, orientation, component condition, or retention. Re-isolate before entering a danger zone. A successful cut cannot waive a failed dimensional or retention check.

Release only the named assembly for the named station and operation. The proof does not establish compatibility with another pattern, material, handle revision, machine, exposure, or cut.

What goes wrong—and the controlled response

| Finding | Why improvisation is unsafe | Required disposition |

| Width matches but no exact-pair instruction exists | Width says nothing about retained-end geometry, seating, engagement, or load. | HOLD and obtain Hyde or employer engineering qualification. |

| Blade will not seat freely to the approved datum | Wrong pattern, obstruction, damage, orientation error, or incomplete compatibility. | Withdraw safely; inspect and quarantine. Never hammer, pry, grind, or draw it in with a screw. |

| Blade enters but rocks before securing | Slot wear, geometry mismatch, damage, or missing components may exist. | Quarantine; no shim, liner, adhesive, or doubled blade. |

| Fastener turns without retaining | Thread damage, bottoming, wrong part, debris, or insufficient engagement may be present. | Remove the assembly from service; added force is not repair. |

| Fastener count or mechanism differs from the instruction | The handle may be misidentified, altered, incomplete, or another revision. | Preserve the as-found state and resolve identity. Do not adapt the instruction. |

| Blade rotates or creeps while being secured | Contact, seating, component, or pair qualification failed. | Release retention under the safe method, contain, inspect, and quarantine if cause is not fully resolved. |

| Blade moves during retention or first-piece proof | This is system failure, not ordinary settling. | Stop, isolate as applicable, preserve evidence, and quarantine blade and handle together. |

| Handle is cracked, split, swollen, distorted, chemically attacked, or altered | Hidden strength and contact geometry may be compromised. | Remove from service under the plant criterion; no field repair is invented. |

| New blade is bent, chipped, cracked, corroded, or unidentified | Packaging does not overrule physical evidence. | Quarantine; account for missing material; issue another traceable blade after cause review. |

| Worker proposes 63080 versus 63085 because one “cuts better” | Handles do not cut, and no accepted source supports that claim. | Choose only after fit, then by documented construction/ergonomic requirements. |

Readback, quarantine, and record

Close the change record

Tag a quarantined blade and handle together when movement, damage, or fit uncertainty may involve both.

Store the system so identity survives the shift

Store loose blades in their original identified packaging or an approved edge-protecting carrier, separated by exact pattern and condition. Store handles clean and dry in assigned locations where grips, slots, and fasteners cannot be struck or contaminated. Keep released assemblies identified to their station and protected from casual handling. A loose blade never goes in a pocket, mixed drawer, rag, open tote, or ordinary trash. Final disposal follows the facility's rigid sharps route and applicable local requirements.

Safe-use approval remains station-specific. After any blade-pattern substitution, handle substitution, retention repair, unexplained movement, impact, unauthorized alteration, or change in material/process, return the system to HOLD and repeat the applicable qualification.

History footnote

The mill-blade system separates the durable handle from the wearing edge: keep the handle at the station, replace or recondition the pattern blade, and preserve the plant's reorder identity. That logic grew naturally in the New England mill economy. The National Park Service identifies Samuel Slater's 1793 Pawtucket mill as the first successful water-powered cotton-spinning mill in the United States (NPS — Slater Mill); repeated spinning, weaving, inspection, rubber, and converting cuts made pattern continuity commercially valuable.

No held source identifies the inventor, original patent, or first retention design for these five handles. The history explains why durable handles and numbered consumables persist; it does not supply today's fitting instruction.

Frequently asked questions

Can I fit any blade whose nominal width matches the handle? No. Width is the first screen only.

Use the exact model qualified for the station; neither is proven superior by “feel.”

Which handle takes a 3/4" blade? 63085 or 63080 passes the width screen. Choose between soft-grip MAXXGRIP and hardwood/aluminum construction only after the exact pair is admitted.

Do not assume every 3/8" or flat-sided blade interchanges.

Which handle takes the .690" 3551M blades? None is released by the held evidence.

How deep should the blade sit, and how far should it project? The exact qualified instruction must state both seating/engagement and projection. This guide supplies no number.

How tight are the screws? Use only a manufacturer- or employer-issued exact specification and the controlled tool it requires.

Can I add adhesive, a wedge, tape, or a shim if the blade moves? No. Movement is a retention-system failure. Preserve and quarantine the assembly.

Does the MAXXGRIP handle make a better cut? No accepted source says so.

When is the assembly safe to use? Only after exact-pair admission, controlled installation, static and retention proof, guard restoration, first-piece acceptance, post-test readback, and station-specific release.
