How to Touch Up a Wall Invisibly
Job: make a small scuff, chip, fastener mark, or properly repaired wall defect disappear into the existing painted plane by matching not just color, but paint identity, batch condition, sheen, film thickness, applicator texture, substrate porosity, and the room’s real light.
READ THE WORK
The complete Hyde job guide.
The honest result: “invisible” means no abrupt change in color, gloss, stipple, or plane when the repair is dry and viewed both straight on and from the directions in which windows and fixtures rake the wall. It does not mean every wall can be spot-repaired. Sometimes the expert answer is one uninterrupted coat from corner to corner.
Time: active work can be brief; elapsed time belongs to cleaning, repair material, primer, paint, and inspection. Follow their current labels. Do not judge the match while the paint is wet, and do not invent one universal wait before deciding whether it worked.
Difficulty: diagnosis more than hand skill. The smallest tool and lightest load usually produce the least visible intervention, but only after the wall has told you what produced its existing surface.
The tools from this catalog:
Everything else: the known original paint or a properly matched replacement; its current label and technical data sheet; a clean, labeled touch-up container; clean stir tools; a lint-free white cloth and the coating-approved cleaner; repair material and a flexible filling knife when a defect is below plane; the specified primer or sealer; fine abrasive and dust control when a repair is above plane; drop protection; painter’s tape only for protecting adjacent objects, not for defining the feather; a movable work light; a sample card or primed scrap; and lead-safe supplies or a qualified lead professional when old paint will be disturbed.
Why touch-ups flash: the wall is seven records laid on top of one another
“Flashing” is often used for every visible repair, but a visible touch-up can come from several different records. Diagnose which one the eye is seeing before adding another coat.
The paint record: product, base, formula, batch, and condition
Two cans can carry the same color name and still dry differently. Product line, base, sheen, tint formula, manufacturing batch, and tint-machine event all matter. The original can is the strongest identity record when it remains sound; a newly mixed “same color” is a replacement match, not the same batch.
Paint also separates in storage. Dense pigments settle; binder and liquid rise. Deep colors are especially unforgiving when pigment concentration varies across the original application or the reserve. Sherwin-Williams’ contractor guidance identifies different batches, inadequate dispersion, and different film build as touch-up causes, and recommends using the original batch and original application method where possible (Sherwin-Williams — Obvious Repair, Sherwin-Williams — Interior Product Selection FAQs).
The correction is not “stir for a fixed number of minutes.” It is bottom-first conditioning until no dense drag remains and a thin streak reads as one body and one color. Sour odor, gel, permanent curds, freeze damage, rust contamination, or a skin broken into the body are quarantine signals, not invitations to stir harder.
The wall-age record: fading, soil, burnishing, and previous cleaning
The wall changed after it was painted. Sunlight can shift color; cooking film and airborne soil can darken it; hands and furniture can burnish flat paint into shiny areas; repeated cleaning can polish or abrade the surface. Meanwhile, the covered paint in the can aged without the same light, wear, or cleaning. Even a perfect original batch can therefore be a poor visual match years later.
This is why cleaning comes before painting. If a scuff comes off with the coating-approved mild cleaner, the invisible touch-up is the one you never apply. If the cleaned test spot changes the wall’s sheen or color, stop: the “match” must be judged against the cleaned wall plane, not the dirty halo around the defect. A broad dirty wall with one clean circle is a cleaning or whole-plane repaint problem, not a color-dab problem.
The sheen and film-thickness record
Paint color is only one way a wall returns light. Film thickness, pigment packing, binder distribution, surface absorption, and application pressure all change gloss. A heavy dab can dry darker or shinier; an over-stretched touch-up can dry thin and dull. The overlap where wet paint is repeatedly passed over partly setting paint can build a visible ring.
Higher sheens amplify every difference. Flat and matte finishes scatter light and often accept a small feathered correction. Eggshell may or may not, depending on age, color, and light. Satin and semi-gloss frequently retain a halo even when the color is exact. Benjamin Moore’s own touch-up guide warns that spot results may be imperfect and explicitly names whole-wall repainting as the fallback (Benjamin Moore — How to Touch Up Paint). No tool in this guide overrules that boundary.
The applicator-texture record
A rolled wall is not optically flat. Its nap leaves peaks and valleys — stipple — whose shadows are part of the apparent color. A brush leaves directional furrows. A spray finish can be smoother; a spray-and-back-roll finish records both atomization and roller texture. PPG states the consequence directly: changing roller nap changes stipple and shadowing, while brushing a rolled wall produces directional marks that read as a different shade (PPG — How to Touch Up a Wall).
Match in this order:
Original application method: brush, roller, spray, or spray-and-back-roll.
If rolled: cover fabric or finish class.
Nap or pile depth.
Cover diameter/core geometry where the original system makes that relevant.
Load, pressure, and layoff direction.

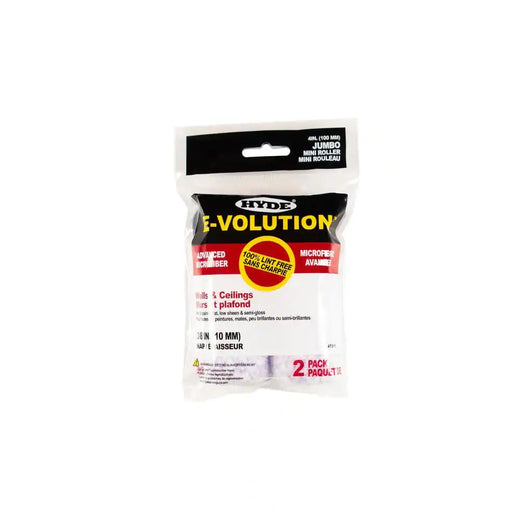

The 47353/47354 full-core short-cover system exists for this problem: patch width with wall-class cover geometry. It is not magic. A 3/8-inch E-volution short cover is the strongest documented choice for a comparable 3/8-inch E-volution field; it is not automatically the match for a knit, foam, long-nap, brush, or sprayed field.
The substrate-porosity record
Bare joint compound, spackle, torn drywall paper, plaster, intact paint, and sanded old paint do not absorb alike. Topcoat over a porous patch loses liquid into the repair faster than it does into the painted field and can dry dull even when every color and tool choice is correct. Sherwin-Williams lists porous surfaces and uneven film build among the causes of uneven sheen and calls for spot-priming patched areas (Sherwin-Williams — Paint Flashing).
Primer is therefore not optional over bare repair material. But a hard-edged primer island can become its own texture boundary. Prime every bare or differently porous part of the worked zone, carry the primer through the sanded halo, and feather its perimeter rather than stopping at a geometric square. If the whole plane is variably porous, spot primer cannot equalize it; prime or recoat the appropriate plane through the coating system’s instructions.
The geometry and light record
A crown, hollow, sharp repair edge, sanding scratch, or missing stipple is not a color problem. Paint follows geometry; it does not erase it. Side light turns a patch that looked fine under ceiling light into a daily shadow. The inspection light must therefore approach from the room’s actual windows and fixtures, not just from where the painter happens to stand.
Sherwin-Williams defines flashing as uneven gloss, sheen, or luster; PPG notes it is especially obvious under angled viewing or angled light (Sherwin-Williams — Paint Flashing, PPG — Poor Paint Sheen Uniformity). A repair that casts a shadow under a dry raking-light test goes back to repair and sanding. Another coat only paints the shadow.
The drying-condition record
Temperature, humidity, airflow, and substrate temperature affect film formation. A touch-up made under conditions far from the original may dry differently even from the same can. Do not compensate with an improvised reduction recipe. Follow the product’s current data sheet and make the test under conditions representative of the room. The current product instruction controls.
The go/no-go decision before opening paint
| Condition | Honest action | Why |
| Mark cleans off without changing sheen | Clean only | New paint would create a defect where none remains |
| Tiny chip or fastener point on a brushed or point-finished surface; exact paint known | Point-brush or spatula test | The intervention can stay inside the original defect |
| Small primed patch on a rolled flat/matte wall; original paint and roller system known | Matched-cover spot test | Color, sheen, texture, and porosity can plausibly be reproduced |
| Small rolled repair; paint known but original cover unknown | Make a dry sample with candidate covers | Width and nap labels alone do not prove stipple |
| Same color name but different product, base, or sheen | Obtain a real match; do not “close enough” the wall | Color name is not coating identity |
| Wall is aged, sun-faded, burnished, broadly soiled, or previously cleaned unevenly | Clean the plane and test; expect whole-plane repaint | Stored paint did not experience the wall’s life |
| Satin/semi-gloss under raking light, deep color, large repair, many repairs, or obvious texture mismatch | Plan corner-to-corner repaint unless a sample proves otherwise | Accumulated film and sheen boundaries are likely to remain |
| Sprayed field with no verified way to reproduce the spray | Use the original spray process if authorized and practical, or repaint the plane | A roller or brush writes a different surface record |
| Peeling, blistering, moisture damage, active stain, soft substrate, or unresolved crack movement | Diagnose and repair first | Touch-up paint cannot fix an active failure |
The buyer test is deliberately severe: if you cannot identify what the wall was painted with and how it was applied, you are testing a repair, not executing a guaranteed invisible one.
The complete procedure
Map the whole visual plane before touching the defect
Stand back. Identify the natural paint plane: inside corner to inside corner, outside corner to inside corner, door casing to corner, or another architectural break where a full recoat can stop without leaving an arbitrary edge. Note windows, grazing fixtures, and the normal viewing path.
Now inspect the defect from straight on and from both raking directions with the movable light held close to the wall. Mark what changes:
Color changes but texture and plane do not: identity, fading, soil, or batch problem.
Gloss changes as you move: sheen, porosity, film-build, or burnish problem.
Shadow stays anchored to a ridge or hollow: geometry problem.
Patch changes when viewed from opposite directions: applicator texture or brush-direction problem.
Defect grows beyond the nominal chip when lit: the repair is larger than its frontal view suggested.
Photographs help preserve the before-state, but cameras auto-correct exposure and white balance. The wall in its room is the adjudicator.
Clean the smallest test area first
Read the coating maker’s cleaning guidance. Start with a clean soft cloth and the least aggressive permitted solution. Work from outside the mark toward its center so soil is not spread into a halo. Blot or lightly wipe; do not scrub flat paint until it shines.
Let the cleaned spot become uniformly dry before judging it. Three outcomes:
Mark gone, sheen unchanged: stop. The job is complete without paint.
Mark remains, wall sound: proceed.
Cleaned spot now differs from the surrounding wall: expand the cleaning method consistently across the natural plane or stop and plan repainting. Painting the center of a clean island preserves the island.
Establish paint identity — or state exactly what is unknown
Read the original can, job record, or labeled reserve.
manufacturer and product line;
interior or exterior designation;
color name, code, and tint formula if present;
batch or lot information if present;
where and when it was used;
original applicator and nap/fabric if the record preserved them.
“White eggshell” is not identity. Neither is a color chip alone. If no reserve exists, take a sound sample large enough for the paint supplier’s matching process from an inconspicuous location, repair that donor site, and still run a dry test. Instrumental color matching cannot infer the wall’s aged sheen or stipple.
If the original application combined multiple cans, use the boxed reserve from that combined batch when available. A remainder from one donor can can reintroduce the variation the original boxing removed.
Condition the paint without changing its formula
Open the reserve without dropping rim debris into it. Remove a sound skin whole; do not stir fragments back into the body. Use the spatula rung that reaches the container honestly:
41010: sample pot, tint cup, tiny touch-up jar.
41060: practical small batch or quart-scale reserve.
41110: deep quart or small-can bottom and walls.
Run the spring-steel flat down the wall, across the bottom, through the wall-floor shoulder, then lift and fold. Continue until the blade finds no dense sediment and a thin streak on the container wall is uniform.
Do not add water, solvent, colorant, or extender by habit. If the current technical data explicitly provides a touch-up reduction method, follow that method and label the adjusted test batch. If it does not, use the paint as specified. A reduced sample and an unreduced field are two different application records.
Make the match prove itself on a sample
Use a primed scrap that resembles the wall or an inconspicuous spot within the same plane. Reproduce the full proposed stack: repair or primer where relevant, then the candidate paint with the candidate tool.
Test at least the method most likely to match:
comparable 3/8-inch E-volution field → 47353/47354;
known compatible standard-mini field → the exact matching mini;
brushed point field → 80011-class point brush;
unknown rolled field → controlled candidate-cover tests, not a guess.
Carry each sample through its label-defined dry and evaluation state. View it under room light and raking light. Reject a sample that matches color but not gloss or stipple. The sample is cheaper than a wall halo and more truthful than a wet dab on the can lid.
Repair the substrate before trying to match the paint
Scuff only: clean first. If the paint film remains intact and level, no filler or sanding is needed.
Chip with exposed substrate: remove only what is loose. Feather a hard paint edge only as much as the repair requires. Seal or prime exposed material according to the substrate and coating system.
Pin or brad hole: a 41010 or 41060 can carry the smallest filler dab, but its honest scope ends below an ordinary nail hole.
A hollow takes another skim; sanding cannot add.
Torn drywall face: seal the exposed paper with the repair system specified for it before wet compound. Otherwise the paper can swell or blister under the repair.
Primer over dust is attached to dust, not wall.
Primer boundary: prime all bare or differently porous material and the worked halo. Feather the primer edge. If a stain caused the repair, use the stain-control system specified for that contaminant. If porosity varies across the plane, the plane needs uniform sealing; a postage-stamp spot coat will not equalize it.
After primer reaches its specified inspection state, rake the light again. Primer is the final geometry witness. Pinholes, scratches, and shoulders corrected now cost less than colored paint corrected later.
Select the transfer tool by the original finish, not by defect size alone

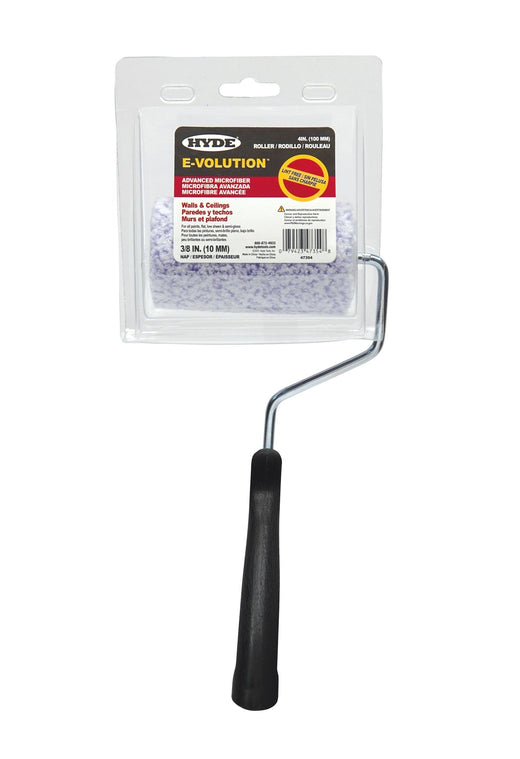

Rolled wall, comparable 3/8-inch E-volution finish known
Use 47354 if the matching frame is needed, 47353 if the appropriate arm is already owned, or 47353 on the 47402 with the documented 1-1/2-inch adaptor. The 4-inch footprint confines the repair; the verified 3/8-inch nap and full-core format make it the closest catalog route to the wall-class E-volution field.
Confirm the cover is fully seated. If using 47402, install the 1-1/2-inch adaptor as the official fit map directs.
Use the original cover if it can be identified. Neither gets an invisible-touch-up promise without the sample from step 5.

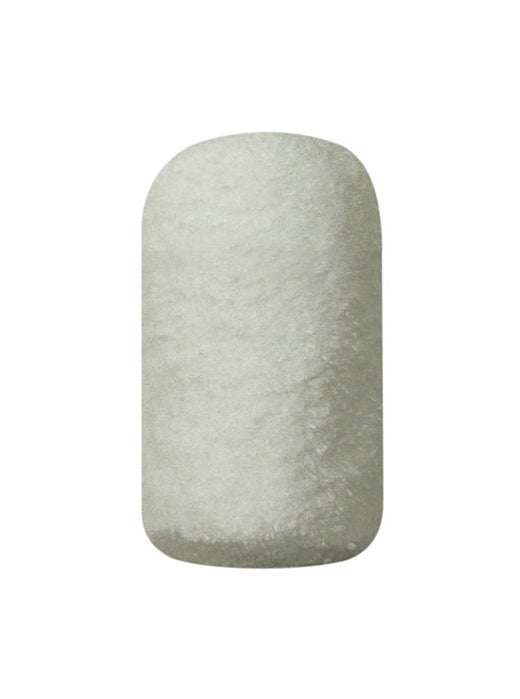

If the field was rolled with a different nap, reproduce that nap. A 3/8-inch cover on a 1/2-inch or 3/4-inch textured field paints the peaks and changes the shadow map. The honest outcome may be a full-plane pass with the correct full-size cover.

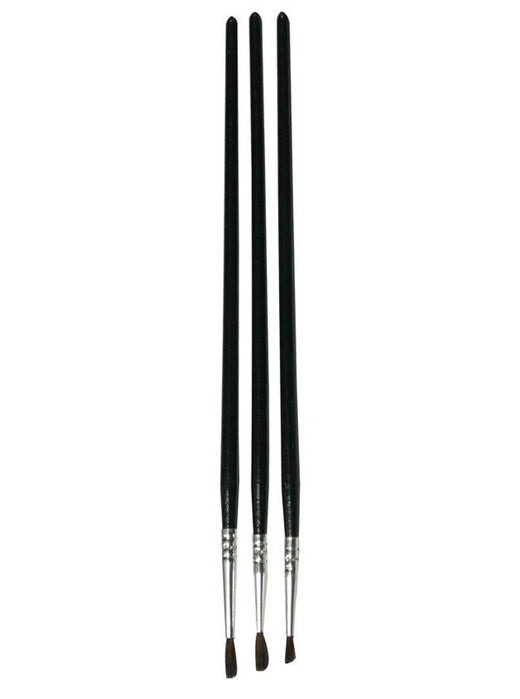

Brushed wall or point defect whose surrounding texture is brushed
Load the tip only.
Do not brush a rolled wall simply because the defect is small. PPG’s application guidance identifies brush direction against roller stipple as a visible shadowing cause. A brush belongs on a rolled wall only for a microscopic defect where the applied paint remains inside the missing chip and does not create a new brushed field.
Pinpoint dab from a matched micro-batch
The 41010/41060 tip can place paint into a pinprick or sharp edge chip with essentially no brush texture. Load almost nothing, touch the missing point, and withdraw. This is not a way to “trowel” wall paint over an area. Once the dab becomes wider than the defect, transfer to the matching brush or roller.
Sprayed or spray-and-back-rolled wall
Reproduce the original method if the result matters and the method is safely available. PPG notes that spray shear and back-rolling can change the paint’s final appearance; a random mini roller does not reconstruct that system.
Prepare a small, clean loading station
Decant only enough conditioned paint for the test and repair into a clean vessel. Keep the master reserve closed.
For a roller, distribute paint across the cover rather than loading one stripe. Roll it out on a clean tray slope until the cover is evenly damp, not saturated. For a brush, load only the tip and wipe most of it back. For a spatula dab, the visible charge should be no larger than the defect.
Set the movable light where it reveals the wet edge but does not heat the wall. Protect the floor directly below the work. Keep a clean dry unloading area on the tray: feathering requires a progressively drier tool, and that cannot happen if every pass returns to a pool of paint.
Brush a point without creating a halo
For a true point repair:
Place paint in the missing center, not on the sound perimeter.
Let capillary contact release the small load; do not scrub.
If leveling is needed, draw the tip once in the direction of the surrounding brush texture.
Remove any bead while it is wet by touching it with the nearly dry tip.
Stop as soon as the defect is filled. Repeated “blending” enlarges a point into a brush mark.
On a fastener head, cover the head, not the circle around it. On a scratch, follow the scratch rather than painting a rectangle over it. On a chipped edge, maintain the original edge geometry; a rounded paint bead catches light.
Roll a patch from wet center to dry perimeter
The roller method is center-loaded, perimeter-starved:
Land the loaded portion of the cover on the primed repair center.
Make short, light passes that distribute the paint across the repair without pressing the cover flat.
Extend each next pass slightly into the surrounding field while the paint is still workable.
Unload the cover on the tray’s dry area.
Return with progressively lighter passes from the wet center outward.
Lift the frame as the cover exits the perimeter so the last fibers leave less paint, not an end ridge.
Finish in the original field’s layoff direction if that direction can be read.
The goal is not a fuzzy circle of ever-thinner color at any cost. The goal is a continuous wet-to-dry transition with the same stipple density as the wall. If the perimeter begins to tack or drag, stop. Re-entering partially set paint tears the film and builds a ring.
Texture replication is the final pass, not an accident:
Fine roller stipple: final nearly unloaded pass at light pressure, same nap and cover class, same direction as the field.
Heavier roller stipple: match the original nap and do not flatten it with pressure. Pressure paints peaks and suppresses valleys; it does not substitute for pile depth.
Brush texture: align the final tip marks with the existing grain.
Do not ask topcoat to recreate missing compound texture.
Unknown texture: test. If the candidate’s dry shadow map differs, repaint the natural plane with one system.
Preserve the wet edge only while the material remains workable under its label conditions. “Wet edge” does not mean chasing the repair around the wall with repeated dry passes. It means every new pass joins paint that can still level with it.
Inspect in the light that will try to expose the repair
Run three inspections:
Wet inspection: catches runs, beads, missed substrate, and a hard edge. It does not adjudicate color or sheen.
Specified dry/evaluation inspection: straight on, then raking from both sides. Compare color, gloss, stipple, and plane separately.
Room-use inspection: daylight if the wall receives it; normal fixtures at night; normal viewing position. A work light can exaggerate, but the room’s recurring light decides whether the repair is functionally invisible.
Do not add paint simply because the wet patch looks lighter or darker. Wet paint commonly differs from dry paint. Do not polish the dry repair with a rag to “even the sheen”; that adds burnishing. Diagnose the record that differs.
Know when to stop touching up and roll the plane
Repaint corner to corner when any of these remain after one disciplined sample:
color mismatch caused by age, fade, dirt, or a different formula;
sheen halo on satin, semi-gloss, or critical-light walls;
multiple repairs whose feather zones overlap;
a repair large enough that “smallest intervention” is no longer small;
unknown original texture that the candidate cannot reproduce;
sprayed or specialty finish whose process cannot be recreated locally;
broad porosity or primer variation;
accumulated film from prior failed touch-ups;
a wall whose natural light reveals every local film change.
The full-plane method is not failure. It is the controlled answer: one conditioned batch, one applicator system, one nap/fabric, one wet edge, from natural break to natural break. Do not “fix” a failed spot touch-up by painting a slightly larger square. That only moves the edge.
Clean, label, and preserve the next repair
Clean the chosen tool according to the coating, not assumption. Clean the 47402 adaptors and cage before paint dries in the fit surfaces.
Wipe the spatula to bare steel and dry it. Reseal the reserve through its own guide, preserving product, base, formula, sheen, room, date, and original applicator/nap. Add the touch-up result to the label or job record: tool used, whether the sample passed, and the natural plane chosen if a future repaint is needed. The best invisible repair begins when the original paint job saves a clean reserve and the applicator record.
What goes wrong — diagnose the record, then apply the smallest honest fix
The patch is the right color but shinier. Film too heavy, perimeter lapped, surface burnished, or sheen/conditions differ. Let it reach the maker’s evaluation state. If the film itself is sound, scuff only through the coating system’s instruction, re-prime if required, and retest with less paint and the original method. On satin/semi-gloss, repaint the plane when the sample repeats the halo.
The patch is duller. Bare repair remained porous, primer coverage was uneven, paint was over-stretched, or the topcoat lost liquid into the substrate. Uniformly seal the worked zone, feather the primer, and retest. Do not simply add a heavy topcoat island.
The patch looks darker or lighter only from the side. Stipple mismatch, brush direction, or plane geometry is changing shadows. Rake the light. If geometry fails, repair it. If stipple fails, reproduce the original cover or repaint the plane.
The color is wrong from every angle. Paint identity, batch dispersion, age, fading, or contamination is wrong. Recheck the label and bottom mix; dry a controlled sample. Do not chase wall color by adding undocumented tint at the jobsite.
A ring outlines the repair. The feather stopped hard, the tool re-entered setting paint, primer stopped at a hard edge, or repeated passes built the perimeter. Let it dry, identify whether the ring is height, gloss, or texture, correct that layer, then retest. Making the circle larger is not feathering.
The repair disappeared under ceiling light and reappeared in afternoon sun. The first inspection used flattering light. Judge from the window’s direction; if a disciplined matched sample still shows, the wall is a whole-plane wall.
The 4-inch cover leaves a different texture despite the same 3/8-inch label. Fabric, core geometry, load, pressure, or the original nap was different. Width and nap are not the complete transfer system. Find the actual field cover or repaint with one consistent system.
The brush leaves obvious little tracks. A rolled field was touched with a brush, the brush was overloaded, or the repair grew beyond point scale. Remove the ridge only after cure through the coating’s repair path, restore primer if needed, and use the matched roller. A point brush is for missing points, not rolled areas.
The mini cover prints end beads. It is overloaded or pressed hard, or the cover’s shoulders do not match the intended technique. Unload, lighten pressure, and lift at the perimeter. If the dry bead remains, level it through the approved repair path before another coat.
The patch bubbles over torn drywall paper. The paper was not sealed before wet repair.
A water or nicotine stain returns. Ordinary primer did not isolate the contaminant, or the source remains active. Correct the source and use the specified stain-blocking system. Touch-up paint is not stain control.
The old can has lumps or stringy material. Stop. Determine whether it is removable skin debris or failed paint. Strain only sound paint when the coating permits; do not use filtration to disguise spoilage.
The touch-up looked good, then changed after cleaning. The surrounding wall and repair have different burnish or wash resistance, or the paint had not reached its maker-defined service state. Review the product system and cleaning method. If ordinary wall use will always reveal the patch, recoat the plane.
There are several almost-good spots across one wall. Stop spot work. Their overlapping optical records will never become one field. Condition enough paint, box if multiple cans contribute, and repaint the natural plane.
Load-bearing safety — only where this job actually creates a hazard
A surface scuff that cleans off and receives a no-sand touch-up is not a demolition job. This guide does not add generic hazard ceremony to it. The boundary changes when old paint is scraped, sanded, drilled, or otherwise disturbed.
For pre-1978 housing and child-occupied facilities, renovation work that disturbs painted surfaces can fall under EPA lead-safe requirements. Paid work may require a certified firm, containment, prohibited-practice controls, cleaning, and verification; homeowners are not protected from lead merely because their own work may sit outside contractor certification. Test and route the work before making dust (EPA — Renovation, Repair and Painting Program, EPA — RRP for do-it-yourselfers).
The history footnote — the “invisible touch-up” has no inventor because it is the roller’s shadow
There is no defensible inventor or birth date for touching up paint. Painters corrected missed spots as long as paint existed. The modern *invisible wall touch-up*, however, became a distinct technical problem when the roller gave walls a repeatable microtexture that later repairs had to reproduce.
Today the doctrine is unusually consistent across competing paint manufacturers: match color and sheen, repair and prime porosity, use the original application method, duplicate surface texture, apply little paint, and feather from the center. The 4-inch full-core cover is the hardware expression of the same trade lesson: shrink the working width without casually changing the wall-making system.
Current application guidance
Sherwin-Williams — Obvious Repair (Touch-Up): different tool, batch, repair texture, and temperature as causes; original method/batch and feathering as remedies.
Sherwin-Williams — How to Fix Paint Flashing: flashing definition; porosity, film build, lapping, spot-prime, and follow-label boundaries.
Sherwin-Williams — Interior Product Selection FAQs: deep-color dispersion, film build, and same-applicator guidance.
Benjamin Moore — How to Touch Up Paint: clean first; match color, sheen, surface texture, and original tool; start with little paint; blend/feather; whole-wall fallback.
PPG — How to Touch Up a Wall: roller-nap stipple and shadowing; brush-vs-roller mismatch; dry-rolling concept.
PPG — How to Fix Poor Paint Sheen Uniformity: angled-light diagnosis; porosity and application causes.
Product and history evidence
94044: General Purpose family name and store-title 4-inch/3/8-inch identity are available; fabric composition, exact core, frame fit, lint behavior, and finish grade remain unverified.
94046: Ultra Touch family name and store-title 4-inch/3/8-inch identity are available; “microfiber,” exact fiber blend, exact core, frame fit, capacity, and near-spray behavior remain unverified as SKU facts.
80011: 1/8-inch ARTIST identity is store-name grain; fill, flat/round geometry, bristle length, handle, and ferrule remain unverified.
80017: ARTIST 3-pack identity is store-name grain; included widths, fill, geometry, handle, and ferrule remain unverified.
41010/41060/41110: widths and spring-steel/hardwood/double-rivet family construction are verified; blade alloy/finish, tip, straight-vs-cranked geometry, and overall lengths remain unverified. No rust-proof claim.
47353: 4-inch, 3/8-inch nap, 1-1/2-inch core, 2-pack, and E-volution family identity are verified. “Invisible” outcome is conditional on matching the original field’s paint, nap, fabric, film, and technique; it is not an unconditional manufacturer result.
47354: 4-inch E-volution 3/8-inch cover with frame is verified by official name; the official URL identifies the 1-1/2-inch core. Exact frame architecture and discrete core spec field remain to be physically confirmed before diagrams.
47402: adaptor sizes, cover-family fit map, 180-degree pivot, Acme thread, and hard-to-reach use are official. Adaptor attachment/retention mechanics are not documented; do not diagram or claim stacking.
Coating schedules and compatibility: no universal cleaner, reduction, primer, temperature, humidity, dry time, recoat window, cure time, film thickness, or service-return interval is supplied.
History: no primary-source date for the 1-1/2-inch-core standard, the first short full-core cover, or touch-up-specific marketing of that format. No inventor claim.
Product graph and neighboring-job handoff
Every linked PDP lists this guide under its applications; the graph runs both directions.
AUTHORED HYDE MATCHES
Tools documented for this work.
HYDE 47353
4" E-Volution Roller Cover 3/8" Nap, 1 1/2" core (Pack 2)
$5.57 In stock
See product and quantity pricing →
HYDE 47354
4" E-Volution Roller Cover 3/8" Nap + 4" Frame
$5.85 In stock
See product and quantity pricing →
HYDE 47402
4" Adjustable Mini Frame With 3/4" Diameter Adaptor + 1 1/2" Diameter Adaptor
$12.43 In stock
See product and quantity pricing →
HYDE 80011
Richard 80011 1/8" Paint brush, ARTIST BRUSH series.
$2.65 In stock
See product and quantity pricing →
HYDE 80017
Richard 80017 ARTIST series Paint brush - 3 pack.
$3.50 In stock
See product and quantity pricing →
HYDE 94044
Richard 94044 4'' GENERAL PURPOSE series roller cover - 3/8'' pile
$3.60 In stock
See product and quantity pricing →
HYDE 94046
Richard 94046 4'' ULTRA TOUCH series roller cover - 3/8'' pile
$4.04 In stock
See product and quantity pricing →DOCUMENTED SOURCES
Inspect the supporting record.
- cdn.shopify.com/s/files/1/0808/2014/2357/files/Hyde_Catalog_2024.pdf?v=1709756254
- patents.google.com/patent/US2378900A/en
- www.benjaminmoore.com/en-us/interior-exterior-paints-stains/how-to-advice/painting-101/touch-up-paint
- www.epa.gov/lead/lead-renovation-repair-and-painting-program
- www.epa.gov/lead/renovation-repair-and-painting-program-do-it-yourselfers
- www.ppgpaints.com/pro-tips/how-to-fix-poor-paint-sheen-uniformity
- www.ppgpaints.com/training-videos/how-to-touch-up-a-wall
- www.sherwin-williams.com/en-us/project-center/maintenance-repair/paint-flashing
- www.sherwin-williams.com/painting-contractors/fillers-putty/resources/faqs/interior-product-selection-faqs
- www.sherwin-williams.com/painting-contractors/repair-and-prepare/resources/SW-ARTICLE-PRO-OBVIOUSREPAIR
- www.youtube.com/watch?v=chsNfXahaJc
