Spray Exterior Trim Against Brick, Stone, and Siding

It covers only the six registered tool nodes and does not turn a movable shield into whole-building containment.

Job: Spray exterior trim while preserving the adjacent masonry or siding finish

Difficulty: Advanced — exterior airless control, finish recognition, access planning, and a disciplined two-person sequence may all be required

Everything else: coating and airless equipment approved for the substrate; manufacturer-specified tip, pressure, hose, filters, PPE, grounding, ventilation, cleanup, and fire controls; exterior wash and preparation tools; sound access equipment; drop protection; window, roof, plant, soil, vehicle, and neighbor protection; customer-supplied cardboard or other suitable sheet stock when using 28100; clean wipes; approved waste containers; weather instruments or a reliable jobsite weather reading

Exterior shielding is not indoor masking carried outside. Brick joints drop away from the face. Stone changes plane every few inches. Lap siding presents repeated ledges. Wind can move droplets around a shield that is perfectly seated at the paint line. A clean-looking trim edge is therefore only one part of success: the adjacent wall, roof, glazing, landscaping, vehicles, pavement, and downwind property must remain protected too.

The useful decision is not “which shield is biggest?” It is “what must the working edge do at this exact boundary?” The flexible aluminum tools, 28000 at 36 × 9 inches and 28010 at 24 × 9 inches, belong where the edge must accommodate moderate irregularity. The stiff aluminum tools—28020 at 24 × 9, 28030 at 36 × 9, and 28040 at 48 × 9—belong where a straight bridge is more valuable than conformity. Model 28100 is different: its high-impact polystyrene clip holds cardboard or other customer-supplied sheet material so the crew can cut a sacrificial shield for a peculiar profile.

Those are selection facts, not promises that every exterior condition is shieldable. A deeply raked stone joint, loose mortar, open vent, porous unsealed surface, or strong crosswind may demand fixed masking or a different application method. Make that decision before coating is in the pump.

Define the finish boundary and the no-spray field

Walk the elevation from both directions. Identify the trim that will receive coating and every adjacent surface that must not. Look beyond the immediate edge. Overspray can land on a window several feet away, follow an open soffit, settle on shingles, enter a vent, or travel beyond the lot.

window and door units, hardware, weather seals, screens, and weep paths;

brick, stone, mortar, stucco, siding, flashing, roofing, and gutters;

vents, combustion openings, exterior receptacles, meters, cameras, and lighting;

plants, soil, paving, vehicles, adjacent buildings, and public paths;

gaps behind trim, open joints, failed caulk, rot, and loose substrate;

overhead conductors and any conductive route created by wet equipment or a metal tool.

The shield is for the moving line. Use fixed protection for the field. A blade held against one casing cannot contain atomized material crossing the window, wrapping a corner, or moving downwind. If the containment plan depends on the shield catching all spray, the plan is incomplete.

Confirm which surfaces are actually finished. “Brick” may be fired clay, painted masonry, limewashed masonry, or a thin veneer. “Stone” may be natural, manufactured, sealed, or porous. “Siding” may be wood, fiber cement, vinyl, metal, composite, or an existing coating. Do not choose cleaners, tapes, solvents, or repair techniques from the generic name. Test protection and cleaning methods in an inconspicuous place and follow the substrate and coating manufacturers.

Older painted trim can contain lead. Disturbance through scraping, sanding, drilling, or demolition may trigger lead-safe requirements, including the EPA Renovation, Repair and Painting rule in covered United States work. Determine the applicable law and containment method before disturbance. A shield does not replace required lead containment.

Decide whether the day is sprayable

Read the coating’s technical sheet for substrate temperature, air temperature, humidity, wind, rain, dew, surface moisture, recoat, and cure limits. Use the most restrictive applicable requirement. A calm start does not justify spraying through a forecast wind shift or an approaching dew point.

Perform a short field test with clean water or the site’s approved test method only if the coating and equipment instructions allow it. Watch airflow at corners, roof returns, breezeways, and between buildings. These locations can accelerate or reverse wind relative to a reading taken in the open.

Postpone or change methods when:

the spray plume cannot remain inside established containment;

wind changes faster than the crew can stop and secure the system;

temperature or moisture is outside the coating window;

occupants, pedestrians, vehicles, or neighboring work cannot be excluded;

the holder cannot maintain safe access and continuous sight of the working edge;

rain, condensation, or irrigation can strike the uncured coating.

There is no production virtue in a boundary that is sharp while the neighbor’s car is speckled.

Match blade behavior to the exterior surface

Flexible aluminum: 28000 and 28010

Use a flexible blade where the contact path has a gentle crown, a shallow mortar relief, an imperfect board edge, or a transition that a stiff edge would bridge. The 24-inch 28010 is easier to index around short casings, quoins, and broken trim runs. The 36-inch 28000 reduces placements on longer fascia or band-board work where the surface still needs conformity.

Flex is controlled contact, not forced deformation. Press only enough to establish the protected edge. Excess bow can lift both ends, rock across masonry high points, or push coating into a recess. If the boundary is rougher than the blade can honestly follow, stop pretending pressure will make it seal.

Stiff aluminum: 28020, 28030, and 28040

Use a stiff blade when the job needs a straight fence across relatively regular siding courses, smooth masonry, long band boards, or other planar work. The 24-inch 28020 is maneuverable around short details. The 36-inch 28030 balances span and control. The 48-inch 28040 reduces joints on long, accessible runs but requires more clearance and makes wind and access control more demanding.

Long is not automatically fast. A 48-inch blade that cannot be seated, wiped, and moved without striking a return will slow the job and enlarge each possible print. Choose the longest tool that remains fully observable and controllable, not the longest one on the list.

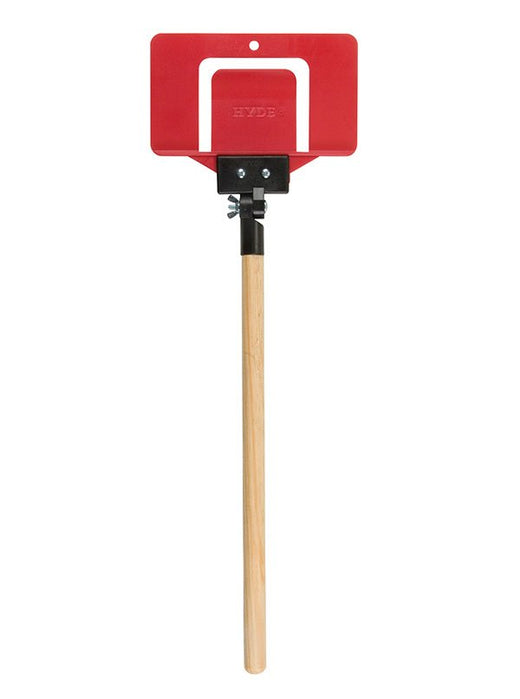

Custom sheet shield: 28100

Model 28100 is the correct catalog node when a standard straight blade cannot address a profile and a cuttable, sacrificial shape can. Hyde’s source material supports a high-impact polystyrene clip, an included 18-inch Acme-threaded handle, and use with cardboard or other customer-supplied sheet good cut to custom sizes and shapes. The cardboard itself is not supplied by this catalog record.

Make a pattern around the feature rather than trying to carve it while standing at the spray position. Use sheet stock suitable for the coating exposure and job duration. Replace it as soon as it softens, warps, tears, sheds fibers, or loses a clean edge. Do not treat cardboard as a structural guard, a flame barrier, an electrical insulator, or durable containment.

Prepare the substrate before positioning a shield

Correct the conditions that would defeat the line. Clean and dry the surface by the coating manufacturer’s method. Remove only unsound material within the approved preparation system. Repair rot, open joints, failed sealant, loose mortar, and water entry through the responsible trade. Preserve intentional drainage, ventilation, and movement joints.

A movable shield cannot compensate for:

dirt or chalk that prevents coating adhesion;

a caulk joint shaped so spray collects as a heavy ridge;

an open crack that accepts coating behind the trim;

loose brick or stone that moves under tool pressure;

siding that is warped beyond the selected blade’s contact range;

damp porous masonry that will later discolor or release the coating.

Protect the fixed field now. Mask the window or door unit, not merely its trim edge. Cover nearby masonry where rebound can settle. Provide roof and plant protection that will not trap dangerous heat or moisture. Secure coverings against wind without damaging the substrate. Keep drainage paths functional and ensure runoff or wash water cannot enter storm systems contrary to site rules.

Build a control sample at ground level

Before committing to an elevation, reproduce the boundary behavior on a safe, accessible section or a representative mock-up. Use the actual coating system, approved airless setup, intended shield, and planned crew arrangement.

The operator establishes the coating manufacturer’s tip and pressure requirements. Begin only within the approved setup and use the lowest pressure that produces the required pattern under those instructions. Inspect for tails, poor atomization, bounce, and leakage rather than raising pressure by reflex.

Seat the shield with its protected face covering the surface that must remain clean. Angle the blade so the spray-facing side tends to direct material back toward the work and away from the protected field. Adjust the tool at a safe position and confirm the joint holds; do not invent a tightening or disassembly procedure.

Make one representative pass. Lift the blade straight away.

the paint line at normal and raking light;

mortar joints, siding laps, and low spots for leakage;

the blade edge for a wet bead;

the protected field beyond the immediate line for fog or rebound;

the coating film for a dry edge, heavy ridge, sag, or starvation.

Change one variable at a time. If the blade cannot seat, select another blade behavior or fixed-mask the condition. If the plume escapes containment, stop spraying; a different shield length will not solve an airflow failure.

Stage the elevation and crew

Arrange hose, access, and tool movement so neither worker must cross the live spray path. Keep the shield holder out of the gun operator’s fan and preserve direct communication. Agree on simple commands: seat, ready, stop, lift, move, and clear. “Stop” must mean trigger released and the system made safe enough for the condition before anyone reaches across it.

For one-person work, the operator must be able to hold the shield, control the gun, see the complete edge, manage the hose, and maintain stable access without overreach. Many exterior conditions fail that test. Use two people, fixed masking, a different applicator, or a properly selected access method instead of improvising.

Never place a body part in front of an airless tip. Injection injury can look minor and is a medical emergency. Follow the sprayer manufacturer’s trigger-lock, pressure-relief, grounding, hose-inspection, filter, flushing, and service procedures exactly. Maintain the coating’s PPE, ventilation, ignition, fire, and respiratory controls. Shut down and isolate the system before clearing a tip, touching a suspected leak, servicing equipment, or resolving a crew conflict.

Ladders, lifts, and scaffolds are separate systems with their own instructions and site rules. A larger shield does not extend safe reach. Reposition access rather than leaning out to finish the last foot.

Spray straight siding and planar masonry runs

On a prepared straight run, dry-seat the blade before the gun enters position. The holder confirms full contact and calls ready. The gun operator approaches the boundary with the fan orientation proven in the sample. Keep the fan on the paint side; the shield is a final interception edge, not the target.

Spray only the span that is securely covered. Release the trigger before the blade end or placement joint. Allow the plume to clear. The holder lifts the blade away without wiping the wet edge across the protected surface.

Inspect and clean as necessary. Move the shield with deliberate overlap so the next seat covers the previous stopping point. On a long straight wall, use a repeatable leapfrog:

seat and confirm;

spray the protected span;

stop and allow the fan to clear;

lift without dragging;

wipe the working edge before a bead can print;

overlap and re-seat;

inspect the joint before continuing.

Do not stretch a move to preserve a wet edge. Coordinate section size with the coating’s open time and the crew’s honest placement rate.

Work brick and stone as a relief map

Masonry edges must be read joint by joint. A flexible blade can conform across modest relief, but an open mortar recess is still an opening. Hold a dry shield in place and look from the spray side. If daylight or a shadow channel reaches the protected field, spray can too.

Break the run at changes in plane. Use the 24-inch flexible tool where short indexing improves contact. Where a sound, cuttable pattern can bridge the condition, prepare a custom 28100 sheet with a clean working edge. For very rough stone, fixed masking or brush work may be the only defensible method.

Porous masonry can retain a nearly invisible mist that becomes obvious after drying or rain. Inspect more than the first inch beside the trim. Do not scrub a contamination with an improvised solvent. Contain the event, consult the coating and substrate instructions, test the approved correction, and document it.

At a projecting sill or stone cap, protect horizontal faces from fallout. At a recessed casing, watch for the plume circulating behind the blade. At quoins or alternating stone faces, treat each plane as a new seat rather than rotating a loaded blade through the corner.

Turn corners, laps, and terminations

Corners concentrate error because the protected surface changes direction while the fan still has width. Stop before the corner. Release and secure the gun. Clean the blade edge. Re-stage access and protection for the next plane. Start the new face from a controlled overlap into the completed work.

At lap siding, avoid forcing a stiff blade into each reveal. Either use a flexible edge that can accommodate the modest pattern, use a shorter shield and index carefully, or fixed-mask the boundary. Pressing hard enough to deform siding or open a lap is not shielding.

At the bottom of a casing, control runoff and accumulated coating. At the top, protect flashing and preserve drainage. Never seal or fill an intentional water-management path merely to simplify the paint line.

Terminate at a planned architectural break.

Control the loaded edge

The first placement often looks perfect because the tool is clean. The third can fail because the spray-facing edge now carries liquid. Establish a wipe interval from the sample and shorten it whenever:

the coating builds visibly on the edge;

wind pushes material toward the protected face;

the tool is turned or carried between planes;

the next surface is textured or porous;

a longer blade collects more material than the holder can monitor.

Use clean material compatible with the coating and dispose of it under site rules. Keep wiping waste from blowing away. Do not dip the whole assembly in solvent or assume a plastic component tolerates a cleaner.

Aluminum choices do not remove electrical hazards. Treat metal shields, wet surfaces, conductive poles, and airless equipment conservatively around power.

Inspect before moving containment

Inspect each elevation while protection is still in place and correction remains controlled. Use normal viewing distance and raking light. Examine the exact line, the protected field, joints, laps, glazing edges, roof surfaces, paving, plants, and downwind areas.

A useful closeout distinguishes three failures:

line leakage: material crossed at the shield contact edge;

edge printing: the loaded blade touched the protected surface;

containment escape: airborne material traveled around the shield or beyond the work zone.

Each has a different correction. More pressure on the blade may worsen all three. Record weather, section, coating state, and the selected response. Follow the coating and substrate makers for repair timing; do not wipe cured overspray by guesswork.

Remove fixed protection only within the coating’s safe handling and cure conditions. Restore windows, vents, drainage, fixtures, and access through the responsible parties. Clean and dry the shield without loading or bending its working edge.

What goes wrong (and the fix)

Paint appears only in the mortar joints. The blade bridged the recess. Change to a shorter or more conforming placement, use a custom sheet where sound, or fixed-mask/brush the condition.

The masonry is clean at the line but dusty with color farther away. The shield did its narrow job; containment failed. Stop, secure the sprayer, enlarge or correct field protection, and reassess wind.

Both ends of a flexible blade leak. Excess bow is lifting the tips. Reduce pressure, shorten the span, and prove the seat dry.

A stiff shield chatters on lap siding. It is bridging repeated ledges or the holder is moving during the pass. Use a flexible or shorter tool, or change to fixed masking.

A sharp stripe prints onto brick or stone. The working edge was wet when re-seated. Stop, use the substrate-approved correction, and wipe before every risky move.

The custom cardboard edge becomes fuzzy. The sheet is wet, soft, or abraded. Replace it; do not keep spraying through a deteriorated line.

The 48-inch tool saves placements but the holder loses control in wind. The tool is too long for the conditions. Drop to a shorter model or postpone.

Coating wraps around a corner. The plume remained active beyond the protected span. Trigger off earlier and re-stage each plane.

The trim line is clean but the film sags beside it. Gun dwell, fan overlap, or coating setup is wrong. Correct the spray process under the coating and equipment instructions; the shield cannot repair film build.

A worker reaches across the gun to wipe the edge. Stop and make the system safe.

The history footnote

Exterior painters have long used rigid and improvised straightedges to separate one finish from another, but portable spraying changed the boundary problem: the edge tool now had to intercept a fan while the rest of the site controlled drifting atomized material. It does not establish a date, inventor, or origin narrative for these particular models, so none is invented here.
