How to Slit and Trim Dense Stock at a Cutting Station

Job: make repeatable edge-start slits, straight trims, and cut-to-line passes in dense flexible stock at a stable cutting station, using an 18-gauge bevel-point extension blade that resists being flexed off the line.

Time: establish the station and approve a sample before production; the duration of each cut depends on the stock, cut length, fixture, edge condition, and required finish. Hyde's evidence does not establish a feed rate, stroke rate, production capacity, or maximum material thickness, so this guide supplies none.

Difficulty: intermediate production knife work. The edge movement is simple; the consequential work is selecting a documented blade pattern, supporting resistant stock, keeping every body part outside the projected path, and stopping when force or heat says the process is wrong.

All four are cataloged for 5/16" and 3/8" mill blades; choose handle length for the hand and working clearance, not as a substitute for blade selection.

Everything else: the site's approved stable bench, bed, cutting board, guide, clamp, or fixture; the job traveler or process specification; a marked sample of the actual stock; a gauge or template for checking the finished part; an approved rack, sheath, or protected blade container; edge-maintenance equipment; waste collection; and PPE selected by the employer's hazard assessment. This guide cannot supply an unknown host's fixture, guard, blade-retention method, or safe operating envelope.

Before the first cut: resolve the station, stock, and pattern

Decide whether this is hand work or machine work

The Hyde 57xxx products are extension blades: blade-only components that the authored line pairs with flat-sided wood handles at a cutting station. This guide therefore assumes an operator is holding a compatible handle and moving the edge through stable stock on a bench or fixture.

Stop if the proposed host is a powered slitter, reciprocating cutter, conveyor-fed knife, pneumatic fixture, robot, or any other energized equipment. A matching blade dimension does not prove machine compatibility. Installation orientation, fastening, torque, guards, permitted material, speed, and capacity then belong to the host manufacturer's documentation and the employer's validated process. OSHA's machine-guarding rule, 29 CFR 1910.212, requires guarding against point-of-operation, nip-point, rotating-part, chip, and spark hazards. Servicing, setup, clearing, or blade changes that expose a worker to unexpected startup or stored energy belong under the site's machine-specific energy-control procedure; 29 CFR 1910.147 is the controlling federal standard. A stop button is not isolation.

Confirm that “dense stock” is an observed cutting condition, not a marketing category

Here, dense means flexible stock that pushes back hard enough to bend a lighter station blade away from the intended line under a controlled cut. Because bending stiffness rises sharply with thickness, the 18-gauge blade is calculated to be roughly 2.7 times stiffer. It holds its direction under pressure where the lighter blade is selected to flex and follow conformable stock.

That distinction does not establish a universal density number, Shore hardness, sheet thickness, ply count, or material list. Heavier leather, dense textile, firm rubber, and converting stock are authored trade-role examples from the line; they are not Hyde-issued material approvals for every compound or construction. Approve the actual stock at the station. If it contains hidden wire, steel cord, glass, hard mineral filler, staples, abrasive grit, energized conductors, biological contamination, or an unknown laminate, do not explore it with a knife.

Choose between 57090 and 57170 honestly

Both registered blades are high-carbon bevel-point extension blades with the same listed dimensions: 4-3/4" × 3/8" × .049", or 18 gauge. The evidence records one difference:

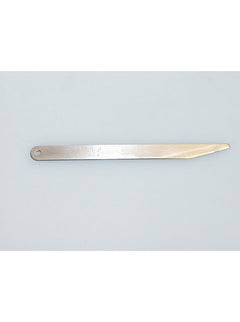

Choose 57090 when the station calls for the standard #2 designation and no controlled legacy pattern overrides it.

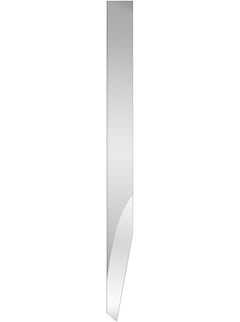

Choose 57170 when the plant specification, OEM record, bill of materials, approved tooling list, or last verified reorder says BG349.

That is the full supported decision.

Match the handle to the operator and confirm the fit

The line's four flat-sided hardwood handles accept 5/16" and 3/8" mill blades, so each accepts the registered 3/8" blades. Their supported selection axis is length:

57630, 4-1/2": shortest; close work, smaller hands, or limited clearance.

57660 or 57680, 4-3/4": middle length.

57620, 5-1/4": longest; fuller grip and more leverage where the layout leaves room.

The catalog does not state how these wood handles retain the blade. If neither exists, the station is not ready to run. Do not improvise wedges, adhesive, tape, drilled holes, or an unverified fastener.

Inspect the blade, handle, and work support

Use a new or properly maintained edge with a continuous bevel and point. Quarantine a blade that is cracked, kinked, deeply corroded, chipped, bent, heat-discolored, or ground into a visibly uneven profile. A dull edge is not merely slower: it asks the operator for more force, enlarges the follow-through, and makes dense stock more likely to close on the blade.

The handle must be dry, sound, and free of splits, looseness, contamination, and makeshift repair. Once installed by the approved method, the blade must not creep, rock, rotate, or pull free under the station's non-cutting verification. Keep the exposed length no greater than the validated cut requires.

Support the stock over a sacrificial surface or in a fixture that keeps it flat without putting a hand near the line. Clamp or guide from the keep side. See the entry, travel, breakthrough, and exit of the full cut before starting. No one holds the offcut in the projected path, braces stock against a thigh, or reaches downstream to catch the piece.

Set PPE from the actual hazard assessment

There is no universal glove rating for this job. OSHA 29 CFR 1910.132 requires the employer to assess workplace hazards, select protective equipment, ensure fit, and train workers; 29 CFR 1910.138 requires hand protection to be selected for the task, conditions, duration, and identified hazards. Use the site's specified cut protection, eye protection, sleeves, apron, footwear, and any chemical protection required by the stock's safety data. PPE can reduce the consequence of contact. It cannot make an off hand in the blade path acceptable.

Loose gloves or clothing can add an entanglement hazard around powered equipment, which is another reason this manual guide does not cross into energized machine operation. Chemical resistance, food-contact suitability, non-sparking performance, electrical insulation, and heat protection are all unverified for these carbon-steel blades and wood handles.

Set up one approved sample before production

Read the drawing and define the cut

Mark the keep side, scrap side, starting edge, ending edge, and any no-cut layer below. A bevel point is a working corner followed by a straight edge: it suits an edge start, a short starter incision at an accessible boundary, and a straight slit or trim. It is not the line's dedicated plunge-start geometry. If the cut begins in the middle of an intact sheet, stop and evaluate the lance-point station workflow instead of forcing a bevel point to do an undocumented interior entry.

Likewise, this is not the contour station. A broad radius that the work and fixture guide may be possible under a validated process, but a tight or swept pattern line belongs to the curve-point workflow. Choosing the 18-gauge blade for stiffness does not erase point geometry.

Set an actual guide or stop where repeatability requires one. A pencil line alone is a visual target, not a fixture. Place the clamp so the cut cannot run into it. Arrange scrap clearance so the offcut can fall, relax, or curl without pulling the blade or striking the operator.

Make the approval cut with progressive strokes

Stand balanced, with the work below shoulder height and the wrist near neutral. Grip the handle fully; keep fingers behind the blade seat and keep the other hand on the keep side, outside the entire projected path and follow-through. Start at the prepared edge. Let the bevel point enter under control, then bring the straight working edge onto the line.

Draw the blade through a short, deliberate section. For stock too resistant to sever cleanly in one controlled pass, deepen the same line with progressive passes rather than adding body weight, chopping, sawing wildly, or driving the point. Each pass should re-enter the established kerf and leave the keep edge supported. The 18-gauge blade's job is to resist sideways deflection; it is not permission to use unlimited force.

Keep the stroke aligned with the blade. Do not twist the handle to steer once the edge is buried. Do not pry the kerf open with the blade, strike the spine, or use the point as an awl. If the stock closes and pinches, stop the stroke, stabilize or support the material so the cut can remain open, and withdraw without side-loading the blade. A fixture correction is cheaper than a broken blade or split handle.

Shorten the final stroke as the remaining fibers thin. Dense stock may release suddenly at breakthrough; the body should already be positioned so that release sends the edge into empty space or the sacrificial bed, never into a hand, leg, bench edge, cord, hose, or finished part.

Inspect the sample before declaring a process

Check the sample against the drawing or gauge. Look at:

line position from entry to exit;

squareness or specified bevel of the cut through the stock thickness;

edge tearing, fuzz, compression, burnishing, or melt;

distortion beside the line;

damage to the keep-side surface or layer below;

point snag at entry and breakout damage at exit;

evidence of blade flex, chatter, or a changing stroke angle;

blade movement in the handle, edge damage, or unusual heat.

Record the blade model and pattern exactly: 57090 / #2 or 57170 / BG349. Record the approved handle model, exposure setting by the site's repeatable method, fixture, stock identity and lot, quality result, and rejection criteria. Do not add a speed or capacity copied from another knife, remembered from another material, or estimated from one successful sample. The guide has no evidence for those numbers.

If the cut requires excessive effort even with a keen 18-gauge blade and sound support, do not celebrate that the blade survived. Reopen the process decision: reduce the cut depth per pass, improve the fixture, select a material-appropriate shear or powered cutter, or ask engineering to qualify a different process.

Run the station

Keep the approved conditions visible

At the start of a run, compare the model key on the box or blade record with the traveler. “Looks like the same bevel point” is not a pattern check. Confirm the same handle, verified retention, blade projection, guide position, stock identity, and support used for the approved sample. Clear previous scrap and remove unrelated knives from the work area so the operator cannot pick up a near neighbor by habit.

Run the first production piece as another controlled sample. Check it before a stack of parts can repeat an error. Where the process has established inspection intervals, follow them; this guide does not invent a universal interval. A new stock lot, laminate construction, coating, moisture condition, or adhesive state can change cutting resistance enough to require a fresh approval.

Use a repeatable cut cycle

For each piece:

Place the stock against the validated stop or guide with the keep side identified.

Secure it without hands in the projected cut path.

Confirm the exit area is empty and the offcut has somewhere controlled to move.

Enter from the approved edge with the bevel point and settle the straight edge into the line.

Draw with the approved progressive-pass technique, using edge sharpness and support rather than momentum.

Control breakthrough with a shortened stroke.

Put the tool in its rack or protected position before moving the part or clearing scrap.

Check the cut to the station's inspection requirement and separate nonconforming work.

Never walk with the exposed blade, set it loose beneath stock, leave it buried in a cut, or pass it handle-first while the recipient reaches through the edge path. The station needs a positive storage answer; the evidence packet does not verify a sheath for these assembled blade-and-handle combinations.

Watch the process signals, not an invented throughput target

Good dense-stock cutting feels consistent: the edge enters where aimed, the blade holds the line, the stock stays supported, and the finish repeats without the operator escalating force. Stop for a new metallic click, hard inclusion, chemical odor, smoke, heat, blade chatter, changing resistance, handle movement, material shift, damaged fixture, numbness, loss of footing, or any person entering the downstream path.

Friction heat and abrasion are different selection signals from density. If a carbon blade repeatedly comes back rounded or heat-affected during an otherwise controlled high-rate process, the next decision is the line's HSS workflow—not permission to run faster, press harder, or guess a cooling method. The HSS 57200 is documented by the line as the same #2 size and gauge in a different steel, but it is outside this guide's registered link set and must be qualified for the process separately.

End the run and maintain the edge

Rack the tool before handling finished parts. Count and clear offcuts; inspect the sacrificial bed, guide, and fixture. Clean residue by a method compatible with the stock and process, moving tools or wipes away from the edge rather than drawing along it. High-carbon steel should be left clean and dry.

Hone or sharpen only at the designated maintenance station. Preserve the established bevel rather than creating a new geometry by eye. After maintenance, remove the burr, inspect for cracks or overheating, reinstall by the verified handle method, and repeat the sample approval.

Replace a spent or damaged blade rather than extending it beyond a verified secure seat. Protect used edges in the site's rigid collection method. Do not toss a bare blade into ordinary scrap or leave it where a sorter, cleaner, or maintenance worker will find it by hand.

What goes wrong — and the corrective decision

The cut wanders even though the mark is straight. First check stock support, guide alignment, blade sharpness, handle security, projection, and whether the stroke is side-loading the blade. If a lighter 20-gauge blade was installed, the 18-gauge 57090 is the documented dense-stock choice. If a correctly set, keen 18-gauge blade still bends away, the job exceeds this guide's established selection; improve the fixture or qualify another process rather than forcing it.

The edge tears, fuzzes, or compresses instead of severing. The blade may be dull, the keep side may be unsupported, the bite may be too deep, or the blade/material pairing may be wrong. Restore the edge, support closer to the line, and try progressive passes on a new sample. Do not increase force until the defect disappears.

The blade binds in the cut. Dense flexible stock is closing behind the edge. Stop, keep the tool aligned, and relieve or support the stock so the kerf stays open. Twisting the handle turns a cutting blade into a pry bar and concentrates load at the seat.

The point snags or leaves a torn entry. The entry is unsupported, too steep, or being punched rather than drawn. Support the edge, reduce the initial bite, and let the bevel point transition onto its straight edge. If the process truly requires a plunge away from an edge, hand it to the lance-point workflow.

The cut bows through the thickness. One-sided pressure, an overlong exposed blade, a dull edge, or inadequate support is steering the lower part of the cut. Re-establish the validated exposure and fixture, use lighter repeated passes, and check the sample in section.

The blade grows hot or the edge rounds unusually fast. Stop and classify the failure. A hot or abrasive stock can defeat ordinary carbon steel even when it is dense enough for 18 gauge. Do not invent a faster or slower operating number here; evaluate the HSS station guide and process controls.

The blade creeps or rocks in the handle. End the run immediately and quarantine the assembly. The retention method or handle is not secure.

Operators prefer different 4-3/4" handles for reasons nobody can state. Preserve the approved station code, but do not turn preference into product fact. The 57660 and 57680 have the same documented length, fit, and flat-sided class; their pattern-code difference remains unresolved.

Purchasing substituted 57090 for BG349, or the reverse. Hold the affected stock and restore the exact pattern on the traveler. The guide cannot claim the blades cut differently, but it also cannot authorize a deviation from a controlled specification. Engineering or the process owner owns equivalency.

The cut is repeatable only with fatigue-level force. This is a process-design failure, not an operator toughness test. Improve support and leverage within the validated system, shorten the pass, or move the job to a qualified shear or powered system. A fixed blade surviving the work does not prove the work is acceptably designed.

Refusals and handoffs

This guide refuses:

powered-equipment installation or operation without the exact host manual, confirmed blade compatibility, guards, and energy-control procedure;

any invented speed, strokes-per-minute target, feed rate, maximum thickness, pressure, capacity, service life, or change interval;

any unsupported physical or performance discrimination between 57090 #2 and 57170 BG349;

interior plunge starts, tight contour cutting, metal reinforcement, energized work, pressurized stock, suspended or hand-held work, and cuts whose exit cannot be seen;

improvised blade retention, prying, hammering, chopping, or deliberate side-loading;

unverified chemical, food-contact, sanitary, non-sparking, electrical, or high-temperature suitability.

The correct handoffs are specific: light conformable stock to the 20-gauge bevel-point workflow; interior starts to the lance-point workflow; swept contours to the curve-point workflow; repeated heat/abrasion failure to the HSS workflow; powered or high-volume cutting to machine engineering and the host documentation; unknown or reinforced material to EHS, quality, and the process owner.

The history footnote — why the pattern number matters as much as the blade

Hyde's official history places the company in Southbridge, Massachusetts, in the 1870s, initially making knives for New England leather and shoe factories.

The extension-blade system preserves the purchasing logic of those factories. The handle is station equipment; the edge is the consumable. A plant standardizes a pattern, keeps the handle, hones and advances the blade, and orders the same code again when the edge is spent. That is why “#2” and “BG349” remain commercially meaningful even when the present catalog gives both blades the same outside dimensions. A pattern number is a continuity promise to the buyer who already has it on a process sheet. This guide respects that history by refusing both romantic invention and casual substitution.

Supported product facts are limited to the blades' names, designations, shared listed dimensions, 18-gauge/high-carbon classification, bevel-point extension-blade role, and the compatible handle family's listed blade widths and lengths.

57090 and 57170 have identical listed dimensions; the physical content of #2 versus BG349 is unresolved. The guide discriminates only by the plant's specified pattern.

No source establishes model-specific material limits, production speed, capacity, maximum thickness, expected edge life, or a named station operation. Dense-stock examples and technique are authored at trade-role altitude.

The flat-sided wood handles' blade-retention mechanism is not documented. This guide names fit and selection but withholds mounting mechanics.

Pattern codes 1R, 2SR, 12LR, and 2L are unexplained; 57660 versus 57680 remains functionally undiscriminated.

Extension-as-stiffness tuning and flat faces as a tactile orientation aid are authored mechanics, not Hyde claims.

Hyde-controlled sources use both 1870 and 1875 frames; “early-to-mid 1870s” preserves the conflict.

The registered blade union is fully represented; the four handle backlinks are added because a blade-only SKU cannot perform this manual station job by itself.
