How to Production-Roll Big Walls with an 18-Inch System

Loading, rolling, crew rhythm, wet-edge control, and surface-reading are authored trade knowledge.

The decision before the purchase: does the wall earn eighteen inches?

An 18" roller does one thing brilliantly: it replaces two 9" field passes with one broad pass. That advantage survives only on a surface where the cover can keep moving. A gym wall, warehouse demising wall, retail shell, long corridor field, stairwell drop, open great-room wall, or broad ceiling can earn the system. A bedroom interrupted by windows, outlets, doors, radiators, and furniture usually cannot. Width that spends its day turning, stopping, and failing to fit is not production width; it is dead weight full of paint.

Run these four tests in order.

Three decisive buyer calls

Those calls are intentionally not “good, better, best.” They are different surfaces. The buyer who cannot name the surface cannot choose the cover yet.

The eight product nodes — required, conditional, and refused roles

Re-derived at job grain, the eight nodes resolve as follows:

Honest omissions from the union

The system still needs an extension pole, cut-in tools, protection, paint, and cleaning equipment.

What to have on the floor before paint is opened

The coating system: enough of one approved paint system for the field · primer where the coating manufacturer requires it · clean mixing pail(s) if multiple cans will be boxed · strainers if the coating or job specification calls for them.

The room system: floor and fixture protection · tape and masking appropriate to the surface · cut-in brush and pail · clean rags · work light · stable, rated access equipment wherever the pole cannot keep the worker safely on the floor.

The cleanup system: the coating maker's specified water or solvent cleanup supplies · a place to unload the cover without contaminating finished work · waste containers appropriate to the coating. None of 92076, 92077, or 92081 may be represented as its liner.

For multi-can work, box the paint before the first field pass so a small tint difference does not become a full-height stripe.

Before rolling: make the wall ready for production speed

Production width magnifies preparation quality. A 9" roller lets a painter unconsciously steer around a raised repair, dusty strip, or unprimed patch. An 18" roller bridges it and prints the defect across a wider film.

Finish the substrate first. Repairs must be dry, flat to the finish standard, sanded, dust-free, and spot-primed where the coating system requires it. Production rolling is not a prep method.

Clean the field. Remove sanding dust, oils, chalk, and loose contamination by the method appropriate to the substrate and coating. A loaded cover drags contamination farther than a brush does.

Establish the light. Put raking light on the wall now, not after the second coat. It shows texture class, repair halos, and lap risk. Use the same light direction during final lay-off inspection.

Protect the room for wide work. The cover is wider, holds more paint, and swings on a pole. Move obstacles out of the frame's turning radius; protect the floor beyond the nominal wall line; mask fixtures the pole could strike.

Cut in only as far as the roller can catch wet. A dried brush band beside a fresh roller field flashes in sheen. On large work, the cutter stays one rolling bay ahead, not one entire wall ahead. The 47420's slim arms are documented to bring the cover to roughly a half inch of an adjacent wall, but “close” is not “touching”: keep the roller out of the corner and use the cut-in as the wet bridge.

Choose access honestly. A pole eliminates many ladder trips; it does not make every height reachable. If the roller cannot stay square to the wall from the floor, move to rated staging, scaffold, or lift. Do not climb while carrying a loaded 18" pole assembly, and do not solve a reach problem by leaning sideways from a ladder.

For an exterior field, add the coating label's temperature, dew, rain, and direct-sun limits.

Dry setup: assemble the rig before it is slippery

Inspect the frame. Check both Flexi arms, attachment points, angle adjustment, and pole thread.

Set the work angle dry. Hyde's official video specifies 0° for walls and 30° for ceilings and floors. This guide uses 0° for the wall sequence. The ceiling branch below uses 30°. Floor use routes to the separate floor-coating job.

Mount the selected 18" cover. Capture both ends according to the frame instructions and turn the cover by hand. It should rotate freely, stay centered, and present its face square to the pole.

Thread the pole fully into the documented Acme connection. Confirm the connection is tight before loading. If the pole head, adaptor, or thread rocks, the frame cannot lay even pressure, regardless of its dual-arm geometry.

Walk one dry lane. Put the cover against the unpainted wall and rehearse bottom, top, and corner clearances. Find light fixtures, sprinkler heads, soffits, or conduit before the cover is wet.

Put the loading station at the start of the work, on protected level ground. A charged 4 L tray is floor equipment, not something to perch or carry one-handed. Orient it so the roller approaches square to the full-width ramp.

Loading the 18" cover evenly

Begin with enough coating to charge the well while keeping the ramp dry.

Pour into the deep end. Stop before paint climbs the ramp.

Touch the lower face of the cover into the well; do not drown the cylinder or flood the core.

Roll the cover up the ribs and back three or four conditioning passes, using light pressure. Shift nothing sideways. The ramp must meter the entire 18" face.

Repeat dip-and-condition until the whole circumference looks evenly wet. On the first load, the dry nap takes more cycles than it will later.

Lift and pause over the tray. A conditioned cover is full but not streaming from one end. A dry stripe across the face predicts a dry stripe on the wall; a drooling end predicts a flooded pass. Fix the load in the tray, not on the wall.

The bucket-and-grid route follows the same physical test: full-face saturation, excess metered back into the reservoir, no one-sided load. Use it when daily volume makes a 4 L tray a refill bottleneck. Use the tray when batch control, color changes, or a bounded wall make its open access more useful than bucket capacity.

The wall sequence: distribute, then finish

An 18" cover rewards a simpler stroke, not a more violent one. The cover carries more paint and spans more wall; pressure is the mistake that turns both advantages into runs, spatter, and edge beads.

Start at a planned edge

Choose a corner, control joint, doorway, or other natural stop. Make sure the cut-in beside it is wet. Land the first loaded stroke roughly one cover width away from that edge rather than dumping the entire charge into the corner.

Distribute the load

Move the cover through a shallow M or lazy W across one working bay, without trying to finish the surface on the first movement. The purpose is to place paint over the bay before any one strip is overworked. Keep the frame square; the 47420's documented even-pressure architecture can only help if both cover ends meet the wall together.

Fill the bay

Cross the open spaces with long strokes. Use the weight of the wet cover and the pole as steering, not as a lever for pushing. If the roller begins to hiss, skip, or require pressure, it is empty: reload. Pressing a dry cover squeezes its last paint into edge beads and changes the stipple.

Lay off in one direction

Finish the bay with light, continuous parallel passes, overlapping into the previous pass and ending in the same direction. On a full-height wall, lay off floor-to-ceiling or ceiling-to-floor according to access and crew method; do not alternate directions within the same visible field. The finish pass aligns the roller texture and removes the map of the distribution stroke.

Join wet to wet

The next load starts in uncoated wall and finishes back into the live edge of the prior bay. Do not repeatedly roll the prior bay after it begins to tack. A lap mark is often not too little rolling but one late pass too many.

Read the wall from the side

After each bay, step sideways and inspect under raking light. Look for dry valleys, end stripes, fat edges, and different stipple. Correct them while the film is open. If the same defect repeats, stop and correct the system:

dry valleys across a textured surface → nap too short;

heavy texture on a smooth wall → nap too long or pressure too high;

one dry end → uneven tray loading, a frame not square, or a cover not seated;

a flooded band at every reload → cover under-conditioned on the ramp;

repeated lap lines → bays too large, cut-in too far ahead, or coating flashing faster than the crew rhythm.

Do not “fix” nap mismatch with pressure. Change the cover.

Crew rhythm: the loader protects the painter's wet edge

The useful two-person division is not two people passing a heavy wet pole back and forth. One roller operator keeps control of the frame from tray to wall and develops a repeatable load feel. The second person boxes and pours paint, keeps protection and cut-in moving, watches the far end of the cover for striping, and repositions the loading station before distance becomes delay.

On a very large field, divide at real architectural breaks rather than having two rollers converge mid-wall with different stipple and timing. If two operators must share one field, agree on cover, load count, direction of final lay-off, and the exact wet-edge handoff before either starts.

The 92113's 4 L capacity reduces refill interruptions, but the reservoir should move with the work. Every long walk back to a fixed tray is time in which the edge is drying. Conversely, do not drag an open tray across finished flooring or set it on freshly coated ground. Reposition between bays, on protection, before the next load.

Ceiling branch: same width, different geometry

Open ceilings are part of the merged job, but they are not just walls turned sideways.

Use Hyde's documented 30° setting so the cover face can remain flat overhead while the pole reaches the worker at a controllable angle.

Load more conservatively than on a wall. A streaming 18" cover overhead is not a productivity tool.

Work away from the principal light source where the room geometry permits, keeping the final lay-off direction consistent so raking daylight reads one stipple.

Stand offset from the cover rather than directly beneath its path, and stop if the pole angle forces the frame onto one edge.

Rough-exterior branch: where 47369 is the only honest union member

Load generously but roll lightly. Follow board direction, end a wet section at a batten, butt joint, or other natural break, and keep the edge moving out of direct sun.

On penetrating or semi-transparent stains, the roller is the delivery tool. A brush behind it works coating into raised grain, checks, joints, and end grain the broad cover can bridge. That back-brush step is not evidence that the roller failed; it is the roller-and-brush system doing two different jobs. If posts, windows, trellises, and hardware repeatedly interrupt the run, step down to the 9" 47365-class sibling described in the 47369 guide. The 18" is no longer earning its weight.

The 47369 is not an interior “high-capacity upgrade.” On smooth drywall its 3/4" nap creates texture, spatter, and heavy pass edges. That refusal is part of the buying advice.

Stopping, second coats, and cleanup

Stop at a natural break. A corner, control joint, doorway, or complete wall is a stop. The middle of an open field is not. If the crew must stop unexpectedly, feather the live edge while the coating is still open rather than leaving a heavy vertical bank.

Respect the coating's recoat time. Production speed changes application time, not cure chemistry. Do not start the second coat because the first is merely dry to the touch; follow the coating label's recoat interval and environmental limits.

Remove the cover over the cleanup vessel. Hyde documents clean-hands removal on the 47420.

Clean by coating, not by habit. Waterborne coating gets prompt water cleanup; any other coating follows its maker's solvent and disposal instructions. Microfiber holds paint deep and takes longer to rinse.

Until it is resolved, wash the tray promptly rather than improvising a near-fit liner that can shift and spill coating between liner and tray.

What goes wrong — diagnosis before another gallon

| Symptom | Cause | Correction |

| The wide roller is slower than a 9" | The field is too cut-up, the tray is too far away, or turning room is poor | Stop paying the width penalty; change to 9" on interrupted geometry. |

| One end paints dry | Cover loaded unevenly, frame canted, or cover not seated | Recondition across the full ramp; square the pole; inspect both arm engagements dry. |

| The wall floods after each reload | Cover dipped too deeply or not metered on the ribs | Face-dip only; add conditioning passes; lift-test over the tray. |

| Smooth wall has coarse orange peel | Nap too long, pressure too high, or paint overworked while tacking | Move to 3/8"; lighten the hand; finish each bay once and leave it. |

| Textured wall has pale valleys | Nap too short | Move from 3/8" to 1/2" for shallow texture; do not press harder. Rough exterior moves to 3/4" polyester. |

| Full-height lap bands appear | Edge died before the next bay, cut-in dried, or late re-rolling disturbed tacky paint | Reduce bay size, tighten loader/cutter rhythm, and join wet to wet. |

| Ceiling spatters heavily | Over-loaded cover, excessive pressure, or frame not flat at 30° | Reduce load, let the cover's weight work, and restore a square overhead face. |

| Rough exterior remains thin in checks | Roller bridged deep grain | Back-brush while wet; if the substrate is crater-deep rather than merely rough, the 18" 3/4" branch may be under-napped. |

The history footnote: the roller grew wider; the principle stayed put

Canadian heritage accounts credit Toronto hardware man Norman Breakey with developing a practical fabric-covered paint roller around 1940. A recollection preserved by the Turtle Mountain–Souris Plains Heritage Association describes his proposed handle as shaped like a “7,” carrying a fabric-covered cardboard cylinder, and records the suggestion to use mohair velour from railway seating (The Inventor from Pierson). “Credited with” matters: the early record contains competing and near-simultaneous designs, so this guide does not turn a good story into a lone-inventor certainty.

The tray followed because a cylinder cannot load evenly from a paint can. By the time Thomas L. Hardwick filed [U.S. 3,157,902, “Disposable paint tray liner,”]( in 1963, the patent could treat the ribbed, sloped roller tray as conventional and focus on the cleanup and color-contamination problem. That is the interesting continuity behind today's 92113 gate: the production tray is wider and its liner-compatible claim is verified, but identifying the exact liner still matters because a molded liner must match the tray it is meant to protect.

The 18" system is therefore not a different painting method. It is the circa-1940 roller idea scaled to the point where surface selection, even loading, wet-edge planning, and operator endurance become a system purchase. The wall got bigger; the physics did not.

Is an 18" roller literally twice as fast as a 9"?

On a large open field the width can sharply reduce rolling time. In a cut-up room it can be slower. Geometry test first.

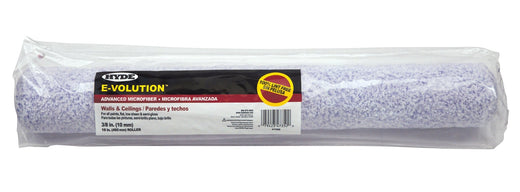

Which cover should I buy for an ordinary smooth interior wall?

What changes when the wall has orange peel?

Can I use the 47369 inside because it holds more paint?

Its 3/4" polyester nap is a rough-exterior tool. On smooth interior wall it lays excess stipple and spatter. Capacity does not overrule surface.

Do I need the 92113 tray?

You need a full-width loading system.

Can the 47420 be used by hand?

Plan on no. Hyde's official video says the 18" version has no handle and must attach to an extension pole. Nothing in the record makes hand-held work the honest operating plan.

Why is my 18" roller leaving stripes?

First inspect loading across the full face, then frame squareness and cover seating. A standard tray or one-sided dip cannot condition an 18" cover evenly. If the stripes are texture valleys rather than end bands, the nap is too short.

Is this also the floor-epoxy guide?

The 47420 has a documented floor setting, and 47336 carries Hyde's woven epoxy-class claim, but floor prep, pot life, pour staging, exit path, and back-roll specification are a separate job. This guide stops at the wall-and-open-ceiling boundary.
