How to Load and Prep a Caulk Cartridge

That union is complete and fully dispositioned below. The exact sealant or adhesive cartridge is not a Hyde product in this row: its current label, Technical Data Sheet (TDS), Safety Data Sheet (SDS), and application-system instructions control chemistry, compatible substrates, temperature, nozzle opening, inner-seal treatment, PPE, ventilation, cleanup, storage, cure, and disposal. This guide states no universal cut angle, bead opening, seal-puncture method, pressure, thrust ratio, working time, cure time, price, or availability.

Job: verify that the gun and material are actually compatible, inspect both before pressure is applied, release and retract the rod, seat the correct cartridge, open only the cartridge features its maker tells you to open, bring the plunger into contact without crushing the package, and prove a controlled start-and-stop on a disposable test surface before approaching the work.

Time: the inspection, loading, and test take only as long as the exact gun, cartridge, and material instructions require. A cold cartridge may need conditioning inside the manufacturer’s permitted temperature range; a suspect, damaged, expired, separated, or partly cured cartridge may stop the job entirely. No fixed preparation or conditioning time is transferable across chemistries.

Difficulty: low force, high consequence. The task is not “pull the trigger until something comes out.” It is a compatibility and pressure-control procedure. Most loading failures begin with one of four mistakes: the wrong package format, a damaged or unfit cartridge, an opening made before the gun is safe and ready, or pressure applied against an unopened or obstructed path.

The exact Hyde union:

| Model | Registered role in this job | Cartridge claim | Drive / release distinction | Claimed prep hardware |

| [46420 13"/32 oz.

Everything else: the exact cartridge and its current label/TDS/SDS · the application-system instructions that selected that material · a disposable test surface compatible with the waste route · compatible wipes and, only if the material maker names one, its approved cleanup product · eye, skin, ventilation, respiratory, fire, spill, and waste controls required by the current product documents and site program · a utility knife or other opening tool only when the cartridge maker authorizes it and the selected Hyde tool has no suitable claimed cutter · the cartridge maker’s specified inner-seal opener only when that package actually has an inner seal requiring field puncture · a manufacturer-approved cap, plug, or storage method if a partly used cartridge may be retained.

1.1 Read before opening

A cartridge is not just a neutral tube of “caulk.” Acrylic latex, silicone, silane-modified polymer, polyurethane, butyl, construction adhesive, firestop, glazing sealant, and specialty industrial compounds can arrive in similar-looking packages while carrying different hazards, temperature limits, nozzle systems, seals, cleanup methods, storage rules, and shelf lives.

Read, in this order:

the application-system or assembly maker’s material requirement;

the exact cartridge label and installation instructions;

the current TDS for compatibility, conditioning, application range, nozzle preparation, working behavior, and storage;

the current SDS for hazards, exposure controls, PPE, ventilation, first aid, spill response, incompatibilities, fire control, storage, and disposal;

the gun’s exact compatibility and operating instructions;

the employer’s hazard-communication, respiratory-protection, waste, and emergency programs where the work is occupational.

OSHA’s Hazard Communication Standard requires manufacturers and importers to communicate hazardous-chemical information through labels and SDSs and requires workplace access and training; the SDS uses a standardized 16-section format (OSHA — Hazard Communication, 29 CFR 1910.1200). That does not make every cartridge equally hazardous. It establishes why the exact current document for the exact material outranks a generic loading page.

1.2 Do not infer chemistry from aisle language

“Kitchen and bath,” “paintable,” “hybrid,” “elastomeric,” “professional,” “low odor,” and “construction” are use or marketing descriptions, not complete chemical identities. Do not assign a cleaner, glove, respirator, ventilation plan, storage temperature, or waste route from those words.

Likewise, an acetoxy-cure silicone, neutral-cure silicone, acrylic latex, or solvent-bearing adhesive may demand a different control set. Chemistry is admitted by documents, not guessed from smell.

1.3 Stop if the documents cannot be reconciled

Do not open the cartridge when:

the product identity, lot/date code, label, or instructions are unreadable;

the SDS required by the workplace cannot be obtained;

the substrate/system instructions reject the material;

the label and gun instructions disagree about package or opening method;

the application requires a specific dispensing ratio, powered applicator, closed barrel, follow plate, mixer, or other system this one-component cartridge workflow does not provide;

the cartridge is outside its maker’s storage or application condition and cannot be restored within the permitted range;

the product is expired or date fitness cannot be established where the maker imposes a shelf life.

Compatibility first: cartridge, sausage, bulk, and two-component packages are not synonyms

2.1 Identify the package before choosing the gun

This row covers rigid cartridges with an integral plunger end and nozzle end that the exact gun is claimed to accept. It does not turn any Hyde gun into a universal dispenser.

9"/10 oz. standard cartridge class: the registered gun set is 46310, 46400, 46410, 46435, 46482, and 46484. The 46435, 46482, and 46484 are expressly claimed for all 9" cartridges; the Homeowner and 9" StopDrip identities establish the standard class at their product-guide grain.

13"/32 oz. cartridge class: the 46420 alone is expressly claimed for all 13" cartridges.

Foil sausage / chub: a collapsible foil pack belongs in a sealed-barrel sausage gun with the maker-specified plunger, cap, and nozzle. None of the eight registered products is claimed for that package. Do not slit a sausage and lay it in an open cartridge cradle.

Bulk-loaded material: requires a bulk gun and loading method designed to exclude air and contain the compound. It is outside this row.

Dual/two-component cartridge: requires the ratio-specific applicator and, where specified, a static mixer. A single-piston caulk gun cannot preserve a two-component ratio merely because the package fits between its frame ends.

2.2 Fit is more than length

Confirm all of the following before opening material:

package length and nominal capacity match the gun’s claim;

cartridge body seats in the cradle without wedges, adapters, bending, or end-ring interference;

the gun’s thrust plate contacts the cartridge plunger squarely;

the nozzle clears the gun’s front ring or support;

no part of the frame bears on a label seam, damaged wall, crimp, foil edge, or unsupported package feature;

the material maker permits manual cartridge dispensing and does not require a named applicator;

the material viscosity and application temperature are inside the maker’s instructions and the gun’s documented scope.

The 46435, 46482, 46484, and 46420 have claims covering caulking compounds, adhesives, and lubricants. That broad class claim does not quantify how stiff a material they can dispense. The 46400, 46410, and 46310 do not inherit the upper-tier material list merely because the package fits.

2.3 Use temperature as a material limit, not a folk remedy

Cold material commonly becomes harder to dispense, but “warm the tube” is not a universal instruction. Condition the cartridge only within the manufacturer’s stated storage and application range, using an approved environment. Do not put cartridges in hot water, on a radiator, against a heater, in an oven, or in direct flame or uncontrolled sun. Heat can alter cure, pressure, packaging, or hazard behavior. If the allowed conditioning does not restore normal dispensing, stop and diagnose the material, obstruction, and tool rather than adding force.

Inspect the gun with no cartridge and no pressure

3.1 Clean and identify the exact gun

Read the model marking. Do not identify a drive by frame color alone. With the gun empty:

keep the trigger released and point the frame into a clear area;

operate the rod release exactly as the gun’s instructions show;

retract the rod fully without forcing, bending, or striking it;

inspect the thrust plate for looseness, tilt, sharp damage, or dried material;

inspect the rod for bends, damaged teeth or flats, corrosion, and cured compound;

inspect the trigger, pawl or friction engagement, frame, nose ring, cradle, handle, fasteners, and claimed hook where present;

inspect the built-in cutter and puncture tool only on models whose claims include them;

cycle the empty mechanism through a few normal strokes, then release it.

Reject a gun with a bent rod, cracked or spread frame, loose thrust plate, damaged release, slipping or jammed drive, cutter that cannot make a controlled cut, puncture tool that is bent or insecure, or contamination that prevents square seating. Do not “prove” a suspect gun by loading chemistry and squeezing harder.

3.2 Preserve the per-model unknowns

On 46310, StopDrip overflow prevention is claimed. Cutter, puncture tool, release hardware, and the internal StopDrip linkage are not established.

Inspect and condition the unopened cartridge

4.1 Read the whole package

Before cutting anything, record or confirm:

manufacturer, exact product and variant;

lot/date code and use-by or shelf-life status where supplied;

package format and nominal capacity;

storage history if known;

permitted application temperature and substrate conditions;

whether the nozzle is integral, threaded, supplied separately, pre-cut, reversible, or fitted with another closure;

whether an inner membrane or foil exists and how the maker says to open it;

required mixer, cap, plug, primer, cleaner, or disposal method;

hazard statements and the current SDS control set.

4.2 Reject package defects before pressure finds them

Do not load a cartridge that is:

swollen, dented into the plunger path, split, punctured, leaking, crushed, delaminated, badly corroded, heat-damaged, frozen contrary to instructions, or missing its closure;

hardened at the plunger, separated beyond the maker’s acceptable condition, or carrying an immovable cured plug that the instructions do not authorize clearing;

contaminated around the nozzle threads, plunger rim, or body;

missing identity or date information needed for safe use;

incompatible with the gun or application system.

Do not test a damaged cartridge under trigger pressure. Bag, isolate, or dispose of it as its label/SDS and the site plan require.

4.3 Plan the opening before the package is open

Set the gun, approved opening tool, wipes, cap or storage closure, test surface, spill controls, and waste container within reach. Put on the exact PPE required for opening and dispensing. Establish ventilation and ignition controls before exposing material. Keep the nozzle aimed into controlled space and away from face, body, other people, finished surfaces, energized equipment, food, and drains.

Release, retract, and seat the cartridge

5.1 Make the gun mechanically safe

No material pressure should exist during loading.

release the trigger;

operate the model’s actual rod release;

draw the rod fully back;

confirm that the thrust plate has cleared the cartridge space;

keep fingers out of the thrust-plate path and trigger linkage.

Do not pull the trigger while a hand is between the thrust plate and cartridge. Do not point the rod at another person while retracting it.

5.2 Seat heel-first, then locate the nozzle end

For a compatible rigid cartridge:

place the plunger or heel end against the rear support area;

lower or locate the nozzle end into the front support;

confirm the body sits naturally and squarely in the frame;

on the 46435 skeleton frame, positively confirm both ends are captured—the open cradle makes a crooked seat visible and does not hide it;

on the 46420, allow room for the long rod travel and support the long cartridge while seating; do not assume the large package will self-align;

do not bend the frame, spread the cradle, trim the cartridge body, or use loose shims to make an unclaimed package fit.

Advance the rod only until the thrust plate just meets the cartridge plunger squarely. Contact is not working pressure. Stop if the plate rides the plunger edge, the cartridge cocks, the body buckles, or the frame twists.

5.3 Opening before or after seating is cartridge-specific

Some package instructions may direct opening before loading; others are safer and easier to control after the cartridge is securely seated and the rod is only at contact. Follow the exact product and gun instructions. This guide does not universalize the order.

Open the dispensing path—only as the exact package directs

6.1 The queue’s “small and 45°” summary is not a universal cartridge instruction

At full job grain, that cannot be treated as universal:

some nozzles carry molded bead-size marks;

some makers specify a cut location or angle;

some specify a square cut;

some systems use removable, threaded, preformed, or replaceable nozzles;

some materials require the opening to match a joint design or mixer;

some closures are not meant to be cut at all.

If—and only if—the exact instructions authorize a field-cut tapered nozzle, make the smallest controlled opening that satisfies those instructions and the approved joint design, using the maker’s specified cut. Enlarge only after the test shows that a larger opening is required and permitted. A removed section cannot be put back. Never hold the nozzle in a hand or against the body while cutting; support it so the blade or cutter exits into clear space.

6.2 Match the opening tool to the gun’s accepted claims

43660: its claimed tube cutter can make the spout cut where the cartridge instructions permit and the cutter can do so cleanly. It is not a seal punch.

46435, 46482, 46484, 46420: each claims a built-in spout cutter. Inspect it, learn its actual location, keep fingers outside the shear path, and use it only on a nozzle the cartridge maker authorizes it to cut.

46400, 46410, 46310: no spout cutter is present in the accepted claims. Use the 43660 or the cartridge maker’s approved separate tool. Do not borrow an unverified cutter claim from a sibling.

If a cutter crushes, fractures, strings, or leaves a loose flap in the nozzle, stop. Correct the opening by a maker-approved method or replace the nozzle/cartridge. A ragged restriction produces an erratic bead and invites more pressure.

6.3 Puncture only a real, maker-identified inner seal

An inner foil or membrane must be opened only when the exact cartridge has one and its instructions call for field puncture. Some cartridges have no separate inner seal; some use a removable closure; some require a particular puncture diameter or multiple punctures; some systems must not be probed because a bag, mixer interface, or other package feature lies below the nozzle.

46435, 46482, 46484, 46420: a seal puncture tool is claimed. Confirm that the tool reaches the specified seal without damaging anything else.

43660: no puncture feature is claimed.

46400, 46410, 46310: no puncture feature is claimed. Use only the opener the cartridge maker authorizes.

Keep the nozzle pointed away from the body. Insert the opener down the intended passage without side-loading or punching the cartridge wall. Withdraw it under control and treat it as chemically contaminated. Wipe, clean, store, or discard it by the material instructions; do not return a wet puncture tool to the frame if doing so contaminates the trigger, rod, or handle.

Never respond to “nothing is coming out” with a harder squeeze until the dispensing path has been re-verified. Pressure against an unopened seal or cured obstruction can buckle the cartridge, drive material backward around the plunger, rupture the package, or damage the gun.

Take up slack, set working pressure, and prove the system on scrap

7.1 Contact, take-up, and extrusion are three different states

Contact: the thrust plate just touches the cartridge plunger.

Take-up: normal trigger strokes remove mechanical slack and begin loading the plunger. No material at the nozzle yet does not automatically mean failure.

Extrusion: material moves through the verified open path.

Use short, controlled strokes while the nozzle is over the disposable test surface. Watch the cartridge, not just the tip. Stop immediately for body buckling, rear leakage, frame spreading, rod slip, grinding, a cocked thrust plate, a moving nozzle assembly, or material escaping anywhere except the intended opening.

7.2 Pressure control depends on drive type

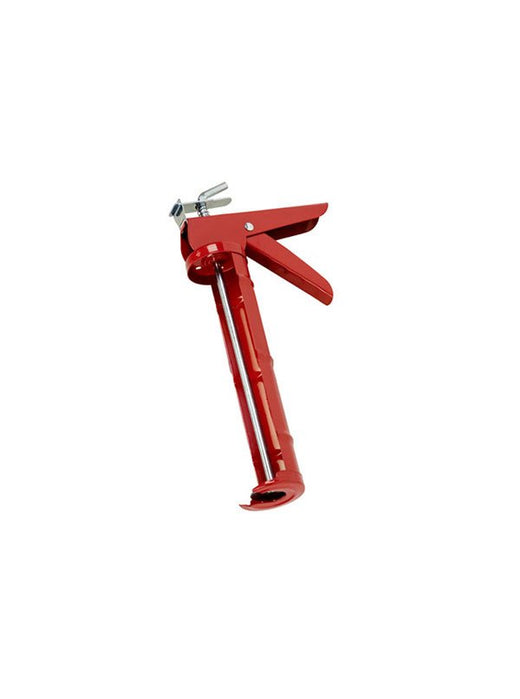

46400 / 46435 / 46482 — smooth or hex friction-drive family. The claimed quick-release thumb lever is the important control: bring material forward in controlled strokes; when the test bead ends, operate the lever and confirm pressure drops before the nozzle moves. Clean stops remain an operator action. “Dripless” is not claimed for these models.

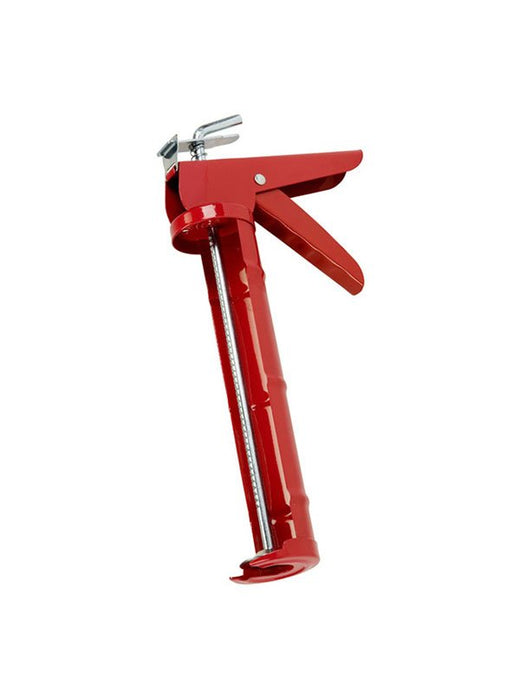

46410 / 46484 — plain ratchet family. A pawl-held advance gives a repeatable positive bite and can retain stored pressure after the trigger hand relaxes. Learn the actual rod release before the first live squeeze. End the test by releasing rod pressure before lifting the nozzle. Do not call either model StopDrip.

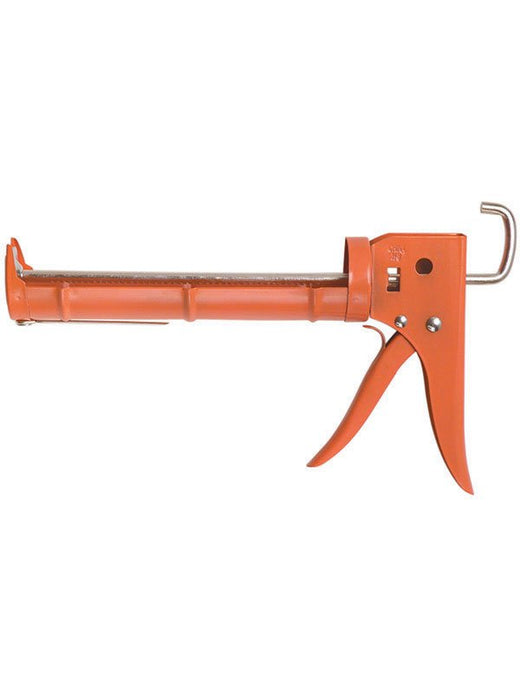

46310 / 46420 — StopDrip ratchets. Hyde claims overflow prevention on the 46310 and states on the 46420 that StopDrip prevents excess material from oozing after trigger release. Test that claimed result with the exact permitted material over containment.

No drive category supplies a universal pressure. Bead output is a system result: material condition, package, nozzle opening, inner path, gun travel, drive engagement, and trigger stroke all matter.

7.3 The three-part release test

On the disposable surface:

establish a short, continuous extrusion using no more force than normal operation;

stop the trigger and perform the model’s claimed or instructed release action;

observe whether output stops in the manner expected for that gun and material.

Pass only if:

material exits solely at the intended opening;

the cartridge and gun remain square and undamaged;

the drive advances without unexplained slip or jump;

output is controllable rather than pulsing around a blockage;

the release action is known and functional;

residual flow is understood and containable;

the test material’s appearance is consistent with its instructions.

The test establishes control; it does not establish bond, cure, or substrate compatibility. Those belong to the material and application guides.

7.4 Adjust without chasing force

If the test bead is too large, first release pressure. Replace or adjust the nozzle only by the product’s approved method; a cut nozzle cannot be made smaller by squeezing less reliably. If output is too small, confirm temperature, expiration, seal opening, obstruction, nozzle opening, and gun/package fit before enlarging anything.

If a friction drive slips, do not turn the event into a strength contest. Release, unload, inspect the rod and drive, verify material temperature and condition, and confirm the gun’s scope. If a ratchet advances but material does not, stop before stored pressure finds a weak path. If a StopDrip gun continues uncontrolled flow, contain it and remove it from service pending material-path and tool diagnosis; the claim does not authorize accepting a failed control.

Failure tree: symptom, likely boundary, safe response

| Symptom | Likely boundary | Safe response |

| Trigger moves but rod does not | Release still engaged, contaminated/damaged drive, rod/plate slip, or wrong operation | Release all pressure; unload; inspect and follow the exact gun instructions. Do not add hand force. |

Re-verify the entire dispensing path and product condition before another stroke. |

| Cartridge bows, buckles, or jumps from the frame | Wrong size/format, crooked thrust plate, unsupported or damaged body, obstruction, excessive force | Stop immediately. Do not touch a pressurized weak point. Release remotely by the normal control, contain, then unload when stable. |

| Nozzle or closure moves in the gun | Incorrect assembly, loose threaded nozzle, unsupported format, wrong gun | Release, unload, assemble per the cartridge instructions, or select the correct applicator. |

| Output pulses or curls unpredictably | Ragged/partial opening, obstruction, separation, trapped material path, intermittent drive engagement | Release; inspect nozzle, material, cartridge, and drive. Do not solve it by enlarging the opening until the cause is known. |

| Gun keeps feeding after a stop | Stored pressure, missing/incorrect rod-release habit, material relaxation, failed or misunderstood control | Keep over containment; perform the model’s release; diagnose before work. StopDrip is claimed only on 46310/46420. |

| Rod will not retract for unloading | Pressure not fully relieved, cured material in drive, release not correctly operated, bent/damaged mechanism | Keep nozzle controlled; do not pry or strike. Follow maker instructions, contain, and remove from service if release cannot be restored. |

| Built-in cutter crushes instead of shears | Cutter damage, wrong nozzle material/geometry, unsafe angle, or tool not intended for that closure | Stop; use a cartridge-approved opening method or replace the damaged component. |

Read the package instructions. Never drive it deeper by force. |

| Odor, irritation, breathing symptoms, skin reaction, heat, smoke, or unexpected reaction | Chemical exposure, incompatible material, uncontrolled ventilation/fire condition, or product failure | Stop work, move to safety as the SDS directs, use its first-aid/emergency procedure, and escalate under the site plan. |

Pause, unload, cleanup, and storage

9.1 A short pause is chemistry-specific

Do not assume that leaving the gun pressurized, wrapping the nozzle, inserting a nail, or using a generic cap preserves every material. For any pause:

end over containment;

release gun pressure;

use the cartridge maker’s approved temporary closure or nozzle treatment;

keep the cartridge within its allowed environment;

prevent the nozzle from contacting dirt, water, incompatible chemicals, finished surfaces, or people.

A nail or screw inserted into a nozzle is not a universal storage method: it can introduce moisture or metal contamination, create a sharp contaminated object, fail to seal, or become bonded in place. Use it only if the product maker explicitly authorizes it.

9.2 Unload without turning the cartridge into a spring

point the nozzle into containment;

stop the trigger and fully release pressure by the model’s actual control;

confirm residual flow has stopped or is controlled;

retract the rod enough to clear the cartridge without snapping it backward;

support the cartridge body and remove the nozzle end and heel under control;

cap, retain, or discard the cartridge only as its label/TDS/SDS allows.

Do not unload by pulling the nozzle, prying against the cartridge wall, or rotating a pressurized package out of the frame.

9.3 Clean the gun, cutter, punch, and Caulk Aid by the material rule

Remove uncured residue before it hardens in the rod teeth or flats, thrust plate, release, trigger, cradle, cutter, puncture-tool storage, or hook. Use only the cleaner and method compatible with both the material and the gun finish. Water cleanup is not universal; neither is solvent cleanup. Do not immerse a mechanism unless its maker permits it.

The 43660’s cutter becomes part of the chemical work once it touches a nozzle. Clean it by the exact product instruction while preserving its high-impact plastic. The built-in puncture tools on 46435, 46482, 46484, and 46420 can carry uncured material back into their stowage area; clean them before storage. Keep sharp or pointed contaminated tools controlled during cleanup.

Collect wipes, plugs, cut nozzle pieces, test beads, leaking cartridges, and cleaner waste under the SDS and local waste route. Do not wash sealant, adhesive, solvent, or contaminated cleanup liquid to a sink, floor drain, storm drain, soil, or water merely because the front label says “water cleanup.”

9.4 Store cartridges and guns as separate controlled assets

Mark a retained cartridge with the opening date when the maker’s procedure allows retention. Restore its approved closure; keep the identity and hazard label with it; store within the specified temperature, orientation, segregation, and shelf-life rules. At the next use, re-check date, condition, closure, and the maker’s reuse procedure. A cured nozzle plug does not prove that the material behind it is sound.

Store the gun depressurized, empty unless its maker explicitly permits loaded storage, cleaned, dry, and with the rod and claimed puncture tool secured. Protect cutters and points from hands and adjacent tools. A ladder hook is a work-position feature on 46420/46484, not proof of a storage load rating.

Buyer and receiving tests

These tests distinguish fit, control, and claimed hardware without inventing force.

10.1 Counter test with no material

For every gun:

confirm the exact model;

verify the claimed cartridge class;

cycle the empty rod through normal advance and full release;

check thrust-plate alignment at front, middle, and rear travel;

confirm the trigger returns and the frame stays square;

inspect finish, fasteners, rod, pawl/drive engagement, and cradle.

For 46435/46482/46484/46420, locate and safely operate the claimed cutter and puncture tool without assuming their stowage geometry from a sibling. For 46420/46484, inspect the claimed ladder hook without using it as a fall-arrest or personnel-support point.

10.2 Fit test with the actual unopened package

Use the exact cartridge class the buyer intends to source. Without opening or pressurizing it:

confirm natural seating and square thrust-plate contact;

confirm nozzle and front support clearance;

confirm labels and package warnings remain readable;

confirm the gun releases and the cartridge can be removed without binding;

for 46420, prove the actual 13" supply-house cartridge rather than assuming a capacity name guarantees every package geometry;

never substitute a sausage or dual cartridge for a fit demonstration.

10.3 Controlled material test

Only where the label/TDS/SDS, seller/site controls, and waste plan permit:

open and load by the exact procedure above;

test on disposable containment;

verify controlled advance;

verify the model-specific pressure release;

inspect for body distortion, leakage, slip, and unwanted after-flow;

clean and dispose under the product documents.

Do not test “maximum power” with the coldest or stiffest material on the shelf. A destructive squeeze test would create a hazard without resolving the missing specification.

10.4 Choose by package and control behavior

A few standard cartridges and frequent clean stops: 46400 if the quick-release friction behavior is preferred.

Standard 9" cartridges with cutter, punch, quick release, and an open skeleton frame: 46435.

Standard 9" cartridges with cutter, punch, quick release, and chrome-plated Professional Heavy-Duty frame: 46482.

Standard 9" cartridges with cutter, punch, contoured trigger, chrome-plated Professional Heavy-Duty frame, and ladder hook: 46484; manual rod-release discipline remains.

13"/32 oz. cartridges with cutter, punch, contoured trigger, StopDrip, and ladder hook: 46420, only after the intended chemistry is confirmed available in that package format.

A cutter to complement a gun whose claims omit one: 43660; bring a separate maker-approved seal opener when required because the Caulk Aid claims none.

No universal 45° nozzle cut, cut mark, bead diameter, or “half the joint” opening.

No universal requirement to puncture, and no universal nail, wire, puncture count, depth, or diameter.

No universal instruction to open the package before or after seating.

No universal conditioning temperature or time.

No universal trigger force, working pressure, thrust ratio, viscosity ceiling, or ranking of “power.”

No claim that every “9 inch,” “10 oz.,” “13 inch,” or “32 oz.” package shares all geometry beyond the documented class.

No 9"/10 oz. cross-loading claim for 46420.

No sausage, bulk, or dual-cartridge compatibility for any registered Hyde gun.

No universal cleaner, tooling liquid, storage plug, reusable life, cure time, or disposal route.

No claim that StopDrip removes the need to control pressure, release the gun, or test the actual material.

No claim that a cutter or puncture tool exists on 46310, 46400, or 46410.

No claim that 43660 punctures an inner seal or extrudes material.

No price, stock, availability, promotion, or delivery statement.

History — why the cartridge and gun must be treated as one system

The operating idea predates the disposable cartridge. Theodore F. Witte of Chilliwack, British Columbia patented a nozzled, plunger-driven “Puttying-Tool” in 1894 ([U.S. Patent 512,930](

Witte’s tool was a bulk-loaded cylinder. The modern loading ritual arrived only when disposable sealant cartridges became standardized through the 1940s and 1950s; DAP’s company history records the Dicks-Pontius Company’s role in moving caulk into disposable cartridges during that period (DAP history). That packaging change did more than save cleanup. It divided the dispensing system into two replaceable halves: the gun supplies controlled plunger movement, while the cartridge supplies containment, identity, chemistry, nozzle, and inner closure. Today’s compatibility procedure follows directly from that division. A package that merely fits the frame is not safe ammunition until its closure, material, condition, and applicator requirements agree.

Hyde did not invent Witte’s tool or the disposable cartridge, and this guide makes no such claim.

All seven guns — thrust ratio: Hyde states none. Do not quantify, rank force, or promise daily stiff-material capacity until Hyde supplies per-model data.

46310 / 46420 — StopDrip internals: Hyde claims the result, not the linkage.

46310 — prep and release hardware: accepted claims establish powder-coated frame and StopDrip, not cutter, puncture tool, or release execution.

46400 / 46435 — “Hex/Smooth” source tension: storefront family naming and catalog rod naming differ.

46435 / 46482 — hex-drive internals: friction-plate behavior is trade-pattern knowledge.

Frame architecture: skeleton frame is claimed only for 46435.

Cartridge opening rules: no Hyde gun claim can universalize another manufacturer’s nozzle cut or inner-seal procedure.

Loading proves a controlled dispensing system; the destination guide still controls joint preparation, material selection, bead placement, tooling, cure, and return to service.
