How to Coat a Floor with Rollers

The register’s six-SKU union is a lead list, not six endorsements for every coating. This guide re-derives each tool’s honest seat: 47420 + 92113 for the 18" production-width lane; 92070 + 92076 for the standard-width floor-tray lane; 92060 + 92061 for the metal-tray lane when the material’s chemistry and its manufacturer permit that tray/liner combination. The coating label, current Technical Data Sheet (TDS), Safety Data Sheet (SDS), and written system instructions outrank every general technique below.

Job: apply a manufacturer-defined floor-coating system with rollers to a sound, dry-enough, correctly profiled substrate, maintaining the specified film build and wet edge while retreating to a usable exit.

Time: never budget this as “a rolling job.” Inspection, moisture testing, repair, mechanical preparation, dust removal, and the coating’s recoat/cure windows usually own the calendar. There is no universal cure time, recoat time, induction time, pot life, or “new concrete” waiting period.

Difficulty: the roller motion is straightforward. The hard parts are system diagnosis, substrate acceptance, batch arithmetic, timer discipline, film control, and not coating the exit shut.

Everything else: the complete coating system—primer, base coat, broadcast aggregate or flakes, grout/scrape coat, and topcoat only as its manufacturer specifies—plus the exact approved roller-cover material and nap, mixing drill/paddle if allowed, calibrated measuring equipment if partial batching is expressly allowed, wet-film gauge if the TDS gives a wet-film target, clean mixing pails, batch labels, at least two timers, temperature/RH/dew-point instruments where required, the manufacturer-specified moisture test, ICRI profile chips where a Concrete Surface Profile is specified, HEPA dust extraction or wet controls for concrete grinding, industrial vacuum, degreaser and cleaners approved by the system maker, crack/joint repair materials compatible with the system, cut-in roller or brush, non-shedding rags, barricade tape, PPE from the SDS, and approved waste containers. Spiked shoes, gauge rakes, notched squeegees, broadcast carts, and mixing stations are system tools—not automatic additions. Bring them only when the installation instructions call for them.

Before you buy a roller: identify the coating system

A floor coating is not one material with several brand names. The roller’s job changes with the chemistry and with the layer.

One-part floor paint or acrylic coating. Usually direct-roll work: the roller meters and lays the film. “One-part” removes the mix-ratio and pot-life clock, not the substrate, temperature, moisture, coverage, or recoat gates. Some one-part products are interior-only, some exterior-capable, and some are not rated for vehicle traffic. The label decides.

Two-part epoxy. Resin and hardener create a working-time job. The roller may be the primary applicator on a thin-film kit, or only the back-roll tool behind a squeegee on a high-build system. Mix ratio, component temperature, induction, pot life, transfer-pail procedure, approved batch size, wet-film build, and recoat window are product facts. Never borrow them from another epoxy.

Polyurethane, polyaspartic, or polyurea topcoat. These can run on much shorter clocks, can be moisture-sensitive, and may contain isocyanates. “It rolls like paint” is not a safety or application specification. Read the SDS and TDS before deciding that a consumer roller crew is qualified. OSHA identifies isocyanates as a serious respiratory and skin hazard in polyurethane surface coatings (OSHA — Isocyanates).

Penetrating sealer, densifier, stain, or cure-and-seal. Some are rollable; some demand a sprayer, microfiber applicator, squeegee, scrub-in, or immediate removal of puddles. A roller can overbuild a penetrating product and leave permanent whitening or gloss variation. If the instructions do not name a roller, this guide does not add one.

Broadcast or decorative system. Primer/base receives sand, quartz, or flakes; the excess may be reclaimed; a scrape coat and topcoat follow. Here the roller is one station in a system. Broadcast timing, rejection quantity, scrape direction, and encapsulation are manufacturer controls.

Squeegee-and-back-roll system. Material is placed and gauged with a notched squeegee or rake; the roller follows lightly to level lines, release trapped air, or orient texture. The roller is not allowed to redistribute the measured film at will. “Back-roll” means work the film already metered—not keep rolling until it looks thin and familiar.

Wood-floor, porch, or deck coating. Wood movement, board edges, fastener heads, tannins, old wax, and moisture replace concrete laitance/profile as the leading risks. Many clear floor finishes favor a T-bar, pad, or specified applicator rather than a paint roller; many deck stains prohibit leaving a surface film. Follow that product’s applicator schedule. The 18" production rig is not a default for boards.

Metal floor or plate. Degreasing, rust/mill-scale removal, specified blast or mechanical profile, and the approved primer become the gates. A tray’s material compatibility does not make a coating compatible with steel.

System acceptance test: before buying tools, you should be able to point to a single current set of documents that names the substrate, the layers in order, compatible components, preparation/profile, moisture limit and test method if any, applicator type and cover, mix procedure, environmental limits, coverage or film build, recoat window, cure-to-service, PPE, cleanup, and disposal. If those instructions are split across incompatible brands—or a seller has proposed “any epoxy primer under any polyurethane”—you do not yet have a coating system.

The control card: copy the manufacturer’s numbers before opening anything

Make one job card and keep it at the mixing station. Blank means stop, not “use the usual.”

| Control | Write the system-specific answer |

| Substrate and existing condition | Bare concrete / sound existing coat / wood / metal / other |

| Product and layer | Primer / base / broadcast / grout coat / topcoat |

| Lot numbers and colors | Record every unit; note whether boxing is required |

| Required preparation | Cleaning method, repair system, CSP/profile, adhesion test |

| Moisture gate | Required test method, limit, test locations, result, time |

| Environmental gate | Air, substrate, and material temperatures; RH; dew-point rule |

| Approved applicators | Cover material, nap, width; brush/mini; squeegee/rake if required |

| Mix control | Component ratio, full-kit or partial-batch permission, mixer and speed, mix time, transfer-pail procedure |

| Induction | Required or prohibited; exact duration and temperature basis |

| Pot life / working time | Manufacturer’s definition, start event, temperature basis, discard event |

| Coverage / film | Area per mixed unit, wet-film or dry-film target, number of coats |

| Recoat | Minimum, maximum, and missed-window preparation |

| Return to service | Foot traffic, equipment, tires, chemical exposure, washdown |

| Safety | Gloves, eye/skin protection, ventilation, respirator program if required, ignition controls |

| Cleanup and waste | Approved cleaner; residue, liner, rag, and container route |

The value of this card is not paperwork. It stops five common substitutions: room temperature for substrate temperature; a surface meter for the specified slab-moisture test; “two minutes” from one kit for another kit’s mix time; “it still rolls” for pot life; and square-foot coverage as permission to stretch the film past its specified build.

Gate 1 — accept or reject the substrate

Bare concrete

Soundness before cleanliness. Dragging a roller over weak paste only coats the layer that will leave. Map spalls, hollow or delaminated areas, laitance, soft curing-compound residue, cracks, and moving joints. Repair with materials the floor-system maker accepts, then observe their cure and recoat requirements.

Contamination before profile. Oil, silicone tire dressings, wax, grease, salts, old adhesive, curing compounds, and sealers interfere with adhesion. Cleaning alone may not remove material that has migrated into the slab. Degrease, rinse or extract as directed, and repeat the maker’s contamination test. A water-drop test can reveal obvious beading; it cannot certify the entire slab clean or moisture-safe.

Moisture is a measured gate, not a color judgment. Slabs can look dry and still transmit enough vapor to blister or debond a film. Use the test the coating manufacturer requires and compare the result to that coating’s limit. ASTM lists both F2170 in-situ relative-humidity testing and F1869 calcium-chloride moisture-vapor-emission testing as active floor-slab methods; they answer different questions and are not interchangeable by convenience (ASTM F06.40 active standards, ASTM F2170-19a significance and scope). A handheld electronic meter is useful for comparative screening and finding wet zones, not as a substitute for a specified quantitative test.

Profile is a coating-system requirement. “Etched” is not a universal profile and “rough enough to feel” is not a measurement. The TDS may call for a specific ICRI Concrete Surface Profile; choose grinding, shot blasting, abrasive blasting, scarifying, or another method capable of producing that profile without leaving weak paste. ICRI’s surface-preparation guidance explicitly treats substrate condition, protective-system requirements, job conditions, preparation method, CSP, and quality-control testing as one selection problem (ICRI 310.2R).

Open the surface; do not polish it. A machine can make concrete look clean while burnishing the paste closed. Compare the prepared floor to profile chips if specified, then vacuum until a clean hand or dark tape shows no dust. Dust under a coating is a bond breaker in powdered form.

Grinding creates a separate silica job. Concrete grinding can release respirable crystalline silica. Use the dust-control method, shroud/extraction, access controls, and respirator program applicable to the task—not a paper mask and an open garage door. OSHA’s construction standard treats grinding as a potentially high-exposure task (OSHA — Crystalline Silica in Construction).

Respect joints. Identify isolation, expansion, and moving joints before coating. Do not bridge them merely because the roller can; use the system’s joint detail. Static cracks and moving joints are not the same repair.

Concrete stop conditions: no approved moisture result; active hydrostatic pressure or visible dampness; an unidentified sealer or curing compound; oil that returns after cleaning; unsound concrete; preparation that misses the required CSP; repair material outside its overcoat window; floor/surface temperature or dew-point condition outside the TDS. A roller solves none of them.

Existing coated concrete

Find out whether the old film is sound and compatible. Clean a test area, cut the manufacturer’s specified adhesion test, and inspect multiple zones—doorways, tire paths, drains, edges, and former chemical-spill areas. A coating is only as bonded as the coat beneath it.

Remove failure to a sound boundary. Peeling, blistering, softening, tire pickup, and widespread adhesion loss are removal signals. Feathering over them hides the problem until the new film pulls the old one up.

Identify chemistry where compatibility matters. Unknown, waxed, silicone-contaminated, or chemically attacked coatings get a test patch or written manufacturer ruling. “Scuff and coat” is allowed only when the system maker says the old film can receive the new one.

Abrade for the specified tooth and clean again. Gloss removal is not a substitute for the specified profile, and sanding dust is still contamination. If the maximum recoat window on a prior layer was missed, execute the exact abrade/solvent-clean/primer remedy the TDS gives.

The floor must be dry within the coating maker’s limit, structurally stable, free of wax/oil/silicone, sanded to the specified sequence, and vacuumed without leaving cleaner residue. Set fasteners and repair boards before coating. Decide whether the product is meant to form a film, penetrate, or preserve traction. Do not bridge board gaps with a brittle coating or flood end grain unless the system calls for it. On an exterior porch, sun, rain, backside moisture, and board movement may disqualify an interior floor system even if the color is perfect.

Metal and other substrates

Metal requires the maker’s cleanliness and profile standard, complete removal of loose corrosion, and the compatible primer. Tile, resilient flooring, asphalt, terrazzo, densified concrete, and previously waxed floors are specialist substrates: obtain written system approval and its preparation schedule. A “bonds to anything” slogan is not a substrate test.

Gate 2 — environmental and site control

Measure the floor, not just the room. A slab at an open garage door can be colder than the air and below the product’s permitted temperature even when the room feels comfortable. Record air, substrate, and material temperature where the TDS requires them.

Calculate or measure dew point if required. Condensation can be invisible while it is forming. Maintain the manufacturer’s required surface-to-dew-point separation; this guide deliberately supplies no universal margin.

Control humidity and weather for the entire vulnerable window. Exterior work must survive not only application but the maker’s rain-, dew-, frost-, and wash-free period. Interior work needs ventilation that removes vapor without driving dust, insects, leaves, or overspray across the film.

Isolate the floor. Shut off traffic, pets, forklifts, furnaces or ignition sources when the SDS requires it, and anything that will shed debris. Cover drains only as the system and site rules allow—never create a concealed spill path.

Choose a real exit. The exit needs a clean landing outside the coated field, somewhere to set the pole and frame, and a waste station reachable without stepping back onto the floor. A garage door that will be closed onto fresh coating is not automatically a usable exit.

Light across the floor. Low-angle work lights show holidays, ridges, puddles, dry spray from a roller, and batch-edge differences that overhead lighting hides.

Gate 3 — plan lanes, batches, and trays before mixing

Draw the retreat map

Sketch the floor and mark doors, posts, drains, joints, fixed equipment, cut-in edges, and natural batch breaks. Divide the work into lanes that can be coated continuously from the farthest point back to the exit. Put batch changes at control joints, thresholds, or another intentional break wherever possible. The final lane must end with the operator, pole, wet tools, and waste all on the dry side.

Do a dry walk with the full-length pole. Turn at every obstruction. Confirm the 18" frame clears posts and equipment and can be loaded without crossing the planned wet edge. If the wide frame cannot turn cleanly, the honest system is a standard frame for that bay—not an 18" frame forced edgewise through it.

Convert coverage into batch geometry

Measure each lane. Use the TDS’s practical coverage or specified film build to calculate what one correctly mixed unit can cover, then reserve the manufacturer’s expected loss—do not use “coverage” as a target to beat. Mark batch endpoints on the plan. If the system uses a wet-film gauge, decide who measures, where, and how often.

Partial batching is prohibited unless the manufacturer expressly allows it and gives a method accurate enough to preserve ratio. Splitting a kit by eye is formulation change. If partial batches are allowed, use the specified weight or volume method and clean calibrated containers; never estimate by can depth. If the kit must be mixed whole, reduce crew area—not the kit.

Assign the trays honestly

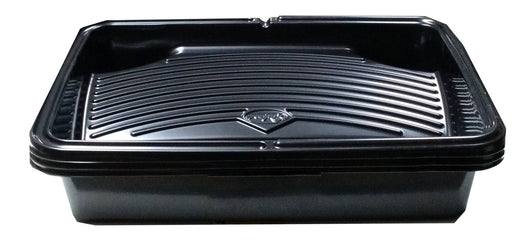

Open, wide floor + approved 18" cover: use the 47420 at 30° with a pole and the 92113 18" tray. Do not force a 92077, 92076, or 92081 into it; none is an 18" confirmed fit. Until the exact liner is verified, run it bare and plan the manufacturer-approved cleanup.

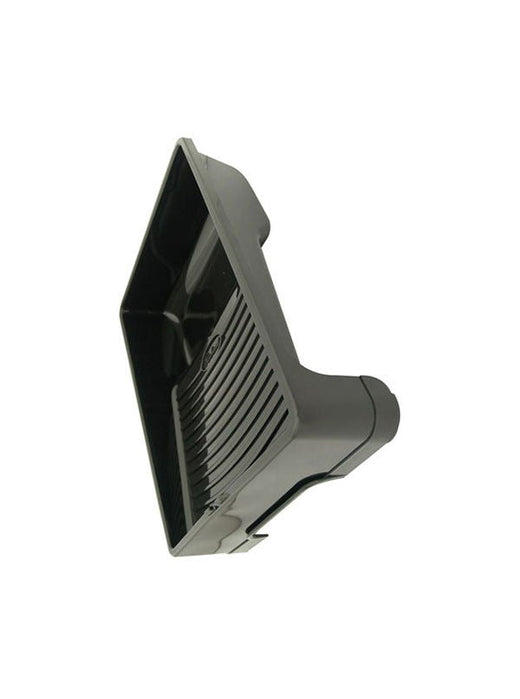

Standard-width, water-borne or plastic-compatible material: the 92070 is the designated floor-tray lead, with the exact-fit 92076 liner. The coating—not the tray title—must approve the tray and liner materials.

Coating or cleanup chemistry incompatible with ordinary plastic: consider the metal 92060. The 92061 is its exact-fit liner, but it is still plastic; check the coating/SDS for liner compatibility and inspect it during use. If the chemistry attacks the liner, the honest fallback is bare metal only if the coating maker permits metal contact and gives a cleanup route.

Multiple batches or colors: stage a new exact-fit liner for every planned change. With reactive material, a liner carrying cured or gelling residue is never the receiving vessel for a fresh batch.

The two-tray logic

For reactive systems, two trays can keep the clock from owning the cleanup: one active tray in the lane, one dry tray or freshly seated liner staged at the mix station. When a batch expires or empties, the first tray leaves the process; the new batch enters a clean tray. Do not “freshen” old material by pouring new material into it. You have not reset the timer—you have contaminated the new batch with a partially reacted one.

Gate 4 — assemble and dry-test the roller system

Use the cover named by the coating maker. Nap, fiber, solvent resistance, shed resistance, and width are coating-system controls. A generic woven wall cover can shed into a clear topcoat; foam can swell in solvent; an over-deep nap can trap air or overbuild; an under-deep nap can starve profile valleys. The frame does not choose the cover.

De-lint only as directed. Remove loose manufacturing fibers before mixing, using the maker’s approved method. Do not introduce water to a moisture-sensitive cover or coating.

Mount and spin dry. Confirm the cover turns true, stays captured, and does not rub an arm. Hyde’s source says 0° for walls and 30° for floors and ceilings.

Match width at the loading station. An 18" cover needs the 18" loading surface of the 92113 or another manufacturer-approved wide system. Its ends cannot load evenly from a standard tray. A standard cover belongs in the standard-width floor or metal tray.

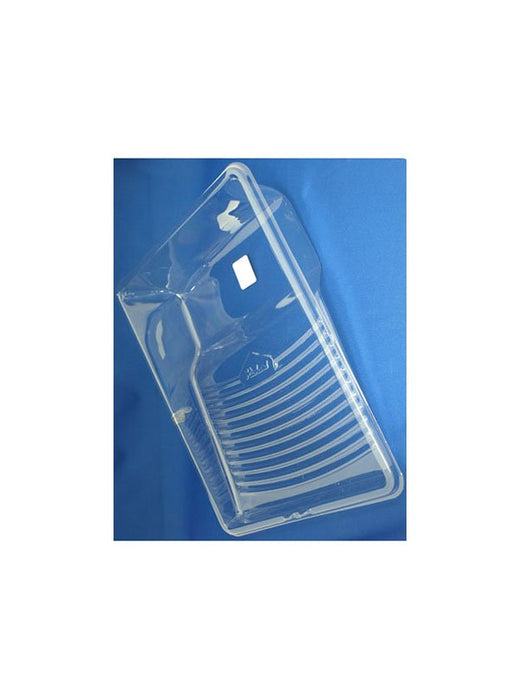

Seat liners dry. Press the 92076 completely into the 92070’s well, ramp, corners, and rim; do the same with the 92061 in the 92060. Any bridge, lifted corner, or rocking ramp is corrected before pour. Paint behind a liner defeats the liner and can make it float.

Stage replacements and waste. New liners, covers, gloves, mixing sticks, and labeled waste containers must be reachable from the dry side.

The application

Step 1 — clean-room final

After profile and repair acceptance, vacuum systematically in overlapping lanes, edges and joints last, then repeat in the opposite direction. Use the coating maker’s final wipe only if it names one; an improvised solvent can leave a bond-breaking residue or attack repairs. Inspect with low-angle light. Shoe covers used for this final must be clean and non-shedding, and nobody walks the accepted floor casually afterward.

Record final moisture/environment readings and confirm every gate on the control card. Open components only after the floor, crew, tools, path, and waste station are ready.

Step 2 — cut in only what the field can catch

Cut the farthest edge, posts, bases, penetrations, and drain details with the system-approved brush or mini roller, but stay only one workable bay ahead of the field. Cutting the whole room first creates a cured picture frame around a wet middle. Some self-leveling or rapid-cure systems specify a different sequence; those instructions win.

Do not fill moving joints with coating. Carry the maker’s joint detail through the cut-in.

Step 3 — mix one controlled batch

Condition components only within the product’s permitted temperature range.

Verify product, color, part A/part B, lot, and batch area aloud or on the batch label.

Premix individual components if required.

Combine the exact ratio. For full kits, use the full matched components. For approved partial batches, measure by the stated method.

Start the batch timer at the event the manufacturer defines—often component combination, but this is not universal. A separate induction timer does not erase elapsed reaction time unless the instructions explicitly define pot life from the end of induction.

Mix with the required paddle, speed, and time. Scrape sides and bottom only as instructed. If a transfer-pail or “box mix” is specified, move the material to a clean second pail and remix there. Unmixed resin on the first pail’s wall is not bonus coating.

Observe the required induction, if any. Never invent one because another epoxy needed it.

Label the batch with mix time, induction release, discard time, intended area, and operator.

Timer doctrine: run a visible count-up clock from mix and an alarm before the manufacturer’s discard limit. Temperature changes the reaction; warmer material can shorten useful time. The coating’s behavior—warming, thickening, dragging, stringing—is a late warning, not permission to ignore the clock. Never add solvent, water, or fresh material to recover a batch unless the TDS expressly permits that adjustment.

Step 4 — transfer promptly; do not bank imaginary pot life

Move the mixed material to the approved tray or placement ribbon in the way the instructions specify. Reactive coatings can build heat in a deep mass; spreading a batch into a shallow tray may reduce that heat concentration. That physical fact does not grant extra minutes beyond the printed pot life, nor does it prove every formulation should be tray-split. The manufacturer’s clock remains the discard clock.

If the instructions require pouring the mix in ribbons directly onto the floor, do that and use the roller only in its assigned back-roll role. Do not divert a high-build squeegee system through a tray because this page is about trays.

Step 5 — load the cover, not the core

For a tray-fed direct-roll system:

Pour into the well, stopping before material floods the conditioning ramp.

Touch the cover’s face into the material; do not drown the full cylinder or pump coating into its core.

Roll up and down the ramp until the full circumference and full width carry an even load.

Lift and watch. A properly conditioned cover holds material without streaming from its ends.

The 18" cover takes more conditioning strokes and more attention across its width, not more submersion. Uneven sheen on the loaded nap becomes uneven film on the floor.

Step 6 — place the first lane and establish the wet edge

Start at the far point and work toward the exit map. Place the coating in the TDS’s prescribed pattern:

Direct roll: distribute the load over its calculated area, cross-roll only as needed to achieve uniform build, then make a light final layoff in one direction if the instructions call for it.

Squeegee-and-back-roll: the squeegee or rake sets the film. Follow at the specified interval with light, consistent back-roll strokes. Do not lean on the frame and pull material out of low areas.

Broadcast base: roll only the area the broadcaster can reach within the specified acceptance window. Keep the roller crew and broadcast crew synchronized bay by bay.

Penetrating material: maintain the dwell and removal/puddle discipline in that product’s instructions; do not build a decorative wet film because it looks even.

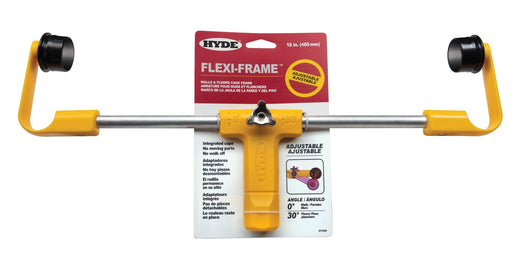

On the 47420, hold the pole so the 30° head lets the cover sit flat. Drive square to both arms. The documented dual-arm design distributes pressure across the roller; twisting the pole or scrubbing diagonally can still put one edge into the floor. Work in 18"-class lanes on open fields, overlap consistently, and lift/reposition rather than pivoting a loaded wide cover on one corner.

Step 7 — advance the tray and retreat

The tray lives on clean, uncoated ground immediately ahead of the crew. After a section is complete, move it to the next dry staging patch before coating that patch. Never drag a tray through fresh film or set a coating-wet tray bottom on finished work.

The roller works back into the live edge, never across a flashed edge. Each turn should leave operator, pole, and tray on the exit side. Check the map at every post and doorway; the moment the crew “just fills this corner” out of sequence is the moment the exit disappears.

If the system permits spiked shoes, they are not a license to wander. Use the exact shoe/sole and timing the manufacturer allows, and inspect for debris before entry. Otherwise nobody steps in the film.

Step 8 — watch film build, coverage, and defects while they are correctable

One crew member owns quality:

measure wet film where the TDS provides a wet-film target;

compare actual area consumed per batch to the planned area;

inspect from low angle for holidays, roller ridges, foam, lint, puddles, dry bands, and gloss change;

inspect edges, drains, joints, and post bases before the lane closes;

record batch boundary and time.

Coverage arithmetic is a diagnostic. If the batch is covering far more area than specified, the film is probably thin; if far less, material may be ponding, the substrate may be absorbing unexpectedly, the profile may be too aggressive, or the wrong placement tool may be in use. Stop and diagnose. Stretching the last batch to reach the door trades a visible shortage today for a performance failure later.

Do not over-roll material that has begun to tack. Late passes print stipple, pull strings, trap air, and reopen a film that was already leveling. The cutoff comes from the manufacturer’s working-time definition and observed film—not the operator’s desire for one more correction.

Step 9 — change batches cleanly

Finish the old batch at its planned break while its wet edge is still live. Remove its tray/liner from service. Put the new batch into a clean, correctly seated liner or clean approved tray. Record the new timer.

Never pour a fresh batch onto a skin of old reactive material. Never scrape partially cured residue from the liner into the new batch. Never blend a batch that exceeded pot life into a new batch at a joint. A hard joint is repairable under the TDS; an unknown mix of reaction ages across a floor is not.

When lot or color changes cannot be avoided, follow the manufacturer’s boxing or intermixing method. On clear and translucent systems, batch-to-batch gloss variation can be as visible as color variation.

Step 10 — broadcast and topcoat only on their own clocks

If the system receives flakes or aggregate, broadcast at the specified rate and timing, maintaining a wet receiving film. “To rejection,” “light decorative scatter,” and “traction additive mixed into topcoat” are three different specifications. Do not substitute one for another.

After cure, recover excess, scrape or sand peaks, vacuum, and apply the next layer only as the system directs. Re-check the recoat window. If the minimum time has not passed, wait; if the maximum has passed, execute the prescribed abrasion/cleaning/primer remedy. The coat beneath can look perfect and still be chemically closed.

Step 11 — close the floor without reopening it

At the exit, finish the last lane, lift the roller straight, and step onto the dry landing. Place frame, pole, tray, liners, and waste in the staged zone without crossing the film. Barricade every entrance with the actual return-to-service milestones from the TDS: foot traffic, wheeled equipment, tires, chemical exposure, water, and full cure may all differ.

“Dry to touch” is not “ready for a car,” and “walkable” is not “ready to wash.” Put the dates and times on the barricade.

Pot-life and timer discipline — the part no roller technique can rescue

One batch, one identity, one clock. Label it. If you cannot say when it was mixed, it is waste.

Record both where supplied.

Induction consumes whatever time the manufacturer says it consumes. Do not assume the pot-life clock pauses during induction.

Warmth accelerates many reactive systems. Record actual material and floor conditions; do not import the TDS’s laboratory time into a hotter garage.

No rejuvenation. No thinner, water, solvent, new resin, or “just a little fresh batch” unless the current TDS authorizes it.

Do not scrape the hot pail. If the system directs immediate transfer, leave unmixed sidewall residue behind rather than dragging it into the floor.

Build batch size around crew output. A smaller approved batch is better than a large batch rushed thin. If the kit cannot be split, add trained placement capacity or reduce the work area.

Discard on time even if it still looks liquid. Visual fluidity is not proof that adhesion, leveling, or cure chemistry remains in specification.

Cleanup, liners, and waste

Get the wet tools out without spreading the job

Release the 47420 cover over the receiving pail or liner using the frame’s documented clean-hands architecture; keep gloves on anyway because frame arms and pole can carry uncured film. Remove 92076 and 92061 liners by lifting their rims without folding liquid material over the tray. The liner makes tray cleanup faster; it does not make the residue harmless.

Scrape recoverable product back only where the coating instructions permit it and only before the batch expires. Never return mixed two-part coating to an unmixed component can. Clean the frame, pole threads, and reusable tools with the exact cleaner named by the product while respecting flammability and ventilation.

Waste follows the SDS, label, and local rule

Incompatible leftovers can react, ignite, or make otherwise manageable waste hazardous.

Do not pour coating, solvent, etch, or contaminated wash water onto the ground, into a storm drain, or down a household drain. EPA advises against drain, ground, and storm-sewer disposal of household hazardous waste and points users to state/local collection programs (EPA — Household Hazardous Waste).

Some correctly proportioned two-part residue may be allowed to cure before disposal; some commercial or hazardous formulations may not. “Let it harden” is not a universal disposal rule.

Solvent-wet rags go into a covered metal container and away from ignition sources; never leave them balled in the tray. OSHA’s solvent-work guidance explicitly calls for covered metal containers and ventilation (OSHA — Flammable and Combustible Liquids in Surface Preparation).

Keep original labels on leftover containers. Do not decant waste into food or drink containers. Record what is in every waste pail.

Bare plastic trays get the manufacturer-approved water-borne cleanup promptly, before a skin forms. The metal 92060 is stored dry; standing water and damaged finish can invite corrosion.

What goes wrong — diagnosis before repair

The coating beads or crawls away in islands. Oil, silicone, wax, sealer, or incompatible residue survived preparation. Stop spreading contamination. Remove the wet material by the product’s cleanup route, identify the contaminant, and re-prepare. More roller pressure cannot force adhesion.

Bubbles appear after application. Possible sources include moisture vapor, outgassing from warming porous concrete, over-rolling, trapped air from high-speed mixing, or reaction gas. Note time, temperature, and location; consult the system maker before breaking bubbles. A roller pass can make some mechanisms worse.

The roller pulls strings or leaves permanent stipple. The material is near or past useful working time, the floor/material is too warm, or late over-rolling has begun. Stop using that batch. Do not thin it back.

One end of an 18" pass is heavier. The cover is unevenly loaded, one Flexi arm is not seated, the frame is being driven on a twist, or the 30° head is not holding flat. Leave the wet edge safely, diagnose dry, and correct before the next lane.

The liner rises or shifts. It was not fully seated, paint got underneath, or the wrong liner was used. Transfer material only if still within its controlled time and the coating instructions allow it. A floating liner will dump behind itself.

The floor has dry stripes. Under-loading, stretching coverage, wrong nap/profile pairing, or a missed overlap. Compare batch area to TDS coverage and measure film if specified. Correct only while the film remains open.

Puddles collect at joints or low spots. The floor’s geometry or placement method is concentrating film. Remove or redistribute within the product’s open time using the specified tool. Do not roll across moving joints merely to hide the puddle.

The next batch is a slightly different color or gloss. Lot change, unequal mixing, film-build difference, temperature change, or a hard batch edge. Record lots and batch boundaries; boxing and joint placement prevent more than late rolling can fix.

The coating peels with the old film underneath. The new coat bonded to a failed substrate.

Blisters appear later. Moisture, contamination, or osmotic pressure may be involved. Do not puncture a representative blister before documenting it; the contents and failure plane help the coating maker diagnose the cause. A dry-looking top proves nothing about the slab below.

Tire pickup, imprinting, or chemical staining occurs after the job. The floor returned to service before its specific cure milestone, or the system was not rated for that service. Dry-to-touch time was never the service clock.

Buyer tests — decide from the actual job

“I have an open two-car garage and the coating maker approves an 18" cover.”

Buy the 47420 + approved 18" cover + pole + 92113 lane. Set the frame to its documented 30° floor position. Verify the cover’s nap/material and the 92113’s compatibility with the coating. This decision is true because the field is open and the coating maker approved the width—not because “bigger is faster” in every garage.

“My utility-room floor has a water-borne coating, posts, a drain, and short bays.”

The 92070 + 92076 standard-width lane is the honest starting point, with a manufacturer-approved standard cover. It turns in the bays, its liner is exact-fit, and each batch can leave with its own liner. The 18" system’s width is false economy here.

“The floor product or cleanup solvent attacks ordinary plastic.”

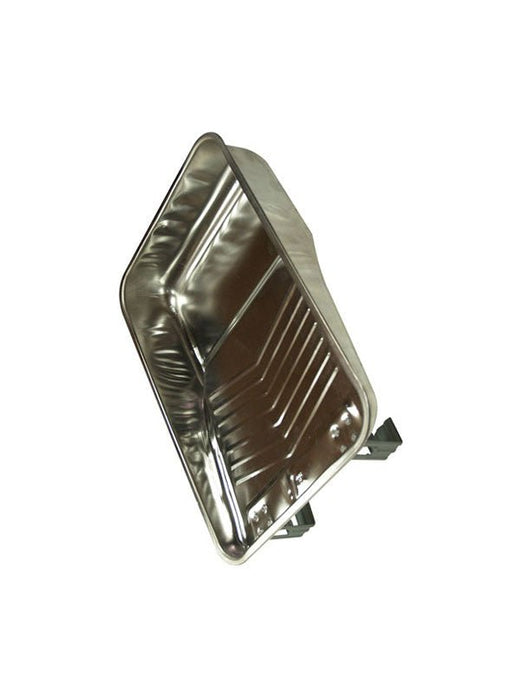

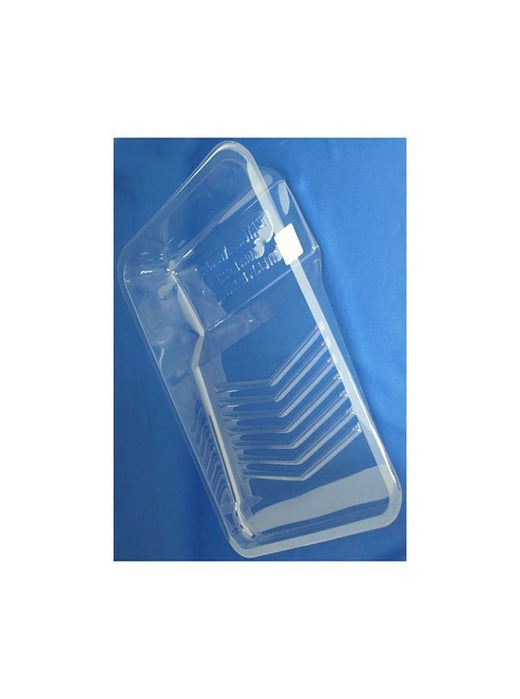

Consider the 92060 metal tray. Use its exact 92061 liner only if that plastic liner is compatible with the material for the full session; otherwise use bare metal only when the coating maker allows metal contact and supplies a cleanup route. Neither the plastic 92070 nor the plastic 92113 becomes solvent-safe because the job happens to be a floor.

“I have a rapid two-part topcoat and only one person.”

The first purchase decision is not tray width. It is whether the manufacturer’s working time, batch format, applicator method, and respiratory controls permit a one-person roller installation at all. A narrower batch and clean-liner change may be possible if partial batching is authorized; an 18" frame does not make one person faster than chemistry.

“I’m sealing a wood porch.”

Start with the coating’s approved applicator. If it names a roller, choose its cover and a maneuverable width for the boards and edges. The 47420’s 18" concrete/open-field story does not automatically transfer to wood, and the “floor” title on the 92070 does not certify a deck stain.

Concrete false-neighbor calls — statements that decide the cart

47420 vs an ordinary 9" frame: the 47420 is documented at 18", uses dual-arm capture, has the documented 30° floor/ceiling setting, and is described by Hyde’s video as pole-driven with no hand handle. A normal 9" cage frame cannot make any of those claims. Conversely, a 9" frame can turn in cut-up rooms where the 18" width cannot.

47420 vs 92113: frame vs reservoir. The 47420 holds and angles the cover; the 92113 loads it. Neither substitutes for the other, and neither includes the coating-approved cover.

92113 vs 92070: the 92113 is officially 18" and 4 L, built for 18" rollers; the 92070 is the store-designated standard-width floor tray, inferred at 2 L through its exact-fit liner. A standard cover wastes the 92113’s width; an 18" cover cannot load evenly from the 92070.

92070 vs 92060: designated floor form vs material chassis. The 92070 is plastic and belongs only with compatible chemistry; the 92060 is the metal tray to consider when plastic compatibility fails. “For floor” does not mean “for every floor coating.”

92076 vs 92061: both are nominal 2 L plastic liners, but fitment makes them opposites. The 92076 officially fits the 92069 and 92070; the 92061 officially fits the metal 92060. They are not interchangeable by width, capacity, or appearance.

92076 vs the unidentified 92113 liner: the 92076 is a confirmed standard-tray liner. It is not the 18" liner for the 92113.

92061 vs “solvent-proof liner”: false neighbor. The 92061’s documented fact is fit to the 92060 and plastic construction. Its metal parent may be chosen for solvent chemistry; that does not turn the plastic liner into a universal solvent rating.

The history footnote — why a floor crew still works from a pan and a bent frame

That pan-and-ramp geometry is explicit in Touchett and Fohl’s 1949-filed paint-tray patent: a deep end for paint, a sloping bottom, and ribs that force the applicator to rotate and shed excess as it climbs the ramp ([U.S. 2,694,825]( It is the same physical sequence used here—dip the face, condition on the ramp, lift without a stream—scaled from a wall roller to a floor crew’s 18" cover.

The next consequential step was not a new pan; it was deleting the wash. Thomas L. Hardwick filed a “Disposable paint tray liner” in 1963, describing the exact problems liners still solve: trays had to be cleaned between uses to prevent unwanted color mixture, and a molded liner could be secured in a conventional tray, removed, and discarded ([U.S. 3,157,902]( The 92076 and 92061 are descendants of that idea. Their modern lesson is sharper on reactive floors: the liner is not merely a color-change convenience; it is a way to prevent a fresh batch from inheriting a previous batch’s reaction clock.

The 47420’s 30° setting is the final job-specific refinement in this six-product set. The old bent-frame idea met a horizontal surface and changed its angle so a standing painter could keep a wide cover flat. The history is not that rolling became complicated. It is that the same three geometries—rotating cylinder, metering ramp, disposable nested shell—were each adapted to the harder controls of modern floor chemistry.

Exact six product links:

Method and safety sources: ASTM F06.40 floor-slab moisture standards · ASTM F2170-19a · ICRI 310.2R concrete surface-preparation guideline · Sherwin-Williams concrete surface-preparation guide · OSHA crystalline silica · OSHA isocyanates · EPA household hazardous waste.

History sources: [Adams roller applicator, U.S. 2,411,842]( · [Touchett/Fohl paint tray, U.S. 2,694,825]( · [Hardwick disposable liner, U.S. 3,157,902](

Bottom line: diagnose and accept the system first; accept the substrate second; map the exit and batches third; then choose the roller width and tray. The wide pair (47420/92113), floor-tray pair (92070/92076), and metal pair (92060/92061) answer three different physical problems. None answers moisture, profile, chemistry, or time—and those are the four things that decide whether a coated floor stays coated.
