How to Choose Your Inside-Corner Method — Folded Corner Tool, Joint Knife, or Hybrid

Job: choose the hand-tool method for a standard drywall inside corner before compound is on the wall: knife-only, folded corner tool, or hybrid.

Time: make the choice before mixing or thinning compound. The choice changes how the tape is embedded and how much hand discipline the embed asks for; it does not cancel the later coat sequence or the drying requirements printed by the compound manufacturer. No universal coat time is asserted here.

Difficulty: diagnosis and self-knowledge. First identify the corner and the stage of work. Then choose whether you want a shaped tool to control two wet planes together or a flat knife to control one plane at a time.

The knife-side alternative: a clean flexible 4"–5" joint knife. Wider knives still have downstream jobs, but the tight inside-corner work belongs near this width.

Everything else: pre-creased paper joint tape; joint compound approved by its manufacturer for embedding that tape; a mud pan; a utility knife or shears for cutting tape; clean water and a brush or cloth for immediate tool cleanup; a work light for raking inspection; and a representative scrap or inconspicuous practice corner if the method is new to you. This guide supplies no invented ratio, compatibility, or drying schedule.

First diagnose the corner — method choice begins with geometry

The two-schools argument applies to one job: a standard, open, concave drywall inside corner. A surprising amount of bad tool advice begins by arguing about method before identifying the shape.

Standard wall-to-wall or wall-to-ceiling inside corner

Two planes meet in a concave angle intended to be square. Paper tape folds into the crease, and both faces of the tape must be embedded in compound.

wipe both wings together with one of the three registered folded tools;

wipe each wing separately with a flexible joint knife; or

use the folded tool for the embed and knives for the coats that build flatness outward.

All three are real methods. The corner, the amount of repetition, and the hand doing the work decide among them.

Off-angle inside corner

A vaulted or cathedral ceiling line, bay-window break, or rake-angle soffit is still concave, but it is plainly not a standard square corner. Route it out of this decision.

Even there, the source calls it an Inside Corner Wipe-Down Tool and does not establish it as a crisp tape-crease builder. Off-angle finishing therefore belongs to finish-an-off-angle-corner, not to a forced choice among the three products on this page.

Outside corner

A convex drywall corner reverses the geometry. The knife-and-bead-screed method and the outside tool belong to finish-an-outside-corner. They are not hidden options in this guide.

Where two walls meet a ceiling, the last pocket is three planes, not two. Behind a pipe, tight trim return, or other obstruction, the two wings may not have room to land. A folded corner tool needs two open faces; it cannot finish a die corner simply because its main run points there.

The open crease can still use the folded tool. Stop before the pocket and finish the obstructed or three-plane end with a narrow joint or pointing knife. That is a boundary, not a failure of technique. Forcing the folded shape into the third plane produces a smear, not a more complete corner.

Already taped and dry

Do not re-wet a good tape coat merely to try a different tool.

Building the next coats and feathering both wings belongs to coat-and-feather-an-inside-corner.

Correcting dry ridges is dry-knife or sanding work, according to the defect; it is not a reason to run a wet corner tool over a cured corner.

Loose, bubbled, cracked, or wandering tape is a repair diagnosis. Cut back to sound work and re-tape only the failed section.

The simplest way to make the method choice easier is to make it at the correct stage.

Lock the tape-and-compound system before choosing the hand motion

A corner tool does not rescue the wrong tape or an unsuitable compound system. It only controls the pressure and geometry of the embed.

Paper tape owns the standard inside corner

Paper joint tape arrives with a center crease because a corner requires a fold that stays folded. It can be centered in the angle, seated into compound, and carried as one continuous reinforcement down the run.

Self-adhesive mesh is useful in other drywall workflows, but it is not the neutral alternative here: it does not hold the same crisp folded crease. The choice on this page is therefore how to embed paper tape, not paper versus mesh.

The bed is the bond

Both methods begin the same way:

Prepare the joint compound according to its manufacturer for paper-tape embed work.

Use the joint knife to place compound on both faces of the inside corner.

Fold the paper tape sharply on its factory crease.

Park it centered in the wet angle.

Wipe out the excess while leaving a continuous bonding film under both wings.

The folded tool does not butter the wall. The knife remains mandatory equipment in every version of the job.

Do not invent compound compatibility at the tool shelf

The three registered corner tools are hand tools. Their held evidence describes geometry, material, size, handle, and drywall taping/patching roles; it does not certify a proprietary tape, setting compound, premixed compound, additive, water ratio, temperature range, or recoat schedule. Use the tape and compound manufacturers' current instructions for those decisions.

If a guide, clerk, or listing promises that one of these hand tools makes every tape compatible with every compound, the promise did not come from the held evidence.

Repair-work boundary

If choosing a method for an old cracked corner requires raking, sanding, or cutting into legacy compound, identify the material hazard before disturbing it. The federal ban on consumer patching compounds containing intentionally added respirable free-form asbestos dates to 1977 (16 CFR Part 1304). In older work, testing and the applicable containment decision come before the knife. The corner-method choice resumes after the substrate is cleared for work.

The knife-only school — one plane at a time

The knife school does not reject corner geometry; it manages it by sequence.

A flexible joint knife is flat. When it wipes one face of a wet corner, the far corner of its blade approaches the adjacent face. If both faces are being treated as one finish surface, that far corner can gouge the opposite compound. The knife method solves the problem in two ways:

during the embed, control each tape wing separately and keep pressure balanced;

during later finish coats, work one face while the other remains dry, then return to the opposite face on the next coat.

How the knife embed works

Bed both faces with the joint knife.

Fold and place the paper tape.

Start on one wing near the center of the run and wipe toward an end, then return to the center and wipe toward the other end.

Repeat on the second wing.

Keep the blade angle and pressure consistent enough that one wing is not starved while the other floats in excess.

Inspect the crease and both tape edges while the compound remains workable.

The target is not a bone-dry-looking tape. The target is paper fully bonded over a thin, continuous film on both faces.

Who the knife school actually serves

Choose knife-only when most of these are true:

You already own and control a flexible 4"–5" joint knife.

The job is one repair, one short run, or an occasional room rather than repeated corner production.

You value direct control of each wing more than matched two-wing pressure in one pull.

The corner has short obstructions, awkward ends, or transitions that already require one-plane-at-a-time work.

You want the smallest kit and accept that the corner skill lives in your wrist rather than in a folded shape.

You intend to use the same knife for bedding, corner work, small patches, and later feathering.

This is not the “professional” answer opposed to a “beginner” tool. Excellent finishers use it because it gives complete control and because they must retain the skill for corners no folded tool can enter.

The knife-only cost

The method asks the operator to equalize what the corner tool equalizes mechanically:

the amount of compound under both wings;

the pressure on each wing;

the straightness of the crease while attention shifts from face A to face B;

the blade's clearance from the opposite face;

and the discipline to leave the wet face alone during downstream coats.

If those controls feel natural on the mockup, buying another shaped tool may add little. If one wing repeatedly ends dry while the other ends heavy, the tool school has a mechanical answer worth testing.

The folded-tool school — both planes in one pull

The folded corner tool changes the blade so the hand no longer has to pretend the corner is flat. Its center fold tracks the tape crease; its two wings contact the two faces together; one pull meters both sides at once.

How the folded-tool embed works

Bed both faces with the joint knife.

Fold and place the paper tape exactly as for the knife method.

Set both wings of the corner tool flat on the two faces.

Draw one continuous pull along the open run with centered, even pressure.

Read the squeeze-out. Two comparable ribbons at the outer wing edges indicate that both sides were being worked together; one flooded side and one dry side indicate the tool was tipped.

Stop before a die corner or obstruction.

Inspect the tape while the bed remains workable.

Rinse the fold and working edges before compound cures.

The tool does not erase technique. It moves technique from two independent blade paths to one centered pull.

Who the folded-tool school actually serves

Choose a folded corner tool when most of these are true:

The job contains repeated standard inside corners.

You want both wings embedded under one matched motion.

Keeping the paper crease straight and pressure balanced is harder for you than making one continuous pull.

You value repeatable corners across a room more than carrying the smallest possible kit.

You are willing to clean and protect a dedicated shape whose fold and wing edges are its working calibration.

You understand that the knife is still required before and after the pull.

The strongest case is the person who does not tape often enough to make two-wing knife control automatic but has enough corners in front of them that inconsistency will repeat. The production case is different in scale but similar in logic: repeated geometry rewards a tool built to repeat it.

What the folded tool cannot honestly promise

It does not:

load compound onto the corner;

decide tape/compound compatibility;

fit every inside angle;

enter the three-plane apex;

eliminate later feathering;

turn a wet ridge into a finished surface;

or remove the need to inspect the tape bond.

It simplifies the corner's hardest wet stroke. That is a large, specific advantage; inflating it makes the tool less credible, not more useful.

The hybrid — shaped embed, flat finish

For most buyers who choose a folded corner tool, the durable answer is not “corner tool instead of knife.” It is corner tool first, knife after.

The division of labor

Joint knife: place the compound bed on both faces.

Folded corner tool: embed the paper tape and establish a straight, evenly fed crease.

Dry-knife cleanup: after the tape coat has dried according to the compound system, slice off the harmless wing-edge ridges rather than grinding them into dust.

This is a material-system decision before it is a tool preference.

Joint knives: build and feather each wing outward, working away from the crease and one side per coat where the opposite wet face would be at risk.

Inspection: raking light and touch judge the finished corner; no tool name does.

The folded tool builds the crease. The flat knife builds flatness. Each is strongest where its shape agrees with the surface.

Why not finish every coat with the corner tool?

Every folded tool ends at two outer wing edges. Those edges leave two boundary lines in wet compound. On the tape embed they are expected and harmless. On a final finish coat they become the very rails the eye sees under side light.

Moving the same folded tool through every coat merely moves or rebuilds the two rails. A flat flexible knife can feather from the crease outward and erase a coat boundary into open wall. The hybrid is not a compromise between schools; it is a shape-correct sequence.

The downstream hand-offs are firm

Tape bed and embed: tape-and-embed-an-inside-corner owns the full doing sequence.

Off-angle inside corners: finish-an-off-angle-corner owns the angle the fixed steel tools cannot seat.

Sanding does not retroactively improve a starved embed.

Choosing the method correctly means knowing not only where it starts but where it ends.

Choose among the three registered corner tools — exact evidence, no shelf mythology

The product decision begins only after the method decision says “folded tool.”

| Registered model | Held working evidence | Best evidence-backed selection case | Do not infer |

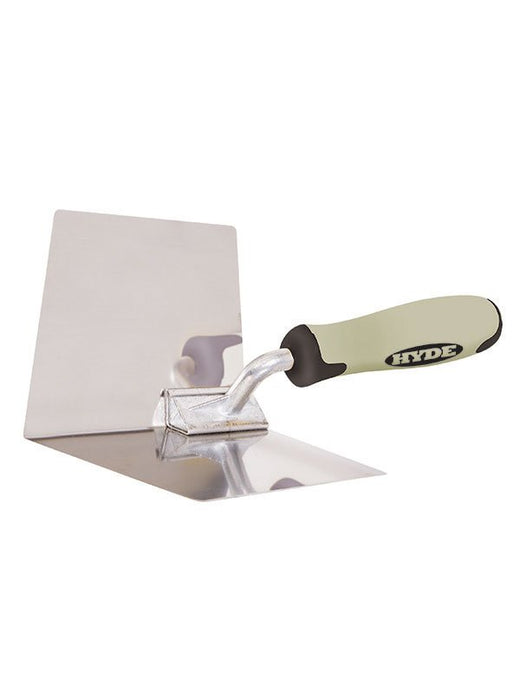

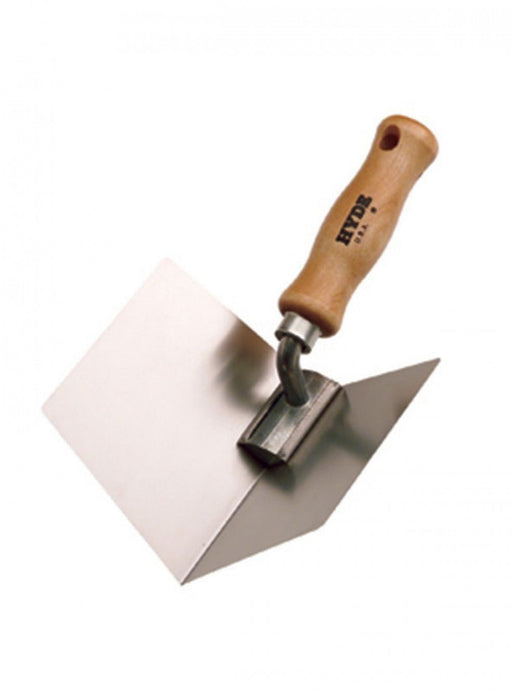

09410 versus 09411 — the buy is the handle

This pair is the easiest decision in the line once invented distinctions are removed.

Both accepted product records give the same working geometry: 4" flexible stainless blades at 103°. Neither record grades one blade above the other.

Do a dry hand test if you can handle both shapes before buying. Hold each in the orientation of a corner pull, keep the wrist centered behind the fold, and notice which grip lets you steer without tipping toward either face. This is a buyer mockup, not a blade test: the evidence says the blades are peers.

Steel pair versus 05560 — cadence, width, and how pressure reaches the wings

The steel pair carries a specified 103° spring geometry and 4" wings. On the steel tools, the fold supplies preload as the 103° wings close into the standard corner. On the 05560, the hand flexes the polypropylene wings into the corner.

That creates the grounded buyer fork:

repeated standard corners and a preference for a specified steel preload → 09410 or 09411;

occasional standard corners and a lower-commitment Economy tool → 05560.

The narrower 05560 leaves its wing-edge boundaries closer to the crease, so the later knife feather begins closer to the crease. That is a workflow difference, not a claim that the tool cannot make a sound embed.

Fixed, conforming, and specialty shapes — use the words correctly

Fixed/preloaded shape: 09410 and 09411, 103° flexible stainless wings serving the intended standard inside-corner geometry.

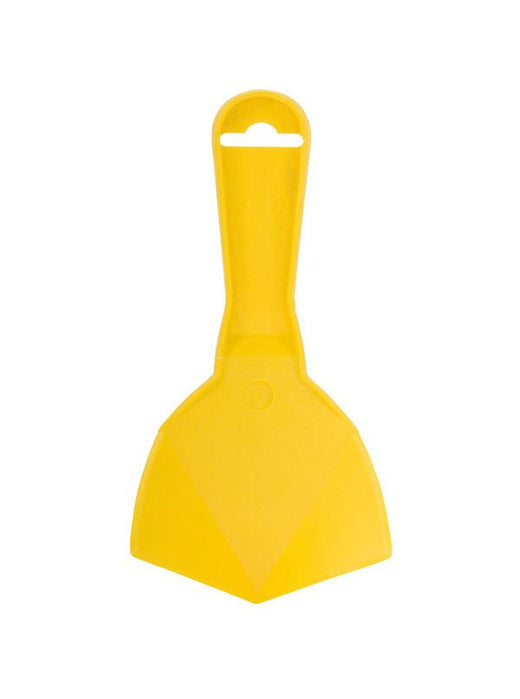

Conforming material: 05560, flexible polypropylene wings. “Conforming” does not mean a user-set adjustable angle.

Adjustable-angle tool: none of the three.

Those distinctions prevent the most expensive kind of catalog error: turning a material's flexibility into a compatibility claim the source never made.

Run a mockup before the room decides for you

A buyer test should reproduce the decision, not produce a showroom trick. Use the same board or representative substrate, the same paper tape, and the same compound system intended for the job.

Set up two comparable runs

Inspect both practice runs for similar angle and surface condition.

Prepare one batch of compound according to its label so the methods are not being tested on different material.

Cut and crease comparable paper-tape runs.

Label one knife and one folded tool.

Bed both with the same joint knife and approximately the same working fullness. The test is not useful if one run begins starved and the other begins flooded.

Run the knife sample

Wipe one wing, then the other.

whether the crease stays centered while attention shifts;

whether both tape edges stay bonded;

whether the second wing changes the first;

whether the knife corner scars the adjoining wet face;

and how easy it is to leave comparable compound under both wings.

Do not slow the knife sample into a ceremonial best-case pass. Work at the pace and concentration you can actually sustain across the job.

Run the folded-tool sample

Center the fold and pull once through the comparable run.

whether both wings seat;

whether squeeze-out appears on both sides;

whether the pull stays centered rather than tipping;

whether a pause prints a stop line;

and whether the outer wing ridges are consistent and easy to hand off.

If testing the 05560, remember that your hand supplies the conforming pressure. If testing either steel model, let the claimed spring geometry press the wings rather than adding unnecessary force.

Inspect wet, then inspect dry

While wet, judge:

straightness of the paper crease;

attachment at both tape edges;

bubbles, wrinkles, or lifted sections;

and damage at the run's ends.

After the compound has dried under its manufacturer's stated conditions, inspect again under raking light and by touch:

Did either tape wing release?

Did one side shrink from a heavy bed while the other remained tight?

Which method left the crease straighter?

Which method left a downstream ridge burden you can remove cleanly?

Which motion could you repeat for every corner in the actual job?

The winning method is the one that produces a sound, repeatable embed in your hand. A perfect demonstration pass you cannot repeat is not the winner.

Decisive buyer and method tests

Use these as hard routing questions.

One short repair; you already control a flexible joint knife: start knife-only. A dedicated fold may not earn its place.

A room of standard inside corners; you have never kept both tape wings equally fed: mock up a folded tool. Repeatability is the benefit you are buying.

The blade decision is a draw.

You want a corner tool so you can stop carrying joint knives: choose no corner tool. The premise is false; every folded-tool workflow still needs a knife to bed and feather.

You want the best final-pass tool: choose the flexible joint knife. The folded tool's outer edges make it an embed/early-coat shape, not the final feather.

The corner is visibly off 90°: choose none of the three. Route to the off-angle guide and the held rubber-tool boundary.

The corner is convex: choose none of the three. Route to outside-corner method selection.

The job is high-volume mechanical finishing: this hand-tool decision is below the production system's primary method. Automatic angle heads and related tools are outside this catalog line; keep hand tools for repairs, starts, ends, closets, and irregular work without pretending they are the whole production trade.

What goes wrong — diagnosis before another pass

“The steel tool rocks and neither wing sits flat.” First re-check the angle. A visibly off-square corner is outside the fixed tool's territory. Do not add pressure until the tool deforms; route the geometry correctly.

“The polypropylene tool is flexible, so I used it in a vaulted angle.” Flexibility was promoted into an off-angle compatibility claim. The rubber 09158 owns the held off-angle claim, at wipe-down grain.

“The 09411 leaves a better blade finish than the 09410.” No held evidence supports that distinction. They share the same claimed 4" flexible stainless working end at 103°. If one sample performs better, inspect cleanliness, wing condition, compound, pressure, and operator fit before inventing a blade grade.

“The corner tool starved the tape.” Too much pressure, too little bed, or repeated wiping drove the bond layer out. Lift and re-bed while workable; after cure, remove and replace the unattached section. Never bury a bubble under another coat.

“Knife side A is tight; side B is floating.” The two independent wipes were not balanced. Remove the excess from the heavy side without stripping the tight side, or lift and re-bed if either wing lost bond. On the next run, use comparable pressure and read both tape edges before moving on.

“The folded pull made one fat ribbon and one dry edge.” The fold was tipped toward one face. Re-center the handle on the angle's bisector. Added pressure makes the imbalance worse; centered travel corrects it.

“There is a horizontal mark across the corner.” The folded tool paused or restarted in material that had begun to skin. On a workable bed, blend the mark immediately. On the next run, use one steady pull or overlap only into wet material.

“The corner-tool edges left two ridges.” Expected at the embed. Let them dry and slice them clean before the next coat. The mistake is chasing them wet or carrying the same rails into the final finish.

“The knife gouged yesterday's other wing.” The dry-face sequence was lost or the blade's far corner entered the adjacent face. Work away from the crease, shorten the blade if access demands it, and keep the opposite finish dry while the active face is coated.

“The crease is wavy even though both wings are smooth.” The paper was folded softly or parked off-center. Both methods faithfully embed the line they are given. No wide feather hides a wandering crease; replace it while the correction remains smaller than the finished defect.

“I used the rubber wipe-down tool instead of choosing a tape method.” Wipe-down and crease-building are not synonyms. Do not silently promote it into a 09410/09411 substitute.

“The last part at the ceiling is smeared.” A two-plane tool was forced into a three-plane apex. Stop the main pull short and finish the pocket with a narrow knife.

“The finished corner still shows two rails under paint.” The folded tool was treated as the final-pass tool. Return to the hybrid boundary: flat flexible knife, each wing feathered outward, with sanding only for the light cleanup the compound actually needs.

“The corner cracked again.” A hand-tool choice cannot stop structural movement. Confirm whether the failure is poor tape bond, excess compound in the crease, moisture damage, or building movement before repeating the same repair.

The history footnote — the argument is as young as drywall

The corner-tool-versus-knife argument could not exist until the wall itself changed. Augustine Sackett's paper-faced gypsum “inside-wall covering” was patented in 1894 (National Inventors Hall of Fame); later wallboard still needed a joint system that could make separate sheets read as one wall. Paper tape and compound created a new hand problem at every inside angle: two wet planes and one line that the eye follows from floor to ceiling. The 4" joint knife answered by discipline — one plane at a time. The folded corner tool answered by shape — two wings at once.

Mechanized drywall finishing later carried the shaped-tool idea into automatic angle heads and corner finishers; the Ames history traces automatic taping tools back to the late 1930s (Ames Taper company history). Yet the hand-tool fork survived because repairs, closets, short runs, die corners, and irregular work keep returning the trade to a pan and a wrist.

It is treated as a drywall-age trade pattern until stronger evidence appears.

History and safety sources: National Inventors Hall of Fame — Augustine Sackett · Ames Taper company history · 16 CFR Part 1304 — ban of consumer patching compounds containing intentionally added respirable free-form asbestos.

05560 angle and range: no angle figure, adjustable mechanism, or off-angle range appears in accepted claims. Never copy 103° from the steel pair or “angles other than 90°” from 09158.

09410/09411 parity: accepted evidence makes their 4" flexible stainless 103° working ends peers. The handle is the documented distinction; do not invent blade grading.

09411 handle geometry: hardwood is claimed; offset versus in-line geometry is not. Assert neither.

09158 workflow position: wipe-down, rubber, compound-spreading, pole slip-fit, and off-angle capability are held. Its exact sequence behind hand or mechanical taping is not; this guide uses it only as a routed boundary.

09425 relationship to corner bead: unresolved; it appears only as the outside-corner boundary.

Corner-tool class history: no inventor or first-maker claim is held. Treat the folded hand tool as a trade pattern until primary evidence resolves it.

Hyde founding date: Hyde materials conflict between 1870 and 1875; use “early-to-mid 1870s” if lineage copy is retained.

Commercial facts: this guide states no price, availability, stock status, promotion, or delivery promise. Those facts must render from current commerce truth.

Every exact registered PDP can link to this decision guide under “Choose your corner method.” This guide links back to all three and keeps the non-union shapes at their honest boundaries, so downstream wiring can build both directions without converting “mentioned” into “recommended.”
