How to Trim and Detail-Cut Drywall with a Trade Knife

Job: bring a drywall cut from roughly correct to fitting correctly — without sacrificing the keep-side face paper, overcutting an opening, or sending a blade into an uninspected cavity.

Time: there is no honest blanket time. One ragged snapped edge may need a few controlled strokes; a fitted return may require repeated mark–remove–shave–refit cycles. The job ends when the board slips into place without force, not when a stopwatch says it should.

Difficulty: blade control and restraint. The cut itself is simple. The craft is choosing the right cutting stage, supporting the board, exposing only the edge needed, and removing less material than the fit appears to demand.

The defensible trade-knife set from this catalog:

The product record documents no difference from 20350 beyond size; this guide invents none.

Use it as the short-point, maintainable trade-knife option for controlled drawn cuts; do not turn the word “drywall” into permission for blind plunges or production board cutting.

The stage tools that keep this guide honest:

The rasp removes core quickly and evenly; the trade knife preserves paper and makes deliberate bevels.

A knife is not a slower jab saw.

Everything else: tape measure, pencil, straightedge, sacrificial backer, stable board support, flashlight, non-contact voltage detector as a warning aid, vacuum suitable for fine construction dust, eye protection, dust protection, a rigid sharps container for disposable utility-blade waste, and the board or installed edge being fitted.

First decision: is this score work, saw work, rasp work, or knife work?

Score-and-snap owns straight production cuts in loose board. If a sheet needs to become narrower or shorter, put down the trade knife. Score the face against the T-square with the 42047, snap the gypsum core, and slice the back paper. That method cuts paper instead of plowing a blade through mineral core, stays straight, makes little dust, and renews its edge by snapping a segment. The long-point knives enter after the snap, when the cut needs a back-bevel, a paper burr pared away, or a local high point shaved for fit.

A rasp owns broad gypsum reduction. If the whole snapped edge is proud, crooked, or crumbly, use the 09985 first. A rasp takes the core down evenly and keeps the correction in the edge plane. Asking a sharp knife to whittle a whole board width invites facets, deep bites, torn paper, and a cut that changes angle every time the wrist changes. Rasp to nearly correct; knife the last deliberate bevel or paper-preserving trim.

A jab saw owns an opening with distance to travel. Outlet boxes, switch boxes, registers, and replacement-panel rectangles need a saw after layout and hazard inspection. The 09016 starts from a known waste area and cuts to a stop-score. The trade knife is for refining the opening, not sawing its perimeter one inch at a time.

The trade knife owns the drawn cut. Choose it when the job is a controlled slice made from an exposed edge or a verified opening: back-bevel the core behind intact face paper; shave a contact point; pare a torn paper flag; clean the inside of a notch; open a known penetration slightly; trim an installed edge flush when the back side is known safe. Its advantage is not depth. Its advantage is that a sharp maintained edge can draw through paper and friable gypsum while your hand controls the angle continuously.

The quickest counter test is blunt: new sheet needs dividing → utility knife; edge needs reducing → rasp; opening needs traveling → jab saw; fit needs refining → trade knife.

Before the blade comes out

Lay out from a trustworthy edge. On loose board, reference the factory edge with the T-square and mark the finished face. For a notch or return, mark every leg and mark the waste unmistakably. Extend lines around the board edge onto the back where a back-side cut will be made; do not assume two freehand marks on opposite faces meet. For an installed edge, mark the finished line on the keep side and add a utility-knife stop-score through the paint and face paper before any core is removed.

Choose which paper face must survive. Drywall is not merely gypsum with wrapping. The paper skins supply the board’s tensile strength and define the finished plane. On a field-cut butt or return, the visible face paper is the datum: preserve its line, and remove gypsum from behind it. On an opening hidden by a trim plate, the keep-side face still matters because torn paper can delaminate past the cover. On a replacement opening, the stop-score keeps the painted face from lifting beyond the rectangle. Decide this before cutting; after the paper tears, the decision is gone.

Support both the keep piece and the waste. Loose board lies flat on a stable bench or stands securely at the stack for an edge operation; the cut area bears on a sacrificial surface where a point could exit. The offcut cannot hang from the last inch of paper and lever a corner away. For a notch, support the narrow leg so it does not become a pry bar against the inside corner. Never make a precision draw cut while another person is holding loose board in the blade’s exit path.

Read the back side, not just the line. On loose board, the back-side hazards are your bench, sawhorse, support hand, and anything laid under the sheet. On installed board, the hazards are services and structure: cable, pipe, duct, box, fastener, corner bead, resilient channel, and framing. A shallow face score is not permission to go deeper. Turn off the circuit serving nearby devices, verify the circuit is de-energized, remove a nearby cover plate only when that creates a safe sightline, and inspect from an existing opening with a flashlight. A detector can warn; it cannot prove an empty cut path. If plumbing is plausibly in the route, locate it before cutting and isolate the supply where the work calls for it. If the cavity cannot be established as safe, stop: an electrician, plumber, or controlled exploratory opening owns the next move.

Inspect the edge and the knife. A keen edge slices paper; a dull one pulls fibers and makes the user compensate with force. A bent point, rolled edge, loose handle, or damaged blade is not a detail tool. The fixed knives in this guide are maintained edges, not disposable feeds: clean and hone them according to their product guides. The 42047 is the disposable-edge tool; if its score drags, renew the segment and contain the old one.

Expose only the edge the cut requires. With a fixed trade knife, “exposure” means how much blade is allowed past the support of the board edge and your guiding hand — not a setting on the knife. Keep the cut close to the edge, the blade low, and the point no deeper than the material being removed. With the 42047, extend only enough blade to part face paper for a stop-score. Long extension does not make a cut more professional; it makes a buried blade easier to flex, bind, and launch.

The core techniques

Back-bevel a field-cut butt without sacrificing the face

Dry-fit before beveling. Offer the sheet to its opening. If the face line fits but the back of the core binds first, a back-bevel is justified. If the entire edge is long, rasp first. If the board thickness, framing, or debris is holding the sheet proud, fix that cause — a bevel cannot correct the wrong plane.

Mark the contact, remove the sheet, and work from the back. Pencil only the places that touched. Put the board on stable support with the finished face protected and the cut edge accessible. The face-paper edge is the hinge of the operation: it stays at the finished dimension while the rear of the gypsum core is relieved.

Set a shallow slicing angle. Start from the exposed cut edge, not from the finished face. Lay the trade knife nearly along the edge and draw through the back corner of the core, taking a narrow shaving. The blade moves toward waste and away from the preserved face-paper line. Do not lever the point sideways after it enters; withdraw, reset, and draw again.

Use multiple light passes. The first pass defines the bevel. The next passes deepen the same plane. A single heroic cut wedges the blade in the core, bursts the paper, and often removes more than the fit needed. Gypsum rewards repetition: several controlled slices produce one deliberate bevel, while one deep chop produces a crater.

Stop before the face paper becomes the cutting edge. A useful back-bevel leaves the face-paper edge supported by core at its line. If the paper curls unsupported, you have converted a tight butt into a fragile flap. Pare loose core from behind, not the intact paper from the front.

Refit and repeat only at the new contact points. Offer the board up, pencil the next high spot, take it down, and shave only there. This mark–remove–shave–refit rhythm is slower than cutting in place exactly once and faster than repairing an overcut forever. The board is done when it seats without being forced and its face lands in the intended plane.

Clean a snapped edge: rasp first, knife second

Knock off loose core without chasing the finish line. Brush away crumbs; use the 09985 for a broadly proud edge. Hold it in the edge plane and take full strokes so the correction stays straight. Vacuum the rasp and edge before judging the fit — packed dust can make a cutting tool feel dull and loose debris can hold a dry fit proud.

Pare paper flags in their direction of attachment. A ragged strip of face or back paper gets cut at its root with the blade laid nearly flat. Cut toward the free end, not under the bonded paper, so the knife does not peel a larger flap from the board. If the paper has already torn into the finished face, stop cutting: seal and repair that face rather than enlarging the delamination.

Slice the last gypsum burr with the full edge, not the point alone. The point starts the draw; the belly of the edge does the work. A point-only scratch makes grooves and breaks chunks. One light draw along the edge should produce a shaving or dust line, not a shower of fractured core.

Preserve square where square is needed. A snapped edge headed to a floor line or support may need to remain square, not back-beveled. The rasp is the primary tool there; the knife removes paper and isolated nubs. Bevel is a fit decision, never an automatic “finished” look.

Fit notches, inside returns, and outside corners

Lay out the whole shape before cutting either leg. An L-notch has two dimensions and one inside corner; an opening return has a face line, a depth, and a meeting plane. Mark the keep side, waste side, and corner clearly. Where two score lines meet, carry both exactly to the corner but not past it — an overrun becomes a crack starter visible beyond the notch.

Use a stop-score on the finished face. With the 42047 against a straightedge, part the face paper along each leg. This defines the keep line and stops the trade knife or jab saw from lifting paper beyond it. A stop-score is surface work; keep the blade shallow.

Remove the bulk with the correct method. A large L or return: score-and-snap the accessible leg and jab-saw the captured leg from the waste side. A small notch in loose board: score both legs, support the narrow keep piece, and remove the waste in controlled bites. Do not twist the long-point knife in the inside corner to “pop” the waste; that side-load is how a fine point breaks and a paper corner tears.

True the inside corner from both directions. Work each leg toward the meeting point, then stop. Do not sweep the blade around the corner as though the core were wood; the turn undercuts one face and overruns the other. If a tiny core nib remains at the vertex, approach it from the waste side with a short draw or use the rasp’s edge deliberately.

Back-bevel an inside return only where the back binds. On a window or door return, preserve the visible face line and relieve the hidden core a little at a time. Dry-fit against the framing or adjacent board, mark the rub, remove the piece, and shave that mark. A bevel all the way around an opening creates unsupported paper where trim and corner treatment need a sound edge.

Approach an outside corner from the edge toward waste. Outside corners are easy to fracture because the remaining board narrows as the cut reaches the tip. Support the corner, make short draws from each open edge toward the meeting point, and leave the last paper fibers for a clean slicing pass. Never finish by pulling the blade out through the visible face; that exit tears exactly the paper the corner treatment must cover.

Open or enlarge a penetration

Separate “new opening” from “known opening.” A trade knife may refine a hole whose void is already visible and whose back side is known. It is not the tool for stabbing a new hole into an installed wall. New rectangular openings belong to the 09016 after layout and inspection; round holes belong to the circle-cutter or jab-saw workflow in the drywall-installation line. The open point’s ability to pierce loose board is not permission to pierce a closed cavity.

For loose board, cut from the waste center toward the line. Mark the opening, stop-score the face, place the board over a sacrificial void or backer, and start inside the waste. Use shallow drawn passes that terminate at the stop-score. Rotate the board or your working position so the knife continues to move away from the supporting hand.

For an undersized known opening, mark the contact band. Hold the fitting or template where it belongs; mark only the side that binds. Remove the fitting. Shave from the opening into its waste, keeping the preserved face-paper rim intact. Take a narrow band, check, and repeat. Cutting around the entire perimeter “for clearance” makes an opening that is loose everywhere and still may bind at the one uncorrected high spot.

Use the saw when the cut stops being a trim. If enlargement extends beyond local shaving, if the opening has long straight legs, or if the core must be severed through its full thickness for distance, return to the 09016. Knife work ceases to be safer merely because it is slower.

Trim an edge on existing board

Start with a surface stop-cut. Score the paint film and face paper on the keep side with the 42047. The stop-cut defines where delamination must stop. Do not push a fixed trade knife through painted paper and hope the finish breaks cleanly.

Enter from an existing opening or exposed edge. The safe sequence in installed board is surface score, verified back side, then a shallow cut from known waste. For a replacement rectangle, the jab saw travels from the damaged opening toward the stop-score. The trade knife follows only to pare the exposed edge, back-bevel the insert, or trim a local contact point.

Keep the blade inside the board thickness. A point that clears the back paper has entered the cavity. When the work is at a stud, box, or service route, shorten the stroke and use the edge nearest the surface. If the blade cannot perform the cut without disappearing into the wall, it is the wrong tool or the wall is not yet open enough to work safely.

Vacuum before closing or fitting. Loose gypsum in a cavity, on a backing strip, or on the bottom of an opening changes the fit and becomes airborne later. Vacuum; do not blow dust into a wall where it can settle into devices, ducts, or occupied space.

Blade direction, grip, and body position

Draw with the edge, not the shoulder. Grip the handle fully, keep the wrist in line with the forearm, and let the cutting edge travel. The free hand stabilizes the board outside the blade path. If the cut requires a whole-arm yank, the edge is dull, the bite is too deep, or the wrong tool was selected.

Plan the exit before the entry. Every stroke needs a harmless place to finish: open waste, sacrificial backer, or an exposed edge. Never arrange the board so the natural runout is a thigh, supporting palm, helper, finished floor, pipe, cable, or the keep side of the opening.

Do not twist a buried point. Long-point blades start and steer drawn cuts; they are not pry bars. A bound blade comes out the way it entered. Withdraw, clear dust, reduce the bite, and begin another pass. Side-loading a fine point risks a broken tip and turns stored blade flex into an uncontrolled jump.

Change the board’s position instead of crossing your body. On loose work, rotate or flip the piece so each draw stays controlled. On installed work, change your stance and use shorter strokes. A complicated reverse-grip pull made because the sheet was not repositioned is not advanced technique; it is a poor setup.

Dust, edge care, and blade disposal

Call it low-dust, not dust-free. Score-and-snap makes little dust; a knife shaving makes less than a saw; a rasp and any through-cut still release fine gypsum and paper debris. Collect at the source with a suitable vacuum, keep the work area ventilated as appropriate, and wear eye and dust protection for sustained cutting or rasping. Do not sweep fine dust into the air and do not blow it into wall cavities.

Gypsum abrades edges and dust holds moisture. These fixed knives are the maintain-not-feed side of the catalog.

Contain disposable edges immediately. A snapped 18mm segment from the 42047 is a loose sharp, not floor debris. Put it directly into a rigid, closed sharps container or another locally accepted blade-disposal system. Do not drop it in a pocket, mud pan, wall cavity, open trash bag, or sweepings. The 42356 used-blade chamber belongs to the 9mm system and is not silently claimed as an 18mm answer here.

No replacement-blade fit, package, or warranty is invented in this guide.

What goes wrong — diagnosis before another cut

The face paper fuzzes or lifts. The edge is dull, the cut is moving under bonded paper instead of toward its free end, or the blade is attacking from the visible face. Renew or hone the edge, press the loose fiber flat, and cut the flap at its root. If the bonded face has delaminated, seal and repair it; do not chase the tear with the knife.

The edge comes out scalloped. Point-only whittling or uneven deep bites. Rasp the broad error back into one plane, then use the knife only for the final bevel or burr.

The gypsum breaks out in chunks. The board is unsupported, the blade is being used as a wedge, or too much material is being taken in one pass. Support the keep piece, lower the angle, and return to multiple light draws.

The blade binds and jumps. Too much depth, a dull edge, or a twist in the cut. Freeze the hand, withdraw along the entry path, clear the kerf, sharpen or renew the edge, and take a shallower pass. Never wrench the point sideways.

The notch cracks past its inside corner. A score line overran, the narrow leg was unsupported, or the waste was twisted free. Stop-score exactly to the vertex, support both legs, saw or slice the waste out, and true the last nib from the waste side.

The opening is now too large everywhere. Clearance was cut around the whole perimeter instead of at marked contact points. There is no knife fix for missing board.

The board fits only when forced. It does not fit. Remove it, mark the rub, rasp or shave that spot, and refit. A forced sheet crushes paper and core and hands the taper a moving, crack-prone edge.

A fastener hole or pop is being “trimmed” into submission. Stop. Empty nail and screw holes are filler work; moving fasteners are fastening repairs. A trade knife does not stabilize a fastener.

The blade finds metal, resistance, or an unknown void in installed board. Stop immediately and leave the blade still until it can be withdrawn safely. Do not cut around the obstruction or “test” it with another plunge. Re-establish the utility/framing map and transfer the next action to the responsible trade where the path remains uncertain.

The cut fits but the face sits proud or recessed. The problem is board thickness, debris, backing plane, framing, or support — not edge shape. Correct the assembly. Compound is not a shim, and a deeper bevel will not move the board into the right plane.

Buyer tests — which tool actually goes home?

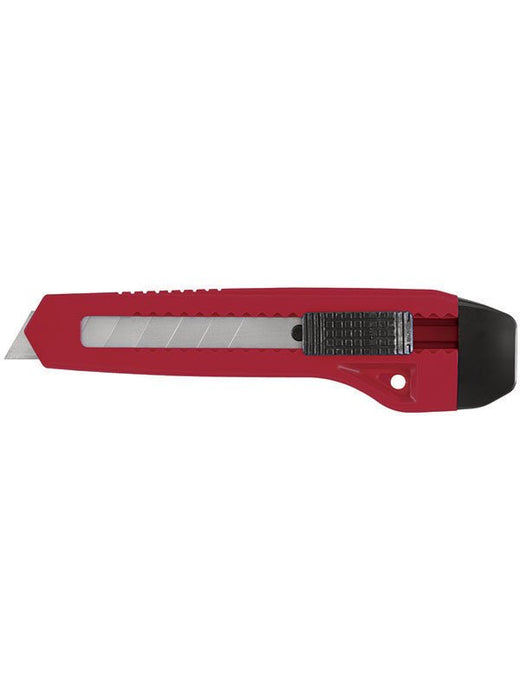

“I need to cut full sheets to length all day.” Buy the 42047-class 18mm snap-off system and use the T-square. Do not buy 20350, 20610, or 22310 as the primary production cutter.

“The snapped edge is rough and a little proud.” Buy the 09985 rasp. If the remaining issue is a paper flag or intentional back-bevel after the edge is true, add the 20350.

“I fit returns, small notches, butt ends, and box edges; handiness matters.” 20350 is the defensible primary trade knife: drywall in the official designation, long point in the exact variant identity, and the smaller of the two designation twins.

“I want the same drywall-designated pattern with a longer working edge for board-scale bevels.” 20610. Size is the only documented difference from 20350, and size is the whole call. If tight detail is the daily work, choose 20350 instead.

“I already work with a short-point roofing knife and need the model whose maker explicitly names drywall too.” 22310 is the only roofing-line member admitted. Its exact official description names drywall material, which is stronger product evidence than designation inference alone. What that record does not do is turn it into a score-and-snap knife, jab saw, rasp, or permission for blind installed-board cuts.

“What about 20550, 22320, or 67830?” Refused for this guide. The 22320 has no documented drywall duty. The 67830 is a single-ply membrane pattern with unresolved notch function. None is padded into the backlink set.

“What about the other flooring knives?” Also refused. A curved point that could physically scratch gypsum is not thereby a drywall tool.

“I need a rectangle in installed board.” 09016 jab saw after the cavity is made safe, with a 42047 stop-score. The trade knives refine the exposed edge afterward.

“I cannot prove what is behind the wall.” Buy no blade for that cut. Establish the route or transfer the opening to the electrician, plumber, or other responsible trade. Tool selection never cures an unknown cavity.

The history footnote — an old drawn edge meets a young wall

The knife pattern is older than drywall. Hyde’s own account traces the hawkbill family to agricultural hook and pruning forms: an inward-curved edge gathers material into a pull cut instead of letting it slide off the point (Hyde IBS — What Is a Hawkbill Knife?). When Frederick Walton’s linoleum entered the sheet-goods trade after his nineteenth-century patents, that pull-cut geometry became the flooring and linoleum knife — a compact edge for dense material lying flat (Encyclopaedia Britannica — Frederick Walton). No named inventor or single invention date is defensible for the flooring knife itself; it is an anonymous trade pattern, and this guide does not counterfeit a pedigree for it.

Drywall arrived later. Augustine Sackett’s 1894 inside-wall-covering patent described paper and plaster built into stiff boards that could be fastened directly to framing ([U.S. Patent 520,123]( National Inventors Hall of Fame — Augustine Sackett). The utility knife eventually came to own straight board production because the board was designed to score and break. The older drawn knife survived at the margins of that system — the places a snap cannot finish: shaving, beveling, paring, fitting, and opening from an exposed edge. Hyde’s present catalog preserves that migration in names and exact product copy: 20350 and 20610 carry “Flooring/Drywall,” while the official 22310 page says “Cut roofing and drywall materials.” Those are evidence of the pattern’s current double duty, not evidence that Hyde invented the pattern or that every flooring or roofing knife belongs on a drywall wall.

The history is therefore less dramatic and more useful than an invention claim: an agricultural pull-cut geometry moved into linoleum, then a sheet-goods trade knife followed construction from floors and roofs to a paper-faced gypsum board — but score-and-snap still owns the straight cut. The old knife earns only the work its edge geometry actually improves.

Historical provenance: Hyde IBS — hawkbill mechanics and agricultural roots · Britannica — Frederick Walton · [U.S. Patent 520,123 — Augustine Sackett]( · National Inventors Hall of Fame — Sackett.

Back-beveling, paper/core cleanup, penetration enlargement, and fit shaving are authored trade knowledge. Confirm against Hyde usage literature if it surfaces.

Blade-length reading is trade-conventional and remains flagged.

20350 versus 20610: size is the only documented difference. This guide makes no grind, profile, stiffness, reach, fitment, or construction distinction beyond what size defensibly changes in use.

22310 size and short-point axis: the 2" figure is name-derived.

22310 drywall technique: the official page names drywall material but gives no workflow. This guide limits the knife to drawn-cut work and refuses any broader claim.

Dynamic commerce: price, inventory, availability, package configuration, warranty, and current fitment are deliberately absent. They must render from live verified commerce data, not this authored guide.
