How to Tape a Small Drywall Joint or Patch

This guide merges the register's *tape-a-small-drywall-joint* and *tape-a-drywall-joint-or-patch-with-mesh* rows without pretending the methods are interchangeable.

Job: reinforce and conceal one short, flat drywall seam or the perimeter seam of a small, mechanically supported patch.

Time: one preparation/taping visit plus the compound system's required set-or-dry intervals and finish visits. A setting compound may permit a same-day next coat; a drying compound may not. The label, temperature, humidity, coat thickness, ventilation, and assembly specification control the clock. No universal “ready in 20 minutes,” “overnight,” or coat-width promise is made here.

Difficulty: moderate. The knife stroke is simple. The judgment is deciding whether there is a stable joint to tape, choosing a compatible tape/compound system, leaving enough compound under paper, forcing enough compound through mesh, and knowing when a 3"–6" repair knife has reached its finish-width limit.

The tool graph — exact roles, not a shopping bundle

Tape nodes

Same mesh as the longer white rolls; choose it when the job is one patch, one opened crack, or a few short flat seams.

It does not make a stronger joint than 09062; it only avoids running out across repeated repair seams.

It earns the job only when mesh is used continuously. It is excess inventory for one patch.

All three are Hyde's white, self-adhesive fiberglass mesh. Hyde's official family claim specifies quick-setting compound, says the adhesive eliminates pre-plastering, and says the mesh will not blister or bubble. The 1-7/8" (48 mm) width comes from Hyde's catalog/package evidence; storefront titles that round it to 2" remain a title correction, not a reason to repeat the rounded figure.

Paper is the default for the strongest general flat-joint treatment, is compatible with drying- or setting-type compound when their manufacturers permit it, and is the route for inside corners.

Knife nodes

Its ordinary flex has enough backbone to press paper into a bed; its plain butt has no fastener-setting role.

It gives up half an inch of working width to 02500 and gains the documented striking butt. The Hammer Head is not a screwdriver, framing hammer, pry, or cure for unsupported board.

Its standard flex can press paper into a bedding coat or force setting compound through self-adhesive mesh; six inches also gives the first useful shoulder-to-shoulder coat over a repair seam.

Its extra-limber grind is not the first choice for packing a gap or driving tape into a bed.

Its five-inch limber edge carries a repair coat farther out; it is too wide and too flexible to be the deep-fill tool.

The knife roles are a sequence, not a ranking: standard flex presses and builds; SuperFlexx thins and feathers. The Hammer Head members have a documented drywall-nail role. They are not universal fastener tools, and no blow with a handle butt can stabilize a loose panel.

Everything else: paper joint tape if taking the default paper route; a tape- and substrate-compatible joint compound; clean mixing water and vessel if the product requires mixing; mud pan or clean board; driver and suitable drywall fasteners; backing or cleats when support is missing; straightedge; utility knife; clean brush or vacuum appropriate to the dust; raking light; manufacturer-approved abrasive or damp-smoothing method; drywall primer required by the finish system; eye and respiratory protection appropriate to the material and work.

Before tape: prove there is a joint worth finishing

Identify the repair class

This guide starts at a seam: two supported board edges meet, or a properly installed patch has a supported perimeter. It is not the right first move for:

a shallow dent with no opening, which wants fill rather than tape;

an open doorknob-size hole, which wants a bridge or a cut-in patch;

soft, swollen, mold-damaged, delaminated, or crumbling board, which wants removal to sound material;

a floating patch edge with no backing;

a crack that opens, closes, or returns because the assembly is moving;

a rated wall whose required board, layer, fastener, sealant, or joint treatment has not been identified.

Tape comes after those methods create a supported seam.

Press-test both sides of the seam

Place fingertips or the flat of a clean knife on each board edge and press gently, one side then the other. Watch the joint line under raking light.

No relative movement: continue.

One edge clicks, pumps, or changes plane: stop. Find framing or add backing and fasten the edge.

Both edges move together: the framing or entire panel may be moving; investigate the assembly rather than adding a stronger-looking surface layer.

The paper face lifts while the core stays put: the face is damaged and must be cut back or sealed under the repair-system maker's direction before wet compound reaches it.

Joint tape works by reinforcing compound across a stable discontinuity. If the discontinuity itself changes width or plane under hand pressure, the finished joint is already being asked to flex before it is dry.

Diagnose the recurring-crack clues

A new crack at a one-time impact or a fresh patch perimeter can be finish work. A crack that returned through prior tape, runs repeatedly from a door/window corner, follows a sagging ceiling, opens seasonally, or coincides with a line of loose fasteners is evidence, not a request for another coat.

unsupported field-cut board edges;

fasteners that missed framing or tore through face paper;

framing shrinkage or deflection;

a joint placed at a stress concentration;

water entry or a damp cavity;

incompatible panel movement at a transition;

a control joint that someone filled;

a fire-, smoke-, or acoustic-rated assembly whose tested joint treatment was not restored.

Correct the cause. A wider coat can hide a fixed crown; no coat width can arrest active movement.

Set the fasteners and restore support

Panels must sit tight to framing or backing and fastener heads must sit below the surface plane without breaking the face paper. A proud screw gets corrected with the proper driver. A screw that spins has missed support; a screw that has torn through the paper no longer supplies the intended clamp and needs a correctly placed companion fastener under the assembly maker's rules.

A proper drywall nail that has risen while the board remains supported may be reset and dimpled with a documented Hammer Head knife such as 02355, 02870, 06557, or 06757. If the nail or board keeps moving, add the specified fastening correction; do not keep striking it and call the motion solved.

Make the old-layer hazard decision only if this job will disturb an old layer

A clean seam on newly hung, unpainted board does not need a lead/asbestos speech. The boundary becomes load-bearing when the preparation requires cutting, scraping, or sanding an existing painted or previously patched surface:

In pre-1978 housing and child-occupied facilities, disturbance of old paint can create hazardous lead dust. Paid work may fall under EPA's Renovation, Repair and Painting requirements; use the applicable certified/lead-safe path rather than dry-sanding first and asking questions later.

Older joint or patching compounds can contain asbestos. The CPSC's ban on intentionally added respirable free-form asbestos in consumer patching compounds dates to 1977; that date does not prove every older layer is positive or every newer layer is negative. If the age/material history makes disturbance plausible, test or use the applicable regulated-material process before cutting or sanding.

Once an old layer has been assessed and the work method set, return to the joint. Hazards do not change how tape is embedded; they change whether and how the old surface may be disturbed.

Clean and true the seam

Remove loose gypsum, paper tags, paint flakes, dried compound, oil, and dust without widening the damage. Both mesh adhesive and joint compound need a sound, clean surface. Keep the board face dry before self-adhesive mesh. Straighten torn edges only enough to remove material that cannot carry the repair.

Do not bevel a field-cut drywall edge into a decorative V. A raw patch perimeter is already a butt joint with no factory recess; removing more face creates more fill and a broader crown.

Prefill what tape cannot span honestly

Prefill gaps, broken core pockets, and deep recesses with a compound the panel, tape, compound, and assembly manufacturers permit. Press the material into the void and strike it back to the board plane. Let it reach the maker's required set or dry state before taping.

Prefill has one purpose: turn an irregular void into a supported joint. It is not a gypsum substitute, a backing strip, or a way to salvage a patch cut too small. If the void exceeds what the chosen compound or assembly permits, refit the board. Do not import a maximum fill depth, water ratio, or recoat time from another bag.

Choose the tape system before mixing compound

Paper tape — the default structural route

Choose paper for a stable flat joint when strength and crack resistance lead, for a patch perimeter where you can bed tape properly, and for every inside corner. Paper can work with drying- or setting-type compound when that compound and the panel system permit the pairing. It must be embedded in a wet bedding coat; paper laid onto a dry seam and skimmed from above is not taped.

Paper's failure mode is usually bond: too little compound under it, dust under it, a dry edge, a wrinkle, or an air pocket. The wipe must remove excess while leaving a continuous film below.

Hyde self-adhesive mesh — the repair-speed route

Choose 09062/09004/09065 for a clean, dry, flat repair seam or patch where self-adhesion simplifies layout and where you will use the quick-setting compound Hyde specifies. Mesh is applied directly to the board, then the first compound is forced through the weave to fill the joint beneath it. There is no wet bedding coat under the adhesive tape.

Mesh's failure mode is usually system mismatch or incomplete fill: air-dry compound used where setting-type is required, compound merely skimmed over the top, slack left across the gap, weak adhesion to dust, or active movement mistaken for a tape problem.

USG's testing explains why the choice is not cosmetic: paper reinforced tested joints in compression, bending, and shear, while fiberglass's expansion strength did not give the same resistance in the other movement modes. That is useful trade evidence, not a license to transfer USG's proprietary cross-fiber product claims or two-coat schedule to Hyde's mesh. For the Hyde rolls in this guide, follow Hyde's quick-setting-compound requirement and the chosen compound maker's complete schedule.

Do not make these substitutions

Paper laid dry like mesh: no bond below it.

Self-adhesive mesh bedded in wet mud like paper: the adhesive no longer performs its intended direct-to-clean-board role.

Hyde mesh with ready-mixed air-dry compound as the first coat: outside Hyde's quick-setting requirement.

A proprietary fiberglass system's special strength, two-coat, or corner claims transferred to Hyde mesh: unproven product substitution.

Mesh in an inside corner because it happens to fold: paper's center crease and corner reinforcement own that geometry.

Tape across moving or unsupported board: surface reinforcement asked to do framing's job.

Method A — paper tape on a short flat joint or supported patch seam

Read the system directions as one set

Before mixing, put the panel/assembly requirement, paper-tape instructions, compound label/data sheet, primer instructions, and final-decoration requirement in one place.

whether the compound is approved for embedding this paper tape;

mixing and permitted water addition;

maximum prefill and coat thickness;

working time and disposal of material once it begins to set;

minimum temperature, ventilation, and substrate condition;

when another coat may be applied;

permitted sanding or damp smoothing;

required primer and finish level.

Where two directions conflict, do not average them. Use a manufacturer-approved system or obtain the responsible manufacturer's direction.

Select the bedding knife by seam scale

Use 02500 when the seam is short, close to trim, or needs a controlled 3-1/2" pass. Use 02355 instead when a narrow repair also contains proper drywall nails that need the documented strike-butt step. Use 02870 when the repair seam is broad enough that a 6" bed and wipe stays controllable and the first build coat will follow with the same knife.

The 06557 and 06757 SuperFlexx blades wait. Their extra-limber edges are excellent later, when the job is thinning a coat to nothing; they are not the best tools for pressing tape into a bed or packing prefill.

Lay a continuous bedding coat

Load clean compound onto the working half of the standard-flex blade. Butter the seam continuously, a little wider than the tape, with no dry skips and no hard ridges. The bed should support the full tape face without a mountain of compound that will float it away from the wall.

At a patch corner, finish one run cleanly before crossing it with the next. Avoid stacking four tape laps into one lump. Follow the tape and assembly maker's intersection detail rather than inventing an overlap rule.

Center the paper before the bed skins

Cut the tape cleanly. Center it over the seam and touch it lightly into the wet bed by hand, keeping the run straight and relaxed. Do not stretch it. Work a manageable run; a small repair gives no prize for racing the compound's open time.

Embed with pressure that leaves a bond line

Start near the middle of the run and wipe toward an end, then return to the middle and wipe the other direction. Hold the blade so its edge is flat enough to press the tape evenly but not so flat that the corners plow. Use firm, continuous pressure:

firm enough to flatten the tape, drive out trapped air, and remove the excess;

light enough to leave a thin, uninterrupted layer of compound underneath;

even enough that neither edge is starved while the center floats.

Read the bead at the knife edge. A modest ribbon of excess is normal. A torrent means the bed was too heavy. No squeeze-out plus a paper edge that looks dry means the bed may be starved. Lift and re-bed a suspect section now; do not bury a dry bond under the next coat.

The correct result is tape that lies flat with compound under every part of it. It is not tape scraped visibly dry to the board.

Treat bubbles immediately

If a bubble follows the knife, stop at it. Lift back to the attached area, add fresh compound under the void, lay the tape again, and re-wipe. If the compound has skinned or the tape has torn, remove the affected run and restart. Wet failure is cheap. A bubble found after coating is a cut-out-and-repair job.

Apply only the tape-coat finish the system calls for

Some paper-tape instructions call for a thin coat over the embedded tape in the same operation; others define the tape coat differently. Follow the actual system. Do not bury the tape under a thick wet ridge “for strength.” Tape supplies reinforcement; excess compound supplies shrinkage and a crown.

Let the compound reach its required state

A drying-type compound must dry thoroughly before sanding or another drying coat. A setting-type compound hardens by chemical set, but “set” does not automatically mean “ready for sanding, priming, or paint.” Follow its data sheet for the next operation. Temperature, humidity, ventilation, and thickness change drying. A color change on the surface is not a moisture meter.

Method B — Hyde self-adhesive mesh on a short flat repair

Choose roll length without pretending it changes performance

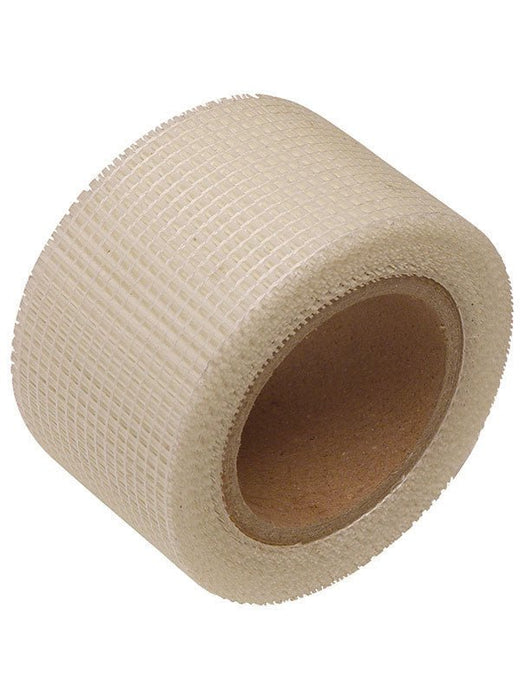

One repair or a few short runs → 09062, 50'.

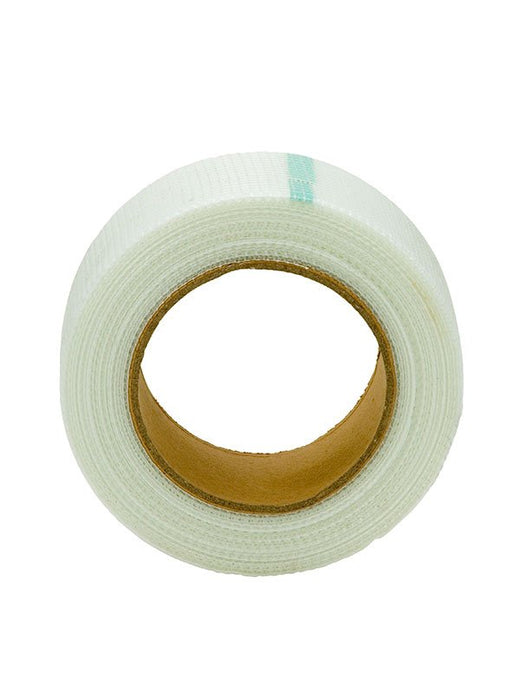

One renovation with repeated repair seams → 09004, 150'.

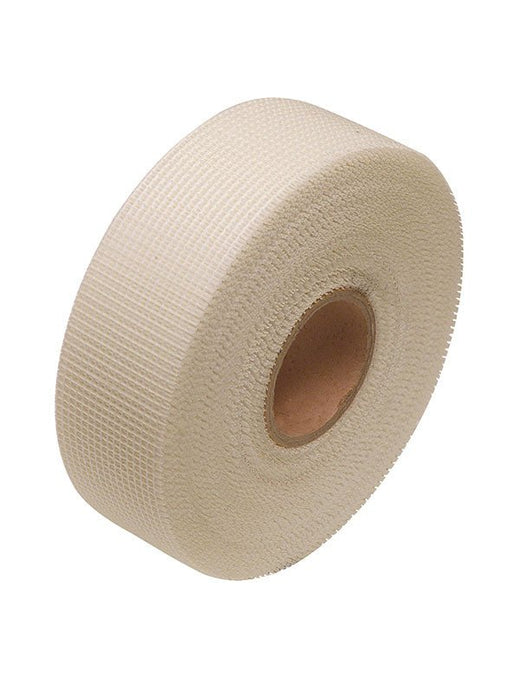

Continuous repair/remodel use → 09065, 300'.

The three white rolls share the same width and family claims. Roll length is inventory, not joint strength.

Confirm the compound before the tape touches the wall

Hyde specifies quick-setting compound for this mesh. Confirm that the selected setting-type compound is approved for fiberglass mesh, the panel/substrate, the repair depth, and the environmental conditions. Mix only the quantity you can force through and tool before the product's working window closes. Do not “revive” setting compound after it begins to harden.

Apply mesh directly to clean, dry board

Center the tape over the seam without stretching it. Press by hand first, then wipe the full run with a clean standard-flex knife to seat the adhesive and remove slack. The mesh should contact both board faces continuously and remain centered when the knife passes.

If dust defeats the adhesive or an edge curls, remove the run, clean the board, and use fresh tape. Compound over a loose edge does not retroactively make the pressure-sensitive bond sound.

Avoid a tape pile at intersections

Keep crossings and patch corners as flat as the tape/system maker permits. Do not casually overlap multiple layers because “more fiberglass is stronger.” Every overlap creates a hump the finish coats must carry farther onto the wall, and proprietary tapes differ in permitted intersection details.

Force setting compound through the weave

Load 02500 for tight control or 02870 for the fuller six-inch pass. Apply setting compound over the mesh, then make a deliberate pressure pass that pushes material through the openings and into the joint below. Change pressure and direction as needed until:

the joint void beneath is filled;

the weave is completely buried by the required first coat;

no hollow, bright mesh tunnel remains over the seam;

the coat is level enough to accept the next step without a ridge.

Merely frosting the top of the fiberglass leaves a hollow reinforced skin, not a filled joint. This is the mesh equivalent of leaving compound under paper: the load path must be continuous through the tape into the joint.

Do not overwork setting compound

As soon as the material stiffens, stop trying to polish it. A late knife pass tears the surface, drags set crumbs through the coat, and can pull mesh. Scrape or sand only when the compound maker permits, then add the approved next coat. Mix a fresh batch rather than fighting a dying one.

Keep the finishing schedule system-specific

A different manufacturer's proprietary fiberglass tape may permit a particular two-coat hybrid schedule; that schedule does not migrate to Hyde by resemblance.

Use the setting-compound maker's instructions for the first coat and the tape/compound manufacturers' approved system for every coat after it.

Build and feather the repair — both tape routes rejoin here

Scrape high nibs; do not shape the joint with dust if a knife will do

Once the coat has reached its required state, remove isolated ridges and crumbs with a clean knife held nearly flat. Do not dig into tape or face paper. Vacuum or otherwise remove residue using the applicable dust-control method before recoating.

Build with standard flex, feather with SuperFlexx

For a repair-scale seam:

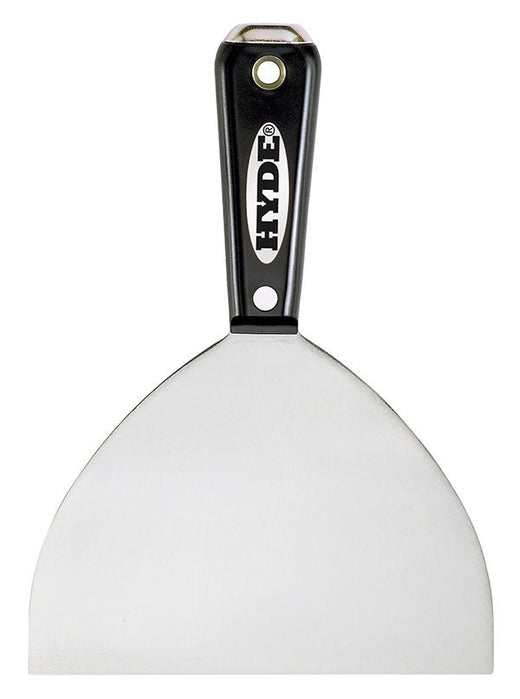

Build: use 02870's 6" standard-flex blade to fill low shoulders and draw the coat into a smooth plane. Keep the center lean and move material toward the edges that need width.

Localized blend: use 06557's 4" SuperFlexx blade where control matters around a small patch, trim, or obstruction. Its job is thinning an existing coat, not packing a joint.

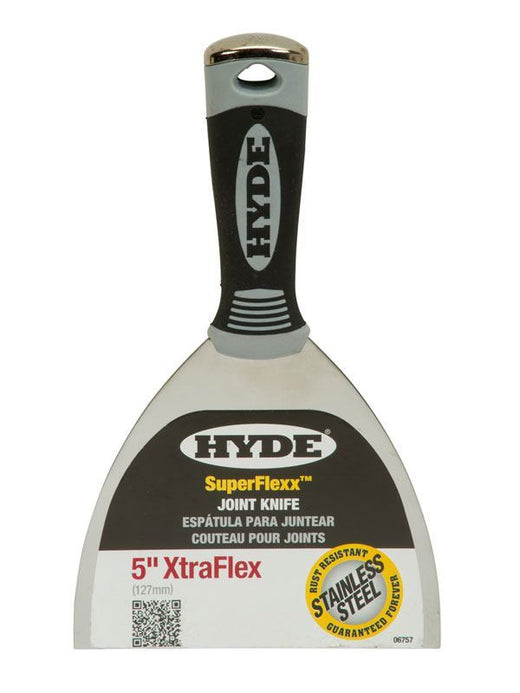

Wide final feather inside this union: use 06757's 5" SuperFlexx blade to carry the final repair edge farther onto sound wall with falling pressure.

Each coat should become wider and thinner according to the chosen finishing system. Do not turn the tool widths above into universal finished-coat dimensions. Board edge type, patch crown, tape thickness, compound shrinkage, finish level, light, texture, and manufacturer directions determine the real feather.

Wipe pressure is a gradient, not a hard scrape

On a finish pass, load the center/inside of the blade and keep the outboard corner nearly clean. Begin inside the prior coat, cross its shoulder, then bias slightly more pressure toward the outboard edge over old wall. Let pressure fall toward zero while the knife is still moving.

That gradient leaves enough compound over the tape while thinning the perimeter. Equal hard pressure across the whole edge either starves the center or prints two tram-lines. Stopping before releasing pressure stamps a ridge at the exact place the repair should disappear.

Know when the exact union has run out of width

These eight register products can honestly finish:

one short supported flat seam;

a small re-taped crack after movement has been ruled out;

a localized patch seam whose crown disappears within repair-knife reach;

fastener work adjacent to the seam, with the correct separate method.

They are not a whole-room finishing set. A long factory-edge joint, a field-cut butt joint that remains visible in raking light, a four-sided cut-in patch, or a room of new board usually needs wider taping knives and the full multi-coat workflow. A 5" or 6" blade cannot make a broad butt-joint crown disappear merely by pressing harder.

The honest handoff is part of the method.

Let every coat set or dry as directed

Do not recoat because the surface no longer looks wet. Drying-type material needs moisture to leave the full film; setting-type material needs the maker's required set before the next coat and its required dry condition before sanding or decoration. Keep the stated temperature and ventilation conditions. Compound trapped between coats becomes shrinkage, soft sanding, flashing, or delayed failure.

Inspect dry under raking light and a straightedge

Move a light low across the wall from both directions. Bridge the joint with a clean straightedge or the true edge of the widest suitable knife.

Low shoulder: add a thin, wider coat.

High ridge: scrape or lightly sand under the compound maker's method.

Gentle crown with no hard edge: normal on a field-cut/butt seam; widen only if the light still reads it.

Hollow over the tape: the bed/fill may be deficient; do not sand the surroundings down to meet it.

Crack or motion: stop finishing and return to diagnosis.

Sand the coat, not the tape or board paper

Use the abrasive type and grit the compound maker permits. Sand with light pressure, concentrating on tool marks and feather edges. Keep the abrasive moving across the plane; do not orbit over the center until mesh or paper appears.

the surface feels continuous under a flat hand;

the edge disappears under raking light;

no hard ridge catches the straightedge;

tape remains buried;

gypsum-board face paper remains unfuzzed.

Exposed tape is not a cue for finer grit. It is a cue to stop and recoat. Fuzzed board paper also needs the appropriate sealing/repair step, not more sanding.

Remove dust, then prime the complete worked zone

Remove all sanding residue with the method required for the material and site. Bare compound, exposed drywall paper, old paint, and sanded paint absorb finish differently; a geometrically flat patch can still flash as a dull island.

Apply the drywall primer required by the joint-compound, panel, and finish-coat manufacturers over the entire worked zone, including the feather and every sanded halo. Let it dry, inspect again under the same raking light, and correct what the uniform primer reveals before paint or wallcovering. Primer is the handoff from geometry to decoration, not a substitute for unfinished geometry.

Buyer tests — choose from the exact union

“One clean, stable repair seam; I want self-adhesive mesh.” → 09062 for the tape + 02500 for close compound control, or 02870 if a 6" working pass fits. Setting-type compound required by Hyde. Add no longer roll merely because it is longer.

“I am repairing many short seams through one renovation.” → 09004, not 09062 three times and not 09065 by reflex. Same tape, project quantity.

“Mesh repair is regular van work.” → 09065. The claim is supply continuity, not extra strength.

“Paper tape, short seam, no popped nails.” → 02500 leads the bedding/wipe. Its plain butt is not a missing feature when no fastener needs striking.

“Paper tape plus proper drywall-nail pops in the same punch-list repair.” → 02355 handles the narrow bedding work and the documented nail-setting step. Screws still get a driver.

“I need to build a broad first coat over a repair seam.” → 02870. Standard flex and six-inch width make it the union's build blade.

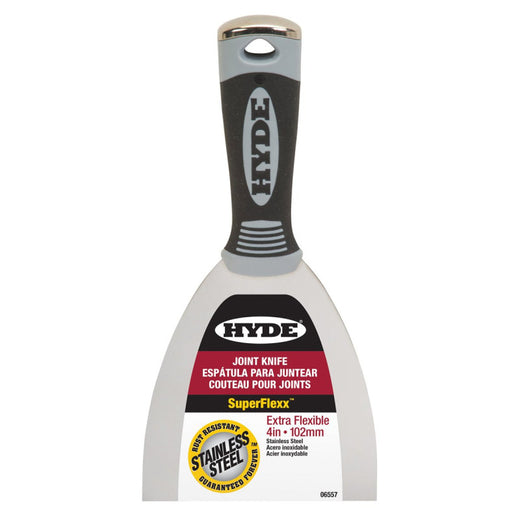

“The joint is filled; I need a controlled stainless blend.” → 06557. It is a coat-and-blend knife, not the gap-packing knife.

“The final repair edge still reads in side light.” → 06757 for the widest limber feather in this union; if the crown still reads, stop trying to make five inches behave like a 10"–12" taping knife and hand off to the wider system.

Exact false-neighbor calls

| Product | True here | False for its nearest neighbor |

Nearest non-union tape neighbors: yellow 09106/09107/09108 add an oversanding color cue at 50'/150'/300'; they do not change the paper-vs-mesh or compound-compatibility decision. Paper tape adds the stronger general joint/corner route; it is not represented by an invented Hyde SKU.

What goes wrong — cause first, then repair

The crack returns along the same line. Board or framing is moving, an edge lacks support, or the wrong tape/compound system was used. Press-test and inspect the assembly before cutting out the finish. Re-taping a live joint is repainting a warning light.

Paper bubbles while wet. The bed has a dry skip, the surface is dusty, or the wipe starved the bond line. Lift to attached tape, re-butter, and re-wipe now.

Compound over a void preserves the void.

Mesh edge curls or releases. The board was dusty/damp, the tape was stretched, or the adhesive was handled/contaminated. Remove it, clean and dry the surface, and apply fresh tape.

Mesh re-cracks through an apparently neat coat. Check first-coat chemistry and fill. Air-dry compound where quick-setting was required, a skim that never reached through the weave, slack mesh, or movement are the usual causes.

The mesh texture remains visible. The first coat was not forced through and over the weave completely, or was wiped too thin. Add the approved coat after the required set/dry state; do not sand exposed glass.

A ridge follows each side of the knife. Dried crumbs sit on the edge, both corners were loaded, or pressure was equal and hard across the blade. Clean the knife, keep the outboard corner light, and finish with a longer pressure fade.

The coat tears or rolls under the knife. The compound is outside its working window, the mix is incompatible, or the surface is too dry/dirty for bond. Stop; follow the label or mix fresh. Water is not a universal reset button.

The patch shows as a rectangle in side light. Every field-cut edge is a butt joint and the feather is too narrow. Move to wider finish knives; do not pile more compound over the rectangle's center.

The joint is smooth but flashes after paint. Compound and old wall absorbed paint differently, or sanding polished one zone. Prime the complete worked area with the required drywall primer and repaint to a natural break if sheen still gives away the touch-up.

Tape or board paper appears while sanding. Stop. Recoat the exposed joint or seal/repair fuzzed face paper as required. More abrasion cannot restore removed reinforcement.

Brown paper swells under the wet coat. Damaged face paper was not stabilized before compound.

A damp stain returns. The leak or cavity was never resolved. Open and correct the moisture source; tape is not waterproofing.

Why this system exists — wallboard, the disappearing joint, and two kinds of tape

Augustine Sackett's [U.S. Patent 520,123]( issued in 1894, described a rigid interior wall covering built from plaster and paper layers that could be fastened directly to framing. The industrial leap was not merely “dry plaster.” It was a wall delivered in separate panels, which created a new finish problem at every meeting edge.

A panel wall could go up quickly; the joint treatment was what made many panels read as one wall.

USG's own joint-tape research supplies two unusually exact milestones: it says the company introduced metal joint tape in 1929 to replace open-weave cloth, then paper joint tape in 1939 (USG — Matching Joint Compound with the Proper Joint Tape). Paper won its enduring role because wet compound bonds to it and the strip reinforces movement modes that a finish coat alone cannot. The familiar sequence—bed, embed, cover, then widen each coat—is now explicit in the Gypsum Association and USG application documents cited below.

Self-adhesive fiberglass came later as a speed system: put the reinforcement directly on clean board, eliminate the wet bedding operation, and force a hard-setting compound through the open weave. That changed the application sequence, not the first principle. Both systems exist to make a discontinuity disappear without pretending it is not there. Paper does it through a bonded strip embedded below; mesh does it through a filled glass network adhered above. The wrong compound or a moving board defeats either story.

The widening knives are the last part of the history. A tape strip and compound necessarily add thickness. Factory tapers hide some of it; field-cut patch seams hide none. The finisher cannot erase that thickness, only distribute it into a broad enough arc that the eye and raking light stop reading an edge. That is why this guide moves from 3"–3-1/2" control to 6" build to limber feather—and why a long butt joint eventually hands the job to wider knives.

Primary and manufacturer sources

Hyde — Self-Adhesive Mesh Drywall Joint Tape, White: official white-tape family and 50'/150'/300' variants.

Gypsum Association GA-216-2010: clean/dry self-adhering mesh, firm adhesion, setting compound forced through mesh, sufficient compound under paper, drying/setting distinction, sanding restraint, and primer handoff.

USG — Matching Joint Compound with the Proper Joint Tape: paper-vs-fiberglass movement testing; paper with drying/setting compounds; setting compound with fiberglass; 1929 metal-tape and 1939 paper-tape history; paper recommendation for corners.

Its numerical schedule belongs to that USG system and is not silently transferred to every tape/compound pairing.

Patent 520,123]( sourced wallboard history.

EPA — Renovation, Repair and Painting for consumers: lead-dust boundary when pre-1978 paint is actually disturbed.

CPSC — asbestos in consumer patching compounds: 16 CFR Part 1304 scope and the sanding/inhalation reason for the conditional old-compound boundary.

No universal compound numbers: water ratio, maximum fill/coat thickness, working time, set time, dry time, recoat timing, sanding grit/method, ventilation, temperature, primer, and finish schedule remain controlled by the current compound/tape/panel/assembly/decoration manufacturers.

No proprietary-technology transfer: USG cross-fiber fiberglass performance and any proprietary two-coat schedule are not claimed for Hyde 09062/09004/09065. Hyde's own supported claim is quick-setting compound.

Roll-length roles: household / renovation / van are authored usage-rate selection logic, not different strength ratings.

SuperFlexx percentage: Hyde's 30%-more-flexible claim uses an undefined standard-joint-knife baseline; this guide uses the limber-vs-standard working distinction and does not convert the percentage into a cross-series stiffness test.

Hammer Head scope: the sourced Hyde role is resetting popped drywall nails and dimpling nail holes on the named members. This guide does not claim screw-driving, demolition, assembly stabilization, or a patent.

Historical scope: USG's 1929/1939 milestones are claims about USG's own metal and paper tape development, not proof that nobody elsewhere used related strips earlier. No inventor/date for self-adhesive fiberglass mesh is claimed.

This repair guide never broadens a product into an unverified assembly.

Every product node above is linked only in the role it honestly serves. The three mesh rolls are alternatives by quantity; the five knives divide preparation, bedding/build, and feathering.
