How to Strip Molding, Chair Rail, Spindles, and Casings Without Erasing the Profile

No field coating, substrate, historic-fabric, chemical, heat, repair, primer, or finish system has been admitted.

Job: remove the coating that the approved project says must leave, stop at the approved retained layer or substrate, and preserve the millwork’s original section and adjoining assembly.

Result: each profile zone has a recorded diagnosis, selected scraper system, passed test area, controlled removal, damage disposition, residue endpoint, and repair/recoat handoff.

Time: measure by changes of shape and coating behavior, not square footage. A plain casing has fewer zones than an enriched chair rail; historic work may require documentation before production. No universal rate is supported.

Difficulty: patient, high-consequence hand work: remove the layer without rounding a bead, tearing fiber, abrading ornament, opening a joint, or losing containment.

Everything else: coating and substrate records; lead determination; preservation criteria; instructions for admitted removal, repair, primer, and finish products; stable support; compatible protection; revealing light; specified containment; and handoff records.

Decide whether stripping is necessary

Total removal is not the automatic cure. State why material must leave, what must remain, and which of four conditions applies:

Failed coating may need bounded removal back to a sound boundary, not pursuit of every old coat.

Sound but incompatible coating needs a defined strip established by the identified old and new systems.

Unknown or historically important build needs investigation. Gilding, graining, stenciling, early paint, or a significant finish sequence can be evidence. Preserve required samples and obtain conservation direction.

Write the endpoint before touching the work: loose coating only; one incompatible layer; a named retained coat; or bare substrate where the admitted system truly requires it. “Clean” and “looks even” are not endpoints.

Diagnose the profile, material, finish, adhesion, and decay

Map the profile as geometry

Read the member across its section and along its run. Mark flats, returns, beads, coves, quirks, fillets, chamfers, arrises, ornament, end grain, joints, cracks, fasteners, and transitions into wall, floor, glass, or hardware. A complex profile is a sequence of surfaces.

The map controls tool changes. A blade that contacts a flat may bridge a hollow; a shape that follows one cove may rock after a radius change. A spindle’s hidden side is a new setup, not permission to twist around the work.

Identify the substrate

Distinguish solid, veneered, or laminated wood; engineered fiberboard; plaster or composition ornament; metal; polymer; and unknown repairs. On wood, record visible grain, end grain, checks, knots, patches, and friability.

Stop for rot, fungal decay, active moisture, insect damage, delamination, loose veneer, crumbling composition, powdering plaster, corrosion, split joints, loose spindles, or a member that moves under hand contact. Do not use the contour scraper as a probe. Removal cannot stabilize a failed substrate, and a sound-looking paint shell can be the only thing holding decayed detail together.

Identify the finish and adhesion pattern

Note whether failure is between coats, at the substrate, around filler, at a moisture path, or at high-contact areas. Faces, returns, ledges, undersides, joints, and recesses may carry different build and adhesion.

Do not diagnose chemistry by color, odor, chip shape, or age. Paint, clear finish, stain, shellac, varnish, wax, filler, caulk, glazing compound, adhesive, and repair resin are different material classes. When the material changes, stop the current method and reauthorize the zone.

Clear the lead, conservation, and system gates

Scraping disturbs paint. In covered pre-1978 housing and child-occupied facilities, paid work generally falls under the EPA Renovation, Repair and Painting program unless a valid determination or exclusion applies. Determine building age, jurisdiction, occupancy, testing basis, scope, and responsible party before disturbance.

Historic millwork gets a second gate. Establish whether the goal is continued use, restoration, exposure of an earlier finish, or recoating. Preserve required samples.

Then build one joined method card. It must name the coating, retained material, substrate, profile zones, hazard determination, selected removal system, compatible protection, exact test location, endpoint, stop conditions, cleanup, waste route, repair criteria, and next coating documents. Missing chemical, heat, primer, or finish instructions are not filled with a generic recipe.

Installed work versus removed work

Work installed when the assembly is stable and accessible

Installed work preserves original joints. Use stable access that keeps the zone and stroke ending visible without overreach. Protect walls beside chair rail and casing, tread and floor around spindles, flooring below, glass and glazing near window trim, and remaining hardware.

Protection must suit the admitted system and adjacent finish. It is not a blade stop. End in open space and reposition for far-side or underside zones.

Removal may improve access to the back, return, joint, or repeated parts at a bench, but it can also split dry wood, tear wall finish, disturb hidden lead dust, break plaster keys, damage fasteners, or destroy the installation record.

Do not remove a component merely because its face is difficult to strip. This guide supplies no pry point, lever motion, fastener sequence, or force.

Once removed, label orientation and location, support against rolling or flexing, preserve joints and marks, and treat every rotation as stable restaging. A hand-held loose spindle is not stable support.

Differentiate the exact five-model set

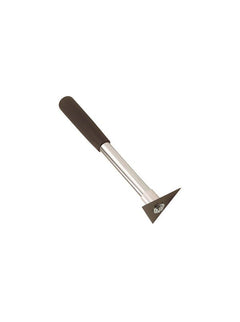

| 10400 | Hyde identifies a contour or molding scraper with a 9-3/4-inch tubular metal handle and foam handgrip; two high-carbon-steel blades: a triangle with three 2-3/4-inch scraping edges and a 2-by-1-inch teardrop; and use with heat guns. Hyde also names flats, cracks, and molding contours. | The classic two-shape holder. Use its triangle and teardrop as candidates during profile-zone testing; do not infer an unlisted blade shape, contact geometry, or universal fit.

| 10410 | Hyde identifies a 2-by-1-inch teardrop replacement blade for the 10400 and calls the family suitable for detailed work on molding, trim, and contoured surfaces. | A single-style teardrop restock for the 10400, not a standalone tool and not a blade for the quick-release holders. It preserves the 10400’s teardrop option when that exact shape is the accepted test winner. |

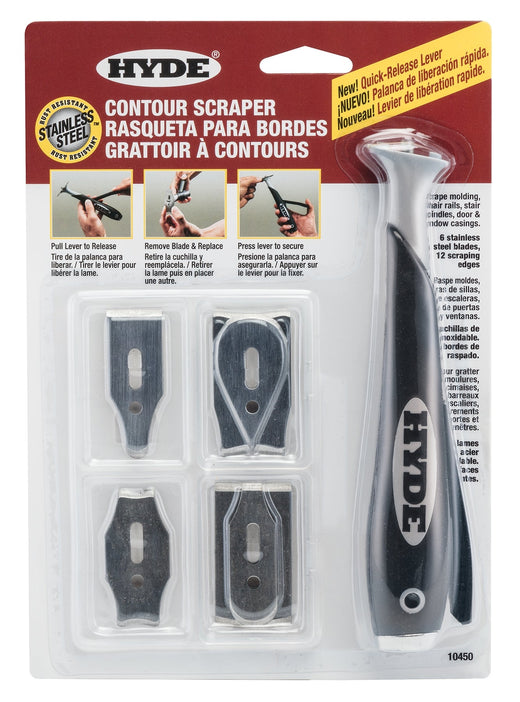

| 10450 | Hyde identifies a Quick-Release Contour Scraper with six stainless-steel blades, twelve scraping edges, tool-free lever change, and a storage case. | The standard quick-change candidate for an unheated profile job with frequent zone changes. The reviewed exact record provides no heat-gun claim for 10450; this guide does not admit it to heated work. |

| 10460 | Hyde identifies a Heat-Safe Quick-Release Contour Scraper with a 10-inch metal shaft, six stainless blades, twelve edges, tool-free changes, a case, and use with heat guns.

| 10461 | Hyde identifies six stainless replacement blades with twelve scraping edges for 10450 and 10460, with storage; the blades are re-sharpenable. Hyde says they are replacement blades only. | The restock set for the two quick-release holders. It is not handheld, is not proven compatible with 10400, and carries no sharpening procedure here. |

Never conflate the systems: 10410 belongs to 10400. 10461 belongs to 10450 and 10460. No reviewed claim establishes interchange between those families.

Select the removal system and make the handoffs

Start with the least removal that reaches the written endpoint.

Dry or otherwise authorized hand scraping: admit it when the coating, substrate, hazard plan, conservation goal, and test allow mechanical removal.

Chemical assistance: use it only when an exact remover’s current label, technical data, and safety data admit the coating, substrate, adjacent materials, location, tool material, protection, application, dwell, reapplication, cleanup, neutralization, drying, and waste route. This profile guide resumes only after that system says the coating is ready for controlled removal. It supplies no chemical, dwell, cleaner, PPE, or disposal recipe.

Heat does not become authorized merely because one of those models is present.

Leave, repair, and recoat: when the sound retained finish and next coating system allow it, preserve that coating and prepare only as specified. Total stripping is not a virtue.

Protect the assembly and prove a test area

Choose a representative, inconspicuous test with the required approvals. Hidden is not expendable. Include the actual coating stack, substrate, profile changes, adjacent boundary, and production access.

Before the test:

establish stable support for the installed member or removed workpiece;

provide revealing light along and across the profile;

mark the endpoint and preserved zones;

isolate adjacent wall, floor, glass, hardware, joints, and retained finish with compatible protection;

select the scraper holder and only a manufacturer-identified blade or edge candidate;

Run the smallest test that shows release and preservation through cleanup and dry inspection. Pass only when the endpoint is met, the retained layer remains sound, no gouge, flat, rounded arris, torn or softened fiber, scratch track, ornament loss, open joint, or residue appears, and the next operation accepts the surface.

A test fails if success requires an unsupported blade presentation, direction, force, angle, repeated prying, improvised chemistry, extra heat, or work outside the admitted zone. Record PASS TO BOUNDED PRODUCTION, REWORK UNDER EXACT SYSTEM, or STOP AND RESELECT.

Plan the work by profile zone

Divide the approved production section into flats, returns, beads, coves, and transitions. Add separate zones for quirks, ornament, end grain, joints, repairs, and hardware boundaries. Assign each zone its test-proven tool shape and endpoint.

Work a flat as a flat; do not drag a shaped edge across it merely to avoid changing blades. Work a return from stable access; do not wrap the wrist blindly around the corner. Work each bead in visible bands, rotating or restaging a spindle or the operator’s position so the edge stays controlled. Work a cove only with a manufacturer-identified shape that the test proved locally. Stop before a radius change, joint, damaged area, material change, or ornament transition and qualify the new zone.

The quick-release advantage of 10450 or 10460 is legitimate here: six blades and twelve edges let the operator change candidates as the profile changes. It does not prove that every edge fits every profile. The 10400 offers a simpler triangle-and-teardrop pair; the test decides whether either is suitable in a given zone. The 10410 only restores the teardrop option in that holder.

Execute the required Tier-1 profile-stripping technique

After the hazard, coating, substrate, conservation, system, support, protection, and test gates pass, the job must proceed to controlled scraping. Do not stop at paperwork.

Stabilize and stage. Support the work so it cannot roll, flex, spring, or shift. Place the operator where the zone, debris, endpoint, and stroke ending are visible. Move the staging or rotate a properly supported removed part for the next face; do not scrape around a blind side.

Select the proven tool shape. Use the holder and manufacturer-identified shape that passed the representative test for this local flat, return, bead, cove, or transition. Do not infer a blade use from an unlabeled silhouette.

Use controlled cut-away short strokes. Start and finish within the admitted zone, cutting away from fragile stops, hardware, joints, adjacent finishes, and unsupported edges. Keep the stroke short enough to stop before the profile or coating behavior changes.

Follow grain and profile. On wood, align the work with the readable grain where the profile permits. On every material, follow the length and local path of the profile rather than cutting across several elements in one pass.

Rotate or restage; never pry. Progress around beads and spindles by stable repositioning. Lift away, reset, and address the next visible band. Do not twist a blade through a hollow, lever under a sound layer, or use the shaft to open a joint.

Inspect often. After each short group of strokes, clear the view only by the admitted system, read the debris, and inspect the retained surface in revealing light. Confirm that only the target layer is leaving and that the zone still holds its original line.

Stop and recover early. A gouge, fresh substrate color, torn or softened fiber, scratch track, chatter, rocking edge, rounding, facet, loosened ornament, opened joint, mixed debris, or changed coating behavior ends production in that zone. Preserve the witness and route it to the failure branch below.

This is qualitative trade technique. It supplies no numeric angle, force, pressure, speed, blade bevel, heating value, chemical dwell, or sharpening method.

Failure branches and recovery

The scraper gouges or leaves a repeated track. Stop. Preserve the mark and inspect tool condition, fit, support, coating readiness, and endpoint. Do not erase it by widening it.

An arris or bead begins to round over. Stop the crossing stroke. Re-map the adjacent faces as separate zones and re-test a fitting shape. Material already removed does not return through more scraping.

Wood fiber lifts, fuzzes, or feels softened. Stop. The coating may be unready, the substrate degraded, or chemistry or heat may have altered it. Do not guess dry time, add force, or sand away evidence.

Ornament chips, powders, or detaches. Contain and retain detached material under the conservation plan. Do not continue onto neighboring ornament or substitute a narrower point.

A joint opens or the member moves. Stop and support the assembly. Scraping has crossed into repair; do not use the tool as a clamp, wedge, or pry bar.

Residue packs into a cove or corner. Stop before contact changes. Use only the admitted system’s clearing method; invent no solvent, brush, pick, or compressed-air step.

The coating releases on one zone but not the next. Treat the new behavior as a new condition. Recheck layer, substrate, and profile; run a new bounded test rather than extending the successful method by momentum.

This guide cannot repair a failed chemistry or heat decision.

Hardware or a wall/floor finish is marked. Stop, preserve the witness, and revise protection and stroke termination.

The surface looks patchy after the required layer is gone. Compare it with the written endpoint. Color uniformity is not permission to remove more historic fabric or sound coating.

Repair, preparation, and recoat handoff

Inspect each zone dry along and across the section. Sight flats, bead crowns, cove depth, quirk lines, arrises, ornament, and joints. Mark retained coating, bare substrate, repairs, unresolved residue, damage, and holds.

The repair trade receives the material identity, profile map, damage locations, and required final geometry. Do not fill a cove, soften an arris, or sand a bead into a new shape to make damage disappear.

The coating trade receives the removed and retained coating record, substrate condition, chemical or heat history, cleanup status, moisture or cure gates, and repair map. The exact primer and finish manufacturers control cleaning, surface preparation, primer choice, dry/cure time, compatibility, application, and return to service. This guide names no cleaner and no universal recoat schedule.

Cleanup, waste, and closeout

Keep the waste stream tied to the identified coating and removal system. Lead-controlled debris, ordinary coating chips, chemical residue, cleanup liquid, contaminated protection, damaged historic fragments, and spent blades are not automatically one waste class.

Do not sweep unknown debris, use an unapproved vacuum, pour liquid to a drain or soil, or discard loose blades. Clean and store tools only under compatible instructions; this guide supplies no cleaner, sharpening, or disposal method.

Which Hyde contour scraper should I choose?

Choose after the coating, substrate, profile map, and test. The 10450 is the six-blade, twelve-edge quick-release system for work where no reviewed heat claim is needed. The 10460 carries that quick-release system on a heat-safe 10-inch metal shaft.

Are 10410 and 10461 interchangeable?

The 10410 teardrop fits the 10400. The 10461 six-blade set fits the 10450 and 10460. Preserve that exact system boundary.

What blade shape belongs in a bead, cove, return, or flat?

Use only a manufacturer-identified shape that passes the representative test on that local zone. This guide does not invent one.

Should I strip molding in place or remove it?

Work installed when the assembly is stable, accessible, and protectable.

Can I use a heat gun?

What if the wood is rotten or fibers soften during the test?

Do not scrape to “find sound wood.” Resolve moisture, decay, chemical or heat effects, and structural or conservation needs first.

When is the profile ready for primer or finish?

When the removal endpoint passes, damage and repairs are dispositioned, the exact cleanup and dry/cure gates pass, and the next coating system accepts the actual substrate and retained finish. Bare-looking is not a coating specification.

History footnote

The National Park Service records the central preservation lesson: harsh total removal can permanently damage historic woodwork and erase evidence in its paint sequence (Brief 10 · Brief 28). Hyde’s catalog shows two current answers to shaped work: the 10400’s triangle and teardrop, and the 10450/10460 quick-release system.

The local scrapers line document describes the triangle-and-teardrop pattern as descending from the Sheffield shave hook.

Safety, conservation, and system boundaries: EPA RRP for contractors · EPA lead-safe renovation for DIYers · OSHA chemical-remover hazards · EPA methylene-chloride risk management · NPS Preservation Brief 10 · NPS Preservation Brief 28.
