How to Spray and Knock Down a Wall or Ceiling Texture

Job: prepare a sound wall or ceiling, spray a controlled field of wet texture, let the spatter reach the correct surface state, and flatten only its peaks into a consistent knockdown finish.

Difficulty: the spraying is learnable; the handoff between spraying and knocking is the craft. The first-sprayed area becomes ready first, so section size, access, and pass order matter more than speed.

Both can knock texture in a pinch; neither has the dedicated knives' 18"/24" span, transparent Lexan® polycarbonate blade, manufacturer-claimed rounded-corner protection, or Acme pole thread. A steel edge is more willing to score half-set texture and must be kept cleaner and flatter. Blue steel must be dried after wash-up.

Everything else: a texture material explicitly approved by its manufacturer for the intended spray-and-knockdown system; that material's current label, technical data sheet, and safety data sheet; its required primer and finish coat; clean mix water only if the instructions permit it; mixer and pail; compressor, regulator, air hose, and fittings whose manuals are compatible with the gun; same-substrate test boards; work lights; masking film, tape, rosin paper or other floor protection, and drop cloths; clean water and a cleaning pail; eye protection, gloves, work clothing, hearing protection where the compressor requires it, and respiratory protection selected from the material SDS and the actual exposure.

Before Act I: diagnose the ceiling or wall

Name the surface before buying the finish. A knockdown pattern can hide visual waviness; it cannot make a weak substrate sound. Put the surface in one of these lanes:

New drywall: joints finished, fasteners covered, sanding complete, dust removed, and the face uniformly primed with the primer required by the texture manufacturer. Texture over alternating bare paper and porous compound dries at different rates and can show the board grid through the pattern.

Sound painted drywall or plaster: coating bonded, clean, dry, and capable of accepting the manufacturer's primer or bonding step. Gloss, kitchen film, nicotine, soot, and old aerosol residue are adhesion questions before they are texture questions.

Existing texture: identify whether it is knockdown, orange peel, hand texture, aggregate acoustic/"popcorn," or an unknown coating. Decide whether the new work can go over a sound, compatible field or whether removal/abrasion would be required.

Damaged, stained, soft, or damp work: find and correct the leak or moisture source, replace unsound board, seal stains with a compatible system, and finish the repair first. Texture is the last visual layer, not a structural patch or a moisture cure.

Settle the asbestos question before disturbing old texture. EPA identifies textured paint and patching compounds on walls and ceilings as materials that have contained asbestos. You cannot clear a suspect material by appearance. If an old sprayed, troweled, or patched finish may be disturbed by scraping, sanding, drilling, cutting, or aggressive deglossing, stop and have it sampled by a properly trained and accredited asbestos professional; EPA recommends a qualified laboratory for analysis (EPA — Learn About Asbestos, EPA — remodeling and suspected asbestos). A positive result is an abatement decision, not an alternate prep technique. Applying new texture to a proven sound surface is different from disturbing an unknown old one, but the test comes before any prep that would make the old layer airborne.

Settle the lead question where prep crosses old paint. If a painted wall or ceiling in pre-1978 housing or a child-occupied facility must be sanded, scraped, cut, or otherwise disturbed, the paint may be lead-based. EPA's RRP rule covers paid renovation work that disturbs paint in those buildings unless a permitted determination establishes that the affected component is lead-free; covered firms and renovators must be certified and use the required lead-safe work practices (EPA — RRP rules, EPA — RRP for contractors).

Prove adhesion instead of assuming it. Remove loose material only after the hazard gates are clear. Clean the surface by the texture/primer manufacturer's method, let it dry, and make the manufacturer's prescribed compatibility or adhesion test in an inconspicuous area.

Make the finish recipe one manufacturer's decision. Choose a material specifically rated for spray texture and knockdown on this substrate. Follow its label and technical data for:

permitted substrate and required primer;

ready-mix conditioning or dry-powder water sequence;

allowable water addition and any maximum thinning;

mixing equipment, rest or re-mix requirements, working time, and temperature/humidity limits;

required respiratory, skin, and eye protection;

dry/recoat/prime/paint conditions and compatible topcoat.

Do not turn "pancake batter" into a water ratio. It is useful trade shorthand for flow, not a recipe. A compound that sprays beautifully outside its manufacturer's water limit can shrink, crack, lose adhesion, or dry weak. Record the exact product, lot, water added, mixer, nozzle choice, air setting, fluid-control position, and test-board result for each batch so the next batch can repeat the first.

Make a real sample, not a cardboard guess. The best test board is scrap of the same substrate, finished and primed exactly like the work. If only cardboard is available for the first machine check, use it to catch gross spray errors, then prove the final pattern on a finish-equivalent board. Make enough area to test both acts: the sprayed droplet field, the readiness window, the blade angle, the lap, the fully dried relief, and — if the system will be painted — the specified primer/topcoat. Wet texture, dry texture, and painted texture do not read the same in raking light.

Protect the room, the people, and the equipment

Empty the work zone and control entry. Texture mist goes farther than the visible globs. Remove furniture and movable fixtures; isolate the work zone; post or physically control the doorway; keep occupants, pets, and unprotected workers out through spray, initial set, and cleanup. Shut down and mask HVAC supply and return openings in the work area as the system instructions allow so the air handler does not distribute mist or dust. Provide the ventilation the product SDS requires without creating a cross-draft that bends the spray pattern.

Mask for a liquid applied overhead. Cover floors continuously and turn containment up the wall. Mask walls, trim, windows, doors, cabinets, sprinklers, detectors, grilles, and any surface not receiving texture. On ceiling-only work, establish the ceiling line deliberately; a casual tape edge under sprayed material becomes a ragged ridge. Do not coat life-safety devices or block required air paths. Coordinate detector and sprinkler protection/removal with the responsible trade and restore every device before the room returns to service.

Make electrical work dead and dry. Turn the affected lighting and receptacle circuits off at the panel, verify the de-energized condition with an appropriate tester, and remove or mask fixtures and cover open boxes without filling them with texture. Keep the compressor, cords, plugs, and connections out of wet overspray and standing cleanup water; use the grounded/GFCI protection required by the equipment instructions and site rules. If the fixture or box cannot be made safely dead and protected, an electrician owns that boundary.

Select protection from the actual material, not from the word "mud." Wet spraying creates mist; dry powder charging can create airborne dust; some formulations carry hazards not visible in the finished texture. Read the current SDS and label. Use splash-impact eye protection under every ceiling pass, gloves and covered skin, and the SDS-selected NIOSH-approved respirator. On an employer-controlled job, a required tight-fitting respirator belongs inside the medical-evaluation, fit-testing, training, cartridge-selection, and maintenance program required by OSHA 29 CFR 1910.134; buying a mask is not the program. Engineering controls and isolation come before relying on a respirator.

Plan access before the hopper is full. Keep hoses out of walk paths, door swings, and ladder feet. Use a rated platform or scaffold where hand work is required; never a chair, bucket, or improvised plank. The 09997 and 09998 accept a standard Acme extension pole, so most ceiling knockdown can be performed from the floor. A pole is an access tool, not permission to work beneath an energized box, occupied lift, or uncontrolled doorway. Mark one travel lane for the sprayer and one for the knockdown operator; nobody walks backward into the other's hose or wet field.

Set up the hopper gun and compressor

Inspect with air disconnected. Confirm the hopper, gun body, valve, fluid control, nozzle, hose, regulator, and fittings are clean, undamaged, properly seated, and compatible according to their manuals. Hardened texture in a nozzle changes the orifice and therefore the pattern. Do not "correct" a crusted nozzle by drilling, filing, or forcing a hard pick through it; clean or replace it by the manufacturer's method. Change or service any nozzle only after the air source is isolated and the line is depressurized.

The CFM figure is the compatibility check: a compressor that cannot sustain the required air volume may spray correctly from a full tank and then coarsen the texture as delivery falls. Tank size does not substitute for delivered CFM.

Stage the air source for continuous work. Put the compressor on a stable, dry surface outside the direct spray path with ventilation and electrical supply as its manual requires. Drain/manage compressor moisture and install any air-treatment component the equipment instructions call for. Route enough hose to reach the entire section without pulling the gun sideways. Pressurize, listen for leaks, and observe whether the compressor can maintain delivery during a full test-board pass—not merely at rest.

Mix one controlled batch. Follow the material recipe from Step 5, using clean tools and low enough mixer speed to avoid whipping air into the compound. Scrape the pail wall and floor into the circulation. Reject dried skin and hard crumbs rather than beating them into sprayable mud. Let the batch rest or re-mix if its instructions require it. Lumps clog; entrained bubbles open as craters; a recipe that changes between batches changes the wall.

Load for gravity, not bravado. With material flow shut and air isolated as the gun manual directs, add only enough mix for the test. For overhead work, partial hopper loads are easier to keep generally upright and easier to control; the 09980's hopper is manufacturer-listed at 1-1/2 gallons, but capacity is not a command to fill it to the rim. Gravity feed starves when the material slides away from the inlet. Secure the lid or cover if the current equipment instructions supply and require one. Never place hands in a connected or pressurized gun.

Dial the pattern on the test board

Change one variable at a time. The pattern is the combined result of material consistency, nozzle, instruction-controlled air setting, fluid control, gun orientation, distance, and travel speed. If all seven move at once, the board teaches nothing. Start from the manufacturer's recommended combination, make a labeled pass, and alter one control for the next pass.

First prove delivery. Aim at the sacrificial board, establish a stable stance, start moving, open the material/trigger control, cross the board at a steady speed, then shut flow before stopping the stroke. Look for uninterrupted output with no spit, starvation, or pressure drift. If the first seconds are fine and the pattern then grows coarser, watch the delivery gauge and compressor recovery: that is the classic undersupplied-air signature, not permission to thin beyond the texture label.

Then prove the raw spatter. Knockdown begins as discrete, proud droplets with substrate visible between them. The droplets must have enough body to survive until Act II without slumping into one wet sheet. Dense coverage becomes a smeared skim when knocked; starved coverage looks like accidental spatter. Tune on the board until droplet scale, spacing, and relief repeat from the beginning of a pass to the end.

Finally prove Act II on the board. Mark spray order. Watch the first pass lose its wet sheen and test a sacrificial edge blob:

it wipes into a wet streak and coats the knife → too early;

it flattens into a defined little mesa while the valley stays undisturbed → ready;

it resists a light glide and tempts you to press → too late.

Knock half the sample with the 18" or 24" knife at the planned angle, pressure, direction, and lap. Leave part raw so the difference remains visible. Let the sample reach the material manufacturer's stated inspection/recoat condition, then judge it in raking and normal room light. There is no universal number of minutes: temperature, humidity, airflow, substrate porosity, batch water, droplet mass, and section density all move the window.

Freeze the accepted sample. Write the batch recipe and all equipment settings on the back. Keep the board in the room. It is the contract for the rest of the job and the comparison for later batches—not a memory of what the first field looked like while wet.

Act I — spray the field

Divide the room by knockable area, not by architectural optimism. A section is only as large as the crew can knock while its readiness window travels. The first-sprayed edge will be ready first. Map spray order and knock order together before opening the valve. In a one-person job, sections shrink because the same hands must set down the gun, pick up the knife, and begin at the first edge. With two people, the knockdown operator follows the surface state, not the sprayer's heels.

Start with the difficult geometry while the pattern is still being proved. Establish the perimeter, fixture strategy, wall/ceiling transition, and access turns in a small section. Do not learn how the hose crosses the room after a full lid is wet. On a ceiling, keep the hopper generally upright and move your feet so the gun orientation and working distance remain consistent; do not finish a pass by leaning until gravity starves the feed.

Spray with motion already established. Move before opening flow; close flow before slowing, turning, or lowering the gun. Maintain the same gun-to-surface relationship used on the accepted board. Walk the pass rather than drawing an arc from a planted stance. Overlap consistently enough to avoid striping, but do not double-coat the lap into a wet ridge. Edges receive a controlled moving pass, never a stationary blast.

Read the pattern and the air continuously. The raw field must look like the board across the entire section. Stop if droplet scale changes, the gun spits, the hopper feed starves, the compressor cannot maintain delivery, the material begins skinning in the hopper, or the room's airflow bends the stream. A bad field does not improve because more square footage is placed beside it. Correct the cause on a fresh board, then decide whether the affected section can be corrected within the material system or must dry and be reworked.

Close the valve at every pause. The 09980's on/off control exists to stop material flow between passes. Never carry an open-flow gun across the floor, under a fixture, or toward a person. During a refill, protect the section's timing: note the last sprayed edge, keep the material recipe identical, and use the pause for compressor recovery without allowing material to skin in the gun.

Hand the section to Act II in spray order. Do not finish spraying the whole room and then ask where to begin. The marked first edge gets tested first. When it reaches the board-proven state, knock it—even if the last edge is still glossy. The window is a moving front.

Act II — knock down the peaks

09998, 24": open ceiling or uninterrupted wall field. Its wider band means fewer strokes and fewer lap boundaries. It is the production knife.

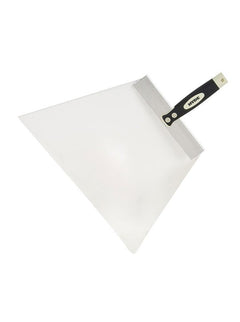

09997, 18": walls, small rooms, repairs, stairwells, perimeter runs, vents, cans, corners, and the transition around anything the 24" cannot steer. It is the control knife and the better first purchase.

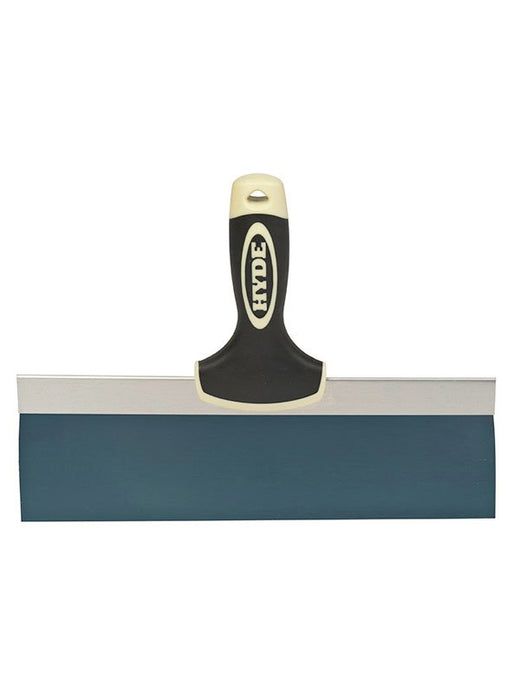

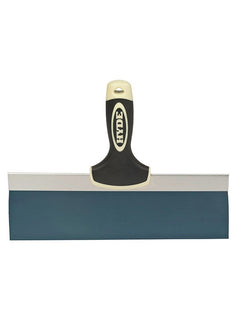

09273, 12" flat-back blue steel: smaller, limber hand-reachable pinch alternative. Hyde claims control for knockdown texturing, but the narrower steel blade creates more laps and is easier to tip into a score.

A two-knife ceiling crew uses the 24" in the field and the 18" at the perimeter. The steel knives remain alternatives, not the preferred two-tool system.

Start only when a test blob says go. Fresh-glossy is too wet. Flat, cleanly moving peaks are ready. A surface that resists light pressure is past the easy window. Do not rescue a late field by converting the glide into a scrape; heavy pressure scores the valleys and prints the blade.

Set the dedicated blade low and nearly flat. The stroke is a light glide that clips peaks while bridging valleys. The flexible polycarbonate edge regulates pressure; the rounded corners reduce end-gouges; the transparent blade lets you see the mesas forming during the pass (Hyde — Knockdown Knives, Hyde product video). Do not load compound onto the knife. If material piles on its face, the field is too wet, the angle is too steep, the pressure is too heavy, or the edge was not cleaned.

Run one direction and one lap rhythm. Use long, straight bands in a planned direction. Overlap the prior band slightly and consistently, just enough to avoid a standing strip between passes. Too much overlap flattens the lap twice and makes a stripe. Too little leaves a raw-spatter ridge. At a wall, keep both blade ends on the same plane. At a ceiling, set the pole angle before the stroke and walk the band; reaching from planted feet changes angle and pressure from heel to tip.

Clean the edge before carried mud becomes a second texture. Wipe the full blade edge between passes or whenever pickup appears. Inspect for a dried crumb, nick, or steel-blade rust spot before the next stroke. A contaminated edge draws a line through every mesa it crosses. Keep the wipe station outside the wet section and never drop rinse water onto the field.

Work the perimeter with control. The 18" takes over around fixtures, vents, edges, and inside corners. Run the blade away from protected openings so pickup is not pushed under masks. Stop short of a proud fixture ring rather than tipping one corner up to reach it; the small missed island can be approached from the other side. On walls, finish the bottom and ceiling line before the middle becomes inaccessible behind masking or platforms.

Stop when the accepted board appears. One clean knock is the default. A second full pass does not make the first more professional; it flattens the relief toward a bad skim coat and doubles every lap. Correct isolated standing peaks only while the field remains workable and only with the same low-angle touch. Once the system's window has passed, let it dry and use the manufacturer's repair route.

What goes wrong — diagnosis before correction

The first few feet are right and the pattern then turns coarse. Air delivery is falling as the tank drains. Compare the compressor's sustained CFM against the 09980's minimum 6-1/2 CFM at 25 PSI, inspect restrictions/leaks per the equipment manuals, and repeat a full-duration board pass. Do not thin the batch outside its instructions to compensate for an undersized air source.

Isolate and depressurize before inspection. Do not aim a connected gun at a person or probe it under pressure.

The raw field has stripes. Travel speed, distance, orientation, or overlap changed. Return to the accepted board and walking stroke. Filling stripes in by hovering creates dense wet bands that knock differently from the rest.

Droplets sag into a sheet. The recipe is too loose for this system, the coverage is too dense, the substrate/primer is wrong, or conditions are outside the material instructions. Stop; a knife cannot turn a sagging film into clean knockdown.

Pinholes or craters appear. Air may have been whipped into the batch, dry crumbs may be releasing, or the substrate may be contaminated. Correct the batch or surface cause. More spray hides the evidence wet and enlarges it dry.

The blade makes greasy streaks. Too early, too steep, too much pressure, or a dirty edge. Stop immediately, clean the blade, and re-test the next untouched blob. Repeated passes through wet material turn discrete spatter into trowel slop.

The peaks will not move. Too late. Do not press harder. Let the field reach the manufacturer's rework condition, then use its approved correction—often a controlled dry repair and respray after the relevant asbestos/lead gate, not aggressive wet scraping.

A line follows one blade corner. The blade is tipped, the dedicated blade or bridge is damaged, or a steel alternative is biting. Lower and square the tool; clean and inspect the edge. The rounded dedicated knife is the correct answer when a square steel corner keeps printing.

Lap seams show in raking light. Overlap width, readiness, pressure, or edge cleanliness changed between bands. On the next section, use one direction and a fixed rhythm. On this section, resist the wet second-pass cure; it usually broadens the seam.

The texture releases from the old surface. Stop the job. The substrate was unsound, contaminated, or incompatible with the primer/system. Texture cannot be spot-glued back into a failing base. Re-diagnose the assembly after any asbestos/lead question is resolved.

The wall and ceiling do not match. They may have different porosity, primer, gravity behavior, lighting, or topcoat. Treat them as separate test-board conditions and record separate accepted settings; do not assume one wet pattern is universal.

Drying, inspection, paint, and cleanup

Let the system, not the clock, release the room. Maintain the temperature, humidity, and ventilation range in the texture instructions. Do not aim heaters or fans at one patch and create differential skinning or drying. The finish is ready for inspection, primer, or paint only at the manufacturer's stated condition. Deep valleys and dense laps dry later than the visible mesas.

Inspect twice. First in raking light, which reveals laps, scores, ridges, and density drift; then in normal room light, which decides whether the pattern reads consistently in use. Compare against the accepted, fully dried board. If a topcoat is part of the specified system, judge the final match after that same coating is on the board and the work; sheen changes the apparent relief.

Depressurize before disassembly. Shut material flow, isolate the compressor, bleed the line by the equipment instructions, disconnect power, and verify pressure is gone before removing the hopper, nozzle, hose, or fitting. Never loosen a pressurized connection.

Clean the gun while the material is wet. Recover usable material only if its manufacturer permits return to the batch. Remove bulk residue, then wash the hopper, gun body, fluid path, and nozzle by the current instructions until no film remains. A dried nozzle is a changed nozzle. Do not send compound solids into a storm drain or dispose of wash water contrary to local rules or the SDS.

Clean the knives before material skins. Wash polycarbonate faces and edges without cutting or abrading them, inspect the bridge and handle, and store the blade where it cannot take a set or edge nick. Wash the 09215/09273 steel alternatives and dry their blue-steel blades immediately; their aluminum backs do not rust, but the working steel can.

Remove containment inward and restore the room. Let masking at the finish edge reach the system's prescribed pull condition, then remove it without tearing the texture ridge. Roll protection inward so overspray stays captured. HEPA-vacuum or wet-clean as the material/SDS and any lead-safe plan require. Restore HVAC openings, detectors, sprinklers, electrical covers, and fixtures; re-energize only after boxes, devices, hands, and surfaces are dry and the work has been inspected.

Buyer tests — the job decides the cart

"One small room, textured walls, several fixtures, first knockdown job." 09980 + 09997. The 18" is the control blade and handles the whole room honestly; a 24" saves laps only where there is enough open field to earn it.

"Open great-room ceiling, repeat work." 09980 + 09998 for the field + 09997 for perimeter and fixtures. Buying only the 24" leaves the hardest geometry to the clumsiest blade.

"I already own a 12" or 14" blue-steel taping knife." The 09273 or 09215 can prove the method on a small hand-reachable field, but use a low angle, inspect the square corners, clean constantly, and understand the trade: more laps, no transparent view, no rounded-corner forgiveness, and no pole thread. Repeated ceiling work earns the dedicated knife.

"My compressor reaches high PSI but is a small trim unit." PSI alone does not answer. Its plate must support the 09980's minimum 6-1/2 CFM at 25 PSI as delivered volume, and it must sustain the board-length pass without pattern drift.

"I only need to match a palm-sized patch." A manufacturer-approved aerosol texture may be the faster honest tool. The hopper system earns itself when the pattern is hard to match, the patch is larger, or repeat work makes board-calibration and recipe control valuable.

"I want to remove popcorn and replace it with knockdown." No Hyde product on this page is endorsed for that first act. Hyde explicitly says its knockdown knives are not intended for popcorn removal, putty, or spackle. Test suspect old acoustic texture for asbestos before disturbance; removal and new application are separate jobs with a hard gate between them.

Exact false neighbors

09980 is a gravity-feed texture hopper gun, not an airless paint sprayer and not a removal tool. It throws a statistical texture pattern; it does not pump paint to an airless finish or take old texture down.

09997/09998 touch only half-set spatter. They are not compound applicators, taping knives, putty knives, spackle knives, or popcorn scrapers. Hyde's official not-for list is binding.

09997 vs 09998 is only the claimed length decision. 18" = control/perimeter/repair. 24" = open-field production/fewer laps. No other product difference is invented.

09988 services the 09980; it sprays and knocks nothing. Its official co-listing establishes the relationship, not a verified contents list.

Orange peel and acoustic popcorn are not unfinished knockdown. They are separate sprayed finishes with their own material systems; neither receives Act II merely because the same hopper can participate.

History footnote — from the smooth panel to the deliberately broken plane

Modern gypsum board began as a way to replace slow wet-plaster construction: Augustine Sackett patented the drywall prototype in 1894, and USG acquired the Sackett Plaster Board Company in 1909 (National Inventors Hall of Fame — Augustine Sackett, USG — history). USG's 1917 Sheetrock® panel made a faster smooth wall possible; postwar tract building made that economy national. Texture is the next production answer in the same story: instead of spending additional labor making every joint, fastener row, and framing wave disappear under raking light, builders applied a repeatable broken plane that made minor variation visually quieter.

Sprayed texture also carries the trade's ugliest material history. EPA lists textured paints and wall/ceiling patching compounds among building materials that have contained asbestos, and records a 1973 ban on spray-applied asbestos-containing surfacing material for fireproofing/insulating uses (EPA — Learn About Asbestos, EPA — actions to protect the public from asbestos). That regulatory date does not identify any particular ceiling by sight or installation year; existing materials and other product categories make sampling—not a calendar guess—the defensible boundary.

Treat them as anonymous trade patterns unless better evidence appears. The honest lineage is visible without a myth: gravity and shop air create the spatter; a wide, flexible blade catches the peaks at the one state where they flatten cleanly. The modern dedicated blade adds transparent polycarbonate, rounded corners, a straightening bridge, and pole access to a finish that steel taping knives had already learned to make in a pinch.
