Shield Trim and Base While Spraying Walls

Job: Spray wall fields while protecting installed door and window trim and baseboard

Time: Commonly one workday for a prepared room; profile density, occupancy, coating system, and the amount of fixed masking determine duration

Difficulty: Advanced — a clean result depends on airless discipline, finish recognition, loaded-edge control, and safe crew coordination

Everything else: specified wall coating; compatible airless sprayer, hose, tip, filters, and accessories; manufacturer-required PPE, ventilation, grounding, ignition, and pressure-relief controls; fixed masking and floor protection; clean compatible wipes; approved waste containers; safe access equipment; inspection lighting; finish-safe test materials

Trim that is already installed and finished changes a wall-spraying job. The wall coating can be repaired; a solvent-softened stain, etched clear coat, paint-fogged hinge, or blade stripe across a finished base may require replacement. The right operating bias is therefore asymmetric: protect the completed work first, then earn production speed inside that boundary.

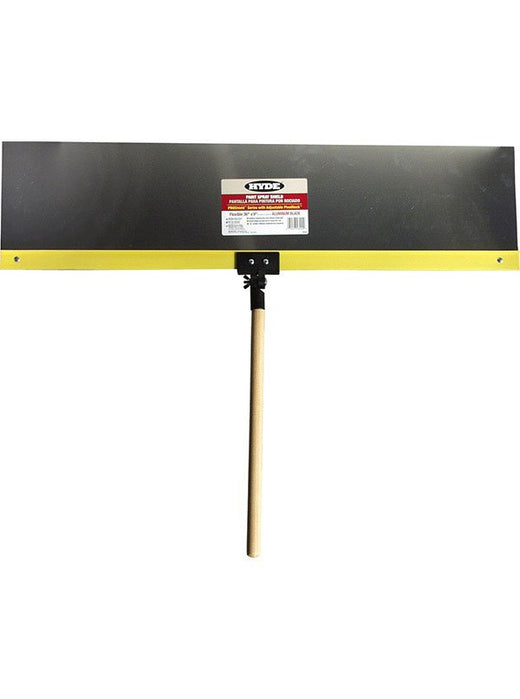

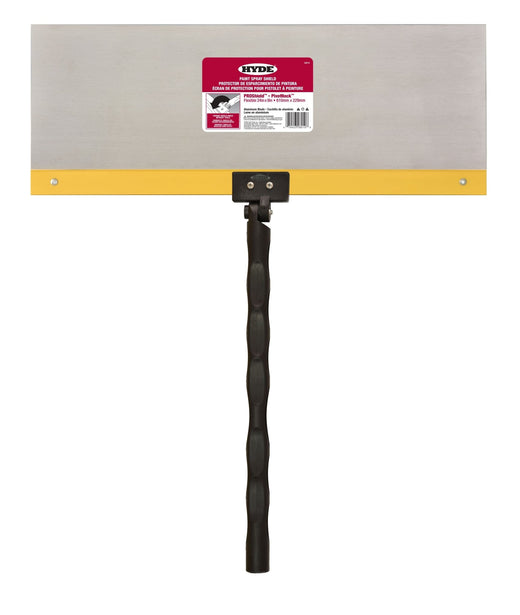

The four registered tools provide two behaviors and two useful spans. Models 28000 and 28010 are flexible aluminum blades measuring 36 × 9 inches and 24 × 9 inches. Models 28030 and 28020 are their stiff aluminum counterparts at 36 × 9 and 24 × 9 inches. All four have a family-level PivotNeck angle-adjustment claim and a family-level statement about 18-inch Acme-threaded hardwood handles. The evidence does not establish handle inclusion per SKU, so verify what is physically supplied rather than converting the family description into an in-box promise.

Decide what is allowed to receive coating

Make a room map before masking. Record each wall field and each protected finish:

painted, stained, or clear-coated casing;

baseboard and shoe molding;

jambs, stops, doors, sills, aprons, stools, and returns;

hinges, strike plates, latches, weather seals, glazing, and screens;

floors, carpet, cabinetry, built-ins, fixtures, receptacles, and controls;

connected rooms, returns, supplies, and other paths the spray plume can enter.

Resolve the design edge. Does wall color die at the casing face, in a caulk joint, at a reveal, or around a backband? Does the base meet the wall with a clean caulked line, a shadow gap, or an open irregular joint? A shield can follow an established boundary. It should not decide where the finish designer intended one.

Identify damage before work. Photograph or document soft clear coat, open joints, loose trim, paint ridges, wax, silicone contamination, and old overspray. Do not press a blade against an unstable film. If the existing finish cannot tolerate gentle dry contact in an inconspicuous test, switch to an approved fixed protection method.

Older coatings may contain lead. Determine whether the preparation work is regulated and use the required lead-safe methods. Spraying over a surface does not erase the hazard created by sanding, scraping, or disturbing it.

Separate moving-edge protection from fixed containment

Mask the room field first. Protect floors, fixtures, glass, door slabs, hardware, openings, and anything outside the immediate moving line. Control ventilation and air movement under the coating’s instructions. Isolate occupants and unauthorized workers.

The shield covers only the span under its blade. It does not:

stop fog from crossing the room;

protect the middle of a door or window;

keep material out of an HVAC system;

catch a hose that drags across finished base;

replace floor protection;

prevent a gun from being triggered before the edge is seated.

If a casing is intricate, a base run disappears behind a radiator, or the room cannot be isolated, fixed masking may be the better system. Use the shield where frequent straight-edge movement genuinely reduces masking without increasing consequence.

Choose flexible or stiff, 24 or 36

Use flexible 28010 (24 inch) around short casing legs, stools, aprons, and older trim whose wall line wanders gently. The shorter tool is easier to index at corners and profile breaks. Use flexible 28000 (36 inch) on longer base runs or tall straight casing where moderate wall irregularity still requires conformity.

Use stiff 28020 (24 inch) when a short, true fence is needed beside crisp modern casing, narrow returns, or interrupted base. Use stiff 28030 (36 inch) for long, planar baseboard and uninterrupted trim where fewer placement joints matter.

Do not make a stiff blade “flex” by forcing it into a wavy wall. It will bridge low spots or rock on highs. Do not bow a flexible blade until its ends lift. The working contact should be visible, light, and repeatable.

Choose span by control:

a short blade creates more joints but makes profiles and corners easier;

a long blade creates fewer joints but collects more coating and needs more clearance;

either blade fails if the holder cannot see both ends;

neither blade is a safe substitute for repositioning access.

Test the trim finish and build a witness

Select a low-consequence area. Clean it by the finish manufacturer’s approved method and let it dry. Dry-seat the selected blade without spray. Look for scratches, pressure marks, movement, or loss of gloss. If the finish is delicate or unknown, do not experiment with coating or solvent on the visible work.

Create a representative witness boundary on a mock-up or controlled section. Use the actual wall coating and approved spray setup. The coating and sprayer manufacturers control tip choice, pressure, thinning, grounding, ventilation, PPE, and cleanup; this guide supplies no universal setting.

The holder seats the protected face over the trim. The blade is angled so its spray-facing surface directs material toward the wall side rather than opening a path onto the finish. Adjust the neck only at a safe position and do not invent a service procedure.

The operator makes the planned pass within the seated span and releases the trigger before the blade end. Once the fan clears, lift the shield straight away.

the protected trim under normal and raking light;

the wall edge for starvation or excessive ridge;

both ends of the placement for leakage;

the blade for a bead on its working edge;

the field beyond the line for airborne overspray.

The approved witness becomes the room standard. If it cannot meet the finish requirement without dangerous proximity or repeated cleanup, fixed-mask and change the application sequence.

Establish the two-person rhythm

For production spraying, a dedicated holder and gun operator are often the defensible arrangement. Agree on commands:

Seat — holder positions the clean blade.

Ready — holder confirms full contact and body clearance.

Spray — operator covers only the protected span.

Stop — trigger releases before the blade end.

Clear — fan has dissipated and the gun is no longer crossing the holder.

Lift — blade leaves the finish without dragging.

Move — holder overlaps into the prior placement.

The gun operator owns the trigger. The holder owns the seat. Either can call stop. Nobody wipes the blade, reaches for a drip, or adjusts the neck in front of a live airless tip.

Airless injection is a medical emergency even when the wound looks small. Follow the sprayer maker’s trigger-lock, pressure-relief, inspection, grounding, and service procedure. Never use a hand to find a pinhole leak. Secure and relieve the system before touching the tip, guard, hose, filter, or suspected leak.

Spray casing legs without painting the jamb

Start with the simplest vertical casing and prove the rhythm before working around heads, stools, or hardware. Fixed-mask the door or window field. Seat a 24-inch tool where the casing profile or available clearance is short; choose 36 inches only when the entire edge can be controlled.

Keep the fan on the wall. Begin and end movement so the shield catches only the soft outside of the pattern, not a stationary full fan. Trigger after motion begins if that is consistent with the manufacturer’s spray method and the approved witness; release before the blade’s end.

At the casing head, stop and re-stage. Do not rotate a loaded vertical blade across finished trim to become a horizontal shield. Clean it, change the PivotNeck attitude at a safe position, then dry-seat the head. Corners receive overlap from two separately controlled placements.

Around a stool or apron, shorten the span. Protect the horizontal surface from fallout. If the profile prevents full contact, fixed-mask it. Forcing the blade into a moulding detail is how a clean wall job becomes a scratched-finish claim.

Run baseboard as a controlled sequence

Baseboard looks simpler because it is long and horizontal, but it accumulates more coating along the shield edge and puts the hose near completed work. Lay out hose travel before the first pass. Use floor protection that remains stable and does not push the shield away from the base line.

On a straight modern base, a stiff 36-inch 28030 can serve as a true fence and reduce placements. On a gently wandering old plaster line, flexible 28000 can conform where a stiff blade would bridge. Around short walls, plinth blocks, radiator pipes, and returns, move to the appropriate 24-inch model.

Work in sections sized to the coating’s wet-edge requirement and the crew’s real wipe interval:

spray the covered wall section;

let the plume clear;

lift, inspect, and wipe;

overlap the preceding stop;

Never slide the blade along finished base while spraying. Dragging carries a wet bead and can abrade the finish. Never let the blade rest on the base while the holder changes stance. Lift it clean, move the body, and create a new seat.

At inside corners, finish one wall to a planned stop, clean the shield, and re-stage the perpendicular wall. At outside corners, protect the completed face from wrap. If airflow drives fog behind the corner, enlarge containment or change methods.

Manage the wet edge without sacrificing the protected edge

Wall coatings differ in open time and repair behavior. Plan room order from the technical sheet, temperature, humidity, and crew speed. A shield system that forces tiny sections may not be compatible with the finish requirement.

Keep the gun moving at the approved distance and orientation. Do not dwell at the boundary because the blade feels like permission. Excess film beside the trim can sag, picture-frame, or dry differently from the wall field. A starved strip is also a process defect; solve it in the witness by fan relationship and pass planning, not by aiming under the blade.

If a placement must be interrupted, stop at an architectural break or repair the coating under its instructions. Do not rush a loaded shield across the room to save an edge. The completed trim has higher consequence than an extra controlled wall section.

Wipe by condition, not by hope

A nonabsorbent edge can hold enough coating to stamp a crisp unwanted stripe. Inspect after the first pass, after every corner, and before any placement on a high-value finish. Establish a maximum interval, then shorten it when the edge loads faster.

Wipe away from the protected face using material compatible with the coating. Keep clean and used wipes separate. Follow fire-safe disposal for the actual coating and solvent system. Oily or solvent-contaminated rags can create combustion and vapor hazards; use the product and site requirements rather than tossing them into a general pile.

Do not soak the blade, PivotNeck, or handle assembly by assumption. Clean only through known material and coating guidance, then dry and inspect the working edge.

Inspect the room before demasking

Keep containment in place while inspecting. Use raking light along casing and base. View from the room’s normal sight lines as well as close range.

every placement overlap and corner;

clear-coated and stained faces for haze or edge prints;

jambs, stops, hardware, and glazing;

the wall film for ridges, sags, tails, or starvation;

floors and horizontal trim for fallout;

connected spaces and ventilation paths for escape.

Distinguish an edge failure from an airborne-containment failure. A dot several feet from the boundary did not leak under the blade. Correct the actual system.

Follow coating instructions for touch-up, recoat, cure, and masking removal. Do not scrape or solvent-wipe a finished casing without an approved method. Restore covers, doors, hardware, ventilation, and access only after the responsible release.

Clean the shields and store them without pressure on the working edge. Segregate any blade with a nick, permanent bend, contaminated face, loose joint, or damage that prevents a trustworthy seat.

What goes wrong (and the fix)

Overspray appears on trim at blade joints. The next seat did not overlap the prior stopping point, or the trigger remained on past the blade. Increase controlled overlap and stop earlier.

A sharp wall-color stripe prints on finished base. The blade edge was loaded and touched the finish. Stop, use only the finish-approved correction, and shorten the wipe interval.

A stiff blade leaks along old plaster. It is bridging low spots. Switch to the appropriate flexible blade or fixed-mask the irregular run.

The flexible blade leaks at both ends. The holder is over-bowing it. Reduce pressure and, if necessary, use a shorter span.

Casing is clean but its jamb has fog. The moving edge worked; the opening was not fully masked. Correct field protection before restarting.

The wall is heavy beside the trim. The operator dwelled or aimed into the shield.

The wall is thin at the boundary. Too much blade covers the wall or the pass is being steered away. Re-seat on the intended finish line and correct spray technique within manufacturer instructions.

A holder must lean across the gun at a casing head. The crew arrangement is unsafe. Secure the system and re-stage people, access, and sequence.

The blade scratches a clear finish. Stop using movable contact on that surface. Document the condition and switch to an approved noncontact or fixed-mask method.

The first wall passes but later base runs print. Coating accumulated faster than the wipe plan assumed. Clean now and revise the interval from observed loading.

The history footnote

Painters have always had to keep one finish off another, but the production problem changed when walls could be covered with an atomized fan instead of cut entirely by brush. A movable shield provides a temporary hard edge for that fan while the rest of the room still depends on ordinary containment and craft control. The source line carries that broad development; it does not support an exact origin claim for these models.
