How to Paint Inside Cabinets and Bookcases

Written for the person doing the job.

Before you start: identify the job you actually have

Empty the case and make a parts map. Remove books, food, linens, electronics, and loose shelf liners. Take out adjustable shelves, drawers, shelf pins, catches, and hardware that can be removed without damage. Label shelf position and orientation with painter’s tape placed on an area that will not be coated. A shelf that only fits one bay or one way should not become a puzzle after the finish is soft.

Name every substrate instead of calling it all wood. A single bookcase can contain solid-wood face frames, veneered plywood sides, fiberboard shelves, particleboard backs, plastic laminate, and a thin factory film. Each reacts differently to water, abrasion, and primer.

Solid wood or plywood: inspect for resin, wax, dents, open grain, failing clear finish, and veneer edges. Sanding through veneer is irreversible.

Fiberboard or particleboard: look for swollen edges, crushed fastener holes, and fuzzy exposed fibers. Water-damaged board is not restored by burying it under paint.

Laminate, melamine, or another slick manufactured face: ordinary scuff-and-paint advice is not proof of adhesion. The chosen primer/coating manufacturer must name the surface or approve a tested system.

Thermofoil or another bonded skin: loose, blistered, shrinking, or heat-damaged film is a repair or replacement problem first. Coating over a moving skin only moves the failure outward.

Unknown factory finish: treat compatibility as unknown until the coating maker’s instructions and a test patch resolve it.

Decide whether the existing surface is sound enough to coat. Push on swollen edges; probe peeling finish with a fingernail; check veneer seams and shelf sag. Remove loose material only by a method safe for that substrate. Repair broken structure, delamination, moisture intrusion, and failed edging before cosmetic prep. A coating can bridge color; it cannot make weak board strong or stop an active leak.

Set the lead boundary before making dust. If the cabinet, built-in, bookcase, or surrounding painted construction is in pre-1978 housing and the prep will disturb old paint, do not begin ordinary sanding on assumption. Use the applicable lead-safe path, including testing or a certified firm as the situation requires. See the EPA RRP program and its current lead-safe work-practice guide.

Choose the coating system from the substrate outward. Read the finish-coat label and technical data sheet before buying the primer, cleaner, or abrasive.

that the finish is intended for interior use and for the actual substrate or approved primer;

whether the old finish must be removed, deglossed, or only cleaned;

whether a bonding, stain-blocking, corrosion-control, or other primer is required;

the allowed cleaner and whether residue must be rinsed;

application limits, ventilation, PPE, film thickness, recoat interval, and cure or service language;

whether the intended use presents a food-contact, toy, heat, moisture, or chemical-resistance requirement.

Make a representative test patch. Choose a hidden but real area made from the same substrate and carrying the same old finish as the visible work. Run the proposed sequence there: clean, rinse if directed, dry, abrade if directed, repair or prime if required, then coat. Let each layer reach the manufacturer’s stated interval before the next and let the sample reach the stated evaluation or service condition before judging adhesion and appearance. A wet patch proves only that paint can be spread. It does not prove bond, cure, block resistance, or compatibility.

If the test wrinkles, beads, stays tacky, lifts, or scratches away after the system says it should be ready, stop and diagnose with the coating manufacturer. Another heavy coat is not a compatibility fix.

Prepare the carcass

Vent the room before opening products. Open a path to outdoor air and exhaust outside rather than into another occupied space. CPSC’s Healthy Indoor Painting Practices says to follow each label and provide outdoor-air ventilation; room air conditioning and fans that do not discharge outdoors are not substitutes. Keep occupants and pets out as directed. Odor is not an exposure meter, and a dust mask is not a universal vapor respirator. Use the PPE or respiratory-protection program required by the label, SDS, lead plan, and hazard assessment; if adequate ventilation is impossible, change to an authorized system or stop.

Clean before you sand. Vacuum loose crumbs and dust without grinding them into the surface. Apply the compatible cleaner by the method its label permits, paying attention to shelf fronts, handle zones, cooking-grease fallout, furniture polish, wax, and oily residues. Work from cleaner areas toward dirtier ones and change wipes rather than redistributing contamination. Rinse where directed, then allow the substrate to dry by the cleaner and coating instructions.

Degloss or abrade only as the selected system requires. Use the least aggressive abrasive that creates the specified surface without cutting through veneer, factory film, or edge sealing. Support loose shelves flat while sanding. Ease sharp repaired edges only enough to hold the finish; do not round face-frame profiles or erase joinery.

Repair by material, then recheck the plane. Fill dents and fastener holes only with material approved for the substrate and finish system. Seal exposed or fuzzy engineered-board edges as the manufacturer directs. Feather repairs without thinning the surrounding veneer. Remove failed caulk only where the joint is meant to be sealed; do not caulk adjustable shelf holes, hardware mortises, drainage paths, or moving joints.

Stage loose parts and protect what stays. Put removable shelves on stable supports with access to the edges you intend to coat. Do not balance them on cans, pins, or finished faces. Mask hardware that cannot be removed, shelf-pin holes that must remain clear, drawer slides, labels, electrical components, and adjacent finished surfaces. Protect the floor below the entire case, including the area where you will set a loaded frame.

Select and set up the frame

Choose by access, not by brand story.

Use the 47401 or 92005 for ordinary open backs, sides, and shelves where a four-inch caged mini fits and the handle can meet the surface squarely.

Use the 92012 when a four-inch cover’s shoulders would touch the shelf above, shelf below, face frame, or neighboring surface. Its documented three-inch width trades coverage for placement.

Use the 47402 when the bay is large enough for the cover but the fixed handle forces the cover to land edge-first. Set its documented pivot dry so the cover face meets the panel squarely. Its official fitment map is broader than the other frames’, but that does not make every cover compatible; stay inside the documented map.

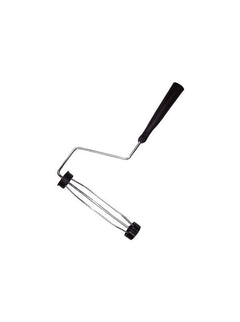

Do not select the 92006 from this guide. An owner who can physically identify and match the frame may use cage-frame class technique; a shopper needs verified identity first.

Match the cover honestly. The cover—not the frame alone—determines coating pickup, release, and visible texture. Choose a cover whose maker approves the selected coating and intended finish, and whose documentation names the frame/core class. Mount it fully, then spin it by hand. It should seat with firm, even pressure, turn as one assembly, and pull off with defined resistance. Loose wobble or force-fit is a mismatch.

The 47402 has the row’s only official multi-family fitment map. This guide therefore names no compatible cover SKU and makes no foam, microfiber, nap, or “cabinet-smooth” promise. Let the coating and cover makers own those claims.

Condition and load without flooding the shoulders. Prepare the cover as its maker directs. Stir the coating without whipping air into it. Load the cover evenly, then roll off excess until the circumference carries a uniform film without dripping. Cabinet work rewards light, repeatable loads: a saturated mini throws beads into corners and leaves a ridge wherever a shoulder passes close to an edge.

Apply the coating

Practice the carcass order dry. Move the unloaded frame through the deepest bay. Confirm that the cover can land flat, reverse, and lift without touching the opening.

back → side walls → underside or bay ceiling → shelf/horizontal surface → exposed edges last.

Work the entire case from the highest bay downward so drips and dust do not fall onto finished work. Paint the deepest and least accessible face first while the surrounding faces are still dry enough to tolerate an accidental touch.

Brush the places a roller cannot reach. Cut a narrow, controlled band into inside corners, around fixed hardware, and along profiles. Do one manageable bay, then roll into that brushwork while both films are open under the coating’s conditions. Brushing the entire case first creates dry bands by the time the roller returns. A mini cover approaches a corner; it does not replace the brush at the corner’s apex.

Roll the back panel first. Touch down with the cover already moving, distribute the load in short overlapping passes, then finish with light parallel passes in one chosen direction. Keep pressure through the center of the frame. Heavy pressure does not add coverage once the film is laid; it squeezes paint to the shoulders and prints rails.

In a deep case, work from the farthest area toward the opening so your hand and frame do not cross fresh film. If the fixed handle makes the cover touch one edge first, stop and change access or use the 47402’s dry-set pivot. Do not twist the roller on one shoulder to force contact; that leaves a bead on one side and a starved film on the other.

Coat the side walls, then the upper face. On side walls, keep strokes parallel and lift straight before the cover hits the back. Watch the corner you just brushed: the goal is to merge films, not mine paint out of it. For the underside of a fixed shelf or the bay ceiling, reduce the load again. Gravity turns excess into droplets along the front edge.

Finish the horizontal shelf or bay floor, then its exposed edge. The horizontal face goes late because every earlier operation can drip or shed onto it. Work from the back toward the opening and maintain a clean exit. Lay off with the lightest pass that still turns the cover.

Coat exposed shelf and face-frame edges last with the tool that can remain square. The 92012 earns its place where a four-inch cover overhangs the edge or kisses an adjacent face. Below the roller’s honest width, use the trim brush. A smaller roller is still a roller; it does not become a molding brush.

Move to the next bay without touching the one you finished. Reload outside the case and wipe coating from the frame arm or cover end. Continue top to bottom. Support removable shelves without resting wet coating on the rack; flip or recoat only when the coating permits.

Respect open time and stop reworking. Dead air inside a cabinet can change how a coating behaves relative to an open wall, while directed airflow can also skin a film quickly. Watch the product, not a generic clock. Once the film begins to drag, string, stipple sharply, or lose its wet flow, leave it. Rolling a partially set film does not “smooth it out”; it tears the surface and builds texture.

Between coats, cure, and return to service

Use the label’s recoat gate, not touch-dry. “Dry to touch,” “ready to sand,” “ready to recoat,” “ready for light use,” and “fully cured” are different conditions. Temperature, humidity, ventilation, colorant load, film thickness, primer, and substrate can change them. Follow the current label and technical data sheet for the actual system. When conditions fall outside its stated range, wait or correct the environment; do not average a schedule from another product.

Inspect before the next coat. With the work at the stated inspection condition, use raking light and a clean hand to find grit, runs, shoulder ridges, missed corners, fibers, and telegraphed repairs. Correct defects by the coating maker’s allowed method, remove dust, and repeat the same bay order. A second coat cannot level a ridge you leave standing, and it cannot repair adhesion failure under the first.

Reassemble only at the stated service condition. Keep doors open and ventilation operating as the product requires. Do not reinstall shelf pins through soft film, stack books on a touch-dry shelf, close coated doors against bumpers, or place dishes and linens into an enclosure that still carries uncured coating or vapor. Use the manufacturer’s cure/return-to-service direction; where it gives none for the intended load, ask the manufacturer rather than inventing a wait.

Check clearances before final assembly. Coating thickness can tighten shelf ends, pin holes, doors, drawers, and catches. Remove masking at the stage the product recommends, then score any bridged edge rather than tearing a cured film.

Clean by chemistry and keep the graph’s frames serviceable. Remove the cover by a straight pull while the coating is still cleanable. For 47401, 92005, and 92012, rinse or clean the cage until no film remains on the rods, then spin or dry it; cured buildup becomes next job’s wobble. For 47402, remove the cover and any adaptor used, clean each part by the coating maker’s method, and keep coating out of the pivot.

Use soap and water only when the coating directs water cleanup. Use only the named solvent and precautions when it directs solvent cleanup. Never use gasoline. Seal and label saved coating; do not pour a contaminated tray charge back into a clean reserve.

What goes wrong (and the fix)

The paint beads up or pulls into islands. Contamination, an incompatible old finish, or a substrate the system does not wet. Stop, remove the failed test or coat by an approved method, clean again, and resolve primer/coating compatibility. More paint is not the fix.

The back looks striped. Loads were too dry, passes stopped at different points, or brush bands dried before rolling. On the next authorized coat, work one bay at a time, maintain a live edge, distribute first, and finish in parallel light passes.

Heavy ridges appear beside the roller path. The cover is overloaded or pressure is forcing paint to its shoulders. Roll off more at the tray, reduce pressure, and feather the ridge while the coating remains workable. Once it has set, let it reach the maker’s correction stage and level it by the permitted method.

The roller skids instead of turning. The cover is half-seated, mismatched to the cage, overloaded, or contacting the surface at one edge. Stop, clean the mount, seat fully, verify fit, and land the cover square. On an angle problem, dry-set the 47402 rather than levering a fixed cage.

The shelf stays tacky or objects stick. It was loaded before its service or cure condition, the film is too heavy, the chemistry is incompatible, or the environment is outside the product range. Remove the load, separate stuck objects without tearing the substrate, ventilate as directed, and consult the coating maker. No universal extra wait can cure an incompatible system.

Engineered-board edges swell or fuzz. Too much liquid reached raw or damaged board. Stop wet work, let the part dry, assess whether the board remains sound, then repair/seal only under a system approved for it. Severely swollen board is replacement territory.

The cabinet smells strongly after it looks dry. Appearance is not an air-quality or cure test. Continue outdoor-air ventilation as the product directs, keep the enclosure open and occupants/items out, and consult the label/SDS or manufacturer if odor or symptoms persist.

The narrow bay has paint on both neighboring faces. The frame is too wide or the cover was rolled at an angle. Move to the documented 92012 three-inch frame if its compatible cover fits, or use the brush below roller width.

Should I roll or brush cabinet and bookcase interiors? Brush the corners, profiles, and targets narrower than the cover; use a compatible mini cover on flat panels where a consistent rolled texture is acceptable. A roller is faster and more uniform on fields, but it does not promise a spray-smooth or brush-free finish.

Which of the five frames is the default? The documented four-inch cage frames, 47401 or 92005, for ordinary hand-reach bays. Choose 92012 for width-constrained bays and 47402 for angle-constrained access.

Which roller cover fits each frame? The 47402 has the only official multi-family map in this row.

What coating should I use on laminate or melamine? One whose manufacturer explicitly approves that substrate, directly or over a named primer, and whose test patch passes. This guide does not invent an all-surface formula.

How long before I can put books or dishes back? At the manufacturer’s stated return-to-service or cure condition for the actual coating and load—not when the surface merely feels dry. If the manufacturer gives no answer for that use, ask.

Can I paint cabinet interiors used for food or children’s items? Only with a system whose manufacturer supports the intended exposure and use. “Interior,” “low odor,” or “water-based” does not itself establish food-contact or toy-safety suitability.

Why are the edges last? Every field pass can deposit a bead or shoulder mark on an edge. Finishing exposed edges after the fields lets you correct those marks once and leave the most visible line clean.

Can I use the 47402 pivot while it is wet? Set and test the angle dry before loading. The product record documents the pivot, not a license to work coating into it.

The history footnote

The small cage frame is a descendant of the bent-handle roller frame associated with Norman Breakey’s Canadian work around 1940; the line document carries the fuller two-inventor roller history and its limits. The useful cabinet-history point is mechanical rather than romantic: once a sprung cage gripped a short cover from inside, the roller could survive the constant stopping and reversing that a shelf bay imposes. That made the roller a box tool rather than only a wall tool. Background anchor: Vantage Points — “The Inventor from Pierson”.

Product-source links and accepted claims are preserved in those guides.

Safety anchors: EPA Lead Renovation, Repair and Painting Program · EPA Steps to Lead-Safe Renovation, Repair and Painting · CPSC Healthy Indoor Painting Practices.
