How to Paint Behind Radiators, Pipes & Fixtures

The exact registered SKU union is 80201, 80832, 80833. That union is a discovery denominator, not three interchangeable endorsements: the 80201 is the fixed-angle, long-handle radiator pattern whose listed white bristle points toward oil/alkyd work; the two 2-1/2″ goose necks are adjustable polyester-nylon sash brushes for hard-to-reach coating and cutting, with standard versus firm filament deciding finesse versus load. No handle length, thread standard, coating approval, surface-temperature limit, recoat interval, cure interval, price, or availability is invented.

Job: coat a sound wall, radiator, exposed pipe, or paintable fixed-obstacle surface that cannot be approached squarely with an ordinary brush; keep valves, vents, unions, labels, electrical parts, drainage paths, and service clearances working; join the hidden coat cleanly to the visible field.

Time: one preparation-and-coating sequence plus every dry, recoat, handling, and return-to-service interval required by the selected cleaner, rust treatment, primer, and finish. A cold radiator is not ready to heat merely because its paint feels dry.

Difficulty: access and diagnosis. The brush stroke is ordinary; the hard parts are deciding what surface is actually being painted, selecting a coating that belongs on it, reaching it without dismantling a system, and seeing runs before they cure.

Everything else: bright work light · inspection mirror or phone camera used only where it cannot contact wet paint or a live/hot system · vacuum and soft brush attachment appropriate to the hazard plan · cleaner compatible with the substrate and coating system · lint-free rags · drop cloths and rigid floor protection · masking film, paper, and tape compatible with the adjacent finishes · small containers for controlled brush loading · substrate-appropriate hand-prep tools · primer and finish selected from current manufacturer instructions · ventilation and personal protection required by the labels and Safety Data Sheets · stable access equipment when the work cannot be controlled from the floor.

Split the job before selecting a brush

“Behind the radiator” can mean four different jobs. They share an access problem and almost nothing else.

Paint the wall behind a radiator, tank, pipe run, or built-in. The wall coating usually controls. On ordinary waterborne wall paint, the polyester-nylon goose necks are the natural leads: 80833 for a finish-first hidden strip and 80832 when rough texture or heavy paint needs more backbone.

Paint the radiator or exposed heating pipe itself. The metal, its existing finish, operating temperature, corrosion condition, and coating system control. The fixed 45° head and long handle of 80201 earn the geometry; its listed white bristle points toward the traditional oil/alkyd side of brush work.

Paint the wall behind a plumbing fixture, appliance, or casework. Paint the wall, not the fixture by default. Porcelain, chrome, plated fittings, flexible connections, data plates, service panels, gaskets, and appliance finishes are not incidental wall substrates.

Paint a surface inside or behind powered, gas-fired, or mechanically guarded equipment. Stop. A reach brush does not turn equipment service into decorating. Follow the equipment maker’s isolation and coating procedure or hand the work to the responsible trade.

Make that classification in writing on a complicated job. It prevents the common failure in which one loaded brush crosses from wall latex onto hot metal, a valve body, a pipe label, and the back of a porcelain tank as though “hard to reach” were a coating specification.

The tool-routing table

If a normal straight brush reaches the surface with the wrist neutral and the face square, use it. Their value begins where a normal brush stops.

Establish the hard safety stops

Heat and pressure

Shut down the heating zone by the system’s normal controls and allow every surface in the work area to become cold under the system maker’s procedure. A thermostat turned down is not proof that a steam pipe, hot-water riser, electric element, or adjacent boiler component is isolated. Do not loosen a union, vent, valve, plug, bleeder, trap, or radiator connection to gain brush access. A cast-iron radiator is heavy, a connected system can retain pressure, and moving one is plumbing and rigging work, not a painting shortcut.

If the radiator or pipe leaks, hisses where it should not, has a damaged cord or element, carries deep scale, or cannot be positively taken out of service, stop the paint job. Repair and safe isolation come first.

Electricity, gas, and equipment

Do not push a wet brush behind a cover, receptacle, powered heater, appliance, fan-coil unit, control, or junction box. This guide does not authorize opening or coating equipment.

Lead on old painted metal and walls

Radiators, trim, and pipe runs survive many repaint cycles. If the building predates 1978 or the coating history is unknown, ordinary dry scraping and sanding are not the starting plan. Paid work that disturbs paint in covered pre-1978 housing or child-occupied facilities falls under the EPA Renovation, Repair and Painting program unless the applicable exemption or lead-free determination has been established. DIY work can create the same hazardous dust and chips.

Suspect pipe or boiler insulation

Older steam and hot-water piping may be wrapped in suspect thermal-system insulation, especially at elbows, valves, and fittings. You cannot identify asbestos by sight. Do not brush, tape onto, compress, scrape, sand, puncture, wet, paint, or “seal up” suspect material as part of this job. EPA’s homeowner guidance says intact material that will not be disturbed is generally best left alone, while damaged material or work that will disturb it calls for trained, accredited help (EPA — Protect Your Family from Exposures to Asbestos). A long handle is useful for avoiding an obstruction; it is not permission to work blindly beside friable insulation.

Diagnose the surface and the system

Use a bright light from both sides and an inspection mirror. Photograph the hidden surface before protection goes up. Grade each target into one of these lanes.

Lane A — sound wall or sound coated metal

Existing finish is bonded and compatible with the proposed system.

No active leak, condensation problem, rust-through, swelling, or soft substrate.

Controls, vents, valves, unions, gaskets, cords, labels, and service openings can be protected without blocking their operation.

The entire stroke can be rehearsed with a dry brush without striking insulation, wiring, glass, hot parts, or fragile fittings.

This is the in-place paint lane.

Lane B — ordinary preparation and spot repair

Dirt, grease, dust, or gloss needs cleaning and preparation.

Local failed coating can be removed within the established lead-safe or ordinary hazard plan.

Light surface oxidation can be prepared and primed under the coating maker’s instructions.

Small wall defects can be repaired without moving the radiator or fixture.

Preparation belongs before the reach brush is loaded. Neither a radiator brush nor a goose neck is a scraper, rust brush, or dusting wand.

Lane C — repair, access, or abatement first

Active leak or persistent dampness.

Loose valve, failed vent, damaged union, deep corrosion, perforation, unstable radiator foot, cracked porcelain, loose fixture, damaged electrical part, or appliance fault.

Flaking suspect lead coating without a valid disturbance plan.

Damaged or suspect insulation in the brush path.

A wall defect hidden so completely that it cannot be prepared or inspected.

Access that requires disconnecting plumbing, gas, electricity, or structural anchorage.

Stop and route the underlying work to the responsible trade. Painting over a leak records the problem in a new color; it does not repair it.

Lane D — material or coating unknown

Identify the substrate and existing coating, then obtain a written compatible system from the primer/finish maker. “Radiator paint” is not a complete specification. Cast iron, panel steel, copper tube, aluminum emitter, factory-coated enclosure, galvanized pipe, and previously painted plaster or drywall are different substrates. A coating suitable for one may fail, discolor, smell, soften, or exceed its service limits on another.

Build one compatible coating system

Read the current label, Technical Data Sheet, and Safety Data Sheet for every cleaner, rust treatment, primer, and finish. The written system must answer:

Is the finish approved for this substrate and its actual operating temperature?

Does the primer accept both the prepared existing film and any exposed metal or wall repair?

Does the finish accept that primer?

Must existing gloss be abraded, chemically cleaned, or completely removed?

Are flash rust, condensation, or residual cleaner controlled before primer?

What ventilation, ignition-control, respiratory, skin, and eye protections apply?

What are the recoat, full-cure, and return-to-service requirements?

May the product be used on a heating emitter, pipe, appliance enclosure, or other named target?

Do not combine waterborne wall paint, metal primer, and radiator enamel because each can says “interior.” Compatibility is a chain, not a room designation. Do not coat an active steam vent, valve stem, union face, bleed screw, thermostatic head, sensor, flexible connector, electrical element, data plate, or service access. Paint thickness can obstruct a vent, glue a moving part, hide a leak, or erase information needed for service.

Protect the room and preserve every service function

Let the system cool and verify the stop conditions again.

Vacuum loose room dust without disturbing suspect coatings or insulation. Dust trapped behind a radiator becomes grit in the finish the moment the wet brush reaches it.

Place rigid floor protection beneath the whole hidden stroke. A long handle can release a drop well behind the visible drip line. Add an absorbent layer where the coating system permits it.

Mask the object according to what is being painted. For a hidden wall, protect the radiator, pipe, tank, trim, floor, and fittings. For a radiator, protect the wall and floor while leaving the metal faces to be coated exposed.

Make fitted masks for controls and joints. Wrap paper or film around valve bodies only where it does not operate or stress the part. Keep vents, valve stems, unions, bleeders, thermostatic controls, labels, cords, plugs, gaskets, and drainage openings completely free.

Do not bridge moving gaps. A wall-to-pipe annulus, radiator cover seam, removable access panel, appliance clearance, and fixture joint may need to remain open. Paint is not caulk and a hidden gap is not automatically a defect.

Stage two clean landing zones. One for the loaded tool and one for the inspection mirror/light. Never put the mirror down into wet protection and then carry it over the finish.

Before opening paint, slide the dry selected brush through every intended path. If the ferrule, handle, or neck strikes a vent, wire, pipe wrap, brittle fitting, glass panel, or finished face, change the angle or access plan now.

Clean and prepare without turning the reach tool into a prep tool

Hidden walls

Remove loose dust first. Clean grease, hand soil, smoke film, cooking residue, and old cleaner using the weakest method compatible with the wall and proposed coating. A radiator creates warm air movement that deposits dust above and behind it; painting over that film produces a weak, gritty bond.

Repair wall defects with the material and method appropriate to the wall. Feather, prime, and inspect the repair before the fixture blocks the view again. If the repair cannot be worked or checked through the gap, the honest choices are qualified removal of the obstruction or leaving that hidden area alone—not smearing filler blindly with a reach brush.

Radiators and exposed pipes

Degrease first, then remove only unsound coating and oxidation under the hazard plan. Preparation should stop at sound material and produce the surface profile required by the primer. Do not grind away casting edges, identification marks, valve seats, threaded joints, or evidence of a leak. Remove dust and residue by the coating system’s method.

Where rust is deep, recurring, weeping, or concentrated at a joint, stop and investigate. A finish coat cannot tell whether corrosion is cosmetic or structural. Prime exposed metal promptly if the system requires it; do not leave cleaned iron waiting in humid room air and then paint over fresh flash rust.

Fixture-adjacent walls

Clean the wall without soaking electrical boxes, cabinet backs, unsealed wood edges, or plumbing penetrations. Do not use the reach brush to wipe behind a toilet tank and then load it with finish; cleaner retained in the heel contaminates the coating.

The preparation completion test is simple: the surface is clean, sound, dry to the coating’s requirement, appropriately dull or profiled, repaired, primed where required, fully inspectable, and reachable with a dry brush without touching any protected service part.

Set the geometry with a dry brush

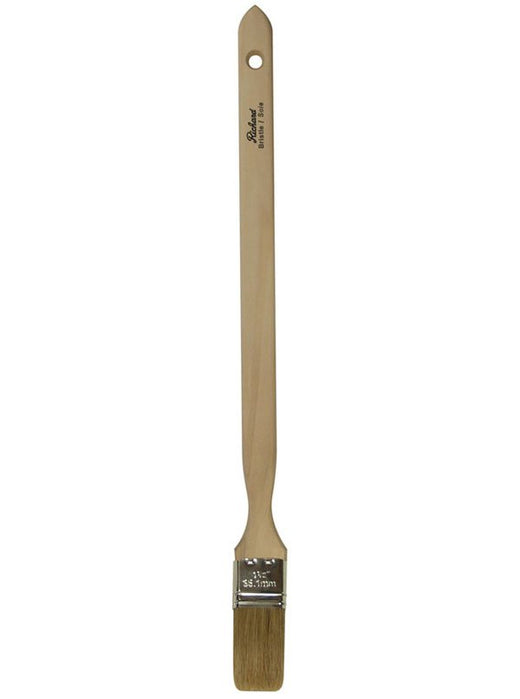

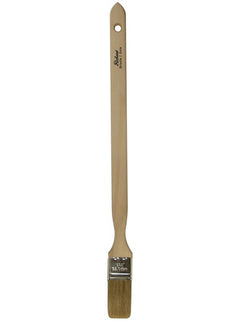

80201 — fixed 45° radiator pattern

The 80201’s 45° head is fixed. Approach from both ends of the radiator or pipe run and decide which direction seats the bristle face without forcing the ferrule into the obstacle. The 1-1/2″ head is for narrow channels and columns; do not twist it sideways to make it behave like a wider pad. Mark the last visible hand position on the long handle with removable tape if that helps repeat the stroke.

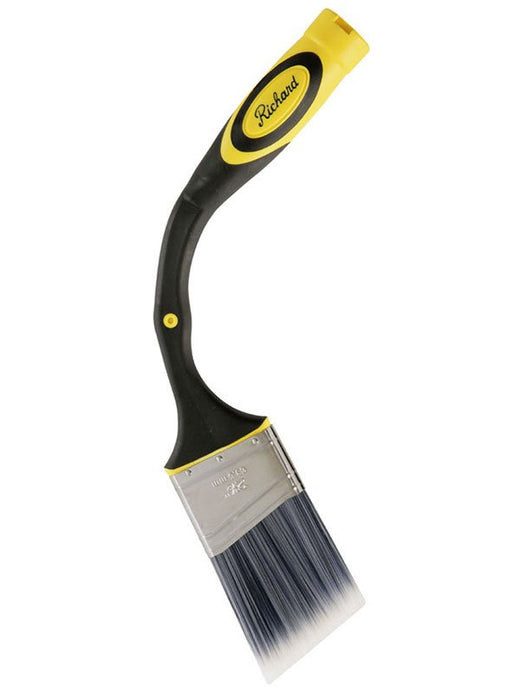

80833 — adjustable, finish-first goose neck

Bend the neck before loading until the 2-1/2″ angular head lands squarely on the hidden wall with the handle clear of the obstruction. The toe should reach the boundary while the full face can still lay off. Use the standard filament where the paint moves easily and the dry test shows the head can track without folding.

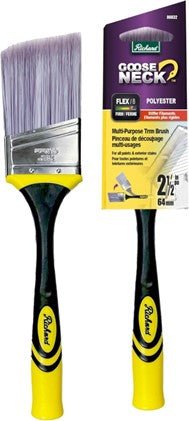

80832 — adjustable, firm goose neck

Set it the same way, but choose it when the dry stroke shows the standard brush would collapse against texture or when the selected waterborne coating drags heavily. Stiffer does not mean scrubber. If the wall needs pressure to make paint stick, preparation or coating choice is wrong.

Load for a hidden surface

Reach work magnifies overload. Excess coating can run down the handle, pool on a pipe, bridge a valve, or sag on a wall where it will not be seen until dry.

Transfer a modest amount of coating to a stable work container that lets the head load without immersing the handle or flexible neck.

Wet only the working portion of the filament. Tap out the load against the container; do not scrape one side dry and leave the other flooded.

Make a test stroke on representative scrap or a visible, noncritical part of the same prepared surface. Confirm release, brush mark, and sag behavior.

Carry the brush bristle-down over protection, never over finished flooring or an open control.

Reload sooner with less. A nearly starved reach brush leaves holidays; an overloaded one leaves ropes and runs. The correct load arrives wet, transfers without a drop, and still has enough reserve for one controlled pass.

Do not thin a coating to make reach brushing easier unless its current instructions authorize the exact thinner and amount. Do not add conditioner by habit. Changing viscosity changes hiding, sag, film build, cure, and service performance.

Paint a hidden wall behind a radiator, pipe run, tank, or built-in

Start at the least visible reachable edge. This proves angle, load, and coverage before the brush enters the deepest channel.

Cut protected boundaries first. With 80833, place a small bead off the edge, then ride the angular toe toward the line. Use 80832 where the coating or texture makes the standard filament fold.

Coat the deepest strip before the shoulders. Work top to bottom so any run is found while the lower area is still open. On a wide hidden panel, reach from both sides rather than dragging one long blind stroke through the center.

Use short, overlapping strokes. Long blind sweeps arc with the shoulder and change pressure. Short strokes let the neck hold its chosen angle and let the hand read contact.

Lay off in one direction. After distribution, reduce pressure and finish the hidden strip toward the nearest visible edge. Do not scrub back and forth until the paint begins to tack.

Join hidden to visible while both are open. Bring the ordinary wall brush or roller into the feathered shoulder. The goal is no ridge marking where the reach brush stopped.

Inspect from both ends with raking light and a mirror. Look for a dark vertical rope, a dry halo around a pipe, paint on a protected control, or a heavy bead at the floor line. Correct it while the coating still permits correction.

For the narrow wall shadow directly behind a pipe, approach from one side with the toe, then the other. Do not force the ferrule between pipe and wall. A small uncoated witness line behind a pipe is a better result than chipped pipe insulation, a bent fitting, or paint packed into a wall penetration.

Paint a cold radiator or exposed heating pipe under its approved system

This is the 80201’s strongest seat, but the coating specification still comes first.

Confirm cold, isolated, prepared, and primed. Recheck every vent, valve, union, bleed point, control, label, and fitting mask.

Begin with the wall-facing metal and the inside faces of columns. Insert the fixed 45° head from the side that lets the bristle lie flat. Load lightly and pull or push in short strokes following the casting or pipe axis.

Work recesses before visible faces. Any accidental touch from the reach pass can then be leveled when the front is coated. Reversing the order drags the long handle across finished work.

Coat pipe backs from two sides. Let the bristle wrap only as far as it remains controlled. Rotate the stroke around the pipe; do not saw the ferrule against it.

Keep joints readable and operable. Finish up to—but not over—vent holes, stem packing, union faces, bleeders, thermostatic heads, sensors, and connection points. A painter must leave the next service person able to find a leak and move a control.

Tip off toward the visible face. Use the least pressure that aligns the finish. Do not chase hidden perfection after the film starts to set.

Inspect the bottom edges. Gravity collects overload on the underside of columns and horizontal pipes. Use the mirror and catch sags while correction is allowed.

Apply further coats only under the written recoat procedure. Preparation between coats, if any, follows the system and the lead/asbestos boundaries already established.

The 80201 record does not quantify handle length, bristle composition beyond the listed white-bristle identity, temperature resistance, or approved coating family.

Work behind fixtures without painting the fixture

Toilet tank or pedestal sink

Protect porcelain, chrome, supply lines, shutoff valve, flexible connector, caulk joint, floor, and tank hardware. Bend 80833 around the obstacle for ordinary waterborne wall paint; use 80832 only when surface texture or paint drag needs the firmer head. Work from both sides and join in the center. Do not loosen a tank, pedestal, trap, or supply connection for brush clearance.

Built-ins and casework

First determine whether the hidden strip is wall, finished casework, raw cabinet back, or a required movement/service gap. Coat only the surface included in the finish schedule. Keep hinges, slides, ventilation slots, electrical pass-throughs, and removable-panel seams clear.

Appliances and heaters

Paint the adjacent wall only within safe, maker-authorized access. Do not push the brush behind energized equipment, across a cord, through a grille, or into a combustion or ventilation opening. If the appliance must move, follow its maker’s procedure and the responsible trade requirements; this guide supplies no moving or reconnection method.

Pipes through walls

Do not pack paint into the annular gap by default. Some penetrations are sealed systems; others require movement, inspection, firestopping, escutcheons, or a trade-specific seal.

Inspect, unmask, clean, and return the system to service

What goes wrong — and the fix

The hidden wall is thin in the center. The stroke was too long, the head lost square contact, or access exists from only one side. Re-set the goose-neck angle dry, work from both ends in shorter overlaps, and inspect before the film sets. Do not solve loss of contact by flooding the brush.

There is a rope of paint at the bottom of the radiator. Overload gathered on the underside. Unload the brush, draw the sag out while correction is still allowed, and resume with shorter, lighter passes. On a set film, follow the coating’s cure-and-repair procedure; brushing a half-cured sag usually makes it worse.

Paint runs down the handle. The working head was immersed too deeply or carried bristle-up. Stop, clean the handle and joint before the run reaches protection or the grip, then reload only the working filament and carry bristle-down.

The goose neck springs away from the wall. The bend is wrong, the paint is too heavy for the standard filament, or the obstruction is forcing the ferrule rather than the bristle onto the target. Rehearse dry. If geometry is sound but drag folds 80833, move to firm 80832; if neither seats, change access rather than forcing the tool.

The 80201 leaves coarse marks in waterborne wall paint. Its white-bristle radiator identity is on the oil-side of the line, and the fixed long-handle pattern is not a latex finish brush. Use 80833 for finish-first waterborne hidden-wall work or 80832 for heavy waterborne material.

The finish peels from a radiator or pipe. Access was solved; adhesion was not. Likely causes include grease, unsound old coating, active corrosion, incompatible primer/finish, condensation, or return to service outside the coating instructions. Diagnose the system failure before recoating.

A vent, bleeder, valve stem, or union was painted. Stop before operating or heating the system. Do not force the part through cured paint. Have the responsible trade restore safe function and visibility; then repair the finish without recoating the service surface.

The room smells strongly when heat returns. Shut down and ventilate under the coating and equipment instructions. Confirm the coating was approved for the substrate, operating condition, cure interval, and indoor use. Persistent or unexpected odor is not something to “bake off” by increasing heat.

The wall behind a pipe cannot be fully covered. If both side approaches and the correct adjustable brush still cannot seat without contacting insulation, wires, or fittings, accept the honest access boundary or arrange qualified removal of the obstruction. A hidden witness line is not worth a damaged system.

Masking pulls the adjacent finish. The tape, timing, or substrate was wrong. Stop pulling, score only where the coating system and hazard plan permit it, and repair the adjacent finish. Hidden work still requires a masking test on fragile old paint.

The old coating powders or flakes during cleaning. Stop ordinary preparation. Re-enter through the lead/hazard diagnosis and containment plan; do not keep wiping until the surface “looks sound.”

Sibling distinctions that decide the purchase

80201 versus 80833

Choose 80201 when the target is a narrow, fixed-angle channel on a radiator or pipe and the approved coating sits on the oil/alkyd side that white-bristle trade behavior favors. Choose 80833 when the target is a hidden wall in ordinary waterborne paint and the neck must be adjusted to meet it at a finish angle. The 80201’s head does not change angle; the 80833’s does. The 80833’s polyester-nylon head stays useful in waterborne paint; the 80201’s listed white bristle is the wrong material cue for a latex-first purchase.

80833 versus 80832

Choose 80833 for an ordinary smooth hidden wall where the final layoff matters. Choose 80832 when heavy-bodied paint, rough texture, or reach leverage folds the standard filament and the brush must retain shape under drag. Both are 2-1/2″ angular polyester-nylon goose necks with flexible rubberized handles; the officially named stiffer filament is the 80832’s entire reason to exist. Firm is not “better.” On light paint it can leave more brush character and asks for more deliberate layoff.

80201 versus 80832

Choose 80201 for the deep narrow radiator/pipe geometry and a compatible oil-side metal-coating workflow. Choose 80832 for a broader hidden wall in heavy waterborne material where an adjustable head and firmer synthetic filament are needed. The radiator brush concentrates a 1-1/2″ head at one fixed angle; the goose neck brings a wider angular sash to an angle you set. Neither is a universal hard-to-reach brush.

Frequently asked questions

Do I have to remove the radiator?

Not for a paint-ready surface that can be cleaned, prepared, coated, and inspected safely through the existing gap. Removing or shifting a connected radiator introduces weight, plumbing, pressure, floor, and commissioning risks far beyond this guide. If the wall cannot be prepared or the system cannot be protected in place, qualified removal may be the honest access plan—but it is a separate job.

Can I paint a warm radiator so the coating dries faster?

No generic guide can authorize that. Shut the system down, let it become cold under its procedure, and obey the coating’s application and return-to-service conditions. Heat can change viscosity, flash, leveling, cure, odor, adhesion, and exposure. “Warm helps it dry” is not a coating specification.

Which brush should I use for latex behind a radiator?

Start with 80833 on a smooth hidden wall and ordinary waterborne paint; move to 80832 when texture or heavy paint folds the standard filament. The 80201 earns radiator geometry, but its listed white bristle points toward oil/alkyd-side work and is a compromise in waterborne wall paint.

Which brush should I use on the radiator itself?

The 80201 is the geometry lead: 1-1/2″ head, very long handle, fixed 45° angle. But brush selection comes after the radiator material, existing finish, preparation, primer, finish, operating temperature, and return-to-service requirements are resolved. The product record does not certify a radiator coating.

Can I paint over rust?

Only when the selected coating system explicitly includes the diagnosed rust condition and its required preparation or treatment. Loose scale, active leakage, deep pitting, and rust concentrated at joints are not “paint-over” conditions. Cosmetic oxidation and structural or leak-related corrosion must not be treated as the same problem.

Should I paint valves and vents to match?

Keep vent holes, valve stems, union faces, bleed screws, thermostatic heads, sensors, labels, electrical parts, and service interfaces clean and operable. Matching color is not worth disabling a heating or plumbing function.

Does the 80832 fit an extension pole?

The exact 80833 source explicitly says that model fits any extension pole. The exact 80832 source confirms its 2-1/2″ angular polyester-nylon head, flexible rubberized handle, and stiffer filament, but does not repeat the pole-fit claim.

What if there is old white wrap around the pipes?

Do not identify it by color and do not disturb it. Older thermal-system insulation may contain asbestos; intact material is generally left alone, and damaged or soon-to-be-disturbed suspect material calls for trained assessment and handling. The brush path must not rub, tape, compress, scrape, or coat it.

The history footnote — because these pages should be worth reading

The radiator brush is not a fanciful specialty invented by a modern merchandising department. It is a direct answer to central heating’s worst paint geometry, and the paper trail is unusually clear.

In 1923, Des Moines inventor John Carr filed a United States patent for a brush “peculiarly adapted” to painting steam and hot-water radiators and other places ordinary brushes could not reach. His design let the bristle holder bend to different angles relative to the handle; the patent was granted in 1924 as US1517613A. Carr’s claim was not that painting had changed. The obstacle had: iron heating surfaces had filled rooms with narrow, wall-facing passages a straight brush could not present itself to.

The problem outlived the first design. A 1950 filing, granted in 1954 as US2690580A, describes an elongated handle with an adjustable removable head specifically for “hard to reach places” such as behind radiators. Much later adjustable-handle patents repeat the same geometry in new materials. The 80201 preserves the old specialist answer as a long fixed-angle radiator brush; 80832 and 80833 apply the adjustable-neck answer to modern sash-brush filament and hidden-wall work. The tool evolved from one bend to a selectable bend, but the job is still the same: make the brush face a surface the painter’s hand cannot face directly.
