How to Load and Change Abrasive Sheets and Discs

Job: change the abrasive on a manual Hyde hand or pole sander while keeping the tool, abrasive, surface, dust path, and maintenance record correctly identified.

Time: no universal time. Isolation, cleanup, exact-media verification, instruction lookup, dust handling, and a low-risk dry check are part of the change.

Difficulty: low force, high consequence. Wrong media, mount, actuation, or dust control can damage the work or expose hazardous material.

These Hyde records do not supply a universal glove, respirator, filter, bag, airflow, tension, cleaning chemistry, or disposal specification.

Stop gates before touching the abrasive

Isolate the complete system

Lower every pole tool to a stable surface. Do not change an abrasive overhead, on access equipment, or while someone holds the far end. Support the head face-up without loading its clamp or hook surface.

The conventional heads and hand holders in this ten-model set are manual tools; they contain no claimed powered abrasive drive. “De-energize” therefore means isolate everything attached to the manual holder:

for 09165, 09170, or 09180, stop and unplug the wet/dry vacuum, allow airflow to stop, disconnect the hose where the current instructions direct, and control the cord and hose before reaching the head;

place the assembly where it cannot roll, fall, pivot, or be stepped on;

if the abrasive is being used on or near separate powered equipment, de-energize that equipment under its own lockout or service procedure. This guide does not authorize powered-sander service;

keep dust collection off only for the change. Restart it before any extraction proof or sanding stroke.

No spring energy, clamp preload, vacuum hold, or powered-service sequence is invented here. If the exact instructions identify another isolation step, that step controls.

Identify what the abrasive carries

Do not shake, brush, blow, or dry-scrape a used sheet or disc before the residue is classified. Confirm the surface and coating: cured joint compound, bare drywall paper, plaster, paint, wood, metal, fiberglass, masonry, filler, or another system. Read the material label and SDS. A loaded abrasive can carry the same hazard as the surface it cut.

Stop on unresolved hazards:

Lead: EPA states that activities disturbing paint in pre-1978 housing and child-occupied facilities are generally covered by the Renovation, Repair and Painting rule. A Hyde vacuum-sander connection is not proof of a compliant HEPA system, work practice, cleaning verification, or waste route (EPA RRP contractors).

Asbestos: old texture, patching material, resilient products, or another suspect building material cannot be cleared by appearance or by one test stroke. Keep it undisturbed and route it to the applicable accredited assessment (EPA asbestos guidance).

Silica and other dust: use the exact material record and occupational plan. Do not label all joint compound silica-bearing or silica-free. NIOSH found tested vacuum-sanding controls reduced drywall-dust exposure by 80–97%; that is strong control evidence, not a zero-exposure or PPE waiver (NIOSH 99-113).

If residue identity is unknown, contain the abrasive without cleaning it, mark it UNKNOWN, and stop the ordinary reuse or disposal path.

Bind tool, media, and instruction before positive installation

| Model | Supported identity and mount | Positive-install boundary |

Obtain exact current instructions or Hyde confirmation for the physical revision. Observation may reject damage; it may not choose the actuation sequence. |

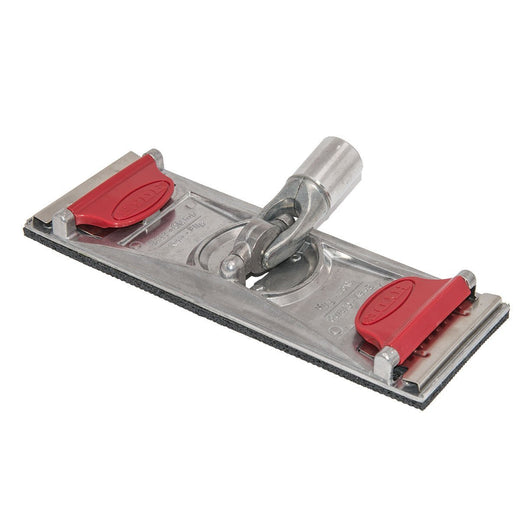

| 09047 | Aluminum pole head; Easy-Clamp; 3-1/4 × 9-3/8-inch sheets; no pole. | Use only the exact current Easy-Clamp instructions. The accepted sources name the system but do not document a release/open/close sequence, so none is invented here. |

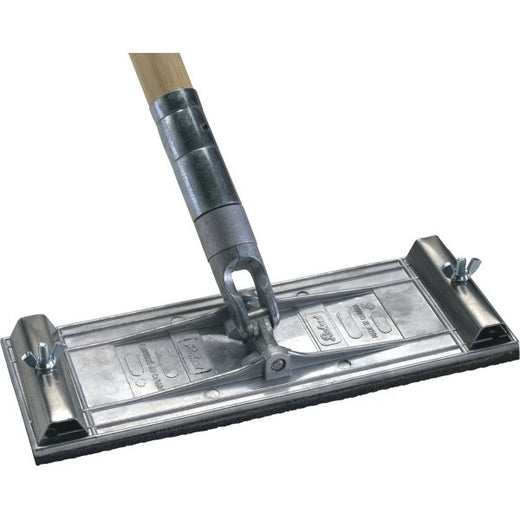

| 09048 | Same documented aluminum EasyClamp head class as 09047, packaged with a fixed 48-inch pole; 3-1/4 × 9-3/8-inch sheets. | Same loading boundary as 09047. The included pole changes reach, not abrasive fit or clamp actuation. |

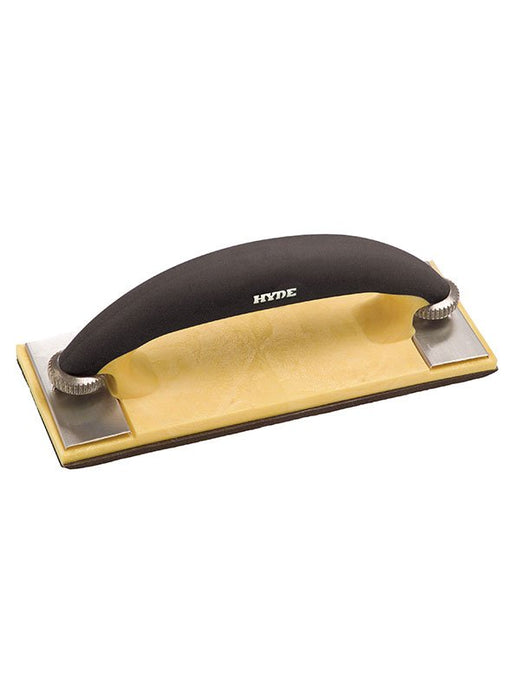

| 09057 | EasyClamp hand sander; aluminum-backed rubber pad. Require exact-media and actuation instructions for the physical revision. |

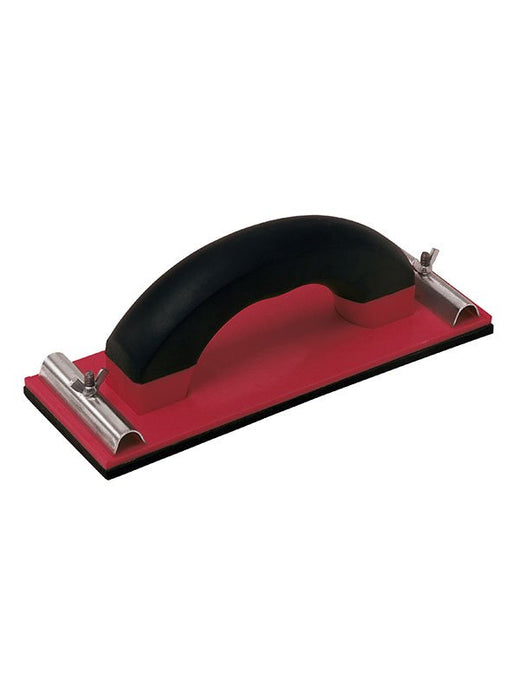

| 09157 | Economy hand sander; 3-1/4 × 9-3/8-inch foam pad; wing-nut clamps. | The sources establish the clamp identity, not a universal release, tightening, torque, sheet overhang, or tension procedure. Follow exact instructions; do not improvise from the visible wing nuts. |

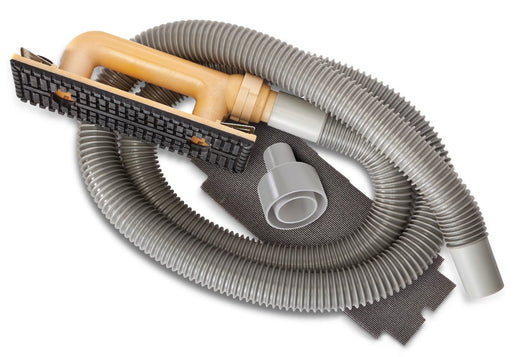

| 09165 | EasyClamp dust-free hand sander; 6-foot hose and adapters; current page says one reversible sanding screen. Identify the current box/head and exact replacement-media instruction before loading. Do not transfer a conventional-sheet dimension or sibling net claim. |

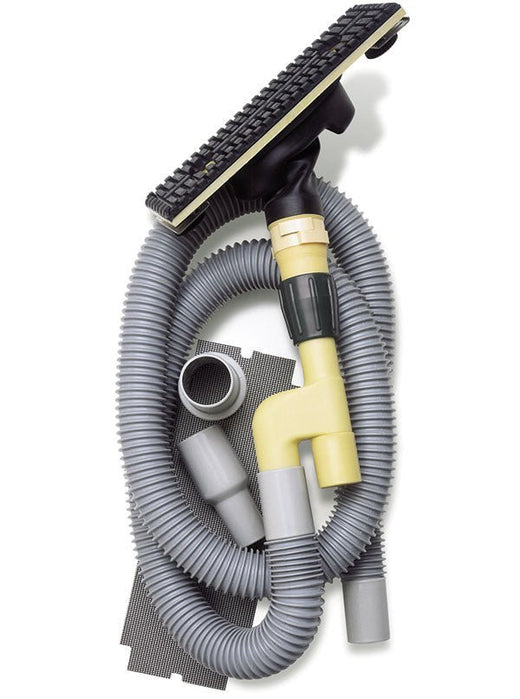

| 09170 | EasyClamp dust-free pole head; 6-foot hose, adapters, and reversible screen per current page/video; canonical model is without pole. | Same screen/net gate as 09165. Reject the current page’s included 32–50-inch-pole paragraph as sibling-copy bleed; catalog, variant, and video control. No positive load from observation. |

| 09180 | EasyClamp dust-free kit; catalog states four included net sheets, 120/150/180/240; 28–56-inch pole and No-Flip pad. | The four grits are box inventory, not a universal sequence or starting-grit order.

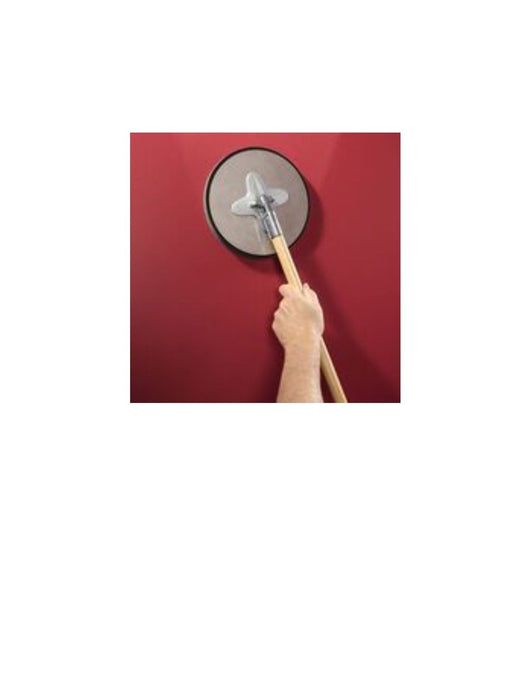

| 09977 | 9-inch radial head; tool-side claim accepts any 9-inch round abrasive with hook-and-loop attachment. | Diameter and attachment class are supported. Grit, included-disc count, and included grits are unstated. Center and seat only the exact documented compatible disc according to its instructions; no net disc makes this non-vacuum head extract dust. |

| 45380 | 5-inch soft-foam hand sander; hook-and-loop attachment; current page states use with 5-inch round abrasive sheets. | Diameter and attachment class are supported. Grit, mineral, hole pattern, wet use, and third-party brand fit are not authorized by that statement. Follow the exact disc and holder instructions. |

The dimensional conflict remains a physical-instruction gate. Likewise, pad dimensions on 09057/09157 do not establish sheet dimensions by arithmetic.

Inspect and remove

Inspect before removal—rejection only

Before removal, record visible maker/model, dimensions, grit, backing, direction mark, lot, and the face used. If identity is missing or contradictory, mark it UNKNOWN; never infer grit by color, feel, scratch, mesh count, or holder.

Inspect the exposed parts you can see without actuating them:

cracks, bent parts, missing hardware, corrosion, dried compound, sharp residue, looseness, or a pad separating from its body;

cut, glazed, torn, curled, wrinkled, contaminated, or off-center abrasive;

damaged hook field, clogged face, distorted foam, unsupported edge, or retained debris;

on pole heads, pivot damage or a head/pole joint that changed during work;

on vacuum tools, split hose, loose connection, obstructed path, or residue escaping outside the collection route.

Any defect can reject the assembly and send it to exact maintenance instructions or qualified service. A clean appearance cannot approve the assembly. Do not pull, pry, “exercise,” tighten, loosen, or test an unknown clamp merely to discover how it works.

Remove only by the exact model instruction

Contain the change area first. Keep the dirty face away from the operator and clean stock. Then use the exact current instruction for the identified tool revision to release the abrasive. This guide deliberately does not supply a substitute clamp-opening, wing-nut, EasyClamp, peeling, tool-assisted release, or vacuum-assisted release sequence.

copy the 09157 wing-nut motion onto 09046;

copy an EasyClamp sequence from 09047 to a different-looking or differently labeled head;

treat the reversible screen in 09165/09170 as a net sheet;

pry under a hook-and-loop disc with a blade or screwdriver;

use pliers, solvent, water, heat, compressed air, or a powered tool to force removal;

cut an installed abrasive off the pad unless the manufacturer’s service procedure explicitly requires it.

Once removed, keep the working face inward or down inside the selected container. Do not fold a contaminated sheet through its clean side or stack it against new media. Record whether removal was normal, forced, incomplete, or stopped.

Install, tension, and prove

Prepare the holder without inventing service

With the abrasive off and the system isolated, inspect the newly exposed pad, clamp lands, hook field, vacuum openings, and edges. Remove only loose residue by the cleaning method authorized for that exact holder and contaminant. If no method is supplied, dry observation remains rejection-only; do not introduce water or solvent. A damaged foam face, lifting pad, obstructed extraction opening, embedded grit, deformed clamp, or worn hook field fails the holder.

Match the new abrasive to the documented tool identity and the current instructions. Require agreement on format, dimensions, attachment class, surface-system permission, and grit. Grit choice comes from the surface and abrasive instructions, not this guide. Do not use the 09180’s in-box ladder as permission to start at its coarsest member.

Perform the positive installation

There are two authorized branches:

Exact instruction present: follow it for the exact revision and abrasive. Record document, revision/date, and media identifier. Add no tightening, bending, trimming, stretching, wetting, adhesive, shim, or tool.

Exact instruction absent, conflicting, or not model-bound: stop. A successful visual fit is not the missing instruction.

For 09977 and 45380, official records establish round hook-and-loop attachment at 9 and 5 inches respectively. That authorizes only diameter and attachment class—not grit, backing, wet use, hole layout, or branded cross-fit. Use both abrasive and holder instructions.

Those details are not supplied by the accepted source set and are not reconstructed from photographs.

Treat tension as an instruction value, not a feeling

No accepted source for this ten-model set supplies a numerical tension, torque, overhang, capture depth, stretch, or deflection.

do not write “pull hard,” “hand tight,” “one turn,” “drum tight,” or another invented setting into a crew standard;

do not stretch a net, screen, paper sheet, or disc to make the wrong size appear compatible;

do not use abrasive flutter during sanding as the method of finding the correct setting;

do not infer equal tension from equal-looking end capture.

Run the dry and extraction checks

Keep the tool off the finish surface. At the change station, confirm the recorded model/media/instruction triad and check that nothing moves under the handling check the exact instructions permit. If the instructions do not provide a pull or flex test, do not invent one.

For 09165, 09170, and 09180, reconnect the documented hose path, restore the wet/dry vacuum under its own instructions, and prove capture on a low-risk, source-approved test area before returning overhead or to finish work. Stop for lost suction, visible escape, media migration, a hose steering the head, or an unexpected scratch. Hyde’s “up to 99%” claim does not establish the vacuum filter, bag, PPE, or regulatory status.

For 09046, 09047, 09048, 09057, 09157, 09977, and 45380, there is no extraction claim in this application record. A net or perforated abrasive on those holders does not create airflow. Use the site’s identified conventional-dust controls.

Work only inside the proved abrasive identity

Start on the approved surface with the least force that lets the documented abrasive cut. The holder presents the media; it does not upgrade the media. Stop immediately for flutter, slip, wrinkle, lifted edge, unexpected deep scratch, clamp trace, crescent mark, uneven cut, rising dust outside the proved control, torn backing, clogged airflow, heat, odor, or a change in tool angle.

Do not press harder to compensate for a loaded abrasive. More pressure can damage the surface, holder, hook field, clamp, or extraction seal while hiding the real cause. Lower and isolate the tool, then reopen identity, fit, condition, and instruction checks.

For a reversible screen, reversal is permitted only when the exact screen instruction authorizes it and the second face passes the same identity and condition gates.

Change on condition, stage, or control failure

Change when the surface-system sequence calls for another documented grit, when cut rate falls under the abrasive’s criteria, when the media is damaged or contaminated, or when fit/extraction no longer passes. Do not invent square-foot life, time life, rinse count, color code, or “one sheet per room.”

Every change is a new maintenance cycle:

stop work and preserve the last surface readback;

lower, isolate, and contain;

identify and inspect before removal;

remove by exact instruction;

install the next exact media by its instruction;

complete instruction-controlled seating and rejection inspection;

run the dry/extraction proof;

record and resume.

A grit-stage change does not excuse skipping the full cycle. Different abrasive can change drag, scratch, dust loading, airflow, and surface risk.

There is no universal “trash,” drain, rinse-water, hazardous-waste, or recycling instruction in these Hyde records. Never wash unknown, lead-bearing, asbestos-suspect, solvent-bearing, metal-bearing, or otherwise hazardous residue into a sink or ordinary drain by assumption.

Cleanup and maintenance register

Keep new and used media separated. Clean the holder, work surface, hose, vacuum, and surrounding area by methods approved for the identified residue. Do not dry-sweep or use compressed air where that would re-aerosolize dust. Leave the hook field, pad, clamps, pivot, hose path, and storage container dry and in the condition their instructions require. Reinstall no “storage sheet” unless exact instructions call for one.

Record at least:

date, operator, location, and job/surface system;

Hyde model and physical revision or identifying marks;

abrasive maker, model, dimensions, grit, attachment/backing or screen/net identity, lot if present;

exact instruction title, revision/date, and retrieval location;

pre-change defect, removal result, holder inspection, and any quarantine;

installation completion under the cited instruction;

rejection-inspection result and permitted dry/extraction proof;

work start, stop condition, surface readback, grit-stage handoff;

every conflict sent for resolution.

The register turns “it fit” into reproducible evidence. Without the instruction identifier, positive installation remains unproved.

Failure recovery

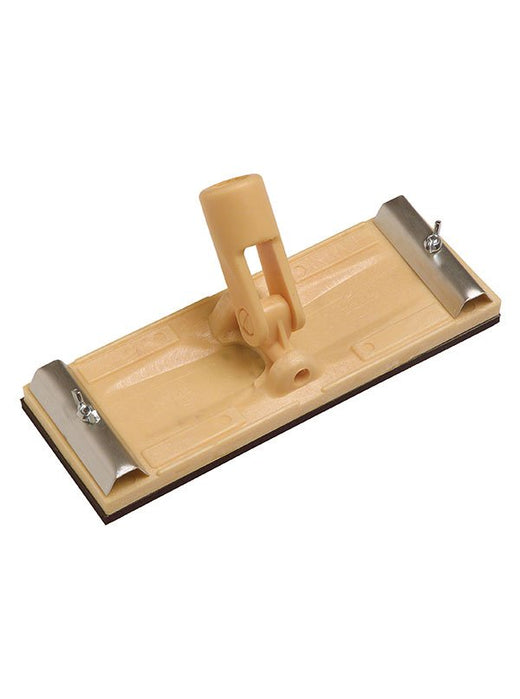

The 09046 in hand has wing nuts, but the website says EasyClamp. Stop and identify the revision through exact Hyde instructions. Physical observation rejects the website as a safe actuation guide for that unit; it does not authorize an improvised wing-nut sequence.

A long net sheet can be captured by a conventional head. Captured is not compatible.

The 09165 or 09170 box contains a screen, while family copy says net. Preserve both claims, identify the box, and obtain the current replacement-media instruction. Do not merge lifecycle or scratch claims.

The 09170 box appears to include a pole. Quarantine the identity and document it.

The disc is almost the right diameter. Almost is rejection. Do not trim, stretch, overlap, or leave exposed hook field.

The abrasive stays on during a test stroke. That proves only that it did not detach in that stroke. It does not prove fit, tension, grit, airflow, lifespan, or safe actuation.

A clamp will not release. Stop. Do not pry, heat, lubricate, or strike it. Use exact service instructions or qualified support.

Dust escapes after the change. Stop sanding. Reopen media identity, seating, openings, hose joints, vacuum state, and the site control plan; do not continue under a dust-free claim.

Can I load by copying the same-looking sibling?

Similar shape is observation, not instruction. The 09046 conflict proves why: two official sources name different mechanisms on one SKU.

Which sheet size fits all rectangular Hyde sanders?

No single supported size can be printed for all of them. The conventional pole pages state 3-1/4 × 9-3/8 inches; the net family states 3-5/16 × 11-1/4 inches; hand-pad dimensions are not automatically sheet specifications; the dust-free screen/net relationship is model- and box-dependent.

How tight should a clamped sheet be?

The exact current instruction must answer. No accepted source here supplies a numerical or verbal tension setting. Visual inspection may reject slack, wrinkles, skew, or incomplete seating; it cannot create the missing setting.

What grit should I install?

The least aggressive exact-compatible grit selected by the surface and abrasive instructions. The 09180’s four stated grits are included inventory, not a universal order.

Can a 9-inch net disc make 09977 dust-free?

The 09977 has no vacuum connection or extraction claim. Open media without an airflow path remains conventional sanding.

Can I wet the 45380 or its disc to reduce dust?

No accepted wet-use claim authorizes that holder or its abrasive. Keep the process dry unless exact product instructions say otherwise.

When is a used abrasive reusable?

Only when the exact abrasive instructions authorize cleaning/reuse and the media passes identity, contamination, condition, dryness, fit, and work-quality gates.

History — from held paper to an airflow component

The maintenance problem began with coated paper: once abrasive was held on a block or clamp, every change had to restore flat presentation without tearing the backing. Drywall’s rectangular hand and pole sanders standardized that replaceable-sheet pattern around long joints and overhead reach. Hook-and-loop later made round media practical as a frequently changed holder system, represented here at 5-inch hand scale and 9-inch pole scale.

Mirka dates Abranet, described as the first net abrasive, to 2001; abrasive became both cutting surface and airflow path (Mirka history). Hyde did not invent net abrasive. Its present catalog joins holders, net media, hoses, and wet/dry-vac adapters. Thus a vacuum-head change must also preserve the documented air path.

09057 9-inch versus 9-3/8-inch pad length; pad measurement is not replacement-sheet fit.

09165/09170 family net wording versus exact-kit reversible screen; preserve both and verify current media.

09170 is without pole; reject the current page’s included 32–50-inch-pole paragraph as sibling-copy bleed.

09180 catalog net sheets by 120/150/180/240 versus current page’s loose “screens” wording; inventory is not a grit prescription.

09977 included disc count/grits and numerical weight remain unstated; no extraction claim.

45380 grit, mineral, backing detail beyond hook-and-loop attachment, hole pattern, wet use, and third-party brand fit remain unstated.

No universal release, clamp actuation, tension, powered-service, PPE, filter, disposal, cleaning chemistry, service-life, or reuse process is authorized by these records.

Observation is rejection-only.

Every supported linked PDP must return this application edge; unresolved members remain gated rather than silently omitted.
