How to Finish Inside Drywall Corners with a 4-Inch Joint Knife

This guide owns the flat-joint-knife method from diagnosis through finish acceptance. It assumes a sound, authorized tape embed or routes the reader to that upstream work; it does not turn a finish coat into a tape repair, make a standard corner knife fit an off-angle profile, or let remembered shop practice overrule the panel, tape, compound, assembly, primer, or decoration maker.

Starting condition: panels are secure and dry; the angle is stable; any required tape or reinforcement is centered, continuously bonded, and ready for its next coat under its own system; and legacy coatings or repair materials have been cleared for the planned disturbance. A new untaped corner, a bubbled or loose tape wing, a moving crack, wet board, mold, or an unknown rated/proprietary detail is not ready for this finishing loop.

Time: as many visits as the selected tape-and-compound system and the specified finish require. The exact product label and technical data control working time, set or dry state, recoat condition, sanding condition, environmental limits, and primer readiness. This guide invents no universal mix ratio, water addition, coat thickness, wait, “overnight” rule, or number of coats.

Difficulty: moderate hand skill and high diagnostic discipline. The useful stroke is simple: load, lay, feather, release while moving. The harder work is keeping the inboard blade corner from rounding the crease, protecting the opposite plane, knowing when material has left its working state, and distinguishing a proud defect that can be removed from a low defect that must be filled.

The exact three-tool union

| Model | Evidence-supported product truth | Honest role here | Refusal carried into this guide |

The exact union is a choice among three 4-inch knives, not a three-knife kit. All three have the same registered job and working width. Choose by the supported blade material, construction, handle, and maintenance facts. No accepted evidence ranks their finish quality, proves one loads a particular compound better, or supplies a proprietary tape/compound compatibility.

Everything else the job may require: the exact panel and joint-treatment instructions; compatible tape, trim, or reinforcement; the approved embed and finish compound or compounds; clean mixing equipment where required; a clean mud pan or other maker-permitted carrying surface; permitted clean water only if the material instructions authorize adjustment; raking work light; clean marking method that will not bleed through decoration; protection for floors, contents, returns, and occupants; system-approved abrasive or damp-smoothing method; source capture or other dust control; eye, skin, clothing, and respiratory protection selected from the current SDS and site plan; approved cleanup equipment; specified drywall primer and decoration system. These are job-system inputs. Their presence does not create another Hyde product backlink.

A local guide proves neither price nor inventory, package content, delivery date, or current availability.

Diagnose the corner before choosing a stroke

1.1 Name the geometry

Stand where both planes can be seen and trace the full run, including its top, bottom, intersections, and obstructions.

Standard concave inside corner: the line recedes from the room and the two panel faces meet in the ordinary wall-to-wall or wall-to-ceiling condition contemplated by the selected drywall system.

Off-angle concave corner: a vault, cathedral line, bay return, rake soffit, splayed wall, or other visibly non-square profile. A flat 4-inch knife can assist on one plane if that system permits it, but this page does not choose or form the off-angle reinforcement.

Outside corner: the line projects into the room. Inside-corner sequencing does not coat corner bead.

Three-plane pocket: a wall-wall corner meeting a ceiling, soffit, beam, casing, cabinet, or return. The open run is still an inside corner, but its endpoint is separate geometry. Plan short one-plane detail strokes; never sweep the blade diagonally through all three planes.

Reveal, radius, movement joint, trim profile, firestop, or proprietary corner product: follow the exact system detail.

If the angle cannot be named, stop before compound. Geometry decides which instructions and tools have jurisdiction.

1.2 Identify the stage of work

Run a clean fingertip lightly beside the crease and inspect both tape wings under raking light.

New and untaped: this guide is downstream. Return only when the embed is sound and ready.

Freshly embedded: verify the compound has reached its maker-defined next-coat condition. A light surface color, surface crust, or elapsed calendar time is not chemical proof.

Sound tape with incomplete finish coats: this is the normal starting point. Map what the next coat must conceal or correct.

Painted corner receiving a cosmetic rework: determine whether the visible fault is finish geometry, failed tape, movement, moisture, coating failure, or contamination before abrading or recoating it.

Damaged corner: route bond, paper, panel, reinforcement, or movement failure to the applicable repair. Finishing compound can conceal a stable transition; it cannot reattach loose board or arrest active framing movement.

1.3 Prove the tape bond rather than assuming it

Press lightly along both wings and close to the crease.

Hard, quiet, fixed tape: continue.

Clicking, hollow sound, movement, or a visible bubble: stop. The embed has failed locally or was never bonded.

A lifted edge: stop. Another finish coat is not adhesive injected by wishful thinking.

A crease that moves relative to either wall: stop and diagnose the assembly.

A crooked crease: decide upstream whether removal and re-embedding are required. Progressive feathering cannot make the eye stop reading a wandering line.

Tape fibers already exposed by sanding: stop removal. Restore the surface only through the tape/compound maker's approved repair sequence.

Do not slit, inject, peel, or replace tape inside this finishing method. Those actions change the job back to embed or repair grain. Complete that work, let it reach the required state, and repeat the bond test.

1.4 Find water, contamination, and movement

Do not coat:

damp, softened, swollen, stained-with-active-source, or mold-affected board;

loose or chalking compound;

oil, wax, soap, smoke residue, dust, or another bond-breaking contaminant;

a crack that opens under light pressure or returns with seasonal or structural movement;

a corner whose board edges or fasteners move independently;

an assembly whose required control joint, fire, smoke, sound, moisture, shaft, or impact detail is unknown.

Correct the cause and prepare under the responsible system. A dry-looking finish coat can trap an unresolved problem without fixing it.

1.5 Make the legacy-material decision before making dust

Existing corners may contain old paint, old patching material, and unidentified prior repairs. Calendar age is a warning, not a field test.

For paint disturbance in pre-1978 housing or covered child-occupied facilities, determine whether the work falls under EPA's Renovation, Repair and Painting program and use the applicable lead-safe process. DIY status does not make lead dust harmless.

16 CFR Part 1304 is the federal historical prohibition on consumer patching compounds containing intentionally added respirable free-form asbestos. It does not identify an unknown wall or clear it for sanding. If the material's age or composition is uncertain and the plan would cut, scrape, or abrade it, obtain the appropriate survey, test, or qualified direction first.

Current drywall dust still requires control. Select source capture, ventilation, eye protection, clothing, gloves, and respiratory protection for the actual material and work. Where occupational respiratory protection is required, selection, fit, use, and the program supporting it must be correct for the hazard.

A joint knife establishes no material permission.

the gypsum panel or substrate;

the installed tape, reinforced tape, trim, or proprietary corner product;

the compound under the tape;

the proposed fill or finish compound;

the tested or specified assembly;

the required finish level, texture, primer, paint, wallcovering, sheen, and acceptance light;

Resolve these questions for the actual system:

Is the existing tape or corner product correct for this geometry?

Is its embed compound approved and ready for the proposed next coat?

May another compound type or product be placed over it?

Does the maker require each face of an inside corner to be coated and dried separately?

If both faces may be coated before either dries, what sequence and tool contact are permitted?

What mixing, remixing, water addition, application depth, work, set, dry, recoat, sanding, damp-smoothing, and priming conditions apply?

What environmental limits apply to the material and substrate?

How many coats and what coverage are required for the specified system and decoration?

Does a rated or proprietary assembly restrict substitution or alteration?

The sequence decision

The CGC/USG installation and finishing guide is one primary example of the established coat one side, let it dry, then coat the other side method. That sequence protects a finished wet face from the far corner of the knife. It is a real method, not proof that every proprietary corner system worldwide has identical instructions.

Use one of these two bounded plans:

Alternating dry sides: coat the first face with one exact-union knife, let it reach the required condition, prepare it as permitted, then coat the second face. Use whenever the system directs it or whenever opposite-face protection is uncertain.

Maker-permitted two-side visit: if the exact material/assembly instructions expressly permit both faces during the same visit, work each face as its own plane and protect the other wet plane. Permission to coat both faces does not permit the blade to sweep through the crease.

No tool preference overrules the sequence. A faster motion is not a compatibility finding.

Select and prove the 4-inch knife

3.1 Choose one exact-union member

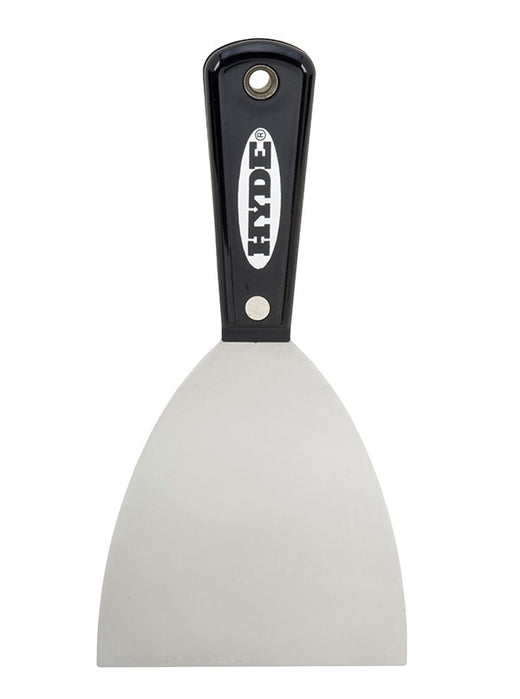

Choose 01540 when its supported combination decides the purchase: a 4-inch flexible, full-tang, hollow-ground, rust-resistant stainless blade and durable nylon handle. It is the straightforward Black & Silver® stainless lane.

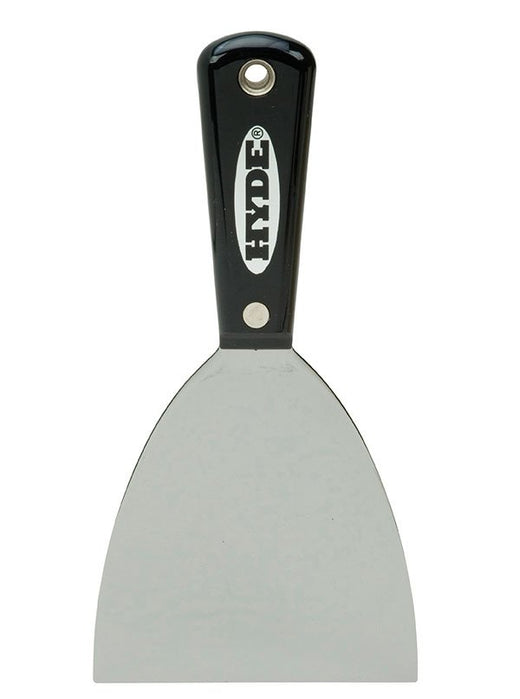

Choose 02550 when its supported combination decides the purchase: a 4-inch flexible, full-tang, hollow-ground high-carbon blade and durable nylon handle, with a crew willing to wash and dry carbon promptly. Carbon is a construction and maintenance choice here, not permission to promise a keener edge, different flex response, or superior corner without comparative evidence.

Choose 06578 when the supported Pro Stainless™ facts decide the purchase: exact 4-inch variant, flexible hardened rust-resistant stainless blade, and overmold comfort grip. The family record supports applying and smoothing compound and taping joints.

Choose none on the theory that:

stainless never needs cleaning;

carbon automatically feathers better;

an overmold grip proves lower fatigue for every hand;

four inches can hide every broad wall-plane mismatch;

a flexible finishing knife is also a demolition scraper.

3.2 Inspect the working edge

Clean the blade and hold its edge against a light background.

Reject or correct before finish work:

dried compound on the edge or corners;

rust, discoloration, oil, cleaner residue, or another contaminant;

a nick that will draw a groove;

a rolled or bent corner that will print a rail;

a bowed, kinked, loose, or damaged blade/handle condition;

a sharp burr that can cut tape or skin.

A compound crumb on the blade is not a small housekeeping defect. It becomes a line the full length of the pull.

3.3 Run a representative mockup when the system or hand method is new

Use the exact panel or representative substrate, tape/reinforcement, compound, planned knife, environment, and decoration expectation. Include a short inside corner, not a flat scrap pretending to be one.

the embed and next coat are compatible;

the selected compound loads and releases within its own instructions;

the first-face stroke leaves the crease straight;

the outer edge feathers without two rails;

the planned sequence protects the opposite face;

the dry result, not merely the wet sheen, passes raking light;

permitted correction does not expose tape or fuzz panel paper;

the primer/decoration sample does not reveal a geometric shoulder.

A mockup can reject a method. It cannot expand a product claim or waive an assembly requirement.

Prepare the corner and the work zone

4.1 Establish containment and protection

Protect floors, trim, fixtures, contents, air returns, and occupied areas according to the site and material plan. Keep clean compound, dirty correction waste, and washing water in separate lanes. Stage the work so the operator does not cross finished faces carrying an open pan or dusty tool.

For dust-generating correction, use the required source capture and containment. Do not dry sweep or blow drywall dust with compressed air. Capture debris where it is made and clean under the applicable lead, asbestos, compound, and site rules.

4.2 Inspect the dry embed under raking light

Light one face from a low angle, then reverse the light for the other.

isolated nibs and loose crumbs;

embed-tool rails or squeeze-out that stand proud;

hollows or low tape wings;

dry skips and pinholes;

a rounded or filled crease;

a broad panel mismatch;

the three-plane apex and every obstruction.

Do not call every shadow “more mud.” First classify it as high, low, bond, profile, contamination, or movement.

4.3 Remove only permitted proud defects

When the compound maker permits dry-blade correction, hold the clean knife nearly flat and lightly slice isolated nibs, loose crumbs, and sharp rails. Use travel and a clean edge, not leverage.

the surface smears, rolls, pills, or releases damp material;

the blade chatters or digs;

tape fibers appear;

panel face paper fuzzes;

force is needed;

the proud defect is too broad or hard for a light finishing-knife shave.

The three exact-union knives are flexible finishing tools. Heavy ridge removal, chiseling, prying, and excavation belong to a different preparation method. Do not convert a refusal into technique by changing the grip.

4.4 Clean before loading

Remove loose dust by the system-approved brush, vacuum, or wipe method. Do not polish the surface, soak paper, or leave residue that compromises bond.

Prepare compound exactly as its current instructions permit. Keep dried scrap and correction dust out of fresh material. If the product does not authorize water addition, do not thin it because a remembered corner recipe says to. If it specifies a mixing or rest sequence, follow it.

Load the knife without loading both corners

Place a controlled amount of authorized compound on the working portion of the blade. The exact amount follows the defect, material behavior, and application-depth limits; this guide supplies no scoop or thickness.

For the first face:

keep the inboard blade corner, the corner nearest the crease, relatively clean;

carry the useful load across the center of the blade;

leave enough control at the outboard corner to feather onto the panel;

wipe the pan rim before each return to the wall so no dried crumb rides into the pass.

The blade has three simultaneous jobs:

conceal or fill what the system says to cover over the tape wing;

preserve the crease rather than packing it;

reduce the outer shoulder toward the existing panel plane.

Loading both blade corners heavily creates two rails. Starving the center reveals tape or leaves a hollow. Packing the inboard corner rounds the apex. Read the blade before it touches the wall.

Coat the first face

6.1 Protect the crease

Set the blade entirely on the first wall. Bring the inboard edge to the system-defined approach at the crease without bridging through the angle. The opposite wall is a separate plane, not a second screed rail.

Keep the handle and wrist aligned with the working face. A diagonal blade can place its far corner into the opposite face even when the operator believes only one side is being coated.

The crease is a visual and mechanical line to preserve. Compound may cover the tape wing as required; it should not become a heavy bead in the deepest part of the angle.

6.2 Lay the body of the coat

Move through a length that can be completed while the material remains in its permitted working state.

The useful sequence is:

set the loaded blade on the first plane;

enter with controlled pressure while moving;

deposit the required material over the mapped low or coverage zone;

maintain uninterrupted travel through the run;

overlap a restart only into still-workable material;

fade pressure before lifting away.

Direction is a field choice. Many operators work down a vertical corner so falling crumbs do not enter completed work; a ceiling line may be worked from one end. Direction does not alter the non-negotiables: one plane, clean crease, workable material, moving release.

repeatedly polish material that has begun to skin or set;

press until the tape texture reads back through the wet coat;

leave a stop-and-lift stamp in the middle of the run;

use a dry opposing wall as an excuse to gouge it;

solve a broad hollow with unauthorized local depth.

6.3 Feather the outer shoulder

On the finish pass allowed by the material's working state, bias pressure progressively toward the outboard blade corner while the blade continues moving.

Read the cross-section:

supported coverage or fill over the tape wing;

decreasing build across the shoulder;

a disappearing edge on sound panel.

Do not press the inboard corner hard into the crease while feathering the outboard edge. Those pressure goals conflict. If one stroke cannot accomplish both without damage, make separate controlled passes while the material permits them.

Release while moving. A stationary lift prints an edge. After the necessary correction, leave the coat alone; wet sheen can hide damage caused by one pass too many.

6.4 Control the three-plane apex

As a wall-wall run approaches the ceiling, soffit, trim, cabinet, or another plane, shorten the stroke. Stop the long pull before the blade cannot land fully on one face.

Finish the endpoint as separate patches of geometry:

work the first wall with a short stroke ending before the pocket;

turn and work the adjoining wall as its own plane;

address the ceiling or return only under its own finish method;

blend each short stroke back into the open run while material remains workable.

Do not twist the blade through the pocket or dig its corner into the tape crease. A 4-inch rectangular blade does not become a three-plane tool when held at an angle.

6.5 Wet-read the first face

Move the light and inspect from both ends. Look for:

continuous required coverage;

a straight, unfilled crease;

no dry skips or pinholes;

no hard outer rail;

no paired blade-corner lines;

no drag groove from edge contamination;

no restart stamp;

no compound on the protected opposite face;

a clean handoff into the apex detail.

Correct only while the exact compound permits wet correction. If it smears, tears, pills, gums, rolls, or drags crumbs, stop. The material—not impatience—has closed the wet-work window.

Sequence the second face as the maker permits

7.1 Alternating dry sides

When the system requires one side to dry before the other, the first face must reach its maker-defined next-operation condition.

inspect under raking light;

lightly remove only permitted proud nibs;

sand or damp-smooth only where the maker permits and a high defect requires it;

remove correction residue;

confirm the first face is hard and protected from the approach to the second;

repeat the loading, crease-control, laying, feathering, apex, and wet-read sequence on the second face.

The finished first face becomes the reference plane. Keep the inboard blade corner off it. Alternating sides is not wasted time; it removes the conflict of one flat blade trying to finish two wet planes that meet.

7.2 Maker-permitted two-side visit

If—and only if—the exact system permits both faces before either has reached a dry condition:

complete the first face as a one-plane pass;

clean the knife edge and inboard corner;

inspect the first face before approaching the second;

load for the second face without crossing the crease;

work the second face entirely on its own plane;

stop if the blade corner, wrist position, or body access cannot protect the wet first face.

“Both sides permitted” is not the same as “both sides easy with a flat knife.” Where contact is unavoidable, return to the alternating sequence or use the component-specific method permitted by the system. Do not let a same-visit plan become a gouged-corner plan.

Do not assign every corner a remembered universal coat count. For each permitted later coat:

wait for the required inspection/recoat state;

rake both planes from both directions;

identify the remaining condition;

remove highs before adding material;

fill lows and carry the new feather beyond the prior visible shoulder as the finish system requires;

maintain the crease;

stop when the actual specified light and decoration no longer reveal a geometry defect.

The exact-union knives are 4 inches wide. They excel close to the crease. If a bowed panel, broad shoulder, butt-joint intersection, or critical-light condition remains visible beyond their controllable span, use the system-appropriate wider finishing tool as a required job input. Do not stack unauthorized depth near the corner to compensate for missing span.

Let the coat earn inspection

The finish is not accepted wet. Record or confirm:

exact compound and batch/product identity where the job requires it;

substrate and tape/reinforcement system;

mix or adjustment made under instructions;

environmental condition required by the product or project;

which face was coated first;

whether the sequence was alternating or maker-permitted same-visit;

when the coat was placed;

what maker-defined state authorizes inspection, correction, recoat, sanding, or priming.

Do not poke, sand, or overcoat a surface merely because its color changed. A drying product and a setting product reach readiness through different mechanisms. Deep fills, cold, humidity, airflow, substrate absorption, and product choice can all change the field condition.

Dry readback — high, low, bond, profile, or porosity

9.1 Inspect by light, touch, and blade

rake the first wall from both ends;

reverse the light and rake the second;

sight down the crease from low and high positions;

pass clean fingertips across each feather edge;

place the clean 4-inch blade lightly across representative portions of each wing;

inspect every restart and three-plane endpoint separately.

Classify what appears:

Hard leading shadow or tactile edge: proud ridge or rail.

Shadow that reverses as the light moves: hollow or broad shoulder.

Pinpoint crater: pinhole or void.

Straight groove: contaminated or nicked blade edge.

Visible tape or fibers: insufficient coverage, bond issue, or over-removal.

Rounded crease: excess material in the apex/profile.

Hairline at the crease: possible movement, bond failure, or unsuitable build; diagnose rather than widen blindly.

No tactile geometry, but a different visual band after coating: possible porosity, primer, texture, sheen, or paint-application issue rather than missing compound.

9.2 Remove only what is high

Where the material maker permits it:

use a clean dry knife nearly flat for an isolated nib or sharp rail;

use only the approved abrasive or damp-smoothing method for broader proud defects;

work one face at a time;

keep the correction tool moving along the corner rather than sawing across the crease;

protect the opposite face and the tape.

Stop immediately if compound smears, rolls, gums, or pills; tape fibers appear; panel paper fuzzes; the crease changes shape; the abrasive cuts a trough beside the tape; the tool needs leverage; or dust control fails.

9.3 Fill what is low

Recoat under the system:

hollows and shrink dishes;

pinholes and craters;

exposed tape that remains sound;

feather edges that remain abrupt after highs are removed;

local sanding damage the system permits to be restored;

a low restart or endpoint.

An abrasive cannot add material. Do not sand sound panel down to meet a hollow. Bring the low condition into the required graduated plane.

9.4 Stop when the corner passes

Stop adding and removing material when:

the crease is straight and consistent;

both tape wings have the required coverage;

outer shoulders disappear by touch and under the specified raking light;

there are no rails, grooves, pinholes, hollows, exposed fibers, or sanding troughs;

the apex and every restart blend into the open run;

the surface is clean and in the primer maker's required condition.

More work after acceptance creates new risk. “One more skim” is not a quality system.

Sanding, PPE, and cleanup

10.1 Prefer prevention and low-dust correction

A clean edge, controlled load, moving release, and honest feather reduce cured correction. Where a proud nib can be removed with a permitted light dry-knife pass, that usually creates less dust than abrading a broad area.

When sanding is necessary, use the exact compound and finish maker's approved abrasive, wet/dry method, pressure, and surface condition. Use the SDS and site plan for dust capture, ventilation, PPE, containment, cleanup, and disposal. This guide does not invent a grit number or declare wet sanding compatible with every compound.

sand across the crease with the abrasive edge;

use the opposite wall as a sanding stop;

dry sweep or blow dust;

sand a hollow;

continue after tape or panel fibers appear;

wear an unselected respirator as a substitute for source control.

10.2 Clean the surface for primer

Remove loose dust without polishing compound, driving debris into the crease, soaking paper, or spreading contamination. Inspect again after cleaning because dust can hide scratches and pinholes.

Prime the complete drywall surface with the specified system so panel paper and joint compound do not carry different porosity into decoration. Primer is not filler. Repair geometry before priming. If the plane is sound but the finished band flashes, diagnose primer, texture, sheen, color, and coating application before adding blind compound.

10.3 Clean and store the knife

Remove bulk compound into the approved waste stream before washing. Follow the compound and site rules for wash water and solids; do not assume a drain is authorized.

01540: clean the stainless blade and nylon handle; inspect and dry for storage according to the tool/site practice. Rust resistance does not excuse residue on the working edge.

02550: wash and dry the high-carbon blade promptly and completely. Do not leave it wet in a pan, bucket, or wrap. Rust and contamination can print the next finish.

06578: clean the stainless blade and overmold grip by a method compatible with the known materials.

Store every knife so the edge and corners cannot strike other tools or carry dried compound into the next job.

What goes wrong — and the exact correction

The tape wing bubbles when finish compound wets it. The embed was not sound. Remove and re-embed the failed section under the tape system, then repeat the bond/readiness tests. Do not bury a moving bubble.

The tape clicks or moves under the blade. Bond or readiness failure. Stop coating; another pass cannot convert movement into adhesion.

A crack returns in the crease. Investigate panel fastening, framing or seasonal movement, moisture, failed reinforcement, and required movement/control details. Wider feathering does not arrest motion.

The corner is visibly off angle. Wrong method boundary. Route to the off-angle system; do not force a standard crease or borrow an unclaimed compatibility.

The opposite face is gouged. The blade crossed or crowded the angle while both planes were vulnerable. Let the damaged work reach its permitted correction state, restore it, then use alternating dry sides or another maker-permitted method.

The crease is round and fat. The inboard blade corner carried too much material into the apex. Pull material outward while it is still workable and the maker permits correction. If hard, correct cautiously without exposing tape; do not excavate the crease by force.

A straight rail marks the feather edge. A loaded blade corner or stationary lift printed it. While workable, clean the corner and feather with pressure biased outward, releasing in motion. When hard, remove the proud portion and fill only if a low remains.

Two parallel rails follow the run. Both blade corners carried material or the blade was held too flat. Correct the high rails; change the load and pressure gradient on the next pass.

A groove appears for the full stroke. Dried compound, a nick, burr, rust, or contamination rode on the edge. Stop, clean and inspect the knife, and correct the scored coat only at its authorized condition.

The restart is a lump. The second stroke entered material that was no longer workable or pressure stopped at the lap. Remove the high after readiness and recoat any low; shorten future work lengths.

The material tears during wet correction. Its working state closed or the blade carried crumbs. Stop touching it. Follow the maker's later scrape, sand, damp-smooth, or recoat route.

The coat dries hollow over the tape wing. It shrank, was pulled too tight, or was placed beyond the product's approved use/depth. Do not sand the walls down to it.

Pinholes remain. Fill them under the compound maker's guidance. Sanding opens or ignores voids; it does not add material.

Tape texture shows through the wet pass. The coat was pulled too tight, the load was insufficient for the approved coverage, or the underlying plane is high. Stop polishing and diagnose before another pass.

Tape fibers show after sanding. Stop removing. Clean carefully and restore the surface with the approved compound/primer sequence. Aggressive sanding makes the repair larger.

Panel face paper fuzzes. Same stop rule. Abrasion has left compound and entered the substrate; seal/restore only as the panel and finish system permit.

The apex is a smeared pocket. The long stroke entered three-plane geometry.

The 4-inch knife cannot hide a broad shoulder. Span is insufficient. Use the system-appropriate wider finishing tool as an unlinked job input. More local depth is not more width.

The finish looks good wet but ridged dry. Wet sheen hid geometry or the coat changed during set/dry. Remove highs, fill lows, and inspect again.

The wall looks smooth by touch but flashes after paint. Separate geometry from porosity and coating. Inspect primer coverage, texture, sheen, color, and application before adding compound.

The 02550 rusts or stains the coat. Carbon care failed or contamination entered the material. Quarantine and clean/restore the knife appropriately, correct the wall when authorized, and adopt immediate wash-dry storage. Choose a supported stainless member if that discipline will not be maintained.

The stainless member still leaves dirty lines. Stainless resists rust; it does not repel dried compound or site contamination. Clean and inspect the edge.

The 06578 butt is being used to set fasteners. Stop.

The 01540 or 02550 bends during ridge removal. A flexible finishing knife is being used as a stiff scraper. Stop and route the heavy removal to the proper preparation method.

The crew changes compound consistency until the knife “feels right.” Tool feel does not authorize water or additives. Return to the exact material instructions and discard or disposition an unauthorized mix under site rules.

Both faces were coated because a different corner guide allowed it. Permission belongs to the exact material and assembly, not a neighboring page. Verify this job's system and sequence each time.

Decisive buyer and crew tests

Is the angle a standard, stable concave drywall inside corner?

No, it is off angle → route to the off-angle system.

No, it projects → route to outside-corner work.

No, it is a functional/proprietary profile → obtain that detail.

Is the required tape/reinforcement continuously bonded and ready for finish coats?

No or unknown → buy no finish knife on the assumption it will repair the embed; route upstream.

Yes → use the alternating dry-side method.

It expressly permits both faces in one visit → the two-side flat-knife sequence is available if the operator can protect each wet face.

Unknown → do not infer permission; use maker direction.

Which exact 4-inch knife is supported by the buyer's real preference?

Black & Silver® stainless, hollow-ground/full-tang record, nylon handle, rust-resistant workflow → 01540.

Black & Silver® high-carbon, hollow-ground/full-tang record, nylon handle, disciplined wash-and-dry workflow → 02550.

“Whichever leaves the best finish” → no evidence-backed winner; run a representative mockup.

Is the defect within close 4-inch corner control?

Yes → this exact union can load, coat, and feather it.

No, the shoulder or panel mismatch is broad → add the system-appropriate wider finishing tool as a job input. Do not buy all three registered knives to manufacture span.

After the coat is ready, is the remaining defect high or low?

High → remove only by the maker-permitted correction.

Bond or movement → stop and repair upstream.

No defect under the acceptance light → stop, clean, and prime under the decoration system.

Will the owner reliably dry carbon after wet work?

Yes → 02550 remains a valid material preference.

No → choose one of the supported stainless lanes. Do not buy carbon and plan to neglect it.

Does the buyer need a striking butt?

Yes → none of the unconflicted exact evidence on this row supplies that decision.

No → select on supported blade/handle/care facts.

Finish readback — the finite proof loop

Before handing the corner to primer or decoration, record or verify:

Geometry: standard inside corner; all off-angle, outside, reveal, movement, and proprietary details routed correctly.

Substrate: panels secure, dry, clean, and nonmoving.

Tape/reinforcement: exact system identified; both wings continuously bonded; crease stable.

Sequence: first face identified; alternating or maker-permitted same-visit choice recorded; required set/dry/recoat conditions met.

Tool: one of 01540, 02550, or 06578 used for its supported role; no unsupported striking, scraping, compatibility, or performance claim.

Wet execution: load controlled; crease protected; body placed; outer shoulder feathered; apex treated separately; restarts blended in workable material.

Dry geometry: both directions raked; highs removed; lows recoated; no rails, grooves, hollows, pinholes, exposed fibers, rounded crease, or sanding troughs.

Safety: legacy-material decision made; current SDS reviewed; containment, dust capture, PPE, cleanup, and waste controls completed.

Handoff: surface cleaned and in the specified primer/decoration condition; no price, stock, availability, or finish certification inferred from this local guide.

If an item remains open, the job remains open. A wet photo, purchased knife, elapsed night, or clean-looking crease is not a substitute for this readback.

Limitations and honest handoffs

This guide does not:

select, install, or repair the tape/reinforcement system;

correct loose board, movement, active moisture, mold, structural cracking, or a missing control/movement detail;

alter a fire, smoke, sound, shaft, moisture, impact, or other rated assembly;

turn an ordinary square-corner method into off-angle or outside-corner work;

promise a universal compound type, water ratio, application depth, work/set/dry/recoat time, abrasive grit, coat count, primer, or finish schedule;

rank carbon versus stainless finish quality without comparative evidence;

claim price, inventory, availability, package contents, shipping, or delivery;

certify a finished surface under an unknown specification, light, texture, sheen, or decoration.

History footnote — sheet walls made the crease a repeatable trade problem

Inside corners existed long before drywall, but wet plaster formed them as part of a continuous wall. Paper-faced gypsum board changed the work: factory-made sheets met at thousands of repeatable seams and angles that had to be joined after fastening. The National Inventors Hall of Fame records Augustine Sackett's 1894 patent in the paper-faced gypsum-board lineage, and USG's history traces the later development of modern wallboard.

Once the sheet system spread, the drywall finisher inherited a precise illusion to make: two boards, a reinforcement, and several material transitions must read as one straight architectural crease. The 4-inch joint knife is the older flat-blade answer—descended from putty and glazing knives, widened for joint compound, and controlled one plane at a time. Shaped corner tools and automatic systems later accelerated repeated runs, but the hand knife kept the intersections, corrections, repair work, and final feather because no room presents every angle as an uninterrupted machine path.

That lineage does not establish that Hyde invented drywall, the joint knife, or this sequence.

National Gypsum — Step-by-Step Guide to Installing Drywall: manufacturer-level joint finishing and drying boundary.

EPA Renovation, Repair and Painting program: covered pre-1978 paint-disturbance boundary.

16 CFR Part 1304: historical consumer patching-compound asbestos prohibition, not field clearance.

National Inventors Hall of Fame — Augustine Sackett and USG history: wallboard lineage.

Bind exact current live PDP URLs for 01540, 02550, and 06578; do not infer price, stock, package content, delivery, or availability.

Verify the exact panel, tape/reinforcement, embed compound, finish compound, assembly, primer, decoration, and environmental instructions for the actual job. No universal mix, water addition, thickness, working time, set/dry/recoat time, sanding condition/grit, coat count, or primer schedule is supplied here.

06578: flexible, hardened, rust-resistant stainless and overmold comfort grip are held through applicable official family claims; exact-model blade gauge and double-hollow-grind remain family-to-size questions.

06578: Hyde family copy mentions Hammer Head® while the drywall-finishing line's exact roster does not confirm it on this 4-inch member. No striking use until exact-model evidence reconciles the conflict.

No comparative source establishes that 01540, 02550, or 06578 produces a finer finished corner. Material, construction, handle, and maintenance distinctions remain evidence-only.

No exact solvent, cleaner, soak, heat, oil, or storage treatment is supplied for the 06578 overmold grip; use only a material-compatible method.

Unknown legacy patching material requires a project-specific asbestos decision; 16 CFR Part 1304 is a historical boundary, not an inspection result.

The 4-inch hand-knife inside-corner method has no accepted single-inventor or first-date source.

Hyde founding-year wording remains “early-to-mid 1870s” because Hyde sources conflict on 1870 versus 1875.

No fourth Hyde model is implied.
