Open, Undercut, and Clear Cracks Before Repair

This job ends before filling. It does not select filler, mix compound, dampen plaster, wet masonry, inject resin, embed tape, bridge movement, sand a patch, prime, or paint. A clean-looking groove is not the result. The result is a diagnosed, controlled, documented receiving condition accepted for one named repair system—or a recorded hold.

Difficulty: intermediate to advanced. The hand tool is simple. The consequential work is distinguishing a stable cosmetic crack from failed drywall joint treatment, detached plaster, moving wood, structural masonry, moisture damage, a designed movement joint, hazardous old layers, or a concealed service.

No universal clock applies. If monitoring, material testing, drying, engineering review, hazardous-material disposition, or conservation approval is needed, the job remains open until that gate closes.

The exact Hyde graph — four registered preparation leads

Its width favors local access. The local guide calls its edge square, while Hyde’s current family page assigns a chisel-edge family claim. That conflict blocks edge-specific actuation.

Width and stiff carbon identity are admitted; exact edge geometry and actuation are not.

Those facts establish no universal crack profile or actuation.

“Solvent-resistant” does not authorize a solvent cleanup.

All four are stiff removal or scraping tools. None is a flexible fill knife, repair compound, tape, mesh, plaster washer, wood consolidant, masonry resin, sealant, moisture instrument, structural probe, hazardous-material tool, or concealed-service detector. No one tool is required merely because it appears in the register.

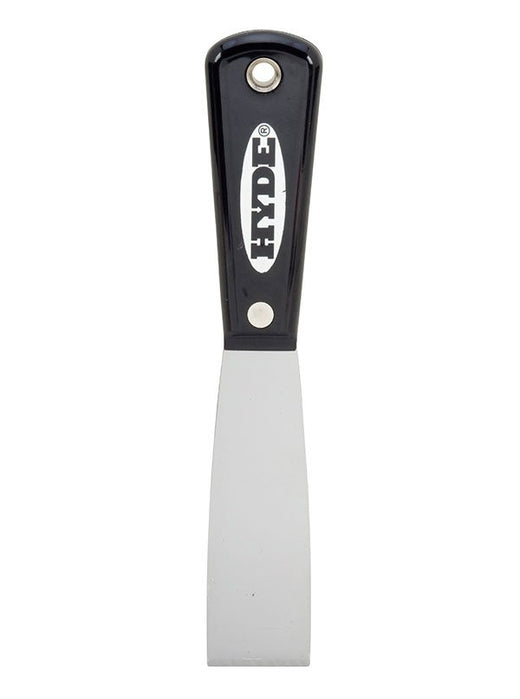

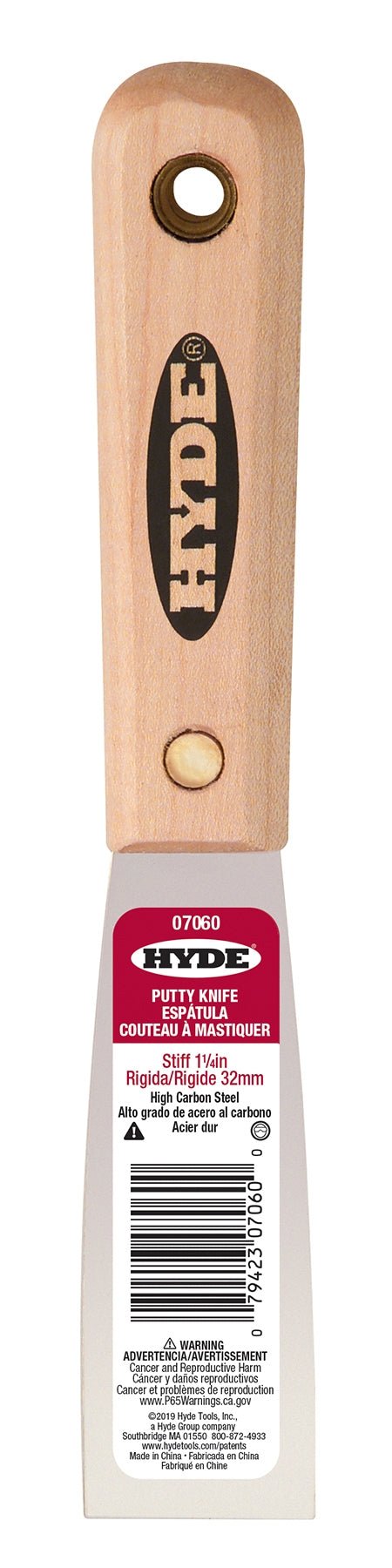

The 1-1/4-inch 02050 and 07060 are the narrowest registered faces; 02150 is the broadest; 02200 sits between. All four are stiff preparation tools. The Black & Silver models use admitted carbon-steel/nylon family construction; 07060 carries hardwood/clear-coated carbon construction. None of these facts decides repair chemistry.

Diagnose before disturbing the line

Stable cosmetic crack — the conditional preparation lane

Preparation may proceed only when the evidence supports a stable, dry, nonstructural defect in material that remains attached and suitable for repair. Both sides should remain in the same plane under non-damaging observation. The surrounding field should not bulge, sag, pump, click, crumble broadly, shed salts, or show an active stain. The line should not be growing, branching, recurring without explanation, or marking a designed movement joint.

“Hairline,” “old,” and “small” describe appearance, not cause. Record observations without diagnosing structure from pattern alone.

Moving, displaced, recurrent, or structurally correlated — stop

Preserve the line when its ends advance, its width changes, one side is displaced, it returns after prior filling, or it correlates with binding doors or windows, separated trim, bowed walls, sagging ceilings, foundation change, impact, excavation, framing work, or masonry movement. Mark and date the ends outside the crack and retain photographs. Do not erase evidence before the responsible building professional evaluates it.

A filler or reinforcing tape may conceal movement temporarily. Neither proves that the cause is stable.

Wet, stained, salty, soft, frozen, or biologically affected — stop

Active water, dampness, recurring stains, efflorescence, corrosion, softened gypsum, punky wood, freeze damage, odor, or biological growth removes the crack from cosmetic preparation. Locate and correct the source, then obtain the dry-condition and retained-material acceptance required by the chosen system. No waiting period or moisture value is invented here.

Designed joints and dissimilar-material transitions — preserve the movement function

Cracks at control joints, expansion joints, perimeter sealant joints, trim-to-wall transitions, masonry interfaces, and some changes of substrate can be the visible result of expected movement. Do not convert such a joint into a rigid filled groove by reflex. The assembly detail decides whether it stays open, receives an elastomeric sealant, gets reinforcement, or follows another transition system.

Substrate branches are separate jobs

First decide whether the plaster is attached. Hollow response, clicking, flex, bulging, sagging, broad friability, or changing plane can indicate lost keys or failed bond. Surface preparation cannot reattach plaster to lath or another base. Stabilization precedes crack work.

For sound gypsum plaster, one exact example is USG PM19, Repair and Resurfacing Systems. It requires the retained wall to be essentially sound and assigns specific crack preparation, setting-type compound, and paper-tape operations within named USG systems. Its wide/deep-crack instructions are not transferred to lime plaster, veneer plaster from another maker, ornamental plaster, or an unidentified old repair.

Historic lime-rich or character-defining plaster may require a conservation specification. The National Park Service’s Preservation Brief 21 places stabilization and compatible repair ahead of cosmetic concealment. Do not replace a historic material decision with a generic gypsum recipe.

A crack that tracks a board seam, inside corner, outside-corner bead, fastener line, or edge of old tape is usually a joint-treatment condition. Loose tape, exposed mesh, blistering, ridging, torn face paper, or a full-length seam failure routes to an approved joint-repair system.

Do not carve a parallel groove beside failed tape. Do not cut through face paper merely to make room for filler. The current compound/tape manufacturer and the identified assembly own removal, paper treatment, reinforcement, coat sequence, and finish.

If preparation exposes tape, mesh, bead, fasteners, backing, or torn paper that was not in the approved scope, stop. The job has changed from isolated crack preparation to joint or panel repair.

Separate a stable cosmetic check in sound wood from open joinery, a load-bearing split, decay, insect damage, wet wood, flooring movement, or weather-driven cycling.

The selected wood system owns whether paint or finish must be removed, whether loose fibers are cut away, whether the wood must be dry, whether consolidation is required, and what materials may contact the substrate. Minwax High Performance Wood Filler, for example, requires its receiving surface to be clean, dry, and free of paint, varnish, dirt, and grease and provides a separate route for soft or rotted wood. Those are product-specific requirements, not a universal instruction to excavate every wood crack.

Do not use the registered scraper as a joinery lever, structural-test instrument, rot probe, or grain-cutting chisel.

Masonry and concrete

Determine whether the line is in mortar, a masonry unit, concrete, render, stucco, or a prior patch. Active displacement, stair-step patterns, bulging, leaning, corrosion-related cracking, freeze-thaw damage, repeating moisture, or foundation correlation requires cause evaluation before cosmetic work. The National Park Service’s masonry guidance places cause determination and structural repair before minor or cosmetic treatment and warns that incompatible mortar can damage historic brick.

Rigid patch mortars, flexible sealants, gravity-fed materials, and injection resins require different crack conditions and preparation. A current product such as Sikaflex®+ Crack Flex Sealant requires sound, clean, dry, frost-free surfaces free of specified contaminants; an injection resin has a different substrate and crack route. This guide selects neither.

Masonry disturbance can create respirable crystalline silica. OSHA’s construction silica standard requires covered employers to assess or control exposure under the applicable route. Do not dry-grind, power-cut, drill, or abrade masonry from this hand-preparation guide.

Hazard and concealed-service gates

Opening a painted crack is paint disturbance. EPA states that renovation, repair, and painting work in pre-1978 housing and child-occupied facilities can create hazardous lead dust and that covered paid work is subject to certification and lead-safe work-practice requirements. Close the applicable EPA RRP path before scraping or cutting. This guide does not teach testing, containment, cleaning verification, or abatement.

Old patching compounds, joint compounds, textures, and other wall layers can contain asbestos. The CPSC home asbestos guidance warns that material identification and condition matter and that disturbance can release fibers. A lead disposition does not clear old texture, filler, skim coat, plaster, or backing. Suspect material stays undisturbed until the qualified or regulated path authorizes work.

Silica and ordinary repair dust

Concrete, mortar, brick, stone, some plaster materials, and some joint compounds can present silica or other dust hazards. The actual material and task decide the control. NIOSH documents significant drywall-sanding dust and the value of source-capture systems; that evidence does not turn an ordinary vacuum into lead, asbestos, or silica compliance equipment.

Concealed services and assembly components

Stop at wiring, cable, pipe, conduit, a warm or energized condition, metal or plastic not identified in the assembly, fasteners, corner bead, lath, mesh, membrane, reinforcement, backing, a void, or any unexpected layer. Do not probe deeper, cut around it, energize or de-energize it, or infer clearance from crack location.

A stiff putty knife has no insulated, non-sparking, detection, or utility-clearance rating.

Bind the exact repair system before tool contact

The work packet must identify:

the substrate, finish layers, assembly duty, and defect class;

the stable/cosmetic, joint, structural, moving, wet, historic, or rated disposition;

hazardous-layer and concealed-service clearances;

the exact repair material or system, current technical data, and SDS;

the geometry and extent that system requires—or its instruction not to open the crack;

the permitted preparation tool and whether the registered Hyde candidate is acceptable;

any required or prohibited cleaning, drying, dampening, conditioning, sealing, priming, bonding, reinforcement, or abrasion;

preparation acceptance and its responsible person;

debris capture, cleanup, and disposal; and

the filling, reinforcement, cure, finish, and observation route that follows.

Do not assemble one recipe from unrelated sources. Familiar trade practice is not permission to invent dimensions, blade angle, pressure, direction, pass count, wetting, abrasive, chemistry, or disposal.

Test area — prove the pairing without expanding scope

Where hazards, assembly status, and system instructions permit, establish an inconspicuous test area on the same substrate and coating campaign. Confirm that only intended failed material releases, retained edges remain sound, debris control works, and the selected system accepts the surface.

Preserve a before record and define the stop condition. Success does not clear another substrate, override a hazard plan, validate structure, or authorize larger geometry.

Controlled preparation workflow

Record the undisturbed condition

Photograph the entire crack and its context in normal and raking light. Mark ends and branches outside the prospective work zone. Record recurrence, moisture evidence, plane change, nearby transitions, openings, fixtures, services, prior repairs, and the presumed substrate. The record distinguishes original failure from tool-created damage.

Close every stop gate

Confirm stability, attachment, dryness, structural disposition, joint status, hazard clearance, service clearance, assembly duty, and the exact downstream system. Reclassify the job if the wall differs from the packet. Authorization does not grow when the crack does.

Protect and contain under the assessed plan

Control occupants, contents, floors, openings, and air paths as required by the actual hazard and material plan. Place authorized debris capture so released material remains controlled and visible for inspection. Do not blow dust into the room or erase evidence before readback.

Inspect the selected tool

Verify the model mark and admitted role. The handle and blade must be secure, clean, and free of damage that defeats control. Do not grind, bend, sharpen, or reshape an edge from this guide. For 02050 and 02150, do not rely on the disputed local square-edge claim. For 02200, exact chisel identity still does not supply actuation.

Perform only the authorized first contact

Use the repair system’s stated tool presentation, motion, force, and extent. If it states none, stop. After the first contact, clear only enough debris by the approved method to see what released. Confirm that the intended failed layer—not sound facing, tape, lath, wood fibers, mortar arrises, reinforcement, or another hidden component—responded.

Continue as a contact-and-readback loop

Repeat only while the same authorized condition continues and every readback passes. Stop at changing resistance, changing material, widening failure, movement, delamination, unexpected moisture, a new branch, tool instability, loss of sight, or any concealed component. Increased difficulty is not permission to apply more force or switch to an invented motion.

Stop at the system-defined geometry and extent

“V-out,” “undercut,” “open,” and “back to sound material” are not complete specifications. This guide supplies no universal width, depth, taper, angle, key, shoulder, or tolerance.

If it requires a named profile, stop only at that profile. If it prohibits opening or requires tape/joint reconstruction, this row’s opening operation does not proceed.

Clear the receiving surfaces by the authorized method

Use only the specified capture, brushing, vacuuming, wiping, air, or other cleaning route. Do not flood, dampen, wet, wash, solvent-wipe, abrade, or blow a crack by habit. Plaster suction, drywall paper, wood moisture, masonry porosity, hazardous dust, and repair chemistry are different controls.

Inspect and disposition the prepared condition

Under direct and raking light, compare the result with the before record and system criteria. Verify the retained edges, exposed layers, geometry, cleanliness, attachment, dryness, and absence of tool-created damage. Assign exactly one disposition:

accepted for the named repair system;

additional authorized preparation required;

rejected because the diagnosis or tool pairing was wrong; or

escalated because the defect became area loss, joint failure, delamination, or another repair class.

Acceptance handoff to filling

Filling may begin only after the receiving condition is accepted by the named system. The fill operation then owns material preparation, packing, reinforcement, lift, finish, cure, correction, primer, and observation. This file supplies none of those permissions.

Recovery — when preparation does not behave as expected

The crack becomes wider or the shoulders keep releasing. Stop. Reclassify as area loss, loose plaster, damaged drywall facing, decayed wood, failed mortar, or another substrate condition.

The field moves, clicks, bows, sags, or changes plane. Preserve it and route attachment or structural evaluation.

Tape, mesh, bead, lath, reinforcement, backing, a fastener, or a service appears. Stop at the first sight. Obtain the assembly-specific route.

The tool skates, catches, chatters, deforms, or cannot be controlled. Remove it from the work. Recheck condition, tool identity, serviceability, and the authorized method; do not compensate with force.

The prepared surface powders or stays contaminated. The receiving layer or cleaning method is not accepted. Consult the exact system; do not improvise a bonder, sealer, wash, or solvent.

A damp line, stain, salts, odor, or corrosion appears. Hold for source control and material assessment.

The test area damages sound material. Reject that pairing. Restore only under an approved repair route and do not expand the test.

The specified geometry cannot be produced with an admitted tool. Stop and obtain the tool and method the system requires.

The crew is ready to fill but acceptance is absent. Keep the opening protected and documented. Schedule pressure does not close the handoff.

Cleanup and tool care

Keep debris within the assessed collection and disposal route. Do not dry sweep suspect dust, wash setting or cementitious solids into plumbing, place regulated waste in ordinary trash, or invent a waste classification. The hazard plan, SDS, local requirements, and site rules decide.

“Solvent-resistant” on 07060 does not name a solvent; carbon steel is not permission to oil a tool that will immediately contact a system that forbids contamination. Dry and protect the tool after approved cleaning, inspect the edge and handle, and quarantine damage.

Close the work zone only after debris control and the required verification are complete. If the crack remains held, preserve containment or protection appropriate to that open condition and transfer responsibility explicitly.

Does every crack need to be widened before filling?

Some stable plaster systems require preparation; failed drywall joints require joint reconstruction; some narrow cracks accept a product-specific fill; movement joints must retain movement; and structural or wet cracks are not cosmetic jobs. The exact system decides.

What angle, width, depth, or undercut should I make?

None is universal. This guide intentionally gives no crack geometry or blade actuation. Use the current instruction for the identified substrate and repair system. If it is absent, hold.

Which of the four Hyde tools should I buy?

Choose only after the system admits a stiff hand scraper.

Can the same stiff knife fill the crack afterward?

That is not this row’s role. These four tools are registered as preparation leads. Filling requires the selected system’s admitted placement and finishing tools, often including a flexible knife.

Can I prepare a drywall seam crack like a plaster crack?

Tape, face paper, joint compound, board edges, corner bead, and fasteners make a joint system.

Can I fill a seasonal wood crack or a moving masonry crack?

Not by assumption. Seasonal wood movement, control joints, and moving masonry can make rigid filling inappropriate.

Is a tiny hand-scraped area exempt from lead, asbestos, or silica concerns?

Size alone does not identify the material or eliminate exposure. Apply the relevant current rule, assessment, and site plan. This guide makes no exemption determination.

When is preparation complete?

When the exact system-defined geometry and receiving condition are achieved without unresolved movement, moisture, attachment, hazard, service, assembly, or tool-created damage—and the handoff is accepted and recorded.

History note — why “putty knife” no longer means “putting on”

The family name comes from applying putty, but its stiff branch became removal tools sharing the flexible knife’s silhouette. Hyde’s catalog makes the split visible: stiff carbon scrapers, a named chisel-edge model, and a hardwood line sit beside flexible knives.

Hyde dates its Southbridge toolmaking story to 1875 on its current company history. No claim is made here that Hyde invented crack opening, the putty knife, the chisel edge, or a universal repair profile.

Hyde Black & Silver® Carbon Steel Stiff Scrapers: current family page and exact listed variants.

Hyde Hardwood Handle Carbon Steel Stiff Scrapers: current family page and exact listed 07060 variant.

USG PM19 · USG Sheetrock® Taping Joint Compound · NPS Preservation Brief 21.

Minwax High Performance Wood Filler · System Three on exterior wood cracks.

NPS common brick-masonry problems · Sikaflex®+ Crack Flex Sealant.

EPA RRP · CPSC asbestos in the home · OSHA 1926.1153 · NIOSH drywall-sanding dust controls.

Withheld or conflicted claims

No edge-dependent actuation is authorized until reconciled.

No filler, tape, mesh, bonder, consolidant, resin, sealant, abrasive, primer, cleaner, PPE ensemble, or waste route is added to the graph.

USG instructions remain USG gypsum-system instructions; wood and masonry examples remain product-specific.

Offline completion of this file is not production completion.

Workflow graph: preserve evidence → classify substrate and defect → close movement/moisture/structure/hazard/service/assembly gates → bind one exact repair system → test the admitted pairing → prepare only to system-defined geometry → clear by the authorized method → inspect and disposition → accepted filling-system handoff or documented hold.
