How to Deflash Molded Rubber Goods

Job: remove authorized molding flash, vent excess, and other specified trim stock from a fully cured rubber part without cutting functional geometry, changing the accepted profile, contaminating the compound, or hiding a molding defect.

Production boundary: this is a post-mold finishing operation on a released part at a guarded trim bench or approved press-side station. It is not permission to reach into a press, defeat an interlock, trim a moving part, or improvise a mold-repair operation.

Difficulty: repeatability, not hand strength. The first piece is a process-development job; the hundredth must match it.

The re-derived Hyde tool set:

Hyde's catalog gives this member the line's only molded-goods application sentence: “Trim large mold flush from plastic and rubber goods.” The wording is Hyde's and remains flagged for clarification; the supported role is the large-part, capture-and-shear deflashing knife.

It has no capture notch and no built-in depth stop.

These are bare blades, not hand knives. They enter only in a positively clamped, plant-approved handle or fixture with controlled exposure.

Everything else the station needs: the released drawing and current revision · part number and material/compound specification · lot traveler or batch record · approved first article or boundary sample · the actual trim work instruction · clean, non-marring fixture · task lighting and magnification appropriate to the drawing · go/no-go gauges, profile fixture, comparator, calipers, or other inspection means named by the control plan · approved cleaner and lint-free wipes · blade log, covered sharps container, and quarantine container · cut-resistant hand protection selected by the employer for the exact grip and material, plus any eye or process PPE named by the hazard assessment. A glove does not make a hand into a fixture.

Before the blade comes out: establish what the part is and what may leave it

Identify the part from its records, never from its feel

“Rubbery” is not a material identification. Natural rubber, EPDM, nitrile, neoprene, silicone, FKM, polyurethane elastomer, and thermoplastic elastomer can all arrive flexible; a flexible molded plastic can resemble several of them. They differ in cut behavior, tear resistance, contamination limits, service chemistry, and what damage matters.

Read the part number, drawing revision, compound or material code, cure/batch lot, color, cavity, and process traveler before setup. If the traveler says plastic or TPE while the job packet says rubber, stop at material review: deflash-molded-plastic-parts is a separate canonical job with different brittle-fracture and stress-whitening boundaries. Do not use bounce, smell, burning, solvent, or a thumbnail as an identity test. ASTM D2000 itself makes the precedence rule explicit for vulcanized rubber: a detailed product specification overrides the general material classification, and special requirements require purchaser/supplier agreement (ASTM D2000-18(2024)e1).

Read the drawing as an acceptance map

Before anyone says “trim it flush,” mark four classes on the drawing, approved sample, or enlarged work image:

Authorized waste: parting-line flash, vent spews, overflow web, or other stock the drawing or work instruction explicitly sends to trim.

Controlled vestiges: gate, runner, sprue, or vent remnants with a stated maximum, minimum, profile, or “do not break below surface” requirement. A gate witness may be allowed; it may also be functional. It is not automatically flash.

Functional geometry: sealing beads and lips, ribs, datum pads, locating tabs, anti-rotation features, electrical creepage barriers, molded lettering, texture, tear seams, and any surface that seats, seals, flexes, indexes, or carries load. These are never “high spots” merely because they stand proud.

Molding defects: mismatch/offset, underfill or short shot, knit or flow-line defects, notches, pits, voids, blisters, tears, exposed insert, contamination, and damaged surface. Trimming does not convert a molding defect into a conforming part. Parker's O-Ring Handbook usefully separates flash, flaring, notches, flow lines, entry points, depressions, and foreign material as different quality conditions; its numerical limits are for its cited O-ring standard and are not generic limits for this part ([Parker O-Ring Handbook, quality criteria pp.

Transfer the permitted trim boundary into the work instruction. If the acceptance edge cannot be described or shown, Quality or Engineering must resolve it before production; “looks flush” is not a measurable standard.

Decide whether hand deflashing is the approved process

Hand trim earns its place on large parts, short runs, mixed geometry, repairable first-piece development, heavy flash, or work that automation cannot reach economically. It loses on high volumes of small parts with fine uniform flash, on geometry requiring a die-defined profile, and where a powered, cryogenic, tumbling, grinding, laser, or automated method is the released process.

The test is not “can a knife cut it?” It is:

Can the part be fixtured without distortion?

Can the waste line be seen or positively captured?

Can the operator keep every open edge out of the reject surface and out of the body?

Can the result be inspected to the drawing at production rate?

Can the station prevent chips, fragments, oil, abrasive, or mixed-compound residue from following the part?

Has the buyer approved hand trimming, including its surface signature?

If any answer is no, hand trim is not released by this guide.

Separate the part completely from mold and machine hazards

A loose, cooled part on a trim bench is ordinary knife work. Reaching into a compression, transfer, injection, or post-cure machine is machine service or an operating-cycle exposure and belongs to the facility's guarding and energy-control system.

Normal production: the press runs with its guards, interlocks, light curtains, two-hand controls, or other approved safeguards intact. OSHA's machine-guarding rule requires protection from point-of-operation, ingoing-nip, rotating-part, flying-chip, and spark hazards (29 CFR 1910.212).

Jam, stuck part, blade recovery, fixture adjustment inside the danger zone, guard removal, cleaning, or maintenance: stop and hand the machine to an authorized employee under the machine-specific energy-control procedure. OSHA requires documented shutdown, isolation, blocking, control of stored energy, and verification where unexpected startup or released energy can injure (29 CFR 1910.147).

Hot part: observe the released post-cure/cool-down state and temperature-handling instruction. A warm elastomer can smear or stretch under an edge and then recover below the trim line; “cool enough to hold” is not a process specification.

Never use a knife to pry a part from an open mold. That is a mold-protection and machine-safety handoff, not deflashing.

Build the fixture around the accepted shape

The fixture has to hold the part without changing the shape being judged. A soft seal squeezed oval can be trimmed perfectly to the fixture and be wrong when released.

Support the part close enough to the trim path that it does not fold away from the edge.

Keep clamp pressure off sealing lips, thin diaphragms, precision bores, and datum faces unless the released drawing defines the inspection condition under compression.

Put hard stops beyond the cut so the tool cannot continue into the operator.

Leave the waste free to peel away; do not trap it under a clamp where the operator will pry at it.

Keep the operator's off-hand behind a barrier, on a handle, or on a remote fixture control — never cupped under the part and never in the projected cut path.

Orient the line so the preferred stroke travels away from the torso and across clear space. If the geometry forces a draw stroke, the fixture and stop must intercept the tool before the body does.

For rotary parts, index the fixture in defined increments while the tool remains stationary and clear. Do not turn a ring in the palm against an open blade.

Select the cutting geometry — five roles, not eight interchangeable knives

Offset V-trim: 66090 for long pulls and hand clearance

Use the 66090 when the authorized waste is a continuous flash fin or series of vent protrusions standing off a large or convex surface and the stroke is long enough that a straight handle would foul the part. Seat both flanks against accepted rubber, capture the flash in the V, and pull along the seam. The offset lifts the knuckles without lifting the cutting plane.

This is the lead recommendation because Hyde actually names molded rubber and plastic goods for it. It is not the lead for every rubber part: a V must be able to straddle the waste, the flanks must have sound surface to ride, and the seam must be accessible. It is wrong for recessed flash, a broad sheet of overflow wider than the notch, brittle trim that breaks below the line, and geometry where either flank would ride a functional bead.

Straight V-trim: 66330 for closer work; 66060 for broad flat faces

Both use the same capture-and-shear principle, with no offset.

Choose 66330 when the bench presents the line comfortably but adjacent features or modest curvature make the full-inch blade crowd or bridge. Its role is the ordinary, closer-quarters straight.

Choose 66060 when the part face is broad and flat enough to use its full inch of flank as a reference plane. It is steadier on long flat runs and clumsier around tight features.

Neither acquires a hidden advantage from its pattern number. 3787A and 213 are opaque plant-spec identifiers. A plant already standardized on one matches the string; a new process chooses only from the documented geometry.

Closed loop: 95460 for contoured production shaving

Use the loop pattern when flash travels around curved, convex, domed, or irregular surfaces and a closed ring can ride the accepted surface while the inside edge shaves the protrusion. This is often the most forgiving geometry for repetitive contour work because the edge is contained and the outside of the loop can act as the follower.

The evidence boundary matters: the 95460's exact-model listing supports high-carbon steel and a 6.5-inch / 165 mm overall length. Until exact-model confirmation, qualify the physical tool at receiving inspection and do not write a station instruction around the family-level pick or dimensions as though they were guaranteed SKU features.

The loop is not a magic no-gouge tool. Excess pressure, a damaged outside surface, the wrong ring radius, or rolling off the follower surface can still cut the accepted part. It is also wrong for a flash sheet that cannot enter the loop, a deep recess the ring bridges, or a line beside a fragile lip the ring would crush.

Flat square-point: 60090 for flat, visible, occasional slicing

Use the 60090 only where the flash line is flat, fully visible, accessible from the sheet edge, and separated from functional rubber by a clear waste plane. Hold the blade low and slice progressively along the line. The square end resists puncturing the layer beneath, but the open straight edge has no V or loop to index depth.

This is the occasional bench alternative, not the production default. It is especially wrong on a sealing lip, around a radius, near a gate whose height is controlled, or anywhere a small hand-angle change becomes a gouge. “Square point” means the end refuses to stab; it does not mean the edge refuses to cut good rubber.

Bevel mill blades: 62600, 62750, and 62875 only in a released handle/fixture

These three are bare mill blades. Their long exposed edges turn a local trim into a long skiving or shaving cut and therefore demand a positive clamp, controlled exposure, a fixture, a stop, and a written station method.

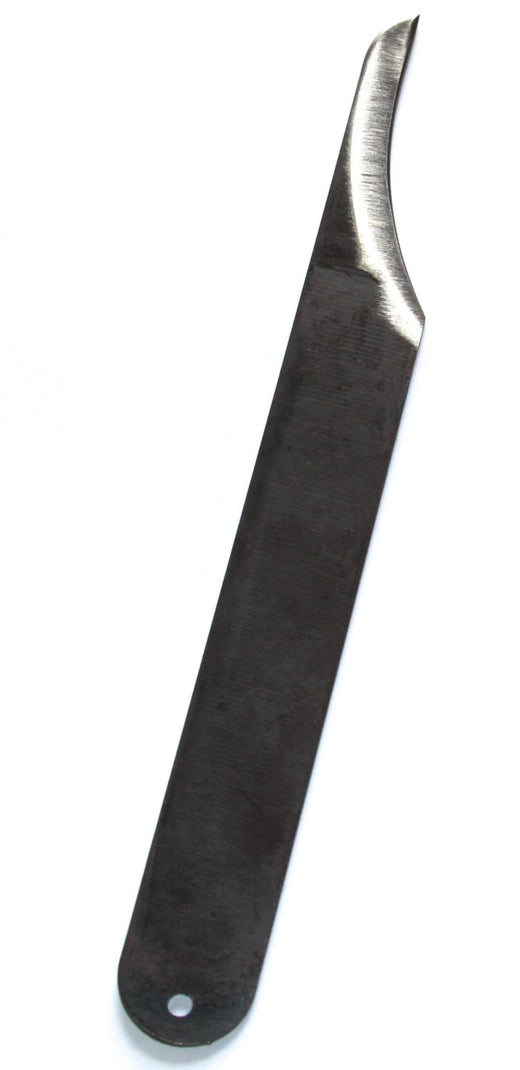

62600 BG182M: stiff .072" HSS bevel for straight trim on dense, abrasive or filled rubber that both loads and wears an edge.

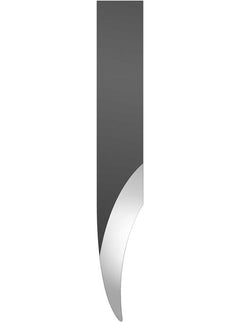

62750 BG57: stiff .072" Standard high-carbon bevel for dense, grabby but comparatively non-abrasive stock, where the station benefits from fast honing rather than HSS wear life.

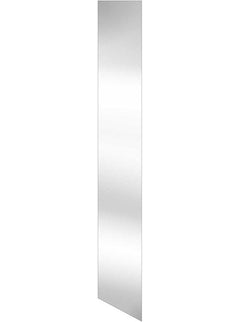

62875 3551M: shorter, limber .058" HSS bevel for a contour the blade must follow.

These are skiving tools: the bevel rides at its approved cutting angle and removes a thin layer in a moving stroke. They do not replace a V-notch where capture geometry prevents surface damage. A long blade is never the answer to a detail problem simply because it reaches it.

Develop and approve the first article

Keep one untouched part and one accepted reference

Before process development, retain:

an untouched molded part from the same released setup, showing as-molded flash, gate, vents, cavity marks, and any suspect defect;

the buyer-approved drawing or visual standard at the current revision;

after approval, an accepted first article or boundary sample, identified and protected from production use.

The untouched part proves what the mold made. The accepted sample proves what the trim process may make. Do not grind the evidence away and then argue from memory.

Run the first cut on a non-production or explicitly sacrificial part

Clean the part and fixture with the approved method. Seat the part without distortion. Pick the least aggressive geometry that can hold the line. Make one short representative pass through the hardest geometry — not the easiest straight section — then inspect before continuing.

a clean shear at the authorized boundary;

no undercut, scallop, flat spot, nick, tear, chatter, heat smear, whitening, or pull-out;

no cut into a sealing surface, bead, lip, rib, gate-controlled area, text, texture, or datum;

no tool rub that breaches the permitted surface finish;

no blade chip, fragment, rust transfer, oil, abrasive, or mixed-compound residue;

part geometry returning to the drawing condition after fixture release.

If the part springs to a different shape after unclamping, judge it released, not squeezed.

Turn the accepted first article into a station method

Quality, Engineering, or the buyer-authorized role approves the result against the drawing and inspection plan. Record the exact tool pattern, edge condition, fixture, part orientation, cut direction, start/stop features, surface to ride, maximum allowed exposure, inspection method, and disposition of the trimmed waste. Photograph the accepted and rejected boundary if the drawing alone does not make it obvious.

The first article is repeated after any change that can change the trim signature: drawing revision, compound, cure, cavity, mold repair, process parameter, tool pattern, sharpening profile, fixture, operator method, or acceptance gauge. A blade change to the same controlled pattern may be a routine setup check; changing V-trim to loop or flat bevel is a process change.

Production procedure

Verify the lot and station at start of shift

Match traveler to part and drawing. Confirm the approved tool and fixture are at the station, the accepted reference is the correct revision, inspection equipment is in status, the blade log reconciles, the reject container is empty and identified, and no residue from a prior compound or color remains.

Inspect the cutting tool before the first part:

no chip, crack, corrosion, burr, rolled edge, permanent bend, loose ferrule, damaged handle, damaged set screw, or polished flat that changes the follower geometry;

V walls even and keen; loop outside smooth and inside edge continuous; flat/bevel edge free of nicks;

mounted blade clamped positively with only the approved exposure;

correct pattern string — not “close enough” from the blade drawer.

Clean and orient every part

Remove loose mold-release residue, dust, talc, media, and flash debris only by the approved method. Do not apply an unapproved solvent, oil, soap, or blade lubricant: elastomers can swell, extract, soften, stain, or lose adhesion, and a food, medical, oxygen, coating, or bonded-part application may reject contamination invisible to the operator.

Orient the part by a datum, cavity mark, or fixture key. Trim the same direction from the same start feature every cycle. Random orientation produces random grain effects and hides cavity-specific defects.

Start where the waste proves itself

Begin at a free flash tab, vent spew, or approved start feature — never by plunging an open edge into the accepted surface. On a continuous fin, lift only enough waste to feed the V, loop, or skiving edge. If the start cannot be made without stabbing good rubber, the tool or fixture is wrong.

Make a moving shear, not a forceful chop

Rubber grips a stationary edge. Keep the tool moving:

V-trim: both flanks seated, notch leading, pull along the protrusion so it feeds continuously into the V. Do not lift the trailing flank to force the cut.

Loop: outside of ring lightly seated, flash entering the inside edge, wrist rolling only enough to keep the follower surface in contact.

Square point: blade low, clear waste line visible, several progressive slicing passes rather than one press-through cut.

Bevel mill blade: facet registered at the approved angle, exposure short, shaving stroke following the fixture. Do not flatten the bevel on the work or lever the blade sideways.

Pressure is the last variable to add. If the edge tears instead of shears, stop and inspect sharpness, material state, tool geometry, and support. More force on the wrong setup creates a faster reject.

Handle gates, vents, and functional witnesses by name

Parting-line flash: remove to the stated boundary.

Vent spew: remove only to the allowed witness; do not dig a crater at its root.

Gate/sprue/runner vestige: trim only by the gate-specific drawing or process instruction. A gate may have a maximum height, minimum land, orientation, or post-trim radius. Do not treat it as ordinary flash.

Overflow tab or tear strip: remove by its designed break/trim method; inspect the root for tearing into the part.

Sealing bead, lip, rib, molded texture, lettering, datum, insert cover, tear seam: functional until the drawing says otherwise. Never “clean it up” by eye.

When two categories touch, stop at the boundary and route to Quality. A perfect cut in the wrong feature is still a reject.

Keep waste and blade fragments accountable

Direct flash into a tray or vacuum system approved for the compound; do not brush it across accepted surfaces. If an edge chips or a blade fragment is unaccounted for:

stop the station;

quarantine every part back to the last verified intact-edge check;

search fixture, tray, machine boundary, clothing/PPE, and waste;

re-run setup approval before release.

A missing chip is foreign material until found, not a maintenance detail.

Inspect in the fixture and out of it

Perform the work instruction's in-process checks at the stated frequency and after any interruption or tool event. Use the method the feature needs:

low-angle light and magnification for residual flash, nicks, tears, chatter, and surface rub;

tactile check only where cleanliness rules allow and only with a defined method;

profile fixture, comparator, go/no-go gauge, caliper, or other instrument for controlled vestige or profile;

released part, not fixture-compressed part, for free-state dimensions;

leak, fit, bond, or functional test where the control plan requires it.

Do not measure soft rubber with uncontrolled jaw pressure and call the reading objective; the inspection method and conditioning state are part of the specification.

Close the lot with first/last-piece evidence

Retain or record the first accepted piece, the last piece, tool changes, edge checks, inspection results, rejects, rework, cavity/lot identity, and any deviation. Keep molding defects separate from trim defects:

flash still present can be a trim miss or excess mold flash;

a gouge, flat spot, undercut, or cut functional feature is a trim defect;

mismatch, underfill, void, inclusion, and tear originating at mold release remain molding defects even if discovered at trim.

That separation is how the press gets a mold/process signal instead of a vague “trim problem.”

Issue and account

Issue blades and knives by station, pattern, and count. Do not leave bare mill blades loose in drawers, pockets, benches, or waste. Keep a protected edge when transported. Record installation and removal of mounted blades. A controlled station knows whether it began and ended with one intact edge.

Maintain only to a released profile

Standard high-carbon flat or bevel blades can be honed on the existing facet and re-extended as the approved handle consumes length.

HSS takes a more capable abrasive and more care; its abrasion resistance also resists sharpening.

Powered grinding changes profile and temper quickly; use it only in an approved sharpening station with heat control and exact-model confirmation.

Do not “improve” a V angle, round a square point, flatten a bevel, or thin a blade because it feels slow. That creates an unapproved tool.

the blade or loop is chipped, cracked, permanently bent, deeply corroded, overheated/blued, or missing material;

the handle, ferrule, fastener, clamp, or set screw is loose or damaged;

the V or loop profile cannot be restored without changing its geometry;

the riding surface is scratched or burred enough to mark parts;

the edge no longer holds the approved result through the inspection interval;

a mounted blade can no longer achieve the approved exposure with full secure clamping;

Contamination control — the invisible acceptance surface

Rubber parts often enter sealing, fluid, food, medical, electrical, coating, bonding, or clean assembly systems after trim. The drawing and control plan decide what “clean” means. The trim station must therefore control:

cross-compound carryover: separate or clean fixtures and tools between incompatible compounds, colors, allergen/food-contact classes, and silicone/non-silicone work;

metal transfer: high-carbon steel can rust and transfer dark residue; inspect and dry tools, and do not oil an edge that touches a part unless the lubricant is explicitly approved;

abrasive and sharpening debris: sharpening happens away from open production parts; clean and reconcile the tool before return;

mold release and cleaner: use only the process-approved cleaner and contact time. “It evaporates” does not prove material compatibility;

foreign material: hair, lint, chips, glove fragments, loose labels, and old flash are defects when the part standard says they are. Parker's quality table lists foreign material as impermissible for its covered O-rings; the exact part drawing controls here, but the lesson is sound: contamination is not flash and a knife cannot fix it.

If a part will be bonded after trim, surface preparation belongs to the bonding procedure. Do not polish, solvent-wipe, abrade, or activate the bond land under a generic deflash instruction.

Buyer tests — choose from the guides alone

“Large molded boot, heavy continuous flash, long convex seam; my knuckles hit halfway through.”

Buy 66090. The single V captures the fin and the offset preserves flank contact through the long pull. The straight 66060 may be steadier on a broad flat section, but it does not solve the clearance problem.

“Broad flat rubber panel, straight flash line, bench fixture gives plenty of hand clearance.”

Buy 66060 if the V can straddle the flash and its full flank can ride sound rubber. Buy 66330 instead if adjacent features crowd the full-inch blade. Do not pay for offset merely because 66090 is the catalog-named deflasher; the work posture decides.

“Small irregular molding; the parting line snakes over domes and radii for every part, all shift.”

Qualify 95460 as the loop-pattern lead. Its contoured-production role is strongest, but receive and first-article it under the family-level evidence flag before the station depends on unconfirmed exact-model features.

“Flat occasional flash on an accessible face; I need one maintained bench knife, not a capture tool.”

The 60090 is the conditional answer, with a fixture and visible waste line. The moment the line passes a sealing lip, turns around a radius, or loses a safe surface reference, it stops being the answer.

“Filled rubber rolls a flat edge and wears it out.”

At an approved mounted-blade station, choose 62600: stiff bevel for edge backing, HSS for abrasion. If the compound is dense but not abrasive and the crew hones at the bench, 62750 is the economical Standard-steel bevel.

“The parts are actually injection-molded plastic with thin glassy flash.”

None of the rubber-guide recommendations is automatic. Route to the separate plastic job and first determine whether the flash should shear, score, or snap without chipping or stress-whitening the part.

What goes wrong — symptom, cause, recovery

Flash tears and leaves a ragged beard. Dull edge, rubber not at its released trim state, unsupported line, or too much pressure. Stop; check cure/cool condition, edge, support, and geometry. Do not “sand it smooth” unless sanding is a released process.

A crater appears where a vent spew was. The operator dug below the accepted surface or treated a vent root like a loose tab. Change to capture geometry, reduce pressure, define the allowed witness, and quarantine the part.

The V-trim gouges beside the seam. One flank lifted, the V did not fit the flash, or a functional feature kept the flanks from seating. Re-fixture or change tool; never compensate with a steeper angle.

The wide straight bridges a curve. Wrong flank width. Step from 66060 to 66330, to an approved curved/offset V pattern, or to the qualified loop — based on first article.

The loop leaves flat spots or rub marks. Too much seating pressure, damaged outer ring, wrong loop-to-part radius, or fixture distortion. Inspect the follower surface and qualify a different geometry.

The mill blade chatters. Too much exposure, loose clamp, wrong grind/thickness, inadequate support, or a stroke trying to make a long blade do detail work. Stop; do not steady it with the off-hand.

Part looks right in the fixture and wrong when released. The fixture deformed the part. Redesign the support and repeat first article in the free-state inspection condition.

The gate is now below the drawing. A controlled vestige was mistaken for flash. Reject or route to engineering disposition; no hand rework can add material back.

Dark streak appears on a light compound. Carbon-steel rust, oil, old compound, or fixture transfer. Stop and quarantine to the last clean check; clean under the approved method and fix tool storage.

Reject rate rises by cavity. That is probably a mold/process signal, not a faster-trimming opportunity. Preserve untrimmed evidence, segregate by cavity, and hand it to molding/process engineering.

Operator's wrist or elbow load rises during the shift. Edge has degraded, fixture or posture is wrong, or the tool demands too much force. Rotate only after correcting the cutting system; fatigue is an early process alarm, not a personal weakness.

Blade chips or disappears. Stop, quarantine back to the last intact-edge verification, find the fragment, replace the tool, inspect the fixture and parts, and repeat setup approval.

Exact false neighbors — jobs this guide does not absorb

Deflash molded plastic parts: separate material and failure behavior. Flexible does not mean rubber.

Remove a gate, sprue, or runner: gate-trim process, drawing-controlled vestige, often different cutter and fixture.

Trim tire vent spews / finish a retread after cure: same V-trim physics, but a tire-specific job with tread, shoulder, sidewall, lettering, balance, casing, and retread acceptance controls.

Pare a damaged tire casing: repair work with the 61350 K770 skiver, not finishing healthy molded output.

Cut gaskets from sheet stock: fabrication from flat sheet, not molded-part deflashing.

Trim an installed gasket flush: service/assembly work at a flange, not a controlled molding operation.

Skive a leather edge or splice a belt: similar slicing motion, different material, acceptance, and machine hazards.

Bond rubber or plastic sheet goods: surface preparation and chemistry, not excess-material removal.

Deburr metal: different edge, contamination, guarding, and particle hazards.

Trim a horse's hoof: the loop pattern's earlier trade, not an industrial rubber work instruction.

Repair the mold, reduce flash at source, or clear a stuck press: molding engineering and machine-service handoffs. A trim knife is not a license to enter the press.

History — vulcanization created the part, and the seam created the trim bench

Before vulcanization, natural rubber softened in heat, hardened in cold, and could not hold the stable molded forms modern industry expects. Charles Goodyear's U.S. Patent No. 3,633, dated June 15, 1844, described combining rubber with sulfur and heat so the material retained useful properties across temperature; the later reissue explicitly notes that the compound could be molded before heat converted it into vulcanized rubber ([U.S. A material that could keep a molded shape created an industry — and every split mold created a parting line.

Flash is therefore not a modern defect invented by injection molding. It is the physical record of material meeting the clearance between tool halves, vents, gates, and overflows. As molded goods multiplied, so did the ways to remove it: tear trim, finishing dies, grinding and buffing, cryogenic deflashing, automated spew cutters, and the hand bench.

The hand tools followed the geometry. A square-point knife brought the New England shoe bench's blunt-ended slicing edge into rubber work. Bevel mill blades put replaceable, plant-spec edges in station handles. V-trim knives moved the cutting edge into a notch so sound rubber could ride on both sides of the cut. The loop knife made the follower surface a closed ring and carried an older farrier's pattern into curved industrial parts; plastics trade reporting records that farrier-to-deflashing migration (Plastics Machinery & Manufacturing — “Knives for flash are easy to use”).

Hyde belongs to this history as a maker, not an inventor of the patterns. The honest story is not that Hyde invented deflashing. It is that a Massachusetts knife works founded to follow factory cutting problems still sells five different answers because no single edge geometry can follow every molded part.

Tools, sources, and graph

Exact Hyde product links

Every accepted PDP-to-job edge points to this one canonical guide; this guide points back only to the products whose role survives re-derivation.

External process and safety anchors

66090 catalog wording: “Trim large mold flush from plastic and rubber goods” is quoted verbatim. Hyde IBS must confirm whether “mold flush” is a wording error for molding flash/excess; do not silently rewrite the exact claim.

Do not transfer a competitor's dimensions.

95460 exact-model binding: exact-model listing supports high-carbon steel and 6.5-inch / 165 mm overall length. Loop diameter, cutting-edge length, inside grind, pick, PP/TPE handle, industries list, and powered sharpening are Hyde IBS family-level facts tied by matching overall length and single-family fit; confirm with Hyde IBS.

No source confirms the handle; no station may assume one.

Mill-blade jobs: no packet names a model-specific rubber-deflashing operation for 62600, 62750, or 62875. Their roles are authored from grind, steel, thickness, and the line queue, and require plant first-article approval.

Mill-blade gauge tags: 15/16 Gauge option labels do not map consistently to listed thickness. This guide relies on the decimal thicknesses and does not interpret the tags.

Cut-resistant PPE: no glove material or rating is universal across every rubber compound, cleaner, grip, and blade geometry. Employer hazard assessment and compatibility review select it.

Material/process limits: no generic “acceptable flash” dimension, sample frequency, conditioning time, cleaner, fixture pressure, or gate vestige limit is authored here. The released drawing, specification, work instruction, and control plan supply them.
