How to Coat Drywall Fastener Heads

Job: turn the visible screw and nail dimples in newly hung drywall into shallow, finished strips that disappear after the specified sanding, priming, and paint system.

Elapsed time: three compound passes plus the current product label's required condition between operations. This guide supplies no universal working time, set time, dry time, recoat window, thickness limit, sanding time, or prime time.

Difficulty: beginner-accessible only after the fastening is correct. Filling a sound dimple is simple; recognizing a proud, overdriven, broken-paper, or moving fastener before burying it is the work that protects the finish.

The exact Hyde tools linked to this job:

Its exact Hammer Head status is unresolved, so this guide never uses its handle as a striking tool.

Everything else: the joint compound authorized for the board/joint-treatment system and the specific project; clean mud pan or board; driver and installation tools required by the fastener system; raking work light; pencil; clean water and rags as the compound label permits; appropriate between-coat scraper or abrasive; final sanding system with suitable dust control; primer and finish system; stable access equipment for overhead work; protective equipment required by current labels and safety data sheets.

The decision before the compound: is the fastening ready to finish?

Coating is cosmetic. It cannot restore the holding value of a fastener, pull loose board tight, repair torn face paper, or make a nonconforming installation part of a tested assembly. Those documents decide fastener type, placement, count, spacing, penetration, edge distance, acceptable head condition, permitted correction, and required finish. This guide decides none of them.

Read every head with the blade and the wall

Hold a clean, straight knife edge flat across the fastener in more than one direction. Rake light across the board, then press the panel gently beside any suspicious head. Sort the condition before coating:

Correctly set, paper intact. The edge crosses without clicking or rocking; the head sits within a clean dimple; the face paper is continuous around it; the panel does not move. Do not deepen it merely because a larger crater looks easier to fill.

Proud. The knife clicks on metal, rocks over the head, or leaves daylight beneath an edge. Compound cannot turn a projection into a plane. Correct the fastener with the proper installation tool and method before coating, then re-check with the blade.

Overdriven with intact paper. The head is materially deeper than the normal surrounding dimples even though the paper appears continuous. Do not assume that “deeper” means “more secure,” and do not convert it into an acceptable installation by filling the crater.

Broken face paper. The head has cut or punched through the paper, or the paper around it is torn, loose, or crushed. The facing that distributes load is no longer intact at that point. Treat this as a fastening defect, not a deep fill.

Moving, spinning, or recurring. The panel shifts when pressed, the head moves, a screw spins without tightening, a nail lifts again, or a row shows repeated distress. Compound over movement becomes a cracked strip. Restore the fastening and substrate under the assembly requirements, or hand the wall back to the installer/designer of record. Cosmetic coating resumes only on a stable panel.

Screw and nail are different correction paths

A drywall nail may be set with the installation tool authorized for that nail and assembly.

Even a confirmed Hammer Head supplies a convenient striking surface, not permission to improvise an installation rule.

Compound selection — the label boundary

The correct material is not “whatever mud is open.” Select a compound that the board/joint-treatment system and project documents allow for fastener spotting in this assembly, then read its current label and technical data before mixing or loading.

approved substrates and whether the product is intended for fastener coats;

drying-type versus setting-type use and compatibility with the rest of the joint system;

mixing, remixing, thinning, water addition, and contamination limits;

maximum application depth and whether a deep corrected crater needs staged filling;

working, set, dry, recoat, sand, prime, and temperature/humidity conditions;

tool cleanup, ventilation, skin/eye/respiratory protection, storage, and disposal;

compatibility with the specified primer, finish level, and rated assembly.

Ready-mixed all-purpose, lightweight/topping, and setting-type compounds do not share one universal schedule or one universal role. Do not move a mixing ratio, dry-time promise, mesh/paper-tape rule, or coat-thickness limit from another product into this guide. Do not add water unless the current label permits it. Do not return wall scrapings, set crumbs, or partially hardened material to the clean compound.

The knife can report consistency but cannot certify it. Material that falls from the blade, tears instead of spreading, shrinks outside the label's expected use, or drags set crumbs through the coat needs a material/setup correction—not more pressure.

Choosing the hand set — three buyer tests

Buyer test 1: one repair panel or a few short rows

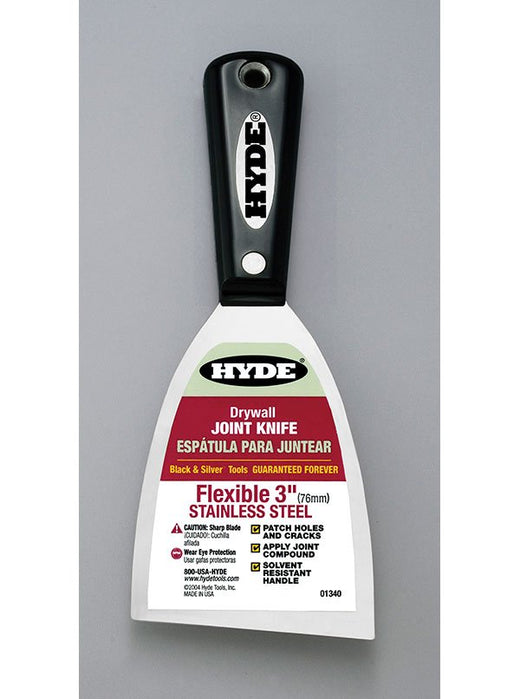

Choose a 3" standard-flex blade for the fill: 01340 for stainless/no rust ritual; 02355 for carbon plus a confirmed Hammer Head; or 06351 for the straight-ground Pro Project comfort-grip option. Add 02500 when 3-1/2" gives useful coverage without losing access. Finish with 06357 if the goal is the limberest 3" final wipe, or 06557 when the strip has room for a 4" final blend.

Buyer test 2: open walls with many rows

Choose 01840 for the efficient 6" joint-knife pass after the heads have been inspected and corrected. It carries more compound and spans more open field than the 3"–4" tools while retaining the in-line joint-knife feel. Keep a 3" blade for rows beside corners, jambs, boxes, narrow returns, and obstructions where a 6" edge cannot land flat.

Buyer test 3: final-pass defects are costing sanding time

Keep the standard-flex knife for the first fill; add 06357 or 06557 for the later, thin finishing pass. Their SuperFlexx™ grind is a finish advantage and a fill limitation: it feathers a shallow coat but can bow and skate when asked to pack a deep corrected crater. The tool sequence is backbone first, limber finish second.

Small-job putty/joint-knife bridge versus production taping knives

The queue's 3"–4" flexible-blade method lives at the putty-knife-to-joint-knife bridge: compact in-line tools with patch-kit control, but wide and flexible enough to coat fastener strips. It is the small-job alternative to setting up a wider taping knife or automatic nail spotter—ideal for a patch panel, closet, repair run, addition tie-in, or the rows wide equipment skips.

For room-scale production, a 6" joint knife such as 01840 or a wider taping-knife/automatic spotting system carries more material and reduces strokes on open board. That changes the delivery tool, not the quality gate: every head must still be inspected, corrected, filled, progressively coated, and accepted under the same assembly and finish requirements. A backed taping knife levels an open strip efficiently; the 3"–4" in-line joint knife remains the control tool around edges and obstructions.

Set up the wall and the tools

Confirm the installation inspection. Do not use compound to hide work that still needs fastening, rated-assembly, or pre-cover inspection. Resolve required signoffs before coating.

Rake the whole surface. Move a bright light close to the board and sight along it from two directions. Pencil-mark proud heads, broken paper, deep craters, movement, damaged board, and rows that a wide blade cannot reach.

Run the blade test. Cross every fastener row with a clean straight edge. A click, rock, or moving panel is a correction mark. Re-test after correction.

Inspect the finishing edges. A dried crumb, nick, rolled corner, or bent blade writes the same defect into every head. Keep correction/scraping tools away from the clean finish edges.

Separate clean and dirty material. The pan holds clean working compound. Another container receives dry nibs, correction debris, and blade scrapings.

Plan the route. Work one complete fastener row at a time so no head is skipped. Tight rows get the 3" blade; open runs may graduate to 3-1/2", 4", or 6" as the coat progresses. Width is earned by clear landing room, not by speed alone.

The complete three-pass fastener-strip method

Pass one — fill and wipe every sound dimple

Load a controlled amount. Take a small ribbon of compound onto the working portion of the standard-flex blade. Keep the blade ends light; heavy corners print parallel ridges.

Pack the dimple. At each head, press compound across the depression so material reaches the bottom instead of bridging an air pocket. Approach from a second direction where needed. A sound dimple pushes back against the blade; a moving or suddenly deep condition returns to diagnosis.

Cross-wipe clean. Rotate the stroke across the first pass and hold the blade at a firmer angle so its edge rides the intact paper and removes excess while leaving the depression full. The sequence is fill, then wipe—not dab and walk away. Do not scrape the dimple empty.

Advance as a row. Move head to head in a consistent rhythm. Where the layout and access permit, join the fills into a narrow, controlled strip; where they do not, keep the fills discrete.

Read the wet result. Each head should be filled without a proud mound, pinhole, exposed metal, dry edge, or heavy shoulder. If the blade clicks now, stop and correct the missed proud fastener rather than burying it.

Wait for the label-defined condition. Drying compounds and setting compounds signal readiness differently. Color, clock time, or surface crust alone is not universal proof. The current material instructions determine when scraping, recoating, sanding, or priming may begin.

Between passes — remove defects, not the coat

Slice off nibs and lap ridges. When the material permits, use a clean dry blade at low force to remove isolated high spots. Do not grind the whole first pass with abrasive merely to make it look finished.

Re-check the heads. Shrink dishes, pinholes, missed metal, a click under the blade, or a crack around one dimple each require a decision. Refill a sound shrink dish; correct a proud or moving fastener; do not let the next wider coat hide the diagnosis.

Clean the wall and edge. Remove loose dust and crumbs by the method allowed for the compound. One hardened speck on the blade draws a track through the entire second strip.

Pass two — build the strip slightly wider

Choose the next width by access. A 3" knife can make all three passes on constrained work. Where room allows, move from 3" to 02500's 3-1/2" or 06557's 4", or use 01840's 6" for efficient open-field production. The second tool must be able to land its corners on sound board without riding trim, a corner, or a neighboring joint.

Load the center, not the corners. Place a modest ribbon along the middle of the blade. A fastener strip needs controlled build over the heads and a taper at the edges; loaded corners create rails.

Pull a continuous second coat. Begin before the first filled head and carry the blade through the row in a steady pass, reloading as needed. Use enough pressure for the blade to bridge from intact paper through the fastener field, leaving a shallow graduated arc rather than a chain of proud buttons.

Feather both edges. Bias pressure toward one outer corner on a light return stroke, then the other. Keep the blade moving while pressure falls away. Stopping and lifting the whole edge stamps a ridge.

Do not excavate the centers. Repeated wet passes can pull compound back out of the dimples. Correct a visible edge once, then leave the coat alone until it reaches the label-defined next condition.

Inspect across and along the row. Rake light from both directions. A reversing shadow at one head signals a local high or low; two continuous dark lines signal heavy strip edges. Correct the wet coat only while the material instructions and handling condition allow it.

Pass three — the thin finishing coat

Make the third pass wider and thinner, not deeper. Its job is to erase the second coat's shoulders and tool marks. It is not permission to add another heavy mound over every head.

Use the finish blade deliberately. On small fields, 06357 supplies the limber 3" wipe; 06557 carries that finishing behavior across 4". On a straightforward stainless production row, 01840 remains the wider standard-flex workhorse. Use the blade that can land flat in the available geometry.

Start inside the previous coat and finish beyond it. Draw the compound along the row with the blade low enough to spread, then make light edge passes that end on untouched board. Roll off one corner while moving so the final film reaches zero without a stop mark.

Under severe side light, a compliant system may require broader or different finishing work than this bounded fastener-strip method. Route that requirement to the project specification and whole-surface finishing plan.

Let the material reach its label-defined sanding/prime condition. Do not use a hard surface skin as proof that the deeper fill is ready.

Dry inspection, sanding, and primer handoffs

Decide add versus subtract under raking light

Bridge the strip with a clean straight edge. Check both across and along the row.

A local hollow or pinhole needs a controlled addition.

A proud dry ridge or nib needs subtraction.

A sound center with a visible shoulder needs more feather width, not more center depth.

A crack, metallic click, or moving center returns to fastening diagnosis.

Rake light from both directions. Light from one side can hide a shoulder that the reverse direction exposes. Pencil defects; never use ink that may bleed through later coatings.

Sand only what the knife could not leave

Use the abrasive system required by the compound and finish specification. The job is to remove ridges and melt strip edges, not to hollow the dimples or grind through the paper. Keep a flat backing over the plane where flatness matters and use a conforming abrasive only where the geometry calls for it.

Stop at face paper or exposed head. Fuzzed paper, scratched metal, or a re-opened dimple means the abrasive crossed the finish boundary. Stop, correct the damage under the material system, and recoat; harder sanding is not a repair.

Control and remove dust. Use capture, ventilation, protective equipment, and cleanup that the compound/SDS and site plan require. Dust left on the board is an adhesion layer between primer and wall.

Prime the specified surface

Prime only after the finished wall meets the required condition. New drywall paper and dried compound absorb coatings differently. The specified drywall primer/sealer or coating system unifies porosity; paint alone can leave every strip visible as a dull or glossy flash.

Treat primer as the final geometry inspector. Once paper and compound are one color, rake the wall again. Primer reveals pinholes, scratches, shoulders, and sanding tracks that mixed substrate colors concealed. Correct them before finish paint under the primer/compound manufacturer's rework instructions.

Hand off the whole plane. On new work, the finish system commonly concerns the entire wall or ceiling plane, not spot primer around isolated rows. The project coating specification decides the extent, product, application, and recoat—not this guide.

Load-bearing safety — only where this job changes

Hidden services and rated assemblies: correcting a fastener can put a driver or nail-setting force into a wall that contains wiring, plumbing, protection plates, backing, membranes, or assembly-specific framing. Do not add, relocate, replace, or deepen fasteners blindly. Follow the approved installation documents and site controls; escalate uncertain rated or concealed conditions to the responsible installer, supervisor, or designer.

Overhead work: ceiling rows require stable access and controlled tools. Do not overreach from a ladder while holding a pan, driver, and knife. Set the access method for the reach and site rules before loading compound.

Dust: sanding dried joint compound creates fine airborne dust. Use the product safety data, exposure controls, capture, respiratory/eye protection, and cleanup required for the material and site.

Wet materials: compounds, primers, and cleaning products carry their own eye, skin, ventilation, mixing, storage, and disposal requirements. This guide adds none.

This is a new-drywall guide. Lead-paint and legacy-texture warnings are not pasted into it as boilerplate; if the work is actually a renovation disturbing older painted or textured materials, route to the applicable renovation hazard assessment before scraping or sanding.

What goes wrong — and the exact fix

The knife clicks after the first coat. A proud head was coated instead of corrected.

One crater is much deeper than the others. Possible overdrive or broken paper. Do not simply fill more deeply. Inspect the facing and resolve the fastening under the board/assembly instructions first.

A crack circles one head. The fastener or board may be moving, the paper may be broken, or a heavy coat may have shrunk. Press-test and blade-test the location. Correct movement/fastening before cosmetic rework.

The first pass dries as a hollow. The material shrank, the dimple was bridged, or the product was used outside its depth/dry conditions. If the fastening is sound, refill within label limits; do not sand the wall down to the hollow.

Every head remains a proud button. The first pass was dabbed on rather than fill-and-wiped, or later coats added center depth instead of edge width.

Two parallel ridges follow the row. The blade corners were overloaded, dirty, or held too flat. Clean and inspect the edge, keep compound centered, float the corners, and feather each side separately.

The strip has a ridge at every restart. Motion stopped before pressure faded. While workable, make one longer light pass through the mark and roll off a corner while moving. Dry marks are removed or recoated only after the material reaches its specified condition.

The finish blade folds and skates over a deep crater. A SuperFlexx knife was asked to pack instead of finish. Return to a standard-flex 01340, 02355, 02500, 06351, or other system-appropriate fill tool; use the SuperFlexx only after the crater is sound and shallow.

Rust or gray streaks appear in white compound. A carbon 02355, 02500, or 06351 was left wet or contaminated. Remove the contamination, correct the coat after it reaches the proper condition, and adopt the carbon wash-and-dry ritual—or choose stainless 01340, 01840, 06357, or 06557.

The 6" blade skips heads beside trim or a corner. Its ends cannot land in one plane. Drop to a 3" tool; production width does not outrank access geometry.

The strip is flat but visible after paint. If raking light shows no geometry change, the likely problem is porosity, texture, sheen, or coating transfer rather than compound depth. Follow the specified primer and paint system; do not keep piling mud onto a flat wall.

The entire row reappears seasonally. The panel or framing is moving. A cosmetic recoat is not a fastening or structural cure. Return the condition to the responsible assembly/framing diagnosis.

Sanding exposes paper or metal. Stop. Repair the damaged finish under the compound/primer system and restore the specified coat; coarser or harder sanding only enlarges the defect.

Limitations and handoffs

This guide does not:

select, space, place, drive, inspect, or certify drywall fasteners;

authorize a correction in a tested fire, sound, moisture, impact, shaft, ceiling, or other rated assembly;

repair loose board, broken framing, damaged core, widespread torn paper, active moisture, or structural movement;

tape flat joints, butt joints, inside corners, corner bead, or patch perimeters;

set a project finish level, critical-light acceptance standard, texture, primer, or paint specification;

replace whole-wall skim coating or a room-scale automatic spotting workflow;

supply universal compound ratios, coat thicknesses, working times, drying times, sanding grits, or recoat schedules.

A fastener still holding new board is not an empty nail hole.

The history footnote — why a row of dimples became a finishing trade

The fastener strip is younger than the knife shape used to coat it. Flexible putty knives descend from the glazier's bench, where a narrow blade applied and tooled glazing putty; the joint knife is that in-line pattern widened for gypsum compound.

The wall changed first. Augustine Sackett patented an early paper-faced gypsum board in 1894 (National Inventors Hall of Fame — Augustine Sackett). USG records the development of modern wallboard in 1916 and the Sheetrock® name in 1917 (USG — company history). Once a wall arrived as fastened sheets rather than wet plaster worked continuously over lath, every installed head became a small finishing event. The board could be structurally hung and still visibly read as a grid until joint compound turned the dimples and seams into graduated arcs.

That geometry remains visible in industry finish guidance. The Gypsum Association describes joint and fastener coats as graduated arcs and warns that critical lighting magnifies surface irregularities (Gypsum Association — GA-214). Hand finishers answered with the same progression used here: fill the depression, carry the next coat past it, and make the last transition shallow enough that light has no abrupt shoulder to find.

Production eventually mechanized the repetition. Ames traces its first automatic nail spotters to 1951, part of the postwar automatic-taping-tool system (Ames — company history). The hand method survived because repairs, closets, corners, narrow returns, obstructions, and inspection corrections still end with a small flexible blade.

Product identity and manufacturer claims

Method, safety, and history

Gypsum Association — GA-214: graduated-arc and critical-light context; not a substitute for the current project specification or assembly listing.

National Inventors Hall of Fame — Augustine Sackett, USG — company history, and Ames — company history: board and automatic-tool history.

Never promise or use a striking butt on 06357 without exact-model primary verification.

GA-214 supplies context, not project acceptance.

It is not needed to execute this guide and must not become a cross-series measurement.

Do not attribute the method to Hyde, Ames, or a named finisher.

This guide states only exact-model, manufacturer-described function and makes no patent claim.

Product and job graph handoff

Primary product → application edges: 01340 · 01840 · 02355 · 02500 · 06351 · 06357 · 06557 → coat-drywall-fastener-heads.

Application → product roles:

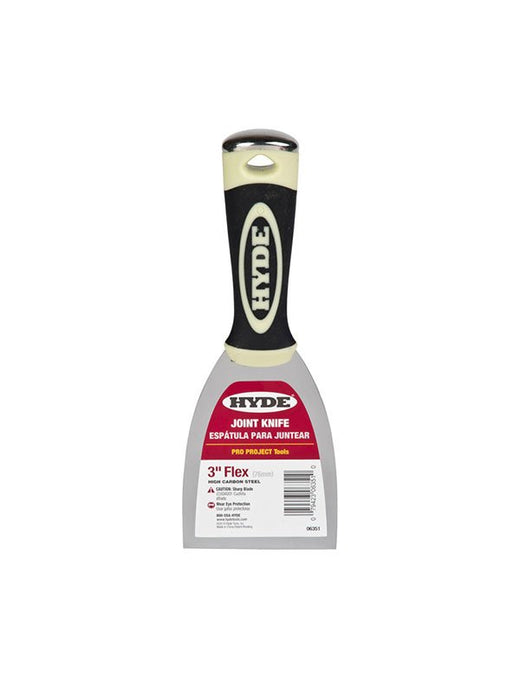

tight-row standard-flex fill: 01340 / 02355 / 06351;

small-job width step: 02500;

open-field production joint knife: 01840;

limber final wipe: 06357;

4" coat/blend plus confirmed nail-setting butt: 06557;

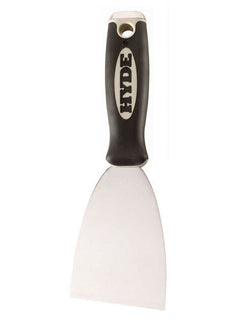

confirmed 3" nail-setting alternative: 02355.

Required job handoffs: reset-popped-drywall-nails · fill-nail-and-screw-holes-in-drywall · tape-and-finish-drywall-joints · sand-drywall-joints-flat · build-a-patch-and-paint-finish-kit · whole-wall skim/finish and project-specific rated-assembly inspection where applicable.

Every linked PDP should list this guide under its applications, and this guide should resolve back to the seven exact model keys above. The graph runs both directions. No bundle SKU, fastener product, compound product, assembly rating, or production machine is implied.
