How to Verify and Fix Mortar Coverage

This union is finite and receives no substitute, sibling, or convenience padding. It is a set of product leads, not a universal notch ladder. The exact project standard, tile instructions, setting-system documents, and current setting-material TDS control the required coverage or transfer target, inspection method, check frequency, admitted notch, back treatment, correction method, and open-time boundary.

Job: verify the hidden transfer of the exact mortar beneath the exact tile by the inspection method required for that installation, then accept, correct, or reject the process against the criterion written into the project’s controlling documents.

Time: no universal interval, sample count, first-tile rule, square-foot interval, or open-time value is supplied here. The exact standard, specification, quality plan, tile instructions, and setting-material TDS determine when the first check occurs, how often it repeats, what changes trigger another check, and how long spread mortar remains eligible to receive tile.

The installer must preserve evidence, distinguish tool problems from material or timing problems, and stop rather than improvise.

Its ceramic-tile duty does not prove that this V-notch is admitted for the exact mortar, tile, exposure, or target.

Only an exact tile-setting system can make this model a mortar-coverage candidate.

The printed string is a candidate only when the selected system admits it; this guide does not assign the remaining figures to depth versus spacing.

No official Hyde catalog row, exact-model page, accepted product name, duty, build, format, or notch dimension was found. The store title describes a 2-sided Value Series spreader and a 1/2" × 1/2" × 1/2" square-notch, but all of that remains store-title-only.

The control sheet: ten answers before mortar is spread

Write each answer from a named, current source. “Industry standard,” “full coverage,” “large tile,” “usual notch,” or “what we always do” is not an answer.

Assembly identity: project area, floor or wall, substrate or backer, membrane or other controlled layer, tile manufacturer/series/item, size and back condition, exposure, and service.

Setting material: manufacturer, exact product, lot, TDS and SDS revision, water/additive requirements, mixing and conditioning method, usable-state limits, and all tile/substrate/exposure restrictions.

Record precedence or a written conflict resolution.

Acceptance criterion: the exact required coverage or transfer target and every accompanying condition, such as required support at edges/corners or limits on void size and concentration. Copy it exactly; do not replace it with a generic percentage.

Inspection method: how the tile is selected, lifted, handled, observed, measured or estimated, photographed, and returned or discarded. Define what evidence must be retained.

This field may not be filled with a frequency invented by this guide.

Meter: the exact admitted notch/profile and tool condition, including whether one of the registered Hyde models matches it. The product duty and physical fit are supporting facts, not system admission.

Back treatment and embedding: whether keying-in, back-buttering or another tile-back treatment is required, allowed, or forbidden; ridge direction or other spread pattern; embedding motion; permitted pressure or aids; and adjustment limits.

Clock and conditions: pot life, open time, skinning or transfer check, adjustment window, temperature, humidity, airflow, substrate condition, and any product-specific condition that changes those limits.

Correction and release: authorized remedies for a failed check, conditions requiring removal or redesign, cleanup method, cure/protection rules, and the person who accepts the corrected process.

Do not borrow the 80/95 figures repeated in older line notes, assume a square or V profile from tile appearance, or use a tool recommendation to manufacture an installation standard.

Build the inspection plan before the first lift

Reconcile the system documents

Read the project specification, named standard or method, tile instructions, mortar TDS/SDS, substrate/backer instructions, membrane instructions, and quality plan together. A mortar advertised for tile, a trowel advertised for ceramic tile, and a tile advertised for the intended room do not automatically form an approved system.

If two controlling documents give different targets, methods, notch recommendations, back-treatment directions, or timing rules, do not average them or choose the easier one.

Translate the exact inspection frequency into locations or events the crew can follow. Mark required checks, witness points, and system-defined triggers. Where the quality plan requires a new check after a change in tile, mortar, substrate, environment, installer, tool, or observed behavior, map that trigger exactly.

Do not add a pseudo-precise percentage unless the controlling method explains how it is determined.

Choose and inspect only an admitted tool

Start with the system’s exact meter, then ask whether a member of the numeric union matches it. Inspect the complete blade, flat face, notched edge, handle or spine, and model identity. Dried material, corrosion that affects control, bent steel, rounded or broken teeth, altered notches, a loose handle, or an unreadable identity can make the trial incomparable to the specified meter.

Clean a serviceable tool by the permitted method. Quarantine a damaged or altered one. Do not file, bend, or grind a notch and continue calling it the printed geometry. Do not move to an unregistered model within this guide.

Prepare one controlled trial

Accept the surfaces and material

Inspect the substrate and tile back under their exact documents. Record required surface condition, preparation, cleanliness, flatness or other geometry, moisture, temperature, membrane state, tile-back residue or release material, and any required treatment. This guide creates no tolerance and names no universal cleaner, primer, wetting step, grinding method, or repair product.

Prepare the exact mortar to its current TDS: proportions, order, water or named additive, equipment, speed, duration, rest, remix, temperature, and usable condition. Add nothing by habit. If the product contains Portland cement, follow its SDS for skin and eye controls; wet cement can cause caustic burns. If the chemistry differs, follow that exact SDS rather than importing cement assumptions.

Spread a deliberately bounded test

Select a representative location that the inspection plan allows and from which the tile can be lifted without damaging a controlled assembly. Spread only the area the exact product and actual conditions allow to remain eligible through placement and inspection.

Use the flat side, notched side, working angle, ridge direction or other pattern, and bed limits required or permitted by the selected system. Where the admitted method calls for straight parallel ridges and movement across them, execute that method consistently; do not turn it into a universal geometry rule for every mortar.

Keep movement spaces, drains, transitions, penetrations, and other reserved details clear. A coverage trial is not permission to bridge a joint or bury an unresolved assembly condition.

Place the tile inside the controlling clock

Place and embed the tile with the admitted motion, pressure, beating aid, or leveling device. Apply the exact back treatment before placement only when the system requires or permits it. “Back-butter every large tile” and “never back-butter” are both universal rules this guide refuses; the exact system controls.

Track the product’s open-time and condition requirements using the method its TDS specifies. A clock value printed for particular laboratory conditions is not automatically the field allowance. If the instructions require a transfer, skin, tack, or other condition check, perform it.

Lift and preserve the evidence

Lift the selected tile at the exact point and by the method the inspection plan requires. Avoid scraping, rocking, or levering in a way that smears the bed and destroys the evidence. Support the tile and protect adjacent work. If lifting could damage a membrane, backer, heating system, or other controlled layer, the inspection method must resolve that risk before spreading begins.

Observe both the substrate side and tile back. Compare the observation with the exact acceptance rule. The presence of mortar on both faces, the absence of a hollow sound, or a visually flat tile is not a substitute for that comparison.

Classify the result:

CORRECT AND RETEST: an authorized, identifiable process cause can be corrected while preserving the qualified system.

REJECT/HOLD: the criterion is not met, the cause is unresolved, the correction would leave the admitted system, the evidence is destroyed, or a controlling conflict remains.

Correct without inventing a new system

Diagnose the failed check

Remove failed test material by the exact approved cleanup method while that method remains available. Preserve photographs, notes, tile, and material samples when the quality plan requires them. Review the potential causes against recorded evidence:

wrong, damaged, dirty, altered, or inconsistently held meter;

substrate preparation or condition outside the system requirement;

tile-back condition outside its instruction;

mortar proportioning, mixing, conditioning, age, or field condition;

spread continuity, angle, pattern, or thickness inconsistent with the admitted method;

placement or embedding motion inconsistent with the method;

material placed outside the permitted open-time or transfer condition;

omitted, excessive, or forbidden back treatment;

changed environment, batch, tile, installer, or equipment;

a notch/system combination that cannot achieve the exact criterion in the observed assembly.

That list is diagnostic, not an ordered repair ladder.

Authorize one correction and repeat the controlled trial

Record the identified cause, the source authorizing the correction, and exactly what changes. Repeat the trial under the same evidence discipline. A change of notch, back treatment, mixing process, substrate repair, mortar, tile, or assembly may require a new manufacturer recommendation, project approval, submittal, or mockup rather than a quick field retry.

If a registered Hyde tool cannot meet the criterion within the exact admitted system, reject that tool for this installation. Row membership is not permission to keep changing the job until the tool appears to work.

Continue at the proved process and required frequency

After a passing test, set only with the documented process and within the controlling conditions. Repeat checks exactly at the written frequency and events.

Stop the field when a required check is missed, a trigger occurs without a check, recorded conditions leave the admitted range, the process changes, or a sample fails. Segregate the potentially affected area from accepted work.

What goes wrong—and the controlled response

The crew quotes “80% dry / 95% wet” but cannot name the controlling edition, method, or project requirement. Stop and bind the exact criterion. The older line packet flags those figures as secondary-summary material, and this guide does not promote them to a universal rule.

The system specifies a notch, but the installer chooses by tile size or the tool already in the truck. Reject the setup. Match the exact meter and verify that the named Hyde model actually carries it.

Its model edge remains in the graph, but its identity, format, build, notch, and duty are not established by official Hyde evidence.

The lifted tile was scraped sideways and the pattern is unreadable. Mark the sample invalid, remove the test material as authorized, and repeat with the approved lifting method. Do not grade destroyed evidence.

Bare areas or uncollapsed ridges appear. Hold the affected process. Diagnose tool, surface, material, spread, timing, back-treatment, and embedding facts against the exact system.

Mortar is pushed into joints or the tile cannot maintain plane. Stop and inspect. Excess material can reflect meter, angle, preparation, placement, or assembly issues; it does not prove one universal cause. Clean reserved spaces while the TDS permits.

The ridge surface changed before tile placement. Apply the product’s own transfer/open-time rule. If it is outside the admitted condition, remove and replace by the approved method; do not revive it by folklore.

A passing first check is followed by a changed batch, tile back, substrate, temperature, installer, or tool. Follow the quality plan’s change-trigger rule.

A failed required check is discovered after surrounding tile has been placed. Mark and protect the potentially affected area, preserve records, and obtain the project’s investigation/removal plan. Do not use sound, surface appearance, or one later passing tile to waive the missed evidence.

A correction would require a different mortar, assembly, notch, or back treatment. Treat it as a system change, not a technique tweak. Secure the required submittal, manufacturer instruction, mockup, or project approval before retrying.

Cleanup, tool control, and closeout

Remove mortar from lifted tile, substrate, tile faces, joints, movement spaces, tools, containers, and adjacent finishes only by the methods and within the timing allowed by the exact TDS/SDS and component instructions. Do not transfer water, acid, solvent, mechanical removal, or disposal advice from another chemistry.

Clean the admitted Hyde tool before residue changes its working edge. Dry carbon steel where required, inspect the full blade and notch pattern, and protect the edge in storage. Quarantine a trowel that bent, loosened, corroded, chipped, rounded, or otherwise changed during the work; the passing trial does not qualify a later-damaged meter.

Contain unused mortar, solids, slurry, wash water, packaging, and removed test material under the SDS, site plan, and local disposal rules. Do not discharge an unapproved chemistry or cement solids to a drain or onto the site.

Coverage is hidden after installation; the record is the durable proof that it was checked rather than assumed.

The history footnote—why the lift matters

The notched edge made adhesive placement a repeatable mechanical meter, but its printed geometry never guaranteed the hidden result. The lift-and-check exposes that bed before the process covers a room.

What coverage percentage should I use? The exact percentage or other transfer criterion named by the controlling project standard and current installation-system documents. This guide supplies none. Record the source, edition/revision, edge/corner conditions, and method before work.

How often should I lift tile? At the exact frequency and events required by the project quality plan, named standard/method, and manufacturer instructions. There is no universal “first tile plus every X square feet” rule here.

Which notch should I start with? The notch admitted by the exact tile-setting system. The five row members are product leads, not a generic progression from small to large. Hyde’s duty wording does not replace mortar-TDS authorization.

Should I back-butter? Only when the exact system requires or permits it for this tile and assembly. Write the treatment and acceptance method on the control sheet. Do not add or omit it as a universal correction.

Can I fix low transfer by changing the trowel angle? Only if the admitted method identifies angle as the cause and permits that correction. Preserve the failed evidence, correct one authorized cause, and retest.

What if the mortar is still wet but has exceeded its stated open time or failed its transfer check? Follow the exact TDS. Wet appearance alone does not restore eligibility.

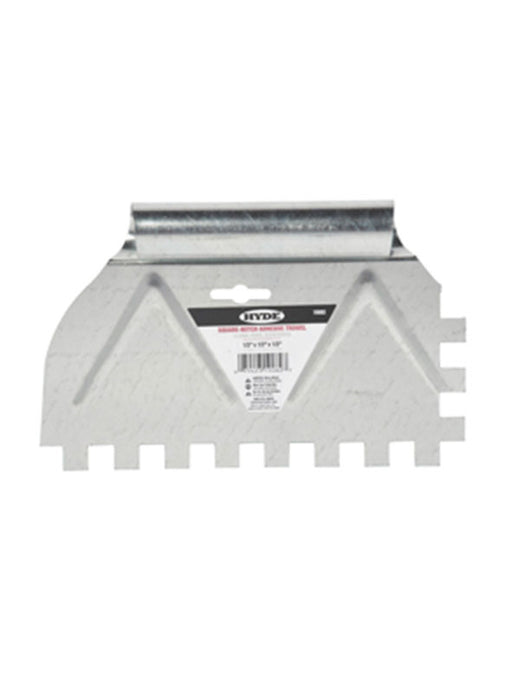

Can I use 19082 if I measure the tool myself? Not through this guide. A field measurement does not resolve the missing official identity, duty, build, format, or accepted product record.

Does a passing test approve the whole installation? No. It proves one recorded sample under recorded conditions. Continue the proved process, perform every required repeat check, honor change triggers, and release the work only through the project’s acceptance process.

Technique and safety context: Ceramic Tile Education Foundation — correctly troweling mortar supports the general value of keying-in where applicable, straight directional ridges, embedding across them, and lifting to inspect; it does not establish the acceptance criterion, sampling frequency, product compatibility, notch, back treatment, correction, or open time for an unidentified system. OSHA — Preventing Skin Problems from Working with Portland Cement supports the conditional wet-cement warning. Exact project and manufacturer documents remain controlling.

No other product is admitted or implied.

No exact tile, mortar, substrate, membrane, assembly, exposure, project standard/method, coverage or transfer criterion, edge/corner rule, inspection method, check frequency, notch authorization, back treatment, correction sequence, open time, cure, or release condition is bound to this generic guide.

The line document’s 80%/95% statements are flagged as sourced through CTEF/CTASC summaries pending direct citation of the controlling TCNA Handbook edition. This guide does not restate them as a customer-facing or universal requirement.

Hyde’s accepted notch strings are quoted exactly.

19082 conflict preserved: no official Hyde catalog row or live exact-model page was found; “2-sided,” “Value Series,” and 1/2" × 1/2" × 1/2" square-notch are store-title-only, with no accepted duty or build.

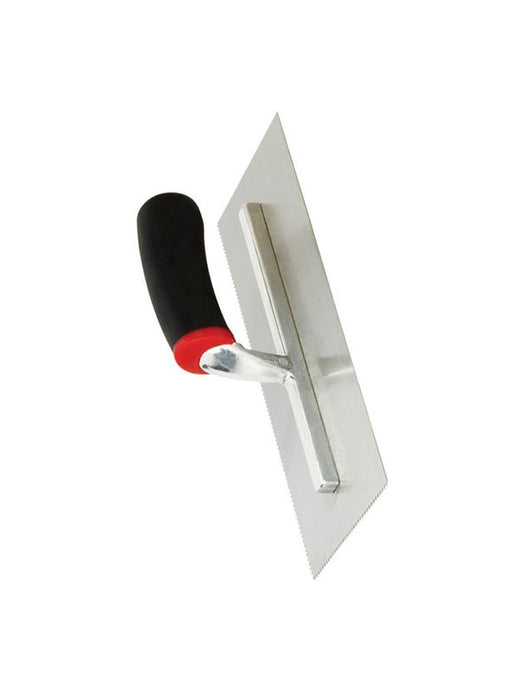

The recurring 19062 phrase “vinyl and vinyl materials” is quoted only as Hyde prints it and is not interpreted into mortar duty.

CTEF supplies technique context, not product admission, a project acceptance rule, or a warranty.

No inventor is identified for the notched-trowel pattern. No Hyde invention claim is made.

Price, inventory, shipping, and availability are runtime-only and are not stated here.
