How to Trim Harness and Saddlery Leather — Complete Shop and Field Guide

Evidence and approval boundary: Hyde's accepted exact-model evidence establishes the two knife identities and dimensions below. The workflow is authored harness- and leather-bench practice, not a Hyde operating specification or an approval of any tack component.

The job, stated narrowly

This job uses a maintained square-point knife and a thin skiver to make controlled cuts in already accepted harness or saddlery leather:

cut or square an edge-started blank to an approved pattern;

trim an approved replacement strap, billet, keeper, patch, or other component to its registered outline;

true a proud edge without cutting into the required body;

prepare a sound piece for later operations performed with separately selected tools and processes.

The result of this guide is a cut or locally skived leather piece awaiting the next controlled operation and final acceptance. It is not a finished saddle, bridle, halter, rein, girth, cinch, stirrup leather, trace, tug, breeching strap, billet, rigging component, safety strap, restraint, or load path.

Harness and saddlery work can carry a rider, control an animal, transmit draft load, secure equipment, or restrain a moving mass. A neat edge can conceal weak leather, a bad splice, damaged fibers, misplaced holes, incompatible hardware, or an under-sectioned part. Appearance is not proof of strength. The knives shape accepted material; they do not certify it.

Exact-union division of labor

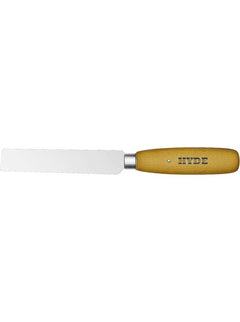

Hyde 50450 — cut, square, and trim

In this row it is the through-cutting and trimming member:

edge-started straight cuts;

progressive cuts through firm approved stock;

squaring strap and component ends;

trimming a sound edge to an approved outline;

shaving an accessible proud edge while preserving the required section.

The square end is the row's puncture-refusing geometry: it does not supply an interior-start point. If the blade deflects, binds, or needs unsafe force on the actual leather, this exact union has not proved the cut.

Hyde 55170 — local edge thinning

In this row it is the local skiving member:

shave an approved flesh-side edge into a controlled transition;

reduce an approved fold or overlap field;

relieve bulk in an accessible, fully supported area;

blend a short approved transition without breaching the grain face.

Skiving is thinning, not severing. The .042-inch blade is the thin leather skiver in Hyde's line, but Hyde supplies no residual-thickness or load-bearing approval for it. It is not the 55190 sole skiver, a splitting machine, a channeling tool, or a substitute for a designed joint.

They are alternatives by operation, not a mandatory two-knife kit

Use only the member needed for the approved operation. The 50450 may complete a square trimming job without the 55170. The 55170 may complete an approved local taper on a piece whose outline is already correct. When both are used, finish and inspect the cutting stage before opening the skiving stage. Do not leave two naked edges in the active work zone.

Exact-union stop

Neither knife is authorized merely because the row links it. Refuse the setup when:

the required cut begins inside a panel and no separately approved method exists;

the part cannot be continuously supported with every body part outside the path;

the material folds, stretches, delaminates, chips, tears, or gathers under a keen edge;

the required geometry depends on a numeric specification that has not been supplied;

the work requires whole-width calibration, a stitch channel, hole, slot, edge radius, crease, groove, burnish, split, or hardware operation;

the component's structural status or material identity is unresolved;

the job needs force, speed, repeatability, or guarding better supplied by a die, splitter, guarded skiver, or another qualified process.

The load-critical gate comes before layout

3.1 Name the component and its service

Record the component, assembly, side, orientation, maker if known, and intended service before removing anything. “Leather strap” is not enough. A decorative keeper, a rein splice, a stirrup leather, a harness trace, and a rigging billet can look similar on a bench while carrying very different consequences.

Classify the work conservatively:

non-load decorative or protective work;

fit- or control-related work;

rider-, animal-, vehicle-, restraint-, or fall-consequence work;

Unknown enters the refusal branch. This guide does not let the operator downgrade a component because the intended cut looks small.

approved original pattern, drawing, master sample, or maker specification;

leather identity and supplier guidance;

component orientation, finished dimensions, and full-thickness keep-out areas;

required hole, stitch, fold, overlap, hardware, edge-finish, and mating-part relationships;

required residual section after any skive;

inspection or proof procedure that follows fabrication.

Wear is evidence of service, not a pattern dimension. If the original maker prohibits repair or requires replacement, stop. A knife guide cannot override that decision.

3.3 Refuse material substitution

Do not infer suitability from color, nominal thickness, tannage label, stiffness in the hand, or resemblance to the removed part. This guide does not approve:

a species, hide zone, grade, tannage, temper, weight, or thickness;

belly, shoulder, back, butt, split, bonded, laminated, coated, patent, suede, or synthetic material for a named load;

doubling, lining, reinforcement, cement, thread, rivet, buckle, ring, snap, screw, or other hardware;

a reclaimed or previously loaded part;

a conversion between harness, tack, upholstery, garment, belting, and sole stock.

A successful knife cut proves cutability only.

3.4 Reject or quarantine suspect leather before cutting

Inspect both faces, every edge, and the regions around holes, folds, hardware, stitches, and prior repairs. Quarantine the piece when you find or cannot rule out:

cracks, checking, grain separation, delamination, powdering, rot, mold, heat damage, or brittleness;

cuts, nicks, deep scoring, rodent damage, pulled stitches, elongated holes, torn slots, or a split running from hardware;

hard glaze over weak fibers, an unexplained soft zone, permanent stretch, necking, or distortion;

corrosion products or sharp wear at buckles, rings, rivets, screws, hooks, clips, trees, bars, or other hardware;

oil, wax, dressing, sweat, salts, dirt, adhesive, dye, finish, cleaner, or unknown chemistry that can hide damage or compromise the next operation;

a previous skive, splice, patch, hole, or edge reduction whose remaining section cannot be established;

a mismatch between the piece and the approved pattern, mate, side, or service.

Cleaning, conditioning, burnishing, cementing, stitching, or trimming cannot restore missing structural fibers. Photograph and mark the defect if traceability matters.

3.5 No structural repair by “trimming until sound”

Never chase a crack, elongated hole, torn stitch line, worn buckle fold, or cut edge inward until the surface looks clean. That changes geometry and remaining section without proving the part.

Read and condition the accepted leather

Identify both faces and the usable field

The grain side is the tighter outer face, natural or finished. The flesh side is the underside or split face. Coated, corrected, laminated, bonded, split, suede, and heavily finished materials can obscure that distinction.

sound field and excluded field;

least-stretch and more-stretch directions as observed on representative scrap;

visible grain, texture, sheen, embossing, color, and paired-part direction;

hide-zone changes and local thickness variation;

the path of the finished load relative to the proposed cut;

every fold, hole, slot, stitch line, hardware bearing point, edge, and transition.

Consistent visual orientation is not structural proof, but inconsistent orientation can still fail a matched set. Place paired components together before cutting either one.

Moisture, dressing, and heat are controlled variables

Do not add water, oil, dressing, soap, wax, solvent, heat, steam, or adhesive to make resistant leather easier to cut.

If conditioning is authorized:

test it on representative scrap;

record product, amount or application method, dwell, and material state;

compare an untreated control;

check color, dimensions, finish, flex, cut quality, dry-back, and next-operation compatibility;

let the trial return to the required service or assembly state before judging it.

Saturated, swollen, mushy, unusually soft, stained, delaminating, or dimensionally changing leather is a stop.

Freeze the layout

5.1 Register the pattern and datums

Verify pattern revision, scale, side, face, direction, and relationship to mating parts.

finished cut line;

trim allowance and waste;

fold and overlap fields;

stitch and hole fields;

hardware seats and bearing zones;

full-thickness keep-out areas;

approved skive field and transition;

visible edge, hidden edge, and final reference datum;

match marks and mirrored-pair identity.

Do not invent a universal allowance. Do not copy a worn edge, stretched hole, compressed buckle fold, or distorted mating part into the new layout. A master pattern that has been repeatedly knife-trimmed can shrink by accumulated error; preserve the master and use a stable working copy.

5.2 Mark without contaminating the work

Test every marker on scrap for show-through, staining, removal, finish damage, corrosion, and adhesive interference. Mark on the face authorized by the construction. Keep structural keep-out lines unmistakable. A scratch awl can cut fibers and a pen can bleed; neither is universally safe.

Mark defects and exclusions outside the piece. Lay out the complete part before cutting. Do not nest for yield by rotating a load-bearing or paired piece away from its approved direction. Yield never outranks the pattern.

5.3 Make the refusal visible

Use a distinct hold mark or tag for unresolved stock, dimensions, or approval.

CUT — verified finished boundary;

SKIVE — verified thinning field;

KEEP FULL — no thickness reduction;

HOLD — unresolved, no knife contact.

If marks cannot remain distinct on the actual surface, use a template, removable overlay, photographed setup, or another approved control. Do not rely on memory.

Build the station around support and runout

Through-cut station for 50450

Use a clean, stable, sacrificial cutting surface that supports the entire piece and accepts blade exit without striking stone, glass, metal, hardware, or the bench. Remove grit, wire, swarf, hardened adhesive, and offcuts. An unsupported tail can pull a cut off line; support the whole length.

For straight work, use a sound cutting template or cork-backed metal straightedge when the pattern permits. Clamp or weight it without hiding the cut, marring the leather, or entering the blade envelope. Keep fingers off the cutting side.

Skiving station for 55170

Use a smooth, stable, non-yielding support under the full thinning field. Arrange the raw edge or approved exit so the knife can finish without striking the support. A yielding mat under a skive lets the work sink and changes blade presentation mid-pass.

Workholding and body position

Never hold the piece in the palm, against the thigh, against the torso, or on an animal.

Remove the animal, rider, vehicle, and live load from the work area.

Secure loose hair, clothing, cords, reins, straps, and other snag paths.

Put every hand, clamp, weight, hardware part, and bystander outside the projected stroke and exit.

No second person holds the far end while the knife travels toward them.

Rotate the work or move around the bench; do not pull a long stroke across the body.

Use a fixture or expendable handling tab when the piece is too small to control safely.

Keep only one knife exposed. The inactive knife stays in a proved guard, sheath, or fixed protected position.

Trace the complete path with the knife off the leather. Name where the edge will stop if it slips, binds and releases, exits early, or cuts through.

PPE and pre-cut gate

PPE follows the employer's hazard assessment, applicable rules, and the leather, finish, cleaner, dressing, adhesive, dye, and sharpening-system safety information.

Assess at minimum:

well-fitting cut-resistant protection for the non-knife hand where it does not create a snag or control hazard;

a cut-resistant apron or guarded fixture where a dropped or deflected knife could reach the body;

eye protection during sharpening, honing, brushing, or any operation that can release particles;

ventilation, skin protection, and chemical-specific gloves for any authorized chemistry;

footwear and a bench layout that reduce injury if a knife or part falls.

A glove is not cut-proof and never makes a hand into a clamp. Do not wear a bulky glove on the knife hand if it reduces grip. Never test sharpness on skin.

Before every cutting round:

inspect the active knife for corrosion, contamination, edge damage, bending, or handle/blade movement;

quarantine any defective knife;

prove the support and workholding;

clear the full path and runout;

confirm the correct knife for CUT or SKIVE;

remove distractions and unrelated tools;

make a representative scrap coupon.

Prove the setup on representative scrap

The coupon must match the work closely enough to test the actual decision: leather lot or zone, face orientation, direction, thickness, finish, moisture state, support, and intended operation.

50450 cut coupon

Transfer a short representative line and keep-out mark.

Support the scrap on the same sacrificial surface.

Position the guide and hands exactly as planned.

Begin at an open edge. Use a low slicing draw or controlled progressive passes.

Inspect tracking, blade deflection, cut face, compression, and exit.

Pass: the keen edge enters without a jab, tracks without sideways steering, makes an orderly cut without bunching or tearing, and exits inside the safe runout.

Fail: the blade skates, visibly bows, chatters, wedges, needs a shoulder lunge, lifts the straightedge, gathers the leather, tears the face, or binds and releases. Do not translate a failed coupon into a second, harder pass on the actual part.

55170 skive coupon

Mark the approved thinning field and full-thickness keep-out.

Put the flesh side in the intended orientation on continuous support.

Take the smallest controlled shaving that can be repeated.

Inspect the shaving, transition, grain face, support, and dry fit.

Fail: the blade skates, chatters, digs, cuts through, tears chunks, creates a hollow, crosses the keep-out line, changes the grain face, or leaves unresolved remaining section.

Retain, photograph, or record a successful coupon as the comparison standard. A cut-quality pass is not a structural test and supplies no load rating.

Make approved cuts with the 50450

9.1 Straight edge-started cut

Confirm CUT, waste side, finished side, and safe exit.

Place the straightedge or cutting template on the retained side when the construction allows.

Clamp it or keep the holding hand well behind the edge.

Start at an open edge; the square point is not an interior-piercing tool.

Hold the blade low enough to slice. Use a controlled draw with the edge against the guide, not the blade body levered sideways.

On resistant stock, repeat the same registered line in progressive passes only while the coupon proved that method.

End in waste on the cutting board. Lift the knife before repositioning.

Inspect the entire cut face before making an adjacent cut.

If the .065-inch blade visibly deflects, do not use its documented stiffness as permission to push harder. Restore the edge, improve support, reduce the bite, or change processes.

9.2 Square a strap or component end

Register from the approved datum, not from an uneven surviving edge. Mark the complete line and identify both finished corners. Make a guided cut that clears the work. Check squareness by the specified method after the knife is secured.

Do not trim repeatedly until an end “looks square.” Each correction shortens the part. If the first cut misses the registered line, obtain a rework disposition before removing more.

9.3 Follow a broad approved curve

Use short overlapping tangent cuts, rotating the work between strokes so the active segment stays in a safe, controlled position. Keep the line visible until the final justified pass. Do not bend the blade to steer or pivot the square end in a planted cut.

Tight inside curves, interior starts, punch-radius corners, and small slots belong to a separately approved method. This exact union contains no pointed knife or punch.

9.4 Trim a proud edge

First establish the final reference surface and required body. Support the assembly or loose piece so the knife cannot enter a mating surface, stitch, hardware seat, or hidden void. Remove only an identified proud zone in controlled passes. Stop and inspect after each one.

cut into stitching or a stitch allowance;

thin beside a hole, slot, buckle fold, ring, rivet, or other stress riser;

use hardware as a cutting guide;

shave a loaded or assembled component in place;

erase damage, mismatch, or a design error;

change a structural edge radius or section.

If the reference itself is worn, distorted, corroded, or uncertain, stop.

Make an approved local skive with the 55170

10.1 Establish the field

Mark the start, transition, raw or exit edge, and full-thickness keep-out. Protect holes, stitch lines, folds, hardware bearing zones, visible grain, and every named load path.

10.2 Start at the safe edge

Lay the 55170 low and add a slicing component. Take one restrained shaving toward a clear exit. Do not stab the round point into the leather, push squarely downward, twist the blade, or terminate a loaded cut against the keep-out boundary.

10.3 Build the transition

Use ordered, overlapping passes:

remove a light shaving from the approved waste edge;

inspect the surface, shaving, grain face, and marks;

extend the transition only as the pattern requires;

reduce the bite as the pass approaches full-thickness material;

compare with the accepted coupon and measurement method;

dry-fold or dry-fit only as the construction allows.

There is no universal skive width, angle, depth, feather, or pass count.

10.4 Stop before appearance becomes overwork

Stop when the approved transition and residual section are present, the grain face and keep-out fields remain intact, and the next-operation check passes. Tool marks alone do not justify more removal. Never blend one thin patch by thinning the sound field around it.

10.5 Special refusal near load and hardware

The mere existence of a tapered original is not enough; wear can imitate an intentional taper.

Operations deliberately outside this exact union

Stop and transfer the work to the separately specified process for:

clicking, die cutting, digital cutting, whole-part splitting, or production bell skiving;

round/head-knife work, interior point starts, tight radii, and complex freehand pattern cutting;

holes, slots, obrounds, buckle-tongue cuts, stitch channels, grooves, creases, edge radii, and decorative tooling;

edge beveling, sanding, burnishing, painting, sealing, dyeing, or dressing;

stitching, lacing, riveting, screwing, stapling, cementing, lining, reinforcing, and hardware installation;

tree, bar, web, flocking, padding, panel, metal, synthetic, rope, or textile repair;

proof loading, fit testing on an animal, dynamic testing, final inspection, and return to service.

Required non-union equipment and materials can include the approved pattern; representative scrap; cutting and skiving supports; straightedge, templates, clamps, and fixtures; measurement and inspection tools; punches and edge tools; the approved leather, thread, adhesive, lining, reinforcement, and hardware systems; sharpening and protected-storage equipment; lighting; chemical controls; and PPE. Necessity does not turn any of them into Hyde backlinks.

Inspect and disposition the cut piece

Secure and cover the knife before touching the edge or flexing the part.

Visual inspection

Under raking light, inspect both faces and every cut edge:

cut follows the registered line;

no hook, flat, overshoot, undercut, torn fiber, compression ridge, or uncut bridge;

skive transitions smoothly without terrace, trench, hollow, bright thin patch, or grain breach;

keep-out fields, holes, stitch fields, hardware zones, and marks remain intact;

no grit, metal, corrosion product, honing compound, oil, marker, or chemistry contaminated the part;

paired pieces retain the required orientation and relationship.

Tactile and dimensional inspection

With both knives secured, feel across the leather transition, never along a knife edge. Use the approved gauge, master, pattern, template, or comparison method without crushing the leather. Record material condition during measurement. A soft, damp, compressed, or tensioned piece can misrepresent dimension.

Conditional hold: knife work is sound, but dry-back, finish compatibility, mating-part fit, chemical readiness, or another process gate remains open.

Rework: a named proud zone or line error can be corrected within an explicit rework allowance without invading required section.

Reject: grain breach, under-section, crossed keep-out, wrong orientation, wrong part, uncontrolled cut, contamination, uncorrectable geometry, or new damage.

None of these dispositions is structural approval. “Accept for the next operation” means only that the bounded knife operation passed its specified inspection.

Never fit-test unresolved tack on an animal. Never use a rider, animal, vehicle, suspended weight, or improvised pull as the first proof.

Failure diagnosis — correct the boundary, not the force

| Symptom | Likely boundary | Corrective branch |

| 50450 skates or polishes the surface | Dull/contaminated edge, hard finish, wrong presentation, or unsupported stock | Stop, clean and inspect the knife, restore the edge under the shop method, and re-prove on representative scrap. |

| 50450 visibly bows or cut wanders | Side load, moving guide, excessive bite, unsuitable stock, or force replacing sharpness | Clamp the guide, reduce the bite, restore support, and retest. If deflection remains, change process. |

| Leather bunches ahead of the cut | Edge is pushing, support drags, stock is elastic, or the pass direction is unfavorable | Lower into a slicing draw, improve support, reverse direction on scrap, or refuse hand cutting. |

| Blade binds and then lunges | Bite too deep, leather closed on the blade, edge is marginal, or body weight entered the cut | Clear the full runout, reduce the pass, service the edge, and restart on scrap. A lunge is a failed setup. |

| Cut face is fuzzy, crushed, or torn | Dull edge, unsuitable material state, contaminated stock, or forced single pass | Stop. Inspect material and edge; use only supplier-approved conditioning; refuse if controlled cutting cannot be proved. |

| Straight end is short or out of square | Wrong datum, guide movement, or repeated visual correction | Do not “square” it shorter.

| Curve has flats or an inside overcut | Strokes too long, work not rotated, or square point forced beyond its geometry | Stop. Use shorter tangents where allowed or route the geometry to a separately approved tool/process. |

| 55170 skates | Edge not keen, flesh surface contaminated or polished, presentation too low, or stock outside the setup | Service and clean the edge, verify material, adjust one variable on scrap, and refuse if force is still required. |

| 55170 chatters or washboards | Marginal edge, discontinuous support, inconsistent presentation, or oversized shaving | Restore edge and support, shorten the pass, reduce the bite, and prove the corrected setup on scrap. |

| 55170 dives or cuts through | Yielding support, aggressive bite, force, hidden low spot, or presentation changed mid-pass | Stop all cutting.

| Skive tears chunks or leather turns mushy | Material degradation, unsuitable moisture, dull edge, or hand process outside capacity | Stop; allow authorized recovery, inspect material, and change process. Do not add water or force by reflex. |

| Ridge remains at transition | Passes ended abruptly or field was laid out incorrectly | Protect the full-thickness side and true only an authorized proud zone. Do not deepen the whole skive. |

| Bright thin patch or grain shadow appears | Local over-thinning or near breach | Stop. Measure and escalate. Never hide it by thinning adjacent sound material. |

| Old hole or crack opens during cutting | Hidden or underestimated damage | Quarantine the component. Do not trim past it or patch it under this guide. |

Knife work stops. |

| Part no longer matches its mate | Wrong pattern, orientation, condition, or unrecorded stretch | Hold both pieces.

| Blade dulls unusually fast | Grit, old adhesive, metal contact, damaged support, abrasive finish, or altered bevel | Find the wear source before sharpening again. Repeated aggressive grinding is not diagnosis. |

| Handle or blade moves | Structural tool defect | Stop immediately, label, and quarantine the entire knife.

| Finished edge looks excellent but approval is missing | Process aesthetics substituted for design evidence | Hold the part. Obtain the required assembly and return-to-service acceptance; do not infer it. |

Tool care — two maintained high-carbon edges

Secure the leather and clear the bench. Care for knives away from accepted work and chemicals.

Wipe from spine toward and off the edge. Never run cloth or fingers along the apex.

Remove fibers and approved residue promptly. Do not let damp leather residue, salts, adhesive, dressing, or honing compound harden on the blade.

Do not improvise solvent compatibility. A chemistry safe for the leather may harm the handle, ferrule, attachment, protective finish, or next bond field. Do not immerse the knife.

Dry completely. Pay attention at the ferrule and handle junction. Moisture exposure requires immediate clean-and-dry handling.

Inspect under good light. Look for rolls, chips, pits, corrosion, bending, attachment movement, cracks, and handle damage.

Strop conservatively when ordinary drag begins. Preserve the existing bevel. Do not round the 50450's square end or alter the 55170's thin working profile.

Do not routine power-grind. Heat and uncontrolled profile change can damage a maintained edge. Use qualified service when the bevel or heat-treatment condition is uncertain.

Re-prove after service. A blade that looks polished but fails the representative coupon is not ready.

Store dry and separated. The edge must not bear against rivets, snaps, metal tools, or the sheath wall.

Quarantine defects. A loose handle, bent blade, deep pit, crack, altered profile, or failed coupon is not reassigned to “rough work.”

Buyer and shop decision tests

Is the component and service known? If not, hold it before material or tool selection.

Is the leather approved for that component? Cutability is not material approval.

Is there an authoritative pattern and remaining-section rule? If not, no structural trimming or skiving begins.

Is this an edge-started cut or accessible local skive? Interior starts, holes, slots, and complex geometry leave this exact union.

Can the part be fully supported with a safe exit? If not, build a fixture or change processes.

Can representative scrap reproduce the actual decision? If not, treat the project piece as unproved.

Does 50450 cut without deflection or unsafe force? If not, do not escalate force.

Does 55170 shave without diving, tearing, or losing required body? If not, do not deepen the pass.

Are hardware, holes, stitches, folds, and load paths protected? If not, the layout is incomplete.

Does the job require production repeatability or calibrated thickness? Use a controlled process outside this union.

Can the shop maintain and protect both edges? If not, establish sharpening and storage before issue.

Honest boundaries and refusal summary

The exact union contains two maintained hand knives. It does not contain or establish:

a harness, saddle, tack, restraint, or load-path design;

approved leather, lining, reinforcement, thread, adhesive, or hardware;

a universal cut capacity, skive geometry, remaining section, allowance, or tolerance;

a complete layout, measuring, sharpening, storage, chemical, or PPE system;

The 50450 can make an approved cut. The 55170 can make an approved local skive. Neither can decide whether the component should exist, what it must carry, how much body it must retain, or whether the completed article is safe.

History — why a shoe knife appears in a saddler's chest

Square-point shoe knives and skivers are inherited trade patterns, not named Hyde inventions. The square-ended blade served shoe and leather benches because it could make controlled edge-started cuts without a piercing point. The thin skiver served the different but adjacent need to reduce edge bulk while preserving the grain face. As leatherwork crossed footwear, harness, saddlery, upholstery, belting, and repair trades, the patterns traveled with the work.

Those sources show mature shared forms; they do not establish a named inventor. Hyde entered this existing New England shoe-and-leather economy in Southbridge, Massachusetts in the early-to-mid 1870s.

The historical lesson is a boundary, not nostalgia. A field chest could contain versatile maintained knives because a trained saddler also carried patterns, materials, punches, stitching tools, hardware knowledge, inspection judgment, and an accountable repair practice.

Method cross-references

Every service-critical article remains held for qualified final acceptance.

Family construction: hardened high-carbon steel and hardwood-handle care are established at heritage-family grain; the guide does not invent an exact-model metallurgy, hardness, coating, factory bevel, or sharpening schedule.

Army evidence: the historical inventory supports a generic “shoe knife, square point” in a saddler's chest; it does not identify Hyde, model 50450, dimensions, or a modern procedure.

Hyde founding: retain “early-to-mid 1870s”; Hyde's own sources conflict between 1870 and 1875.

Exact union: 50450 55170.
