How to Stain Wood Siding and Fences

The register's seven model keys are union leads, not seven automatic endorsements. This guide re-derives their honest roles: 80202/80203 are the reusable field brushes; 80251 is the flat-face block; 80102/80104 are sample-and-small-smooth-work foam tools; 80153/80155 are sacrificial, label-compatible one-off applicators. The coating maker—not this tool guide—controls substrate approval, surface moisture, weather window, spread rate, coat count, back-brushing or wiping, dry/recoat time, cleanup, and disposal.

Job: apply an exterior wood stain or stain-like coating to wood siding or a wood fence, without trapping moisture, making permanent lap bands, starving end grain, or putting a penetrating product over a surface it cannot enter.

Difficulty: mostly diagnosis and sequencing. Moving stain onto wood is easy. Correctly identifying the wood, the old finish, and the new coating—and then keeping a wet edge around courses, pickets, joints, and end grain—is the trade.

Time: label- and site-controlled. Cleaning, stripping, repairs, drying after rain or washing, test-patch cure, application, recoating, and return to service are separate clocks. There is no honest universal “wait a day,” “two dry days,” or “one coat covers” rule.

Stop rule: if the can, current Technical Data Sheet (TDS), and Safety Data Sheet (SDS) cannot be matched to the exact product and color/base in hand, do not infer the missing instructions from this guide or from another brand's stain. Get the current documents from the coating manufacturer first.

Identify the coating before choosing a tool

The word stain on a label does not tell you how the material behaves. Start with the exact label and TDS, then put the product into one of these working classes.

Penetrating clear, toner, transparent, or semitransparent finish

A true penetrating finish enters absorbent wood and leaves little or no continuous surface film. It generally preserves more grain and texture, and its maintenance usually centers on cleaning and recoating rather than scraping a peeling film. The USDA Forest Products Laboratory (FPL) explains that semitransparent penetrating stains do not form a continuous layer unless too many coats are applied; it also warns that formulation—not the marketing word alone—controls the result (FPL, *Selection and Application of Exterior Stains for Wood*).

For this class, the applicator's work is usually to deliver, distribute, and work the material into receptive wood, then remove or redistribute surface excess if and only if the label requires it. A shiny wet layer left on top can be over-application rather than “extra protection.”

Film-forming semitransparent, semi-solid, or solid/opaque stain

Some semitransparent products form a film; solid-color and opaque stains behave much more like paint. FPL specifically identifies latex semitransparent stains and opaque stains as nonpenetrating or film-forming finishes. A film must be applied to the maker's specified wet-film/spread rate and allowed to level. Do not wipe a film-forming stain as though it were penetrating oil. Do not scrub it thin merely because the can says stain.

Film-forming products can hide mismatched or weathered wood and may be approved over a sound existing coating, but their failure mode can include cracking, blistering, or peeling. Compatibility, primer, coat count, and recoat time belong to the exact system's label and TDS.

Water-repellent, preservative, oil finish, or hybrid

Products sold as wood finish, waterproofer, preservative, stain-and-sealer, or hybrid may penetrate, partially seal, or deliberately build a film. Some carry biocides or other regulated ingredients. Treat the product's own description, label, TDS, and SDS as a four-document set. Never borrow the wipe rule from a penetrating oil, the coat count from an acrylic solid, or the cleanup solvent from a neighboring can.

The three questions that decide the job

What substrates does this exact product approve?

Does its current TDS describe penetration, film build, or a specific system of coats?

What does the label require after application: leave it, back-brush it, redistribute it, or wipe excess?

If those answers are missing, the job is not ready.

Identify the substrate and the old finish

Confirm that it is coatable wood

This guide is for wood: cedar, redwood, pine, spruce, fir, pressure-treated lumber, wood shingles/shakes, plywood siding, and similar products only where the chosen coating approves the exact species/product and exposure. It is not automatically a guide for vinyl siding, fiber cement, wood-plastic composite, cellular PVC, metal fence panels, factory-finished engineered siding, or an unknown cladding that merely looks like wood. Those materials have their own approved coating systems.

Look at an inconspicuous edge or damaged spot. Real wood shows continuous grain through the thickness. Plywood reveals veneers at an edge. Fiber cement is mineral and uniform at the cut. Composite often shows a homogeneous wood-plastic body. If the substrate cannot be identified, stop before sanding, washing aggressively, or coating it.

Read the existing finish

Run four small tests in separate inconspicuous spots:

Adhesion: score a small crosshatch through the old coating, press firm tape over it, and pull. Wholesale release means the old layer is not a sound base. This is a screening test, not a substitute for the new coating maker's formal adhesion procedure.

Absorption: put a few drops of water on cleaned, dry wood. Quick absorption suggests an open surface; beading suggests remaining sealer, mill glaze, dense wood, contamination, or moisture. A water-drop test indicates receptivity; it does not measure internal wood moisture and does not override a specified moisture-meter limit.

Solvent/chemistry: do only the compatibility test named by the new coating maker. Do not invent a solvent rub from internet lore.

Hidden finish patch: prepare and coat a small representative area, including an old-finish transition if one exists. Let it reach the label's evaluation time, then judge adhesion, color, sheen, absorption, and any lifting or wrinkling.

A penetrating stain cannot penetrate an intact film. If water beads because a sound old coating remains, either choose a manufacturer-approved film-forming maintenance system or remove the old finish to the condition the penetrating product requires. “It still looks like wood” is not evidence of open wood.

Decide repair, clean, or strip

Rot, soft fibers, failed joints, loose boards, split picket tops, failed flashing, and chronic water entry: repair the cause before coating. Stain is not a structural repair or a waterproof flashing detail.

Dirt, chalk, mildew stain, pollen, tannin or rust discoloration: diagnose and clean with a method compatible with both wood and coating. Cabot's siding/fence guide separates cleaning from replacement and warns against coating decayed or contaminated wood (Cabot, *How To Stain Wood Siding and Fences*).

Flaking, peeling, loose, or incompatible old film: remove to the new product's required condition. Feather sound edges only where the system permits a transition.

Gray, loose weathered fibers: remove the weak fiber layer without polishing the wood shut. A coating bonded to dead fiber leaves with the fiber.

Smooth new wood or suspected mill glaze: follow the coating maker's abrasion or brightener instruction. A current manufacturer TDS may require sanding or a named preparatory treatment and a water-drop check; that is a product rule, not a universal recipe.

Lead boundary: disturbing old paint on pre-1978 housing or child-occupied facilities can create hazardous lead dust. Resolve that boundary before scraping or sanding (EPA RRP program).

Pass the moisture and weather gates

Wood moisture

Use a calibrated moisture meter when the coating maker states a maximum moisture content or the job is valuable enough that guessing is expensive. Measure multiple boards, shaded and sunny exposures, near grade, below windows, around posts, and at fence-rail joints. Record the readings and compare them with the exact label/TDS limit.

No moisture meter in hand? The water-drop test can reject a surface that still beads, but it cannot certify that the wood's interior meets a numeric moisture limit. If the TDS gives a number, only an appropriate measurement closes that gate.

Do not substitute a calendar:

New pressure-treated lumber is ready when the chosen product's readiness criteria are met, not after a universal number of weeks.

Washed siding is ready when it satisfies the product's dry-surface/moisture criteria, not merely because yesterday was sunny.

A fence can be dry on its south face and wet at shaded rails, post pockets, and end-grain caps.

Read the current forecast against every label-controlled window:

air and surface temperature during application;

minimum relation to dew point, if specified;

rain-free time before and after application;

direct-sun, wind, and hot-surface restrictions;

overnight temperature and dew;

recoat and full-cure conditions.

Measure the surface, not only the air. Dark siding in sun can be much hotter than the forecast; shaded fence boards can remain cool and damp. Direct sun and wind shorten the wet edge and can lock in lap marks. Evening work can run into dew before a coating is ready. Follow the shade only if doing so still keeps the whole labeled cure window intact.

Site conditions

Protect plants and adjacent finishes according to the cleaner and coating labels. Shut windows, isolate air intakes where appropriate, protect hardware and masonry, and plan ladder or lift placement before opening the can. Do not bridge ventilation gaps, drainage paths, weep details, or moving siding joints with a coating or caulk merely to make the wall look continuous.

Build the exact applicator kit

The register's seven model keys do not share one recommendation level.

Companion equipment not supplied by this seven-model union: moisture meter where required; cleaner/stripper and PPE named by their labels; scrapers/sanders/dust controls appropriate to prep; drop protection; mixing sticks; a clean working container; rags only if the coating directs wiping; and safe access equipment. If rolling or spraying is allowed, the exact roller nap, spray tip/pressure, and back-brush requirement come from that coating's data—not from this brush-led job row.

Four buyer tests that expose false neighbors

“I have rough cedar siding and a penetrating stain that tells me to work it into the grain.” Buy 80202 for broad courses plus 80203 for butts, joints, and control work. The 80104 is the false neighbor: same nominal 4″, but foam lays and tears; it does not scrub rough grain.

“I have a long fence of narrow pickets and rails.” Buy 80203 as the primary brush; add 80251 only if broad flat faces dominate. The 80202 is not wrong, but its 4″ field width loses control in gaps and junctions. The block is false as an edge/end tool.

“I only need to test four candidate colors on smooth scrap.” Use separate 80102 foam brushes if the stain confirms foam compatibility. The 80202 is capable but wasteful and risks cross-color contamination; the chip brush is false if shed-free samples matter.

“I have one small oil-stain repair and do not want solvent cleanup.” A label-compatible 80153 can be the sacrificial choice after break-in. It is not an endorsement for the whole fence. The 80102 is false if the solvent attacks foam; the 80203 is the keep-and-clean choice when finish quality or reuse matters.

Make and pass a representative test

Do not test only color on a perfect scrap. Build a test that represents the actual job:

Choose an inconspicuous area with the same species, grain, exposure, weathering, prep, and old-finish condition as the field.

Prepare it exactly as the field will be prepared.

Mix the product exactly as directed; tint-base and color matter.

Apply with the intended tool at the label's spreading rate and coat count. If the job will be rolled then back-brushed, test that whole sequence—not brush-only.

Carry the test around an edge or into a joint so runs, absorption, and edge color can be judged.

Let it reach the manufacturer's stated evaluation/recoat/cure point under compliant weather.

Judge dry color, sheen, grain show, lap visibility, adhesion, tack, penetration/film behavior, and any lifting of the old finish.

Pass means the system behaves correctly, not merely that the wet color looks attractive. A failed patch is cheap evidence. A failed elevation is a stripping job.

Prepare and stage the work

Repair first. Replace failed wood; reset or replace rusting fasteners where appropriate; correct water entry, ground clearance, sprinklers, and vegetation contact. Fence posts failing at grade are not rescued by face stain.

Clean for the contaminant. Dirt, mildew stain, chalk, tannin, rust, and old oil each require different treatment. Use the cleaner's label; rinse as required; protect incompatible adjacent materials.

Remove failure, not merely gloss. Loose film and weak gray fiber must go. Sound old finish stays only if the new system explicitly approves it.

Create absorption where penetration is required. Follow the coating maker's abrasion/brightening process, then re-test.

Let the wood pass its moisture gate.

Mask and protect. Cover glass, masonry, roofing, plants, hardware, and finished surfaces as the product demands. Keep drop protection from becoming a heat-trapping oily-rag pile later.

Box and mix. If multiple containers must be combined for color consistency, follow the manufacturer's boxing/mixing instructions. Stir settled pigment from the bottom without whipping air in. Re-stir at the label's interval or whenever settling is visible.

Plan natural stops. Windows, corners, posts, gates, changes of plane, and board ends are stopping points. Mid-course and mid-picket are not.

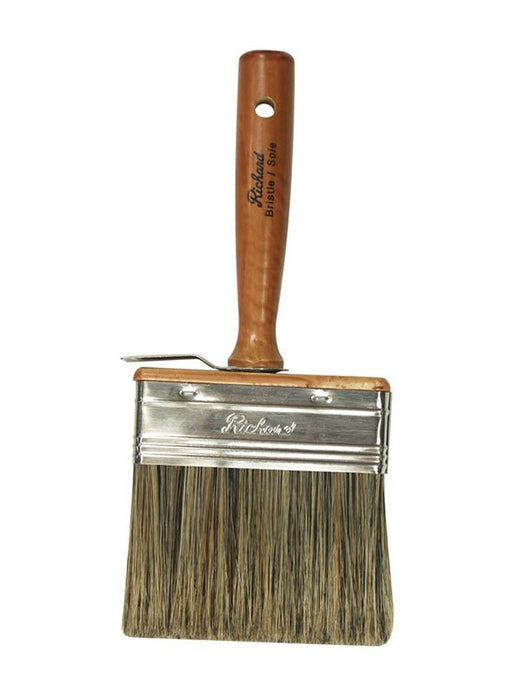

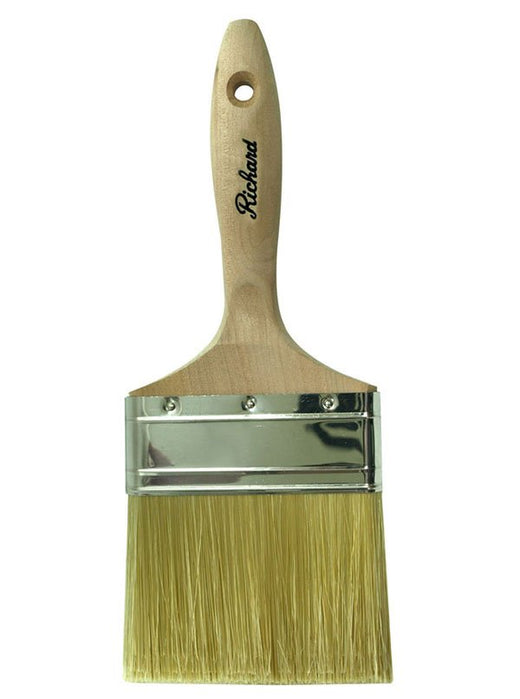

Stage two applicators. A broad 80202 or 80251 for faces, and the 80203 for edges, end grain, joints, and drips. One-tool pride is how flat faces get done while the vulnerable details are missed.

Stain wood siding: top down, course by course

Step 1 — Cut the difficult geometry just ahead of the field

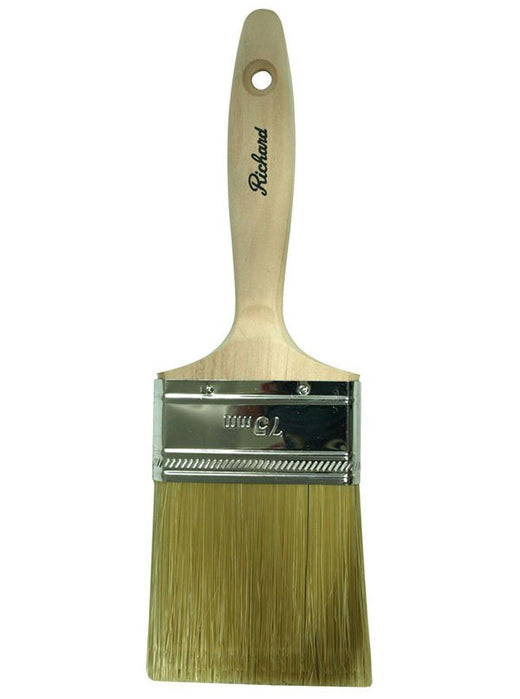

With the 80203, work the approved coating into board ends, butt joints, inside corners, trim returns, the underside/lower edge of laps where the system calls for coating, and profiles the broad tool cannot seat against. Do not run so far ahead that those edges dry before the face pass joins them.

End grain is not “one more face.” It absorbs and releases moisture much faster than side grain. Coat exposed, approved end grain deliberately, but do not create a fat puddle or bridge a drainage gap. Factory-cut ends, field cuts, cedar/shingle butts, and end-sealing requirements vary by siding and coating manufacturer. If either manufacturer calls for a dedicated end sealer or primer, stain is not a substitute.

Step 2 — Finish a logical run without stopping in its middle

Start at the top so a run lands on unfinished work below. On horizontal lap or clapboard, complete one board/course to a natural break while its leading edge remains workable. Use 80202 for broad faces or 80251 where its flat face fully contacts the course; keep 80203 in hand for the butt edge and junctions.

The correct direction is normally with the grain and along the board, but the label's prescribed application method wins. Keep the loaded tool off completed trim. Catch drips immediately while they can still be redistributed according to the product's method.

Step 3 — Back-brush only with the right meaning

“Back-brush” does not mean one universal action:

Penetrating product: it may mean work material into open grain and redistribute or wipe excess so no surface pool remains—only if the label directs that behavior.

Rolled or sprayed product: it may mean immediately brush the laid material to drive it into texture, even the distribution, or improve adhesion—if the maker requires it.

Film-forming product: it means level the wet film to the stated spread rate without wiping it away or scrubbing it under thickness.

Do not keep brushing after the product has begun to set. Drag, rope marks, color lift, or a gummy edge means the working window is closing; move the natural break or stop under the label's recovery rule.

Step 4 — Maintain the wet edge around openings

Plan window and door walls before starting. Carry the course to the casing, complete the return/detail, then resume from a wet boundary if the layout permits. Do not race ahead with edge work around every opening and then come back to a field of dried halos. On a large elevation, crew size must match the material's open time and natural-break spacing.

Step 5 — Inspect from two angles

Look straight on for misses and from down the wall for lap bands, runs under laps, glistening excess, dry holidays in rough grain, and heavy color at board ends. Correct only within the product's live working window. A defect found after set is a manufacturer-guided repair, not permission to smear a fresh patch over it.

Stain a fence: each picket is a small elevation

Step 1 — Divide the fence into complete units

A practical unit is one picket from top to bottom, one rail from post to post, or one panel between posts. Choose units small enough to finish wet, large enough that every stop lands at a physical break.

Step 2 — Do tops, ends, edges, and junctions before the broad face

Use 80203 at picket tops, bottom end grain if accessible and approved, the narrow edges, rail-to-post joints, fastener pockets, and the shadow beside overlapping boards. Do these details only a unit or two ahead. Do not coat soil-packed or chronically wet end grain and call it protected; correct the moisture exposure first.

Step 3 — Complete the face in one continuous pass sequence

For a narrow picket, 80203 gives control. For broad flat pickets or a privacy-fence panel, 80202 moves more material. The 80251 block can be fast on flat faces, but it cannot wrap the edges; the brush must follow or precede it.

Work top to bottom so runs fall onto unfinished wood. Finish each picket face before moving on. On alternating or board-on-board fences, follow the actual overlap order: recesses and rear edges first, face boards second, so the final face pass blends the edge work.

Step 4 — Treat the second side as a real job

If both sides are specified, plan access and weather for both. Do not overload the first side so material floods through gaps and dries as dots on the back. At property lines, confirm access and overspray/drip control before starting. A roller or sprayer on one side does not reach the protected faces hidden by overlaps.

Step 5 — Keep gates operable

Open the gate and coat hinge-side edges, latch edges, stops, and the portions hidden when closed, without filling hardware or reducing clearances with a heavy film. Stage the gate so wet faces do not glue themselves to stops.

Coats, drying, cleanup, and oily-waste fire safety

Coats and dry time

The exact product owns:

required and maximum coat count;

whether a second coat improves protection or causes over-build;

rain/dew resistance;

cure and return-to-service time;

permissible temperature/humidity range;

coverage/spreading rate.

Never convert another manufacturer's numbers into a rule for this job. Even products in the same opacity class can use different resins and fail under opposite application habits.

Clean reusable 80202/80203 brushes and the 80251 block with the cleaner named on the exact label—often water for waterborne coatings or mineral spirits for some oil/alkyd products, but never assume. Work cleaner into the heel of bristles; cured material there splays the tool. Do not use a solvent merely because a chip brush tolerates it.

Foam tools are finished when softened, torn, or swollen. Chip brushes are sacrificial, but “disposable” does not mean they may enter ordinary trash while chemically wet. Follow the coating SDS, local hazardous-waste rules, and the manufacturer's disposal direction.

Oil-stain and drying-oil waste

Rags, chip brushes, reusable brushes, blocks, masking, and drop material wet with some oil-based stains or drying oils can heat as the oil oxidizes and ignite without an outside flame. This boundary applies where the product label/SDS warns of spontaneous combustion; it is not assigned merely from the word stain.

Follow the exact product's disposal language. Never wad oil-wet materials in a bag, bucket, truck box, or indoor pile while seeking the correct disposal route.

Failures and recovery

Lap bands or dark start/stop marks

Cause: a wet pass overlapped a set edge; a course or picket was abandoned mid-run; pigment settled between refills; direct sun/wind shortened open time.

Recovery: stop random touch-up. Let the system reach the manufacturer's evaluation state, then use its approved blend/recoat/removal procedure on a complete natural-break unit. A fresh dab over a penetrating color band often makes a darker band.

Shiny, sticky, or soft penetrating stain

Cause: more material remained on the surface than the wood could absorb, too many coats, incompatible old finish, cold/humid cure, or failure to wipe/redistribute where the label required it.

Recovery: keep traffic and dirt off; consult the manufacturer with product, batch, substrate, prep, weather, and elapsed-time records. Remove excess only with the maker-approved method. Do not bury tack under another coat.

Peeling, blistering, or sheets lifting

Cause: film-forming stain over moisture, contamination, weak old coating, dead wood fiber, incompatible system, or insufficient preparation; sometimes chronic backside water entry.

Recovery: find and correct the moisture or adhesion cause first. Staining over the peel converts a local failure into a larger one.

Uneven color or blotching

Cause: mixed species/grain, sapwood and heartwood differences, end grain, uneven weathering, mill glaze, variable moisture, unstirred pigment, or unequal film thickness.

Recovery: identify which variable caused it. A maintenance coat can even color only if the product approves another coat; on penetrating stain, indiscriminate doubling can make the darkest areas darker. Test the proposed correction.

Runs below laps or at picket edges

Cause: loading to the heel, overloading a block, working bottom-up, or failing to check the underside.

Recovery: redistribute during the live working window using the product's method. After set, follow the maker's abrade/remove/touch-up procedure on a complete break.

Mildew returns through the finish

Cause: the growth or moisture source remained; coating over staining does not sterilize wood, and “mildew-resistant film” is not a cure for a wet wall.

Recovery: diagnose leaks, vegetation, shade/airflow, sprinklers, and surface contamination; clean with an approved method, let the wood pass its moisture gate, and recoat only if the system remains sound.

Tannin or fastener bleed

Cause: extractives, reactive metals, water movement, or an incompatible coating system.

Recovery: correct the water/fastener cause and use the substrate/coating maker's approved stain-blocking or fastener-treatment system. More of the same finish is not diagnosis.

Foam tears or a chip brush sheds into the finish

Cause: a false-neighbor applicator was promoted to field duty, rough wood abraded foam, solvent attacked foam, or a chip brush was not broken in and was asked to produce a show finish.

Recovery: stop and change tools. Remove defects only after the coating reaches the maker-approved state. Use 80202/80203 or 80251 for their actual stain roles.

Why modern exterior stain has two opposite behaviors

Exterior wood coloring is older than any model in this guide, but the modern penetrating-stain category has a traceable technical turn. FPL reports that in the 1950s its laboratory developed a “natural finish” intended to avoid the cracking and peeling of oil-based film finishes; related semitransparent formulations were later marketed widely. The same history records that penetrating stains were solvent-borne until about 1980, when VOC concerns pushed manufacturers toward reformulation—and that some later waterborne products penetrated while others formed films. That is why “oil penetrates, water films” and “semitransparent always penetrates” are not safe buying rules. Formulation won, and the current label/TDS still wins today (USDA Forest Products Laboratory, FPL–GTR–106).

The applicators preserve that split in physical form. The stain brush and bristle block are descendants of the flood-and-work method: carry thin liquid, then push it into wood. Foam is a modern lay-on material. The chip brush survives as the sacrificial chemistry tool.
