Spray a Two-Tone Line

Job: Spray one wall color to a straight horizontal or vertical break against another finished color

Difficulty: Advanced — the boundary is a design feature, so small placement and film-build errors remain visible

Everything else: specified coating system; approved layout laser, level, straightedge, or chalk method; pencil or removable marking method verified on the finish; compatible airless equipment and manufacturer-required tip, pressure, grounding, PPE, ventilation, ignition, and cleanup controls; fixed masking and containment; clean compatible wipes; inspection lighting; safe access; coating-approved repair materials

A two-tone break is not merely a protected edge. It has three independent quality tests:

Geometry: the line is truly where the design requires it.

Interface: the second color does not bleed, print, dissolve, or damage the first.

Film: both colors meet with acceptable coverage and build, without a ridge, starved strip, or visible placement rhythm.

The shields contribute to the interface. They cannot correct a bad datum or an inadequately cured first coat. The stiff aluminum blades—28020 at 24 × 9 inches, 28030 at 36 × 9, and 28040 at 48 × 9—provide progressively longer straight fences. Pick by the amount of true, accessible line the crew can control.

Resolve the design line

Clarify whether the dimension is measured from finished floor, ceiling, a level datum, a chair rail, or another feature. Floors and ceilings can vary; “36 inches above the floor everywhere” does not necessarily produce a visually level line.

Identify every termination:

inside and outside corners;

doors, windows, columns, pilasters, and casework;

sloped floors and ceilings;

wainscot or trim intersections;

stair runs and landings;

Decide whether the line wraps corners by level datum or follows an architectural feature. Do not let the shield holder decide while coating is active.

Check the specification for tolerance and appearance. A corridor band viewed at distance may accept a shielded production line. A high-gloss, razor-critical decorative break under raking light may belong to fixed masking or another finishing method. State the standard before choosing the tool.

Lay out independently of the shield

Use an approved laser, level, story pole, or other layout system to establish the line. Verify the instrument and datum. Mark lightly with a method that will not bleed through, damage the first coat, or remain visible.

Check the layout from normal sight lines. On a long corridor, a mathematically level line may look wrong relative to a strongly sloped ceiling or floor; that is a design decision, not permission for the painter to bend the line. Obtain direction and record it.

The shield follows the mark. Never use a 48-inch blade as the measuring instrument. A straight tool can make a perfectly straight segment in the wrong place.

At corners, transfer the datum with the layout system rather than wrapping the physical blade around the turn. Mark placement overlaps so no section ends unprotected.

Complete and qualify the first color

Prepare and apply the first color under its coating system. Allow the required dry, recoat, and cure conditions. “Dry to touch” does not automatically mean ready for blade contact, masking, solvent, or a second color.

Build a hidden or removable witness using the actual first color, second color, shield material, contact pressure, cleaning method, temperature, and delay. Test for:

gloss burnishing or pressure marks;

softening, blocking, or imprint;

color transfer onto the blade;

second-color bleed or solvent attack;

damage during approved cleanup;

unacceptable ridge at the interface.

If the first finish cannot tolerate the movable blade, do not continue. Adjust cure time within the coating instructions, select approved fixed masking, or change the finish sequence.

Aluminum is the registered material for all three nodes, but the source gives no universal chemical-resistance promise. Follow the coating maker for compatibility and cleanup. Metal also requires conservative electrical handling.

Choose the stiff blade length

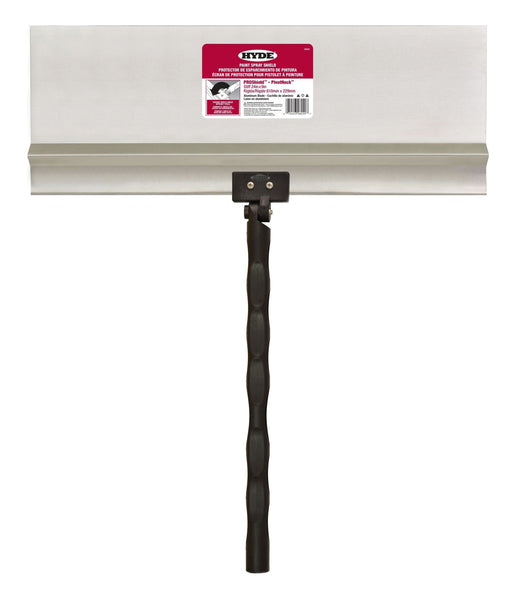

Use 28020, 24 inches, at short returns, doors, columns, stair transitions, and interrupted geometry. It creates more placements but gives the most control.

Use 28030, 36 inches, for ordinary straight wall runs where one person can observe both ends and maintain even contact.

Use 28040, 48 inches, for long, true, accessible lines with adequate room for carriage and cleaning. It can reduce the number of placement joints, but only if the wall is flat across the full span and the holder can manage the long wet edge.

A longer blade magnifies four risks:

bridging a wall hollow;

rocking on a high spot;

collecting a longer bead;

crossing completed work during repositioning.

Dry-seat each candidate along the actual wall. Use the longest span that remains fully seated and observable. Step down in length where conditions change.

Build the production witness

Fixed-mask the field beyond the moving line. Establish ventilation, exclusion, grounding, fire, PPE, and airless setup from the coating and equipment instructions. No universal tip or pressure belongs in this guide.

Seat the selected shield with its protected face covering the cured first color. Align the working edge to the layout mark. Use light, even contact; a stiff blade is a fence, not a lever.

Angle the spray-facing surface to return intercepted material toward the second-color field. Adjust only at a safe position.

The gun operator makes the pass with the fan on the second-color side. Avoid aiming directly at the blade. Release before the blade end. After the plume clears, lift straight away and inspect under strong light.

Approve the witness only when geometry, interface, and film all pass. Record gun relationship, crew positions, blade length, overlap, wipe interval, and inspection state.

Assign roles and commands

For a sprayed two-tone line, use a holder and gun operator unless a one-person arrangement has been dry-proven to preserve line, gun control, stance, and safety.

Use explicit commands:

Mark — holder confirms the correct layout line.

Seat — clean blade approaches the cured finish.

Ready — full contact and clear bodies.

Spray — operator covers the protected span.

Stop — trigger releases before the end.

Clear — fan and gun are outside the movement path.

Lift — shield leaves without sliding.

Check — both workers inspect the joint.

Airless injection is a medical emergency. Nobody enters the tip path, tests a leak by hand, or wipes a blade while the gun is active. Follow the equipment maker’s trigger-lock, pressure-relief, grounding, hose, tip, service, and flushing rules.

Start at a controlled termination

Begin at a corner, casing, or other architectural break with a clean shield. Establish the exact starting point from the layout. Do not start in the middle of a prominent wall unless the coating plan provides a controlled way to close the two directions.

Seat and spray only the proven span. The holder watches both blade ends. The operator watches fan relationship and film. Release early enough that the soft edge dies within protection.

After the fan clears, lift directly off the first color. Inspect immediately for:

leakage under the blade;

a printed edge;

a heavy or starved second-color strip;

movement off the layout mark;

contact damage to the first color.

Correct the process before duplicating the defect down the wall.

Leapfrog with measured overlap

Clean the working edge as dictated by the witness. Place the next seat with enough overlap to protect the prior stopping point and align it to the original layout—not to a possibly shifted paint edge.

The holder should be able to state three facts before each ready call:

both blade ends are on the design line;

the preceding stop lies inside the new protected span;

the blade face is clean enough not to print.

Do not slide the blade. Sliding can burnish the first finish, smear second color, and turn a straight segment into a continuous stripe.

On a long wall, periodically verify the paint edge against the layout datum. Small placement errors can accumulate even when each individual segment looks straight.

Control the loaded edge

A two-tone line makes the wet-edge problem visible because the printed color contrasts with the first finish. Inspect after every initial placement and wipe more often than a less critical shield job.

before each new seat until the witness supports another interval;

before changing direction or wall plane;

after any pause that lets material gather;

before passing near a high-consequence finish;

whenever either end shows a bead.

Use materials approved for the coating and first finish. Keep the protected face and spray face from cross-contamination.

Manage solvent or oil-contaminated wipes under their fire and disposal requirements. Oily rags can self-heat and combust. Preserve ventilation and ignition controls through cleanup.

Turn corners without losing datum

Finish the first wall to its marked termination. Stop, clear, lift, clean, and lower the shield. Transfer and verify the datum on the next wall. Reset the PivotNeck attitude at a safe position.

At an inside corner, use a shorter blade if necessary to establish full contact. At an outside corner, fixed-protect the completed face from wrap. Do not rotate a loaded 36- or 48-inch blade around the corner.

If the wall plane changes or the first color has texture, dry-test anew. A stiff blade can bridge texture valleys. The right response is a shorter controlled seat or fixed masking, not added pressure.

Maintain the second-color film

The shield line may tempt the operator to slow down or aim into the boundary. That can create a dark ridge, sag, or picture-frame effect. Maintain the coating maker’s spray distance, orientation, overlap, and wet-film requirements as established in the witness.

Do not make repeated “insurance passes” along the line. Each adds film and another chance for wrap or leakage. Integrate the boundary into the planned wall passes.

If a wet edge cannot be maintained with the crew’s seat-clean-move cycle, reduce section size, add qualified labor, or select a different boundary method. Do not rush blade cleaning to rescue open time.

Inspect geometry, interface, and film separately

Keep containment in place. Use a level or layout reference where appropriate and inspect from the viewing distance specified for the job.

Geometry inspection: line height, straightness, terminations, and corner transfer.

Interface inspection: bleed, prints, first-color damage, and placement joints.

Film inspection: coverage, ridge, sag, dry spray, and sheen.

Record any defect by location and class. A wavy segment needs layout/contact correction. A crisp off-color stripe needs loaded-edge correction. A dark band needs application correction.

Follow both coating systems for repair and recoat. Do not scrape or solvent-wipe the first color by assumption. Remove containment only at the authorized coating state and reopen the area under cure and ventilation requirements.

Clean and inspect each blade. Remove a nicked, bent, contaminated, or unreliable tool from line work even if it remains useful for lower-consequence protection.

Make the shield-versus-mask decision before repeating the room

Use the completed witness and first production wall to decide whether movable shielding remains the efficient boundary system. Continue with the stiff blades when the first color tolerates contact, the wall stays true, the crew can hold a steady datum, and the seat-clean-move cycle fits the second coating’s open time.

Change to fixed masking when the project requires several coats on the same break, the first finish is delicate, the line includes many obstructions, the crew cannot maintain contact without prints, or the specified tolerance is better served by a qualified tape system. The time already invested in a witness is not a reason to repeat a marginal method across more rooms.

For repeated corridors or units, carry forward only observations that match the same coating, substrate, cure state, temperature, crew, and geometry. Re-run the contact witness when one of those conditions changes. A blade length that won on smooth gypsum can fail on block, plaster, or textured repairs.

At handoff, record the datum, color sequence, first-coat cure evidence, selected blade zones, placement overlap, and repair method. That record makes the next room repeatable without turning a job observation into a universal product specification.

What goes wrong (and the fix)

Every segment is straight but the band drifts across the room. The shield followed itself instead of the datum. Re-establish layout and check periodically.

Color appears at placement joints. Overlap or trigger-off timing is insufficient. Extend the dry seat across the prior stopping point and release sooner.

A perfect straight smear appears on the first color. The loaded edge printed. Stop, use the coating-approved repair, and wipe before every seat.

The first color loses gloss under the blade. It was not sufficiently cured or cannot tolerate contact. Stop movable shielding and change the qualified boundary method.

The 48-inch blade leaks at midspan. The wall is not true over four feet or pressure is uneven. Step down to 36 or 24 inches, or fixed-mask.

Both ends leak while the center is clean. The blade is rocking on a high point. Shorten the span and prove contact dry.

The second color is heavy beside the line. The operator dwelled or aimed into the shield.

The line is clean but airborne color reaches the upper field. Fixed containment failed. Stop and correct it; the shield protects only the edge.

Tape would create fewer risks than hundreds of placements. Use tape. A razor-critical, multi-day, multi-coat break can justify fixed masking.

The history footnote

Two-color decorative bands predate powered spraying; painters laid them out with levels, rules, and lines, then cut or stenciled the boundary. Spray shields adapted the straightedge to an atomized fan, but they did not replace the layout instruments that determine geometry. The source supports that craft lineage without a model-specific invention date.

Exact tools, verification, and backlink footer

Stiff identity, aluminum material, and dimensions are supported.
