How to Sharpen and Maintain a Pattern Knife Without Changing Its Geometry

Authored technique boundary: the condition decisions, hand-stone workflow, inspection sequence, curved-edge support, cleaning discipline, and representative-scrap tests below are authored trade technique. Preserve a readable existing edge.

Job: clean, inspect, hone or sharpen, deburr, test, and store a sound riveted pattern knife while preserving the geometry that makes its pattern useful.

Result: the knife returns to its assigned bench clean, dry, secure in its handle, continuous at the edge, and proved on representative scrap without a changed curve, point, taper, or working profile—or it is tagged and segregated for maker/shop evaluation.

Time: condition-driven. Cleaning and light maintenance of a known edge may be brief; corrosion, a chip, a rounded or unreadable bevel, a loose handle, or an altered point stops the routine lane.

Difficulty: moderate when the existing bevel is visible and the matching hand abrasive and shop procedure are already approved; specialist work when the edge geometry is missing, damaged, or previously changed.

The tools from this catalog: the three knives being maintained—53300, 55300, and 61260.

Outside this guide: powered grinding, belt grinding, wheel dressing, heat correction, reshaping a missing point, removing a deep chip or pit, re-establishing an erased bevel, repairing a ferrule or handle joint, or declaring a minimum remaining blade size.

Before you start: name the pattern and the decision

Identify the knife before residue and steel disappear

Record the model, assigned bench or operation, incoming complaint, and current condition. Do not begin with “all carbon knives sharpen the same.” These three share a steel family and permanent riveted construction, but the useful geometry is different:

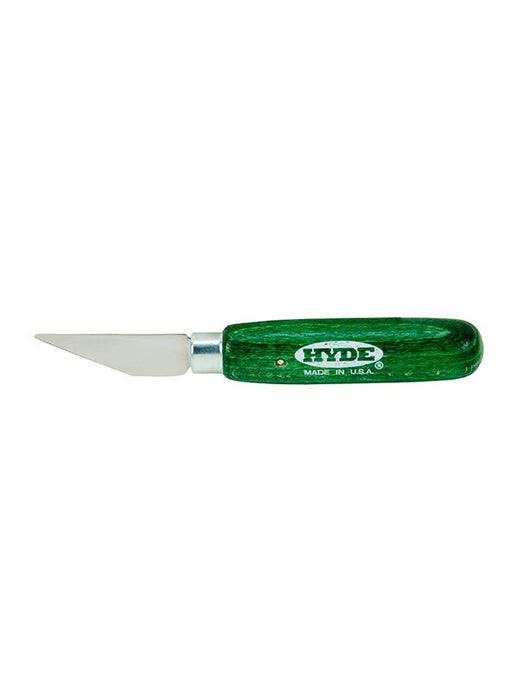

53300 McKay Stitcher Knife (B): a short, close-control knife for work at the McKay/Blake stitching bench.

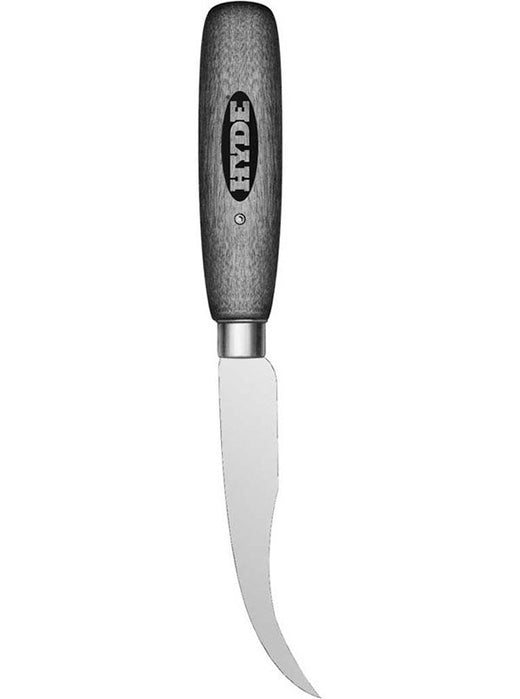

55300 Paris Curve Knife #1: a curved edge whose belly and upswept end steer through contour work. Its curve is not decorative. Flattening any part of the sweep changes how the knife tracks.

61260 Taper Point H2T: a long taper used to enter and dress a ragged tire-casing cut. Its working identity is a point that widens continuously into the blade. Blunting it, narrowing it speculatively, or creating a stepped transition changes how it enters and opens the cut.

If the model cannot be established, do not use another knife’s appearance as a template.

Choose the least steel-removing disposition

Sharpening is only one possible answer:

Clean only when residue caused the drag and the clean edge remains continuous and performs normally.

Deburr, strop, or hone under the held procedure when the edge is structurally sound and light maintenance restores it without changing its geometry.

Sharpen under the held procedure when a known, readable bevel is dull and fine maintenance no longer restores it.

Quarantine for evaluation when the bevel is unreadable, the curve or taper has been altered, corrosion reaches the edge, a chip needs material removal, or the available abrasive cannot follow the pattern.

It does not supply the missing factory geometry or tolerances; it makes unresolved defects a stop condition rather than a trial-use condition.

The maintenance sequence

Take the knife out of service and clean it as a diagnostic step

Move the knife to the maintenance state so nobody mistakes it for ready stock. Keep the exposed edge pointed into clear bench space.

Dry-brush or wipe away loose leather dust, thread, rubber, grit, and shop debris. Then choose cleaner from the actual contamination and the process in which the knife works. Leather dressing, rubber cement, tire contamination, adhesive, and ordinary hand soil do not share one universally safe solvent.

Use the least approved moisture. Do not soak the hardwood handle, ferrule, or riveted joint. Liquid retained at the joint can swell wood, hide corrosion, and leave the blade loose after drying. Wipe away from the edge, clean both faces and the joint, and dry the knife immediately and completely.

Do not sharpen through contamination. Loaded adhesive changes abrasive contact; grit scratches steel; residue can imitate a rolled edge; and corrosion concealed at the apex may appear only after cleaning.

Inspect the handle, blade, pattern, and edge—in that order

Use raking light and magnification where needed. Do not feel along the edge with a thumb and do not shave hair.

Handle and joint: look for movement, an opening at the ferrule, lifted rivets, cracked or raised wood, swelling, contamination, and evidence that the knife has been struck or pried.

Blade body: look for a crack, bend, twist, deep pitting, overheating color, or previous grinding that changed the blade’s section.

Pattern: sight the 53300 without inventing what its point should be; follow the full sweep of the 55300 for flats or kinks; check that the 61260 still transitions continuously from point into taper rather than through a notch or shoulder.

Edge: inspect both faces for a bright flat, roll, wire edge, skipped dull section, nick, chip, apex rust, uneven bevel, or an overworked end.

If the handle or blade body fails, stop before sharpening. If the pattern has already been changed, routine honing cannot restore it honestly. If inspection passes, make a controlled baseline cut on clean representative scrap using the approved workstation and keeping the free hand outside the path. Record drag, tearing, wandering, wedging, or a skipped section. Paper may show edge continuity, but it does not prove performance in stitched leather, contour stock, or tire rubber.

Set a station that controls the escape path

Place the stone or guide in a nonslip holder on a stable, well-lit surface. Arrange the dirty knife, clean cloths, abrasive, finished-knife location, and quarantine location so no one reaches across an edge. The likely path of a slip must end in empty bench space, not a hand, body, aisle, or coworker.

PPE is selected from the actual task and workplace hazard assessment. OSHA 29 CFR 1910.132 requires workplace assessment, selection, fit, and training where PPE is necessary, while 29 CFR 1910.138 makes hand protection specific to the hazards, task, duration, and conditions. A cut-resistant glove does not make the support hand a clamp and does not authorize edge contact.

Keep this a hand-maintenance operation.

Register to the existing edge; do not choose a new one

Use the abrasive and wet, oil, or dry method approved by its maker and the shop. Do not transfer lubricant rules between water stones, oil stones, diamond plates, ceramics, or coated abrasives.

Bring the existing bevel into full, stable contact. Where the shop permits it and the mark can be removed completely, a light marker witness on the bevel can show whether contact is occurring at the shoulder, apex, or both. The mark is a diagnostic, not a substitute for an angle specification. No numerical angle is supplied because none is in the accepted Hyde record.

Begin with the least aggressive approved action that can correct the observed condition. Use controlled passes and reduce pressure as the edge responds. Do not impose a coarse-to-fine progression, a stroke count, or “equal passes per side” unless the held procedure specifies them. The three knives may not share side symmetry, and a flexible or curved section does not contact an abrasive like a straight section.

Stop when the known edge is restored. Extra passes consume the pattern without improving the job.

Preserve each pattern separately

Maintain the 53300 as the known knife in front of you

The 53300’s short blade makes the heel, middle, and end easy to reach, but it also makes end damage easy to magnify. Work the readable existing edge without rolling off at the end. Keep the blade aligned with the abrasive and use light pressure close to the handle; twisting a short point against the stone can change it quickly.

The critical refusal is exact point restoration. If wear or a previous grind has erased that profile, do not “improve” it by copying the clipped-point A sibling, a generic shoe knife, or an online silhouette.

After deburring under the approved method, test on the bench’s representative stitched-leather or thread-cutting scrap only if that test material and motion are authorized. The pass condition is restored controlled cutting for the assigned operation without wandering, tearing the joined material, or requiring abnormal force—not a universal slice count or dimensional tolerance.

Follow the 55300’s sweep with a matching abrasive

A flat bench stone used as though the 55300 were straight can remove the belly’s high spots and turn a smooth curve into flats. That is not ordinary wear; it is loss of the pattern.

Use a profile-matched slip stone or a supported flexible abrasive approved by its maker and the shop. Present it to the existing bevel and follow the sweep continuously. Move through the working curve rather than dwelling at one spot. Maintain contact through belly and upswept end without rocking across the curve, clipping the end, or cutting a notch where the curve transitions into the blade.

Test the restored edge on approved contour scrap. Follow a marked sweep using normal controlled technique. Look for smooth steering and continuous cutting through the curve. A knife that grabs at one point, leaves flats in the cut, or falls away from the line is not released merely because another part feels sharp.

Preserve the 61260’s taper instead of sharpening a generic point

The 61260’s point and continuously widening taper work as one system. Maintain the readable cutting edge along that system with support and light pressure. Avoid three common geometry changes:

overworking only the tip until it becomes a fragile needle;

abrading one area until the widening taper develops a shoulder or hollow;

rounding the point until the knife tears or forces its way into rubber instead of entering cleanly.

Hyde calls the H2T “sharp” and “thin” for reaming ragged tire-casing cuts, but those words are not dimensions or permission to remove steel until it looks thin. They describe working condition.

Test on process-approved representative rubber scrap under the tire bench’s procedure. The check is controlled entry and continuous cutting along the taper without tearing, grabbing, uncontrolled enlargement, or abnormal force. This is only an edge-function test. It does not qualify a tire repair, set repair dimensions, or replace the tire or repair-system maker’s injury limits and repair procedure.

Deburr, clean, dry, and inspect again

Use only the deburring or stropping method held for that edge. A burr is not a finished edge: it can feel keen and fold during the first real cut. Conversely, chasing a large burr removes unnecessary steel. The shop procedure controls side order, pressure, compound, and completion.

Remove swarf, abrasive, marker, compound, cleaner, and lubricant with the process-approved cleaning method. Wipe away from the edge. Pay attention to the ferrule, rivets, the 55300’s curve, and the 61260’s taper. Dry blade and handle completely.

Repeat the structural and pattern inspection before the final cut test. Sharpening must not conceal a loose joint, open a chip, produce a bent point, flatten the Paris curve, or put a step into the H2T taper.

Repeat the representative-scrap test with the normal approved cutting motion. The knife should cut continuously, track as its pattern is meant to track, and require no abnormal force. If performance is uncertain, return to diagnosis once; do not keep removing steel until uncertainty disappears.

Record model, date, incoming condition, cleaning system, abrasive system, action taken, inspection result, test material, test result, and disposition. Do not invent a next sharpening date. Trigger maintenance from observed cutting behavior, the workplace inspection program, and the material being cut.

Store only clean and dry. Use a rack, guard, or sheath that isolates the actual edge and point without forcing the 55300 curve or pressing on the 61260 taper.

What goes wrong—and the fix

The edge still drags after cleaning. Use raking light to distinguish a continuous flat from residue, a roll, a chip, or corrosion. Do not automatically move to a more aggressive abrasive.

It becomes dull on the first test cuts. Suspect a remaining wire edge, wrong bevel contact, loaded abrasive, hard contamination in the scrap, or damaged steel. Reinspect instead of repeating the same passes.

The 53300’s end looks different after sharpening. Stop. Compare only to a controlled shop master or refer to Hyde.

The 55300 cuts at the ends but drags through the belly. The abrasive is touching only part of the sweep, or the pass is rocking. Use the correct matching profile; do not flatten the belly to make a flat stone reach it.

The 55300 now steers in small straight jumps. Flats may have been ground into the curve. Routine honing cannot honestly restore a designed sweep; quarantine for profile evaluation.

The 61260 enters but grabs farther in. Inspect for a burr, shoulder, hollow, corrosion, or debris along the widening taper. Do not narrow the blade speculatively to make it pass.

The 61260 point keeps folding or chipping. Stop. That can indicate an over-thinned point, damaged steel, contamination, misuse, or the wrong restoration. No recurring touch-up schedule solves it.

Rust returns in storage. Find the moisture path: incomplete drying, a contaminated sheath, humid storage, wet process return, or incompatible cleaning. Evaluate any pitting before release.

The handle raised grain or moved after cleaning. Quarantine the knife. Drying or sanding the visible symptom does not prove the ferrule and riveted joint safe.

The knife only cuts when more force is used. Check edge condition, work support, contamination, assigned material, and whether the selected pattern matches the job. Sharpening cannot fix the wrong knife or an unstable workpiece.

A short history of the maintainable pattern knife

These are durable pattern tools from an industrial system in which the knife stayed at the bench and returned to the stone. The 61260 preserves the H2T tire-bench pattern and its specific reaming role. What survives across all three is not one universal sharpening recipe; it is the expectation that a recognizable pattern remains recognizable after maintenance.

Factory bevel angle, side symmetry, edge finish, abrasive type or grade, lubricant, and allowable removal for 53300, 55300, and 61260.

The 53300 B pattern’s exact point profile and any Hyde-controlled master or restoration procedure.

Physical confirmation of the 55300’s catalog-art-derived swept, upswept form; approved profile-matched abrasive and restoration procedure.

Cleaner, lubricant, marker, strop compound, and corrosion-preventive compatibility with leather, adhesive, rubber, tire-repair cement, sanitation, and other shop processes.

Workplace PPE selected from the hazard assessment; no universal glove or eye-protection configuration is authored here.

Any powered sharpening machine’s wheel or belt, speed, work rest, guarding, coolant, dust control, heat-rejection limits, training, and released procedure.

Storage fit and material compatibility for each curved or pointed pattern.

Exact linked set: 53300 55300 61260.
