How to Set a Mosaic Backsplash — The Complete System-Controlled Workflow

This union is a discovery set, not an approved four-tool kit. The exact mosaic/tile instructions, setting-material Technical Data Sheet (TDS), substrate or membrane instructions, project method, and applicable code control eligibility, notch, coverage, open time, ridge treatment, cure, and wet-area use. No generic mosaic recipe or remembered trowel rule overrides them.

Job: install a sheet-mounted mosaic backsplash as one visually continuous, fully bonded tile field, with the sheets hidden, the joints open for grout, and movement and exposure requirements preserved.

Time: a small, already-qualified dry-area backsplash may be laid out and set in a day. Wall correction, waterproofing, complex cuts, face-mounted-sheet timing, and product cure can add separate workdays. The exact setting and grout systems decide when supports can move, grouting can begin, and water, heat, cleaning, or service may start.

Difficulty: moderate handwork, high system consequence. The pieces are small, but every defect repeats: a wall hollow becomes a wave, an over-delivered bed fills dozens of joints, and one misplaced sheet leaves a visible square in the finished field.

It is a handled, small-area candidate only when the exact setting-material TDS accepts that printed meter for the exact mosaic and the lift check passes.

It is a full-field fine-square candidate, not permission to spread every mosaic mortar at that meter.

Hyde’s accepted duty is rubber and plastic materials, not tile.

Everything else: the exact mosaic cartons and current installation instructions · exact setting material, TDS, and SDS · the approved substrate, membrane or primer system and its instructions · exact grout and flexible movement-joint sealant with their instructions · straightedge or level, tape, story pole, pencil, grid lines or laser · spacers or wedges admitted by the tile instructions · clean pails, measured water and mixer only if the mortar TDS calls for them · a clean margin tool for pail transfer · rubber grout float, padded beating block, or other sheet-embedding tool approved by the tile maker · score-and-snap cutter, glass nippers, wet saw and exact blade, or specialist cutting service as the material requires · clean sponges and cloths · outlet box extensions, trim profiles, edge pieces, and ledger/support materials where required · SDS-defined PPE and cutting controls.

First gate: identify the installation, not just the pattern

“Mosaic” describes size and composition, not one bond system. Record the manufacturer, series, material, piece size and thickness, mounting method, backing coverage, finish, intended exposure, and lot/shade before selecting adhesive.

Ceramic and porcelain mosaics can differ in absorption, back relief, mesh, and approved adhesive. A dry kitchen wall does not automatically qualify the same product as a shower wall.

Transparent, translucent, mirror-backed, coated, or painted-back glass can show mortar color, ridges, voids, and contamination through the face. Some products require a named white mortar, a flattened bed, complete visual uniformity, or a particular epoxy; another product’s instruction is not transferable.

Natural-stone mosaic can be moisture-sensitive, resin-backed, scratch-prone, or vulnerable to staining. The stone and setting-material instructions decide adhesive chemistry, color, sealing, and grout.

“Works with glass” does not establish compatibility with the metal coating, resin backing, or stone in the same sheet.

Mesh-, paper-, plastic-film-, or tape-faced sheets have different bond and handling paths. Back mesh and its adhesive occupy bond area; face-mounted sheets leave the backs open but may impose a timed face-removal operation. Use the exact sheet maker’s method.

Build a control card with six lines: tile identity and mounting · setting material and document revision · substrate/membrane and preparation · exposure/heat/service · exact approved notch and application method · coverage/open-time/cure/release criteria. A blank line is a stop, not an invitation to borrow from a similar project.

Current manufacturer documents demonstrate why. LATICRETE’s Glass Tile Adhesive data sheet is a cementitious glass-tile mortar with its own substrates, mixing sequence, working properties, coverage examples, ridge/transfer method, and cure. These are exact-product examples, not a composite recipe.

Before adhesive: prove the wall and the sheet layout

Classify the exposure and assembly. A kitchen splash, vanity wall, tub surround, shower, steam room, exterior wall, and submerged feature are not interchangeable. Grout and tile are not the waterproofing layer. If the location requires water management, install and test the approved membrane, penetrations, transitions, and backing system before tile. Confirm the setting material bonds to that membrane; a ready-to-use adhesive that dries through a porous substrate may expressly exclude it. At a range, fireplace, or listed appliance, tile does not reduce required clearances or create a fire-rated wall. Preserve the listed assembly and obtain the code decision where required.

Make the exact substrate acceptable. Follow the board, plaster, masonry, concrete, existing-tile, paint, or membrane instructions for fasteners, seams, cure, moisture, primer, surface texture, and contaminants. The wall must be sound and in the required plane before setting. Do not flatten it with a thicker adhesive bed. Small mosaics follow every hollow and ridge, and extra thickness can violate the setting product’s cure path. LATICRETE’s Glass Tile Adhesive sheet, for example, gives its own concrete-plane criterion; that number belongs to that product/system, not every backsplash.

Do not bridge them with setting material or grout. Plan the specified flexible sealant at the counter/wall transition and inside corners where required.

Inspect and shuffle the actual sheets. Open several cartons under the final lighting. Check shade, caliber, thickness, coating, chipped pieces, loose tesserae, sheet squareness, joint consistency, mesh folds, excess mesh adhesive, and face-mount condition. Blend the approved range across cartons. Reject or repair sheets by the tile maker’s rule before adhesive turns an inspection issue into installed acceptance.

Dry-map the visible field. Lay sheets on a clean flat surface with the intended joint between sheets. The grout grid must continue through a sheet seam without widening into a frame or tightening into a zipper. Measure by repeating individual tile-and-joint modules, not by assuming the sheet edge is the module. Shift the field to avoid slivers at cabinets, outlets, windows, and exposed edges. Center what the room actually sees.

Mark a working grid. Transfer level, plumb, and sheet-module lines to the wall. A level first course does not guarantee plumb sheet seams ten courses later. Use enough controls to check both. Plan edge trim and changes of plane now. If a ledger is necessary, fasten it only where the substrate or membrane method permits, and plan the approved repair.

Stage the difficult pieces dry. De-energize circuits and verify them dead before removing device covers. Maintain code-compliant box position and extensions; do not bury a box edge or pack it with mortar. Identify which pieces can be score-snapped or nipped and which glass, porcelain, stone, metal, relief, or narrow cuts require the exact wet-saw blade or a fabrication shop. Keep factory edges at visible terminations where possible. Do not dry-cut silica-bearing tile with an uncontrolled method.

Set the backsplash

Then compare it character-for-character with 04126, 19032, or 19062. Format follows the area only after meter and duty eligibility. If the TDS calls for another notch, none of these is approved simply because it is “fine.” If only 19100 appears to match, hold the duty conflict for resolution rather than converting its rubber/plastic record into a tile endorsement. The TCNA ceramic-tile guidance likewise directs installers to the notch printed on the adhesive container.

Prepare the setting material exactly. For a ready-to-use adhesive, verify shelf life, freeze history, skinning, permitted conditioning, and the prohibition on field additives. For powdered mortar, use the exact liquid, amount, component order, mixer, speed, duration, slake, remix, and pot-life procedure. Do not add water later unless the TDS expressly authorizes it. Record the time when the controlling clock starts.

Key in and form only the approved bed. Force a thin contact coat into the prepared substrate with the flat side if the TDS directs it, then form the bed with the admitted notch at the specified angle and direction. Do not mix meters, swirl because a corner is awkward, or use the trowel to fill a wall hollow. Start with less than one sheet’s area for the proof set.

Treat the ridges exactly as the tile system requires. This is a material-controlled branch, not a universal move. AcrylPro directs tile to be pressed across one-direction ridges to flatten them. LATICRETE Glass Tile Adhesive directs back-buttering to provide full bedding and prevent mortar ribbons from showing through transparent or translucent glass. A different mesh-backed ceramic mosaic may require the ridges to remain and collapse under the specified setting motion. Follow the exact tile and adhesive pair; never flatten, back-butter, or leave ridges by category habit.

Set the proof sheet and read the bond. Place the first sheet while the mortar or adhesive has the TDS-required wetness or tack. Align it to the grid without dragging the wall bare. Press with the permitted float, padded block, or beating method so the little units enter the bed evenly; do not drive the mesh to the wall or crush one edge lower than the other. Lift the sheet immediately. Inspect the substrate, mesh and tile backs for transfer, collapsed bed, edge/corner contact, voids, show-through, and joint squeeze-up. Apply the exact product/system coverage criterion. Do not paste those values onto a product that specifies something else.

Correct before repeating. If transfer is short, check product freshness, wall plane, tile/backing acceptance, notch match, tool angle, ridge treatment, and setting motion. If joints flood, verify meter, angle, tile pressure, backing, and wall plane. Do not “solve” either direction by selecting a larger or smaller notch outside the TDS. When the specified tool cannot achieve the specified bond without excessive squeeze-up, stop and ask the tile/setting-system manufacturer for a compatible method.

Work inside the field window. Spread only what can be covered, aligned, embedded, lift-checked, and cleaned before skinning. Laboratory open time is not permission to cover a full wall: heat, airflow, porosity, and mixing alter jobsite behavior. Use the installed product’s touch/transfer test and remedy. Do not wet a skin, coat fresh material over it, or retrowel unless that exact TDS permits the action.

Hide the sheets while the bed is adjustable. Set adjoining sheets to the individual-tile grid, not merely edge-to-edge. Stand back under raking light every few sheets. Use approved wedges or move individual pieces while the system permits to break up visible sheet frames, zipper seams, waves, and sunken corners. Keep the intended grout depth open and remove setting material from movement joints completely. For face-mounted sheets, follow the exact wetting/removal time and direction; early removal can move tile, late removal can lock paper or film to the face.

Close the field deliberately. Dry-fit each outlet, corner, cabinet, and trim cut before spreading its patch. Keep required clearances and flexible joints. Protect the finished field from vibration, impact, heat, water, and adjacent work.

Cure, grout, and release on the slowest applicable clock. The exposed joint is not a cure gauge. Dense glass, low-porosity tile, membrane-backed walls, cool temperatures, high humidity, and filled joints can change drying. Use the exact setting-material cure before grout or face-removal, then the exact grout and sealant cure before cleaning, water, heat, or service. Neither number belongs to an unidentified pail.

What goes wrong — and the controlled response

The finished wall shows a grid of sheets. The installer aligned sheet edges instead of the individual-tile module or failed to inspect under final light. While fresh, open or compress the boundary and move tesserae to continue the field. After cure, localized removal may be the only honest repair.

Mortar is visible through glass. The exact tile required a white setting material, flattened ridges, back-buttering, fuller coverage, or a different system. Stop at the proof sheet. Do not assume grout will hide it.

Adhesive fills the joints. The bed, angle, pressure, backing, or wall plane is wrong for the approved method. Lift and requalify. Clean fresh material to the grout system’s required depth; hardened squeeze-up can stain, alter grout depth, and make sheet seams visible.

Lifted pieces have bare backs or intact ridges. Coverage or transfer failed. Remove fresh work, diagnose notch, skinning, ridge treatment, backing contact, and plane, then repeat the proof. Filling voids from the joint edge is not a bond repair.

Sheets slide or sag. Stop stacking. Confirm vertical-use approval, product condition, tile weight/format, wall contamination, support method, and open-time state. Spacers can hold a qualified layout; they cannot qualify the adhesive.

The surface ripples. The substrate was not flat enough, the bed was used as filler, or sheets were embedded unevenly. Correct the wall before continuing; pressing harder simply moves the wave or floods joints.

The spread skins before placement. The section is too large or conditions shortened the window. Remove or remedy only as the exact TDS directs. Never mist the surface to revive it.

Glass, stone, metal, or backing discolors. Stop. Preserve product and lot information and contact both tile and setting-material manufacturers. Compatibility or moisture migration may be wrong; cure time is not a universal fix.

Cracking repeats at a corner or counter line. A movement joint was bridged, the substrate moved, or two planes were hard-locked. Diagnose and restore the specified flexible joint and assembly; stronger grout is not the solution.

Wet-area bond or backing fails. Remove the area from service. Compare tile mounting, adhesive, membrane, cure, and exposure with each current instruction. Repair the whole failed system boundary, not just loose tesserae.

Cleanup, protection, and tool care

Clean tile faces and joints continuously with the exact setting-material method; translucent, textured, metallic, and porous pieces can be damaged by a cleaner that is harmless on ordinary ceramic. Do not flood a curing wall. Keep a separate clean sponge for final face work, and change water before residue becomes a wash.

Clean 04126, 19032, and 19062 before the installed material hardens, using only the cleaner their blade/handle and the setting-material TDS accept; dry carbon steel and protect every notch. A crusted or nicked fine meter is no longer the printed tool. Keep 19100 gated as stated; if independently cleared for a job, clean and dry its cold-rolled steel under the same exact-product discipline. Contain mortar, adhesive solids, slurry, and wash water under the SDS and local rules rather than sending sediment into drains. Store or dispose of leftover material only as its label permits.

History footnote

Ancient mosaics were individually bedded tesserae in substantial mortar. The modern sheet-mounted backsplash is a different production system: many small pieces arrive pre-spaced, and a factory mesh or removable face turns hundreds of placements into one lift. That convenience moved precision rather than eliminating it. The setter now has to make every factory sheet disappear into one field while a thin, mechanically metered adhesive layer bonds many tiny backs at once. The notched edge is the anonymous trade pattern that makes that layer repeatable; no credible origin source identifies an inventor, and this guide does not claim Hyde invented it.

Can I use any “mosaic adhesive”? No. Identify the tile material, backing or face mount, substrate, exposure, and exact product. The current tile instructions and setting-material TDS must approve the full combination.

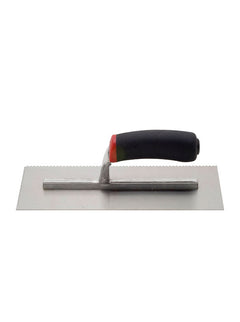

Which Hyde tool should I buy? Copy the exact approved notch first. Match it exactly to 04126, 19032, or 19062, then choose hand scale versus full-wall format. If the documents specify another notch, the correct answer may be outside this row’s union.

Why is 19100 in the register if its duty says rubber and plastic? The canonical row carried its fine-square class capability, but Hyde’s accepted exact-model duty does not establish tile use.

Should I flatten the ridges for a mosaic? Only when the exact tile/adhesive method directs it. Some transparent-glass instructions require flattening or back-buttering to prevent show-through; another system relies on a specified setting motion to collapse ridges. Read both documents.

Can premixed adhesive go behind glass or over a waterproof membrane? Sometimes an exact product may admit an exact combination; there is no class-level yes. AcrylPro’s current sheet excludes transparent glass and nonporous waterproofing membranes, which illustrates why the pail must be named.

How much wall can I spread? Only what can be set, adjusted, lift-checked, and cleaned inside the exact field window under current conditions. Begin with one proof sheet.

When can I grout or use the sink? When setting material, grout, sealant, tile mounting, and assembly all release the next operation. The slowest applicable instruction controls.

Is a kitchen backsplash waterproof? Tile and grout alone are not a waterproofing assembly. Classify the actual exposure and use the approved substrate/membrane system where water management is required.

The named product sheets are comparison exemplars only.
