How to Rough-Cut Carpet from the Back
The register’s eight-SKU union is a discovery denominator, not eight endorsements. This guide re-derives the honest set: 54040 / 54020 lead the open backing cut; 42095 is a feature-gated carpet-specific replaceable-blade alternative; 42020 / 42083 are adequate generalists; 42090 is a rigid but always-exposed…
READ THE WORK
The complete Hyde job guide.
The register’s eight-SKU union is a discovery denominator, not eight endorsements. This guide re-derives the honest set: 54040 / 54020 lead the open backing cut; 42095 is a feature-gated carpet-specific replaceable-blade alternative; 42020 / 42083 are adequate generalists; 42090 is a rigid but always-exposed heavy-cut alternative; 42200 and 67090 enter only after an edge exists and the surface underneath must survive.
Job: turn a roll or large carpet piece into oversize room pieces by planning pile direction and installation method, exposing and marking the backing, then drawing a controlled cut through the backing without chewing the face yarn or scoring the surface below.
Time: plan and mark each room piece before touching the knife. A clear straight cross-cut is minutes; an irregular piece with doorways, pattern registration, or a heavy supported fold is commonly 30–60 minutes before it is safe to move. This is a rough cut, so the time saved by rushing is usually repaid at a seam or wall.
Difficulty: moderate. The stroke is simple. The judgment is in four things that cannot be repaired with a sharper knife: correct pile direction, enough installation margin, a backing-only cut, and stopping relief cuts before they invade the finished piece.
The tools from this catalog:
54040 3-1/8" 4HB Hawkbill Carpet Knife — the rough-cut lead for heavy goods and supported doubled folds.
54020 2-5/8" 2HB Hawkbill Carpet Knife — the handier fixed hawkbill for lighter goods, shallow control, short reliefs, inside-corner approaches, doorways, and other confined cuts.

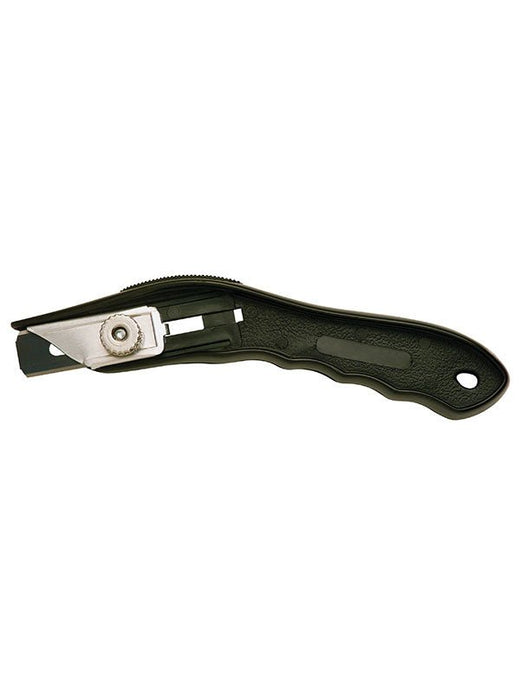

42095 Adjustable Blade Carpet Knife — the carpet-specific replaceable-blade alternative by identity. Teach the class technique, but do not turn any reported feature into a promise.
42083 MAXXGRIP® Angle-Head Top-Slide Utility Knife — the best general-purpose trapezoid alternative for repetitive long pulls: Hyde documents the offset head for leverage, overlap nose, soft grip, three lockable positions, tool-free change, and one included carbon-steel blade. It uses a straight edge, so it relies more heavily than a hawkbill on the straightedge and an unbroken stroke.
42020 Front-Loading Top-Slide Utility Knife — the occasional installer’s already-owned answer: three blade positions, tool-free front change, spare storage, three heavy-duty blades, and a string notch. It rough-cuts carpet adequately; it does not acquire the hawkbill’s backing-gathering curve because the job changed.
42090 HD Fixed Blade Utility Knife — a rigid, knurled-metal, overlap-nose alternative for heavy backing when no slide movement is acceptable. Use only over a sacrificial surface with a safe carry plan; it is not the first choice for backing-only depth.
42200 Heavy-Duty Hook Blades — blades, not a complete knife, and not the lead for this open-field job. Once an accessible edge exists, the captured throat can pull-cut carpet while its belly protects installed pad or a finished subfloor. It cannot pierce or begin a mid-field cut.
67090 Hook Knife BG39A — the fixed, maintainable captured-hook counterpart for edge-fed pulls over a surface that must survive.
Everything else: the carpet manufacturer’s installation and seaming instructions · room plan and cut sheet · tape measure · long steel straightedge · chalk line or backing-safe marker tested on scrap · pile-direction arrows and piece labels · a clean sacrificial cutting deck large enough to support the full cut (sheet stock over a slab is the usual answer) · padded blocking or a helper for a heavy fold · knee pads · task-appropriate hand and eye protection · a slip stone or round-edged fine stone for the fixed hawkbills · verified replacement blades for any replaceable host · a rigid sharps container for spent blades. This store does not supply the full stretch-in system (kicker, power stretcher, stair tool, seaming iron and tape, loop-pile cutter), and a rough-cut knife is not a substitute for any of them.
| The actual cut | Honest first choice | Why the nearest neighbor loses |
| A heavy broadloom cross-cut over a supported fold or doubled goods | 54040 | 54020 gives up the reach and bite that matter at the fold; no other documented difference is claimed |
| Light goods, a short room piece, doorway reliefs, or the easiest backing-only control | 54020 | 54040 carries more sweep than the confined or shallow cut needs |
| An installer who cuts carpet occasionally and already carries one utility knife | 42020 | A dedicated carpet knife is better at gathering backing, but the already-owned generalist is adequate |
| Repetitive long pulls where a neutral wrist matters more than the 42020’s storage/notch features | 42083 | 42020 is the feature generalist; 42083 is the documented offset geometry knife |
| Heavy backing where absolute fixed-blade rigidity matters and a safe always-live carry is acceptable | 42090 | It sacrifices retraction and depth positions for rigidity; that is a policy and surface trade, not an upgrade |
| A mid-field start, inside relief, or a line that must begin away from an edge | 54020 / 54040, or an appropriate open straight blade | 67090 and 42200 have captured throats and no usable piercing point |
The quick counter call: heavy fold → 54040; tight or shallow → 54020; swap-not-stone crew → gated 42095; occasional work → the utility knife already owned; surviving substrate after an edge exists → a hook.
Before the cut: identify the carpet and the installation plan
Read the manufacturer’s instructions before making a generic cut
Find the product label, roll tag, installation sheet, and seam instructions. Record the manufacturer, style, dye lot, roll number, pattern repeat if any, and any printed direction arrow. If the maker specifies a cutting or seaming method, that instruction outranks a general guide.
Identify the installation method:
Stretch-in: the piece will be rough-cut oversize, seamed into the room assembly if necessary, stretched over pad onto tack strip, then finish-trimmed and tucked. Rough cutting does not determine the final wall edge.
Direct glue-down: the piece will be rough-cut oversize, dry-fitted, folded back, laid into adhesive, rolled, then finish-trimmed. The adhesive label controls its own trowel, open time, and rolling; see *Install glue-down carpet*.
Other system: double-glue, specialty cushion, modular product, stair work, woven custom work, or manufacturer-specific installation requires that system’s instructions. Do not force a broadloom rough-cut procedure onto a different product because it has a textile face.
Write the method on the cut sheet. It decides how much handling remains after this cut and where the finished line will eventually be made.
Identify the face construction that changes the cutting plan
Inspect a labeled scrap and the goods themselves:
Cut pile: the face yarn ends are cut. The backing can usually be rough-cut to the room-piece plan, but any seam edge is a later precision edge, not automatically the rough edge made today.
Loop pile, including many Berber styles: loops remain continuous. A future seam edge must follow a row lane when the construction permits; cutting through loops can start a run. Mark any rough edge that will approach a seam, leave enough waste for the separate row-cut operation, and do not promote a rough chalk line into a seam edge by convenience.
Preserve enough material for the maker’s approved seam method and pattern match.
Woven, specialty, or uncertain construction: stop at identification. Use the manufacturer’s cutting and edge-sealing instructions; do not invent tufting/backing behavior for a product whose construction is unknown.
A rough-cut guide preserves that choice; it does not erase it.
Establish pile direction before laying out a single piece
Sweep the face with your palm in both directions. One way feels smoother and darkens or lightens the carpet differently in raking light; that is the pile lean. Confirm it against the roll tag or maker’s arrow where one exists. On every piece:
draw a large pile-direction arrow on the backing;
assign the room and piece number;
mark which edge faces the room’s reference wall;
preserve the roll orientation — never rotate a piece 180° merely to save material.
All pieces in one visual field normally run the same pile direction because reversed pile reads like a color change even when the dye lot is identical. Pattern direction, traffic, seam placement, and the maker’s instructions can add constraints; settle them on paper now. A knife cannot repair a reversed piece.
Build a cut plan from the room, the roll, and the downstream work
Measure each wall at more than one point; rooms are rarely square. Record projections, alcoves, columns, doorways, transitions, and the widest dimension, not only the nominal room size. Mark the seam plan and dominant-light direction before nesting pieces on the roll. For pattern goods, account for the manufacturer’s repeat and match method; this guide invents no repeat allowance.
Separate three lines on the drawing:
room geometry — what the room actually measures;
rough-cut line — the oversize piece made now;
finished/seam line — made later after dry fit, row finding, trace-cutting, stretching, or bonding as applicable.
Use the installation manufacturer’s required allowance. If none is stated, preserve enough margin to absorb room irregularity and the later fitting method rather than inventing a universal number. “A few inches” is common shop talk, not a product-agnostic specification, and this guide does not turn it into one.
Set up the goods without crushing the pile or exposing the floor
Make a clean cutting deck
The signature cut is backing up, pile down, but that does not mean pile on grit. Sweep and vacuum the deck; remove screws, staples, wire, stone chips, and adhesive lumps that can crush or soil the face. Put a sacrificial sheet under the entire cut path. A clean slab can serve where it is acceptable to mark; a finished floor, installed pad, or subfloor that must remain unscored cannot.
Do not trust “backing-only depth” to protect an expensive surface. Depth is hand skill, and hands have breakouts. The sacrificial layer is the physical control.
Roll, turn, or fold with support — never make a hard crease
Large broadloom is heavy and awkward. Use a helper or mechanical handling appropriate to the roll; do not stand in a tipping roll’s path or try to arrest it with a foot. Turn the piece so the local cutting area lies pile-down and the backing is visible.
For a cross-cut on a long piece, fold or roll back only enough to expose and support the line. Build a broad, padded hump rather than a knife-edge crease. Support both sides so the backing is not bridging in mid-air and the pile is not pinched flat under the fold. A hard crease can distort backing, crush face yarn, and move the marked line when the goods relax.
The heavy-fold advantage of 54040 applies only to a supported doubled condition.
Protect the body before arranging the stroke
Carpet cutting is kneeling work.
Now arrange the knife path:
body offset from the extension of the line, not sitting behind it;
off hand behind the cutting edge and outside the breakout path;
helper on the non-cut side, never pulling against the blade;
no thigh, knee, cord, or loose clothing beyond the end of the stroke;
straightedge positioned so a skip moves into waste, not into the finished piece or the holding hand.
A hawkbill and a hook both self-feed in a pull. When resistance releases, the blade keeps traveling toward the puller. Plan where it will stop before starting.
Measure and mark the backing
Transfer the cut plan to the back, then prove the orientation
With the backing flat and relaxed, transfer the reference edge, piece label, pile arrow, finished-edge notes, and rough dimensions. Measure from a known factory/reference edge only after checking that it is straight enough for layout; do not assume a factory edge is a seam-ready datum.
Before striking the line, point from the backing arrow to the room plan and say the direction aloud: “This arrow points to reference wall A,” “This end goes to the hall,” or the equivalent job-specific check. Then confirm the piece is not mirrored. A back-side layout reverses left and right; doorway jogs and inside corners are where that error appears.
Strike one unambiguous rough-cut line
Use a long straightedge or a chalk line tested on scrap so pigment does not transfer through or contaminate the face. Mark the waste side conspicuously. Where the line crosses a fold, mark both approaches on flat backing before building the fold, then check that they meet after support is in place.
For an irregular piece, mark each leg and the relief approach separately. Do not draw a rounded “close enough” corner and expect the knife to decide where the geometry belongs.
Make a scrap test before the room piece
On a waste strip of the same carpet:
place it pile-down on the same sacrificial deck;
make a short cut at the planned tool angle and depth;
turn the scrap over;
confirm the backing is severed cleanly, the pile parts without a shaved channel, and the sacrificial surface shows no deep score;
assess edge freshness — fuzzing, torn ribs, or rising force means stone, flip, or replace the edge before the room piece.
For 42095, use only verified instructions for loading and setting the actual knife. For 42090, the absence of a depth position means the test must be controlled entirely by hand and surface protection.
Make the trade’s signature cut
Start from an accessible edge whenever the layout allows
Seat the straightedge on the keep side. Begin at an existing edge and draw into the line:
54040 / 54020: let the inside curve gather the backing. Use a low, controlled draw with only enough point and edge engaged to sever the backing.
42020 / 42083: use a fresh trapezoid corner and the shallowest documented position that reaches through on the scrap test. Keep the supported nose registered and the straightedge firm; the straight blade does not gather scrim the way a hawkbill does.
42090: begin only with the work fully supported and the body clear. The fixed edge is always live and has no exposure adjustment.
42095: use the actual verified blade and mechanism instructions.
67090 / 42200: use only when the cut starts over an edge and the substrate-protection role is needed. Keep the hook belly flat and pull material into the throat. These cannot make the mid-field start in Step 12.
Do not saw. Sawing makes multiple chances to leave the line, heats and dulls the edge, and drags it into pile. A correct rough cut is a deliberate draw or a short series of overlapping draws, each restarted in the existing kerf.
Make a mid-field start with an open point — never fake one with a hook
Use the open point of 54020 / 54040, or an appropriate pointed straight blade, to pierce only the backing on the waste side of the line. Start shallow, tip controlled, and lengthen into the draw after the opening exists.
The 67090 and 42200 are excluded here. A captured hook has no usable piercing point. Drilling, stabbing, or twisting one into the field defeats its substrate-protection geometry and can tear the backing. Make the opening with the correct open blade, then a hook may take over from the new edge if the surface below demands it.
Draw through the backing, not through the carpet
Hold the backing taut enough to stay flat but not stretched enough to move the mark. Draw the edge along the line at the minimum depth established on scrap. The feel changes as the backing parts: resistance should be steady, then release cleanly. If resistance rises:
stop with control;
withdraw along the kerf;
check that the straightedge and support did not move;
inspect for a dull edge, unsupported fold, embedded grit, or a construction change;
stone, flip, or replace before continuing.
Do not answer drag by pushing deeper. That converts an edge problem into a pile and subfloor problem.
Keep the blade close to vertical where the rough edge may later inform a seam or trace-cut. A leaned blade creates a hidden bevel: the face edges touch while the backings gap, or the reverse. The later seam guide owns the finish edge, but the rough cut should not make its job harder.
Cross the supported fold without losing the line
Approach the fold with both sides supported. Shorten the stroke before the crown, keep the backing surface from tenting, and resume only when the knife’s nose or hawkbill sweep has clear travel. The 54040’s added reach is useful here because it remains engaged longer before the handle meets the doubled goods; that is the queue’s signature selection call.
If the fold shifts, stop and flatten. Never chase a moving chalk line with a deeper pull. It is faster to reset the support than to turn a wandering rough cut into a missing seam allowance.
Finish the last few inches from the opposite edge
Do not pull the knife off the end of the piece toward a leg or helper. Stop short, move to the far side, and complete the cut back into the existing kerf. This prevents the uncontrolled breakout that happens when backing resistance disappears at the edge.
Separate the pieces by lifting the backing and allowing the face yarn to part. If a few yarns bridge, locate the exact bridge and clip or slice it from the waste side with a fresh controlled edge. Do not drag the whole knife through the face to “free” the cut.
Reliefs, inside corners, doorways, and irregular pieces
Cut the waste into manageable flaps before attempting an inside shape
For an L-shaped piece or doorway return, rough-cut the outer rectangle first where practical. On the waste field, make relief cuts that let the carpet relax and the keep piece lie flat. Each relief terminates in waste before the intended finished corner. It exists to remove tension, not to define the final corner.
Never turn a loaded hawkbill or utility blade ninety degrees inside the backing. That twists the edge, rounds the corner past its mark, and stores energy for a skip. End one straight leg under control, withdraw, reorient the piece or body, then begin the next leg.
Approach an inside corner from both legs
Mark the theoretical corner on the backing and an unmistakable stop point short of it. Cut the first leg to that stop, then approach from the second leg. Let the two kerfs meet without crossing beyond the corner into the keep piece. If they do not release, turn the piece over, inspect the face, and open the last fibers from the waste side.
Leave the final fitting relief for the installation stage. A rough piece needs freedom to reach the wall; it does not need a finish-sized V cut on the bench. Overcutting an inside corner has no patch that disappears.
Treat loop and pattern areas as protected future edges
Where a relief approaches loop rows or a patterned seam, stop farther into waste and preserve enough material for the proper row-find, pattern registration, and edge sealing. Do not use “rough cut” as permission to sever loops that the final seam needs. The separate *Row-cut loop pile for a seam edge* and *Seam two pieces of carpet* guides own those finish cuts.
Inspect, label, move, and hand off
Inspect both faces before rolling the piece
Check the backing for a continuous severed line, no torn ribs, no deep wandering score, and no corner overrun. Turn enough of the piece to inspect the face:
pile direction arrow still matches the plan;
no shaved channel or chewed face yarn;
no crushed or stained line from the cutting deck;
pattern and piece labels still agree;
margin remains around every future seam and finished perimeter.
Measure the piece again. Label its room, orientation, seam side, and next operation. A large anonymous carpet rectangle is a mistake waiting for the next room.
Roll rather than hard-fold for movement
Roll the piece with the face protected in the direction the product and installer require; avoid introducing a new hard crease. Keep labels visible. Use enough people or handling equipment that nobody drags the face over grit or twists under a load.
Hand the rough edge to the right next operation
Seam edge: do not assume the rough cut is finish-ready. Cut pile may be true-cut and trace-cut; loop goods may require row cutting; both commonly require edge sealer. Continue at *Seam two pieces of carpet* and, for loop construction, *Row-cut loop pile for a seam edge*.
Stretch-in perimeter: seam first, stretch with the correct kicker/power-stretcher system, then crease, finish-trim, and tuck with a blunt stair tool.
Glue-down perimeter: dry-fit, spread to the adhesive label, lay and roll, close sealed seams into the bed, then finish-trim. Continue at *Install glue-down carpet*.
Transition over a finished surface: when an accessible edge exists, this is where the 67090 or a 42200 in a verified host earns its place — captured-throat pull, surface below protected. That role does not retroactively make it the rough-cut lead.
Edge maintenance, replacement, carry, and disposal
Maintain the fixed hawkbills as inside-curve tools
54020 and 54040 are documented high-carbon steel. Hone the working edge on the inside of the curve with a slip stone or round-edged fine stone following the existing bevel; a flat stone cannot address the sweep properly. Fine-stone often, grind rarely. Wipe the blade clean and dry after adhesive-adjacent work or damp-floor work; oil for longer storage as the tool’s care instructions permit. Carbon steel can rust if stored wet.
Do not improvise “2HB” or “4HB” into a bevel or sharpening specification.
Feed replaceable blades without guessing compatibility
For 42020 and 42083, use the verified blade class and manufacturer procedure; flip a two-ended trapezoid blade at first drag, then replace it.
Do not promise cross-brand compatibility, slot standard, included count, or refill fit. Resolve and stock the refill before presenting the knife as a complete store system.
The 42200 is itself a consumable refill, not a handle.
Control every live and spent edge
Retract retractable knives before setting them down. The 42090 and both fixed hawkbills remain live; place them in a verified sheath or designated rack, never loose in a pocket or tote.
Put spent trapezoid, carpet, and hook blades directly into a rigid sharps container. Do not leave them under the goods, in a pocket, or loose in ordinary trash. If local disposal rules require taped or contained edges, follow them. Never snap a non-segmented carpet, trapezoid, or hook blade to “make it safer.”
What goes wrong — and the fix
The installed pieces look like different colors. Pile direction reversed. There is no knife fix. Re-cut or replace the misoriented piece if margin and stock allow. Prevention is the roll-to-room arrow check in Steps 3 and 8.
The piece is too small at one wall. The room was measured once, a jog was mirrored from the back, or the rough line was confused with the finish line. Do not stretch a rough-cut error into compliance. Re-plan the piece; use remaining margin only if the installation system permits.
The cut wanders away from the chalk line. Straightedge moved, backing was tented, blade was dull, or the pull restarted outside the kerf. Reset flat, renew the edge, and re-strike in waste if margin remains. Do not steer harder mid-stroke.
The backing fuzzes or tears instead of severing. Dull edge or unsupported work. Stone, flip, or replace; support the fold. More force on a dull edge makes the tear and the eventual seam worse.
A channel of short pile appears along the face. Blade ran too deep or the piece was cut face-up. If it falls within waste, re-mark and preserve margin. If it is in the keep piece, assess replacement; grooming cannot restore cut yarn.
The sacrificial deck has a deep knife line. The blade was overexposed or pressed too deep. Stop and reset the depth on scrap. If that line is in a finished subfloor, document the damage before installation hides it.
The last inches tore when the blade exited. Uncontrolled breakout. Re-cut from the opposite edge into the kerf as Step 15 directs.
An inside corner split past the mark. Relief was turned under load or both legs were overrun. There is no invisible patch at a finish corner. Preserve more rough margin and approach from both legs on the replacement piece.
Loop pile begins to run. A row was cut through. Stop handling it, secure the affected edge per the manufacturer’s method, and re-cut to a clean lane if material remains. The dedicated row-cut guide owns the repair decision.
The fold line remains crushed or distorted. Goods were hard-creased or unsupported. Relax and condition the piece per manufacturer instructions; if the distortion remains in the visible field, escalate before bonding or stretching.
42095 cannot be set or fed as the page seemed to imply. The retail-tier feature report was treated as a fact. Stop; use the physical manufacturer instructions and keep every disputed feature flagged until Hyde supplies a spec sheet.
A hook will not start the line. That is correct behavior, not a dull hook. It requires an accessible edge. Use an open point for the start, then hand off to the hook only if substrate protection warrants it.
The blade breaks free toward the knee or off hand. The body was in the pull line or the cut was forced. A self-feeding pull is planned before it is made.
Load-bearing safety and limitations
The native stroke travels toward the worker. Off hand, knee, thigh, helper, and cords stay outside the projected pull and breakout path. Cut-resistant gloves may reduce some contact injury but do not make a hand safe in that line.
Support and handle broadloom as a load. Heavy rolls can crush feet, tip, or strain backs. Use helpers or suitable handling equipment; no knife choice grants one-person control of an unsafe roll.
A rough-cut knife does not authorize disturbance of suspect old flooring. If rough cutting is part of removal and pre-1980s resilient flooring, felt backing, or black cutback adhesive may lie below, stop and test before disturbing. That is an abatement decision, not a deeper knife cut; continue at *Tear out old resilient flooring*.
No universal margin, blade exposure, backing composition, pattern allowance, or seam method is authored here. The carpet and installation manufacturer own those facts.
Hooks protect substrates only on edge-fed cuts. They do not pierce, make inside reliefs, or replace the open backing knife.
The 42095 and 42200 remain product-fact gated. Class technique is not a Hyde-specific feature or fitment claim.
History footnote — the cut changed when the installation system changed
Wall-to-wall carpet once showed its fasteners: edges were tacked through the face, a slow method that marked the visible perimeter. Roy M. Its inclined points gripped the carpet from below so the field could be stretched and the edge finished without a row of face tacks.
That fastener reorganized the installer’s knife work. Carpet could be laid as an oversize room assembly, seamed, stretched to the perimeter strip, finish-trimmed, and tucked. The backing-up rough cut became the first irreversible step in that system: direction and margin decided on the bench, final fit deferred to the room. The hawkbill predates modern broadloom and has no named inventor in the record; its inside-curve pull is an anonymous trade geometry that survived because a springy backing still has to be gathered into an edge. No source reviewed establishes when Hyde introduced the 2HB, 4HB, 42095, or 42200 patterns; do not manufacture a launch chronology.
Procedure, construction, and safety
Carpet and Rug Institute — CRI 104 Standard for Installation of Commercial Carpet — carpet-style-specific trimming, manufacturer-method precedence, seam preparation, and edge sealing.
Carpet and Rug Institute — installation standards landing page — CRI 104 commercial and CRI 105 residential standards.
Hyde product and line evidence
Hyde IBS — hawkbill design — hawkbill pull-cut mechanics at class level.
[US 2,238,946 — Roy M.
US 4,822,658 — Carpet backing and installation system — later patent history stating the Roberts Company originated the tackless system in 1938.
Hyde Tools — Our Story and Hyde IBS — History — Southbridge blade-making lineage; founding-year conflict retained.
42095 official record: none found in the frozen Hyde catalog indexes or official product cache. Obtain Hyde’s spec sheet before asserting mechanism, materials, exposure control, blade pattern, included count, tool-free change, or offset head.
42095 refill: retail listings report 42105 five-packs; exact fit and pack count are unverified, and the refill is not carried in this store.
42095 compatibility: four-edge reporting suggests a slotted carpet-blade class, but slot standard and cross-brand compatibility are unverified.
42200 official record: none found. Store-title pack count, steel, thickness, two-hook geometry, and Hyde-specific fit to 42020 / 42083 are unverified.
54020 / 54040 figures: 2-5/8" and 3-1/8" are printed in product names and presumed to be blade lengths by trade convention; Hyde provides no dimension table.
2HB / 4HB: pattern-code meanings unknown; quote, never interpret.
67090 width: catalog 5/16" conflicts with Shopify 1-5/16"; likely OCR loss is not proof. Hook function, 3-3/8" length, .083" thickness, high-carbon steel, and V-ground hook are documented.
67090 carry: 42700 is the relevant hook-sheath family, but exact named-model fit is not accepted evidence; physically prove or obtain Hyde compatibility.
42090 blade change: accepted claims do not state the change method; no procedure is authored.
Tackless-system date: Roberts patent filed in 1938; some trade history uses 1939. Preserve the conflict until a primary source supports the later date.
Hyde founding year: company sources have used 1870 and 1875; retain “early-to-mid 1870s.”
Backing and allowance: no universal backing composition, pile construction, rough allowance, pattern repeat, blade exposure, or edge-sealing recipe is claimed. Bind each to the actual carpet and installation instructions.
Graph handoff
Every linked PDP should return to this guide only at its honest grain. The graph must preserve the negative edges as carefully as the positive ones: a refill is not a knife; a hook is not a piercing blade; a generalist is not a carpet specialist; an unverified feature is not a promise; and a rough cut is not a seam or finished perimeter.
AUTHORED HYDE MATCHES
Tools documented for this work.
HYDE 42020
Hyde Tools 42020 Front-Loading Top Slide Knife
$15.28 In stock
See product and quantity pricing →
HYDE 42083
Hyde Tools 42083 MAXXGRIP® Angle Head Knife
$15.05 In stock
See product and quantity pricing →
HYDE 42090
Hyde Tools 42090 HD Fixed Blade Utility Knife
$26.72 In stock
See product and quantity pricing →
HYDE 42095
Hyde Tools 42095 Adjustable Blade Carpet Knife
$9.40 In stock
See product and quantity pricing →
HYDE 42200
Hyde Tools 42200 Heavy Duty Hook Blades (5)
$5.22 In stock
See product and quantity pricing →
HYDE 67090
Hyde Tools 67090 Hook Knife (BG39A), 3-3/8" x 1-5/16"
$28.34 In stock
See product and quantity pricing →DOCUMENTED SOURCES
Inspect the supporting record.
- flooristics.com/cut-seams-looped-carpet-installation/
- archive.cdc.gov/www_cdc_gov/niosh/docs/90-104/default.html
- carpet-rug.org/resources/installation-standards/
- carpet-rug.org/wp-content/uploads/2019/03/CRI-104-STANDARD-For-INSTALLATION-of-COMMERCIAL-CARPET.pdf
- cdn.shopify.com/s/files/1/0808/2014/2357/files/Hyde_Catalog_2024.pdf?v=1709756254
- hydetools.com/pages/our-story
- hydetools.com/products/hawkbill-knife-4hb-carpet-knife
- patents.google.com/patent/US2238946A/en
- patents.google.com/patent/US4822658A/en
- www.flooringtech.org/unit18_carpet_basics/section4_tufted_and_bonded_carpets/lesson3_seam_trimming.htm
- www.industrialbladesandknives.com/about/history
- www.industrialbladesandknives.com/articles/what-is-a-hawkbill-knife-industrial-applications-and-blade-desig...
