How to Roll a Door with a Mini Roller

All three are dispositioned below and no other product is added. The union proves frame identity, not coating compatibility or automatic frame-to-cover fit. The door or substrate maker, coating label and technical data sheet (TDS), current safety data sheet (SDS), and cover maker control substrate permission, preparation, primer, application conditions, personal protection, dry/recoat/cure intervals, cleanup, and return to service. Price and availability are never stated.

Job: apply a controlled rolled finish to the approved faces, panels, rails, stiles, and edges of one interior or exterior door while preserving its hardware, clearances, seals, labels, drainage, fire/egress functions, and ability to close without blocking.

Time: there is no honest universal duration. Active rolling is only one part of the job; cleaning, repairs, primer, coats, turning, handling, hardware installation, and closing each have product- and assembly-specific conditions. Plan the sequence from the current coating system rather than from an “overnight” assumption.

Difficulty: moderate. A mini roller makes the fields efficient. The skill is deciding what may be coated, keeping one texture across differently oriented door parts, controlling the four face edges, and stopping before setting film is overworked.

The exact tools from this catalog:

Decide whether this door should be rolled at all

Identify the assembly before buying a frame or opening paint:

Door construction and skin: solid wood, wood veneer, hardboard, MDF or another composite, steel, fiberglass, vinyl/plastic, factory laminate, or unknown.

Existing finish: sound and merely glossy; dirty; chalked; rusted; cracked; peeling between coats; peeling to substrate; factory coating; clear finish; or unknown.

Operating duties: ordinary swing door, exterior weather door, fire-rated or labeled door, self-closing door, security door, glazed door, pocket/sliding door, or another controlled assembly.

Contacts and seals: hinges, latch and strike, stop contact, weatherstrip, sweep, gasket, closer, threshold, edge seals, glazing beads, drainage paths, and labels.

New system: exact cleaner, preparation, repair, primer, coating, applicator, coat count, dry/recoat/cure state, and return-to-service condition approved for that door.

A wet patch that looks smooth proves neither bond nor final texture. Stop and obtain the door or coating maker’s procedure when repaint permission or compatibility is unknown. A roller frame does not authorize coating a factory skin, gasket, seal, label, or hardware.

Do not coat over rot, swelling, delamination, active rust, water entry, failed joints, loose glazing, or broad intercoat failure. Repair the cause or route the assembly to a qualified repair process first.

Establish safety, access, and handling boundaries

If preparation will disturb paint in pre-1978 U.S. housing or a child-occupied facility, treat lead as a real decision boundary. Covered paid work belongs under the EPA Renovation, Repair and Painting Program; homeowners should use EPA lead-safe DIY renovation guidance. This guide does not authorize ordinary dry sanding, scraping, or uncontrolled dust collection on suspect lead paint.

Follow the coating and cleaner SDS for ventilation, gloves, eye protection, respiratory protection, ignition control, spill response, and waste. “Low odor” does not establish safe exposure. Do not point a fan across the wet face; moving air can carry dust and can change the coating’s working conditions. Handle coating- or solvent-wet rags exactly as the product and local fire/waste rules require.

Before removing a door, determine its weight, hinge design, closer, glass, rating, and safe handling method. Support it before withdrawing pins or fasteners. Use a second person or qualified handler for a heavy, glazed, fire-rated, self-closing, or unfamiliar assembly. If it stays hung, secure it against movement without defeating its required function. If it comes off, place it on stable padded supports that cannot slide, rack the slab, damage an edge, or trap hands.

Record function, then remove or protect hardware

Operate the door before disassembly. Photograph and record swing, latch engagement, hinge alignment, closer action, stop contact, seals, clearances, and every existing rub. That baseline separates a paint-created failure from a pre-existing one.

Remove knobs/levers, roses, latches, hooks, kick plates, and other hardware only when the method is understood and removal is allowed. Label each item, position, orientation, and screw group. If hinges remain, mask leaves precisely. Keep coating out of hinge knuckles, pins, mortises, fastener holes, latch bores, strike openings, closers, seals, sweeps, gaskets, drainage, certification labels, and designed contacts.

Define which edges are actually in scope. Do not assume all six door planes receive the same system. Exterior top and bottom edges, factory-sealed edges, fire-door edges, metal-skin returns, and composite edges can have maker-specific requirements. Repeated coats also consume clearance; paint is not a remedy for a door already rubbing its frame.

Prepare the approved surfaces as one coating system

The sequence is diagnose → clean → remove failed material under the applicable safety controls → degloss or abrade as specified → repair → caulk only approved stationary joints → prime where required → remove dust → coat.

Clean before abrading. Hand oils collect at the latch edge; cleaners, polish, kitchen grease, smoke film, and wax can defeat adhesion while remaining invisible. Use only the cleaner and rinse/neutralization process the coating system allows.

Remove loose film to a sound boundary without damaging the door skin. If failure spreads during the test, stop and diagnose the interface instead of asking the next coat to glue it down.

Abrade or degloss only to the profile and under the conditions the primer/topcoat requires. Do not invent a grit, pressure, or dust method.

Repair dents, chips, rust, torn fibers, and stable defects with materials approved for the identified substrate. Keep filler and caulk out of moving joints, clearances, mortises, drainage, seals, and glazing interfaces.

Prime bare areas, repairs, stains, metal, or difficult existing finishes only with the specified primer. A generic “bonding primer” is not a substitute for identification.

Vacuum and perform the permitted final wipe. The top edge and panel corners are dust reservoirs; the roller will transfer that debris into every later field.

Do not proceed until the system has reached its stated ready-to-coat condition.

Select and prove the frame-cover assembly dry

The exact union offers three frame decisions, not three universal kits.

Choose the cover from the coating maker’s approved applicators, the door surface, and the finish requirement. A “4-inch” cover is not automatically a fit for a “4-inch” frame; width describes the painted swath, while the mounting core determines fit.

Mount the exact cover using its maker’s directions.

Confirm it seats fully without hammering and does not flop loose.

Spin it dry. It should turn true without rubbing the frame arm, slipping around the cage, wobbling, or migrating.

Make a dry pass on clean scrap to confirm the frame clears profiles and the cover shoulders do not print adjacent planes.

With 47402, install only the adaptor identified by its documented core map.

Run a coating-system test panel with the selected cover. Judge the dry result for texture, coverage, leveling, bubbles, lint, and edge tracking. No frame in this union guarantees a near-spray, brush-mark-free, bubble-free, or stipple-free finish.

Stage the door and rehearse the sequence

Arrange the working vessel, brush, roller, light, and clean landing area so the face can be completed without interruption. Mix, strain, reduce, or condition coating only as directed. Protect bulk material by decanting a clean working charge; do not return contaminated working paint to it.

Rehearse the door order while dry. Every face element needs four actions: cut inaccessible profiles → load the field → distribute while open → make one light final layoff in that element’s long direction. Keep adjacent brushwork and roller work within the coating’s permitted working state so their textures meet without a dry ridge. The label/TDS, environment, and observed film—not a guessed number of minutes—decide how much area can remain open.

Load the cover evenly, then remove free excess in the tray without crushing it. A loaded cover should roll immediately on the tray test area. A skid at touchdown means it was not spinning, was overloaded, or does not fit; solve that before the door records it.

Roll a panel door in construction order

Treat a panel door as bounded fields, not as one wall.

Profiles and panel fields first. Brush the deep moulding/profile of one panel with the coating-approved brush, drawing pools out of corners. Roll that panel’s flat field while the profile bead remains workable. Do not force the roller shoulder into the profile.

Lay off each panel in its dominant direction. Finish with a lightly loaded or unloaded pass, minimal pressure, and no repeated correction once the film begins to drag.

Repeat panel by panel. Inspect lower moulding corners immediately; gravity collects excess there on a standing door.

Center vertical members next. Roll muntins or center stiles in full vertical lengths where geometry permits. Keep shoulder beads off completed panels.

Horizontal rails next. Finish each rail with horizontal passes from natural break to natural break. Remove rollover from the adjoining panel or stile before it skins.

Outer stiles last. Run them top to bottom as the final visual frame, keeping the wet join at rail intersections rather than scrubbing across them.

Edges as separate planes. Coat only approved edges, with a controlled thin film. Unload both arrises and inspect the opposite face after each edge; paint rolled around a corner becomes a run on the face you are no longer watching.

The order is not decoration. It lets each element finish in the direction the door reads, confines joins to construction breaks, and prevents the last tool from crossing every earlier field.

Roll a flush or slab door as one uninterrupted field

A flush door exposes every stop, overlap, and texture change.

Complete any approved far edge first and remove rollover from both faces.

Start at one face edge and work in parallel vertical lanes sized to the cover. Place an even charge, distribute it into the adjacent open lane, and keep the join workable.

Do not press to stretch a starving cover. Reload before it chatters or prints dry shoulders.

After coverage is even, make light continuous vertical layoff passes in one direction across the face. Maintain the same pressure and overlap from the first lane to the last.

Finish toward the accessible edge so hands, clothing, and frame do not cross the completed face.

Inspect all four arrises and the bottom edge for gathered coating.

If the dry test panel shows texture the specified finish will not accept, stop. A different cover or application process approved by the coating/door maker may be required. Neither a cage frame nor a second coat guarantees correction.

Inspect while open, between coats, and before closing

Use raking light from both sides and view the door standing at normal eye level. While the coating remains safely workable, check:

profile corners and the lower edges of panels for sags;

rail/stile intersections for pools or crossed layoff texture;

face edges for ropes and rollover;

flush faces for lap bands, starvation, bubbles, lint, and uneven stipple;

hardware recesses, labels, clearances, seals, and drainage for accidental coating;

the opposite face after every edge.

Correct only within the coating’s stated working behavior. When the roller begins to drag, pull strings, lift the film, or preserve a track, stop. Let the coating reach its maker-defined repair state; do not dig into skinned film.

Between coats, use the label/TDS for inspection, sanding/de-nibbing permission, dust removal, and recoat interval. Repeat the same geometry sequence. Before turning, rehanging, installing hardware, latching, contacting a stop, compressing weatherstrip, or exposing the finish to service, wait for the specific handling, assembly, block-resistance, and cure condition the system requires. “Dry to touch” is not permission to close a door.

Reassemble from the labeled map. Test swing, latch, hinges, closer, lock, seals, sweep, clearances, and any required self-closing or egress function against the pre-work baseline. If the finish sticks, imprints, or tears, stop cycling it and follow the coating maker’s block-repair guidance.

What goes wrong (and the fix)

| Symptom | Investigate first | Correct next decision |

| Cover skids or stops on layoff | Half-seated or mismatched cover, dried cage contamination, excessive load | Stop off the door; clean, reseat, and repeat the dry spin. Do not press harder |

| Cover wobbles or walks | Unproven core fit, incomplete seating, cage contamination | Remove and prove the assembly again; no exact-union frame earns a fit claim by force |

| Heavy shoulder lines | Overload, pressure, or a cover wider than the bounded element | Unload while safely open; reduce load and keep the whole cover on one plane |

| Panel-corner sags | Excess pushed into moulding or left below a rail | Draw out only while safely open; otherwise wait for the system’s defect-repair state |

| Rail/stile picture framing | Dry joins or inconsistent layoff direction | Use smaller bounded sections and natural breaks; preserve each member’s direction |

| Flush-face lap bands | Interrupted field, starved lanes, or joining into setting film | Stop late correction; after the approved repair state, restage an uninterrupted face |

| Bubbles or unacceptable texture | Cover/coating interaction, overwork, contamination, or test failure ignored | Follow the product diagnosis; change only to a maker-approved applicator/process |

| Door sticks or imprints | Existing tight clearance, added film, premature closure, insufficient cure | Stop cycling; restore designed clearance and follow block-repair/cure guidance |

| Hardware or seal no longer works | Coated contact/mortise, mixed parts, or premature assembly | Remove unintended film by the approved repair method and restore the recorded function |

Cleanup, frame care, and waste

Recover or contain excess coating only as its instructions allow. Preserve container identity and keep dirty working material separate from clean bulk material.

Remove the cover according to its maker’s method. On 47401 and 92005, the authored cage-frame method is a straight pull against the spring grip; do not twist the frame arm or use a tool that damages the cage.

Clean the cover, cage, adaptors, tray, and brush in the exact water, detergent, solvent, or proprietary cleaner named by the coating and allowed by each tool/cover maker. No universal water/solvent rule is authored. Remove coating from the cage wires and axle before it hardens, rinse or exchange cleaner as directed, and dry/store the frame without leaving the cover compressed on it. Manage wash water, solvent, sludge, rags, and unused coating under the product label and local fire/waste rules.

Which of the three frames gives the best finish? None has a documented finish-performance advantage. The cover, coating, surface, load, pressure, and sequence create the film. Choose the frame by verified fit and geometry.

Use the cover maker’s statement and the dry mount/spin/test process in Step 5.

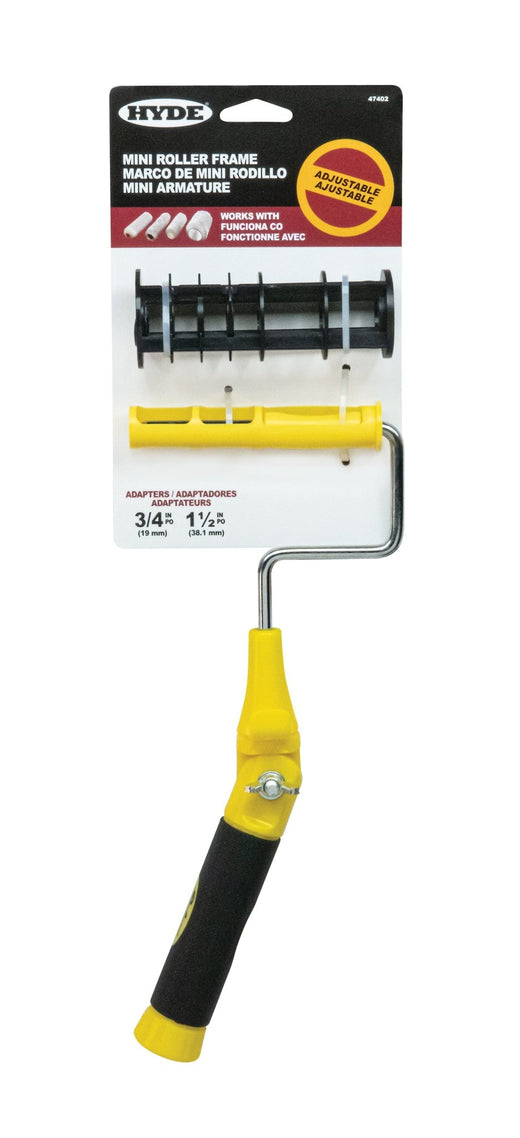

What does 47402 officially fit? Mini rollers, 3/4"-core jumbo minis, 6" mini rollers, and 4" covers on a 1-1/2" standard core. That map belongs only to 47402.

Should I use the 47402 pivot on the door face? Lock it square for ordinary flat faces. Use the pivot only when a dry geometry test proves an awkward approach actually needs it.

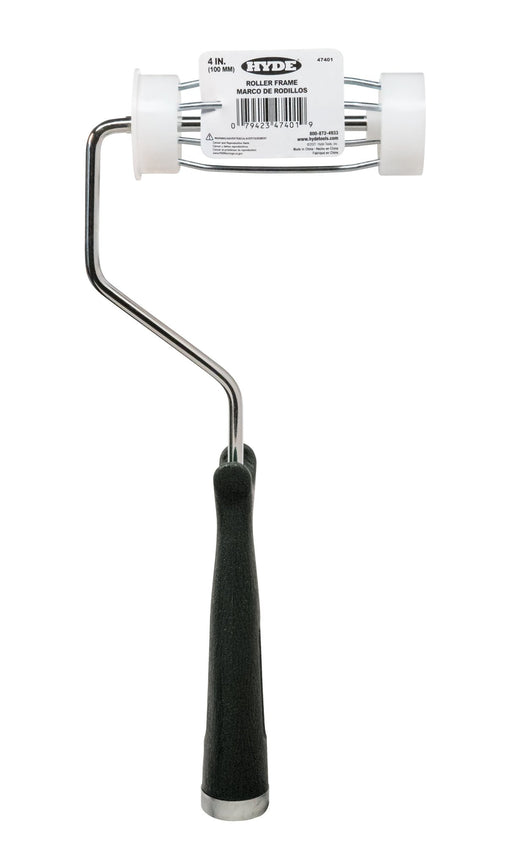

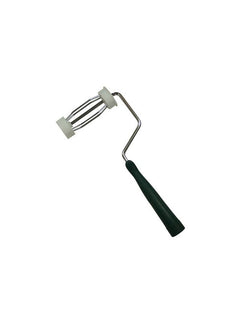

Is 92005 the same as 47401? They are documented near-twins: 4" four-wire/four-rod cages with 10" plastic handles.

Should a panel door be rolled top to bottom? Work panel fields first, then center verticals, rails, outer stiles, and approved edges. Within each member, finish in that member’s long direction.

Can I roll the profiles too? Not where the cover cannot land fully. Brush inaccessible moulding and corners, then roll the flat field into that still-workable boundary.

When can I turn, hang, or close the door? Only at the coating maker’s stated handling, assembly, blocking, and return-to-service condition. No universal time applies.

Can a mini roller create a factory or spray finish? This guide makes no such guarantee. Prove the dry test panel; if it fails the specified finish, change to an approved process.

The history footnote

The modern paint roller is usually credited to Norman Breakey in Toronto around 1940; his remembered contribution was already frame-shaped — a bent “7” carrying a fabric-covered cylinder. The mini cage used here is the same compact machine after an anonymous spring-wire upgrade that made the cover grip and turn rather than merely ride an axle.

Every one of those PDP guides lists this job in its applications, and this guide links back to all three; the product↔job graph runs both directions.

Open evidence boundaries:

The guide is complete inside those boundaries. Where the exact door, coating system, cover fit, or operating requirement is unknown, the correct next step is identification and a dry/system test—not a generic door-painting assumption.
