How to Prepare Copper Tube and Fittings for a Soldered Joint

The decisive fact: solder does not bridge bad preparation. A sound capillary joint depends on the tube and fitting overlapping at the intended clearance, with clean mating surfaces. Oxide, grease, a burr, a distorted tube end, incomplete insertion, too much removed copper, standing water, burned flux, or an unapproved material system can defeat the joint before the solder wire ever reaches it.

Difficulty: the hand motions are basic; the diagnosis is not. A first-time installer can learn to cut, ream, and clean a practice joint.

No universal time or temperature is stated here. Joint size, tube and fitting mass, heat source, solder alloy, flux, service, ambient conditions, and manufacturer instructions all change the heat input. The Copper Development Association's procedure uses the joint's response — solder melting from heat conducted through the assembled tube and fitting — rather than a made-up clock.

Name what the tube carries

Do not start by assuming that every copper line is domestic water.

Potable or non-potable water: a soldered capillary joint may be an authorized method when the tube, fitting, solder, flux, valve, and procedure are approved for the service and the adopted plumbing code permits it. Water for human consumption adds the federal lead-free boundary: EPA states that Section 1417 of the Safe Drinking Water Act defines lead-free as a weighted average of 0.25% lead across wetted pipe/fitting/fixture surfaces and no more than 0.2% lead in solder and flux, and prohibits non-lead-free solder and flux in covered drinking-water work (EPA — lead limits for plumbing, solder, and flux).

Fuel gas: stop this soft-solder sequence. The current International Fuel Gas Code model provision for copper tubing joints calls for approved gas-tubing fittings joined by brazing or an approved listed press-connect system; the Copper Development Association likewise says soft solder must not be used on copper fuel-gas joints. This guide provides no fuel-gas joining procedure.

Refrigeration or air-conditioning: stop at identification and hand the system to the qualified HVAC/R path. CDA identifies brazing, not ordinary soft soldering, as the required joining method for refrigeration piping. This guide provides no refrigerant recovery, purge, evacuation, charging, or brazing procedure.

“It looks like a water line” is not identification.

Name the joint form

This guide is for a capillary solder-cup joint: a copper tube enters a fitting socket, the socket overlaps the tube, and molten solder is drawn through the narrow space between their clean mating surfaces. It is not the method for:

press-connect fittings with seals and jaws;

compression fittings with nuts and ferrules;

push-connect fittings with seals and grippers;

flared refrigerant or fuel fittings;

threaded adapters at the threaded end;

a valve or component whose manufacturer prohibits field heating or requires its own sequence.

The fitting must be identified, approved for the system, undamaged, and intended for the tube standard in hand. Similar-looking copper parts are not proof of compatible size, pressure class, temperature class, or service.

New joint, remake, or leak repair?

A new clean tube and fitting is the straightforward case. A failed or previously heated joint is a diagnosis:

A fitting cup that has been overheated, distorted, deeply scored, thinned, cracked, or left with solder that prevents full insertion is not “clean enough”; replace it unless the component manufacturer provides an approved rework method.

A tube end that is oval, crushed, gouged, thinned by aggressive brushing, or too short to seat fully is cut back to sound tube if the layout permits; it is not rescued with extra solder.

A leaking joint may be the visible failure in a strained, frozen, vibrating, corroded, or incorrectly supported system. Fixing the ring of solder without fixing the cause only hides the next leak.

A valve, appliance connection, or heat-sensitive component follows its manufacturer. CDA explicitly directs installers joining solder-cup valves to follow valve instructions; this guide does not invent a generic valve-heating rule.

Authorization gate

Before cutting or heating, establish:

the service and system owner;

the adopted code and any permit/inspection requirement;

whether the work must be performed or supervised by a licensed plumber, gas fitter, HVAC/R technician, fire-protection contractor, or other qualified person in that jurisdiction;

the approved tube, fitting, solder/filler, flux, and test procedure;

the isolation, drain-down, lockout, and hot-work procedure;

who is authorized to restore service.

If any one of those is unresolved, preparation stops at diagnosis. A clean joint is not permission to join the wrong system.

These four products occupy two different workflow positions. The stainless minis abrade. The chip brushes apply. They do not substitute for one another.

The buyer call

Need the evidence-strong stainless mini option and more than one clean brush? Choose 46650: the stainless fill, three-pack, bristle length, handle length/material, and copper/aluminum-tubing family use are grounded.

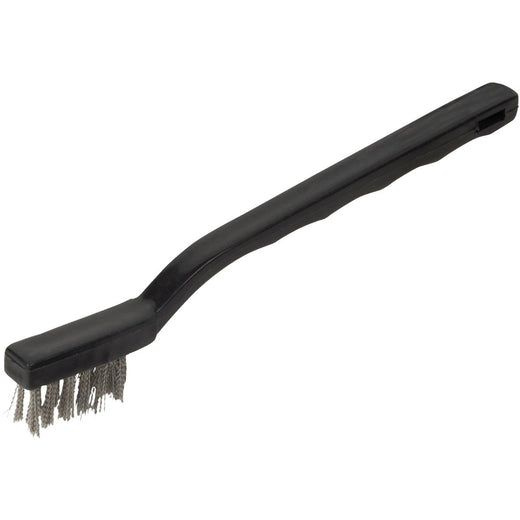

Considering 46625? Its name supports “stainless mini brush,” but its pack count, construction, and solder-prep use remain open. Buy only after checking the physical package against the intended use; do not treat it as a confirmed single 46650.

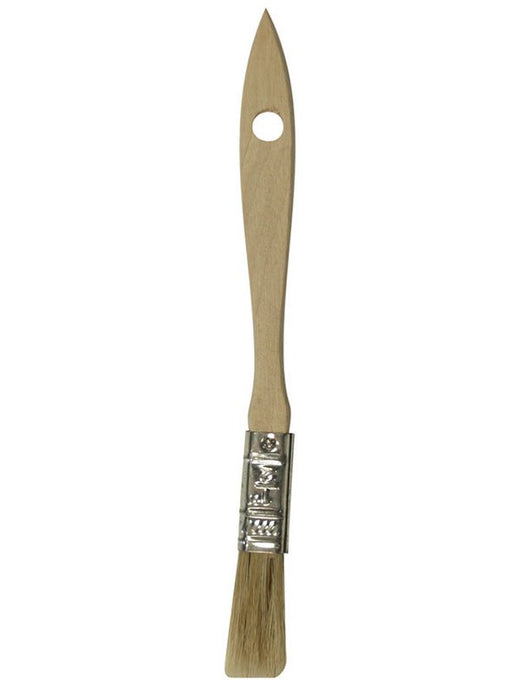

Need precise, low-volume flux placement? The narrower 80151 is the better geometry if the selected flux manufacturer allows a white-bristle chip brush.

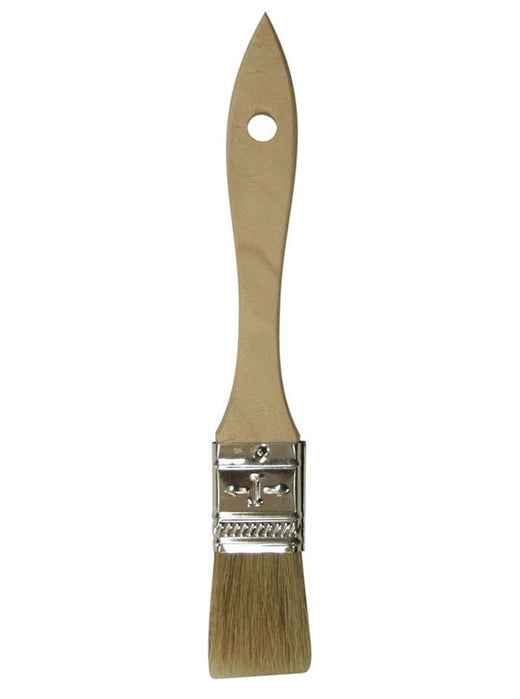

Need a broader fluxing face? 80152 buys width, not chemistry. The same label/SDS compatibility gate applies.

Need to clean the full inside circumference of a fitting cup? Buy a properly sized plumbing fitting brush matched to that cup unless physical inspection proves one of the minis reaches and cleans the entire bore evenly. A brush that polishes one stripe inside the cup and misses the rest has not prepared the fitting.

That last call is the important one. The Copper Development Association specifies a properly sized fitting brush, abrasive cloth, or abrasive pad for fitting cups. An exact SKU link is less valuable than an honest “none of these is size-proven.”

The complete tool and material bench

From this catalog

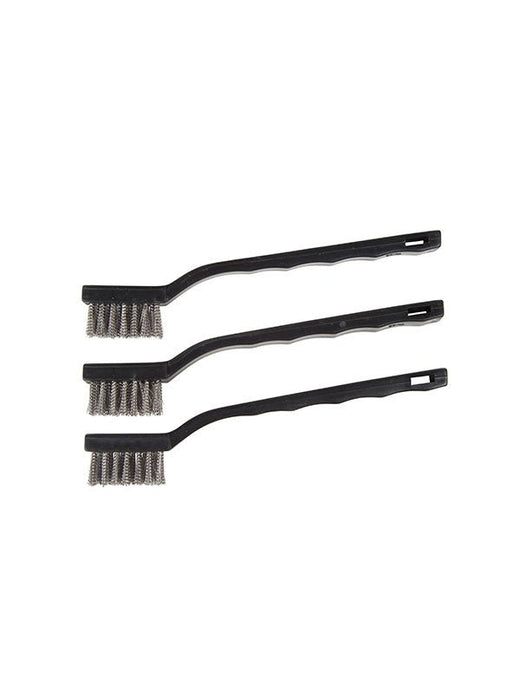

46650 stainless mini three-pack, or physically verified 46625, for accessible detail cleaning;

80151 or 80152 chip brush as a conditional disposable flux applicator;

Required from the plumbing/hot-work system

the correct tube and approved solder-cup fitting;

measuring and marking tools;

a tubing cutter or other method that produces a square, undeformed cut;

an inside reamer/deburring tool and outside deburring/chamfer tool suitable for the tube;

clean plumber's abrasive cloth or nonmetallic abrasive pad;

a clean, properly sized fitting brush;

clean lint-free wiping material;

the exact code- and service-approved solder and flux, with current label, technical data, and safety data sheet;

a heat source permitted by the component and hot-work plan;

supports that hold the joint fully seated without strain while it is heated and cooled;

heat shields/blankets appropriate to the site;

immediately available fire-extinguishing equipment and, when required, a separate fire watch;

eye protection, task-appropriate heat-resistant gloves and clothing, and any ventilation or respiratory controls required by the hazard assessment and product SDS;

the code-prescribed test equipment, test medium, gauges, plugs/caps, and documentation in the hands of the authorized tester.

Do not “make do” with a dirty brush, mystery flux, unmarked solder, a loose fitting, an improvised flame shield, or an uncalibrated test gauge. Every one of those substitutes turns an inspectable process into a guess.

Isolation and hot-work setup

Make the line safe to open

Follow the system owner's isolation procedure. Shut down and positively isolate the correct source; lock or control it where the work program requires; verify the line's identity; relieve pressure by an approved route; drain the work section; and prove the joint area contains no water, refrigerant, fuel gas, oxygen-enriched atmosphere, flammable vapor, or unknown process material.

Never apply heat to:

a pressurized or sealed volume;

a line whose contents are unknown;

a refrigeration circuit that has not been lawfully recovered and prepared by the certified technician;

a hollow component without a safe pressure-relief path;

a wall, ceiling, floor, or chase whose concealed combustible conditions have not been inspected.

Standing water is both a quality and safety problem: it absorbs the heat needed at the joint and can become steam. If the authorized drain-down cannot leave the work area dry, stop and change the system-control plan; do not answer water with a larger flame.

Set the fire boundary before the flame exists

OSHA classifies soldering as hot work in its hot-work guidance. Construction fire-prevention rules require movable hazards removed or protected, immovable hazards shielded, suitable extinguishing equipment ready, and additional personnel assigned to guard against fire when normal precautions are insufficient; heat transfer to the opposite side of walls, floors, and ceilings must be treated as an exposure too (OSHA 1926.352 — Fire Prevention, OSHA Hot Work eTool).

The working setup is:

remove combustible dust, paper, insulation, stored goods, finishes, and flammable products from the exposure zone, or protect what cannot be moved with an approved barrier;

inspect the back side of the work and every penetration through which flame, hot gas, or conducted heat can reach concealed framing or insulation;

place the shield so it protects the building without trapping flame or heat against another combustible;

put extinguishing equipment where it is reachable without crossing the fire;

assign the fire watch required by the permit/employer/AHJ and maintain it for the prescribed post-work period — this guide invents no universal duration;

keep the torch under the direct control of the operator, shut off its gas supply under the equipment and work rules, and never leave it burning or hot where it can roll.

An electric resistance soldering tool may be an option where an open flame is the controlling hazard; CDA lists it as an alternative. It is not automatically permission to work in an unassessed combustible or hazardous atmosphere.

Ventilation and PPE are product-specific

Flux fumes, heated residues, combustion gases, and any coating on the tube or nearby building material must not be treated as harmless. Read the flux and solder SDS, assess the space, provide ventilation that removes contaminants without disturbing the flame or spreading them into occupied areas, and do not perform hot work in a confined or potentially hazardous atmosphere without the required permit, monitoring, rescue, and ventilation system.

eye protection against wire fragments, copper chips, flux spatter, and molten solder;

gloves that protect against sharp cut tube and heat while still permitting control;

clothing selected by the hot-work assessment — OSHA's guidance points to cotton, denim, or flame-resistant clothing as appropriate rather than meltable everyday synthetics;

any face, skin, or respiratory protection required by the SDS and occupational program.

A dust mask is not a universal “flux fume” solution. Ventilation is the first control; respiratory protection, where required, must be selected and managed for the actual contaminant.

Cut and shape the tube — the joint begins at the saw line

Step 1: lay out the run without forcing the fitting

Measure so the tube will seat against the base of the fitting cup while the completed run remains aligned and unstressed.

Account for the fitting's actual socket depth from its approved drawing or physical component; do not borrow a dimension from a similar-looking fitting. Mark the cut cleanly around the tube. If the run only assembles by springing the tube sideways or using the fitting as a lever, correct the layout or support — solder should lock an aligned joint, not restrain a loaded one.

Step 2: make a square cut without crushing the tube

Use the appropriate cutter and keep it square. With a wheel cutter, advance in controlled increments rather than clamping down hard enough to roll or oval the end. With an approved saw method, support the tube and guide the cut so the end remains perpendicular to the tube axis. CDA accepts several cutting methods but requires a satisfactory square end and cautions against deformation.

Inspect the cut from two directions. A visibly angled end can bottom on one side of the fitting while leaving the opposite side short of full overlap. That is not fixed by feeding more solder.

Step 3: ream the inside diameter fully

A wheel cutter rolls a ridge inward. Remove it with the correct reamer or deburring tool until the bore returns smoothly to the tube's full inside diameter.

Work around the full circumference. Do not push the burr into the tube; remove the chip. Turn the tube so debris falls out when possible, then inspect and clean the bore. A bright outside with a curled copper shaving still inside is unfinished preparation.

Step 4: remove the outside burr without tapering away the joint

Deburr the outer edge so it enters the fitting cup without scraping all the flux ahead of it. The goal is a clean edge, not a long bevel and not a reduced tube diameter. Preserve the cylindrical mating surface that creates the capillary space.

On soft temper tube, use light pressure and confirm the end stayed round. CDA notes that soft tube can be deformed during reaming; a sizing tool is the repair path where approved, not forcing an oval end into the fitting.

Step 5: inspect before abrasion

Reject or correct:

an angled cut;

a remaining inside or outside burr;

an oval, bell-mouthed, crushed, split, or cracked end;

a deep cutter spiral or gouge through the mating area;

paint, adhesive, sealant, tape, marker, oil, or unknown coating within the joint zone;

a fitting cup with dents, contamination, foreign material, or damage;

a tube/fitting combination that will not fully seat or is visibly loose.

The correct moment to catch geometry is now, before clean bright metal and flux make you emotionally invested in the part.

Clean both mating surfaces to bright metal — and stop there

Step 6: establish the cleaning distance

Use the actual fitting cup as the depth reference. The outside of the tube must be clean for slightly more than the depth of the cup, as CDA directs, so the entire overlapped surface is bright and the installer can inspect a small clean witness band at the fitting mouth. Marking the insertion depth also gives a later proof that the tube stayed fully seated.

Do not abrade half the tube for appearance. The job is the overlap and a narrow witness band.

Step 7: lightly abrade the tube exterior

Use clean plumber's abrasive cloth or a clean nonmetallic abrasive pad around the entire circumference. Rotate the abrasive around the tube instead of grinding one flat. The finish is uniformly bright copper with no dark oxide, lacquer, soil, grease, or untouched stripe.

This is where “more aggressive” becomes worse:

Copper is soft. CDA warns that removing too much material from tube or fitting can produce a loose fit and a poor joint.

Deep lengthwise scratches can become pathways through the capillary joint.

A powered abrasive can remove geometry faster than the operator can see it.

An old shop abrasive can load the copper with oil, steel, paint, or grit from its previous job.

Bright metal is a condition, not a grit number and not a count of turns. Stop when the whole mating surface is clean. Do not polish for its own sake.

Step 8: clean the fitting cup completely

Use a clean, properly sized fitting brush, abrasive cloth, or pad approved for the component. A correct fitting brush contacts the entire inside circumference without gouging or removing excessive copper. Rotate it through the full socket depth, withdraw, and inspect under a light. The whole cup should show clean bright metal, including the back near the stop; a dark ring at the bottom is an unclean joint.

Where 46650 or 46625 fits honestly: a stainless mini can detail an accessible cup, shoulder, exterior fitting surface, or awkward spot when physical inspection proves its bristle head reaches the full surface. It is not automatically the primary bore tool. If the mini only reaches one wall of the socket, put it down and use the properly sized plumbing brush.

Step 9: control brush material and contamination

For this job, “stainless” does not mean “use the brush from the general hardware drawer.”

Start with a new or copper-dedicated clean brush.

Do not use one that has carried grease, paint stripper, adhesive, rust, carbon scale, or unknown shop chemistry.

Do not bring a brush from carbon-steel work onto the copper joint.

Inspect for loose or broken bristles and remove every fragment from the fitting and tube.

Keep the prepared surfaces off a dirty bench and out of a pocket.

Step 10: remove debris and protect the cleaned surface

Wipe or brush away all copper dust and abrasive debris by the approved clean method. Do not wash with an arbitrary solvent; residues can defeat solder wetting, attack elastomers, or create a fire/fume hazard. If chemical cleaning is used, CDA requires thorough rinsing according to the cleaner manufacturer's procedure.

Do not touch the bright mating surfaces with bare fingers or oily gloves. CDA specifically warns that skin oil, lubricant, and grease impair soldering. If a cleaned surface is touched, dropped, or left long enough to oxidize or collect dust, clean it again. The discipline is simple: after bright metal, only the approved flux applicator and the matching clean part touch the joint.

Dry-fit and prove the geometry before flux

Step 11: seat the joint without strain

Before committing chemistry, insert the tube into the clean fitting cup and verify:

the tube reaches the base of the cup;

the insertion-depth witness mark arrives at the fitting mouth;

the tube remains round and aligned;

the fitting is the intended orientation;

supports can hold the assembly in that position without a hand fighting it;

adjacent valves, seals, finishes, wiring, insulation, framing, and equipment can be protected under their instructions.

Dry-fit resistance varies with approved component tolerances; this guide gives no universal “should feel snug” claim. What matters is full seating without deformation and no visibly excessive looseness. If abrasion has made the fit sloppier than it was, replace the damaged component rather than relying on solder as filler.

Step 12: make alignment marks, then disassemble cleanly

Mark the fitting orientation and insertion depth outside the heat-affected joint zone with a method allowed by the system. Disassemble without dragging either prepared surface across a dirty bench. If the parts will not be fluxed immediately, protect them from reoxidation and contamination; CDA's preferred sequence is flux as soon as possible after cleaning.

This section completes the joint sequence because preparation cannot be judged apart from what follows. It is not permission to solder any system. Proceed only with the exact approved products, the component instructions, the hot-work controls, and the authorized worker established in Section 1.

Step 13: choose the approved solder and flux

Match both products to:

potable versus non-potable service;

the tube and fitting metals;

system pressure and service temperature;

component listings and warranty instructions;

the adopted code;

the manufacturer's joining procedure.

For potable water, verify the solder and flux are lead-free within the EPA limits above. “Lead-free” on one component does not qualify the rest of the assembly. Do not identify an alloy from wire color or use solder from an unmarked spool. Do not substitute brazing flux for soldering flux; CDA treats them as different compositions that are not interchangeable.

Step 14: apply a thin, even flux film with a brush — never a finger

CDA directs the installer to apply a thin, even coating of an appropriate flux to both tube and fitting as soon as possible after cleaning and warns not to apply it with fingers.

80151 gives the narrower placement face. Use it where it can coat the tube and cup completely without flooding.

80152 gives a broader face for more open work.

Neither width corresponds to nominal tube or fitting size.

The flux label/SDS and component instructions decide whether a white-bristle wood-handle chip brush is acceptable.

Break in a new chip brush on clean scrap and remove loose bristles before it enters the fitting. Load only the tips. Paint a continuous thin film over the entire mating surface of the tube and fitting cup; do not leave bare stripes, puddles, or a packed ring at the back of the cup. Keep flux out of the tube interior as far as the product instructions require.

Never return a flux-loaded brush to a different chemical or keep it as a general shop brush. Dispose of it and its residues under the flux SDS and local waste rules.

Step 15: assemble fully, twist only as directed, and wipe the outside

Insert the tube to the back of the fitting cup. CDA notes that a slight twisting motion helps distribute flux evenly. Align the orientation marks, confirm the insertion-depth witness, support the assembly, and wipe excess exterior flux with the approved clean rag. The parts must stay seated and still through heating and natural cooling.

If the joint springs apart, rotates under strain, or will not remain seated without a hand on the hot zone, stop and correct the layout/support. Soldering an assembly under load stores the failure in the finished run.

Step 16: heat the assembly, not the solder

Follow the exact heat-source and component instructions. CDA's general sequence begins by heating the tube so copper conducts heat into the fitting cup, then sweeping heat between tube and cup to warm the circumference evenly. Solder is touched to the joint as the test. If it does not melt from the heat of the copper assembly, remove the solder and continue controlled heating. Do not melt solder in the torch flame and drip it onto cold copper.

The visual discipline:

keep the flame moving over the joint area rather than parking on one point;

do not direct flame into the open face of the fitting cup;

protect adjacent material and inspect the opposite side of the work;

do not cook the flux. CDA warns that overheating burns flux, destroys its effectiveness, and prevents proper solder entry;

if the flux blackens/burns or the joint loses wetting, stop. Let it become safe, disassemble if the approved repair method permits, and return to cleaning. More solder does not revive burned flux.

Step 17: feed solder at the joint and let capillary action do the work

Once the joint melts the solder, position heat and solder according to the fitting and CDA procedure so molten filler is drawn through the capillary space toward the heat. Feed solder at the cup mouth; do not paint it around the exterior as a decorative fillet. For horizontal joints, CDA describes beginning slightly off-center at the bottom, progressing across and up, then returning with an overlapping pass up the other side. Vertical joints use comparable overlapping coverage.

The proof is flow around the joint, not a large exterior bead. Stop feeding where the joint indicates it is full under the approved procedure. A solder icicle proves gravity worked; it does not prove the capillary space filled.

Step 18: cool naturally and clean residue by product instructions

Remove heat and keep the assembly motionless. Do not disturb, twist, load, or quench the joint unless the component procedure explicitly calls for it; CDA's recommended practice specifies uniform natural cooling. Once safe and at the stage prescribed by the flux manufacturer, remove flux residue from the exterior with the approved method. Residue is not protective coating.

Continue the fire watch and concealed-space inspection for the period required by the hot-work plan. A joint cool enough to touch at the fitting mouth does not prove that framing, insulation, or debris behind the wall is cool.

Inspection and leak-test handoff

Visual inspection before pressure

Inspect the full circumference under good light:

the tube remains at its insertion-depth mark;

the fitting did not rotate out of orientation;

solder has flowed at the joint rather than balled on dirty copper;

there is no visibly unfilled sector, cracked ring, burned residue, foreign bristle, or disturbed/grainy-looking joint;

the tube and fitting are not scorched, deformed, or thinned;

adjacent valves, seals, finishes, wiring, and building material are undamaged;

the line remains supported without stress.

Visual appearance cannot certify internal fill. It can reject obvious defects and decide whether the joint is fit to enter the prescribed test.

That means this guide does not invent:

a test pressure;

a hold time;

air versus water versus inert-gas test medium;

a gauge range or accuracy;

an allowable pressure drop;

a soap solution;

a live-gas flame test;

permission to restore service.

Those choices can create a stored-energy, contamination, freeze, or explosion hazard and differ by system. The authorized tester isolates or protects connected equipment, uses the required medium and calibrated instruments, records the test, repairs any defect under an approved method, retests the full affected assembly, and obtains inspection/owner acceptance where required.

Never search for a fuel-gas leak with a flame. Fuel-gas and refrigerant lines are already outside this soft-solder method; their test and commissioning path belongs to the qualified trade and adopted code.

Potable-water restoration

After an accepted potable-water test, flush and restore the system exactly as required by the adopted code, utility/owner procedure, and material/component instructions. Remove debris and residues by the authorized process. Record the materials used where the work order or inspection requires lead-free documentation.

The handoff record

A professional closeout can answer:

what service the line carries;

tube and fitting identification;

solder and flux product/lot where required;

installer and license/certification where required;

permit/inspection reference;

hot-work permit and fire-watch closeout;

test medium, required test condition, instrument identification, observed result, and acceptance;

date and location of every remade joint.

“Looks good” is not a leak-test record.

What goes wrong — diagnose the process, not just the symptom

“The solder beads up and rolls off.”

The mating surface is oxidized, greasy, contaminated, under-fluxed, or already overheated; or the solder/flux/material system is wrong. Stop adding solder. Let the joint become safe, disassemble only under an approved remake method, remove all old residue, inspect the parts for damage, and start again at square/burr-free/bright/clean. A bead sitting on the lip is not a capillary joint.

“The solder melts in the flame but will not enter the joint.”

The solder wire is being heated instead of the assembly, the joint is unevenly heated, standing water is absorbing heat, the fit/overlap is wrong, or flux has burned. Move the flame off the wire and follow the approved heating sequence. If the system is not dry, stop and correct isolation/drain-down. If the fit is loose from over-abrasion, replace the part.

“One side takes solder and the other stays dry.”

The unfilled side may still carry oxide, may lack flux, may not have reached joining condition, or the tube may be off-center/distorted. Do not hide it under an exterior smear. Reject and remake under the approved procedure.

“The fitting turns black and the flux smokes hard.”

The joint has been overheated or the flame has been held in the wrong place. Burned flux no longer protects/wets the metal correctly. Stop heat, maintain fire controls, and remake after the assembly is safe. A larger flame shortens the route to the same failure.

“The joint weeps on test.”

Do not reheat a pressurized line and do not wipe solder over the leak. Isolate, depressurize, drain, document the failed test, determine whether the cause is incomplete cleaning, incomplete insertion, movement during cooling, poor fit, strain, freeze damage, corrosion, or wrong material, then replace/remake by the approved method and repeat the required test.

“The fitting became loose after cleaning.”

Too much copper was removed, or the parts were mismatched/damaged before cleaning. Solder is not gap filler for an out-of-tolerance capillary joint. Replace the affected tube end or fitting.

“The tube whistles or erodes downstream.”

Inspect whether the internal cutter burr was left in place and whether system sizing/velocity is correct. CDA specifically ties unreamed inside burrs to turbulence and possible erosion-corrosion. The repair may require cutting out the joint; it is not an exterior touch-up.

“There are wire fragments in the cup.”

The brush is shedding or was used too aggressively.

“The joint worked, but the wall smells hot.”

Treat it as a concealed fire until proved otherwise. Stop work, maintain the fire watch, inspect the opposite/hidden side under the site emergency procedure, use the alarm and fire response rather than assuming the odor is harmless. The joint is not the only object the torch heated.

“The old joint keeps failing after remakes.”

Look beyond workmanship: unsupported or misaligned tube, thermal movement, vibration, freezing, aggressive water, incompatible materials, excessive operating conditions, or a damaged component can repeatedly load the same location. Escalate to system diagnosis rather than performing the same remake again.

Buyer and doer tests

You need to brighten several accessible copper tube ends and keep one brush free of general-shop contamination. Buy 46650: the three-pack and copper/aluminum-tubing family use are official. Mark one “COPPER ONLY.” Do not infer that its 1/2-inch bristles fit a 1/2-inch fitting.

You are choosing between 46625 and 46650 from their pages alone. Choose 46650 when package count and construction matter.

You need to clean the bore of a known solder-cup fitting. First buy the properly sized plumbing fitting brush. A Hyde mini is an assist only if physical inspection proves complete circumferential contact; neither exact model carries fitting compatibility.

You need to apply approved flux precisely to a small joint. 80151 is the geometry call, conditional on the flux instructions allowing its white-bristle chip-brush construction.

You need a wider disposable fluxing face on open mating surfaces. 80152 is wider.

You are working on a natural-gas line. Buy none of these for a soft-solder repair. Stop and route to the gas-fitting/code path.

You are opening an air-conditioning refrigerant circuit. Buy none of these as permission to proceed. Route to the qualified, Section 608-compliant HVAC/R recovery and brazing path.

You cannot get the water out of a domestic-water line. Do not increase torch size or heating time. Correct isolation/drain-down or use another code-approved joining strategy selected by the authorized installer.

You want “extra insurance,” so you plan to rough the copper deeply and pack the cup with flux. Both moves make the joint worse. Clean lightly to bright metal and apply a thin, even flux film.

The history footnote — the modern sweat joint is a manufactured-clearance system

Soldering metal is ancient; the modern copper plumbing joint on this page is not simply an ancient seam made smaller. Its defining feature is the manufactured solder cup: tube and socket overlap at a controlled clearance so heat and capillary action can carry filler through the hidden joint.

The primary patent record shows how quickly the capillary joint became a design object of its own. U.S. Patent 2,460,665, filed in 1944 and issued in 1949, describes a copper/brass/bronze solder fitting with a tube inserted telescopically into a socket, an annular capillary space, and solder introduced after the fitting and tube are heated — recognizable joint physics, with the patent focused on managing heat at the socket rather than claiming solder itself (US2460665A — Solder fitting). By a 1965 NIBCO filing, another patent could call sweat soldering “widely used” and treat copper tube, solder cups, and capillary clearance as conventional plumbing pieces (US3334925A — Sweat soldering apparatus).

The next historical break was chemical and regulatory rather than geometric. EPA records that the 1986 Safe Drinking Water Act amendments prohibited non-lead-free solder and flux in covered systems providing water for human consumption. The socket, tube, brush, flux, and flame sequence remained; the allowable material system changed. That is why an old plumber's muscle memory cannot authorize an unmarked old spool today.

The joint's history explains its unforgiving preparation. Capillary solder fittings won because factories could hold the geometry and installers could make the bond with small hand tools. Over-abrade the tube, leave a burr, stop short of the cup, contaminate the bright copper, or burn the flux, and the field work destroys the very manufactured conditions the fitting was invented to provide.

Do copper tube and fitting both need to be bright?

The outside of the tube through the full overlap and the entire inside fitting cup must be clean bright metal. Cleaning only the visible tube leaves oxide where the solder must travel.

Can flux clean dirty copper for me?

Flux removes residual oxide and protects an already cleaned surface during heating; it does not replace mechanical cleaning of soil and oxide. Excess flux can cause corrosion.

How much should I sand?

Only enough to remove oxide and soil uniformly. Copper is soft, and CDA warns that excessive material removal can loosen the fit. “Bright everywhere, geometry unchanged” is the test.

Why must I deburr the inside if the burr is not in the solder joint?

Because it remains in the waterway. CDA warns that the rough internal edge creates local turbulence and increased velocity that may lead to erosion-corrosion.

Can I use Hyde 46650 inside any copper fitting?

No universal fit is proved. Its 1/2-inch fact is bristle length, not fitting size. Use it only where it reaches the entire surface; otherwise use a properly sized fitting brush.

Is Hyde 46625 just a single 46650?

That is not proved. Its store identity says stainless mini brushes, but its exact packet has no accepted official count or construction claims.

Does the 1/2-inch 80151 chip brush go with 1/2-inch copper?

Not as a fit claim. The number is brush width. It offers narrower flux placement; the flux instructions and physical access decide whether it is suitable.

Can I use 80151 or 80152 with any flux?

Confirm the selected flux's applicator guidance and SDS. If the chemistry attacks the bristle, contaminates the joint, or requires another applicator, follow the flux manufacturer.

Should I heat the solder?

Heat the assembled tube and fitting according to the approved procedure. Touch solder to the joint; it should melt from heat conducted through the copper. Melting wire directly in the flame can decorate a cold, unfilled joint.

How hot and for how long?

There is no safe universal answer. Follow the approved solder, flux, fitting, component, and heat-source instructions and use the joint response described by CDA. This guide deliberately supplies no invented temperature or timing.

Can I soft-solder copper gas tube?

The model code and CDA gas guidance route copper fuel-gas joints to approved brazed or listed mechanical/press methods, subject to the local AHJ and utility. Use a qualified gas fitter.

Can I use this guide on refrigeration copper?

Refrigeration piping routes to brazing and refrigerant-management requirements. EPA Section 608 certification applies to technicians performing work that could release regulated refrigerant.

How do I know the joint is good?

Preparation, insertion marks, and a complete visual ring are process evidence. The joint is accepted only after the code-prescribed integrity test and required inspection; appearance alone cannot close the loop.

Primary trade and regulator sources

EPA — lead limits for pipes, fittings, solder, and flux — potable-water lead-free requirements and 1986 statutory history.

EPA — Section 608 Technician Certification — refrigeration-service certification boundary.

OSHA 1926.352 — Fire Prevention and OSHA Hot Work eTool — hot-work isolation, combustibles, extinguishing equipment, fire watch, ventilation, and PPE.

Mueller Streamline — Innovations · Mueller copper-products brochure · US2460665A · US3334925A — sourced modern copper capillary-joint history.

Exact product evidence
