How to Paint Trim, Baseboards, and Casing — Diagnose, Cut, Roll, and Read the Finish

Each model receives a distinct disposition below; no product is added or omitted.

Time: no universal duration is authored.

Difficulty: moderate. The visible face may be narrow, but success depends on diagnosis, clean boundaries, a live brush-to-roller junction, and restraint when the coating stops accepting correction.

Everything else: the trim or assembly instructions · the exact coating label, technical data sheet, and safety data sheet · an approved brush or detail applicator for profiles and boundaries · approved cleaner, repair materials, caulk, primer, abrasive, dust-removal method, masking, protection, access, ventilation, personal protection, waste route, and lighting. None of those items is inferred from a roller cover.

Separate this job from its near neighbors

This guide owns installed interior trim as a sequence of narrow faces, edges, profiles, and long runs. It does not teach three adjacent jobs:

Rolling a door, cabinet, built-in, or furniture part to a near-spray finish is broad-face finishing. Those parts may be removable, horizontal, factory-coated, or handled between faces; their coating and support decisions are different.

Cutting in a wall or ceiling puts wall paint beside trim. Here, the trim itself receives the coating.

Brushing profiles and drawing a freehand boundary is detail work. The mini roller never becomes a cutting brush because its cover is narrow.

The useful division of labor is simple: the brush or detail tool establishes the stop line, fills profiles, and coats faces too narrow for the complete roller footprint; the admitted mini roller lays the open flat face. Neither tool should be forced to imitate the other.

Diagnose the substrate and the old film before preparation

Identify each member separately.

Record whether the visible member is solid or finger-jointed wood, veneer, MDF or another composite, previously coated metal, plastic, factory-wrapped material, or unknown. Check end grain, damaged edges, fastener holes, joints, swollen fibers, delamination, corrosion, rot, water staining, and movement. Obtain the maker’s repaint procedure for an unidentified factory finish, plastic, clad surface, gasket, or composite. A roller-cover claim cannot grant paintability.

Existing coating

Inspect under frontal and raking light. Mark sound dull film, sound gloss, contamination, chalking, alligatoring, checking, isolated chips, broad peeling, edge lifting, intercoat release, and failure to bare substrate. Make an inconspicuous system test through the coating maker’s required preparation and dry state.

Stop for widespread release, active moisture, soft substrate, loose trim, rust-through, recurring stain, or an unknown surface that the selected system does not authorize. Determine and repair the cause before cosmetic coating.

Caulk and filler are different diagnoses

Caulk belongs only in a joint that is supposed to remain sealed and accommodate the movement contemplated by the approved joint system. Filler belongs in a stable hole, dent, chip, or other repair the substrate and coating system allow.

Probe old caulk for separation, cracking, dirt entrapment, hardness, softness, and movement. Do not smear new caulk over a failed bead, pack it into a door clearance, bridge a removable joint, or use it to hold loose casing.

Probe filled areas for shrinkage, proud edges, softness, cracking, and loss of bond. Stable defects receive the exact repair system required for that substrate and finish. Moving joints, rot, swelling, and structural gaps do not become filler work. No generic filler, caulk, primer, or waiting period is specified here.

Lead and occupied-space stop rules

Suspect legacy paint

Before scraping, sanding, drilling, opening joints, or removing painted hardware in pre-1978 U.S. housing or a child-occupied facility, resolve the lead boundary. Covered paid renovation belongs under the EPA Renovation, Repair and Painting Program; homeowners should use EPA lead-safe renovation guidance for DIYers.

An ordinary drop cloth, open window, household vacuum, or careful hand does not create a lead-control plan. This guide does not authorize uncontrolled disturbance of suspect paint.

Occupied rooms

Stop ordinary work until the site plan addresses occupants, children, pets, food, fabrics, furnishings, HVAC returns, ignition sources, access paths, ventilation, dust, odor, wet coating, tools, waste, and emergency egress as required by the products and site. “Low odor” or “dry to touch” does not prove that an occupied room is ready for use.

Do not create a universal PPE list. Preparation and coating hazards differ. The current label, SDS, applicable hazard program, and actual work determine ventilation, skin and eye protection, respiratory controls, fire controls, containment, cleanup, and disposal.

Complete repair and cleaning handoffs

identify → diagnose → clean as specified → remove only failed material under the applicable hazard controls → degloss or abrade only if directed → repair substrate → repair approved joints → prime where required → remove residue by the approved method → verify ready-to-coat.

Clean before abrasion so grease, polish, wax, hand soil, cooking residue, or cleaner film is not ground into the surface. The coating system decides the cleaner and whether any rinse, neutralization, or drying condition is required.

Preserve crisp profiles. Feather a sound-to-bare edge only when the system and hazard controls allow it. Do not round a casing edge merely to erase a chip. Let every repair and joint material reach the condition its instructions require before shaping, priming, or coating.

Remove dust from moulding valleys, top edges, wall/floor junctions, hardware recesses, protection, and the landing path—not merely from the visible face. Use only the vacuuming or wiping method the coating system allows.

Mask, protect, and map the boundaries

Photograph the room and mark every coating boundary before disassembly.

Remove hardware only by the assembly’s approved method. Label parts, fasteners, positions, and orientations.

Protect floors, walls, glass, hardware, furniture, fabrics, outlets, and nearby finished surfaces against both preparation and coating.

Test masking on the actual adjacent finish. Follow the tape, substrate, and coating instructions for placement and removal state.

Keep coating out of hinge leaves and knuckles, latch and strike interfaces, weatherstrip, gaskets, tracks, sash contacts, weeps, glazing interfaces, fastener threads, and designed clearances.

Leave room to land and lift the complete roller without striking a neighboring plane. Tape does not make an oversized cover fit.

Masking is protection, not a reservoir wall. Flooding paint against tape creates a ridge and can tear the finish when the tape is removed. The operator still controls the boundary with the approved detail tool.

Admit the coating system and the tool system separately

First establish that the coating system approves the exact substrate, existing-film condition, preparation, repairs, primer where required, applicators, environmental conditions, coat sequence, working behavior, recoat, cure, cleanup, and service. Do not infer any of those from the words “trim,” “Pro,” “microfiber,” or “mini.”

Then establish the roller assembly:

Confirm the exact model and package identity.

Inspect the frame, cover, bore or mounting interface, and tray for damage, contamination, dried material, deformation, or missing parts.

For cover-only models, use a frame whose maker explicitly documents the applicable fit.

Mount by the maker’s method without bending, shimming, taping, forcing, or modifying components.

Spin and place the dry assembly on a representative trim profile. Reject rubbing, wobble, migration, binding, incomplete seating, frame contact, or shoulder overhang.

Test the complete coating system on a representative sample or inconspicuous area through its required dry and inspection state.

Exact five-model role split

The 3-inch versus 4-inch choice is made with the complete mounted footprint on the actual flat, not the nominal member width. The 1/4-inch versus 3/8-inch choice is a surface-and-finish decision, not a speed preference.

Stage the brush-to-roller handoff

Break the room into natural units: one casing leg, one casing head, one baseboard run between construction breaks, one stool, one apron, one jamb face. Stage coating, detail tool, roller, light, and protection so each unit can be completed without crossing finished work.

The sequence within a unit is:

Coat the deep or inaccessible profile and the exact stop lines with the approved detail tool.

Draw excess out of inside corners, miters, beads, and returns.

Roll the open flat while the profile and boundary films remain in the coating’s permitted joining state.

Finish the face in the member’s long direction using the qualitative method approved by the coating and cover.

Inspect both arrises, the adjacent wall or floor, the miter, and the opposite face before leaving the unit.

Maintain the junction by working one bounded unit at a time and moving directly from detail work to its flat. No number of feet, minutes, or members is universal. If the detail band changes appearance, begins to resist the tool, or no longer merges under the product’s instructions, stop. Let it reach the specified repair state rather than forcing a late join.

Load and apply qualitatively

Condition and transfer the coating only as its current instructions permit. Charge the admitted cover evenly and meter free excess at the loading station. A usable load turns on contact and releases an even film. A tool that drips, skids, leaves a wet rope at a shoulder, or needs force has failed the setup or loading readback.

Apply enough to wet the planned unit uniformly, distribute it before it changes state, even the edges, make only the permitted final pass, and leave it. No numeric pressure, roller angle, spread rate, film build, or pass count is authored.

Sequence profiles, edges, casing, and long baseboard runs

Profiles and returns

Brush or otherwise detail flutes, beads, ogees, inside corners, narrow returns, and any face the mounted cover cannot contact squarely. Pull pools out of profile bottoms. Do not bridge a reveal or erase a crisp shadow line with excess coating.

Finish one leg as a continuous visual member, then the other leg, then the head, unless the assembly or coating plan requires another order. Work miters as natural breaks without leaving a mound at the intersection. Keep wall-side and opening-side arrises clean. Jambs, stops, sash contacts, hinges, and weatherstrip are separate functional planes; coat only those explicitly included.

Complete the top profile and wall/floor boundaries, then roll the admitted open face in reachable units. Keep each new unit joined to the preceding one only while both remain in the coating’s permitted working state. Finish in the run’s long direction. At inside corners, outside corners, scarf joints, plinth blocks, door casings, registers, and stair transitions, end on the construction break instead of dragging the roller through several planes.

Inspect the top ledge and floor-side arris after each unit. Runs often begin on the face but become visible only after they wrap underneath. Do not let the roller shoulder act as a cutting edge against the wall or floor.

Read the coat and recover defects

Inspect under frontal light and raking light from the normal viewing direction. Read the surface at the state the coating maker specifies.

adhesion or release at old-film edges and repairs;

coverage and color consistency without inventing a coat count;

stipple or texture that differs across brushed and rolled zones;

dry joins, lap bands, heavy shoulders, starts, stops, and miter pools;

lint, dust, grit, bubbles, sags, curtains, and edge ropes;

caulk or filler witness, flashing, shrinkage, cracking, or movement;

wall, floor, hardware, glass, contact, and clearance contamination.

Correct only while the coating explicitly permits correction. A heavy wet shoulder may be redistributed within the allowed working state; once it drags, strings, wrinkles, lifts, or holds every new pass, stop. Let it reach the specified repair state.

| Defect | Diagnose first | Bounded recovery |

| Brush-to-roll halo | dry junction or incompatible textures | Reduce the next work unit and make the permitted live join; repair the existing plane only at the system’s specified state |

| Heavy roller shoulder | uneven load, overhang, tilted landing, or excessive release | Stop, correct the assembly/load, and re-test; never use masking as a dam |

| Skid, chatter, wobble, or walk-off | bad fit, incomplete seating, contamination, damage, starvation, or changing coating | Leave the work, prove the dry assembly again, and resume only after the cause is closed |

| Profile pools or miter sags | excess left in a low point | Draw out only while permitted; otherwise cure and repair |

| 3/8-inch texture is too coarse for the desired finish | pile/finish mismatch or failed test | Stop using 47317 for that plane; choose only an approved alternative after a representative test |

| Trim sticks to a door, sash, floor contact, or gasket | lost clearance or premature contact | Stop cycling; use the assembly and coating makers’ block-repair and service procedure |

Between coats, cure, reinstallation, and service

“Dry” is not one state. The exact system separately controls inspection, abrasion or de-nibbing, dust removal, recoat, tape removal, handling, hardware installation, contact, cleaning, cure, and return to occupied service.

Before another coat, resolve defects rather than covering them. Repeat the same member order and junction method so the finish does not alternate randomly between tools. Remove protection only at the state permitted by the tape, coating, and adjacent surface.

Reinstall labeled hardware without scoring the film or filling clearances. Confirm doors swing and latch, windows move and lock, seals contact correctly, drainage remains open, and no trim member has been bridged to a moving part. Do not close a fresh door against a stop, compress a gasket, wash the trim, replace furniture, or release occupants because the surface merely feels dry.

Cleanup and tool closeout

Keep the original coating identity and instructions available. Recover, store, contain, or dispose of coating only as they allow. Do not return contaminated working material to clean bulk.

Clean the cover, frame, tray, brush, protection, and spill tools only with methods approved by the coating and each tool maker. No universal water, detergent, solvent, thinner, additive, drain, or waste route is authored. Hyde specifically reports that dense E-volution microfiber takes more thorough rinsing than a standard cover; that is a family characteristic, not permission to choose the cleanup chemistry.

After the authorized cleaning process, inspect mounting interfaces, frame action, cover condition, tray, and detail-tool shape. Quarantine damage, dried residue, uncertain fit, or a cover whose surface no longer returns evenly. Store only in the condition and orientation the applicable instructions require.

Should trim be brushed or rolled?

Usually both when the geometry and coating approve it. The brush or detail tool owns boundaries, profiles, and too-narrow faces; an admitted mini roller owns open flats. A roller is optional when the face is too narrow, too profiled, or the desired finish/test rejects it.

Which exact model is the default?

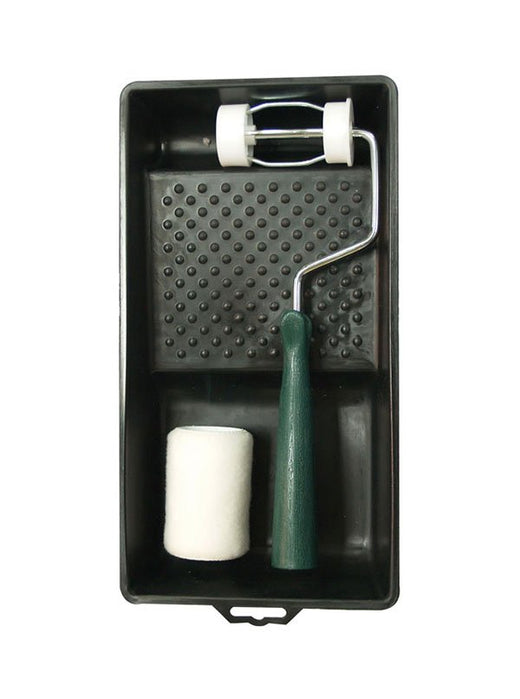

There is no universal default. Start with 94024 only when a complete 3-inch kit is needed and its physical system is verified. Evaluate 94008 or 94036 for a separately proven 3-inch frame. Evaluate 47314 for a wider 1/4-inch microfiber trim face. Keep 47317 conditional because its verified 3/8-inch pile is different from the registered 1/4-inch finish leads.

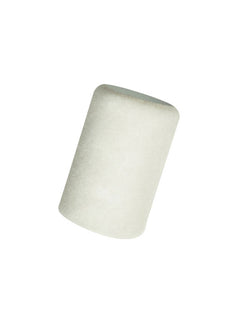

Does 94008 fit the frame in 94024?

Not proven by the accepted exact-model facts used here. Similar 3-inch Pro wording and nominal dimensions do not replace a direct fit statement. Verify exact frame-cover compatibility before purchase or loading.

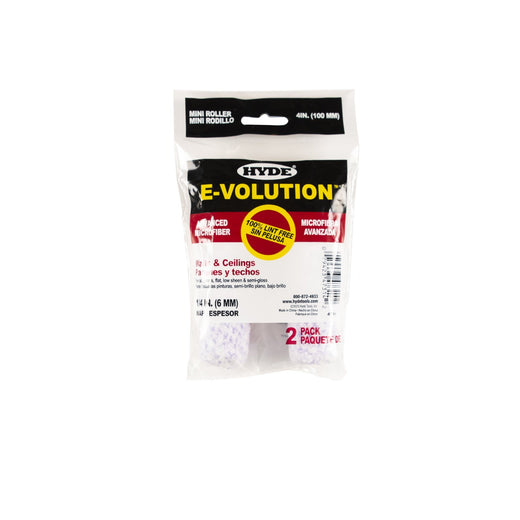

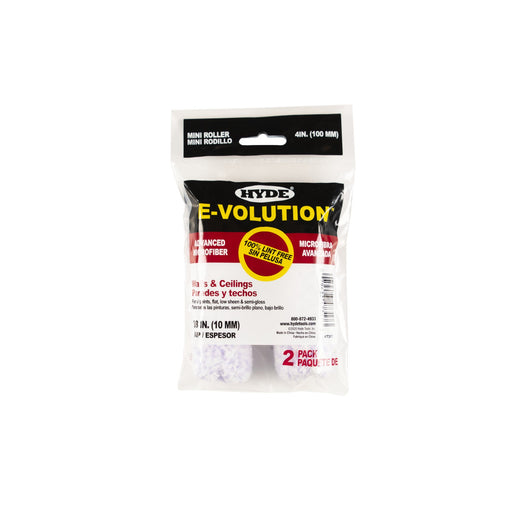

Can 47317 give the same trim finish as 47314?

Do not assume it. The exact models have different verified naps: 3/8 inch versus 1/4 inch. The surface, coating, finish requirement, and dry sample decide whether the deeper pile is acceptable.

How do I keep a wet edge on a long baseboard?

Work one bounded, reachable unit at a time; detail its boundaries and profile, then roll its flat immediately while the coating still permits joining. Continue only while the prior edge remains in that state. No elapsed-time or footage rule is invented.

What primer, grit, thinner, additive, cleaner, PPE, or cure time should I use?

Only what the exact substrate, coating, repair, hazard, and site documents require. This guide intentionally supplies none.

Can I use this method on cabinets, furniture, or a broad door?

Route those objects to their dedicated broad-face or near-spray workflow. Installed trim has different profiles, boundaries, joints, protection, and service contacts.
