Cut Vinyl Graphics and Films

Job: Hand-trim vinyl graphic film, masking film, laminate, premask, or a supported sheet assembly to a controlled line without dragging the material, cutting an unapproved substrate, or inventing claims for the title-only 42035

Time: Minutes for a straight bench trim; hours for templating, registration, layered work, repeated pieces, and safe edge/disposal control

Difficulty: Intermediate on a cutting mat; advanced on installed graphics, layered laminates, paint-sensitive substrates, compound curves, or finish-critical seams

Everything else: exact film/adhesive/laminate/premask technical sheets; approved template or cut file; clean cutting mat or sacrificial board; non-slip straightedge; square, fine marker, low-tack registration tape, and weights; lint-free cleaning system; weeding/pick and squeegee tools where required; eye/hand protection; rigid spent-segment route; knifeless tape, plotter, rotary/slitter, or specialist method when hand cutting is not substrate-safe

The defining failure is not a crooked line. It is drag: a dull or overextended point pushes the film ahead, lifts adhesive from liner, wrinkles a laminate, or tears the final millimeter.

The useful sequence is:

define the layer to sever → support the layer to preserve → register → test pressure → cut once → renew before drag.

Identify the complete layer stack

Record what is physically on the bench:

print/ink layer;

application tape/premask;

Read the exact manufacturer instructions for cutting, temperature, liner, adhesive, laminate, surface sensitivity, and application.

Do not assume “vinyl” means one thickness or chemistry. Cast, calendared, reflective, metallic, textured, perforated, window, paint-mask, and protective films respond differently.

State which layer must survive

Choose one job:

through-cut: face film and liner are both separated;

face-only/kiss cut: face film separates while liner remains continuous;

laminate trim: film and laminate are cut together;

premask trim: application tape and graphic stack are squared after masking;

substrate trim: installed film is cut while paint/glass/plastic beneath must remain intact;

registration trim: printed marks/datum define the finished edge.

The hand knife is honest for supported through-cuts and controlled trims. A consistent liner-preserving kiss cut is usually a plotter/cutter or calibrated process, not something this guide promises from hand pressure.

Installed substrate trimming carries the highest consequence. Use knifeless tape or another approved no-blade-on-substrate method when cutting the finish is unacceptable.

Verify the three knife records

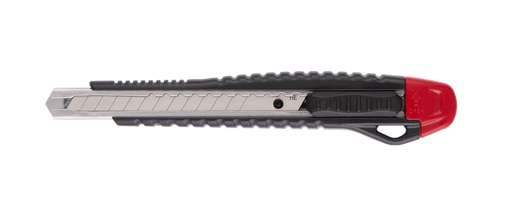

Hyde verifies an Auto-Lock 9 mm Snap-Off Blade Utility Knife, high-impact polystyrene body, stainless-steel blade track, 13 points per blade, and three blades included.

The auto-lock holds the selected extension; it does not authorize side loading or long extension.

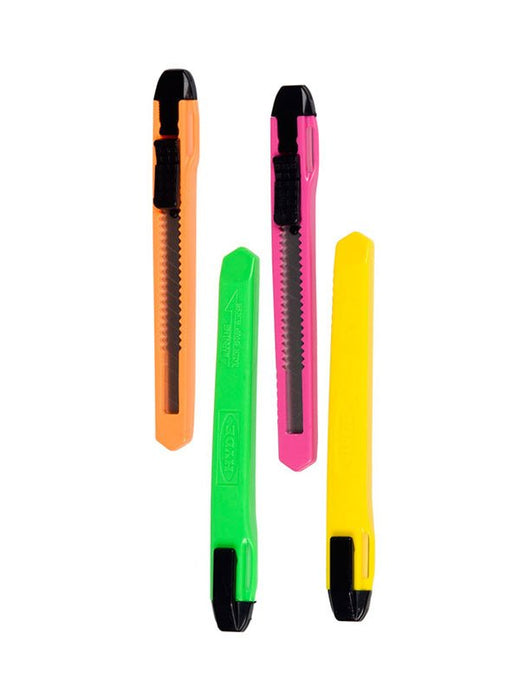

Hyde verifies an Economy 9 mm Snap-Off Blade Utility Knife with high-impact polystyrene body, retractable blade, two-piece positive lock, 13 points per blade, and one blade included.

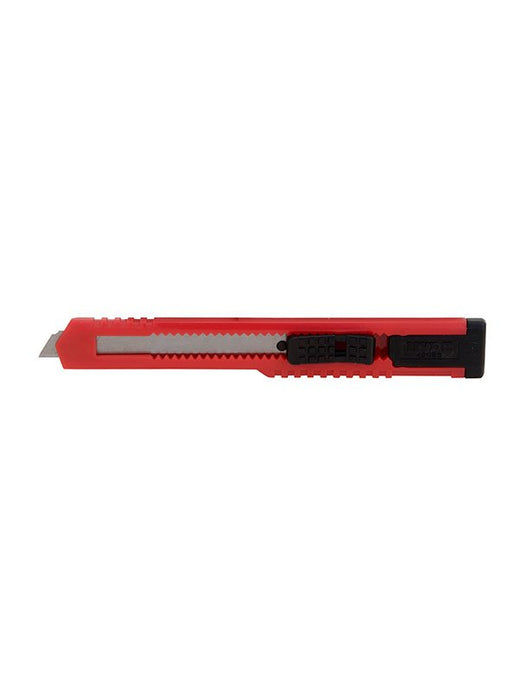

The accepted facts file carries zero product-scoped claims. Its store title identifies a 9 mm snap-off knife.

Inspect the physical package.

Verify the blade supply

42345: 9 mm carbon-steel snap-off blades, five-blade storage dispenser, 13 points each—65 derived points.

42356: 9 mm carbon-steel blades, reusable 10-blade dispenser with hang hole and used-blade storage, 13 points each—130 derived points.

42352: catalog-verified 9 mm 50-pack, 13 points each—650 derived points.

Point totals are count arithmetic, not cutting-life claims.

Use only a blade verified for the exact host. Width alone does not prove every mount.

Establish a clean film station

Film shows contamination and pressure.

clean flat support;

temperature/conditioning required by the material;

clean hands/gloves as specified;

no grit under liner;

enough table for the complete piece;

light that reveals registration and edge lift;

separated fresh and spent blades.

Do not cut over a floor, vehicle paint, finished counter, or glass without an approved sacrificial/substrate-safe method.

A single grain beneath the liner can emboss or scratch the face under straightedge pressure.

Choose the datum

printed crop marks;

liner edge only if verified square;

known panel edge;

overlap/seam datum;

application tape grid where accurate.

Do not chase a wavy film edge. Square a stable datum first.

For paired or repeated graphics, build a jig/stops from the approved dimensions. Verify the first complete piece before running the set.

Condition and flatten the material

Allow rolled film to relax according to its instructions. Weight outside the cut path without creasing or contaminating.

Do not stretch film to make a mark meet the straightedge. Tension changes the dimension; the piece can shrink or distort after release.

For laminated work, confirm laminate is fully bonded and ready for trimming. Cutting an uncured or poorly squeegeed edge can lift the layers.

If the material tunnels, curls, or buckles, correct storage/conditioning before cutting.

Select extension and grip

Expose only enough point to clear the layer stack and work against the straightedge/mat.

A 9 mm blade is a precision cantilever. More extension adds flex, and flex moves the edge away from the guide.

Hold at a low, controlled slicing angle appropriate to the film; keep fingers behind the cutting direction.

Verify the lock before contact. If the blade creeps, stop and service/change the host. Do not hold the slider with a finger while cutting.

Prove pressure on scrap

Use an offcut from the exact stack.

liner preservation if that is the goal;

print/laminate chipping;

required pass count;

substrate/mat marking;

adhesive transfer to blade.

For face-only work, inspect the liner against light and flex it gently as permitted. A scored liner may split later even when not visibly cut through.

Do not turn a lucky short kiss cut into a production method without repeatability.

Make a straight through-cut

Align the straightedge on the keep-side.

Secure the material without stretching.

Start beyond or just before the finished edge as the template allows.

Draw the fresh point in one smooth pass.

Keep the knife against the guide without levering sideways.

Continue through the end; do not rotate the wrist out early.

Separate waste gently and inspect the entire edge.

If the stack does not cut cleanly in the approved pass, do not press until the blade dives. Reassess point, layer stack, support, and whether a plotter/slitter is the proper method.

Trim to printed registration

Printing and lamination can shift relative to liner edges.

Use crop/registration marks, not the roll edge, when the print file supplies them.

Cut one axis, rotate/support without dragging the graphic, then square the second axis to the first. Verify final dimensions and image bleed.

Do not cut through a registration mark needed for the next operation until it has been transferred.

For mirrored panels or tiled graphics, label orientation and overlap before trimming.

Cut gentle curves by steering the work

For a broad curve on supported film:

use a fresh short point;

template the curve;

turn the material when possible rather than cocking the blade;

keep a continuous slice;

use light pressure;

stop before the hand crosses the blade path.

The 9 mm point steers better than a wider blade, but no minimum radius is a Hyde claim.

Tight curves, repeated contours, and lettering belong to a plotter, die, laser-compatible process, or specialist method appropriate to the material. Do not saw back and forth with a snap-off tip.

Manage inside corners and starts

A point can start a cut, but starting through multiple layers may pucker the film.

Approach an inside corner from both directions so passes meet; do not swing around it and overcut the keep-side.

For an enclosed shape, use the approved production method. Hand-plunging on installed film risks the substrate and creates overrun at corners.

If the graphic must be weeded, leave the carrier/liner intact and use the maker’s weeding process. A through-cut where a weed path was intended destroys registration.

Trim laminate and premask as a system

Laminate adds thickness and may have a tougher top surface. Premask can hide the graphic edge and change how the stack slides.

bond/cure before trimming;

correct face orientation;

straightedge does not mark the surface;

adhesive does not load the edge;

all layers cut without delamination;

liner remains intact where needed.

Use a fresh point sooner when adhesive builds. Clean or replace through the blade instructions; do not use unverified solvent on the knife or film.

Protect the installed substrate

Before any on-surface cut, identify substrate:

Confirm the film maker’s substrate-trim method.

A utility knife can cut paint, score glass coatings, gouge plastic, and create corrosion starts in coated metal. Pressure control by feel is not proof of no damage.

Use a cutting strip, sacrificial liner, edge guide, knifeless tape, or remove to a bench where the system requires it. If no substrate-safe method exists, do not cut in place.

Build a seam without cutting the substrate

For overlaps/double cuts, follow the graphic-system procedure. Use a safe separator layer or knifeless method where specified.

Do not assume the blade should pass through both film layers into paint. The overlap may look clean today while the hidden cut line fails the finish later.

Maintain seam allowance, print alignment, expansion/temperature conditions, and adhesive pressure through the system instructions.

This catalog provides no seam dimension.

Renew at the first drag

Signs of a spent/loaded point:

film lifts ahead of the blade;

edge turns white or ragged;

laminate tears at exit;

the knife wanders off the straightedge;

Clean only as permitted; otherwise retract and snap through the host/blade’s approved method.

Wear eye protection and snap away from people. Capture the segment immediately. The 42356 explicitly supplies used-blade storage; use a separate approved rigid route for other packages.

Do not delay renewal until a finished graphic tears.

Inspect before weeding/application

Under good light, check:

no liner fracture where it must remain;

no edge lift;

no print/laminate chip;

dimensions and squareness;

no loose segments.

Perform weeding/application through the exact material instructions.

Quarantine a scored substrate or questionable liner rather than hiding it under premask.

Keep the guide edge from becoming the defect

A straightedge controls only the side touching the blade. Inspect that edge for nicks, adhesive, dried ink, burrs, and rocking.

Set the guide on the keep-side and choose a surface/protection that cannot emboss or scratch the graphic. Hold pressure away from the blade path; do not curl fingers over the cutting edge.

For a long cut, support the guide along its length. A short ruler bridged between two weights can bow or pivot. If the operator must move a hand during the stroke, stop at a planned overlap only when the material/process allows it; otherwise use a longer guide.

Clean the guide through the film maker’s safe chemistry. Solvent residue transferred from the straightedge can attack print, laminate, adhesive, or liner even when the cut itself is perfect.

Handoff repeated work

film/lot and stack;

knife/blade model;

Give the next operator the approved sample, not “about this much pressure.”

Clean and store

Retract fully. Remove adhesive through host/blade instructions without exposing fingers or using unverified solvent.

Keep the stainless track claim limited to 42045; no track material is accepted for 42035 or 42036.

Store blade packages dry, labeled, and separated. Keep 42352’s packaging flags visible.

Reconcile fresh, partial, and spent stock without dumping blades onto a bench.

What goes wrong (and the fix)

Film bunches ahead of the cut. Renew the point, shorten extension, improve support, and lower slicing pressure.

The liner splits during weeding. The hand “kiss cut” went too deep; move to a calibrated plotter/process.

A straightedge scratch appears on laminate. Change to a surface-safe guide/protection and reject/repair through the film system.

Installed paint is scored. Stop in-place knife work and use a verified no-cut/knifeless route.

Inside corners are overrun. Approach from two directions or use machine cutting.

42035 is described as auto-lock. Remove it; its lock is unverified.

42352 is called a reusable hang-hole dispenser. Remove it; only the 50-pack and 13-point facts are accepted.

Segments enter an open trash bag. Restore rigid spent capture; use 42356’s claimed chamber only for that member.

Adhesive loading is mistaken for dullness. Clean as permitted or renew, then adjust material handling.

A local cut count becomes a blade-life claim. Remove it; service varies with stack and technique.

The history footnote

Snap-off blades moved edge renewal into the knife: instead of stopping to sharpen or replace a whole blade, the operator exposes the next point. Film work makes that logic visible because the material announces dullness immediately through drag.

Exact tools, verification, and backlink footer

Derived point totals are arithmetic only.
